ENGINE OIL PRESSURE GAUGE : Component Parts Location

INFOID:0000000004428614

ENGINE OIL PRESSURE GAUGE : Component Description

INFOID:0000000003935323

VOLTAGE GAUGE

AWNIA0217ZZ

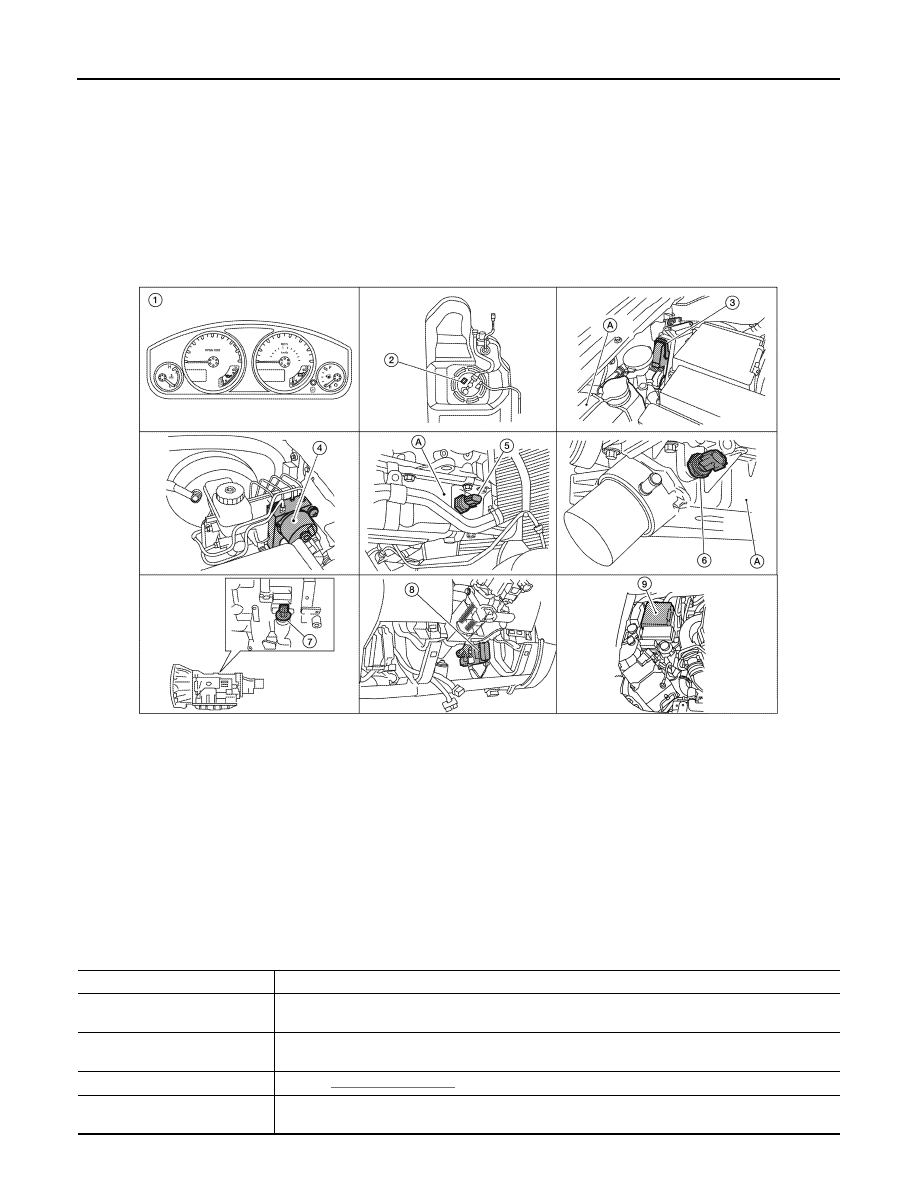

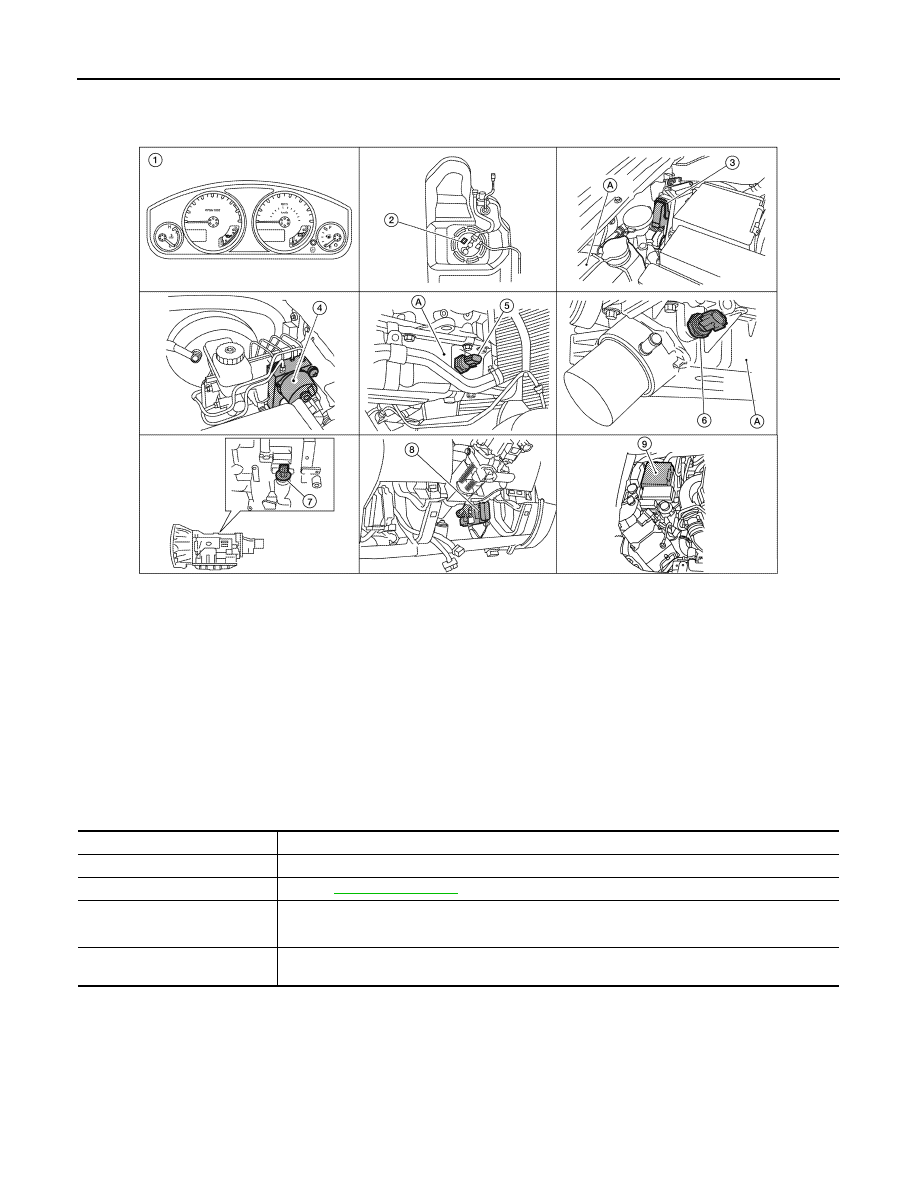

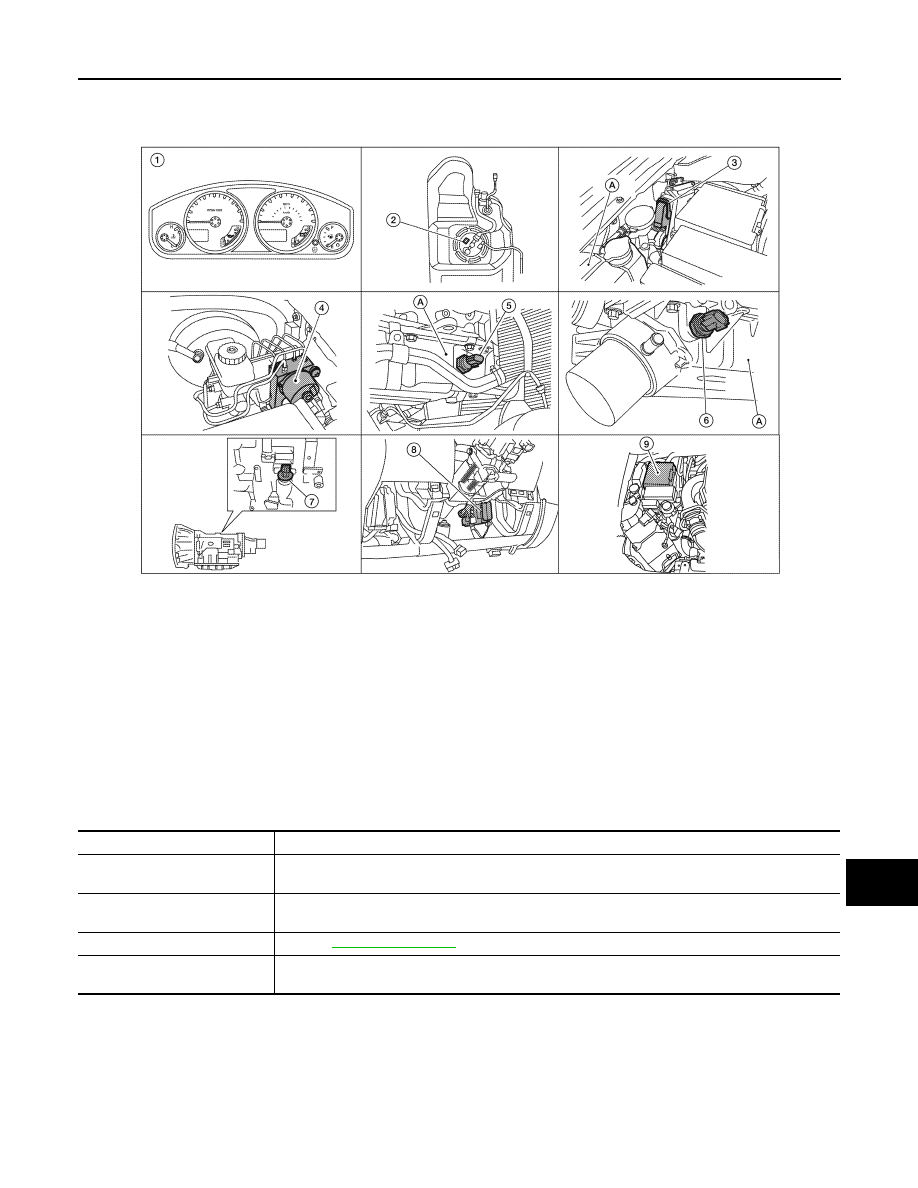

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Indicates the engine oil pressure (low/normal) according to the oil pressure switch signal received
from BCM with CAN communication line.

IPDM E/R

Reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch signal
to the combination meter via BCM with the CAN communication line.

Oil pressure switch

Refer to

MWI-34, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R via CAN communication to the
combination meter via CAN communication.

2009 Pathfinder

MWI-14

< FUNCTION DIAGNOSIS >

METER SYSTEM

VOLTAGE GAUGE : System Diagram

INFOID:0000000003935324

VOLTAGE GAUGE : System Description

INFOID:0000000003935325

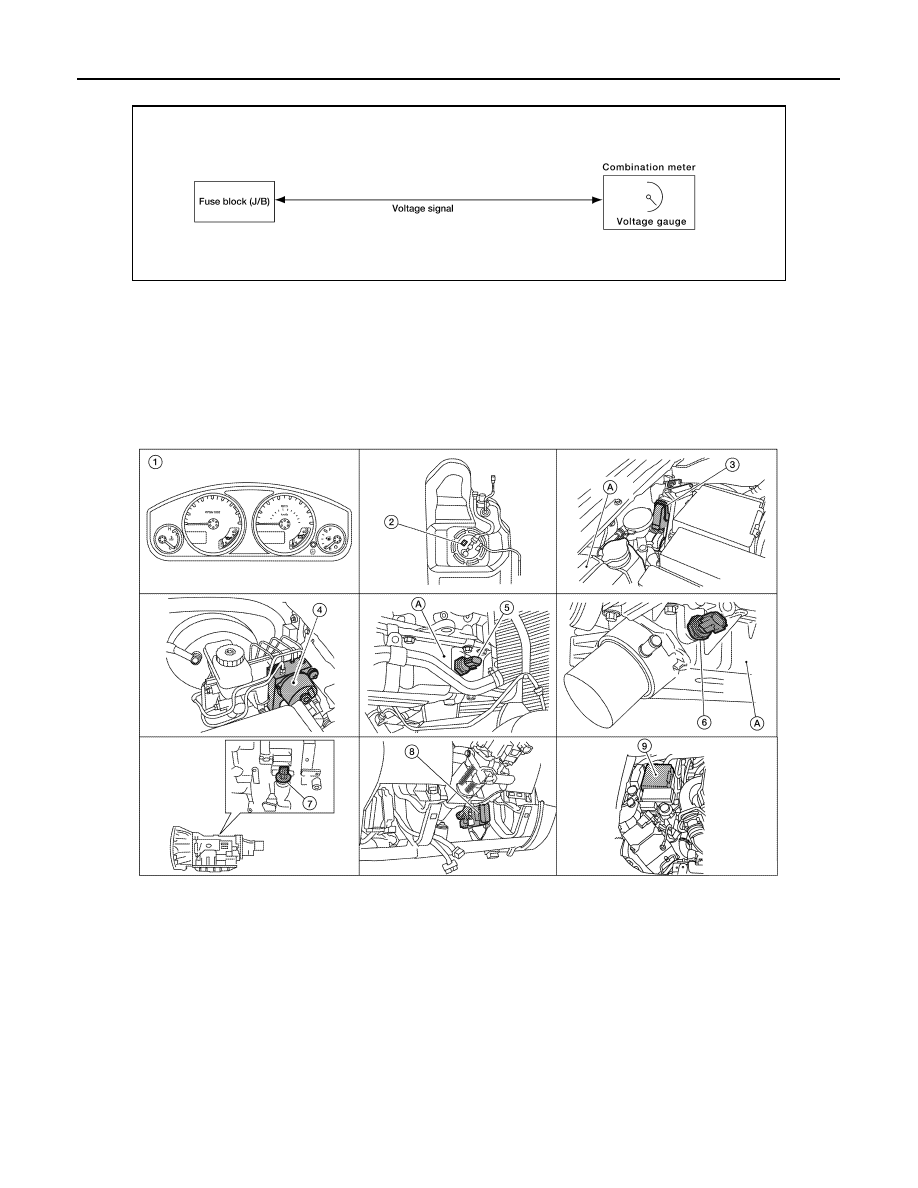

The voltage gauge indicates the battery/charging system voltage.
The voltage gauge is regulated by the unified meter control unit.

VOLTAGE GAUGE : Component Parts Location

INFOID:0000000004428615

AWNIA0106GB

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

2009 Pathfinder

MWI

METER SYSTEM

MWI-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

VOLTAGE GAUGE : Component Description

INFOID:0000000003935327

ODO/TRIP METER

ODO/TRIP METER : System Diagram

INFOID:0000000003935328

ODO/TRIP METER : System Description

INFOID:0000000003935329

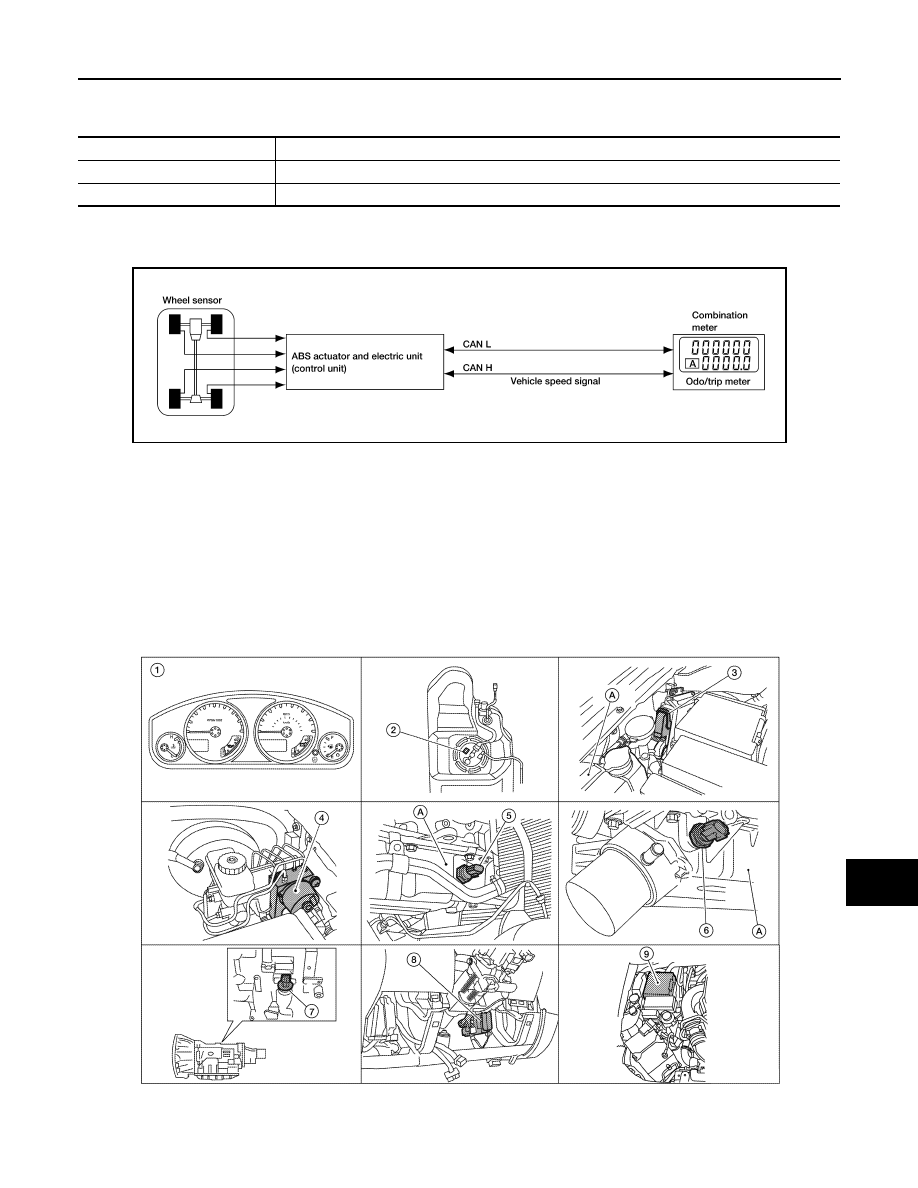

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-
nation meter and the mileage is displayed.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

Refer to Owner's Manual for odo/trip meter operating instructions.

ODO/TRIP METER : Component Parts Location

INFOID:0000000004428616

Unit

Description

Combination meter

Indicates the battery voltage according to the voltage signal received from the fuse block (J/B).

Fuse block (J/B)

Transmits the battery voltage signal to the combination meter.

AWNIA0005GB

AWNIA0217ZZ

2009 Pathfinder

MWI-16

< FUNCTION DIAGNOSIS >

METER SYSTEM

ODO/TRIP METER : Component Description

INFOID:0000000003935331

SHIFT POSITION INDICATOR

SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000003935332

SHIFT POSITION INDICATOR : System Description

INFOID:0000000003935333

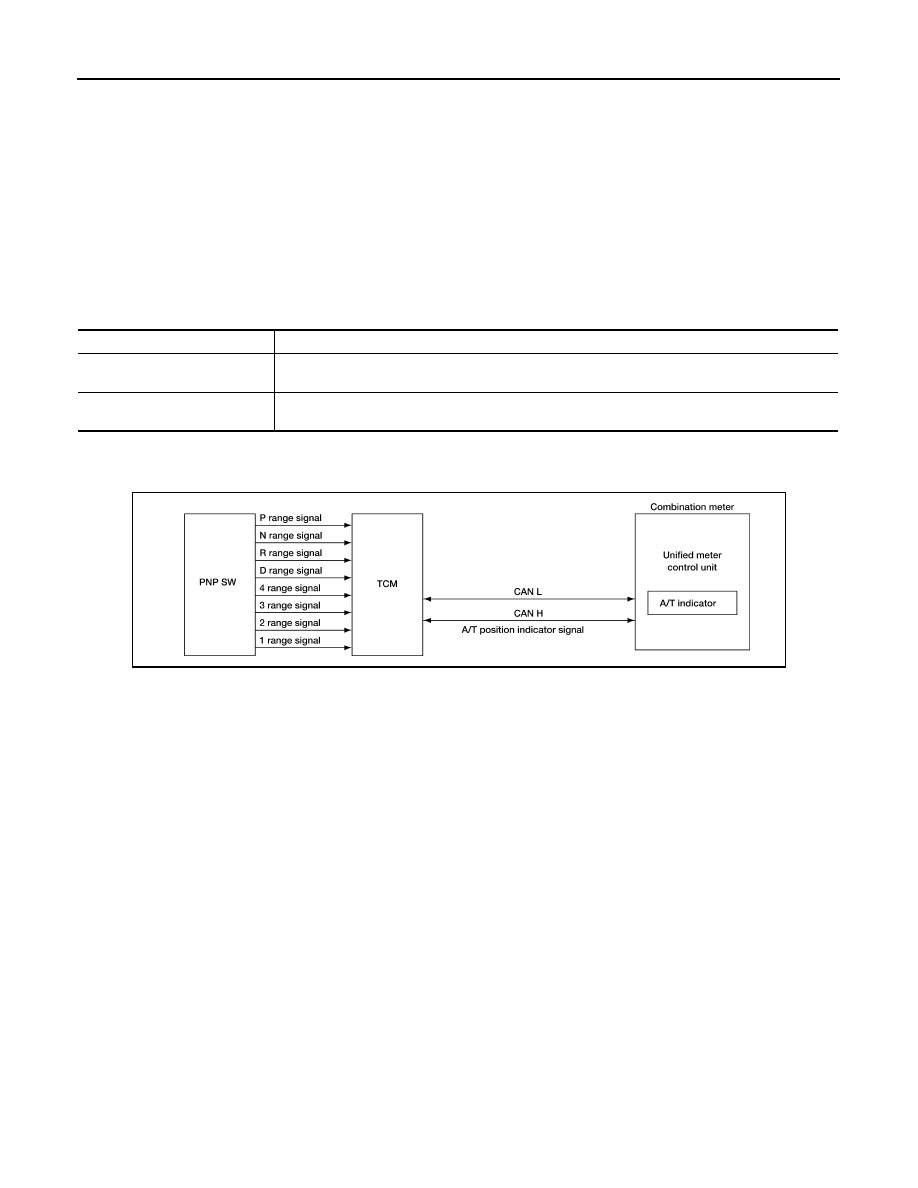

The TCM receives A/T indicator signals from the park/neutral position (PNP) switch. The TCM then sends A/T
position indicator signals to the combination meter via CAN communication lines. The combination meter indi-
cates the received shift position.

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit) via
CAN communication to mileage, and it displays the accumulated mileage to the odo/trip meter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

AWNIA0102GB

2009 Pathfinder

MWI

METER SYSTEM

MWI-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000004428617

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000003935335

WARNING LAMPS/INDICATOR LAMPS

WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000003935336

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Displays the shift position using shift position signal received from TCM.

TCM

Transmits the shift position signal to the combination meter via CAN communication.

JSNIA0449GB

2009 Pathfinder

MWI-18

< FUNCTION DIAGNOSIS >

METER SYSTEM

WARNING LAMPS/INDICATOR LAMPS : System Description

INFOID:0000000003935337

OIL PRESSURE WARNING LAMP

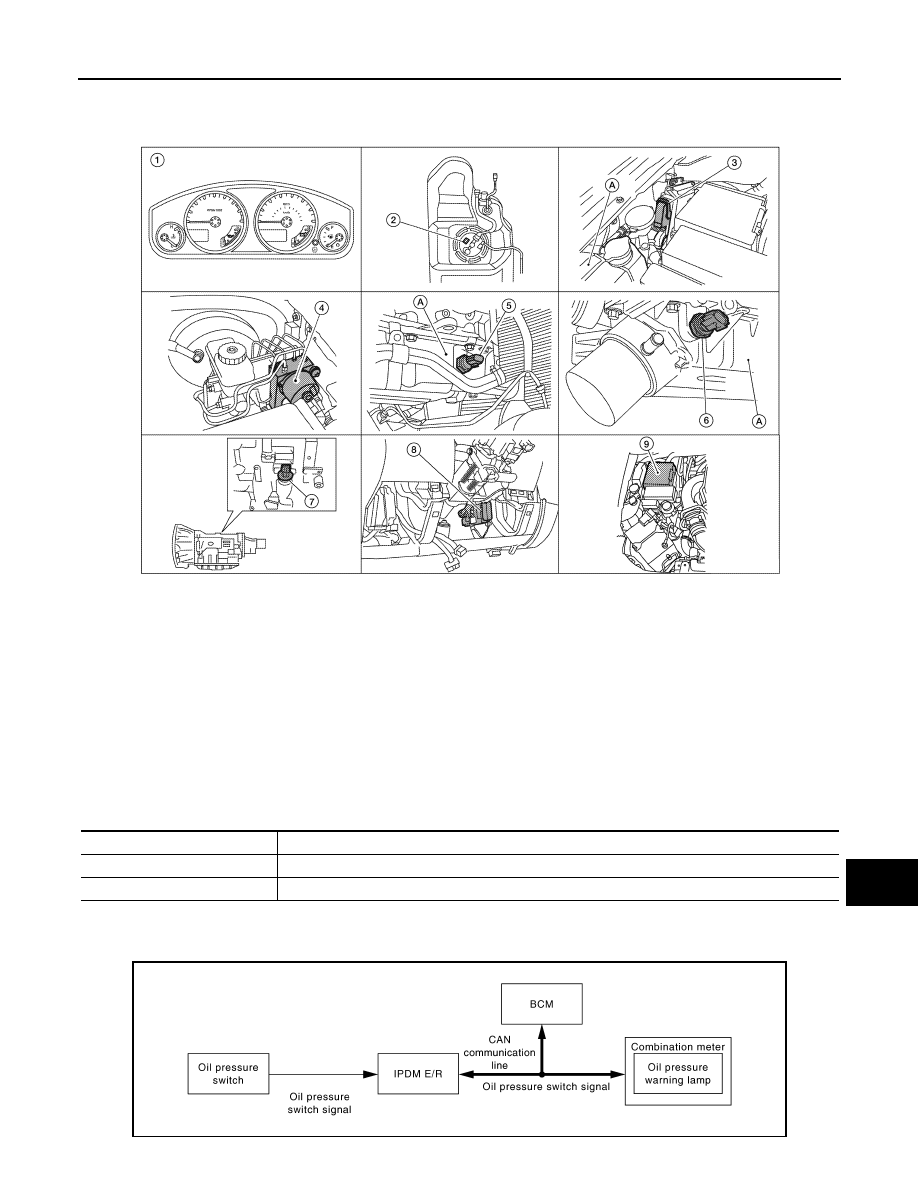

• IPDM E/R reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch sig-

nal to the combination meter via BCM with the CAN communication line.

• The combination meter turns the oil pressure warning lamp ON/OFF according to the oil pressure switch sig-

nal received via CAN communication.

WARNING LAMPS/INDICATOR LAMPS : Component Parts Location

INFOID:0000000004428618

WARNING LAMPS/INDICATOR LAMPS : Component Description

INFOID:0000000003935339

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Turns the oil pressure warning lamp ON/OFF according to the oil pressure switch signal received
from BCM by means of communication.

IPDM E/R

Reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch signal
to the combination meter via BCM with the CAN communication line.

Oil pressure switch

Refer to

MWI-34, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R via CAN communication to the
combination meter via CAN communication.

2009 Pathfinder

MWI

METER SYSTEM

MWI-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TRIP COMPUTER

TRIP COMPUTER : System Diagram

INFOID:0000000003935340

TRIP COMPUTER : System Description

INFOID:0000000003935341

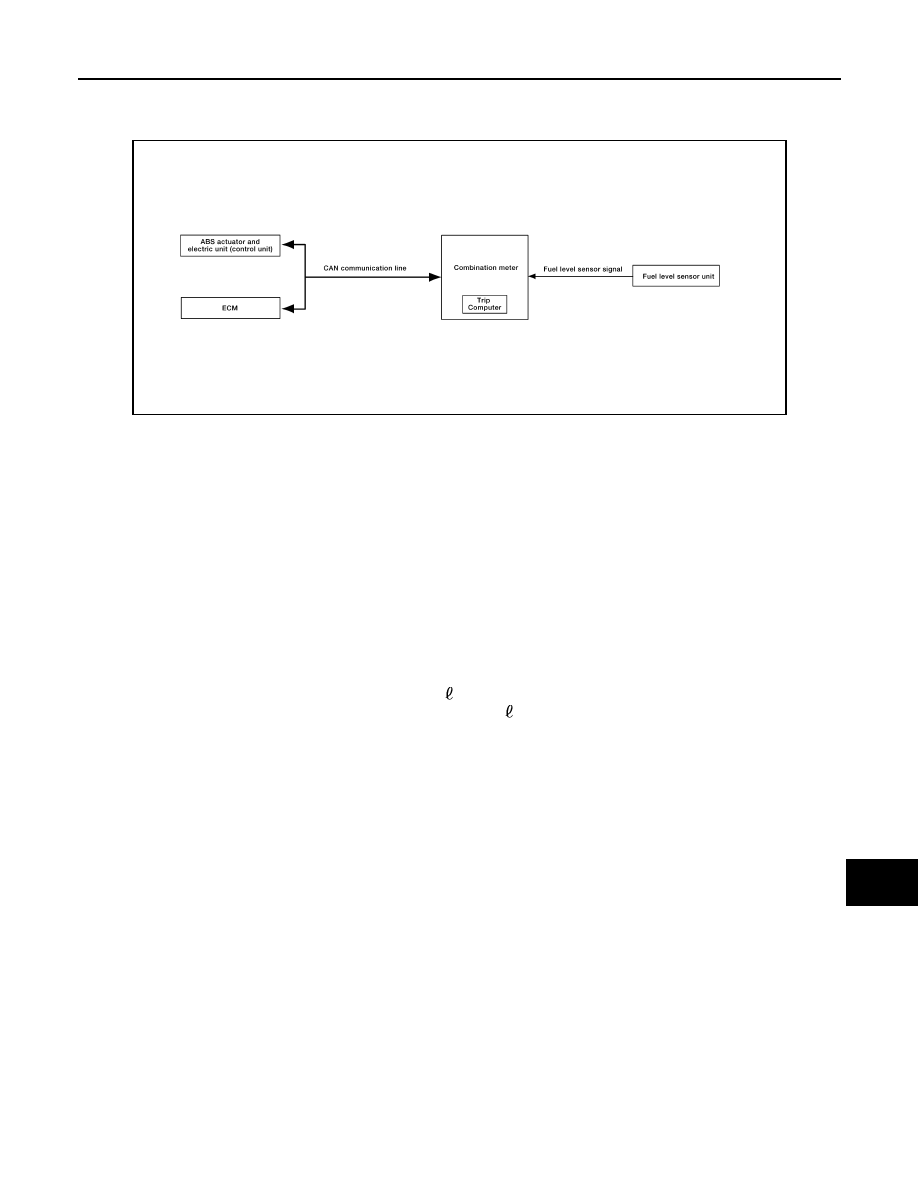

FUNCTION

The trip computer can indicate the following items.
• DTE (distance to empty)
• Trip distance
• Trip time
• Average fuel consumption
• Average vehicle speed

DTE (DISTANCE TO EMPTY) INDICATION

The range indication provides the driver with an estimation of the distance that can be driven before refueling.
The range is calculated by signals from the fuel level sensor unit (fuel remaining), ECM (fuel consumption)
and the ABS actuator and electric unit (vehicle speed). The indication will be refreshed every 30 seconds.
When fuel remaining is less than approximately 11.6  (3 1/8 US gal, 2 1/2 Imp gal), the indication will blink as
a warning. If the fuel remaining is less than approximately 9.6  (2 1/2 US gal, 2 1/8 Imp gal), the indication will
show “---”. In this case, the display will change to the DTE mode even though the display is showing a different
mode. When the battery is disconnected and reconnected, DTE mode will display “---” until the vehicle is
driven 0.3 miles (0.5 km).

TRIP DISTANCE

Trip distance is calculated by signal from the ABS actuator and electric unit (vehicle speed). If trip distance is
reset, trip time will be reset at the same time.

TRIP TIME

Trip time displays cumulative ignition switch ON time. If trip time is reset, trip distance will be reset at the same
time.

AVERAGE FUEL CONSUMPTION

Average fuel consumption indication is calculated by signals from the ABS actuator and electric unit (vehicle
speed) and the ECM (fuel consumption). The indication will be refreshed every 30 seconds.

AVERAGE VEHICLE SPEED

Average vehicle speed indication is calculated by running distance and running time. The indication will be
refreshed every 30 seconds. If average vehicle speed is reset, average fuel consumption will be reset at the
same time. After resetting, the display will show “---” for 30 seconds.

HOW TO CHANGE/RESET INDICATION

Refer to Owner's Manual for trip computer operating instructions.

AWNIA0218GB

2009 Pathfinder

MWI-20

< FUNCTION DIAGNOSIS >

METER SYSTEM

TRIP COMPUTER : Component Parts Location

INFOID:0000000004428619

TRIP COMPUTER : Component Description

INFOID:0000000003935343

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Controls the information display according to the signal received from each unit.

Fuel level sensor unit

Refer to

MWI-32, "Description"

.

ECM

Transmits the following signals to the combination meter via CAN communication line.

• Engine speed signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication line.
