Nissan Pathfinder (2009 year). Manual - part 514





MWI

METER SYSTEM

MWI-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

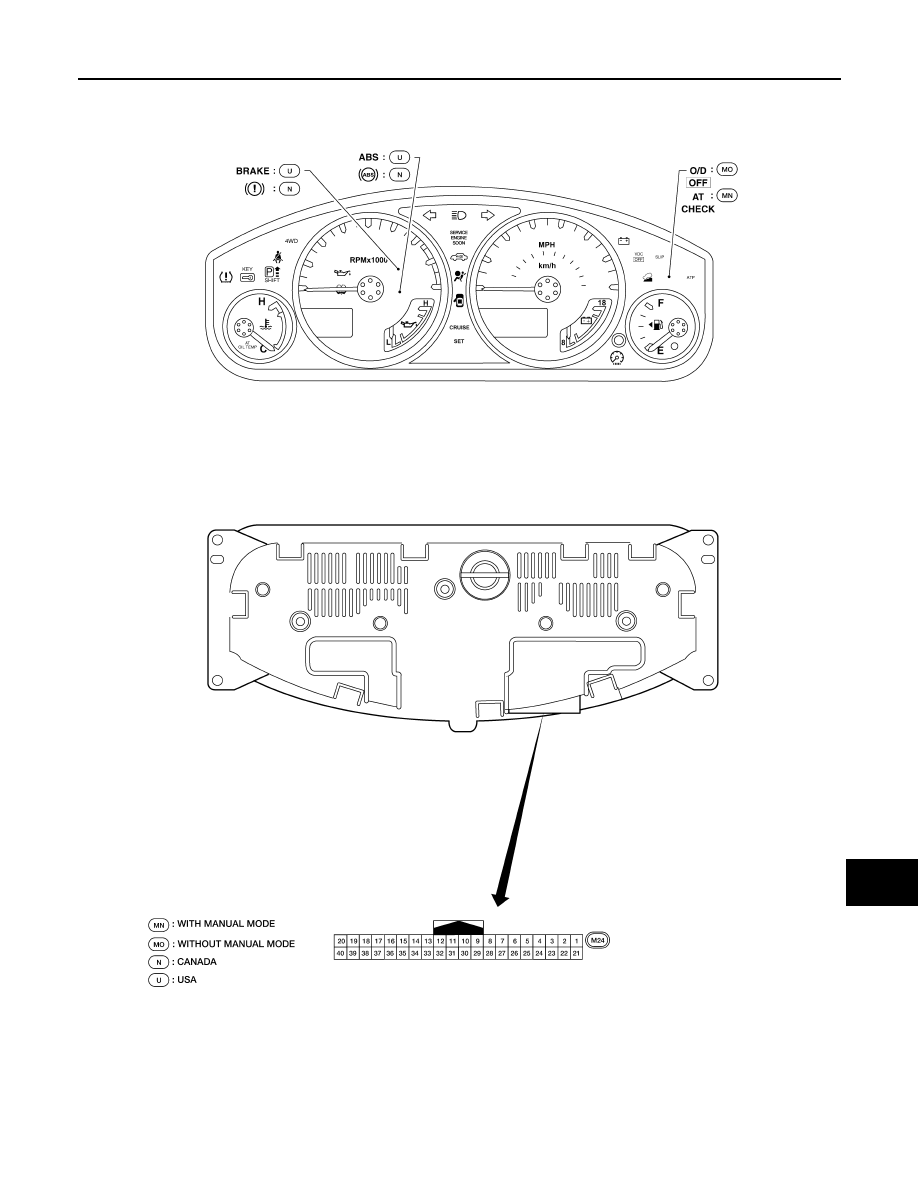

METER SYSTEM : Arrangement of Combination Meter

INFOID:0000000003935301

AWNIA0216GB

2009 Pathfinder

MWI-6

< FUNCTION DIAGNOSIS >

METER SYSTEM

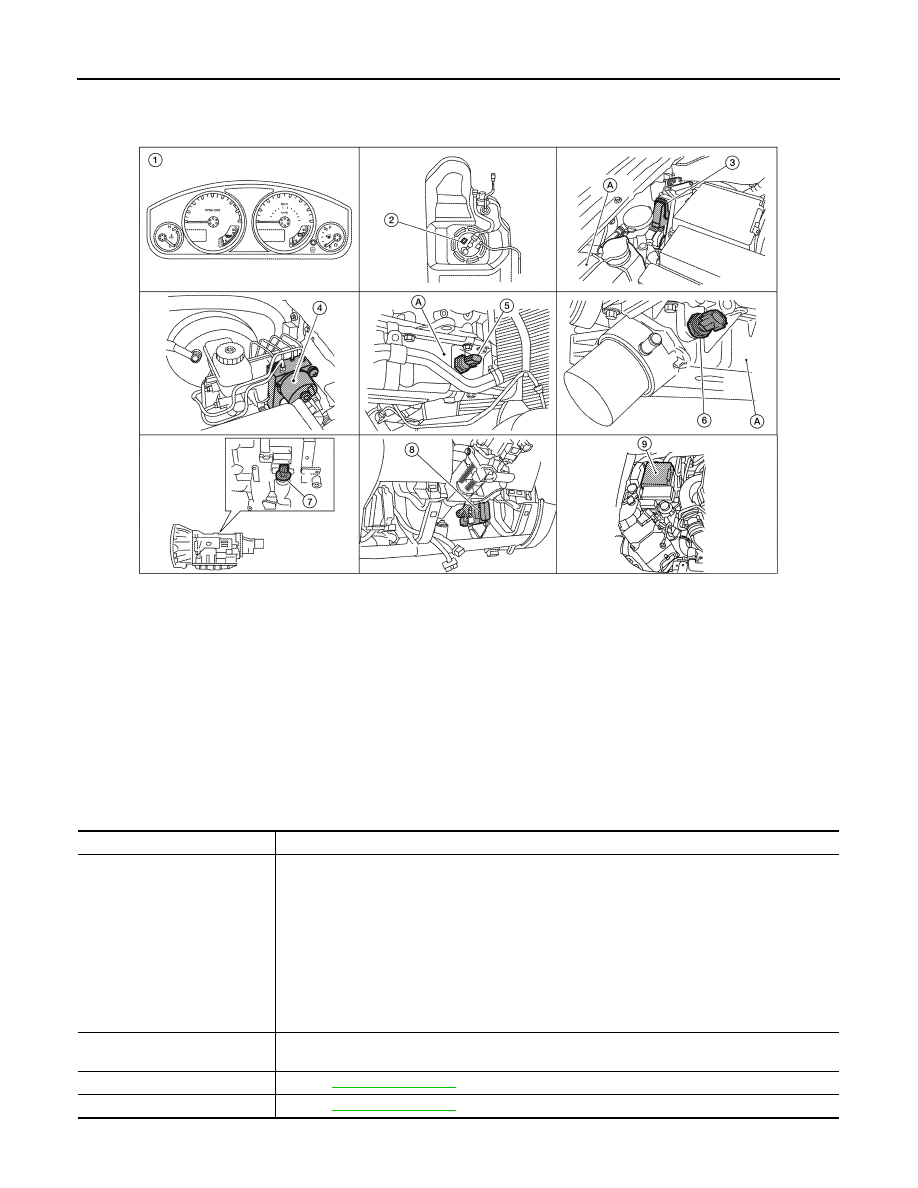

METER SYSTEM : Component Parts Location

INFOID:0000000003935302

METER SYSTEM : Component Description

INFOID:0000000003935303

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Engine oil pressure gauge

• Odo/trip meter

• Voltage gauge

• Indicator lamps

• Warning lamps

• Warning chime

• Trip computer

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the combination meter via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-32, "Description"

.

Oil pressure switch

Refer to

MWI-34, "Description"

.

2009 Pathfinder

MWI

METER SYSTEM

MWI-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPEEDOMETER

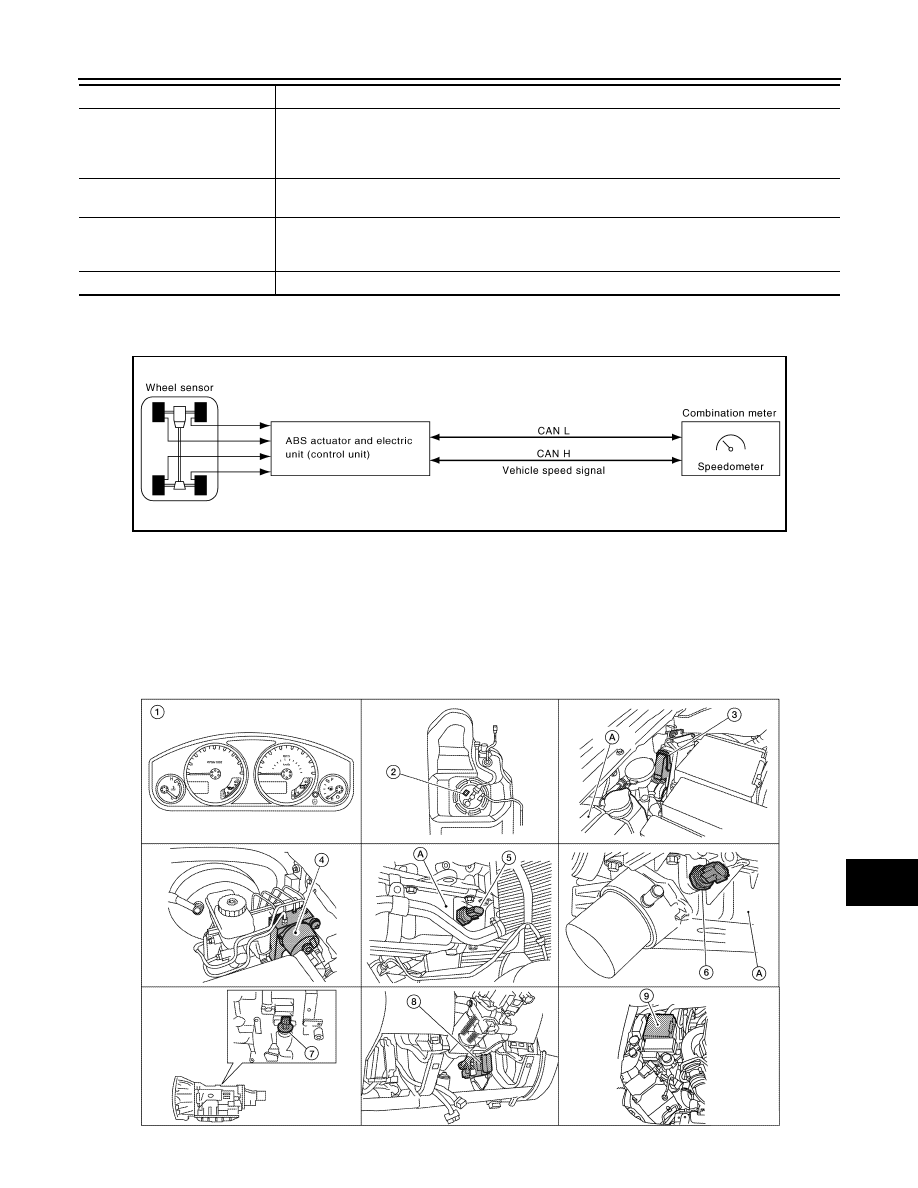

SPEEDOMETER : System Diagram

INFOID:0000000003935304

SPEEDOMETER : System Description

INFOID:0000000003935305

The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via
CAN communication lines.

SPEEDOMETER : Component Parts Location

INFOID:0000000004428610

ECM

Transmits the following signals to the combination meter with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

BCM

• Transmits signals provided by various units to the combination meter with CAN communication

line.

• Transmits the security signal to the combination meter.

TCM

Transmits shift position signal to the combination meter with CAN communication line.

Unit

Description

WKIA5370E

AWNIA0217ZZ

2009 Pathfinder

MWI-8

< FUNCTION DIAGNOSIS >

METER SYSTEM

SPEEDOMETER : Component Description

INFOID:0000000003935307

TACHOMETER

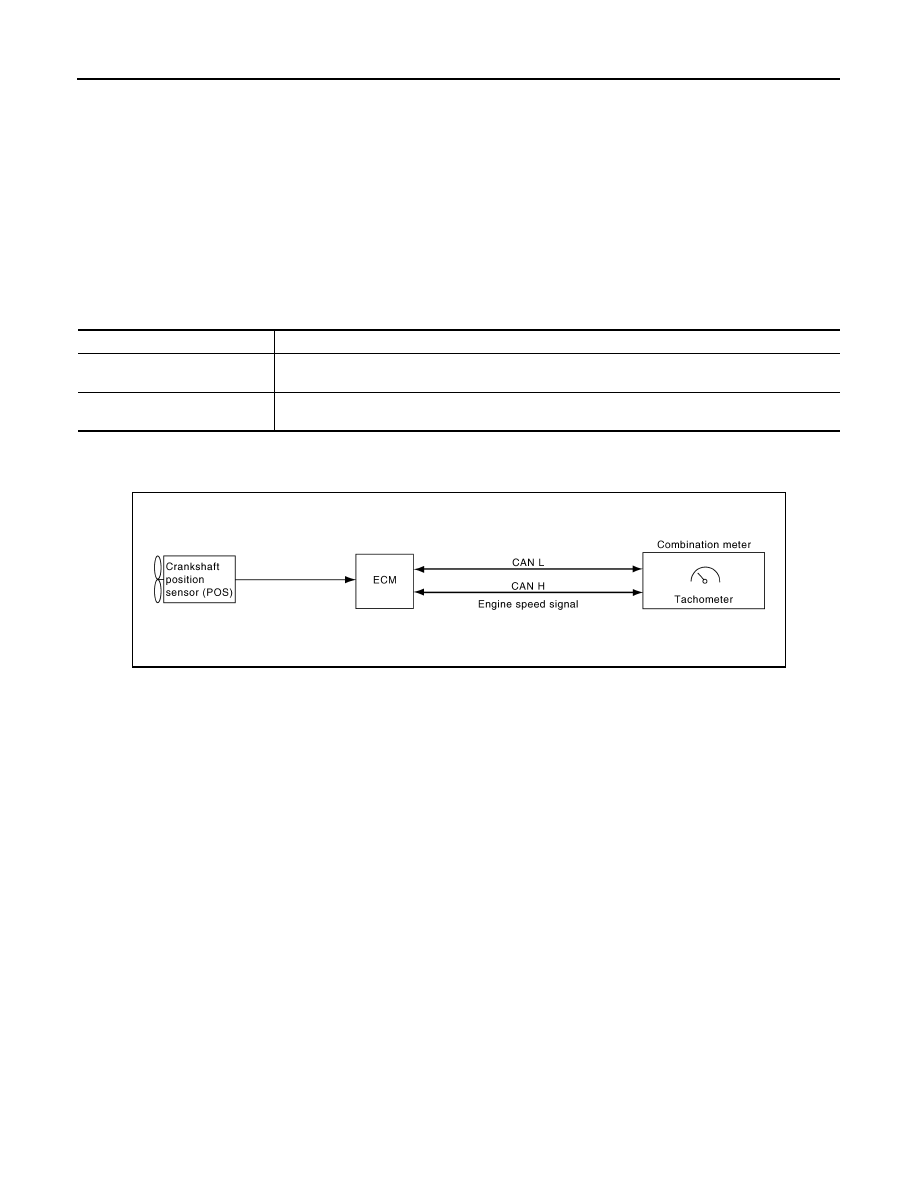

TACHOMETER : System Diagram

INFOID:0000000003935308

TACHOMETER : System Description

INFOID:0000000003935309

The tachometer indicates engine speed in revolutions per minute (rpm).
The ECM provides an engine speed signal to the combination meter via CAN communication lines.

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

SKIB6904E

2009 Pathfinder

MWI

METER SYSTEM

MWI-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

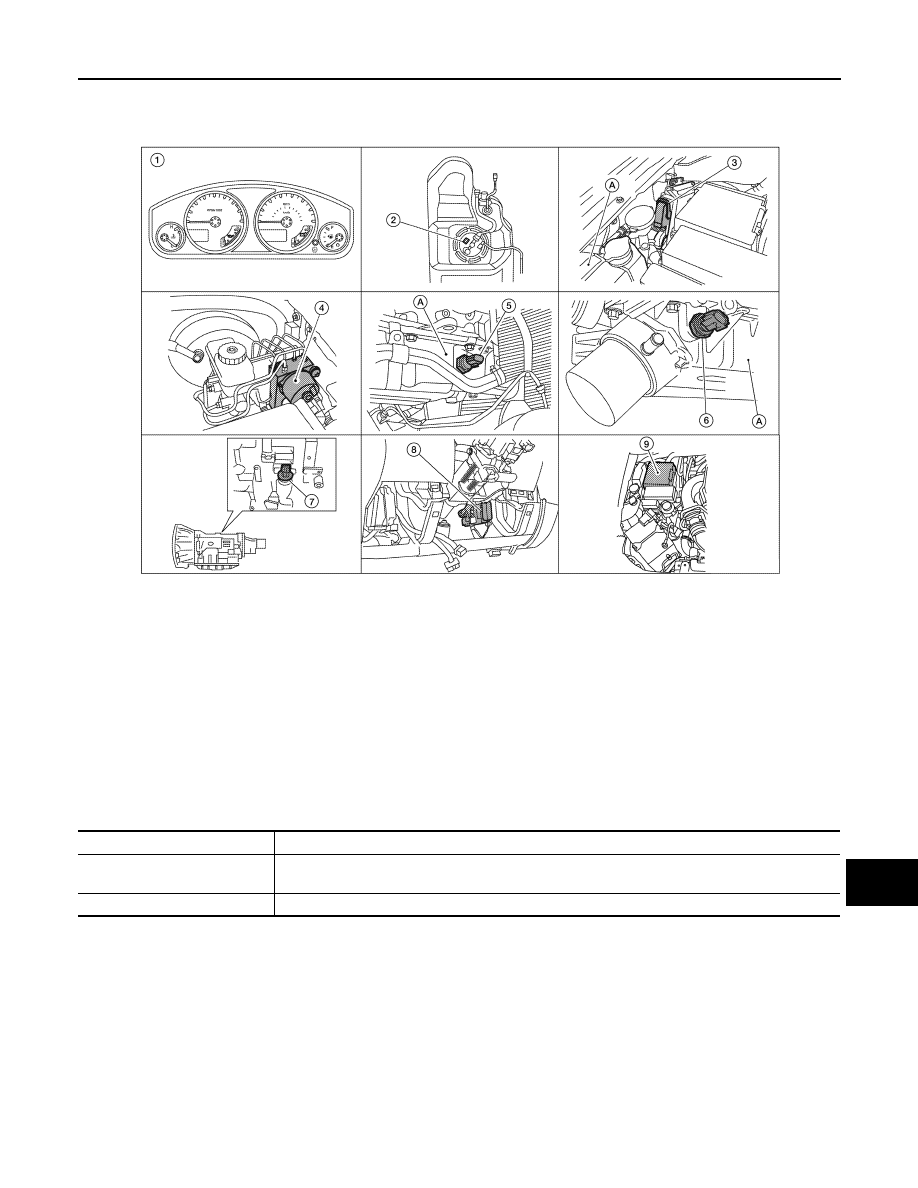

TACHOMETER : Component Parts Location

INFOID:0000000004428611

TACHOMETER : Component Description

INFOID:0000000003935311

ENGINE COOLANT TEMPERATURE GAUGE

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Indicates the engine speed in RPM according to the engine speed signal received from ECM via
CAN communication.

ECM

Transmits the engine speed signal to the combination meter with CAN communication line.

2009 Pathfinder

MWI-10

< FUNCTION DIAGNOSIS >

METER SYSTEM

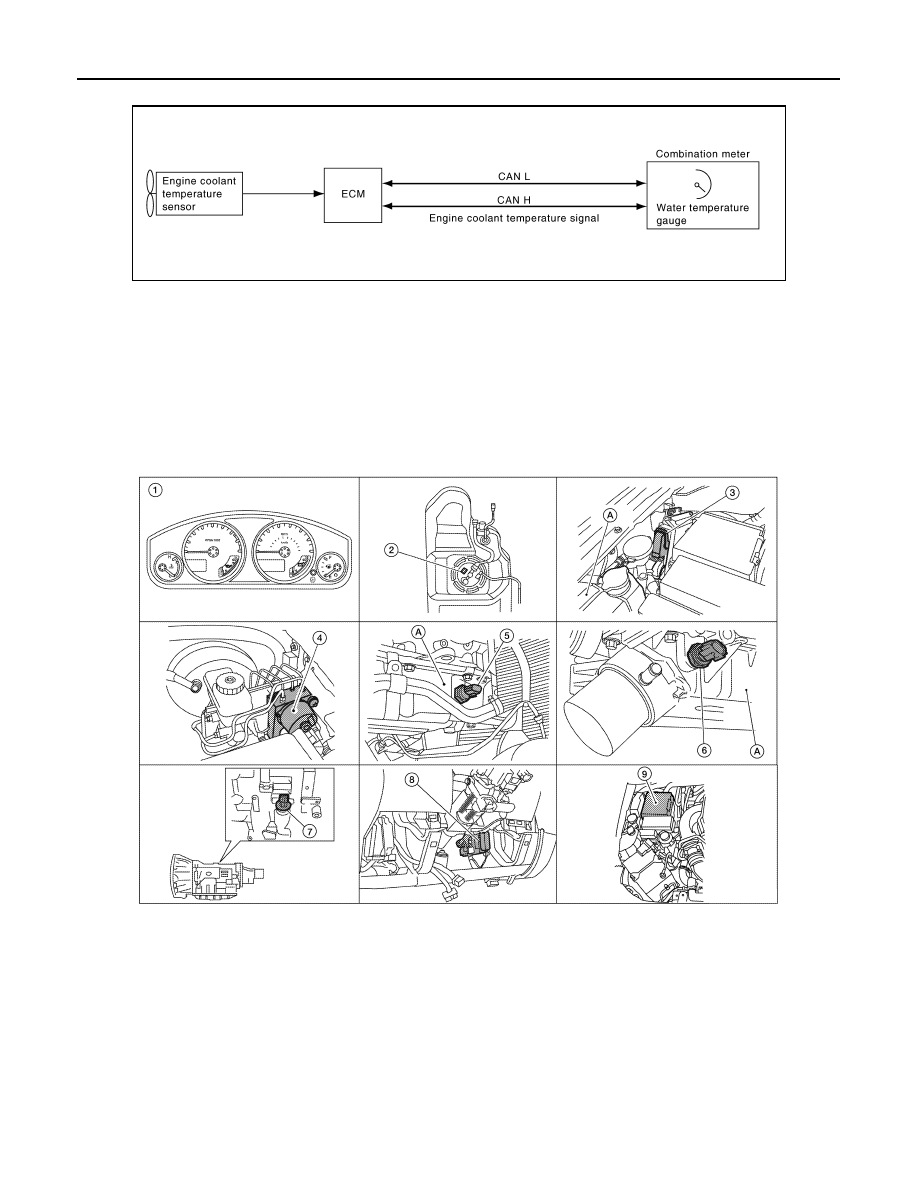

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000003935312

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000003935313

The engine coolant temperature gauge indicates the engine coolant temperature.
The ECM provides an engine coolant temperature signal to the combination meter via CAN communication
lines.

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000004428612

SKIB6905E

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

2009 Pathfinder

MWI

METER SYSTEM

MWI-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ENGINE COOLANT TEMPERATURE GAUGE : Component Description

INFOID:0000000003935315

FUEL GAUGE

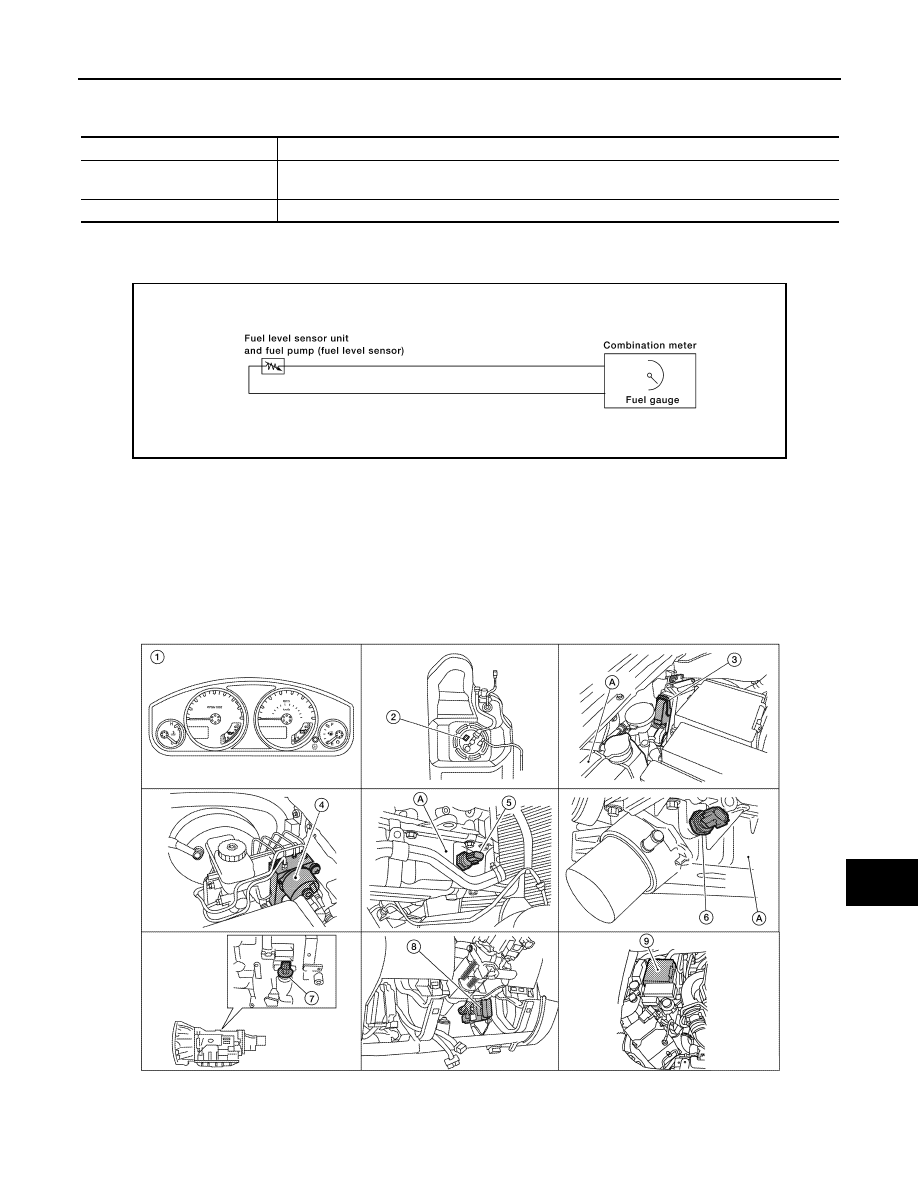

FUEL GAUGE : System Diagram

INFOID:0000000003935316

FUEL GAUGE : System Description

INFOID:0000000003935317

The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by the unified meter control unit and a variable resistor signal supplied by the fuel
level sensor unit.

FUEL GAUGE : Component Parts Location

INFOID:0000000004428613

Unit

Description

Combination meter

Indicates the engine coolant temperature according to the engine coolant temperature signal re-
ceived from ECM via CAN communication.

ECM

Transmits the engine coolant temperature signal to the combination meter via CAN communication.

AWNIA0004GB

AWNIA0217ZZ

2009 Pathfinder

MWI-12

< FUNCTION DIAGNOSIS >

METER SYSTEM

FUEL GAUGE : Component Description

INFOID:0000000003935319

ENGINE OIL PRESSURE GAUGE

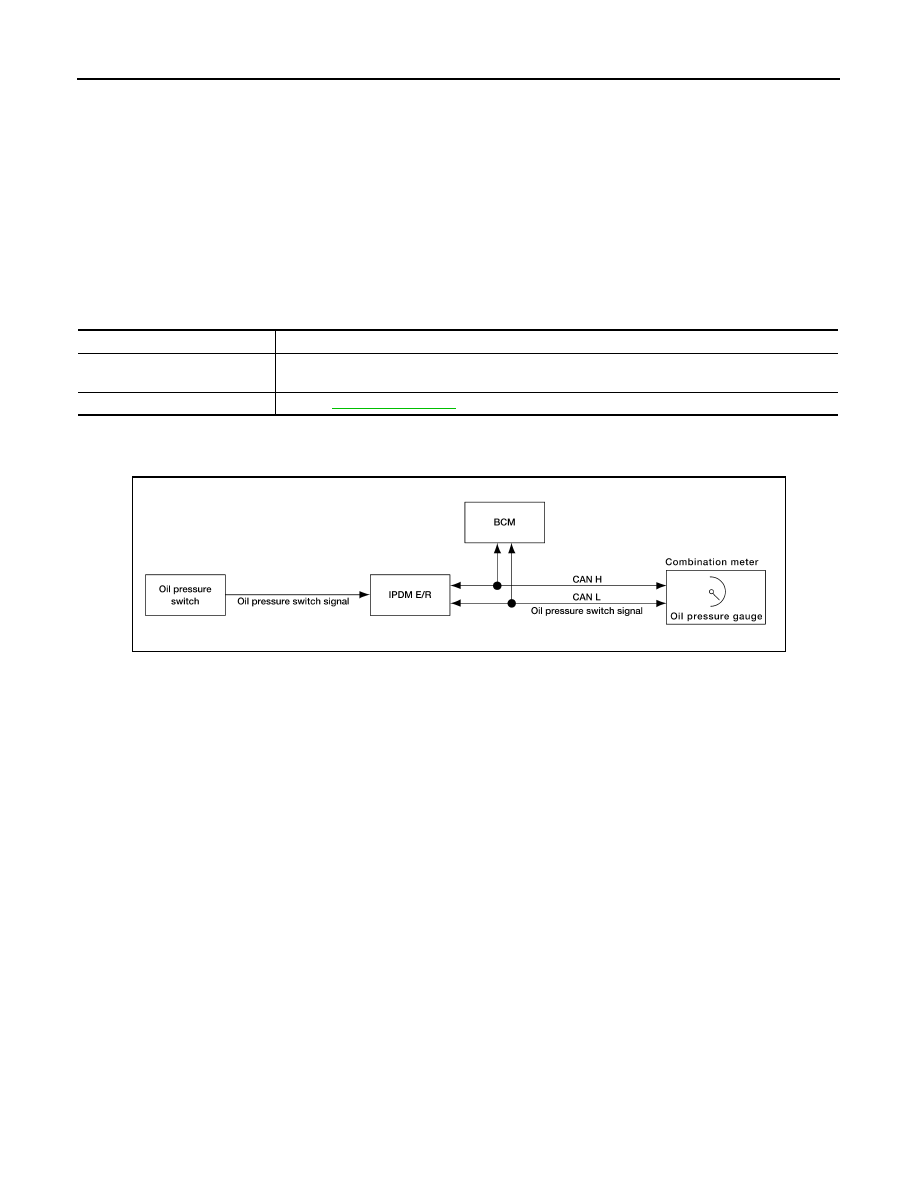

ENGINE OIL PRESSURE GAUGE : System Diagram

INFOID:0000000003935320

ENGINE OIL PRESSURE GAUGE : System Description

INFOID:0000000003935321

The engine oil pressure gauge indicates whether the engine oil pressure is low or normal.
The oil pressure gauge is controlled by the IPDM E/R. The IPDM E/R reads the ON/OFF signals from the oil
pressure switch and transmits the oil pressure switch signal to the combination meter via BCM with the CAN
communication line. The oil pressure gauge displays a low or normal indication according to the oil pressure
switch signal received via CAN communication.

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly
F9 (with VQ40DE)
F70 (with VK56DE)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Indicates the fuel level according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-32, "Description"

.

AWNIA0174GB

2009 Pathfinder
