PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003937554

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004412005

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

Service Notice

INFOID:0000000003937555

• When removing or installing various parts, place a cloth or padding on the vehicle body to prevent scratches.
• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil or

damage them.

2009 Pathfinder

INT-12

< PRECAUTION >

PRECAUTIONS

• Apply sealing compound where necessary when installing parts.
• When applying sealing compound, be careful that the sealing compound does not protrude from parts.
• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

2009 Pathfinder

PREPARATION

INT-13

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000003937556

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000003937557

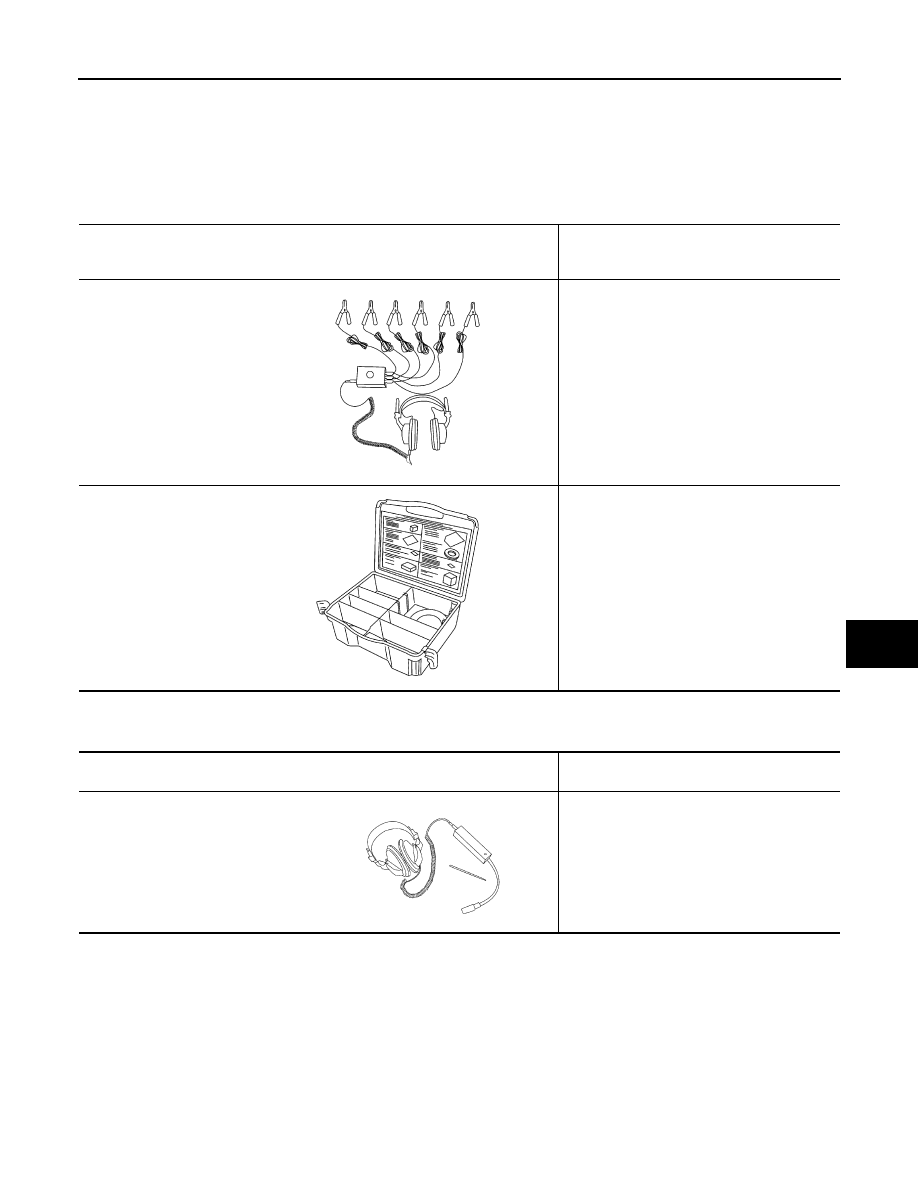

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rattle kit

Repairing the cause of noise

SBT839

SBT840

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

2009 Pathfinder

INT-14

< ON-VEHICLE REPAIR >

DOOR FINISHER

ON-VEHICLE REPAIR

DOOR FINISHER

Removal and Installation

INFOID:0000000003937558

FRONT DOOR

Removal

1.

Remove the power window switch assembly.
• Disconnect the harness connectors.

2.

Remove the pull handle escutcheon.

3.

Remove the pull handle cover and remove screw.

4.

Lift the armrest upward to release clips and remove armrest.
• Remove the screws behind armrest.

5.

Release the clips and remove the door finisher.

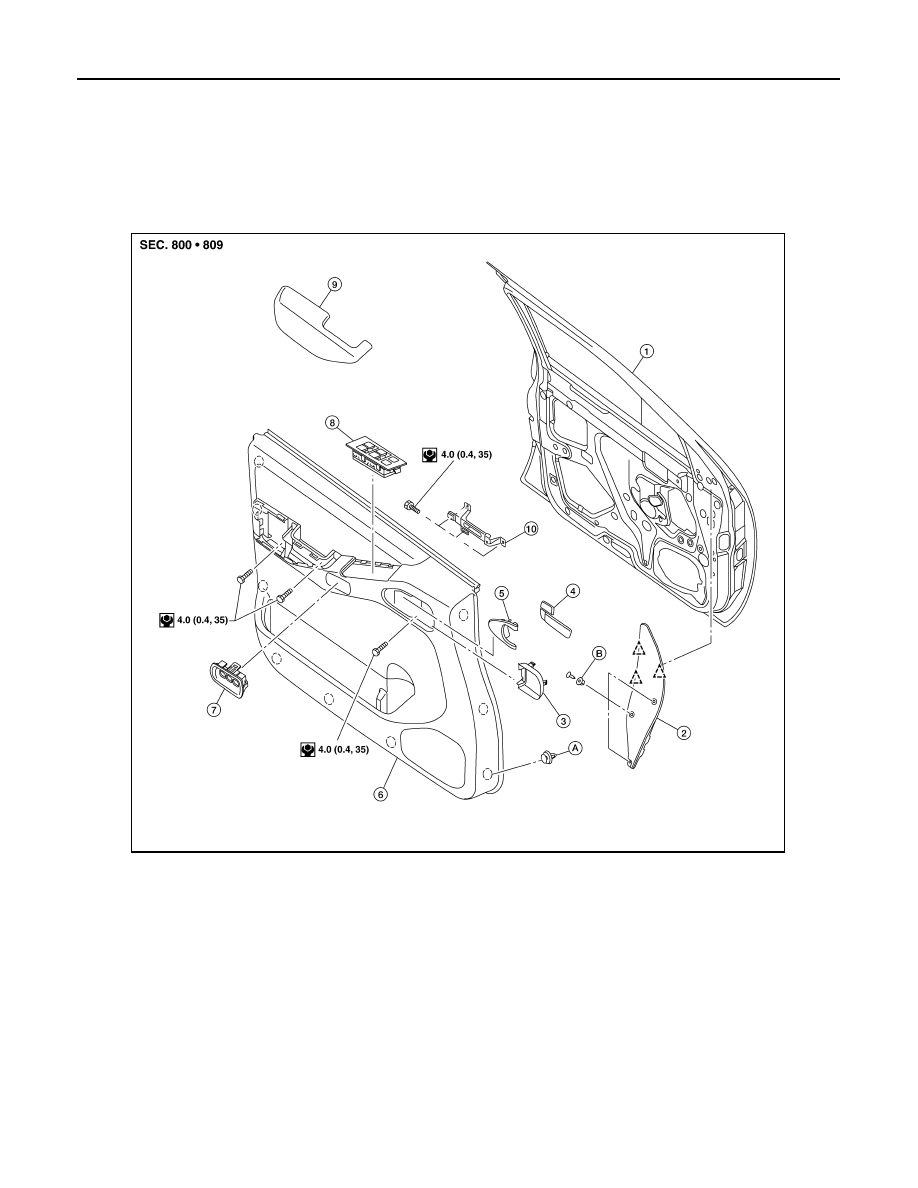

1.

Front door

2.

Mirror bolt cover LH

3.

Pull handle escutcheon

4.

Pull handle/lock lever assembly

5.

Pull handle cover

6.

Front door finisher LH

7.

Seat memory switch (if equipped)

8.

Power window/lock switch assembly 9.

Armrest

10. Front door handle bracket

A.

 Clip C101

B.

Clip C205

AWJIA0049GB

2009 Pathfinder

DOOR FINISHER

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• Disconnect lock cable and handle cable from door handle assembly. Refer to

DLK-200, "Removal and

Installation"

.

6.

Remove the memory seat switch (if equipped).
• Disconnect the harness connector.

7.

Remove the pull handle/lock lever assembly.

Installation

Installation is in the reverse order of removal.

REAR DOOR

Removal

1.

Remove the power window switch assembly.
• Disconnect the harness connector.

2.

Remove the pull handle cover.
• Remove the screw behind the pull handle cover.

3.

Remove the pull handle escutcheon.

4.

Lift upward to release clips and remove the armrest.
• Remove the screws behind armrest.

5.

Release the clips and remove the rear door finisher.
• Disconnect the rear door tweeter connector, then remove the rear door tweeter screws and remove the

rear door tweeter.

Installation

Installation is in the reverse order of removal.

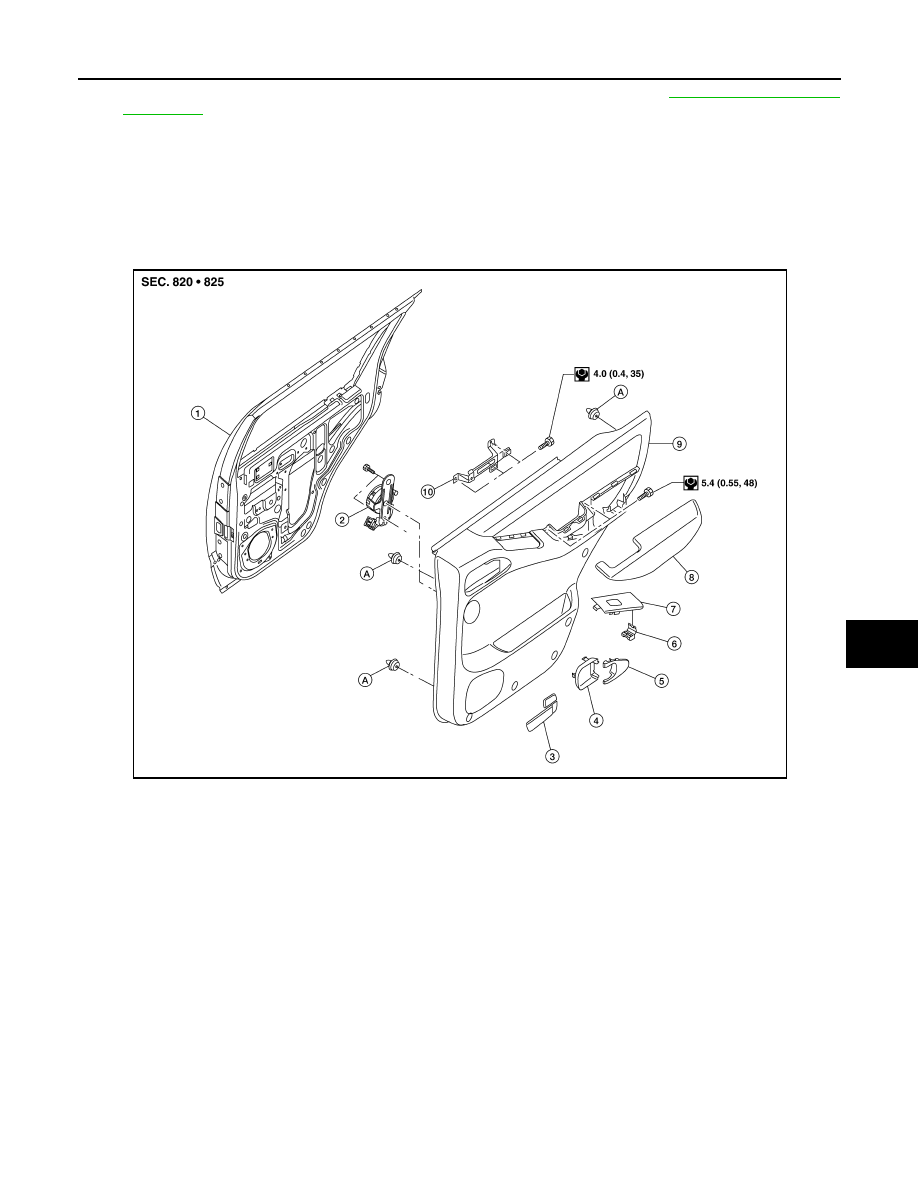

1.

Rear door

2.

Rear door tweeter

3.

Pull handle/lock lever assembly

4.

Pull handle escutcheon

5.

Pull handle cover

6.

Metal clip

7.

Power window switch assembly

8.

Armrest

9.

Rear door finisher (RH shown)

10. Rear door handle bracket

A.

Clip C101

AWJIA0050GB

2009 Pathfinder

INT-16

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

BODY SIDE TRIM

Component

INFOID:0000000003937559

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

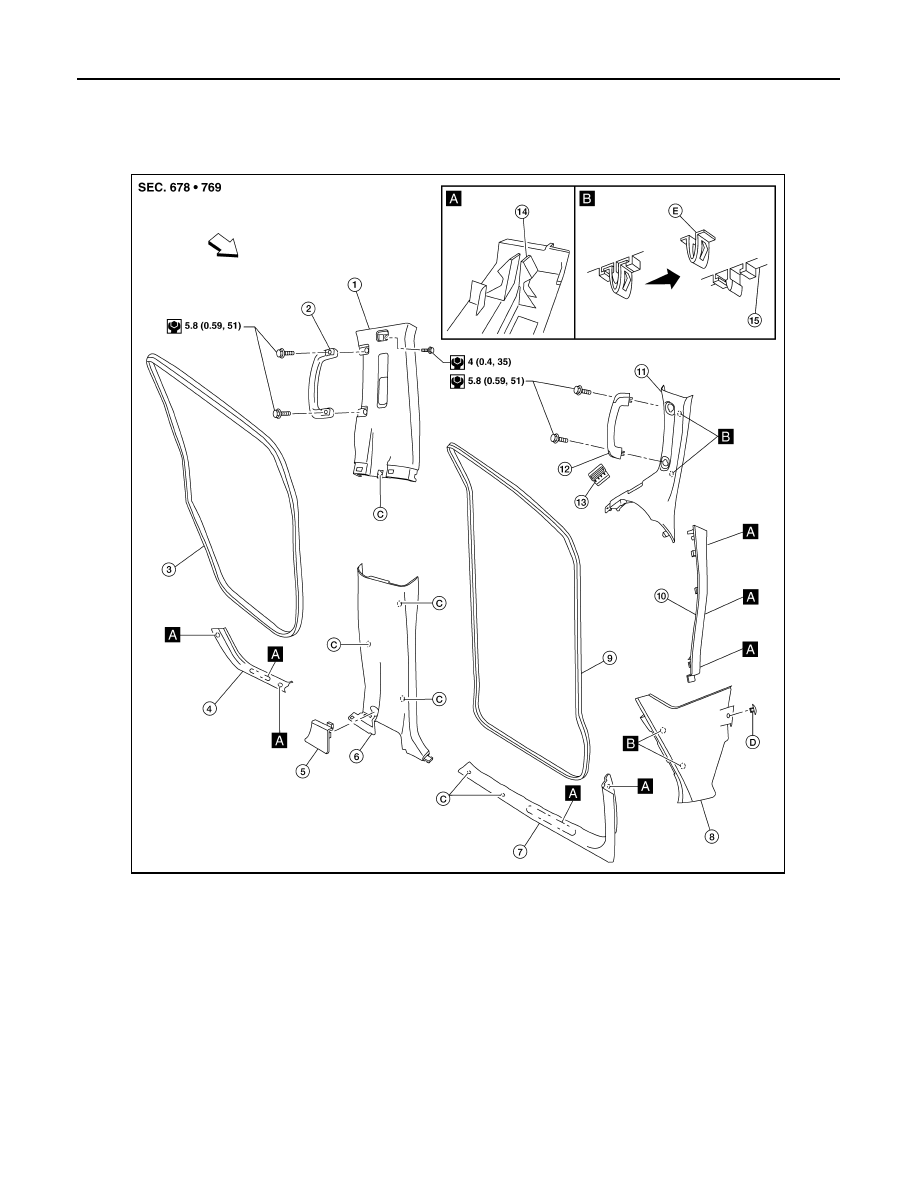

1.

Center pillar upper finisher

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear kick plate

5.

Access cover (RH side only)

6.

Center pillar lower finisher

7.

Front kick plate

8.

Lower dash side finisher

9.

Front door welt

10. Front pillar lower finisher

11.

 Front pillar upper finisher

12.

Front pillar assist grip

13. LH side demister grille

14.

Molded plastic clip

15.

Garnish

C.

Clip C101

D.

Clip C111

E.

Metal clip

⇐

Front

AWJIA0051GB
