Nissan Pathfinder (2009 year). Manual - part 479

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

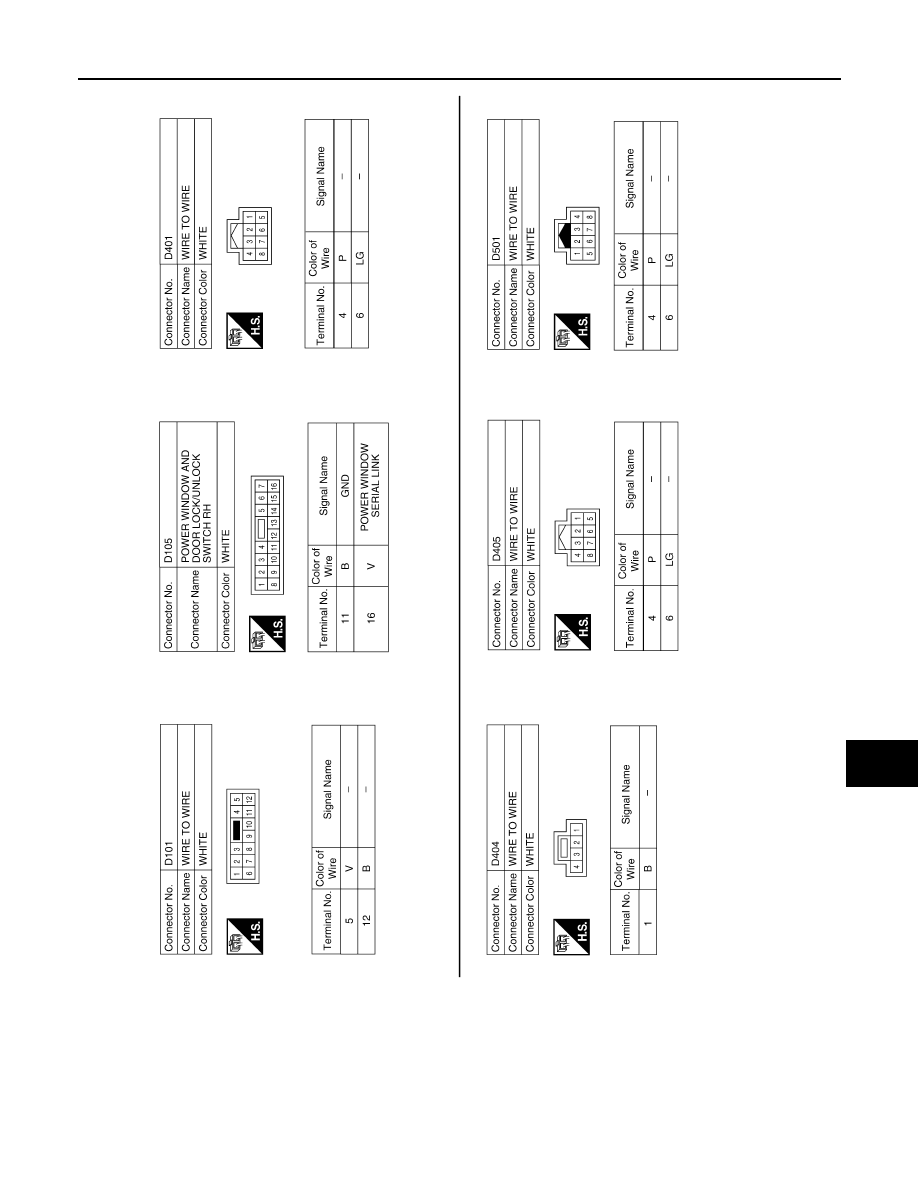

ABLIA0448GB

2009 Pathfinder

INL-34

< COMPONENT DIAGNOSIS >

INTERIOR ROOM LAMP CONTROL SYSTEM

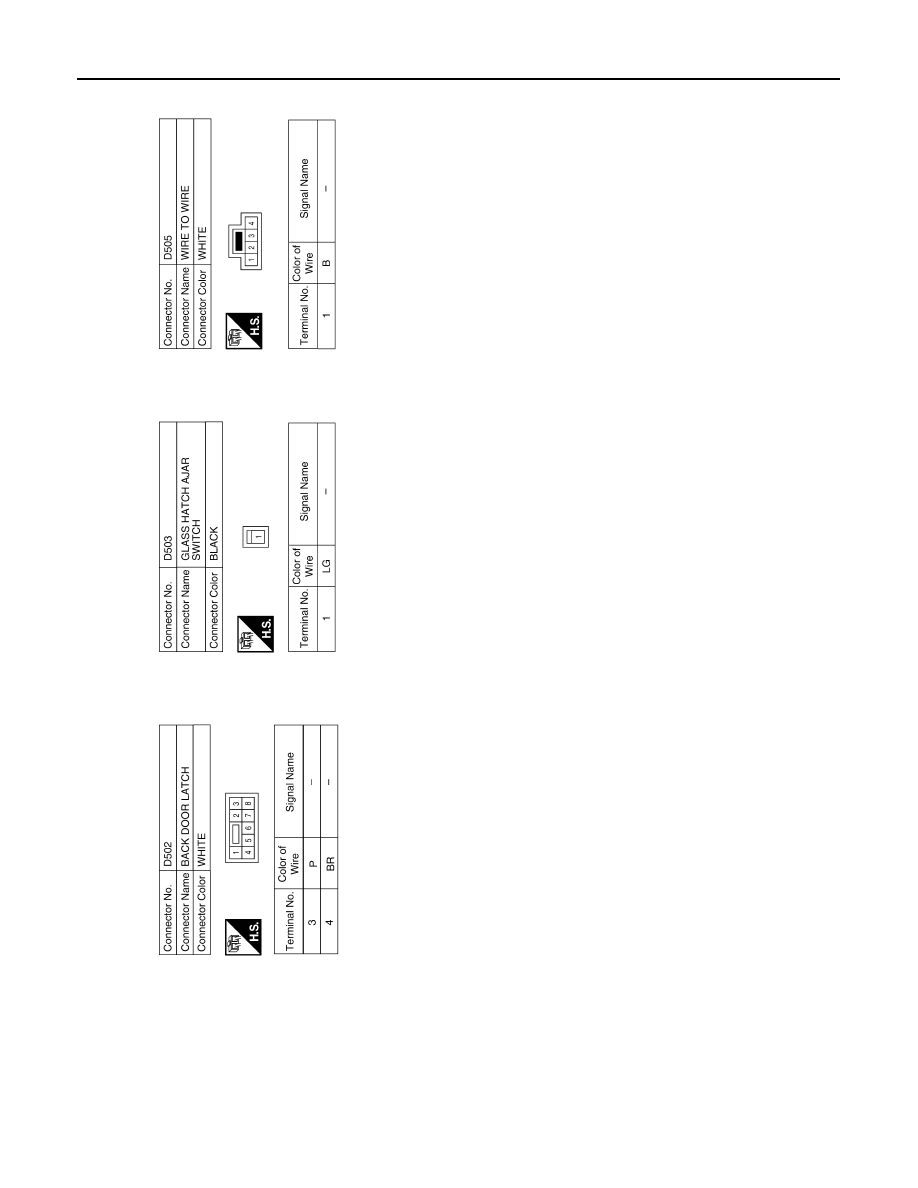

ABLIA0449GB

2009 Pathfinder

ILLUMINATION

INL-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION

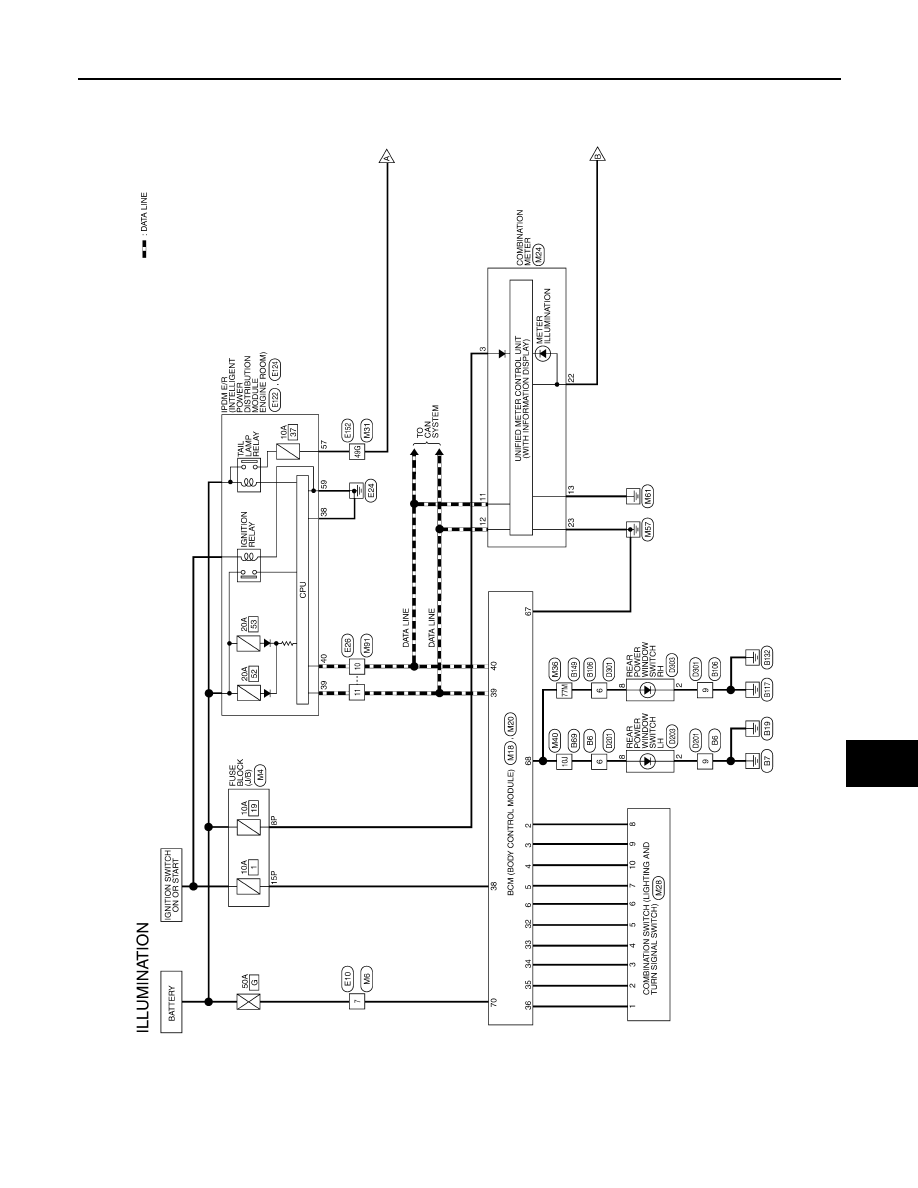

Wiring Diagram

INFOID:0000000003938864

ABLWA0120GB

2009 Pathfinder

INL-36

< COMPONENT DIAGNOSIS >

ILLUMINATION

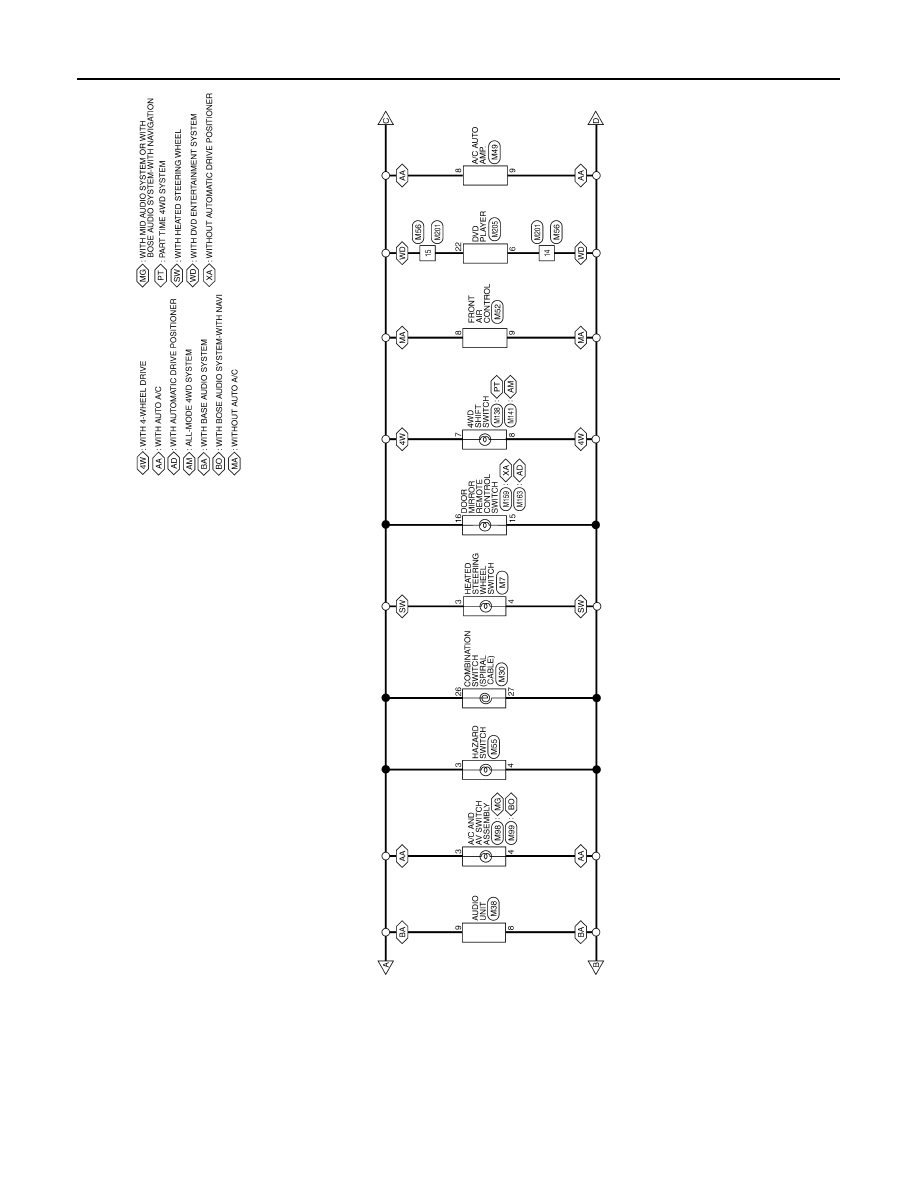

ABLWA0121GB

2009 Pathfinder

ILLUMINATION

INL-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

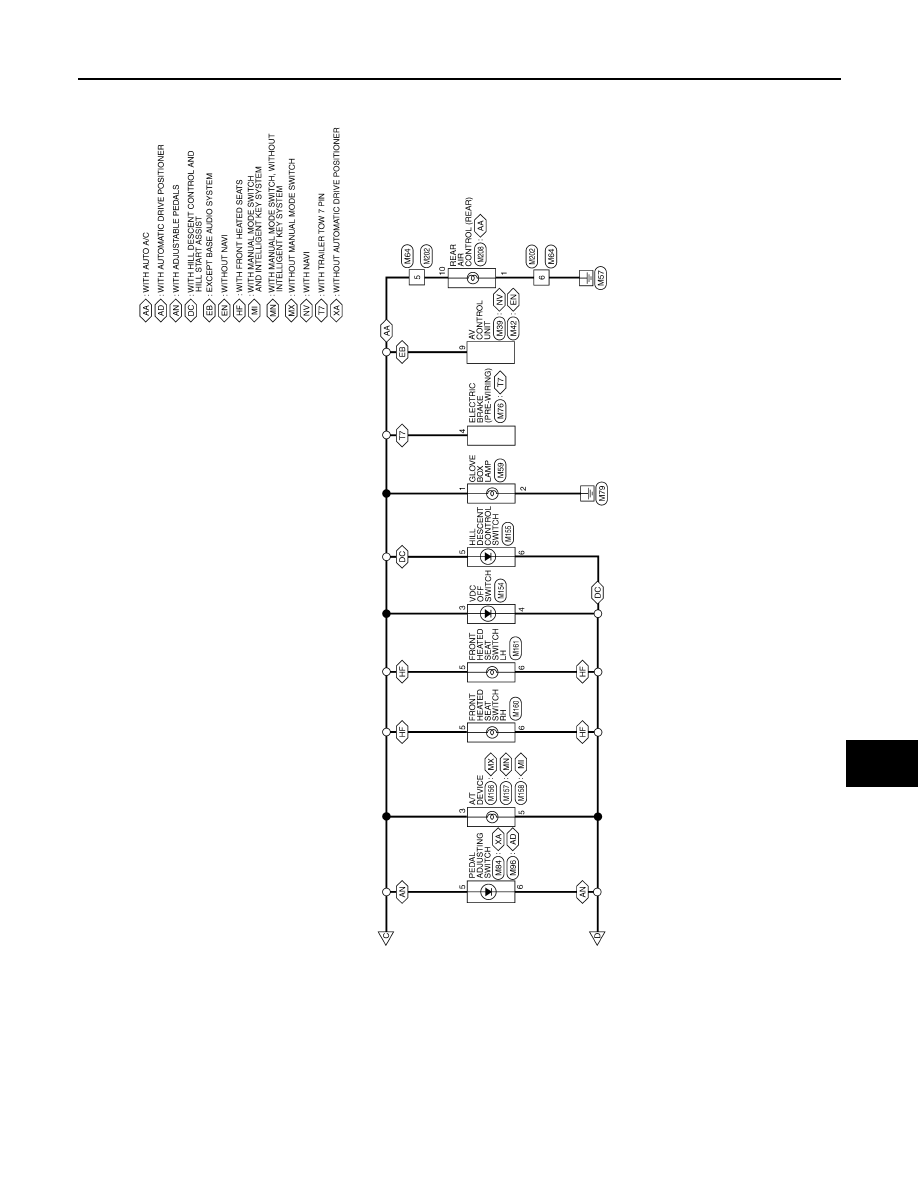

ABLWA0122GB

2009 Pathfinder

INL-38

< COMPONENT DIAGNOSIS >

ILLUMINATION

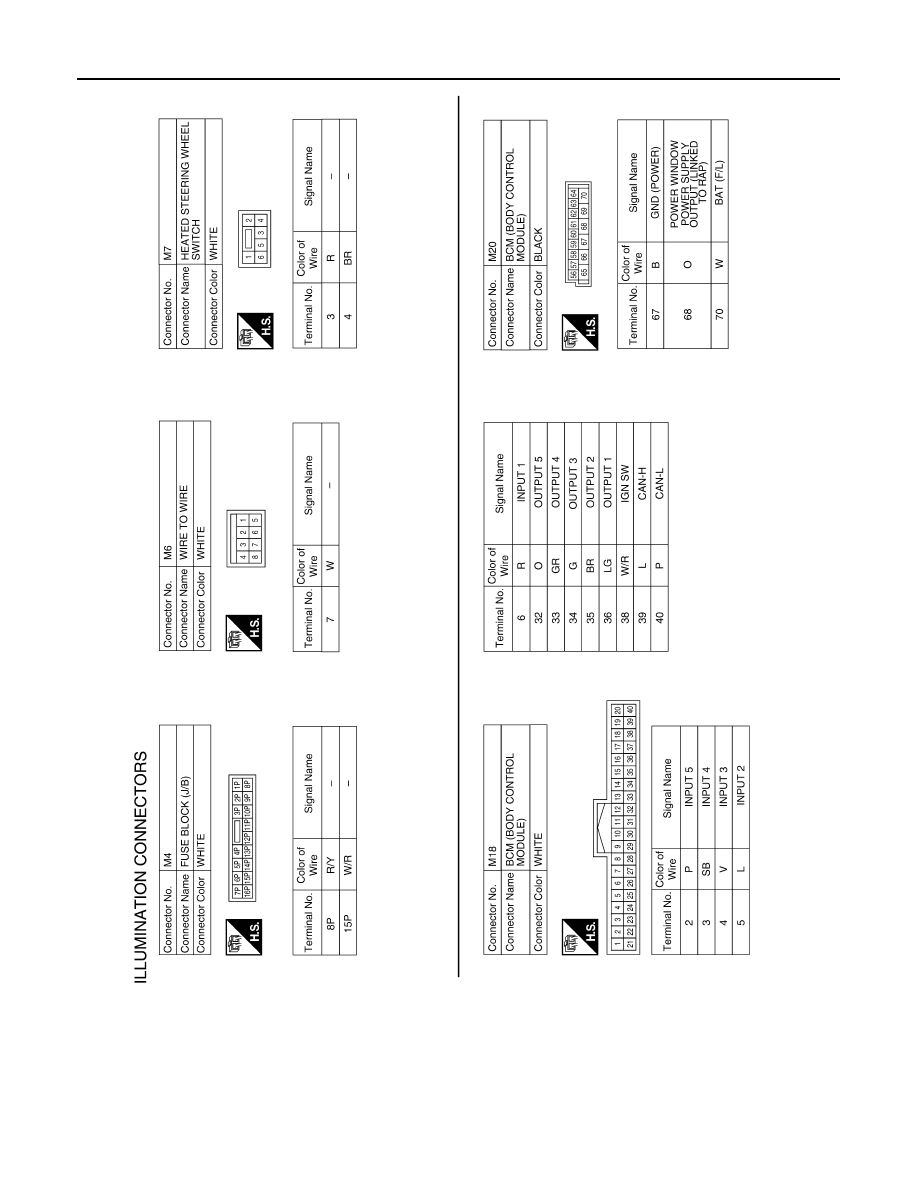

ABLIA0450GB

2009 Pathfinder

ILLUMINATION

INL-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

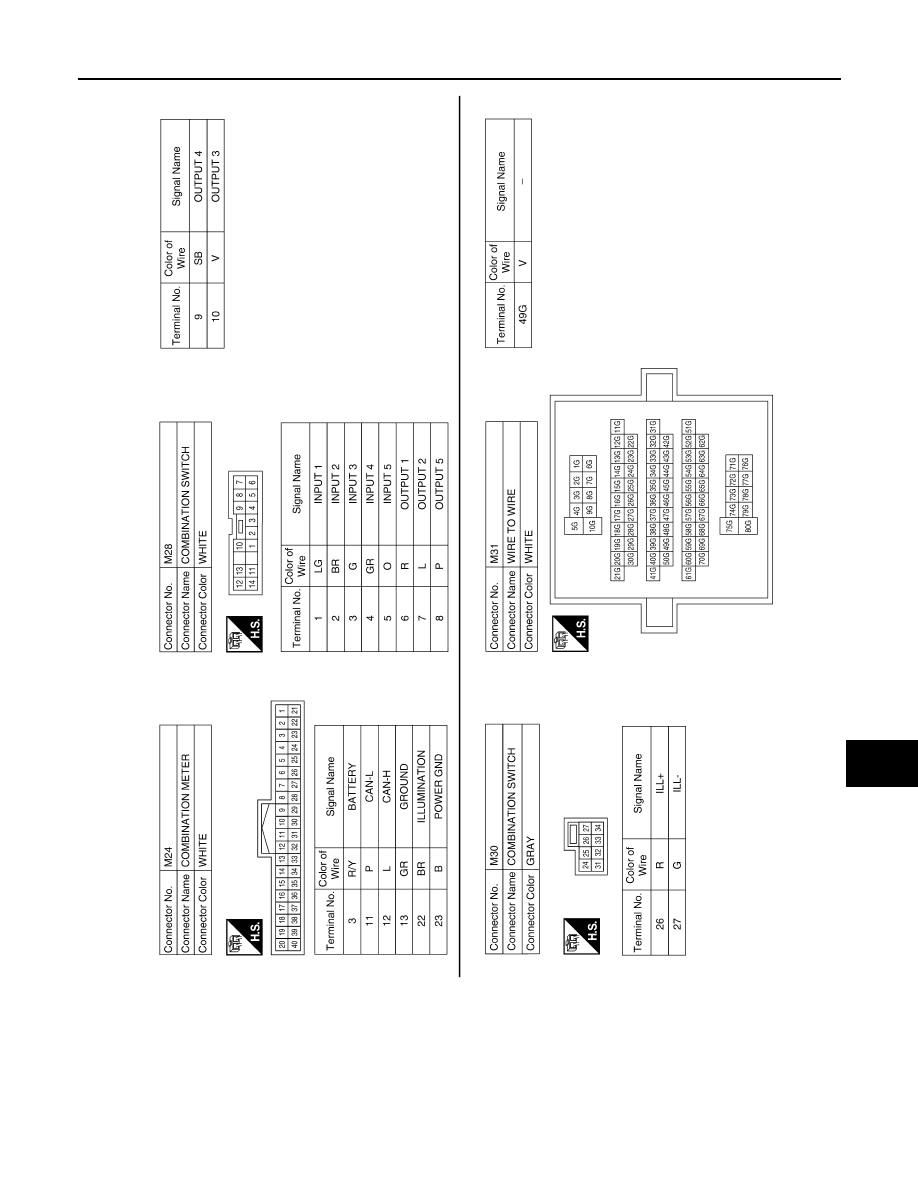

ABLIA0451GB

2009 Pathfinder

INL-40

< COMPONENT DIAGNOSIS >

ILLUMINATION

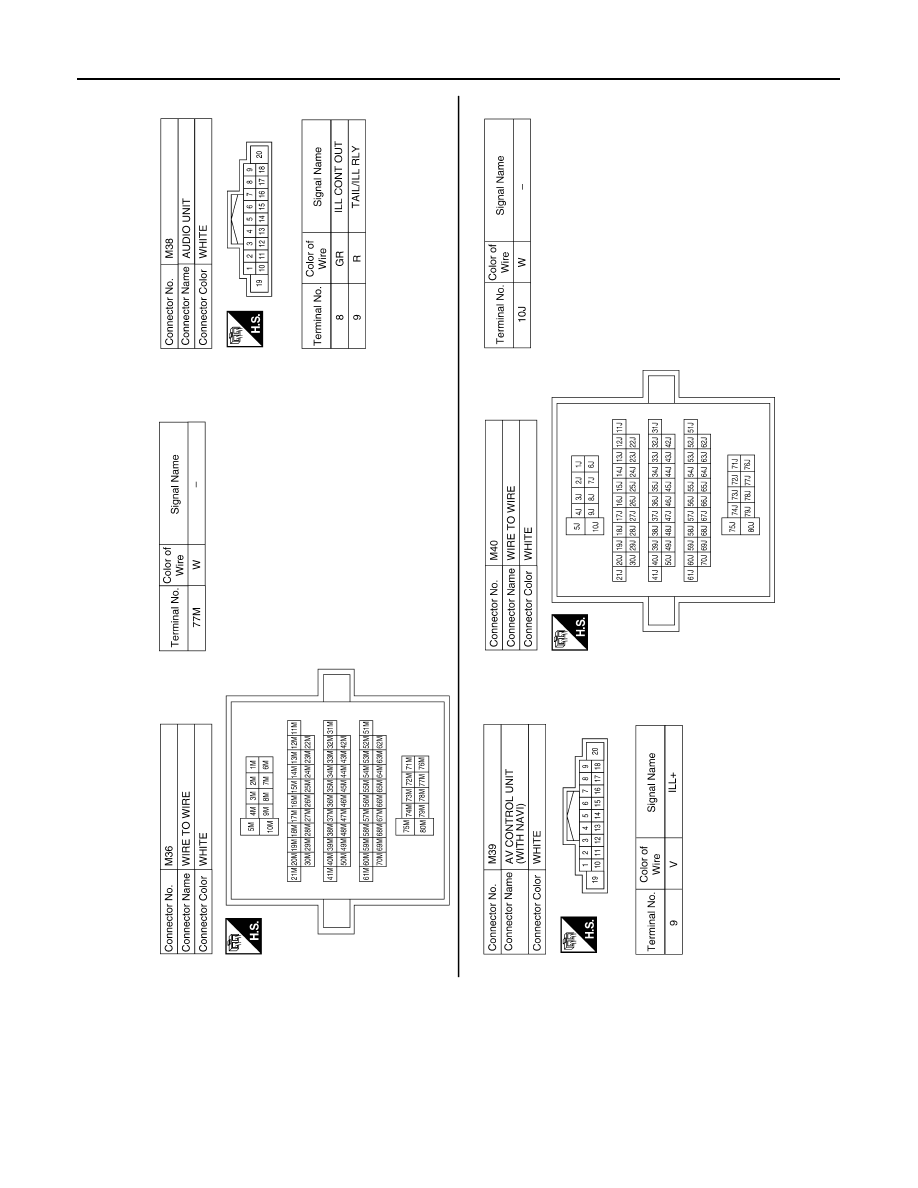

ABLIA0452GB

2009 Pathfinder
