< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

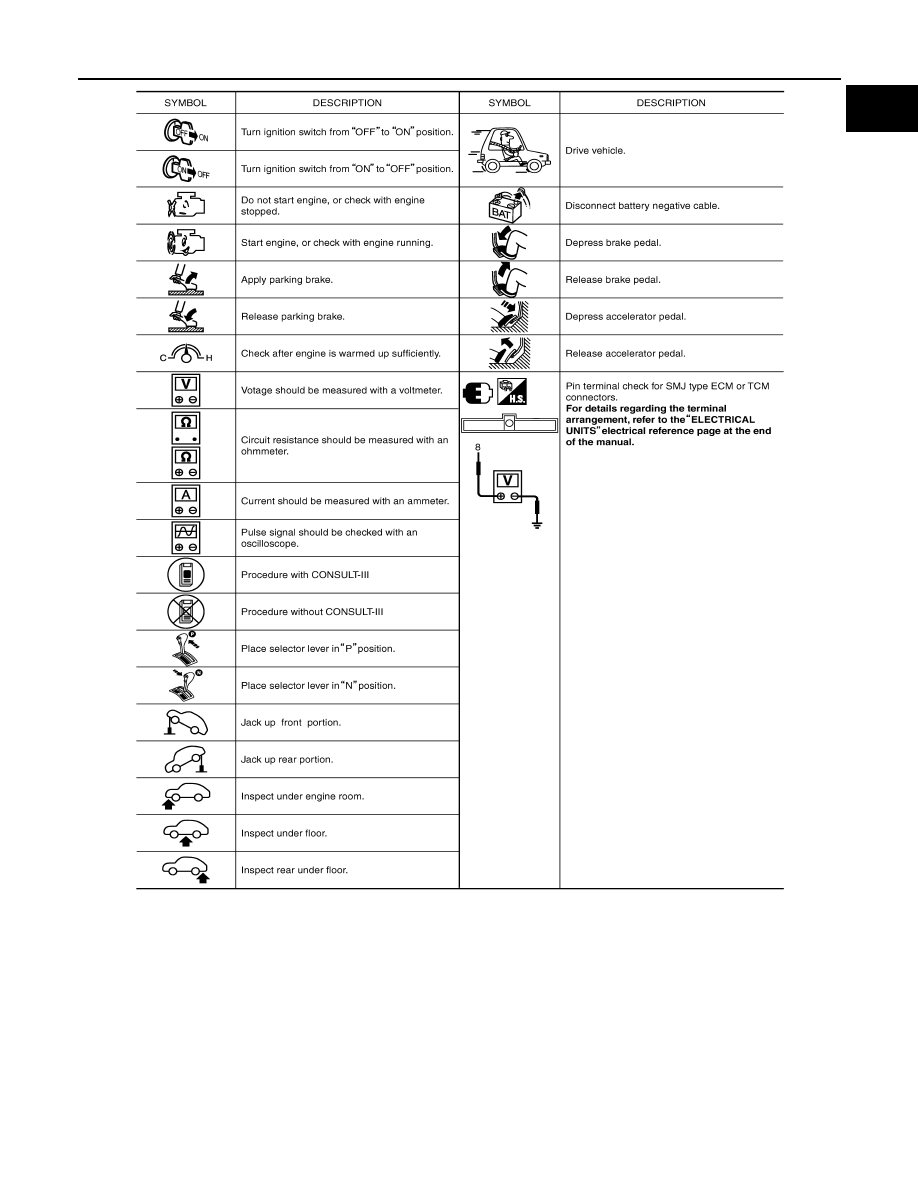

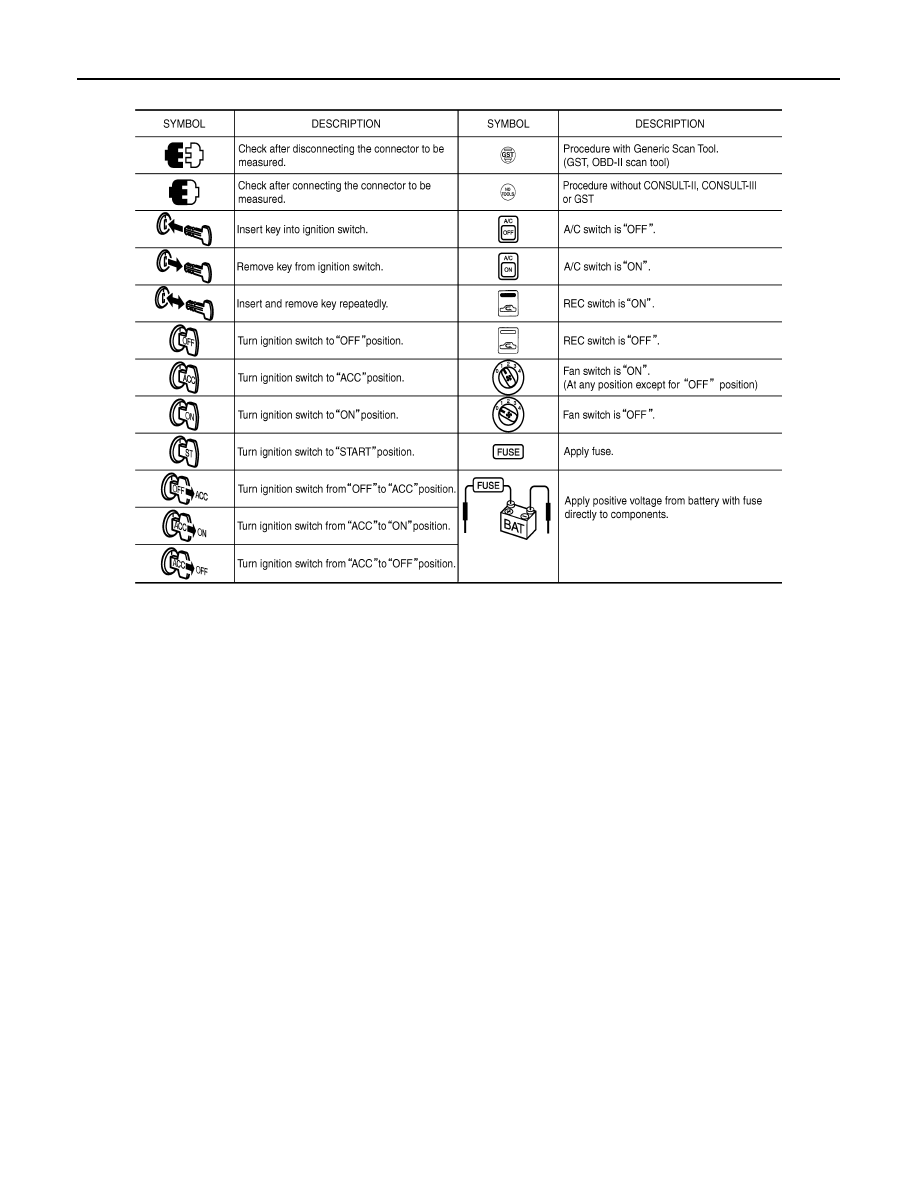

Key to Symbols Signifying Measurements or Procedures

INFOID:0000000003938042

SAIA1539E

2009 Pathfinder

HOW TO FOLLOW TROUBLE DIAGNOSES

GI-19

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

SAIA1540E

2009 Pathfinder

GI-20

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

HOW TO READ WIRING DIAGRAMS

Connector symbols

INFOID:0000000003938043

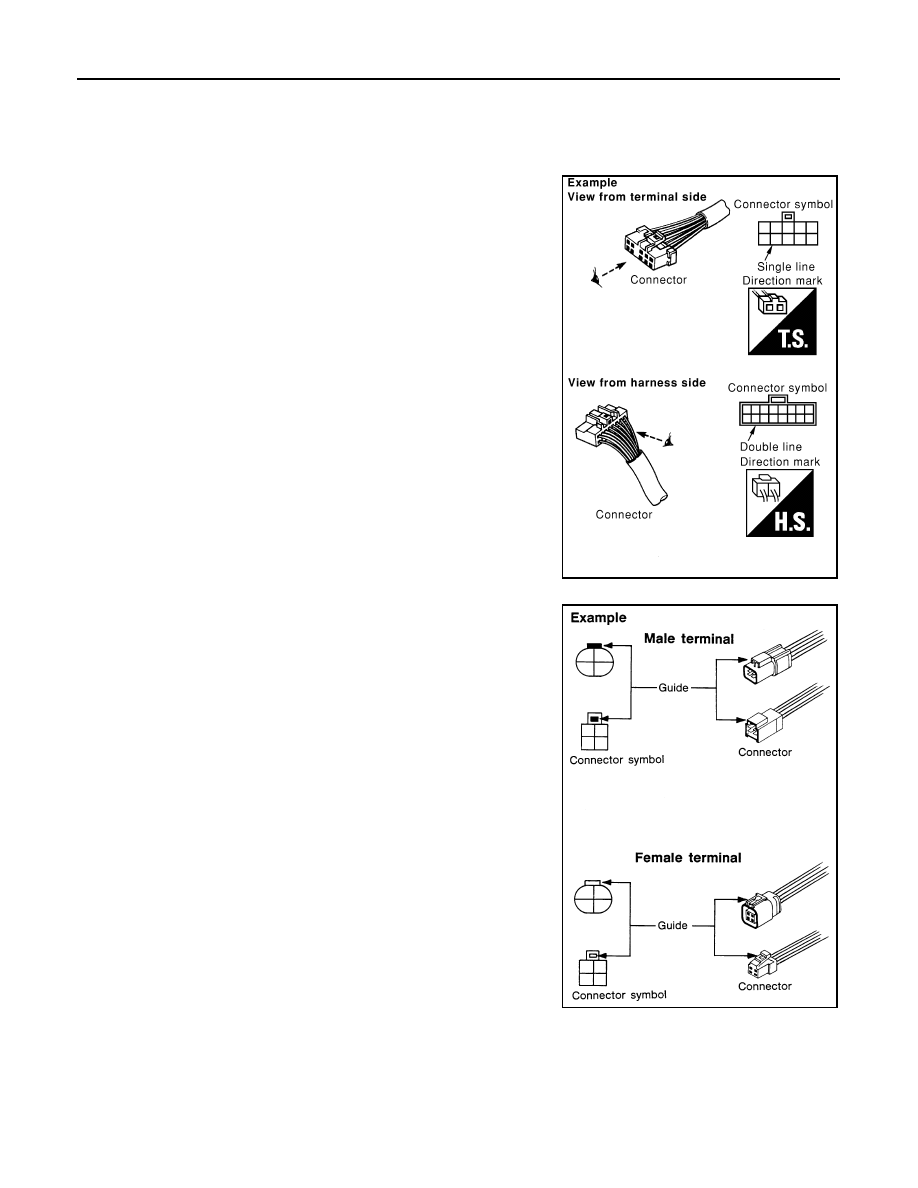

Most of connector symbols in wiring diagrams are shown from the terminal side.
• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

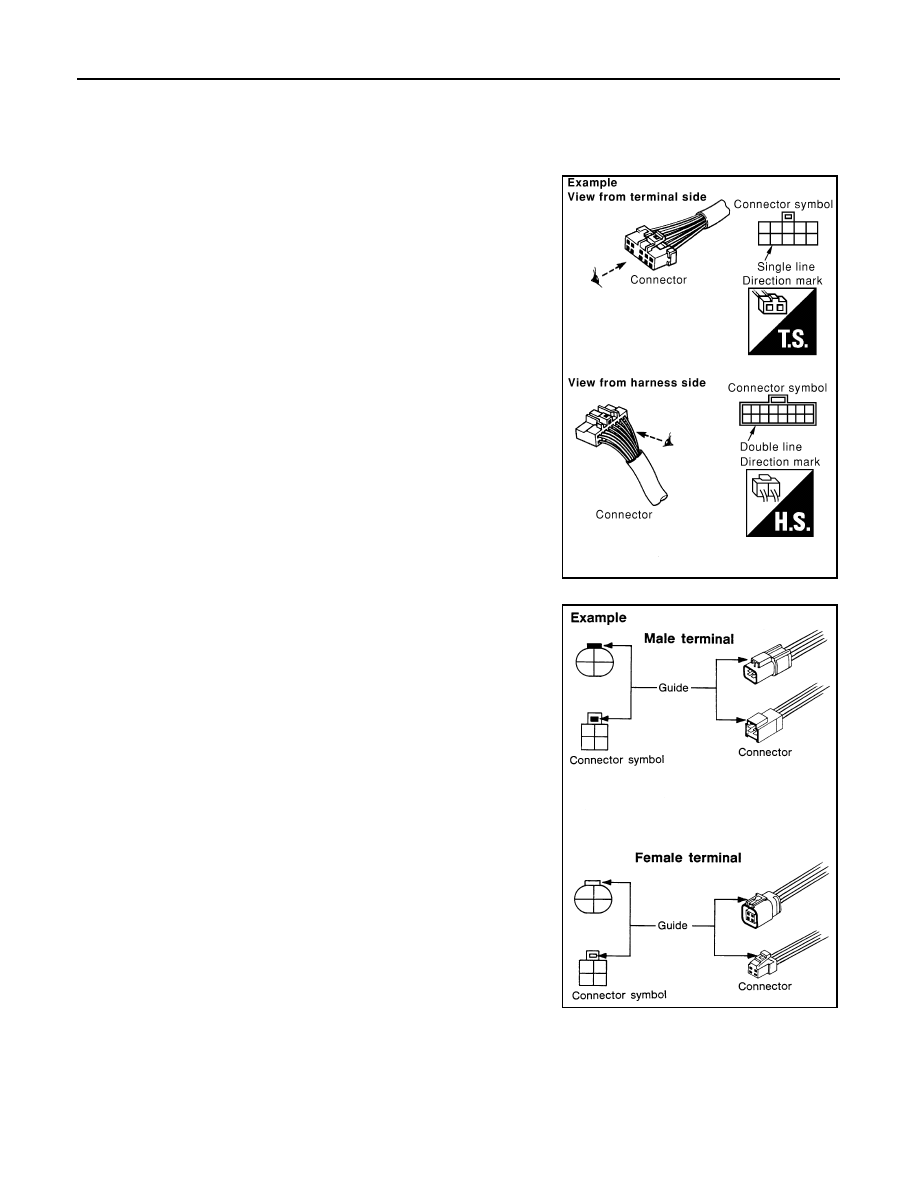

• Male and female terminals

Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.

SAIA0257E

SGI363

2009 Pathfinder

HOW TO READ WIRING DIAGRAMS

GI-21

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

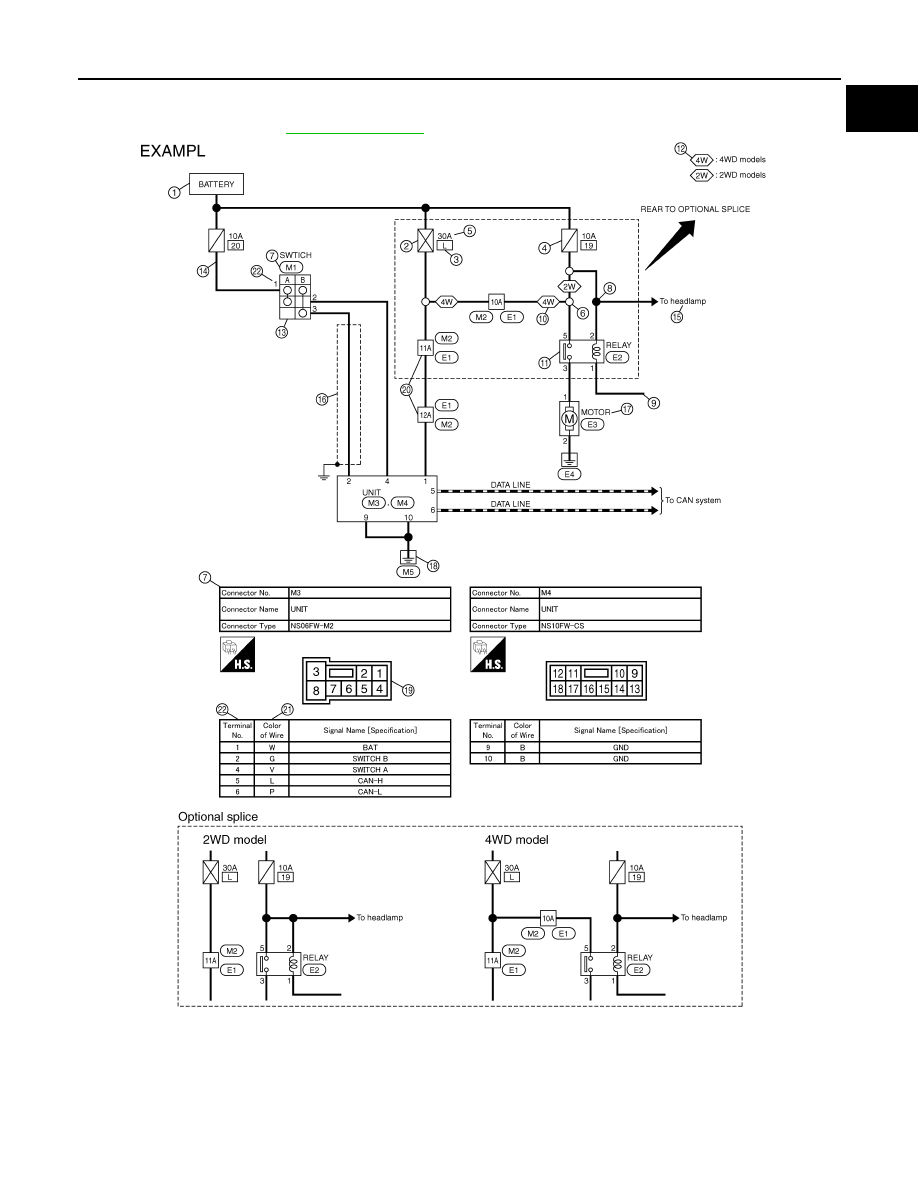

Sample/wiring diagram -example-

INFOID:0000000003938044

• For detail, refer to following

GI-22, "Description"

.

JCAWA0005GB

2009 Pathfinder

GI-22

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

Description

INFOID:0000000003938045

SWITCH POSITIONS

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.
A vehicle is in the “normal” condition when:

Number

Item

Description

1

Power supply

• This means the power supply of fusible link or fuse.

2

Fusible link

• “X” means the fusible link.

3

Number of fusible link/
fuse

• This means the number of fusible link or fuse location.

4

Fuse

• “/” means the fuse.

5

Current rating of fus-
ible link/fuse

• This means the current rating of the fusible link or fuse.

6

Optional splice

• The open circle shows that the splice is optional depending on vehicle application.

7

Connector number

• The letter shows which harness the connector is located in.
• Example “M”: main harness. For detail and to locate the connector, refer to

PG-64, "Elec-

trical Units Location"

,

PG-38, "Harness Layout"

.

8

Splice

• The shaded circle “

” means the splice.

9

Page crossing

• This circuit continues to an adjacent page.

10

Option abbreviation

• This means the vehicle specifications which layouts the circuit between “

”.

11

Relay

• This shows an internal representation of the relay.

12

Option description

• This shows a description of the option abbreviation used on the page.

13

Switch

• This shows that continuity exists between terminals 1 and 2 when the switch is in the A

position. Continuity exists between terminals 1 and 3 when the switch is in the B position.

14

Circuit (Wiring)

• This means the wiring.

15

System branch

• This shows that the circuit is branched to other systems.

16

Shielded line

• The line enclosed by broken line circle shows shield wire.

17

Component name

• This shows the name of a component.

18

Ground (GND)

• This shows the ground connection.

19

Connector

• This means the connector information.
• This unit-side is described by the connector symbols.

20

Connectors

• This means that a transmission line bypasses two connectors or more.

21

Wire color

• This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green

BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

• When the wire color is striped, the base color is given first, followed by the stripe color as

shown below:
Example: L/W = Blue with White Stripe

22

Terminal number

• This means the terminal number of a connector.

2009 Pathfinder

HOW TO READ WIRING DIAGRAMS

GI-23

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

• ignition switch is “OFF”,
• doors, hood and trunk lid/back door are closed,
• pedals are not depressed, and
• parking brake is released.

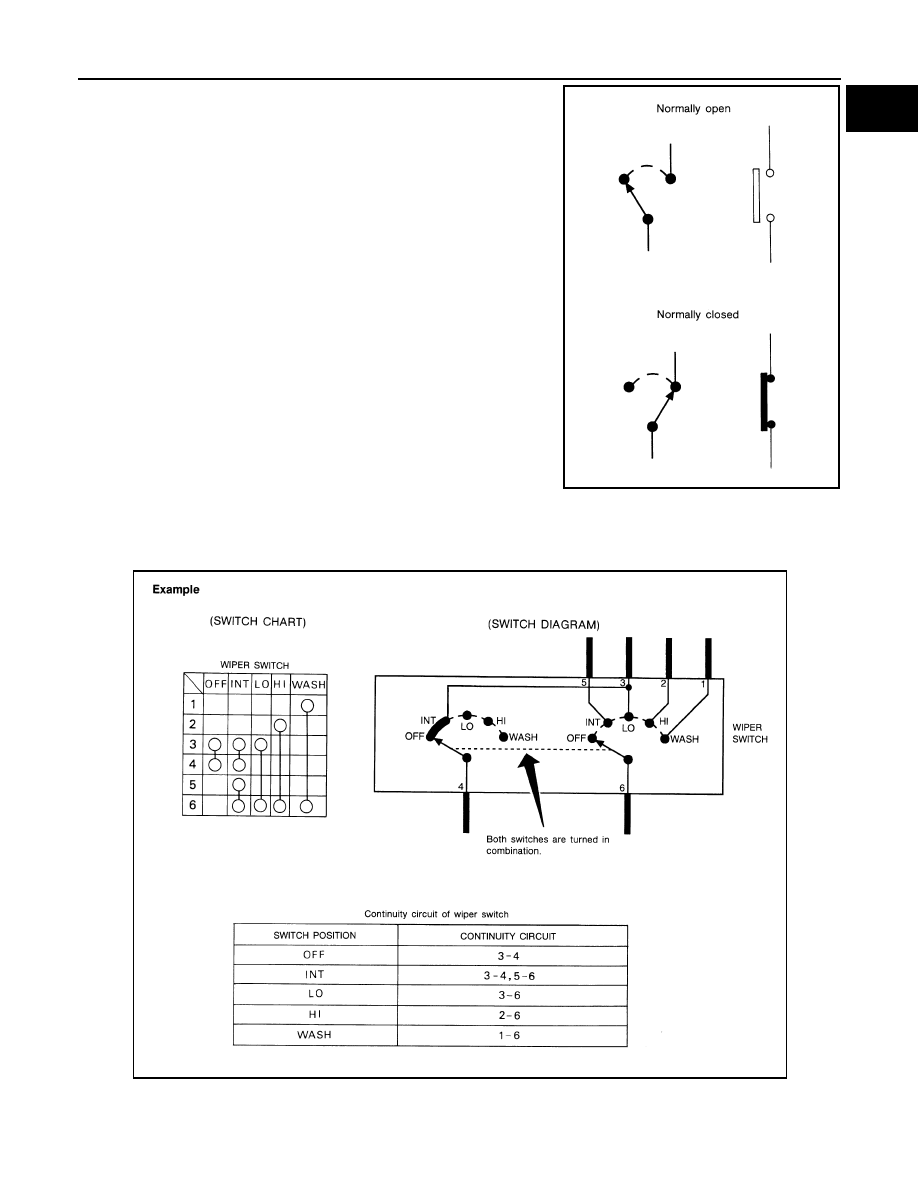

MULTIPLE SWITCH

The continuity of multiple switch is described in two ways as shown below.
• The switch chart is used in schematic diagrams.
• The switch diagram is used in wiring diagrams.

SGI860

JSAIA0017GB

2009 Pathfinder

GI-24

< HOW TO USE THIS MANUAL >

ABBREVIATIONS

ABBREVIATIONS

Abbreviation List

INFOID:0000000003938046

The following ABBREVIATIONS are used:

ABBREVIATION

DESCRIPTION

A/C

Air Conditioner

A/T

Automatic Transaxle/Transmission

ATF

Automatic Transmission Fluid

AWD

All wheel drive

D

1

Drive range 1st gear

D

2

Drive range 2nd gear

D

3

Drive range 3rd gear

D

4

Drive range 4th gear

FR, RR

Front, Rear

LH, RH

Left-Hand, Right-Hand

OD

Overdrive

P/S

Power Steering

SAE

Society of Automotive Engineers, Inc.

SDS

Service Data and Specifications

SST

Special Service Tools

2WD

2-Wheel Drive

2

2

2nd range 2nd gear

2

1

2nd range 1st gear

1

2

1st range 2nd gear

1

1

1st range 1st gear

2009 Pathfinder

TIGHTENING TORQUE OF STANDARD BOLTS

GI-25

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

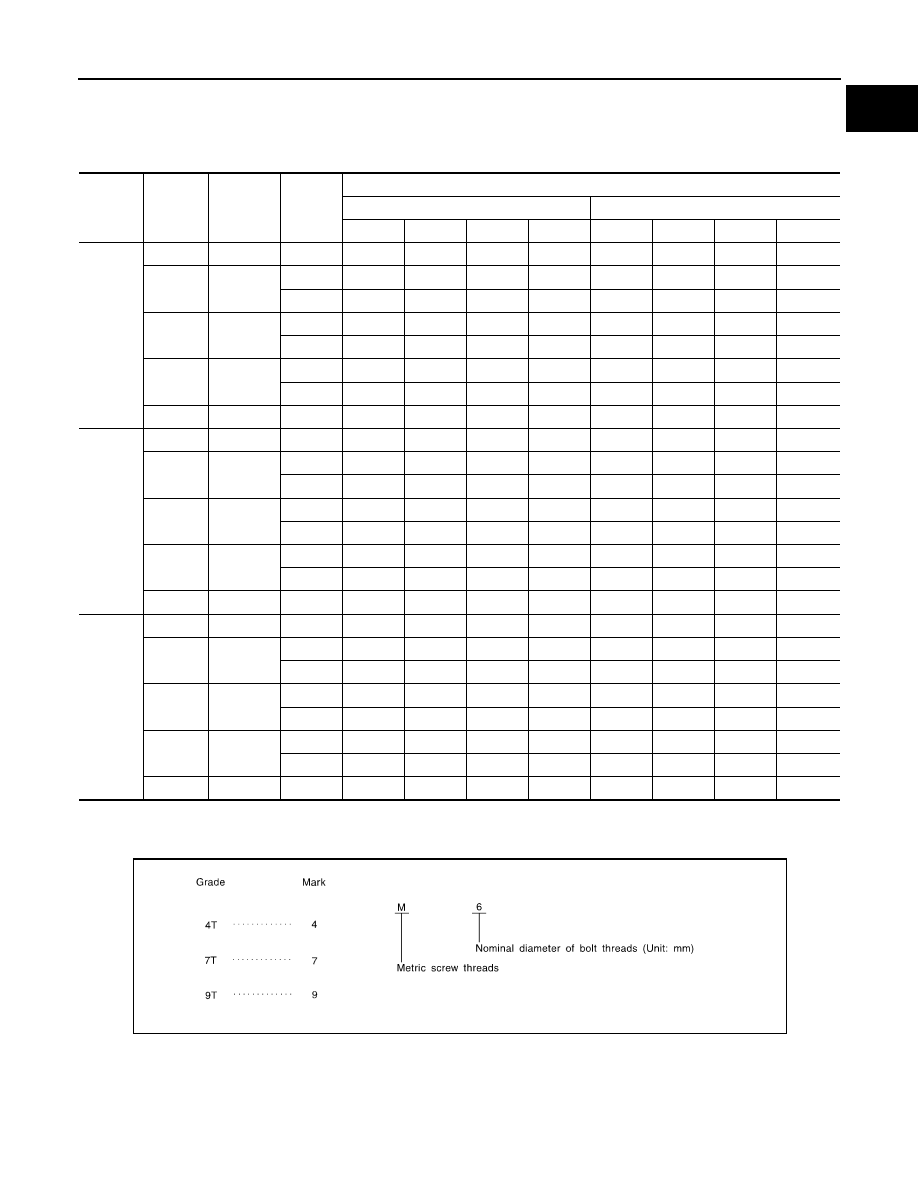

TIGHTENING TORQUE OF STANDARD BOLTS

Tightening Torque Table

INFOID:0000000003938047

*: Nominal diameter

1.

Special parts are excluded.

2.

This standard is applicable to bolts having the following marks embossed on the bolt head.

Grade

Bolt size

Bolt diam-

eter *

mm

Pitch

mm

Tightening torque (Without lubricant)

Hexagon head bolt

Hexagon flange bolt

N·m

kg-m

ft-lb

in-lb

N·m

kg-m

ft-lb

in-lb

4T

M6

6.0

1.0

5.5

0.56

4

49

7

0.71

5

62

M8

8.0

1.25

13.5

1.4

10

—

17

1.7

13

—

1.0

13.5

1.4

10

—

17

1.7

13

—

M10

10.0

1.5

28

2.9

21

—

35

3.6

26

—

1.25

28

2.9

21

—

35

3.6

26

—

M12

12.0

1.75

45

4.6

33

—

55

5.6

41

—

1.25

45

4.6

33

—

65

6.6

48

—

M14

14.0

1.5

80

8.2

59

—

100

10

74

—

7T

M6

6.0

1.0

9

0.92

7

80

11

1.1

8

97

M8

8.0

1.25

22

2.2

16

—

28

2.9

21

—

1.0

22

2.2

16

—

28

2.9

21

—

M10

10.0

1.5

45

4.6

33

—

55

5.6

41

—

1.25

45

4.6

33

—

55

5.6

41

—

M12

12.0

1.75

80

8.2

59

—

100

10

74

—

1.25

80

8.2

59

—

100

10

74

—

M14

14.0

1.5

130

13

96

—

170

17

125

—

9T

M6

6.0

1.0

11

1.1

8

—

13.5

1.4

10

—

M8 8.0

1.25

28

2.9

21

—

35

3.6

26

—

1.0

28

2.9

21

—

35

3.6

26

—

M10

10.0

1.5

55

5.6

41

—

80

8.2

59

—

1.25

55

5.6

41

—

80

8.2

59

—

M12

12.0

1.75

100

10

74

—

130

13

96

—

1.25

100

10

74

—

130

13

96

—

M14

14.0

1.5

170

17

125

—

210

21

155

—

MGI044A
