and/or damage to some part of the vehicle.
WARNING indicates the possibility of personal injury if instructions are not followed.
CAUTION indicates the possibility of component damage if instructions are not followed.
BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.
Standard value:Tolerance at inspection and adjustment.
Limit value:The maximum or minimum limit value that should not be exceeded at inspection and adjustment.

Units

INFOID:0000000003938034

• The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit), and

alternatively expressed in the metric system and in the yard/pound system.
Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the
standard tightening torque.

“Example”
Range

Standard

Contents

INFOID:0000000003938035

• A QUICK REFERENCE INDEX, a black tab (e.g.

) is provided on the first page. You can quickly find the

first page of each section by matching it to the section's black tab.

• THE CONTENTS are listed on the first page of each section.
• THE TITLE is indicated on the upper portion of each page and shows the part or system.
• THE PAGE NUMBER of each section consists of two or three letters which designate the particular section

and a number (e.g. “BR-5”).

• THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of

work and hidden or tricky steps which are not shown in the previous large illustrations.
Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle
or transmission, etc. are presented in a step-by-step format where necessary.

Component

INFOID:0000000003938036

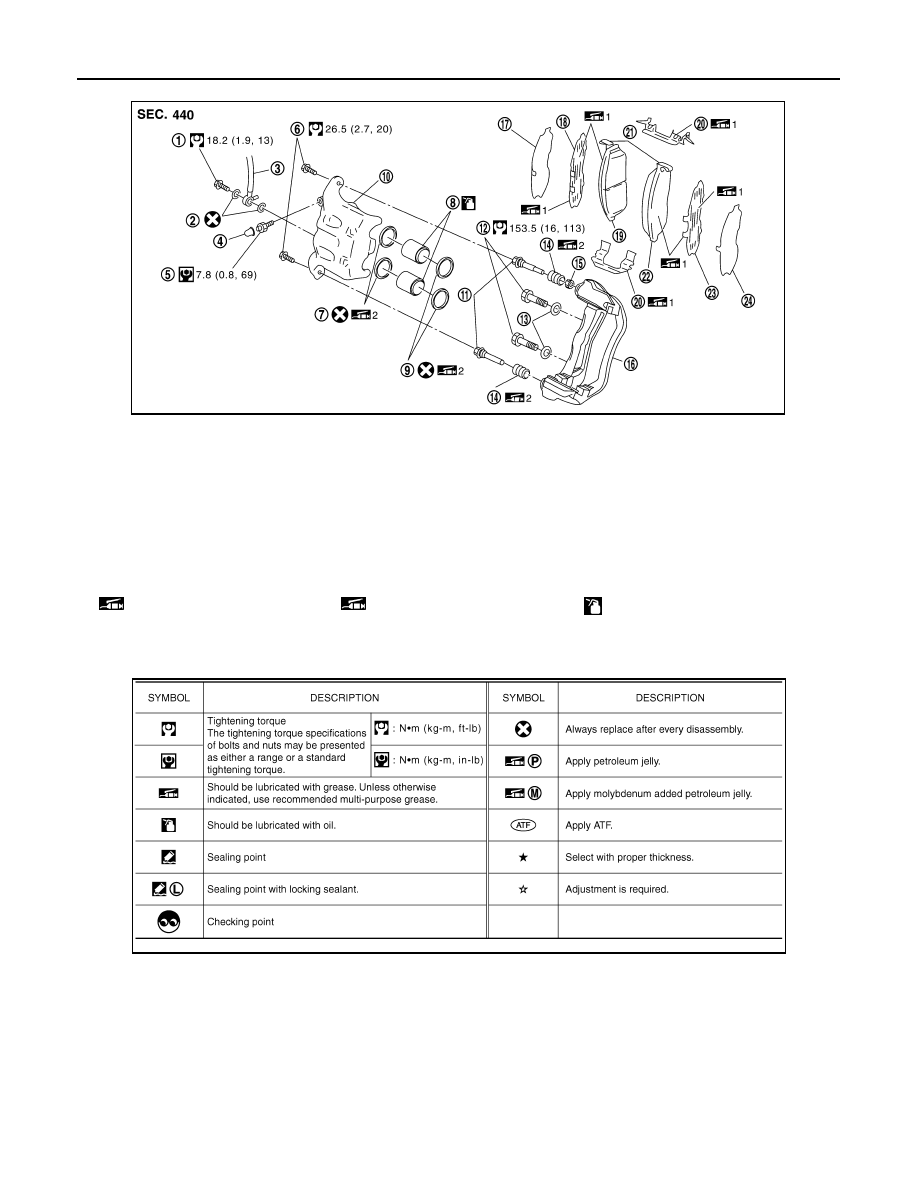

• THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubri-

cation points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to
perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appro-
priate PARTS CATALOG.
Components shown in an illustration may be identified by a circled number. When this style of illustration is
used, the text description of the components will follow the illustration.

Outer Socket Lock Nut

: 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)

Drive Shaft Installation Bolt

: 44.3 N·m (4.5 kg-m, 33 ft-lb)

2009 Pathfinder

GI-4

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

SYMBOLS

How to Follow Trouble Diagnosis

INFOID:0000000003938037

DESCRIPTION

NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
1.

Before performing trouble diagnoses, read the “Preliminary Check”, the “Symptom Chart” or the
“Work Flow”.

After repairs, re-check that the problem has been completely eliminated.

Union bolt

Copper washer

Brake hose

Cap

Bleed valve

Sliding pin bolt

Piston seal

Piston

Piston boot

10.

Cylinder body

11.

Sliding pin

12.

Torque member mounting bolt

13.

Washer

14.

Sliding pin boot

15.

Bushing

16.

Torque member

17.

Inner shim cover

18.

Inner shim

19.

Inner pad

20.

Pad retainer

21.

Pad wear sensor

22.

Outer pad

23.

Outer shim

24.

Outer shim cover

1: PBC (Poly Butyl Cuprysil) grease
or silicone-based grease

2: Rubber grease

: Brake fluid

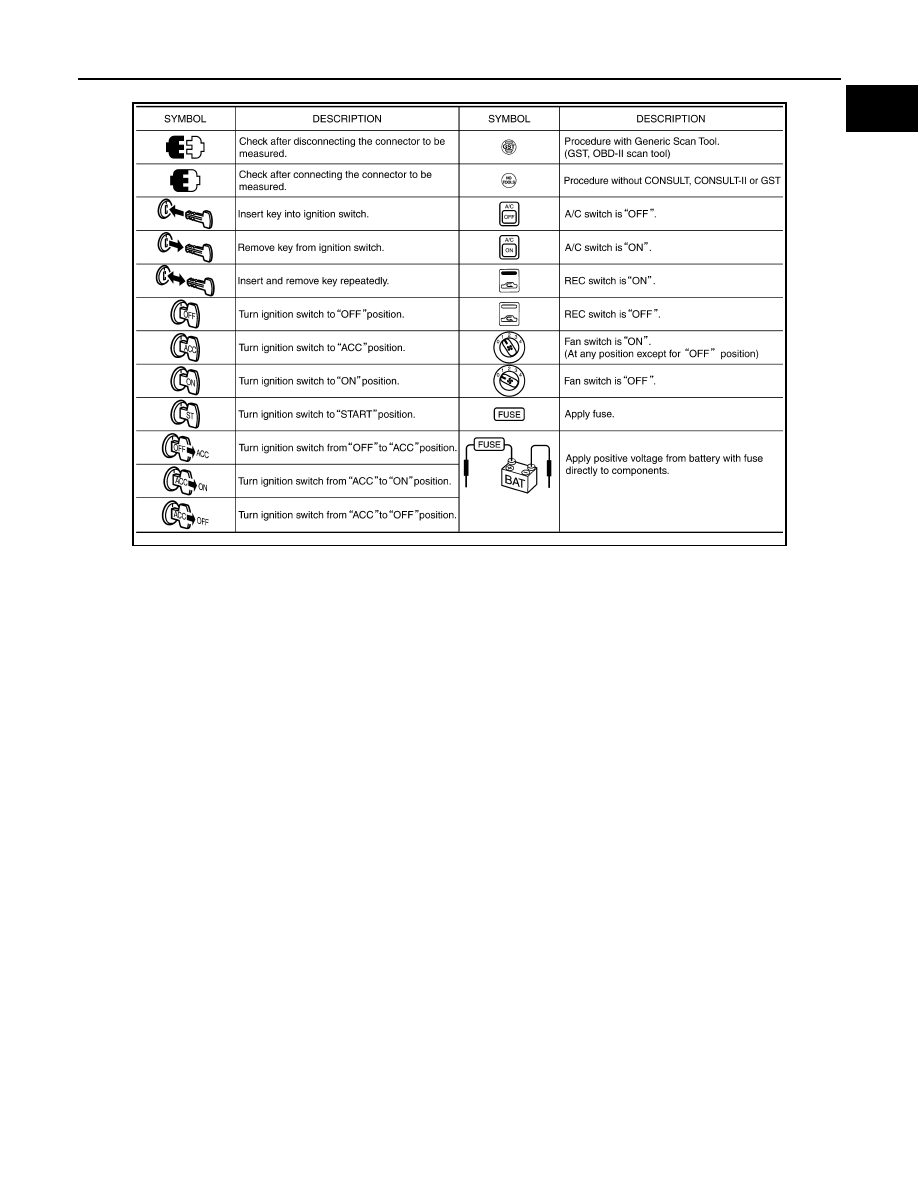

Refer to GI section for additional symbol definitions.

SFIA2959E

SAIA0749E

2009 Pathfinder

HOW TO USE THIS MANUAL

GI-5

< HOW TO USE THIS MANUAL >

Refer to Component Parts and Harness Connector Location for the Systems described in each
section for identification/location of components and harness connectors.

Refer to the Circuit Diagram for quick pinpoint check.
If you need to check circuit continuity between harness connectors in more detail, such as when a
sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG
section for identification of harness connectors.

When checking circuit continuity, ignition switch should be OFF.

Before checking voltage at connectors, check battery voltage.

After accomplishing the Diagnostic Procedures and Electrical Components Inspection, make sure
that all harness connectors are reconnected as they were.

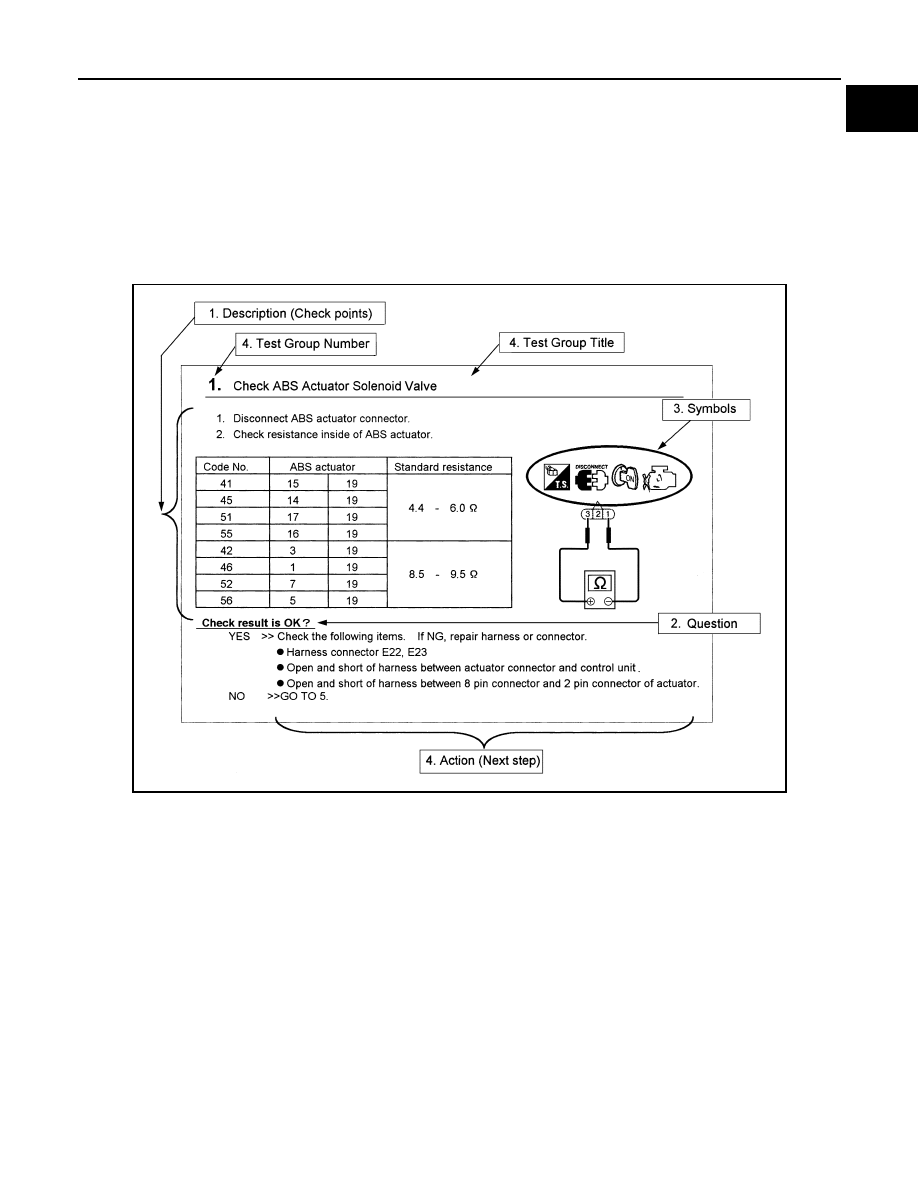

HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES

Work and diagnostic procedure
Start to diagnose a problem using procedures indicated in enclosed test groups.

Questions and required results
Questions and required results are indicated in bold type in test group.
The meaning of are as follows:

Symbol used in illustration
Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem,
familiarize yourself with each symbol. Refer to "Connector Symbols" in GI Section and "KEY TO SYM-
BOLS SIGNIFYING MEASUREMENTS OR PROCEDURES" below.

Action items
Next action for each test group is indicated based on result of each question. Test group number is shown
in the left upper portion of each test group.

HARNESS WIRE COLOR AND CONNECTOR NUMBER INDICATION

There are two types of harness wire color and connector number indication.

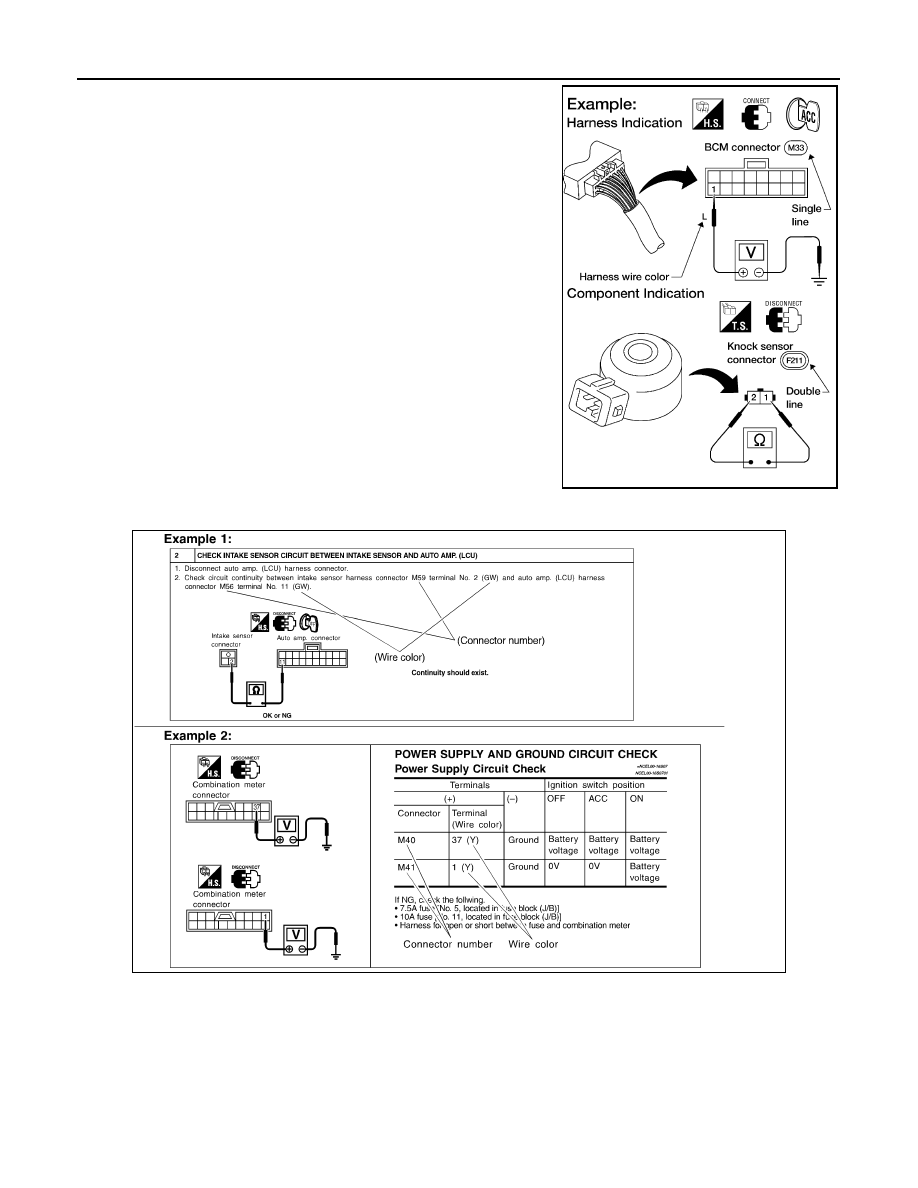

TYPE 1: Harness Wire Color and Connector Number are Shown in Illustration

SAIA0256E

a. Battery voltage

→

11 - 14V or approximately 12V

b. Voltage

: Approximately 0V

→

Less than 1V

2009 Pathfinder

GI-6

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

• Letter designations next to test meter probe indicate harness wire

color.

• Connector numbers in a single circle (e.g. M33) indicate harness

connectors.

• Connector numbers in a double circle (e.g. F211) indicate compo-

nent connectors.

TYPE 2: Harness Wire Color and Connector Number are Shown in Text

AGI070

SGI144A

2009 Pathfinder

HOW TO USE THIS MANUAL

GI-7

< HOW TO USE THIS MANUAL >

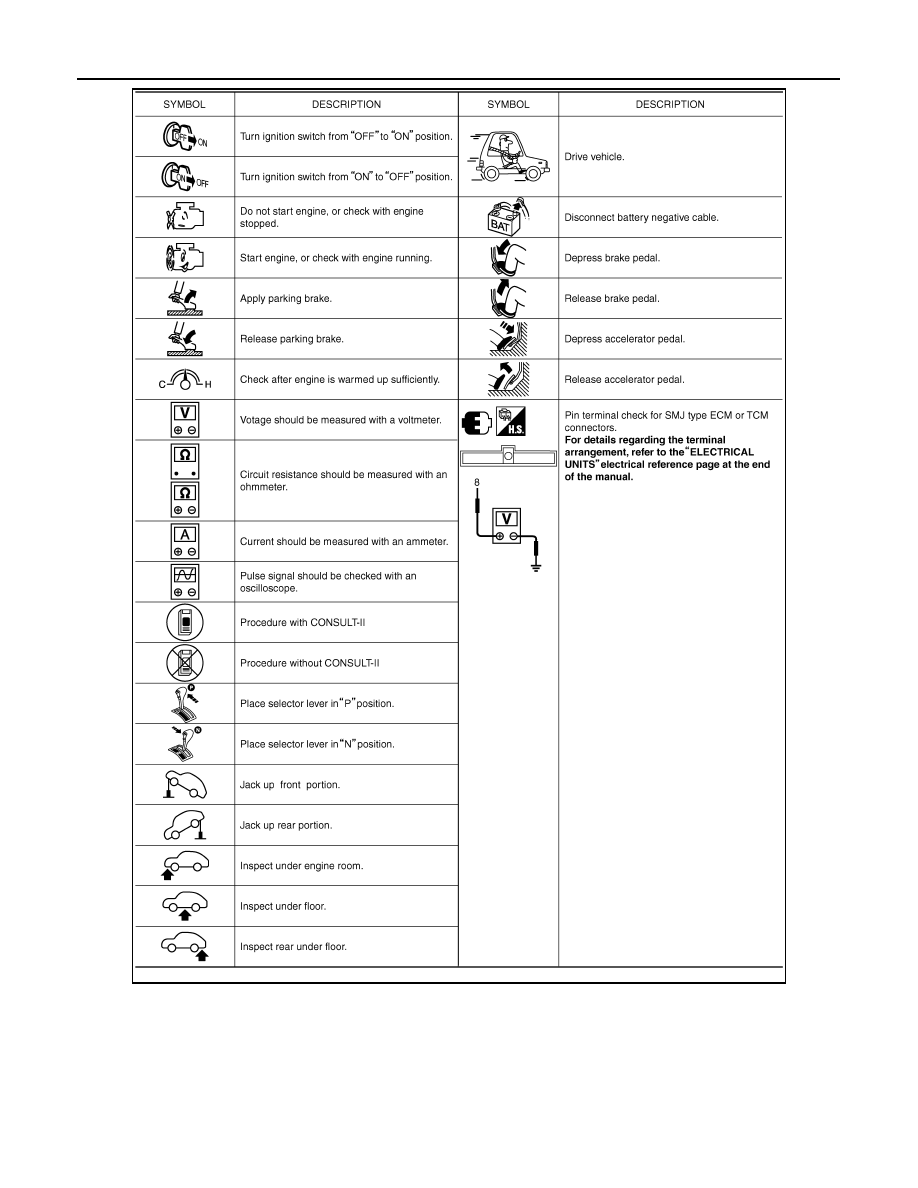

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES

SAIA0750E

2009 Pathfinder

GI-8

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

How to Read Wiring Diagram

INFOID:0000000003938038

CONNECTOR SYMBOLS

Most of connector symbols in wiring diagrams are shown from the terminal side.

SAIA0751E

2009 Pathfinder

HOW TO USE THIS MANUAL

GI-9

< HOW TO USE THIS MANUAL >

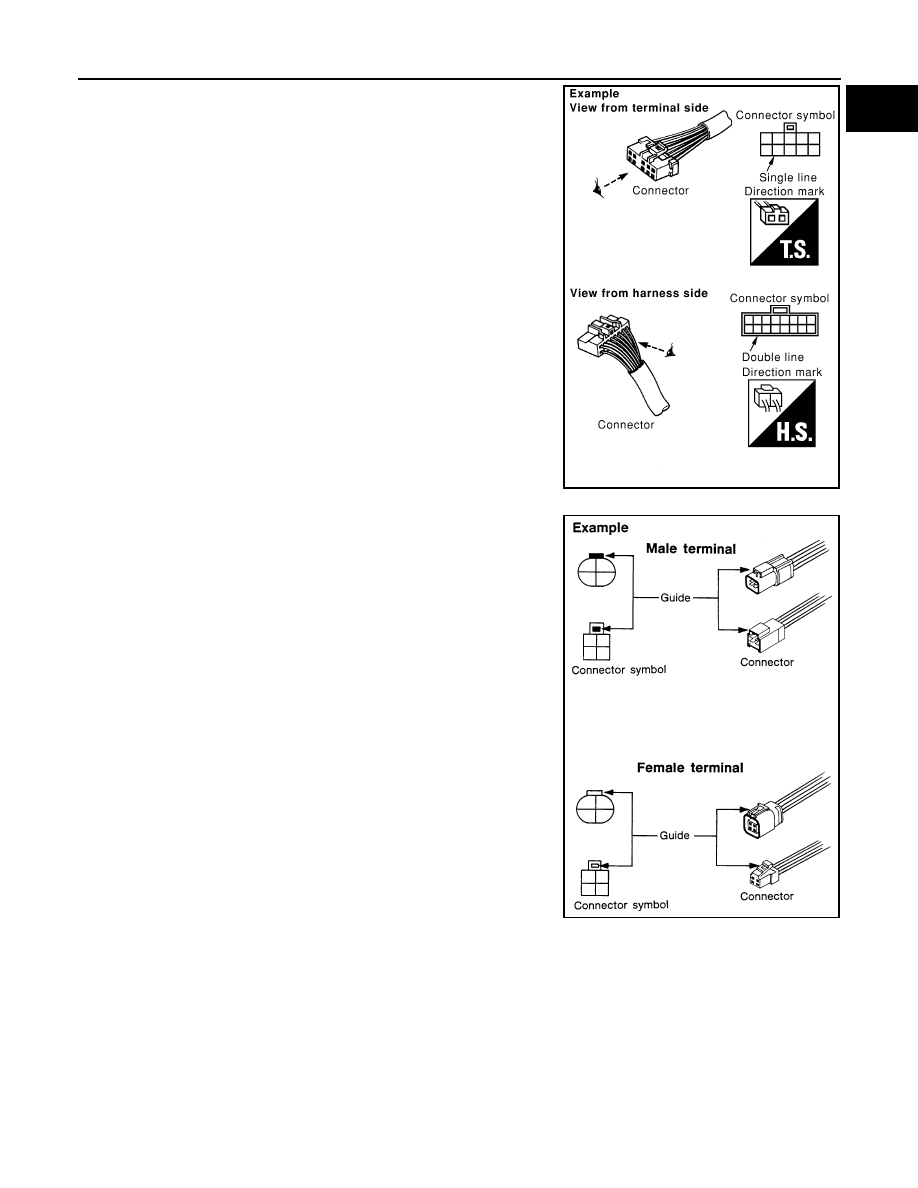

• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

• Male and female terminals

Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.

SAMPLE/WIRING DIAGRAM - EXAMPL -

SAIA0257E

SGI363

2009 Pathfinder
