KNUCKLE

KNUCKLE

On-Vehicle Inspection and Service

INFOID:0000000003939321

Make sure the mounting conditions (looseness, backlash) of each component and component status (wear,
damage) are within specifications. Refer to

FSU-25, "Ball Joint"

.

2009 Pathfinder

FRONT SUSPENSION ASSEMBLY

FSU-13

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

ON-VEHICLE REPAIR

FRONT SUSPENSION ASSEMBLY

Component

INFOID:0000000003939322

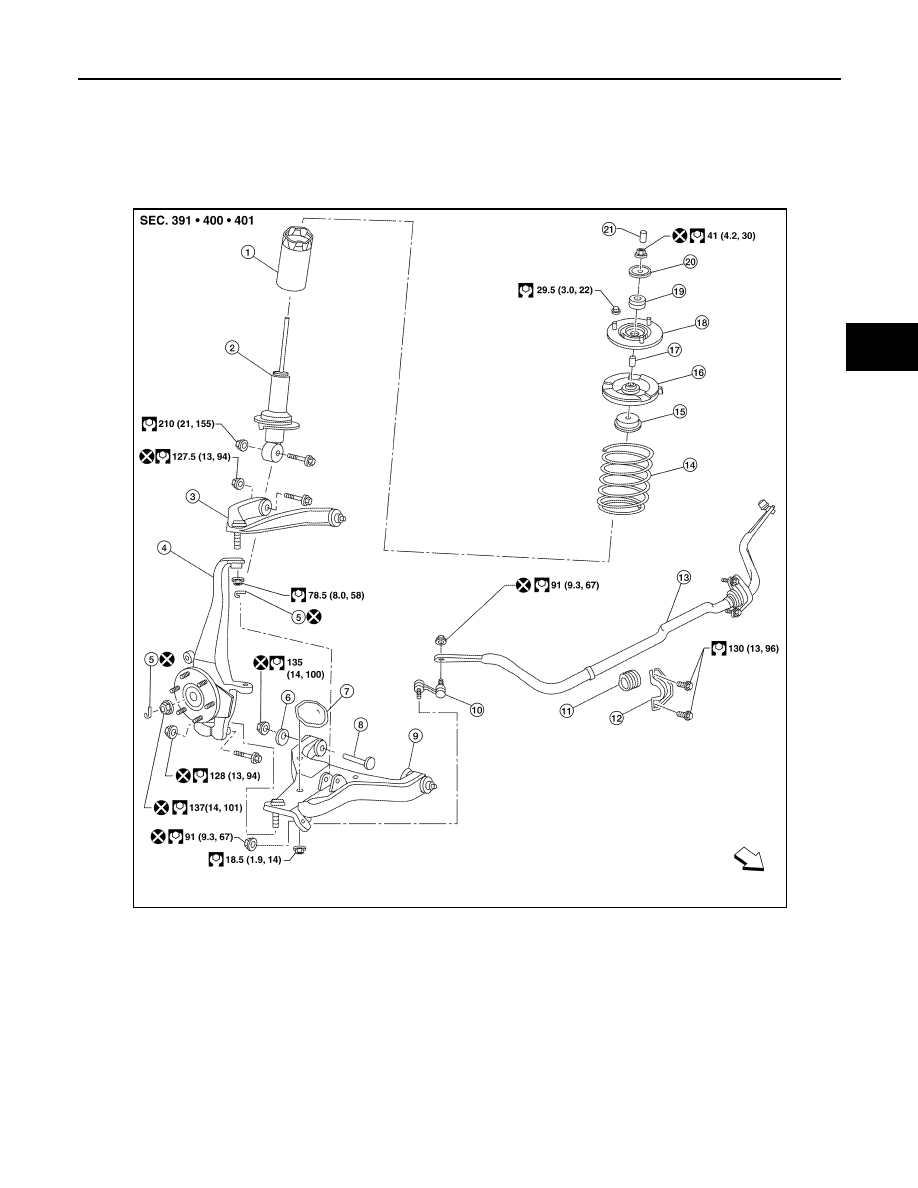

1.

Dust cover

2.

Shock absorber

3.

Upper link

4.

Steering knuckle

5.

Cotter pin

6.

Washer

7.

Jounce bumper

8.

Bolt

9.

Lower link

10. Connecting rod

11. Stabilizer bar bushing

12. Stabilizer bar bracket

13. Stabilizer bar

14. Coil spring

15. Dust cover cap

16. Upper spring seat

17. Spacer

18. Shock absorber mounting insulator

19. Spacer

20. Washer

21. Cap

⇐

Front

AWEIA0021GB

2009 Pathfinder

FSU-14

< REMOVAL AND INSTALLATION >

COIL SPRING AND SHOCK ABSORBER

REMOVAL AND INSTALLATION

COIL SPRING AND SHOCK ABSORBER

Removal and Installation

INFOID:0000000003939323

REMOVAL

1.

Remove the wheel and tire using power tool.

2.

Support the lower link using a suitable jack.

3.

Remove connecting rod upper joints from stabilizer bar using power tool. Refer to

FSU-13, "Component"

.

• Swing stabilizer bar down, repositioning it out of the way to access shock absorber lower mount.

4.

Remove the shock absorber lower bolt and nut using power tool.

5.

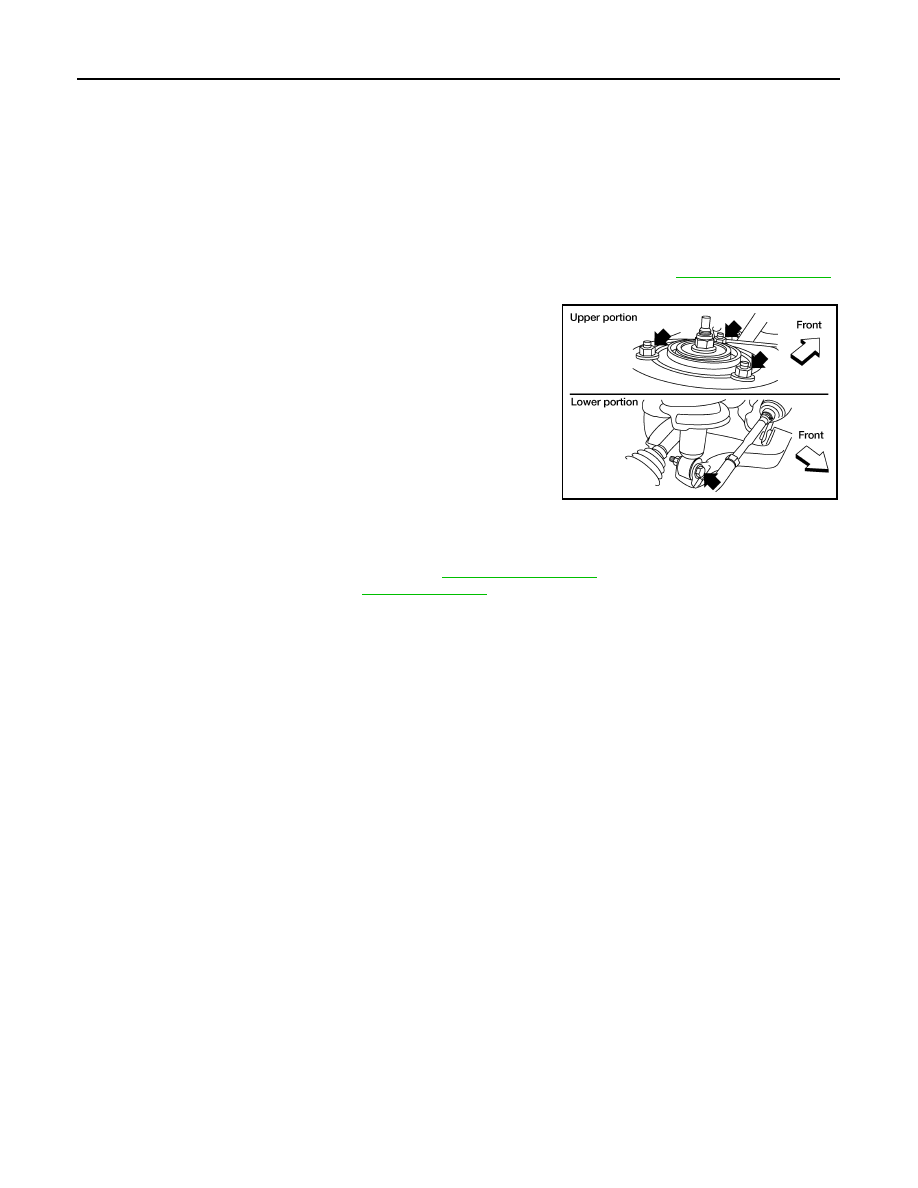

Remove the three shock absorber upper mounting nuts using
power tool.

6.

Remove the coil spring and shock absorber assembly.
• Turn steering knuckle out to gain enough clearance for

removal.

INSTALLATION

Installation is in the reverse order of removal.
• The step in the strut assembly lower seat faces outside of vehicle.
• Tighten all nuts and bolts to specification. Refer to

FSU-13, "Component"

.

• When installing wheel and tire, refer to

WT-48, "Rotation"

.

WEIA0116E

2009 Pathfinder

STABILIZER BAR

FSU-15

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

STABILIZER BAR

Removal and Installation

INFOID:0000000003939324

REMOVAL

1.

Remove the front valance center.

2.

Remove engine undercover using power tool.

3.

Remove connecting rod nuts using power tool.

4.

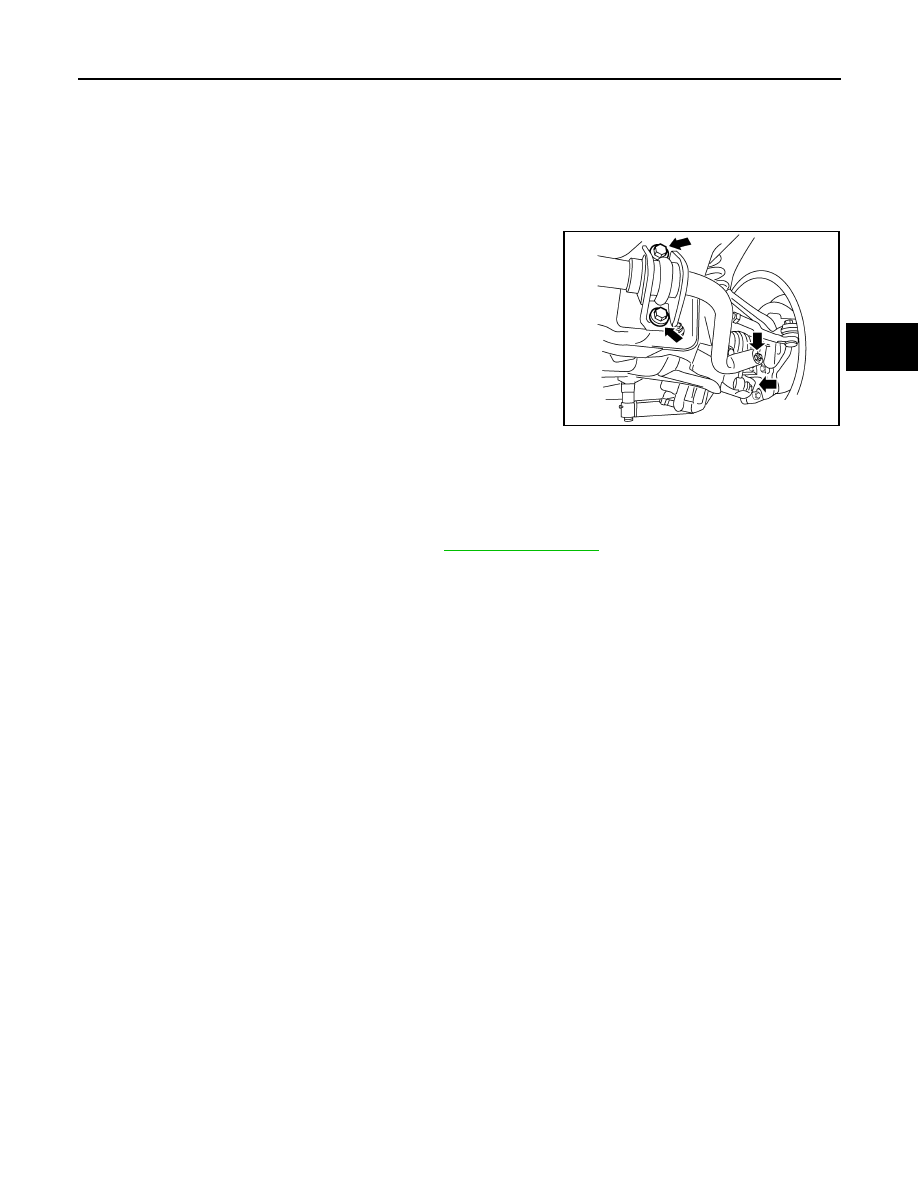

Loosen top bolts for stabilizer bar brackets, then remove lower
bolts from brackets and remove stabilizer bar.

5.

Remove bushings from stabilizer bar.

INSPECTION AFTER REMOVAL

• Check stabilizer bar for twist and deformation. Replace if necessary.
• Check rubber bushing for cracks, wear and deterioration. Replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.
• Tighten all nuts and bolts to specification. Refer to

FSU-13, "Component"

.

WEIA0118E

2009 Pathfinder

FSU-16

< REMOVAL AND INSTALLATION >

LOWER LINK

LOWER LINK

Removal and Installation

INFOID:0000000003939325

REMOVAL

1.

Remove the wheel and tire using power tool.

2.

Remove lower shock absorber bolt and nut using power tool.

3.

Remove stabilizer bar connecting rod lower nut using power tool, then separate connecting rod from lower
link. Refer to

FSU-15, "Removal and Installation"

.

4.

For 4WD models, remove the drive shaft. Refer to

FAX-6, "VQ40DE : Removal and Installation"

.

5.

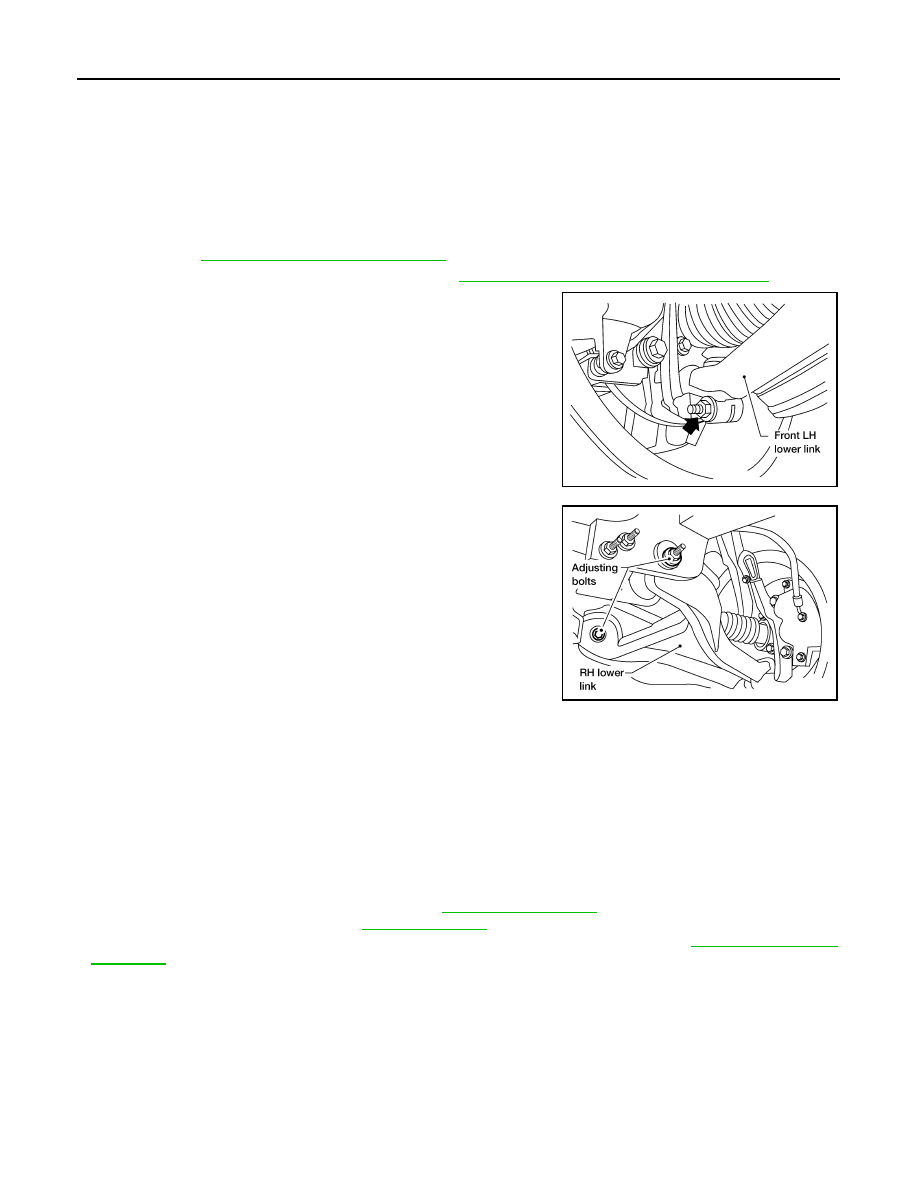

Remove pinch bolt from steering knuckle using power tool, then
separate lower link ball joint from steering knuckle.

6.

Remove lower link adjusting bolts and nuts, then the lower link.
NOTE:
Some vehicles may be equipped with straight (non-adjustable)
lower link bolts and washers. In order to adjust camber and
caster on these vehicles, first replace the lower link bolts and
washers with adjustable (cam) bolts and washers.

7.

Remove the jounce bumper from the lower link.

INSPECTION AFTER REMOVAL

Lower Link

Check for deformation and cracks. Replace if necessary.

Lower Link Bushing

Check for distortion and damage. Replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.
• Tighten all nuts and bolts to specification. Refer to

FSU-13, "Component"

.

• When installing wheel and tire, refer to

WT-48, "Rotation"

.

• After installation, check that the front wheel alignment is within specification. Refer to

FSU-6, "Front Wheel

Alignment"

.

LEIA0097E

WEIA0115E

2009 Pathfinder

UPPER LINK

FSU-17

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

UPPER LINK

Removal and Installation

INFOID:0000000003939326

REMOVAL

1.

Remove the wheel and tire using power tool.

2.

Support the lower link using a suitable jack.

3.

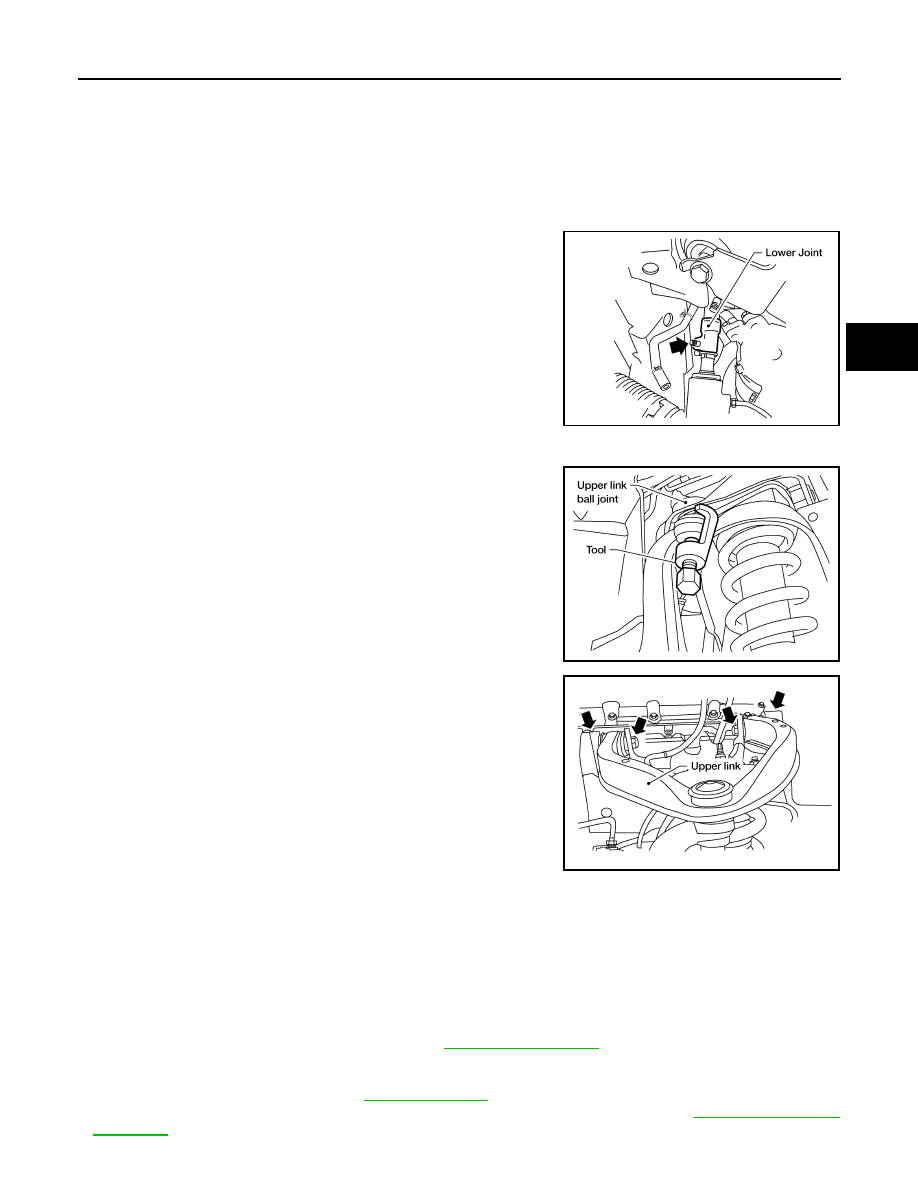

For the LH side only, remove the bolt from the lower joint of the
lower joint shaft, then reposition the lower joint shaft out of the
way.

CAUTION:

• Do not damage the lower joint.

4.

Remove cotter pin and nut from upper link ball joint.

5.

Separate upper link ball joint stud from steering knuckle using
Tool.

6.

Remove upper link bolts and nuts.

INSPECTION AFTER REMOVAL

Upper Link

Check for deformation and cracks. Replace if necessary.

Upper Link Ball Joint

Check for distortion and damage. Replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.
• Tighten all nuts and bolts to specification. Refer to

FSU-13, "Component"

.

CAUTION:

Always replace drive shaft lock nut and cotter pin.

• When installing wheel and tire, refer to

WT-48, "Rotation"

.

• After installation, check that the front wheel alignment is within specification. Refer to

FSU-6, "Front Wheel

Alignment"

.

LGIA0029E

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

WEIA0120E

2009 Pathfinder

FSU-18

< REMOVAL AND INSTALLATION >

UPPER BALL JOINT AND LOWER BALL JOINT

UPPER BALL JOINT AND LOWER BALL JOINT

Removal and Installation

INFOID:0000000003939327

The ball joints are part of the upper and lower links. Refer to

FSU-17, "Removal and Installation"

 (upper link),

FSU-16, "Removal and Installation"

 (lower link).

2009 Pathfinder

KNUCKLE

FSU-19

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

KNUCKLE

Removal and Installation

INFOID:0000000003939328

REMOVAL

1.

Remove wheel and tire from vehicle using power tool.

2.

Without disassembling the hydraulic lines, remove brake caliper using power tool. Reposition it aside with
wire. Refer to

BR-39, "Removal and Installation of Brake Caliper and Disc Rotor"

.

NOTE:
Avoid depressing brake pedal while brake caliper is removed.

3.

Put alignment marks on disc rotor and wheel hub and bearing
assembly, then remove disc rotor.

4.

Disconnect wheel sensor and remove bracket from steering knuckle.

CAUTION:

Do not pull on wheel sensor harness.

5.

On 4WD models, remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to

FAX-

6, "VQ40DE : Removal and Installation"

.

6.

Remove steering outer socket cotter pin at steering knuckle, then loosen nut using power tool. Refer to

ST-29, "Disassembly and Assembly"

.

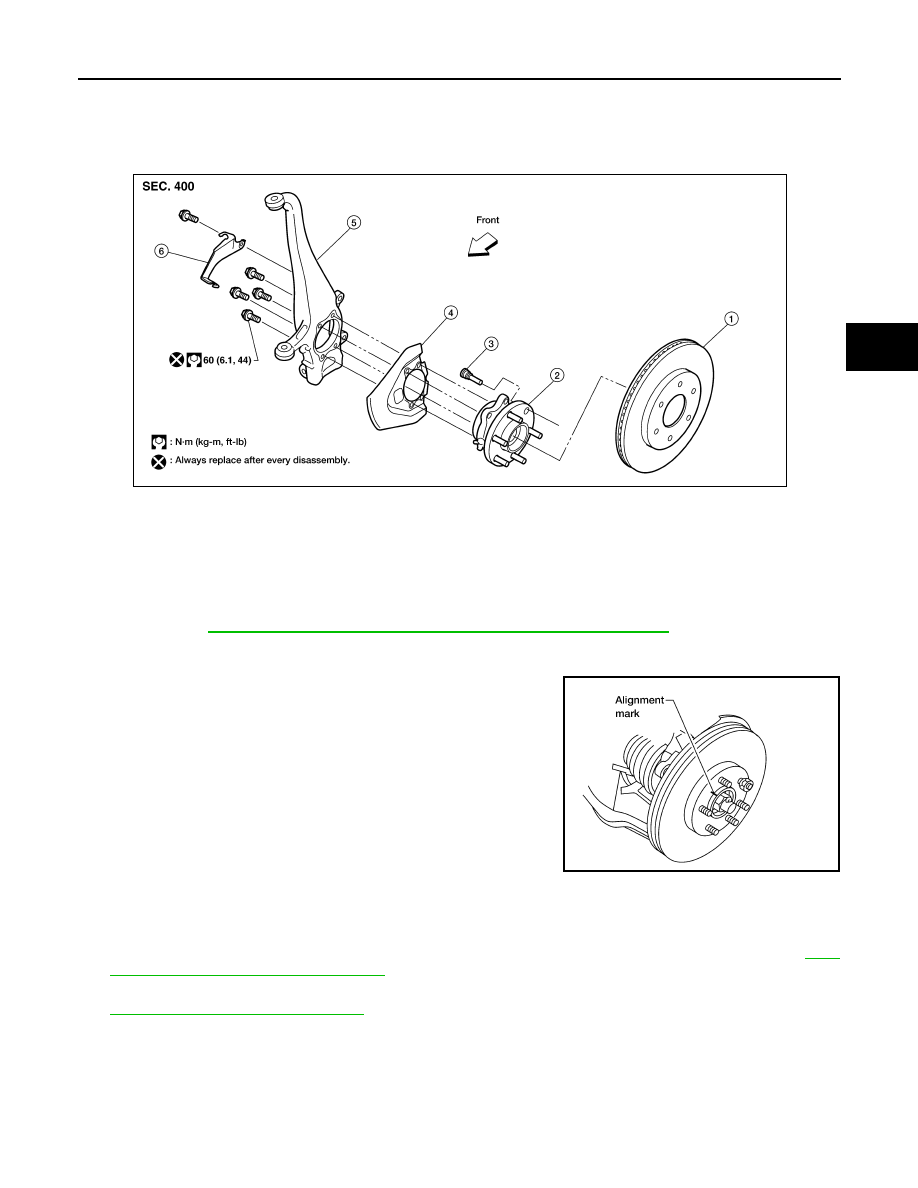

1.

Disc rotor

2.

Wheel hub and bearing assembly

3.

Wheel stud

4.

Splash guard

5.

Steering knuckle

6.

Wheel sensor bracket

WDIA0228E

WDIA0044E
