Nissan Pathfinder (2009 year). Manual - part 400

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-257

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

*: After installing in connecting rod

CRANKSHAFT

Unit: mm (in)

Side clearance

0.20 - 0.40 (0.0079 - 0.0157)

0.40 (0.0157)

Connecting rod bearing housing

Grade No. 0
Grade No. 1
Grade No. 2
Grade No. 3
Grade No. 4
Grade No. 5
Grade No. 6
Grade No. 7
Grade No. 8
Grade No. 9
Grade No. A
Grade No. B
Grade No. C

57.000 - 57.001 (2.2441 - 2.2441)
57.001 - 57.002 (2.2441 - 2.2442)
57.002 - 57.003 (2.2442 - 2.2442)
57.003 - 57.004 (2.2442 - 2.2443)
57.004 - 57.005 (2.2443 - 2.2443)
57.005 - 57.006 (2.2443 - 2.2443)
57.006 - 57.007 (2.2443 - 2.2444)
57.007 - 57.008 (2.2444 - 2.2444)
57.008 - 57.009 (2.2444 - 2.2444)
57.009 - 57.010 (2.2444 - 2.2445)

57.010 - 57.011 (2.2445 - 2.2445)
57.011 - 57.012 (2.2445 - 2.2446)

57.012 - 57.013 (2.2446 - 2.2446)

Main journal dia. “Dm” grade (No. 1 and 5)

Standard

Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 1
Grade No. 2
Grade No. 3
Grade No. 4
Grade No. 5
Grade No. 6
Grade No. 7
Grade No. 9

63.963 - 63.964 (2.5182 - 2.5183)
63.962 - 63.963 (2.5182 - 2.5182)
63.961 - 63.962 (2.5181 - 2.5182)
63.960 - 63.961 (2.5181 - 2.5181)
63.959 - 63.960 (2.5181 - 2.5181)
63.958 - 63.959 (2.5180 - 2.5181)
63.957 - 63.958 (2.5180 - 2.5180)
63.956 - 63.957 (2.5179 - 2.5180)
63.955 - 63.956 (2.5179 - 2.5179)
63.954 - 63.955 (2.5179 - 2.5179)
63.953 - 63.954 (2.5178 - 2.5179)
63.952 - 63.953 (2.5178 - 2.5178)
63.951 - 63.952 (2.5178 - 2.5178)
63.950 - 63.951 (2.5177 - 2.5178)
63.949 - 63.950 (2.5177 - 2.5177)
63.948 - 63.949 (2.5176 - 2.5177)
63.947 - 63.948 (2.5176 - 2.5176)
63.946 - 63.947 (2.5176 - 2.5176)
63.945 - 63.946 (2.5175 - 2.5176)
63.944 - 63.945 (2.5175 - 2.5175)
63.943 - 63.944 (2.5174 - 2.5175)
63.942 - 63.943 (2.5174 - 2.5174)
63.941 - 63.942 (2.5174 - 2.5174)
63.940 - 63.941 (2.5173 - 2.5174)

SEM645

PBIC1686E

2009 Pathfinder

EM-258

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

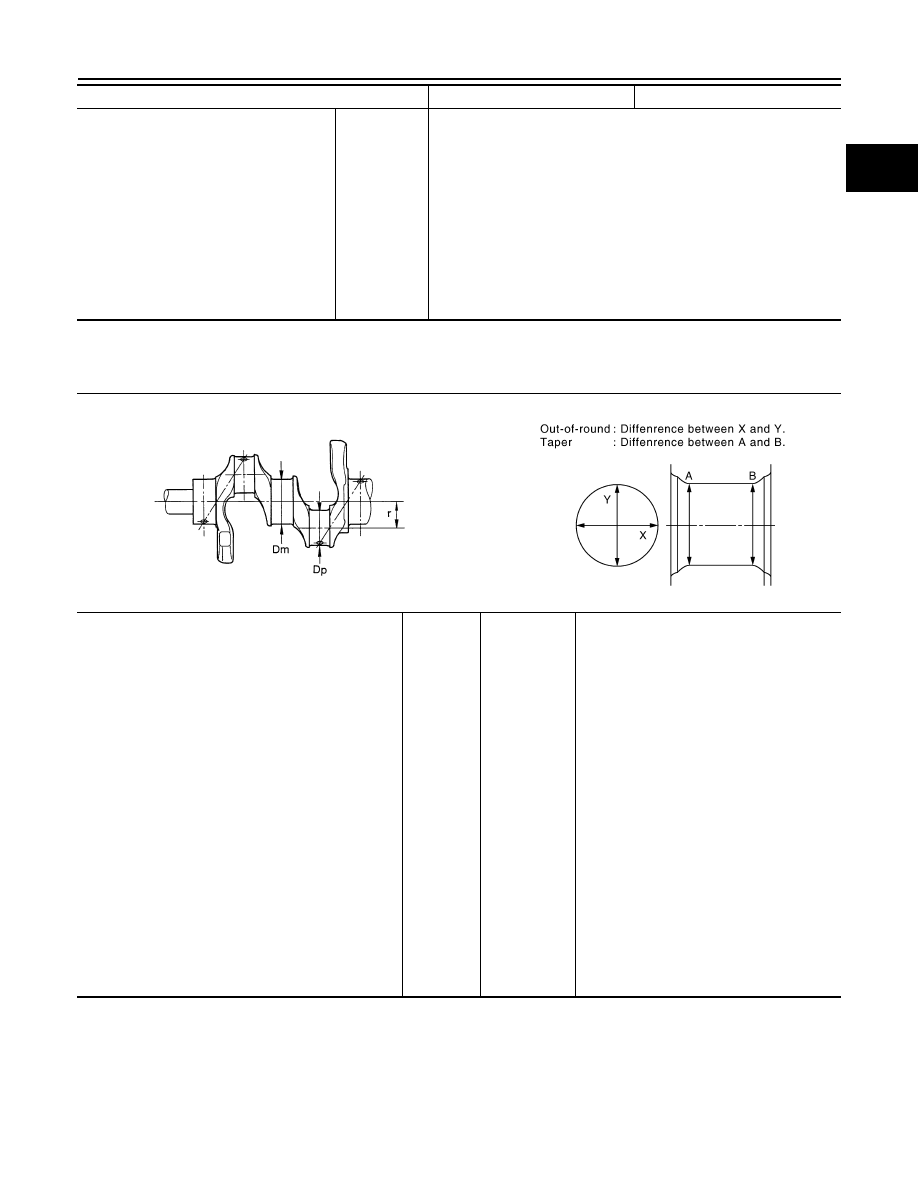

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Total indicator reading

MAIN BEARING

Unit: mm (in)

Main journal dia. “Dm” grade (No. 2, 3 and 4)

Standard

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 1
Grade No. 2

Pin journal dia. “Dp”

Standard

Grade No. 0

53.968 - 53.974 (2.1247 - 2.1250)

Grade No. 1

53.962 - 53.968 (2.1245 - 2.1247)

Grade No. 2

53.956 - 53.962 (2.1243 - 2.1245)

Center distance “r”

45.96 - 46.04 (1.8094 - 1.8126)

Out-of-round (Difference between

″

and

″

)

Limit

0.002 (0.0001)

Taper (Difference between

″

and

″

)

0.002 (0.0001)

Runout [TIR*]

Less than 0.05 (0.002)

Crankshaft end play

Standard

0.10 - 0.26 (0.0039 - 0.0102)

Limit

0.30 (0.0118)

Grade number

UPR/LWR

Thickness

Identification color

Remarks

PBIC0189E

2009 Pathfinder

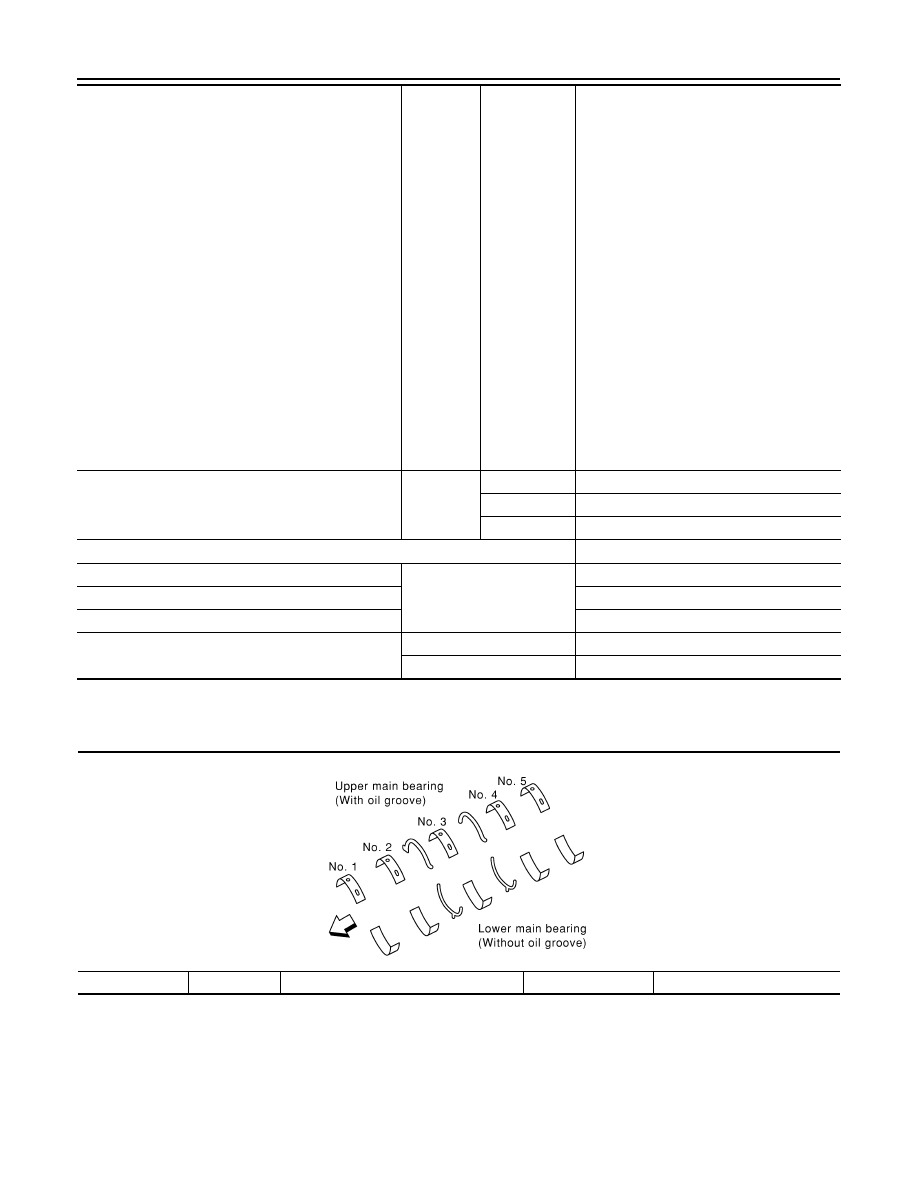

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-259

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

Undersize

Unit: mm (in)

Main Bearing Oil Clearance

Unit: mm (in)

Connecting Rod Bearing

Undersize

Unit: mm (in)

—

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade is the same for upper
and lower bearings

—

2.486 - 2.489 (0.0979 - 0.0980)

Brown

—

2.489 - 2.492 (0.0980 - 0.0981)

Green

—

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

—

2.495 - 2.498 (0.0982 - 0.0983)

Blue

—

2.498 - 2.501 (0.0983 - 0.0985)

Pink

—

2.501 - 2.504 (0.0985 - 0.0986)

Purple

—

2.504 - 2.507 (0.0986 - 0.0987)

White

—

2.507 - 2.510 (0.0987 - 0.0988)

Red

UPR

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade is different for upper and
lower bearings.

LWR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

UPR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

LWR

2.489 - 2.492 (0.0980 - 0.0981)

Green

UPR

2.489 - 2.492 (0.0980 - 0.0981)

Green

LWR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

UPR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

LWR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

UPR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

LWR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

UPR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

LWR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

UPR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

LWR

2.504 - 2.507 (0.0986 - 0.0987)

White

UPR

2.504 - 2.507 (0.0986 - 0.0987)

White

LWR

2.507 - 2.510 (0.0987 - 0.0988)

Red

Undersize

Thickness

Main journal diameter

0.25 (0.0098)

2.618 - 2.626 (0.1031 - 0.1034)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Main bearing oil clearance

No.1 and 5

0.001 - 0.011 (0.00004 - 0.0004)

0.021 (0.0008)

No.2, 3 and 4

0.007 - 0.017 (0.0003 - 0.0007)

0.027 (0.0011)

Grade number

Thickness “T”

mm (in)

Identification color (mark)

1.500 - 1.503 (0.0591 - 0.0592)

Black

1.503 - 1.506 (0.0592 - 0.0593)

Brown

1.506 - 1.509 (0.0593 - 0.0594)

Green

1.509 - 1.512 (0.0594 - 0.0595)

Yellow

Undersize

Thickness

Crank pin journal diameter “Dp”

0.25 (0.0098)

1.627 - 1.635 (0.0641 - 0.0644)

Grind so that bearing clearance is the specified value.

2009 Pathfinder

EM-260

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Connecting Rod Bearing Oil Clearance

Unit: mm (in)

Items

Standard

Limit

Connecting rod bearing oil clearance

0.020 - 0.039 (0.0008 - 0.0015)

0.055 (0.0022)

2009 Pathfinder

EX-1

ENGINE

SECTION

CONTENTS

EXHAUST SYSTEM

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tool .................................................

Commercial Service Tool .........................................

ON-VEHICLE MAINTENANCE .....................

EXHAUST SYSTEM ...........................................

Checking Exhaust System ........................................

ON-VEHICLE REPAIR ..................................

EXHAUST SYSTEM ...........................................

Exploded View ..........................................................

Removal and Installation ..........................................

2009 Pathfinder

EX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003939455

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004448926

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

Perform the necessary repair operation.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

Perform a self-diagnosis check of all control units using CONSULT-III.

2009 Pathfinder

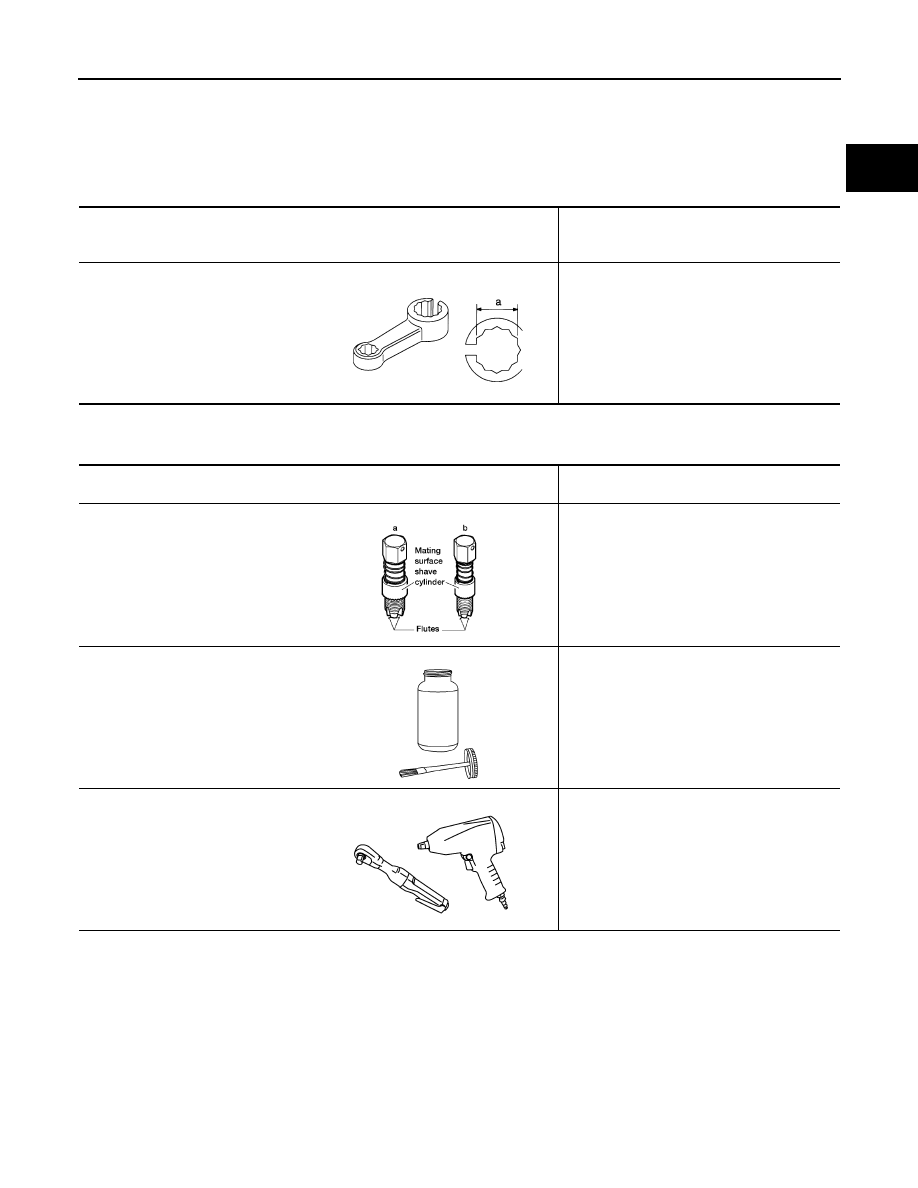

PREPARATION

EX-3

< PREPARATION >

PREPARATION

Special Service Tool

INFOID:0000000003939456

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000003939457

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sors:
a: 22 mm (0.87 in)

S-NT636

(Kent-Moore No.)
Tool name

Description

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below):
a: J-43897-18 (18 mm, 0.71 in) dia. for zirco-
nia oxygen sensor
b: J-43897-12 (12 mm, 0.47 in) dia. for tita-
nia oxygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Power tool

Loosening nuts and bolts

AEM488

AEM489

PBIC0190E

2009 Pathfinder

EX-4

< ON-VEHICLE MAINTENANCE >

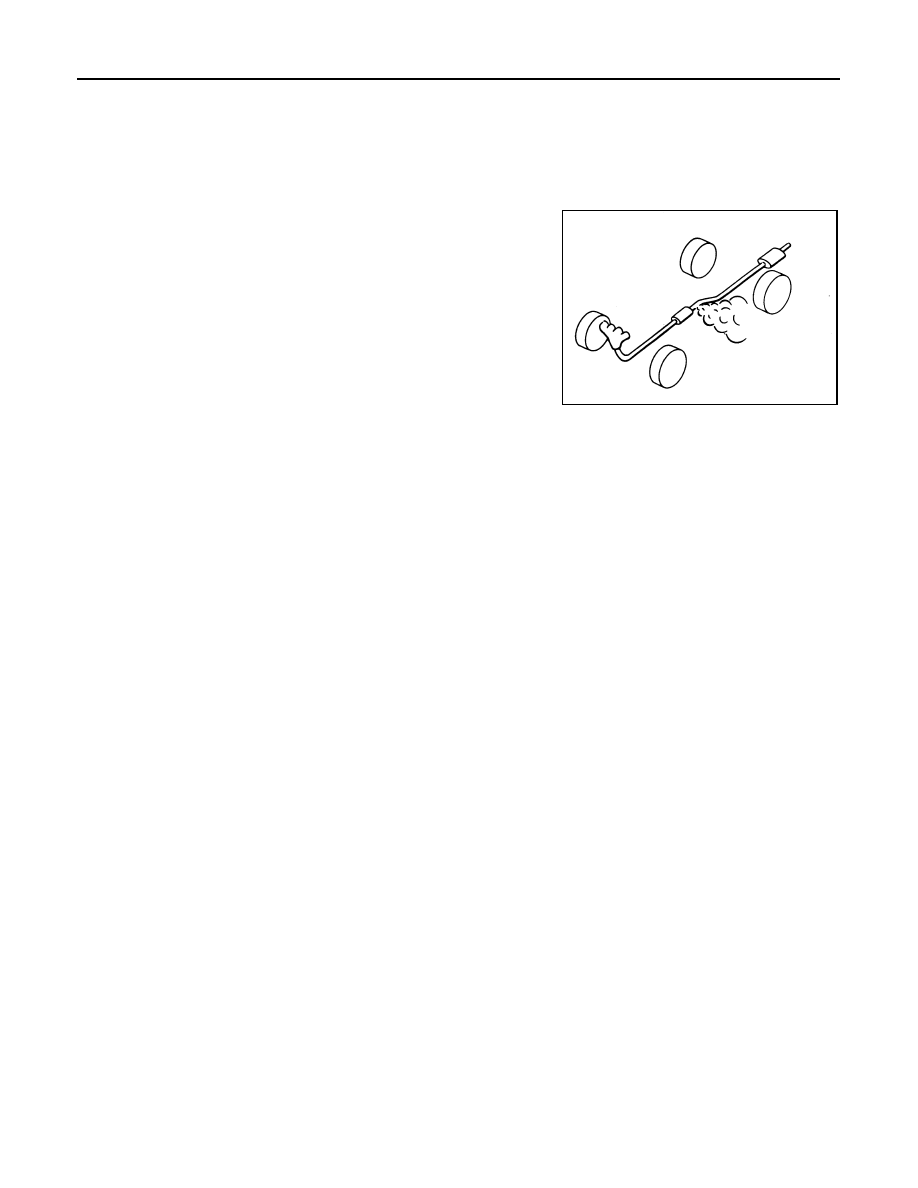

EXHAUST SYSTEM

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM

Checking Exhaust System

INFOID:0000000003939458

Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A
