TIMING CHAIN

EM-193

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

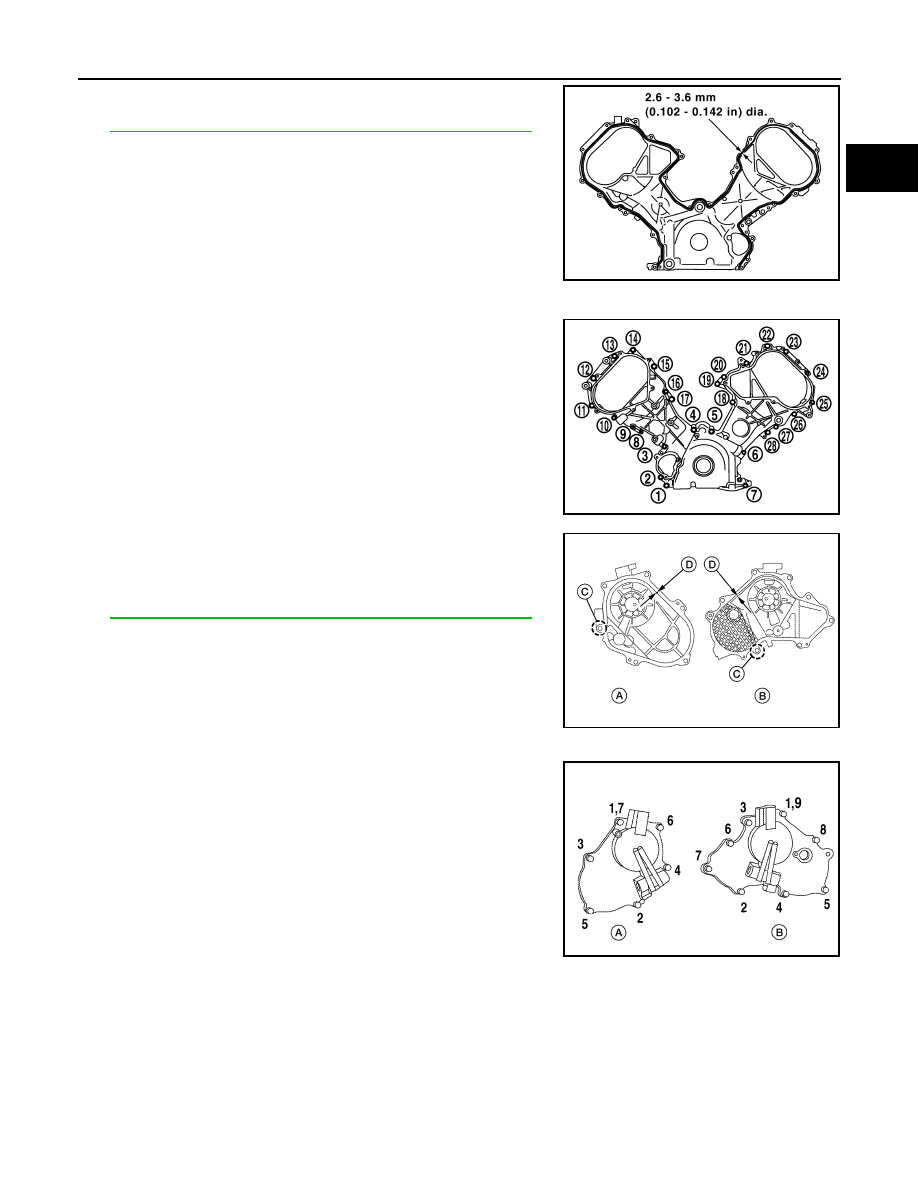

b.

Apply liquid gasket as shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-26, "Recommended Chemical Products and Sealants"

.

c.

Check again that the timing alignment marks on the timing chain
and on each sprocket are aligned. Then install the front cover.

d.

Install the bolts in the numerical order shown.

e.

After tightening, re-tighten to the specified torque.

CAUTION:

Be sure to wipe off any excessive liquid gasket leaking onto
surface mating with oil pan.

11. Install the Intake valve control solenoid valve cover (RH) (A) and

Intake valve control solenoid valve cover (LH) (B) as follows:

a.

Apply liquid gasket (D) as shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-26, "Recommended Chemical Products and Sealants"

.

CAUTION:

The start and end of the application of the liquid gasket
should be crossed at a position (C) that cannot be seen
after attaching the Intake valve control solenoid valve
cover.

b.

Install the bolts and tighten them to specification in the numeri-
cal order shown.
• A: Intake valve control solenoid valve cover (RH)
• B: Intake valve control solenoid valve cover (LH)

12. Install the crankshaft pulley.

• Install the key of the crankshaft.
• Insert the pulley by lightly tapping it.

CAUTION:

Do not tap pulley on the side surface where the belt is installed (outer circumference).

13. Tighten the crankshaft pulley bolt.

• Lock the crankshaft using suitable tool, then tighten the bolt.
• Perform the following steps for angular tightening:

a.

Apply engine oil onto the threaded parts of the bolt and seating area.

KBIA2517E

M6

×

 50 mm (1.97 in)

: No. 1, 20, 25, 26, 27

M6

×

 80 mm (3.15 in)

: No. 4, 5, 7

M6

×

 20 mm (0.79 in)

: Except the above

KBIA2478E

D : 2.6 - 3.6 mm (0.102 - 0.142 in) dia.

WBIA0800E

WBIA0798E

2009 Pathfinder

EM-194

< ON-VEHICLE REPAIR >

[VK56DE]

TIMING CHAIN

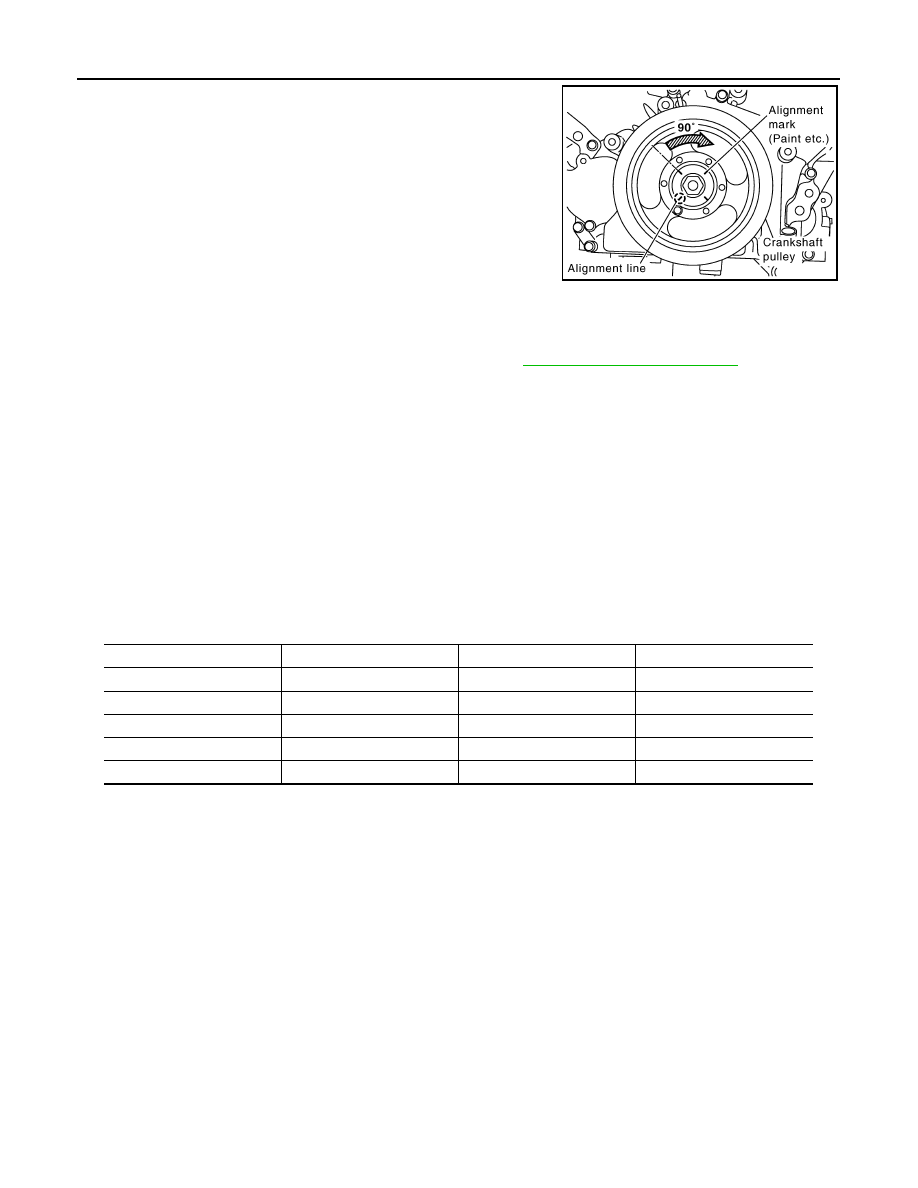

b.

Select the one most visible notch of the four on the bolt flange.
Corresponding to the selected notch, put a alignment mark
(such as paint) on the crankshaft pulley.

14. Rotate the crankshaft pulley in normal direction (clockwise when

viewed from engine front) to check for parts interference.

15. Installation of the remaining components is in the reverse of

order of removal.

INSPECTION AFTER INSTALLATION

• Before starting the engine, check oil/fluid levels including engine coolant and engine oil. If the levels are

lower than required quantity, fill to the specified level. Refer to

MA-12, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to the fuel piping, check for fuel

leakage at the connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide
may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop
after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down the engine, again check oil/fluid levels including engine oil and engine coolant. Refill to

specified level if necessary.

• Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Crankshaft pulley bolt torque

Step 1

: 93.1 N·m (9.5 kg-m, 69 ft-lb)

Step 2

: additional 90

°

 (angle tightening)

KBIA2519E

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gas

—

Leakage

—

2009 Pathfinder

CAMSHAFT

EM-195

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

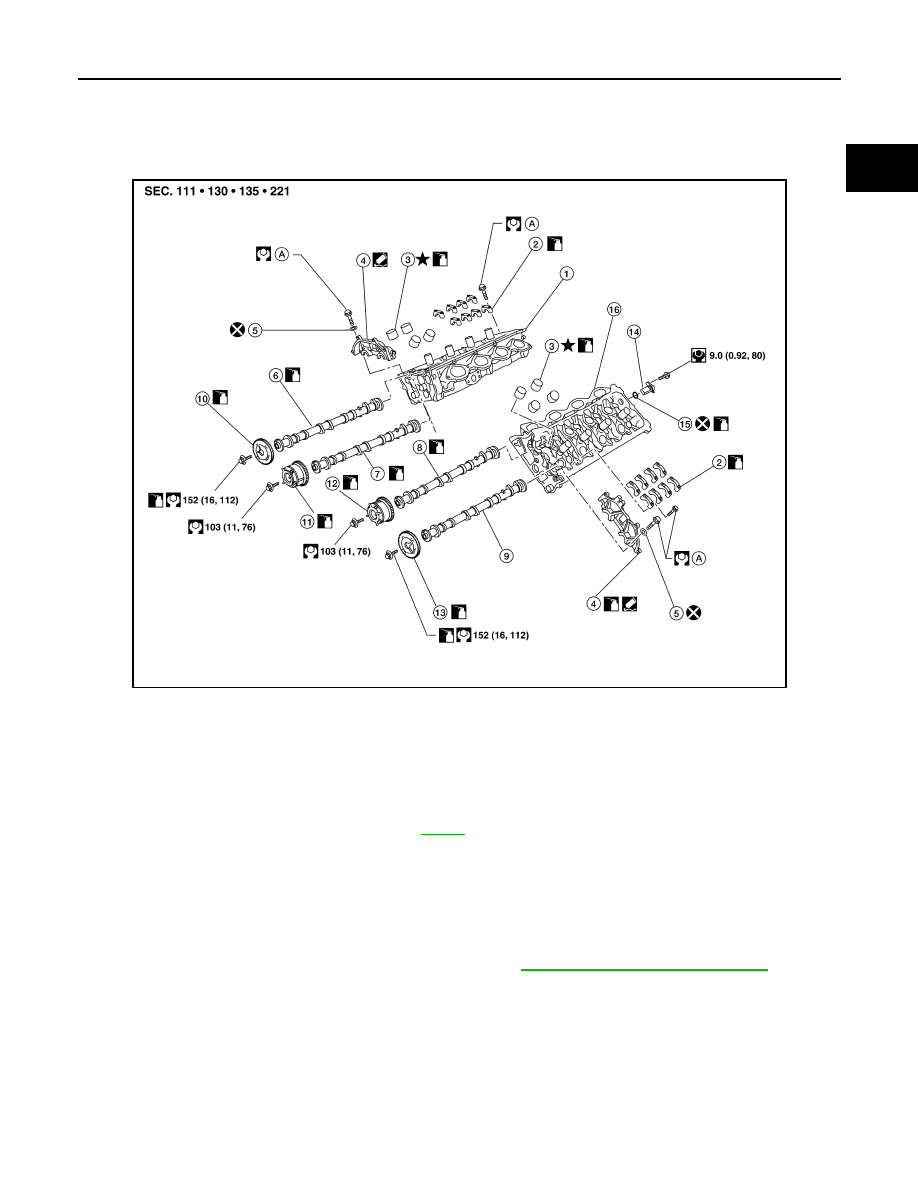

CAMSHAFT

Exploded View

INFOID:0000000003939562

Removal and Installation

INFOID:0000000003939563

NOTE:
Do not remove the engine assembly to perform this procedure.

REMOVAL

1.

Remove the RH bank and LH bank rocker covers. Refer to

EM-180, "Removal and Installation"

.

AWBIA0101GB

1.

Cylinder head RH bank

2.

Camshaft bracket (No. 2, 3, 4, 5)

3.

Valve lifter

4.

Camshaft bracket (No. 1)

5.

Seal washer

6.

Camshaft RH bank EXH

7.

Camshaft RH bank INT

8.

Camshaft LH bank INT

9.

Camshaft LH bank EXH

10. Camshaft sprocket RH bank EXH

11.

Camshaft sprocket RH bank INT
(VTC)

12. Camshaft sprocket LH bank INT

(VTC)

13. Camshaft sprocket LH bank EXH

14. Camshaft position sensor (PHASE)

15. O-ring

16. Cylinder head LH bank

A.

Refer to

EM-195

2009 Pathfinder

EM-196

< ON-VEHICLE REPAIR >

[VK56DE]

CAMSHAFT

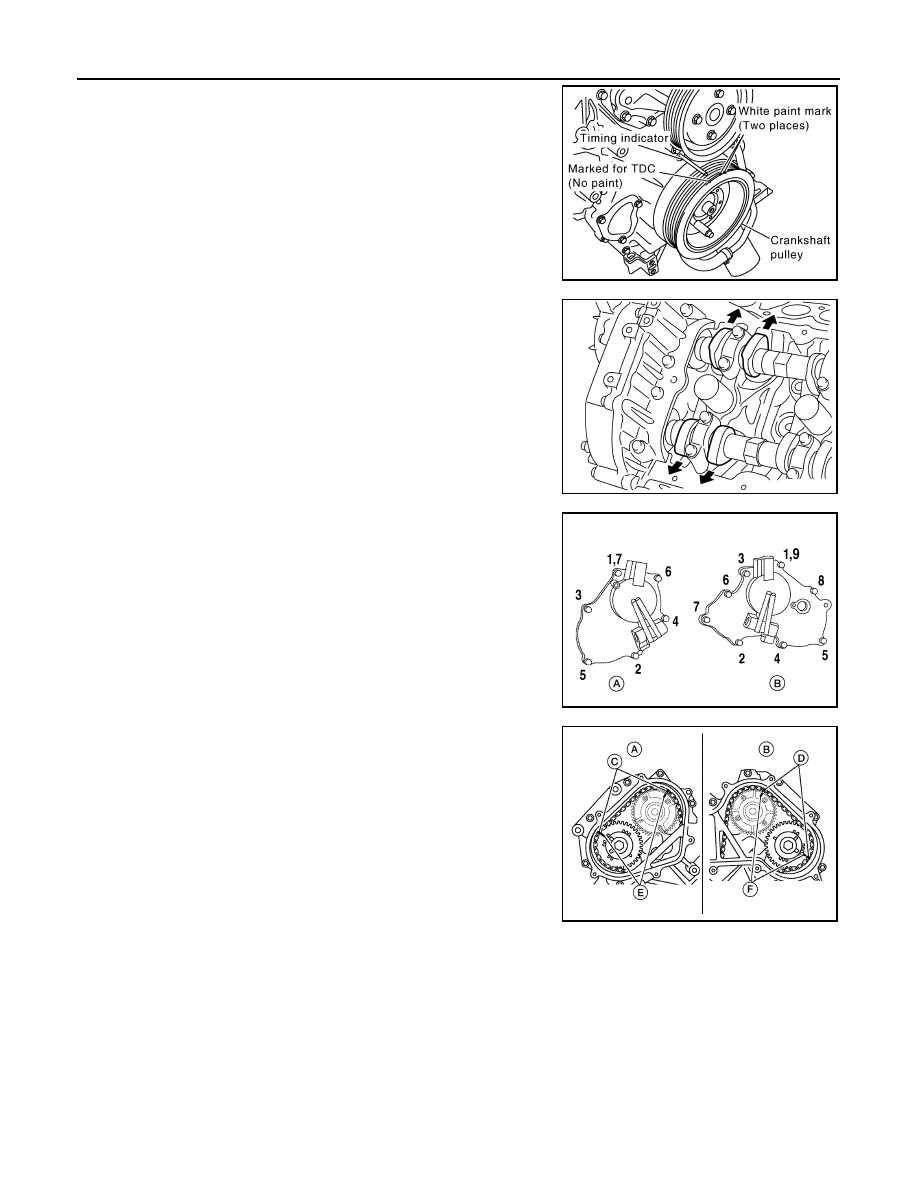

2.

Obtain compression TDC of No. 1 cylinder as follows:

a.

Turn the crankshaft pulley clockwise to align the TDC identifica-
tion notch (without paint mark) with the timing indicator on the
front cover.

b.

At this time, make sure both intake and exhaust cam lobes of
No. 1 cylinder (top front on LH bank) point outside.
• If they do not point outside, turn crankshaft pulley once more.

3.

Remove the intake valve control solenoid valve cover (RH) (A)
and intake valve control solenoid valve cover (LH) (B) as fol-
lows:

a.

Loosen and remove the bolts as shown.

b.

Cut the liquid gasket and remove the covers using Tool.

CAUTION:

Do not damage mating surfaces.

4.

Paint alignment marks on the RH bank (A) timing chain links (C)
and LH bank (B) timing chain links (D) and align with the cam-
shaft sprocket alignment marks (E) and (F).

5.

Remove the chain tensioner (LH) using the following steps.

WARNING:

Plunger, spring, and spring seat pop out when squeezing return-proof clip without holding
plunger head. It may cause serious injuries. Always hold plunger head when removing.

KBIA2476E

KBIA0400J

Tool number

: KV10111100 (J-37228)

WBIA0798E

AWBIA0154ZZ

2009 Pathfinder

CAMSHAFT

EM-197

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

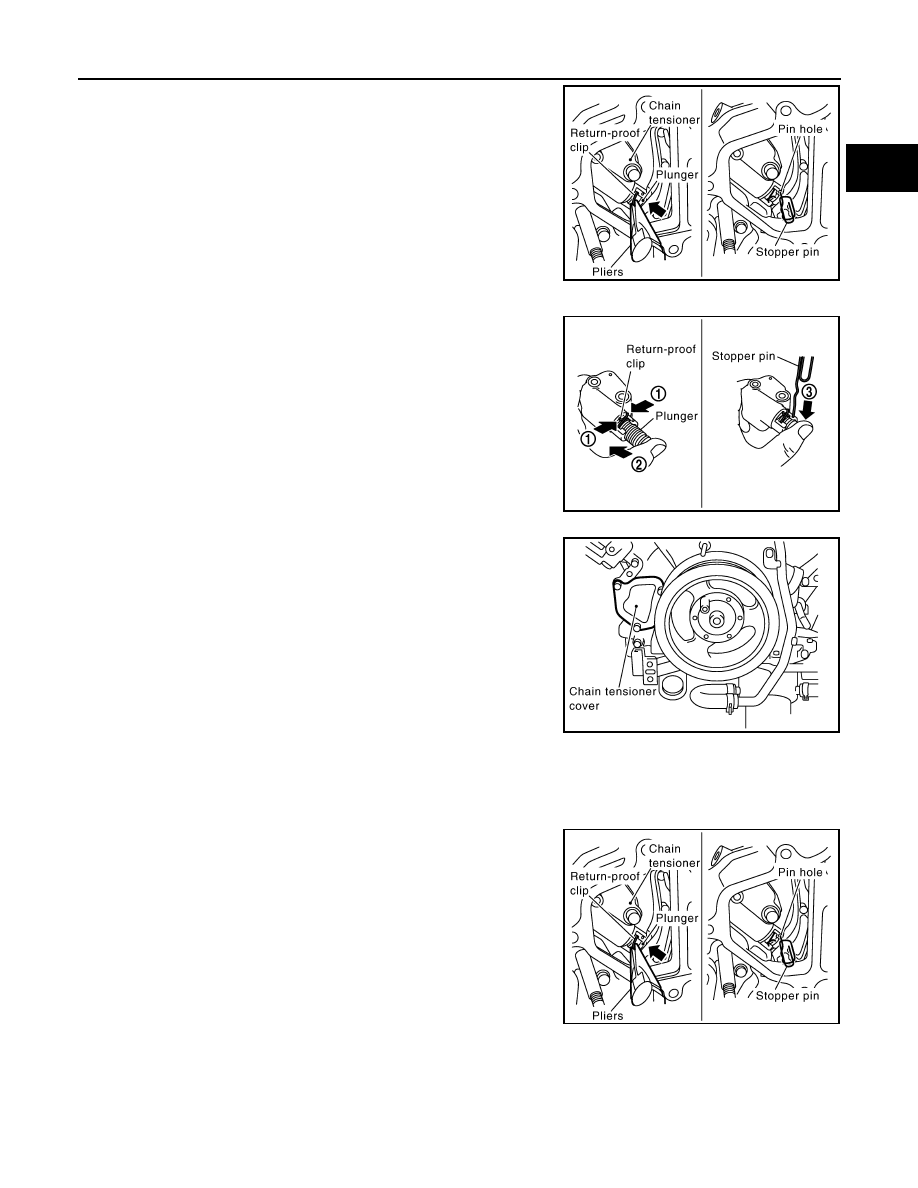

a.

Squeeze return-proof clip ends using suitable tool and push the
plunger into the chain tensioner body.

b.

Secure plunger using stopper pin.
• Stopper pin is made from hard wire approximately 1 mm (0.04

in) in diameter.

c.

Remove the bolts and the timing chain tensioner.

NOTE:
• Stop plunger in the fully extended position using return-proof clip

(1) if stopper pin is removed.

• Push the plunger (2) into the chain tensioner body while squeezing

the return-proof clip (1). Secure it using stopper pin (3).

6.

Remove the chain tensioner cover from the front cover using
Tool.

CAUTION:

Do not damage mating surfaces.

7.

Remove the chain tensioner (RH) using the following steps.

WARNING:

Plunger, spring, and spring seat pop out when squeezing return-proof clip without holding
plunger head. It may cause serious injuries. Always hold plunger head when removing.

a.

Squeeze return-proof clip ends using suitable tool and push the
plunger into the chain tensioner body.

b.

Secure plunger using stopper pin.
• Stopper pin is made from hard wire approximately 1 mm (0.04

in) in diameter.

KBIA2479E

KBIA2483E

Tool number

: KV10111100 (J-37228)

KBIA2521E

KBIA2479E

2009 Pathfinder

EM-198

< ON-VEHICLE REPAIR >

[VK56DE]

CAMSHAFT

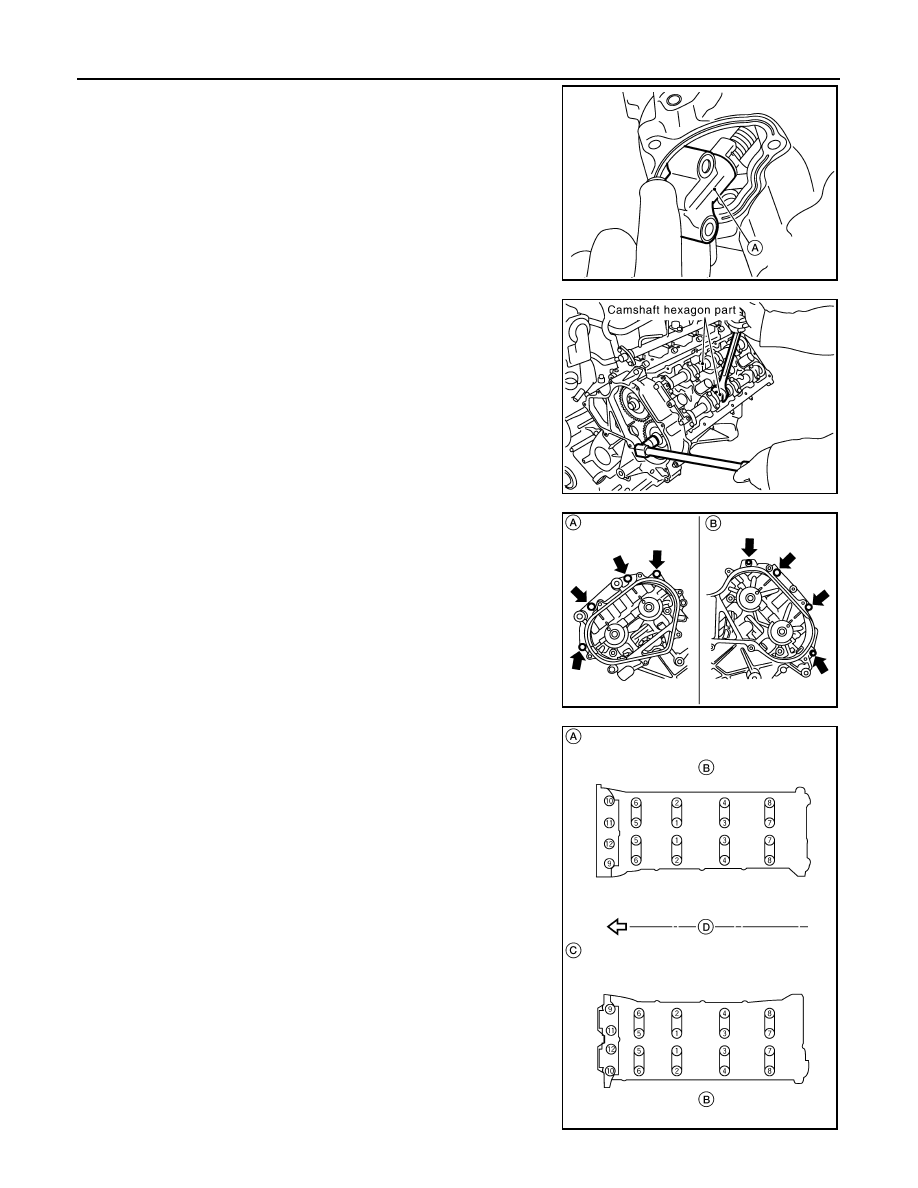

c.

Remove the bolts and the chain tensioner (RH) (A).
NOTE:
If it is difficult to push plunger on chain tensioner (RH) (A),
remove the plunger under extended condition.

8.

Loosen camshaft sprocket bolts as shown and remove camshaft
sprockets.

CAUTION:

To avoid interference between valves and pistons, do not
turn crankshaft or camshaft with timing chain discon-
nected.

9.

Remove the RH (A) front cover bolts and LH (B) front cover
bolts.

10. Remove RH (A) camshaft bracket bolts and LH (C) camshaft

bracket bolts in the reverse of order shown to remove camshaft
brackets.
• Remove No. 1 camshaft bracket.

NOTE:
The bottom and front surface of bracket will be stuck because
of liquid gasket.

•

⇐

: Engine front

• B: Exhaust side
• D: Intake side

WBIA0705E

KBIA2485E

WBIA0706E

WBIA0707E

2009 Pathfinder

CAMSHAFT

EM-199

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

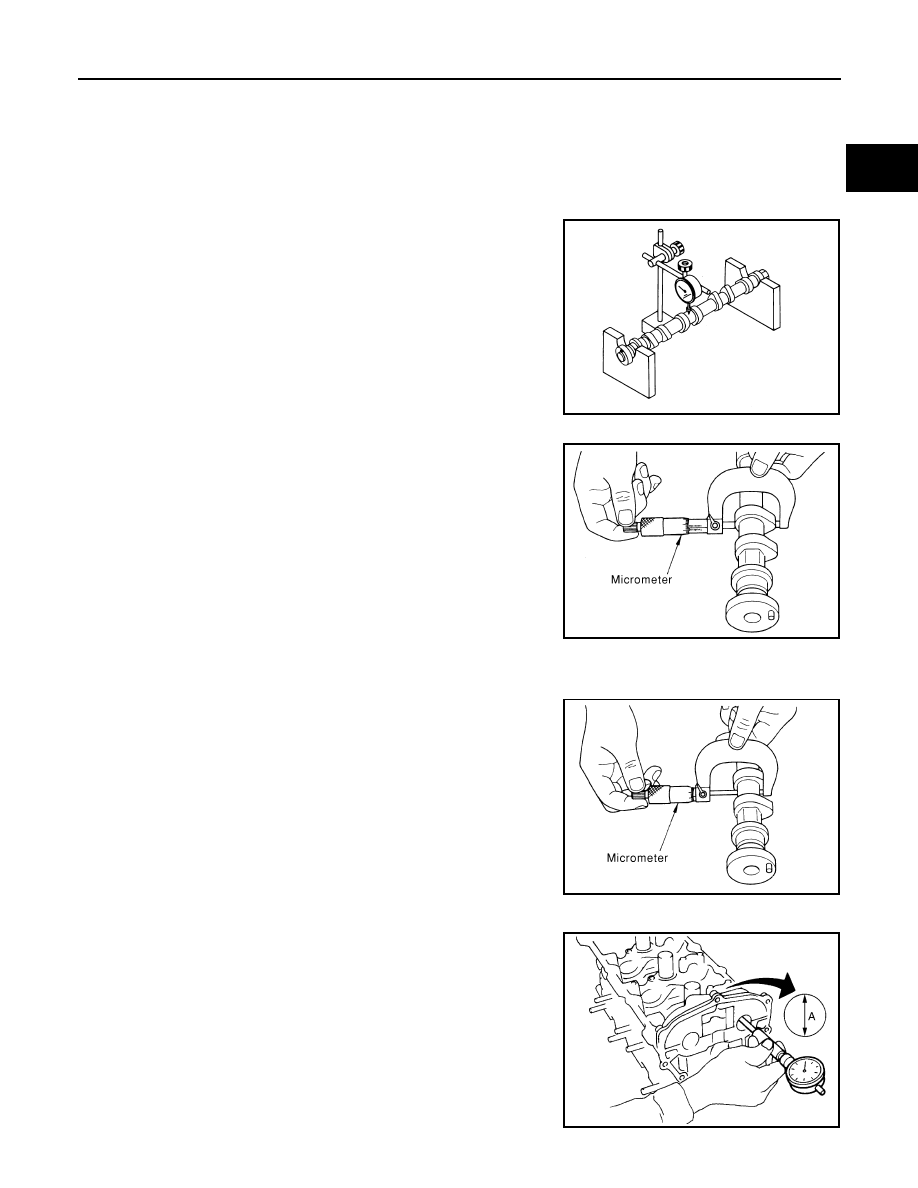

11. Remove the camshaft.

12. Remove the valve lifters if necessary.

• Correctly identify location where each part is removed from. Keep parts organized to avoid mixing them

up.

INSPECTION AFTER REMOVAL

Camshaft Runout

1.

Put V block on precise flat work bench, and support No. 1 and
No. 5 journals of the camshaft.

2.

Set dial indicator vertically to No. 3 journal.

3.

Turn the camshaft to one direction, and measure the camshaft
runout on dial indicator (total indicator reading).

• If measurement exceeds specification, replace the camshaft.

Camshaft Cam Height

• Measure the camshaft cam height.

• If measurement is not within the specifications, replace the cam-

shaft.

Camshaft Journal Clearance

 Camshaft Journal Diameter

• Measure the diameter of the camshaft journal.

Camshaft Bracket Inner Diameter

• Tighten the camshaft bracket bolt to the specified torque.
• Measure the inner diameter (A) of the camshaft bracket.

Calculation of Camshaft Journal Clearance
(Journal clearance) = (camshaft bracket inner diameter) – (camshaft
journal diameter)

• If measurement is not within specification, replace either or both

camshaft and cylinder head.

Camshaft runout

: Less than 0.02 mm (0.0008 in)

EMK0641D

Standard cam height
(intake)

: 44.865 - 45.055 mm
(1.7663 - 1.7738 in)

Standard cam height (ex-
haust)

: 45.075 - 45.265 mm
(1.7746 - 1.7821 in)

Cam wear limit
(intake & exhaust)

: 0.02 mm (0.0008 in)

PBIC0039E

Standard diameter

: 25.950 - 25.970 mm
(1.0217 - 1.0224 in)

PBIC0040E

Standard

: 26.000 - 26.021 mm (1.0236 - 1.0244 in)

Standard

: 0.030 - 0.071 mm (0.0012 - 0.0028 in)

PBIC1645E

2009 Pathfinder

EM-200

< ON-VEHICLE REPAIR >

[VK56DE]

CAMSHAFT

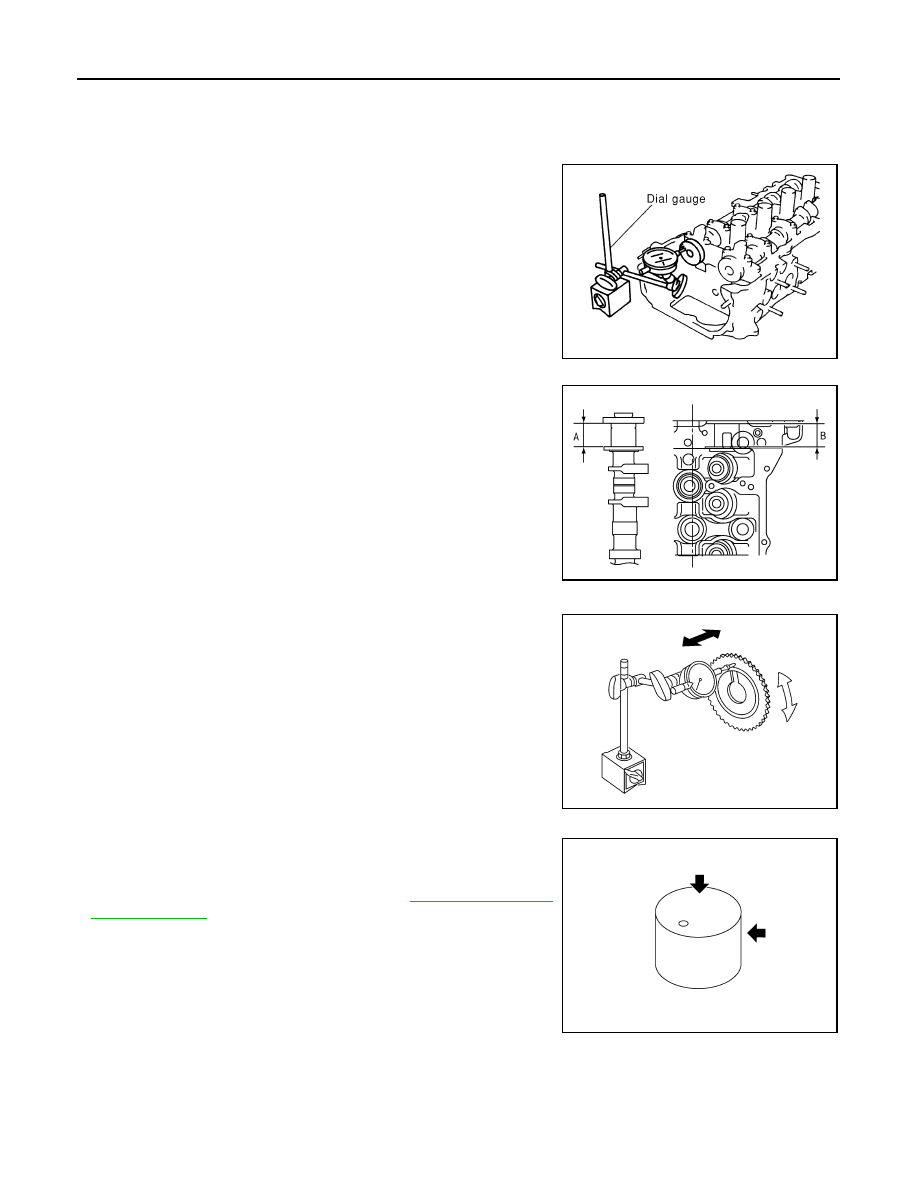

NOTE:
The inner diameter of the camshaft bracket is manufactured together with the cylinder head. Replace the
whole cylinder head as an assembly.

Camshaft End Play

• Install dial gauge in the thrust direction on the front end of the cam-

shaft. Measure the end play when the camshaft is moved forward/
backward (in direction to axis).

• If measurement is out of the specified range, replace the camshaft

and measure again.

• If measurement is still out of the specified range, replace the cylin-

der head.

• Measure the following parts if end play is outside the specified

value.

- Dimension

″

A

″

 for camshaft No. 1 journal

- Dimension

″

B

″

 for cylinder head No. 1 journal

• If measurements are not within specification, replace the camshaft

and/or cylinder head.

Camshaft Sprocket Runout

1.

Install the camshaft in the cylinder head.

2.

Install the camshaft sprocket to the camshaft.

3.

Measure the camshaft sprocket runout.

• If measurement exceeds the specification, replace the cam-

shaft sprocket.

Valve Lifter

Check if the surface of the valve lifter has any wear or cracks.
• If any damage is found, replace the valve lifter.
• Select the thickness of the head so that the valve clearance is

within the standard when replacing. Refer to

EM-204, "Inspection

after Installation"

.

Valve Lifter Clearance

 Valve Lifter Diameter

Standard

: 0.115 - 0.188 mm (0.0045 - 0.0074 in)

PBIC0042E

Standard

: 30.500 - 30.548 mm (1.2008-1.2027 in)

Standard

: 30.360 - 30.385 mm (1.1953-1.1963 in)

KBIA2426J

Runout

: Less than 0.15 mm (0.0059 in)

KBIA0181J

KBIA0182E

2009 Pathfinder
