• Tighten bolts in two steps in numerical order as shown.

6.

Tighten bolts which connects fuel tube (RH) and fuel tube (LH) to the specified torque.

7.

Connect fuel injector harness connector.

8.

Install intake manifold collector. Refer to

EM-26, "Removal and Installation"

.

9.

Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

After installing the fuel tubes, make sure there are no fuel leaks at the connections using the following steps.

1.

Apply fuel pressure to the fuel lines by turning ignition switch ON (with engine stopped). Then check for
fuel leaks at the connections.

2.

Start the engine and rev it up and check for fuel leaks at the connections.

WARNING:

Do not touch engine immediately after stopping, as engine becomes extremely hot.
NOTE:
Use mirrors for checking on hidden points.

Fuel injector tube assembly bolts

 1st step

: 10.1 N·m (1.0 kg-m, 7 ft-lb)

 2nd step

: 22.0 N·m (2.2 kg-m, 16 ft-lb)

PBIC2902E

2009 Pathfinder

EM-50

< ON-VEHICLE REPAIR >

[VQ40DE]

FRONT TIMING CHAIN CASE

FRONT TIMING CHAIN CASE

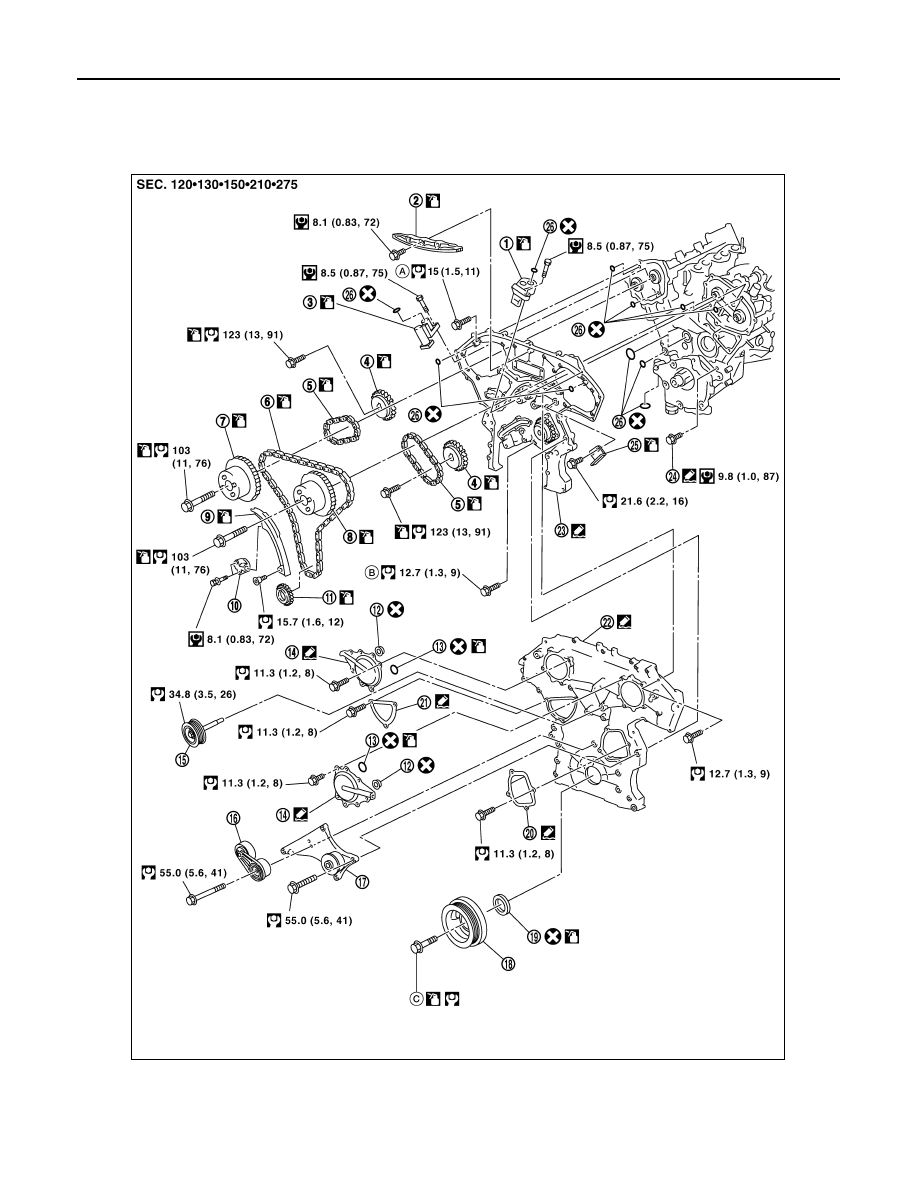

Exploded View

INFOID:0000000003939501

AWBIA0548GB

1.

Timing chain tensioner (secondary) (LH) 2.

Internal chain guide

3.

Timing chain tensioner (secondary) (RH)

4.

Camshaft sprocket (EXH)

5.

Timing chain (secondary)

6.

Timing chain (primary)

7.

Camshaft sprocket (INT)

8.

Camshaft sprocket (INT)

9.

Slack guide

2009 Pathfinder

FRONT TIMING CHAIN CASE

EM-51

< ON-VEHICLE REPAIR >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Removal and Installation

INFOID:0000000003939502

NOTE:
• This section describes removal/installation procedure of front timing chain case and timing chain related

parts without removing oil pan (upper) on vehicle.

• When oil pan (upper) needs to be removed or installed, or when rear timing chain case is removed or

installed, remove oil pans (upper and lower) first. Then remove front timing chain case, timing chain related
parts, and rear timing chain case in this order, and installation is in the reverse order of removal. Refer to

EM-61

.

REMOVAL

1.

Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2.

Release the fuel pressure. Refer to

EC-484, "Fuel Pressure Check"

.

3.

Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

.

CAUTION:

• Perform this step when engine is cold.
• Do not spill engine oil on drive belts.

4.

Drain engine coolant from radiator. Refer to

CO-12, "Changing Engine Coolant"

.

CAUTION:

• Perform this step when engine is cold.
• Do not spill engine coolant on drive belts.

5.

Remove radiator cooling fan assembly. Refer to

CO-19, "Removal and Installation (Crankshaft driven

type)"

.

6.

Separate engine harnesses removing their brackets from front timing chain case.

7.

Remove drive belts. Refer to

EM-13, "Removal and Installation"

.

8.

Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.
Refer to

ST-21, "Removal and Installation"

.

9.

Remove power steering oil pump bracket. Refer to

ST-21, "Removal and Installation"

.

10. Remove generator. Refer to

CHG-20, "Removal and Installation"

.

11. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.

12. Remove right and left intake valve timing control covers.

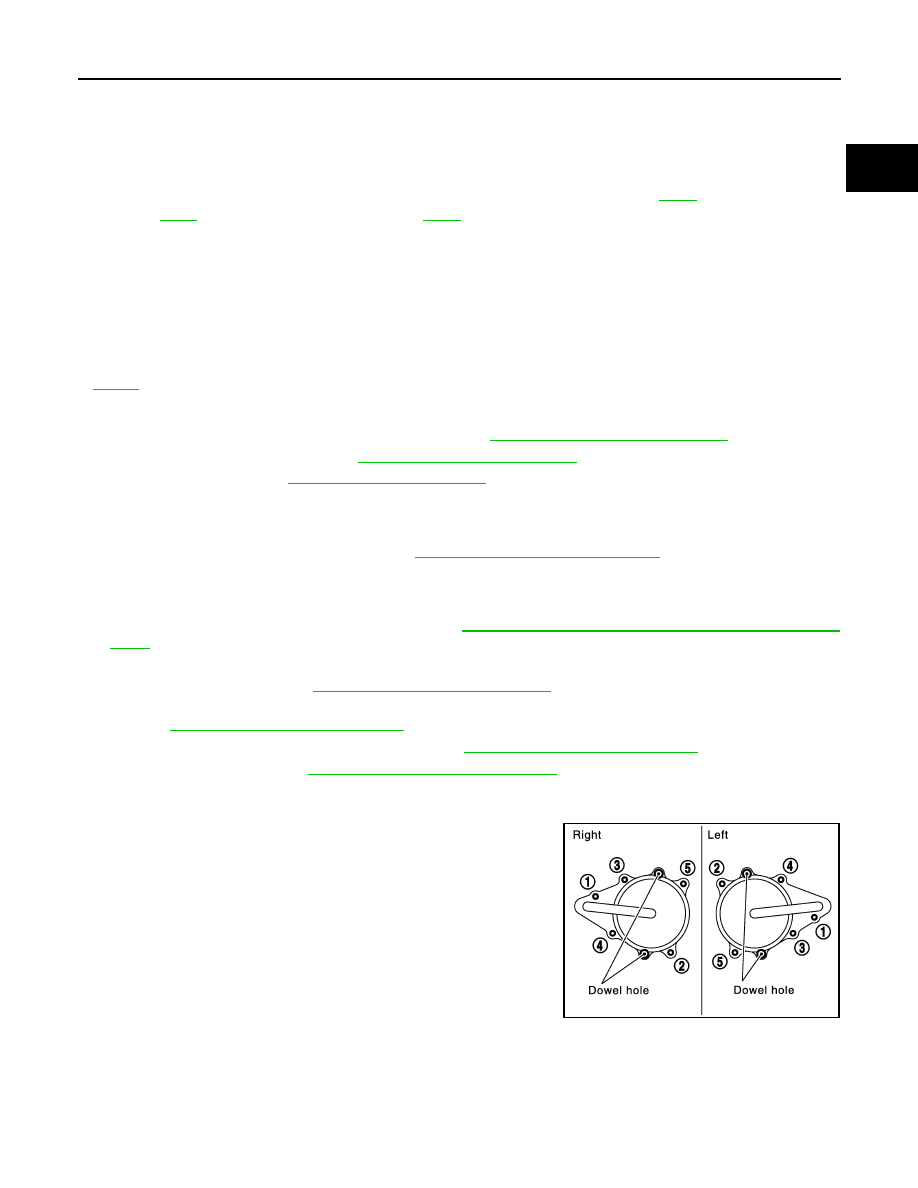

• Loosen bolts in reverse order as shown.
• Cut liquid gasket for removal using Tool.

CAUTION:

Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.

10.

Timing chain tensioner (primary)

11.

Crankshaft sprocket

12.

Collared O-ring

13.

O-ring

14.

Intake valve timing control cover

15.

Idler pulley

16.

Drive belt auto tensioner

17.

Cooling fan bracket

18.

Crankshaft pulley

19.

Front oil seal

20.

Water pump cover

21.

Chain tensioner cover

22.

Front timing chain case

23.

Rear timing chain case

24.

Water drain plug (front)

25.

Tension guide

26.

O-ring

A.

Refer to

EM-61

B.

Refer to

EM-61

C.

Refer to

EM-51

Tool number

: KV10111100 (J-37228)

SEM728G

2009 Pathfinder

EM-52

< ON-VEHICLE REPAIR >

[VQ40DE]

FRONT TIMING CHAIN CASE

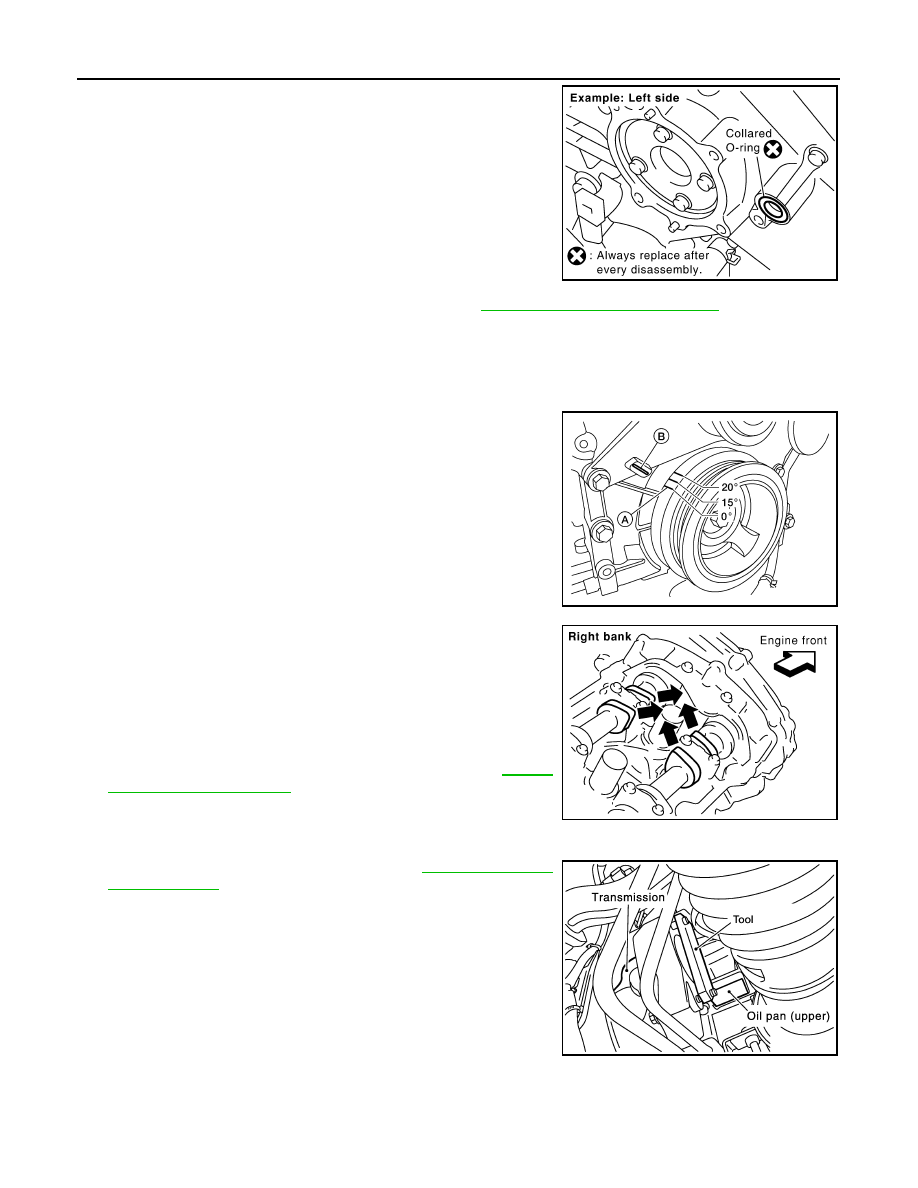

13. Remove collared O-rings from front timing chain case (left and

right side).

14. Remove rocker covers (right and left banks). Refer to

EM-41, "Removal and Installation"

.

NOTE:
When only timing chain (primary) is removed, rocker cover does not need to be removed.

15. Obtain No. 1 cylinder at TDC of its compression stroke as follows:

NOTE:
When timing chain is not removed/installed, this step is not required.

a.

Rotate crankshaft pulley clockwise to align timing mark (A)
(grooved line without color) with timing indicator (B).

b.

Make sure that intake and exhaust cam noses on No. 1 cylinder
(engine front side of right bank) are located as shown.
• If not, turn crankshaft one revolution (360

°

) and align as

shown.

NOTE:
When only timing chain (primary) is removed, rocker cover does
not need to be removed. To make sure that No. 1 cylinder is at
its compression TDC, remove front timing chain case first. Then
check mating marks on camshaft sprockets. Refer to

EM-61,

"Removal and Installation"

.

16. Remove crankshaft pulley as follows:

a.

Remove starter motor and set Tool. Refer to

STR-22, "Removal

and Installation"

.

PBIC2631E

AWBIA0719ZZ

SEM418G

Tool number

:   —   (J-48761)

WBIA0580E

2009 Pathfinder

FRONT TIMING CHAIN CASE

EM-53

< ON-VEHICLE REPAIR >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

b.

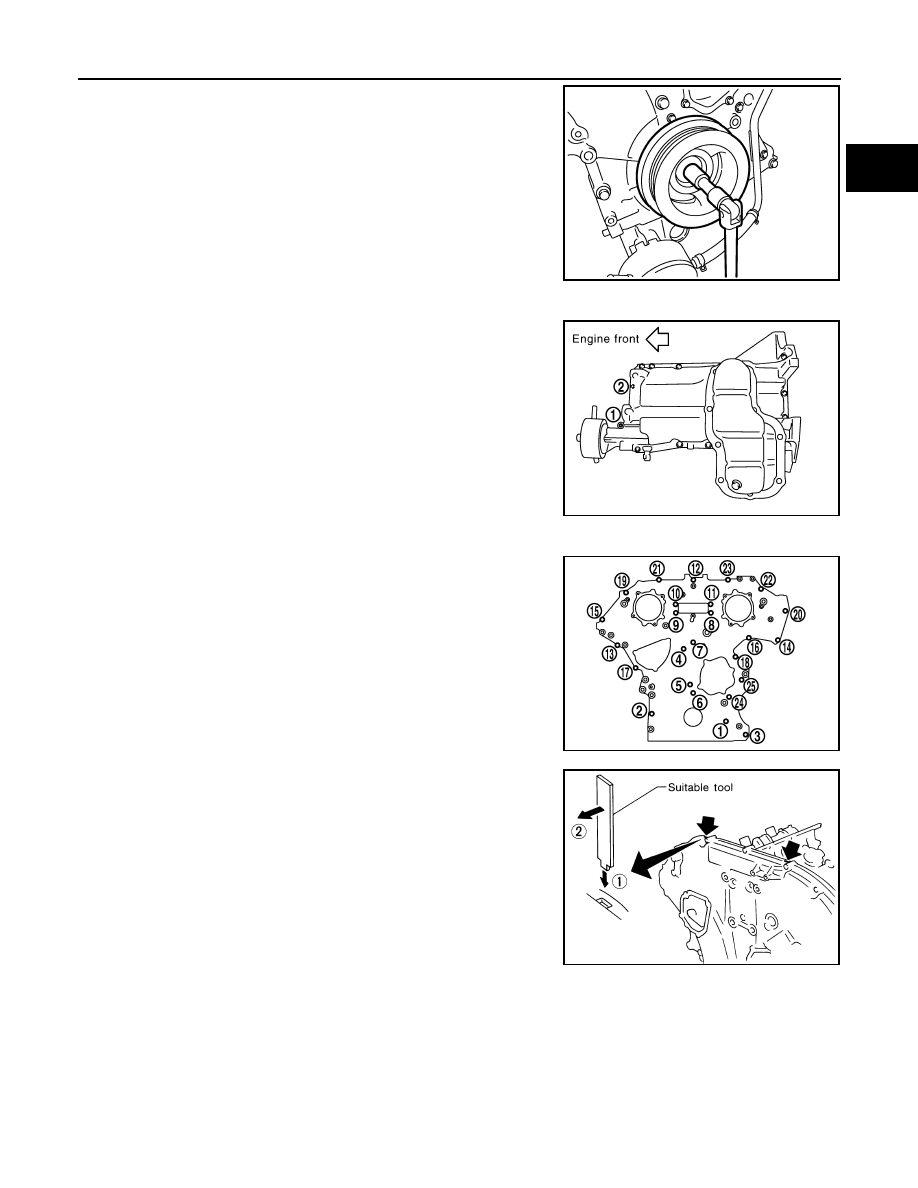

Loosen crankshaft pulley bolt and locate bolt seating surface as
10 mm (0.39 in) from its original position.

CAUTION:

Do not remove crankshaft pulley bolt. Keep loosened
crankshaft pulley bolt in place to protect the crankshaft pul-
ley from dropping.

c.

Pull crankshaft pulley with both hands to remove it.

17. Loosen two bolts in front of oil pan (upper) in reverse order as

shown.

18. Remove front timing chain case as follows:

a.

Loosen bolts with power tool in reverse order as shown.

b.

Insert suitable tool into the notch at the top of the front timing
chain case as shown (1).

c.

Pry off case by moving tool as shown (2).
• Cut liquid gasket for removal using Tool.

CAUTION:

• Do not use screwdriver or something similar.
• After removal, handle front timing chain case carefully so

it does not twist, bend, or warp under a load.

PBIC2918E

PBIC2907E

PBIC2908E

Tool number

: KV10111100 (J-37228)

SEM156F

2009 Pathfinder

EM-54

< ON-VEHICLE REPAIR >

[VQ40DE]

FRONT TIMING CHAIN CASE

19. Remove O-rings from rear timing chain case.

20. Remove water pump cover and chain tensioner cover from front timing chain case, if necessary.

• Cut liquid gasket for removal using Tool.

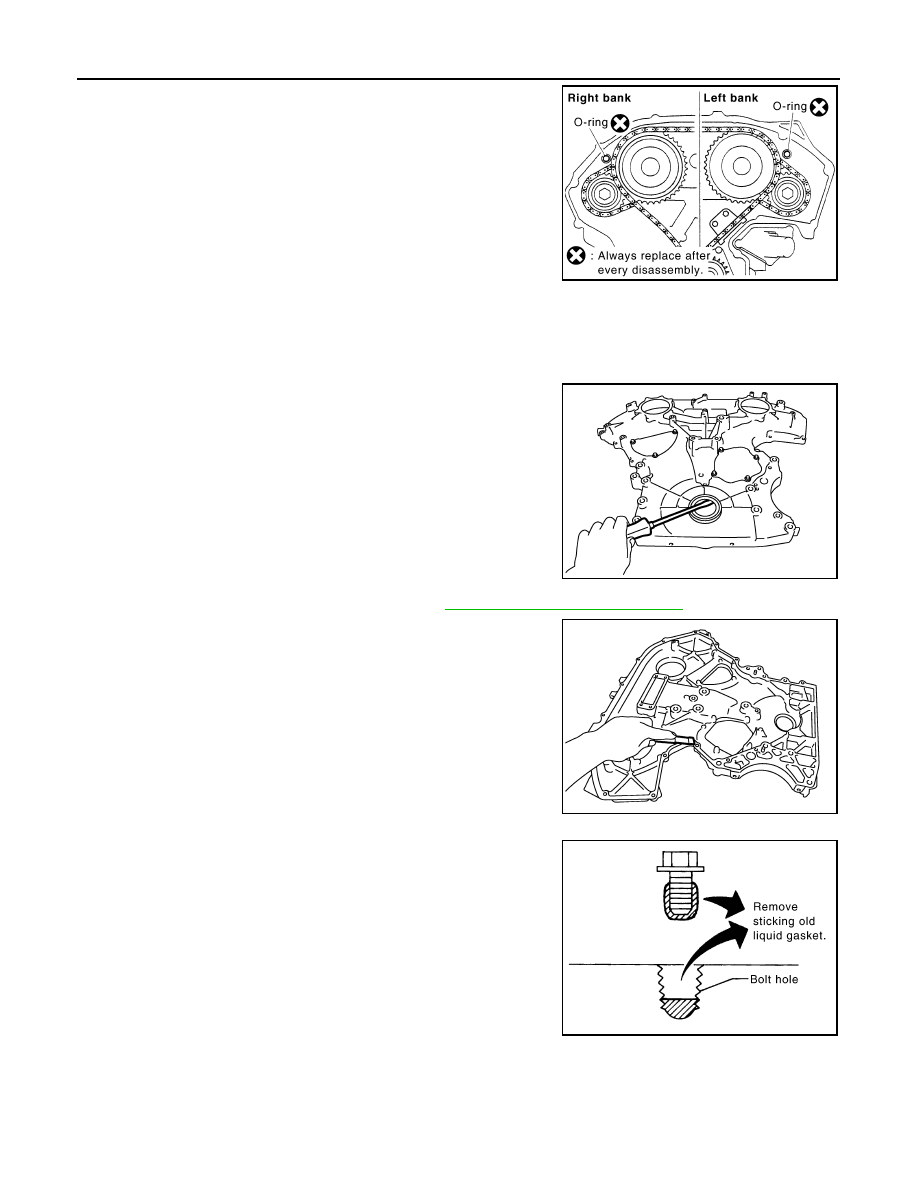

21. Remove front oil seal from front timing chain case using suitable

tool.

CAUTION:

Be careful not to damage front timing chain case.

22. Remove timing chain and related parts. Refer to

EM-61, "Removal and Installation"

.

23. Use a scraper to remove all traces of old liquid gasket from front

and rear timing chain cases and oil pan (upper), and liquid gas-
ket mating surfaces.

CAUTION:

Be careful not to allow gasket fragments to enter oil pan.

• Remove old liquid gasket from bolt hole and thread.

PBIC2548E

Tool number

: KV10111100 (J-37228)

PBIC2909E

PBIC2910E

PBIC2084E

2009 Pathfinder

FRONT TIMING CHAIN CASE

EM-55

< ON-VEHICLE REPAIR >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

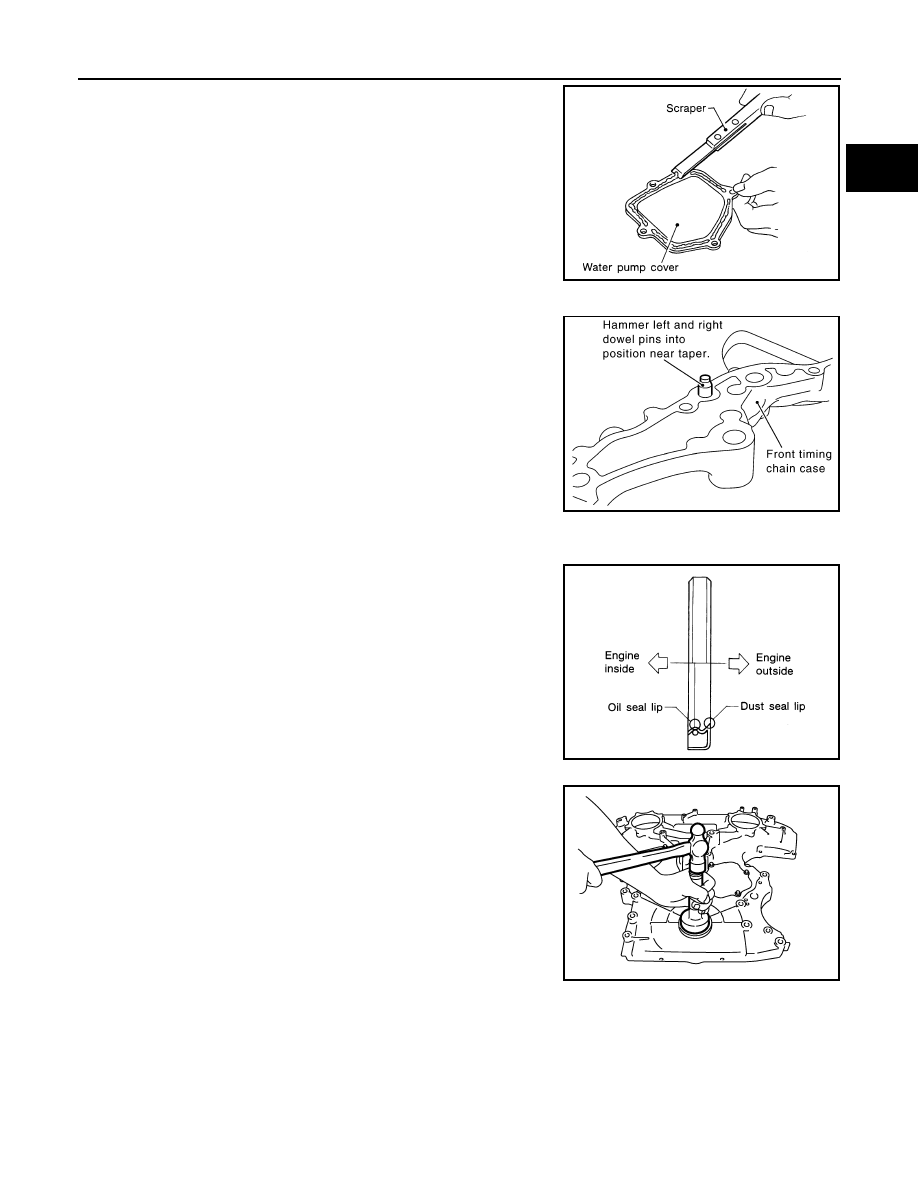

24. Use a scraper to remove all traces of old liquid gasket from

water pump cover, chain tensioner cover and intake valve timing
control covers.

INSTALLATION

1.

Hammer dowel pins (right and left) into front timing chain case
up to a point close to taper in order to shorten protrusion length.

2.

Install new front oil seal on the front timing chain case.
• Apply new engine oil to both oil seal lip and dust seal lip.
• Install it so that each seal lip is oriented as shown.

• Press-fit oil seal until it becomes flush with front timing chain

case end face using suitable drift [outer diameter: 60 mm (2.36
in)].

• Make sure the garter spring is in position and seal lip is not

inverted.

3.

Install water pump cover and chain tensioner cover to front timing chain case, if removed.

SEM926E

PBIC2615E

SEM715A

PBIC2911E

2009 Pathfinder

EM-56

< ON-VEHICLE REPAIR >

[VQ40DE]

FRONT TIMING CHAIN CASE

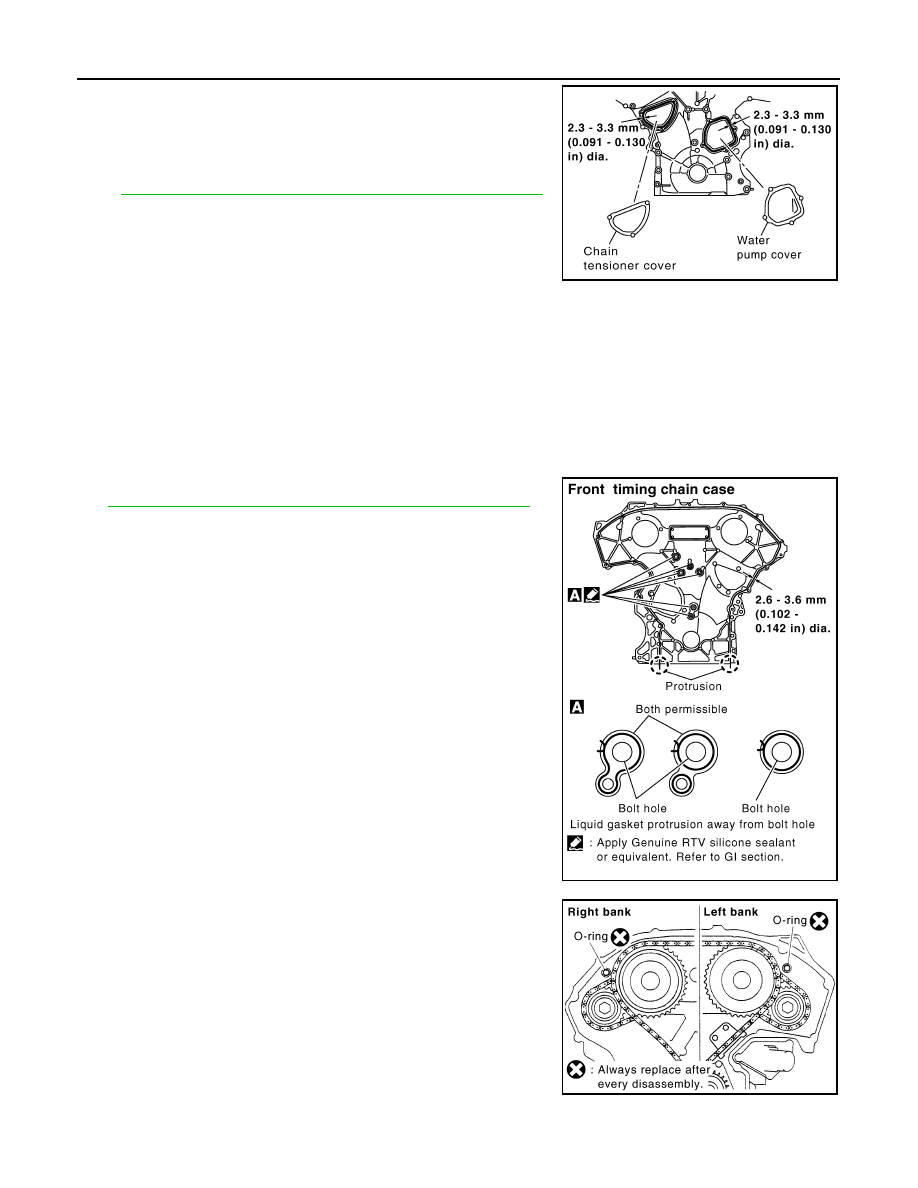

• Apply a continuous bead of liquid gasket using Tool to front

timing chain case as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-26, "Recommended Chemical Products and Sealants"

.

4.

Install front timing chain case as follows:

a.

Apply a continuous bead of liquid gasket using Tool to front timing chain case back side as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-26, "Recommended Chemical Products and Sealants"

.

b.

Install new O-rings on rear timing chain case.

c.

Assemble front timing chain case as follows:

Tool number

: WS39930000 (

—

)

PBIC2912E

PBIC2913E

PBIC2548E
