Nissan Pathfinder (2009 year). Manual - part 239

DLN-394

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

FRONT FINAL DRIVE

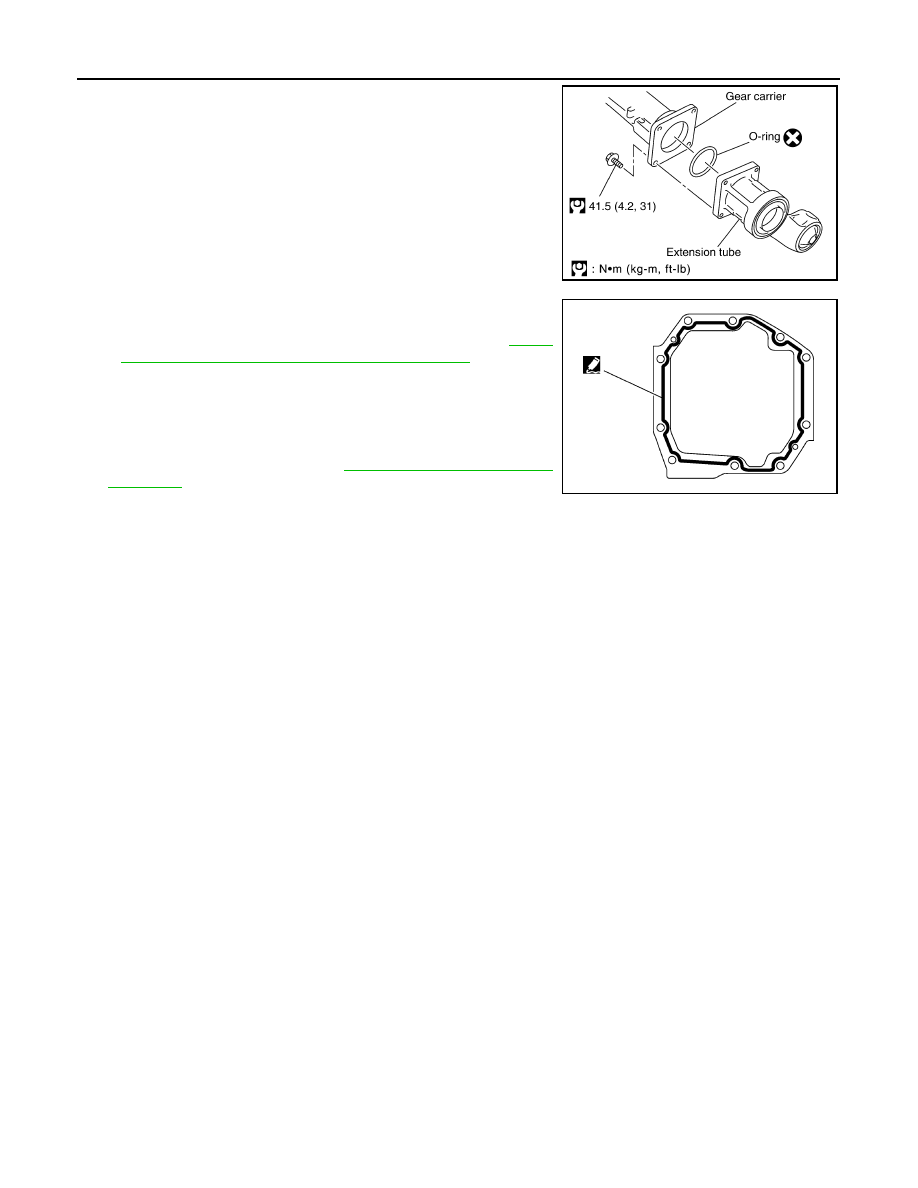

16. Install the extension tube with a new O-ring.

CAUTION:

• Do not reuse O-ring.
• If the extension tube is being replaced, install a new axle

shaft bearing.

17. Apply 3 mm (0.12 in) bead of sealant to the mating surface of

the carrier cover as shown.
• Use Genuine Silicone RTV or equivalent. Refer to

GI-26,

CAUTION:

Remove any old sealant adhering to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.

18. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-345, "Disassembly and

Assembly"

19. Install side shaft and side flange.

SDIA3205E

SDIA3204E

2009 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-395

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FRONT FINAL DRIVE: M205]

DLN

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000003937449

Inspection and Adjustment

INFOID:0000000003937450

DRIVE GEAR RUNOUT

Unit: mm (in)

SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

SELECTIVE PARTS

Drive Pinion Height Adjusting Washer

Applied model

VK56DE

Final drive model

M205

Gear ratio

2.937

Number of teeth (Drive gear/Drive pinion)

47/16

Differential gear oil capacity (Approx.)

1.6

(3 3/8 US pt, 2 7/8 Imp pt)

Number of pinion gears

Drive pinion adjustment spacer type

Collapsible

Item

Runout limit

Drive gear back face

0.08 (0.0031) or less

Item

Specification

Side gear back clearance (Clearance between side gear and dif-
ferential case for adjusting side gear backlash)

0.20 (0.0079) or less

(Each gear should rotate smoothly without excessive resistance

during differential motion.)

Item

Specification

Drive pinion bearing preload torque

2.3 - 3.4 (0.23 - 0.35, 21 - 31)

Total preload torque
(Total preload torque = drive pinion bearing preload torque + side
bearing preload torque).

2.98 - 4.76 (0.31 - 0.48, 27 - 42)

Item

Specification

Drive gear to drive pinion backlash

0.13 - 0.18 (0.0051 - 0.0071)

Item

Runout limit

Companion flange face

0.10 (0.0039) or less

Companion flange inner side

0.13 (0.0051) or less

2009 Pathfinder

DLN-396

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FRONT FINAL DRIVE: M205]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*Always check with the Parts Department for the latest parts information.

Side Gear Thrust Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Thickness

Package part number*

1.22 (0.048)
1.24 (0.049)
1.27 (0.050)
1.30 (0.051)
1.32 (0.052)

38154 8S111

1.35 (0.053)
1.37 (0.054)
1.40 (0.055)
1.42 (0.056)
1.45 (0.057)

38154 8S112

1.47 (0.058)
1.50 (0.059)
1.52 (0.060)
1.55 (0.061)
1.57 (0.062)

38154 8S113

1.60 (0.063)
1.63 (0.064)
1.65 (0.065)
1.68 (0.066)
1.70 (0.067)

38154 8S114

1.73 (0.068)
1.75 (0.069)
1.78 (0.070)
1.80 (0.071)
1.83 (0.072)

38154 8S115

Thickness

Package part number*

0.76 (0.030)
0.79 (0.031)
0.81 (0.032)
0.84 (0.033)
0.87 (0.034)

38424 8S111

0.89 (0.035)
0.91 (0.036)
0.94 (0.037)
0.97 (0.038)
0.99 (0.039)

38424 8S112

2009 Pathfinder

PRECAUTIONS

DLN-397

< PRECAUTION >

[REAR FINAL DRIVE: R200]

DLN

PRECAUTION

PRECAUTIONS

Precaution for Servicing Rear Final Drive

INFOID:0000000003937451

• Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic

operations.

• Check for the correct installation status prior to removal or disassembly. When matching marks are required,

be certain they do not interfere with the function of the parts they are applied to.

• Overhaul should be done in a clean work area, a dust proof area is recommended.
• Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from

entering into the unit during disassembly or assembly.

• Always use shop paper for cleaning the inside of components.
• Avoid using cotton gloves or a shop cloth to prevent the entering of lint.
• Check appearance of the disassembled parts for damage, deformation, and abnormal wear. Replace them

with new ones if necessary.

• Gaskets, seals and O-rings should be replaced any time the unit is disassembled.
• Clean and flush the parts sufficiently and blow them dry.
• Be careful not to damage sliding surfaces and mating surfaces.
• When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil, and

foreign materials from the application and mating surfaces.

• In principle, tighten nuts or bolts gradually in several steps working diagonally from inside to outside. If a

tightening sequence is specified, observe it.

• During assembly, observe the specified tightening torque.
• Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.

2009 Pathfinder

DLN-398

< PREPARATION >

[REAR FINAL DRIVE: R200]

PREPARATION

PREPARATION

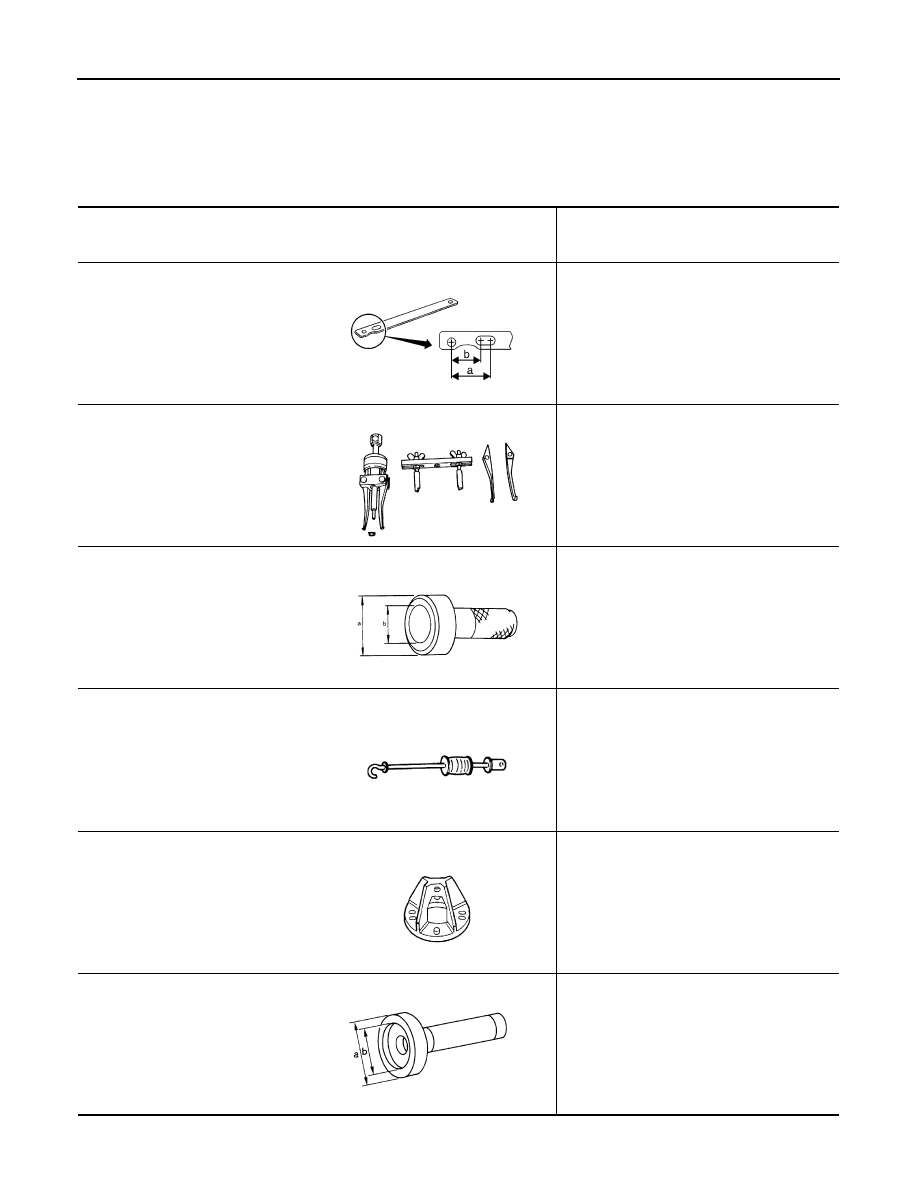

Special Service Tool

INFOID:0000000003937452

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV40104000
(

—

)

Flange wrench

Removing and installing drive pinion lock nut
a: 85 mm (3.35 in) dia.
b: 65 mm (2.56 in) dia.

KV381054S0
(J-34286)
Puller

Removing front oil seal

ST30720000
(J-25405)
Drift

• Installing front oil seal
• Installing drive pinion rear bearing outer

race

a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

ST36230000
(J-25840-A)
Sliding hammer

Removing side flange

KV40104100
(

—

)

Attachment

Removing side flange

KV38100200
(J-26233)
Drift

Installing side oil seal
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

NT659

ZZA0601D

ZZA0811D

ZZA0803D

ZZA0804D

ZZA1143D

2009 Pathfinder

PREPARATION

DLN-399

< PREPARATION >

[REAR FINAL DRIVE: R200]

DLN

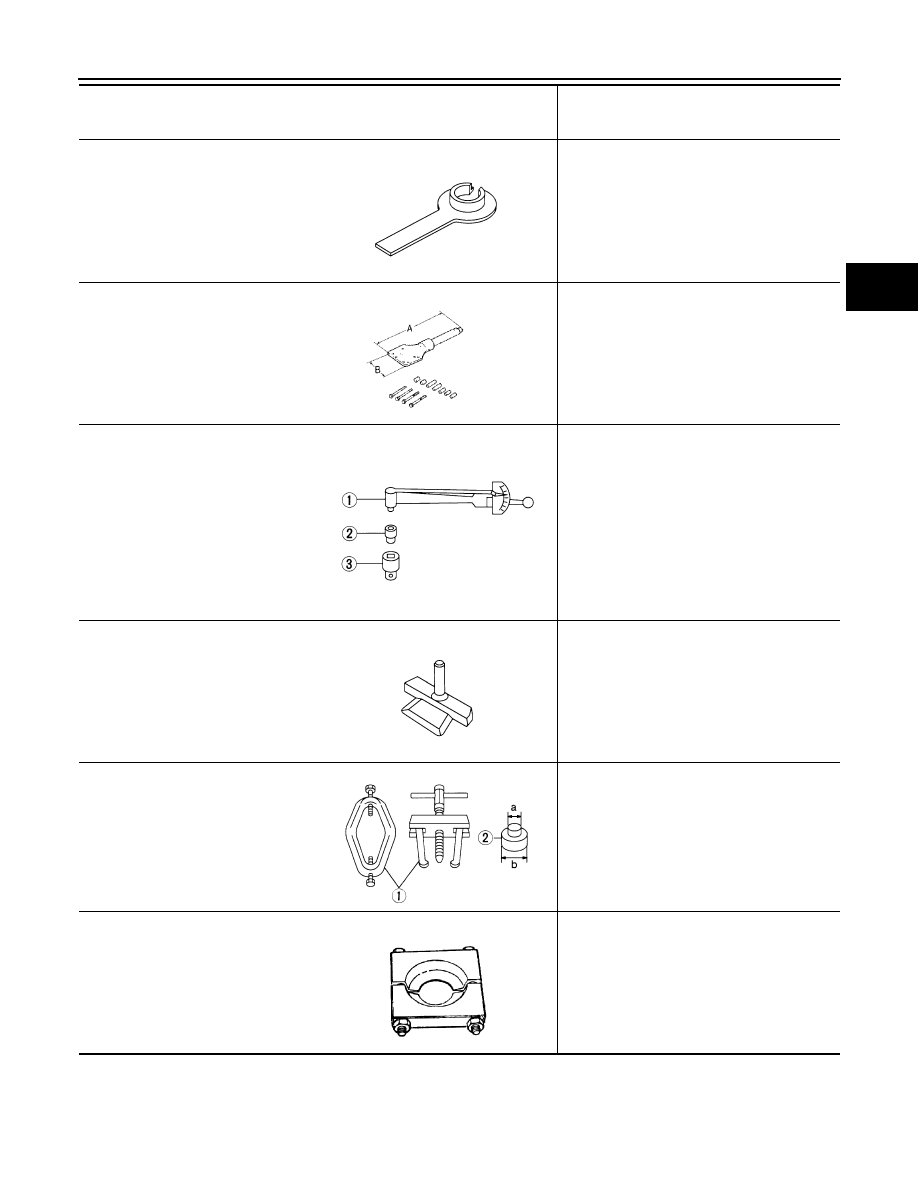

KV38107900
(J-39352)
Protector

Installing side flange

KV38100800
(J-25604-01)
Attachment

Securing unit assembly
a: 541 mm (21.30 in)
b: 200 mm (7.87 in)

ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000

(J-25765)
Torque wrench

2: HT62940000

(

—

)

Socket adapter (1/2

″

)

3: HT62900000

(

—

)

Socket adapter (3/8

″

)

Measuring drive pinion bearing preload torque
and total preload torque

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

ST3306S001
(

—

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30031000
(J-22912-01)
Puller

Removing drive pinion rear bearing inner race

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT129

SDIA0267E

NT124

S-NT046

NT072

ZZA0700D

2009 Pathfinder

DLN-400

< PREPARATION >

[REAR FINAL DRIVE: R200]

PREPARATION

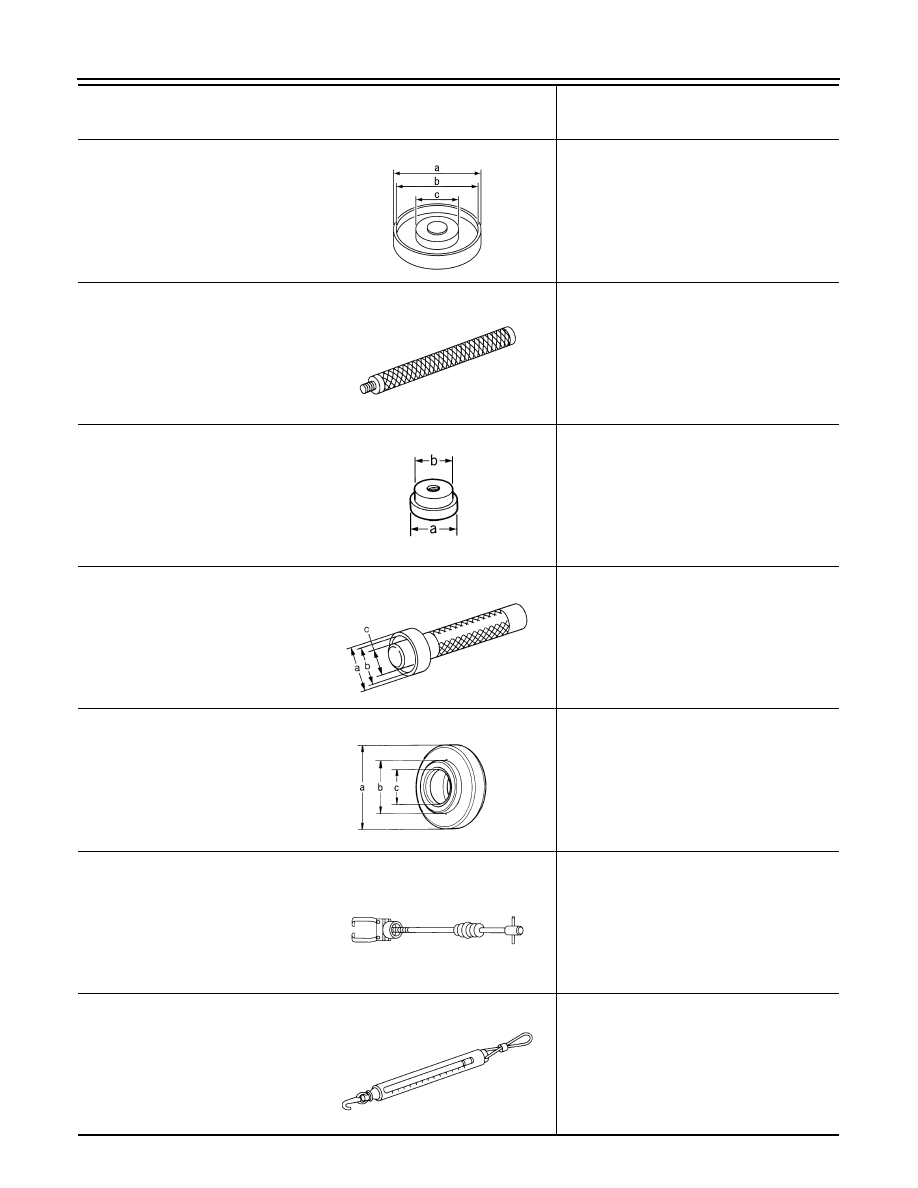

KV40105230
(

—

)

Drift

Installing drive pinion rear bearing outer race
a: 92 mm (3.62 in) dia.
b: 86 mm (3.39 in) dia.
c: 45 mm (1.77 in) dia.

ST30611000
(J-25742-1)
Drift bar

Installing drive pinion front bearing outer race
(Use with ST30613000)

ST30613000
(J-25742-3)
Drift

Installing drive pinion front bearing outer race
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

KV38100300
(J-25523)
Drift

Installing side bearing inner race
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

ST30901000
(J-26010-01)
Drift

Installing drive pinion rear bearing inner race
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

HT72400000
(

—

)

Slide hammer

Removing differential case assembly

—

(J-8129)
Spring gauge

Measuring turning torque

Tool number
(Kent-Moore No.)
Tool name

Description

PDIA0591E

S-NT090

ZZA1000D

ZZA1046D

ZZA0978D

S-NT125

NT127

2009 Pathfinder

PREPARATION

DLN-401

< PREPARATION >

[REAR FINAL DRIVE: R200]

DLN

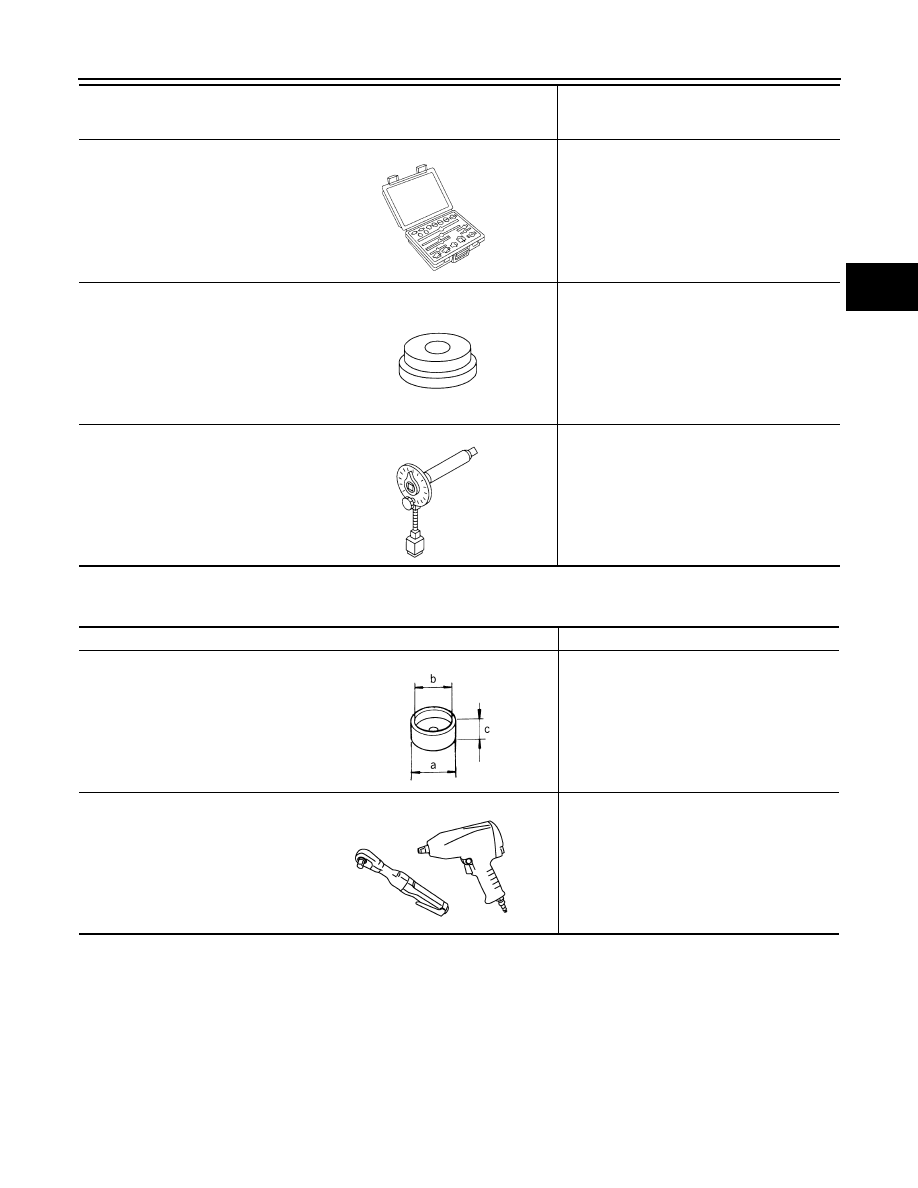

Commercial Service Tool

INFOID:0000000003937453

—

(J-34309)
Differential shim selector tool

Adjusting drive pinion bearing preload and
drive pinion height

—

(J-25269-4)
Side bearing disc (2 Req'd)

Selecting drive pinion height adjusting washer

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

NT134

NT136

NT014

Tool name

Description

Spacer

Installing drive pinion front bearing inner race
a: 60 mm (2.36 in) dia.
b: 36 mm (1.42 in) dia.
c: 30 mm (1.18 in)

Power tool

Loosening nuts and bolts

ZZA1133D

PBIC0190E

2009 Pathfinder
