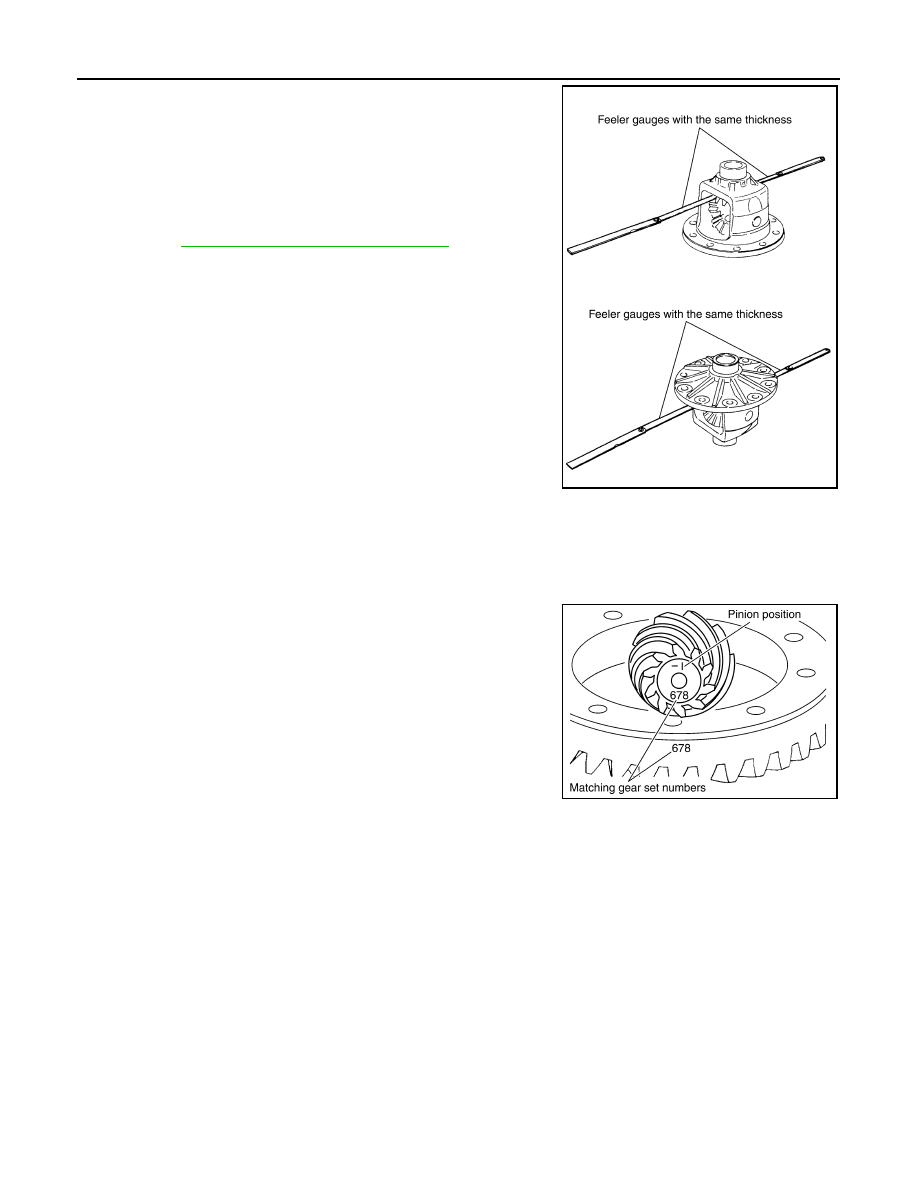

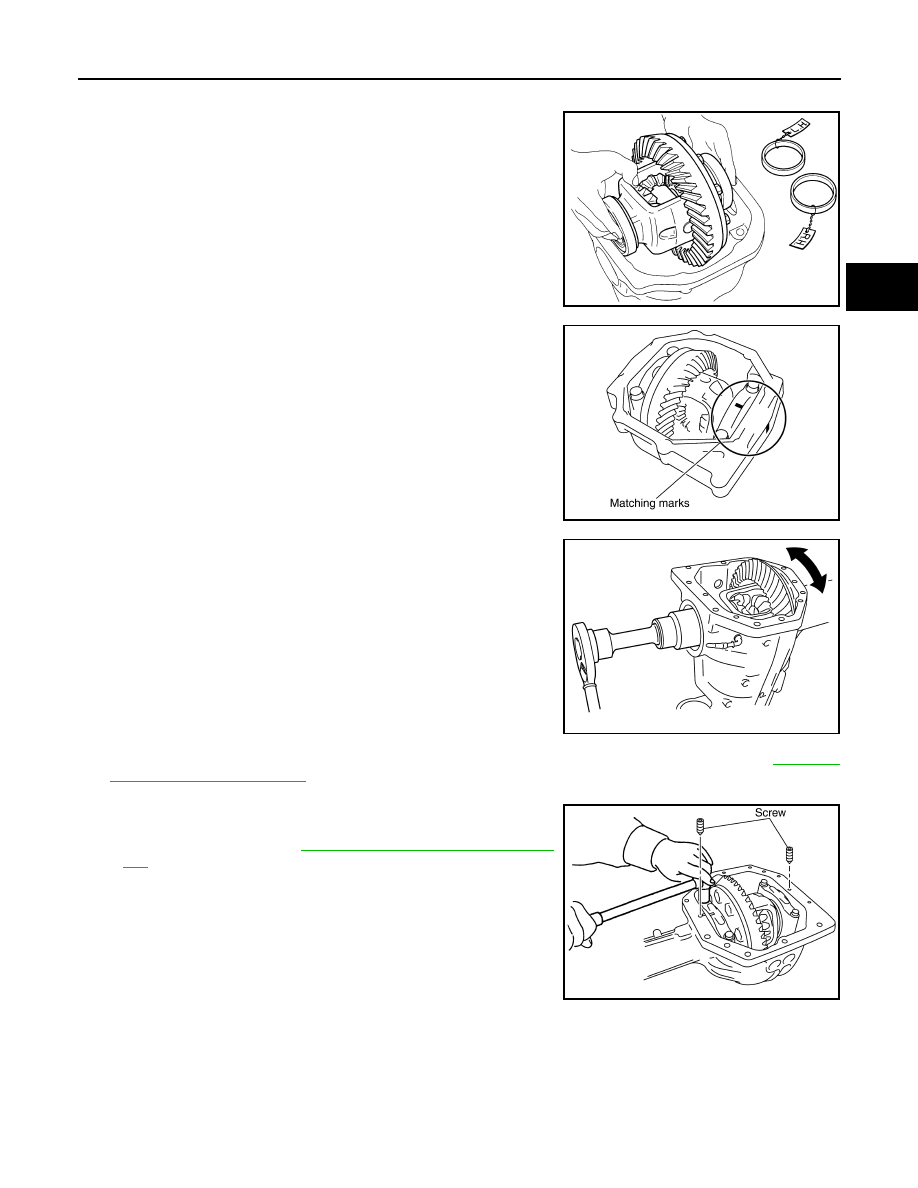

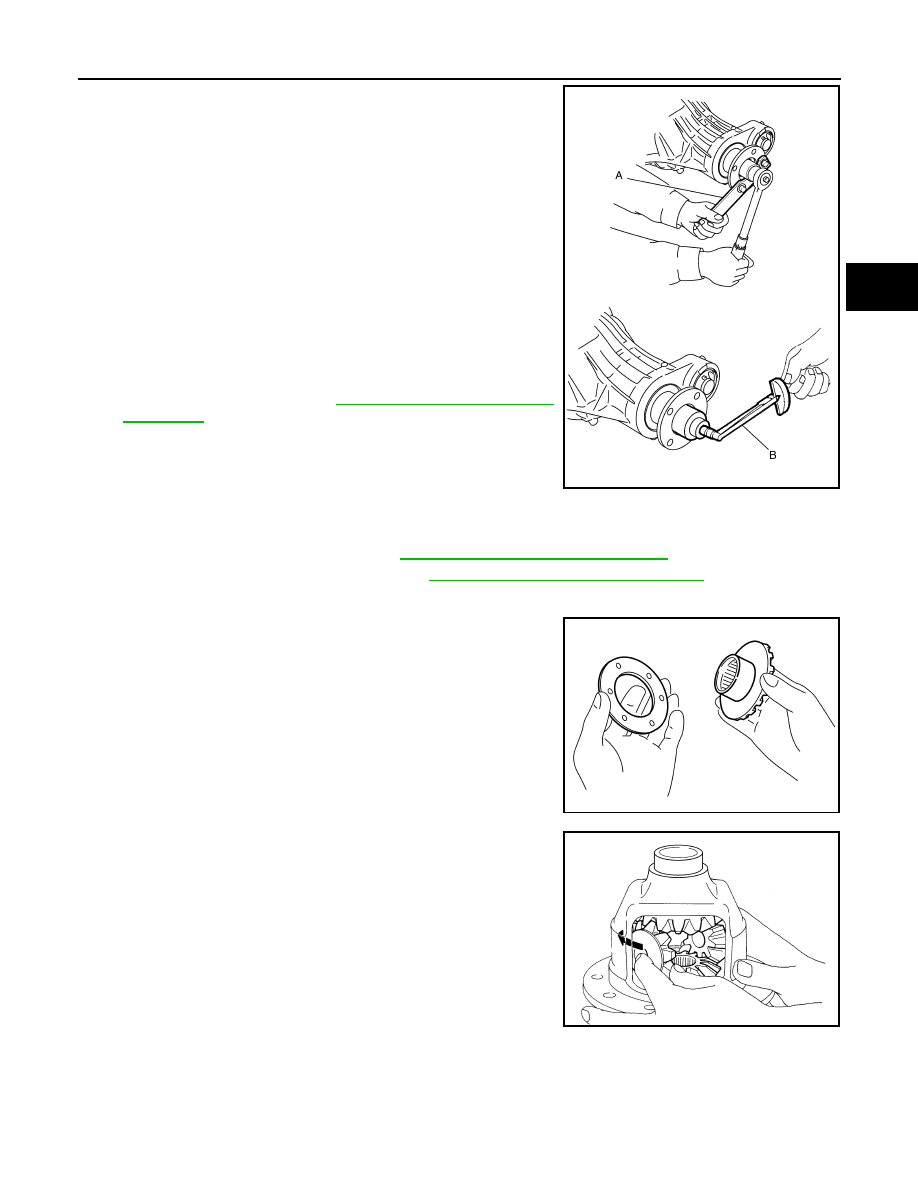

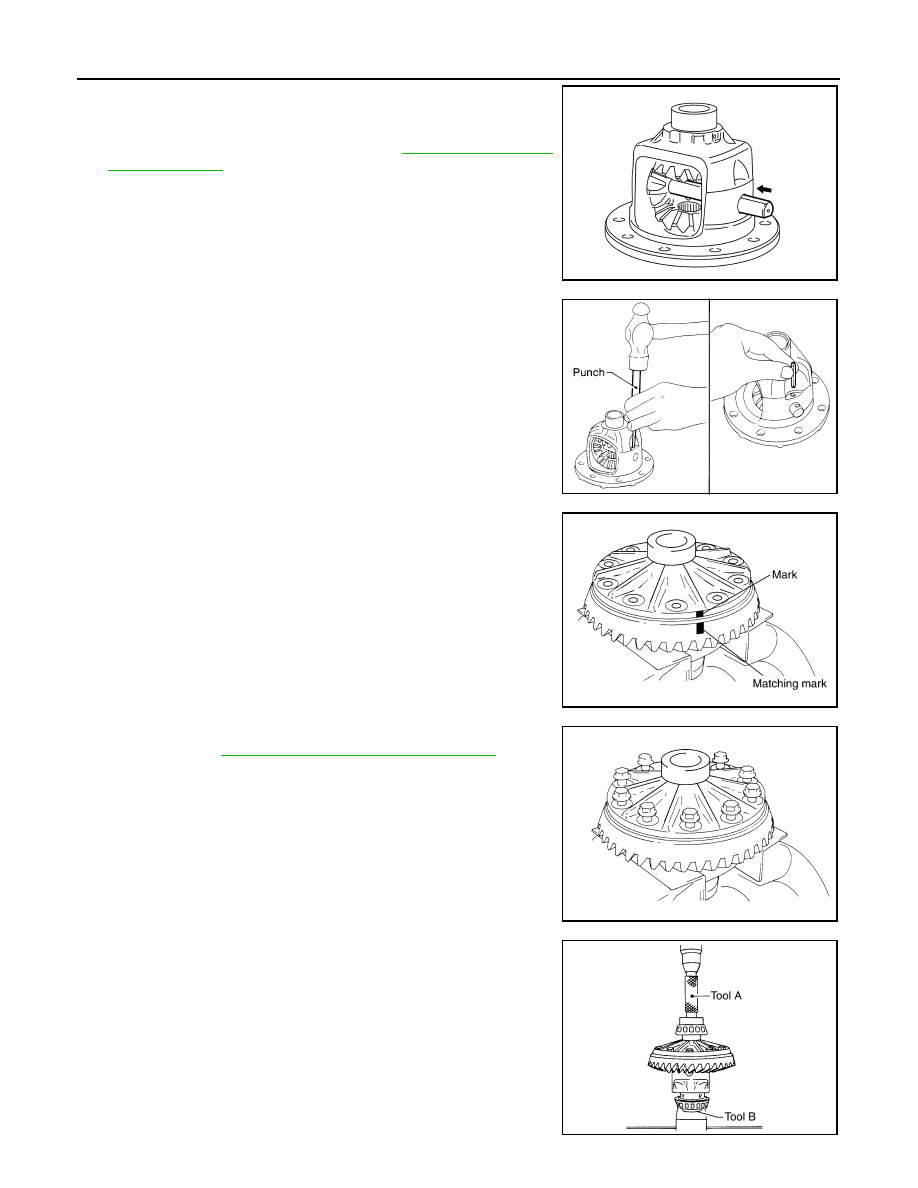

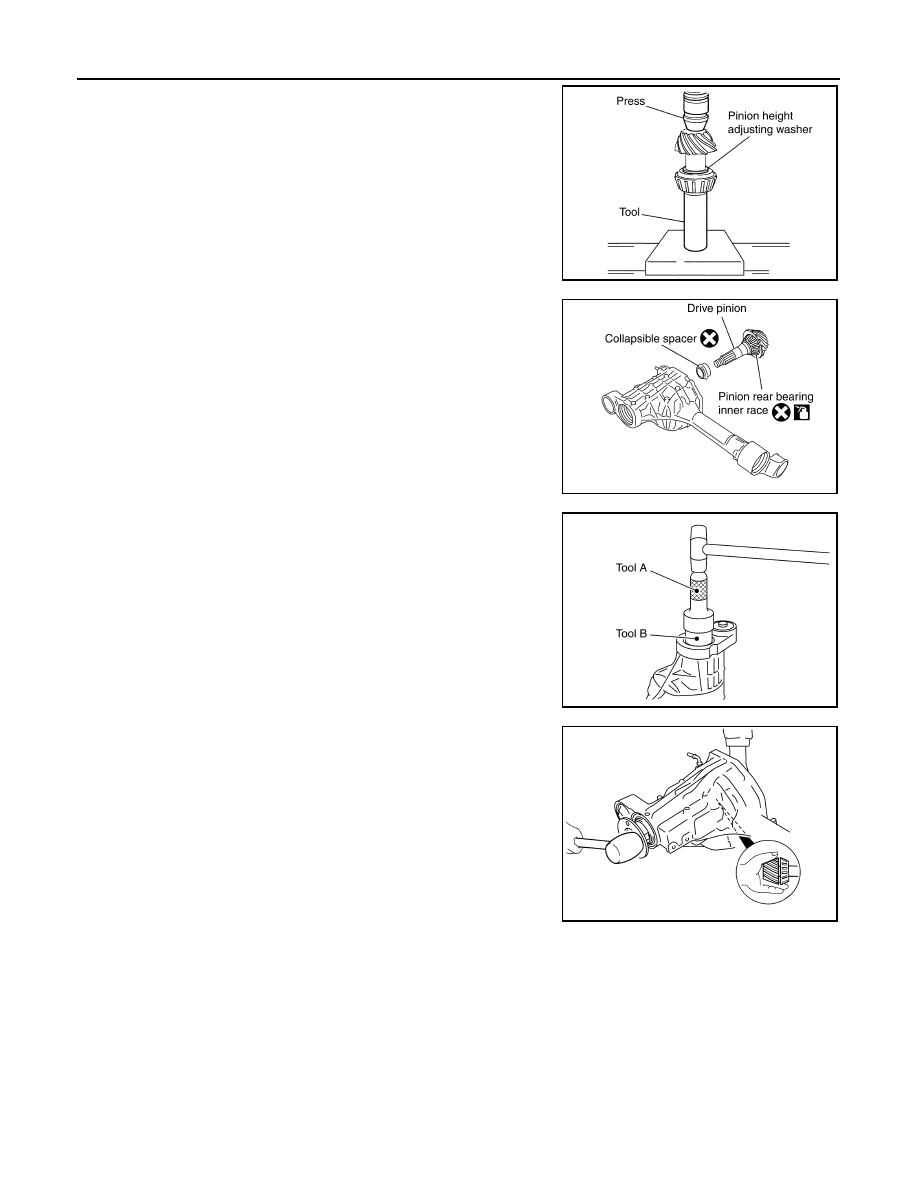

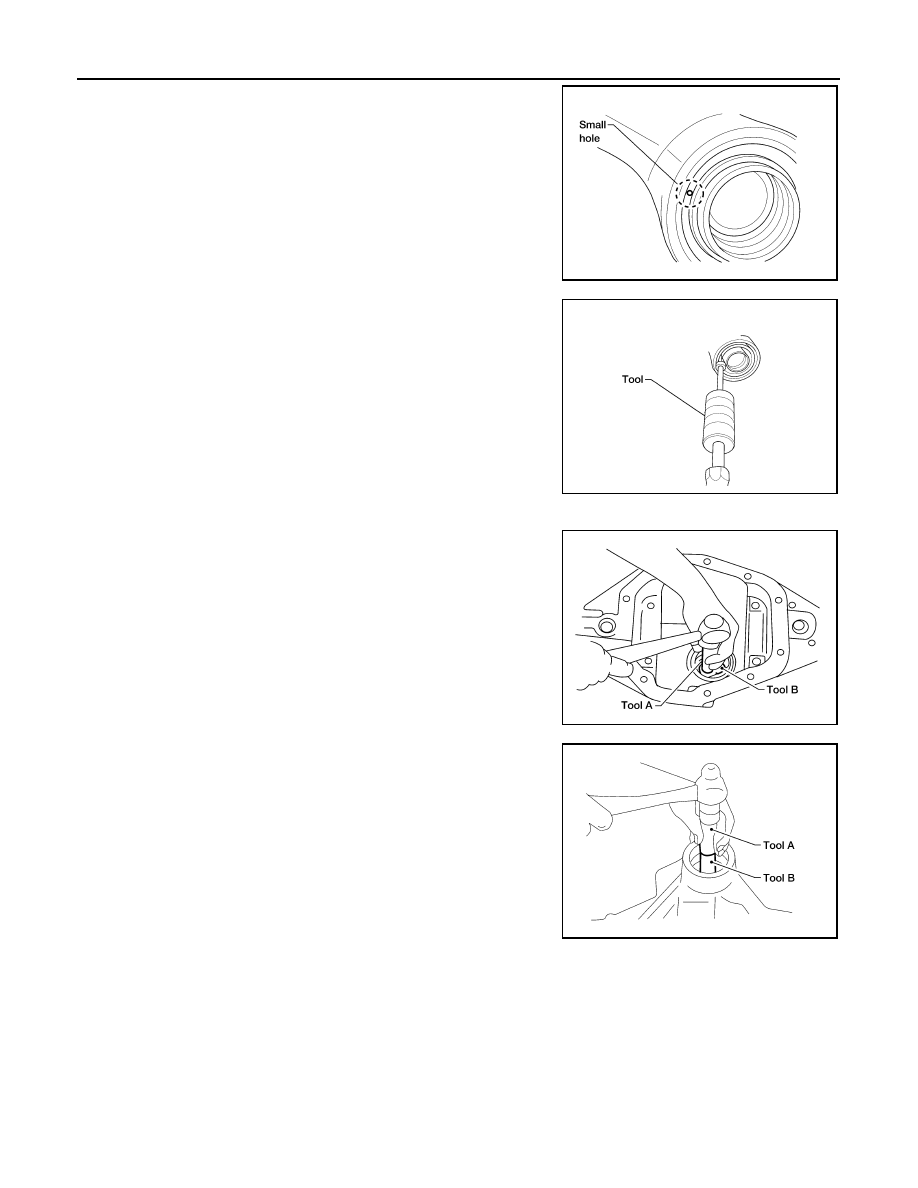

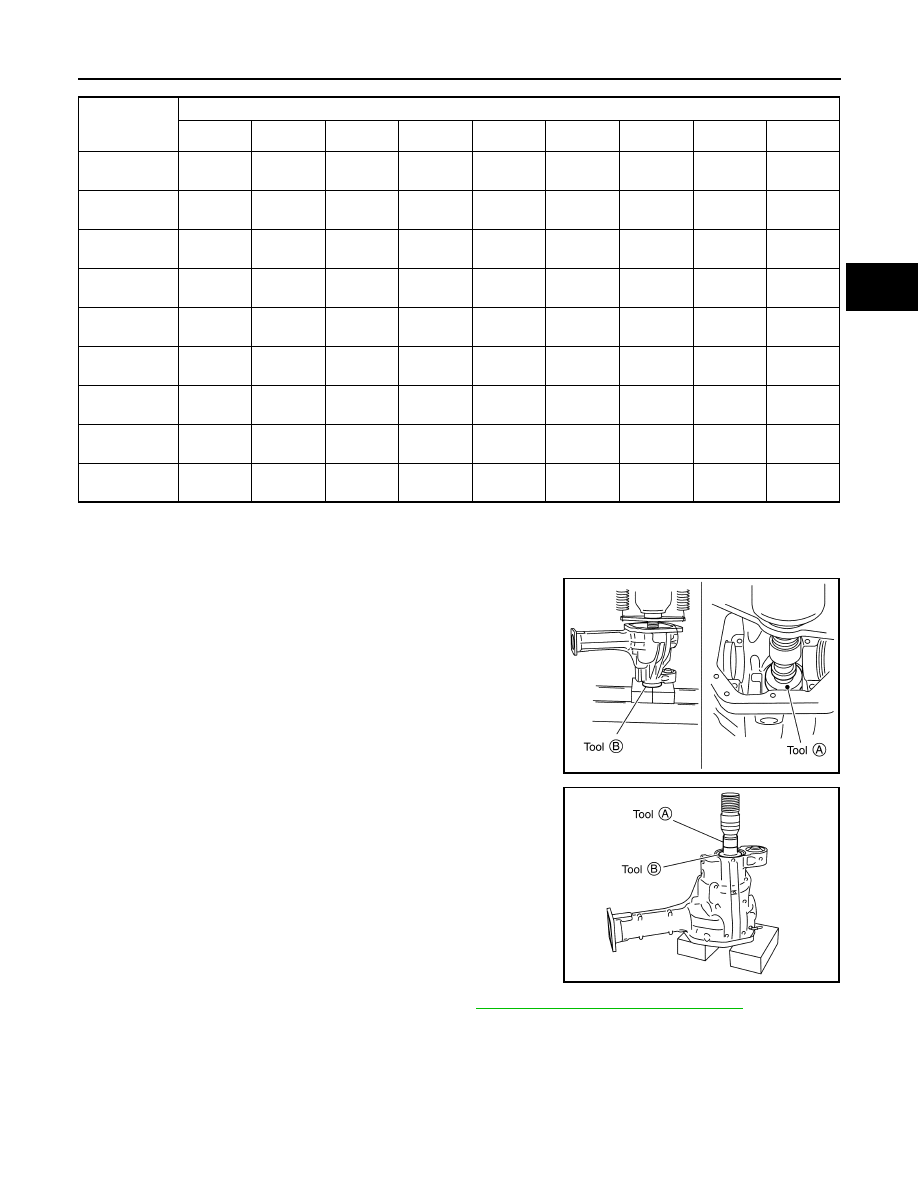

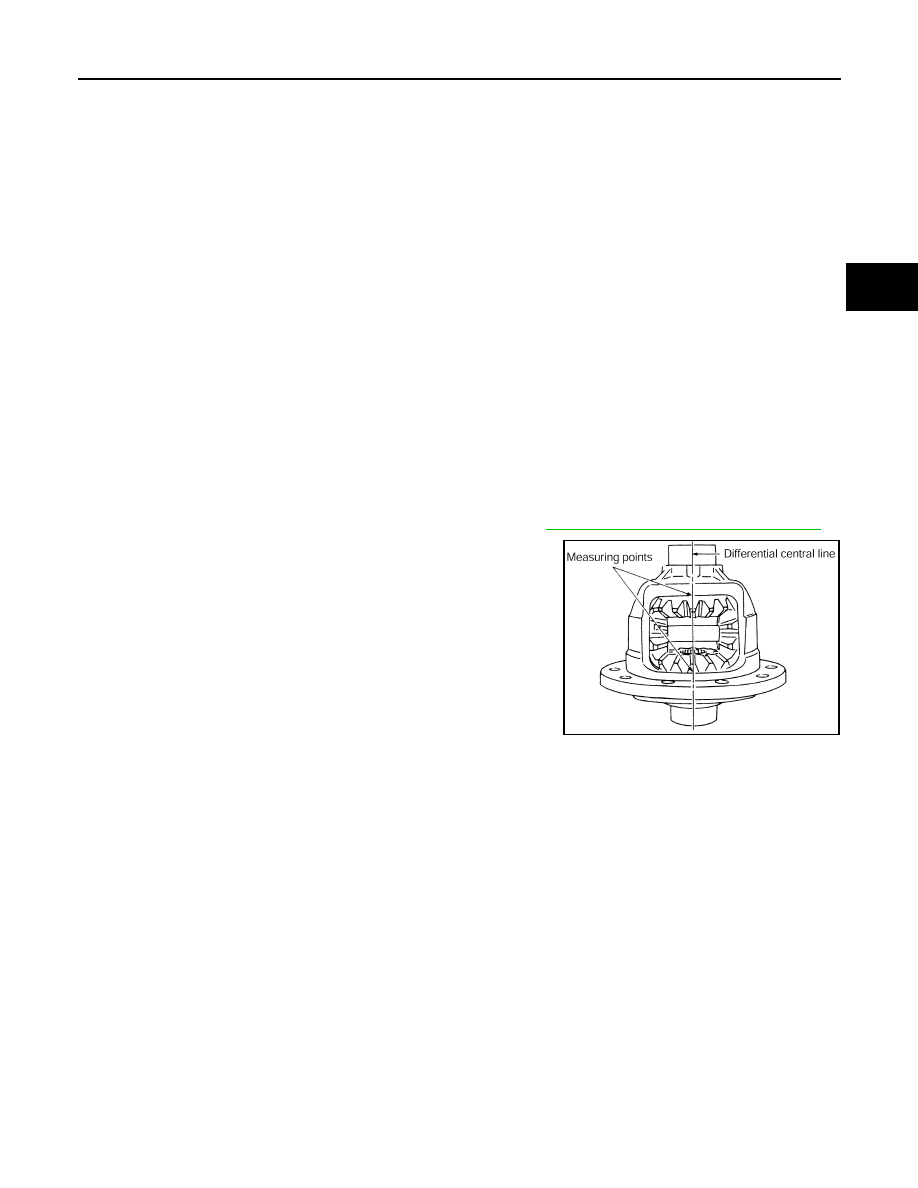

DLN-386 < DISASSEMBLY AND ASSEMBLY > [FRONT FINAL DRIVE: M205] FRONT FINAL DRIVE 7. Place a small hole in the front oil seal case using suitable tool. 8. Remove the front oil seal using Tool as shown. 9. Remove the drive pinion front bearing inner race. 10. Remove the drive pinion front bearing outer race using Tool as shown. Locate the driver on the back edge of the drive pinion CAUTION: Do not damage gear carrier. 11. Remove the drive pinion rear bearing outer race using Tool as shown. Locate the driver on the back edge of the drive pinion CAUTION: Do not damage gear carrier. INSPECTION AFTER DISASSEMBLY Clean the disassembled parts. Then inspect the parts for wear or damage. If wear or damage are found, follow Drive Pinion and Drive Gear • If the drive pinion and drive gear teeth do not mesh or line-up correctly, determine the cause and adjust, repair, or replace as necessary. • If the drive pinion or drive gear are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new drive pinion and drive gear. LDIA0129E Tool number : — SP8P LDIA0130E Tool number A: — C-4171 B: — D-103 LDIA0131E Tool number A: — C-4171 B: — C-4307 LDIA0132E 2009 Pathfinder |
