DEF-36

< SYMPTOM DIAGNOSIS >

REAR WINDOW DEFOGGER DOES NOT OPERATE BUT BOTH OF DOOR MIR-

ROR DEFOGGER OPERATE.

REAR WINDOW DEFOGGER DOES NOT OPERATE BUT BOTH OF DOOR
MIRROR DEFOGGER OPERATE.

Diagnosis Procedure

INFOID:0000000003935841

1.

 CHECK REAR WINDOW DEFOGGER POWER SUPPLY AND GROUND CIRCUIT

Check rear window defogger power supply and ground circuit.
Refer to

DEF-11, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

2009 Pathfinder

BOTH DOORS MIRROR DEFOGGER DON’T OPERATE BUT REAR WINDOW

DEFOGGER OPERATES

DEF-37

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

BOTH DOORS MIRROR DEFOGGER DON’T OPERATE BUT REAR WIN-
DOW DEFOGGER OPERATES

Diagnosis Procedure

INFOID:0000000003935842

1.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to

GI-49, "Intermittent Incident"

.

Is the inspection result normal?

YES

>>

Check the following.

• Battery power supply circuit.
• IPDM E/R.

NO

>> Repair or replace the malfunctioning parts.

2009 Pathfinder

DEF-38

< SYMPTOM DIAGNOSIS >

DRIVER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

DRIVER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

Diagnosis Procedure

INFOID:0000000003935843

1.

 CHECK DOOR MIRROR DEFOGGER LH

Check door mirror defogger LH.
Refer to

DEF-13, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

2009 Pathfinder

PASSENGER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

DEF-39

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

PASSENGER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

Diagnosis Procedure

INFOID:0000000003935844

1.

 CHECK DOOR MIRROR DEFOGGER RH

Check door mirror defogger RH.
Refer to

DEF-16, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

2009 Pathfinder

DEF-40

< SYMPTOM DIAGNOSIS >

REAR WINDOW DEFOGGER SWITCH DOES NOT LIGHT, BUT REAR WINDOW

DEFOGGER OPERATES

REAR WINDOW DEFOGGER SWITCH DOES NOT LIGHT, BUT REAR WIN-
DOW DEFOGGER OPERATES

Diagnosis Procedure

INFOID:0000000003935845

1.

CHECK REAR WINDOW DEFOGGER SWITCH

Check that the rear window defogger switch is operating normally.
Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Refer to

DEF-8, "Diagnosis Procedure A/C and AV Switch Assembly"

.

2009 Pathfinder

PRECAUTIONS

DEF-41

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003935846

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SR, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Handling for Adhesive and Primer

INFOID:0000000003935847

• Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after

the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Open the seal of the primer and adhesive just before application. Discard the remainder.
• Before application, be sure to shake the primer container to stir the contents. If any floating material is found,

do not use it.

• If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with

soap.

• When using primer and adhesive, always observe the precautions in the instruction manual.

2009 Pathfinder

DEF-42

< ON-VEHICLE REPAIR >

REAR WINDOW DEFOGGER

ON-VEHICLE REPAIR

REAR WINDOW DEFOGGER

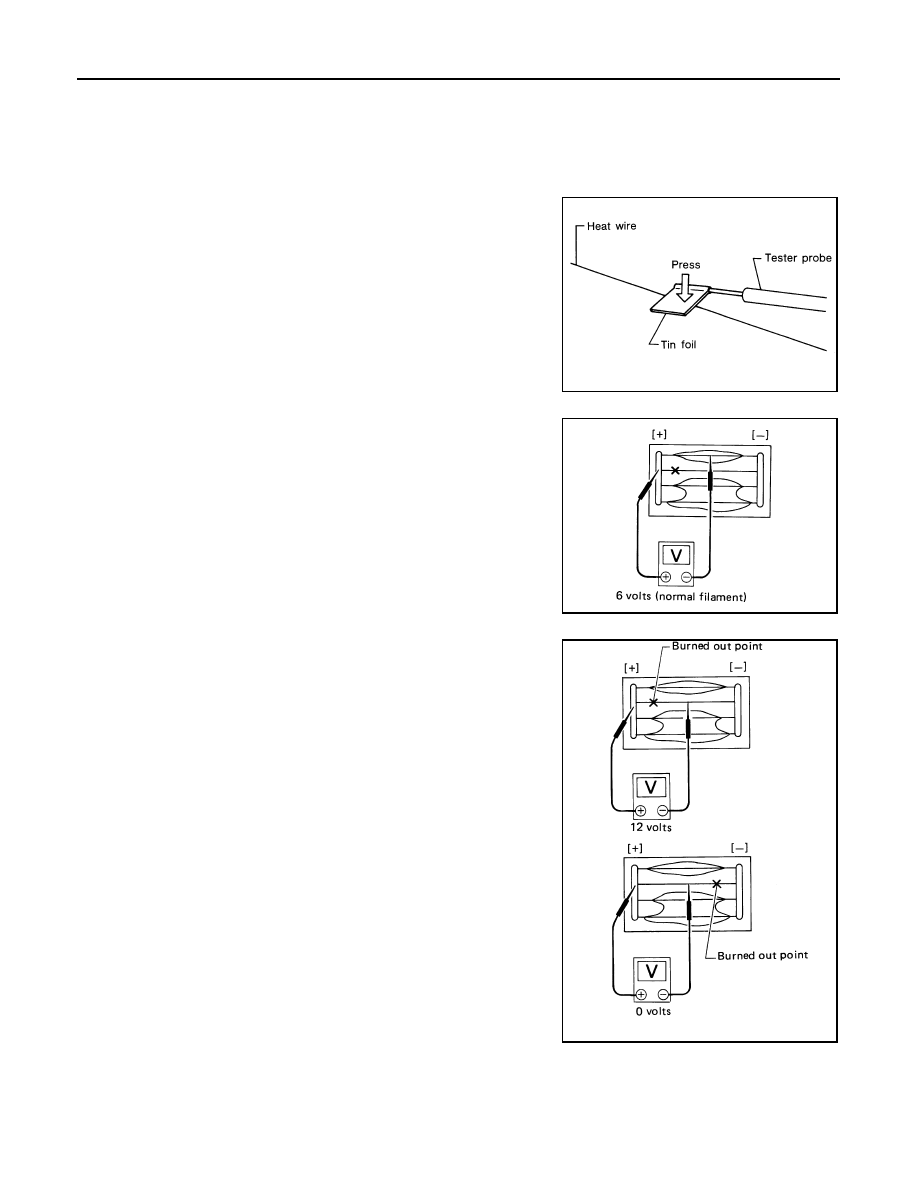

Filament Check

INFOID:0000000003935848

1.

When measuring voltage, wrap tin foil around the top of the neg-
ative probe. Then press the foil against the wire with your finger.

2.

Attach probe circuit tester (in Volt range) to middle portion of
each filament.

3.

If a filament is burned out, circuit tester registers 0 or battery
voltage.

4.

To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.

Filament Repair

INFOID:0000000003935849

REPAIR EQUIPMENT

• Conductive silver composition (DuPont No. 4817 or equivalent)
• Ruler 30 cm (11.8 in) long

SEL122R

SEL263

SEL265

2009 Pathfinder

REAR WINDOW DEFOGGER

DEF-43

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

• Drawing pen
• Heat gun
• Alcohol
• Cloth

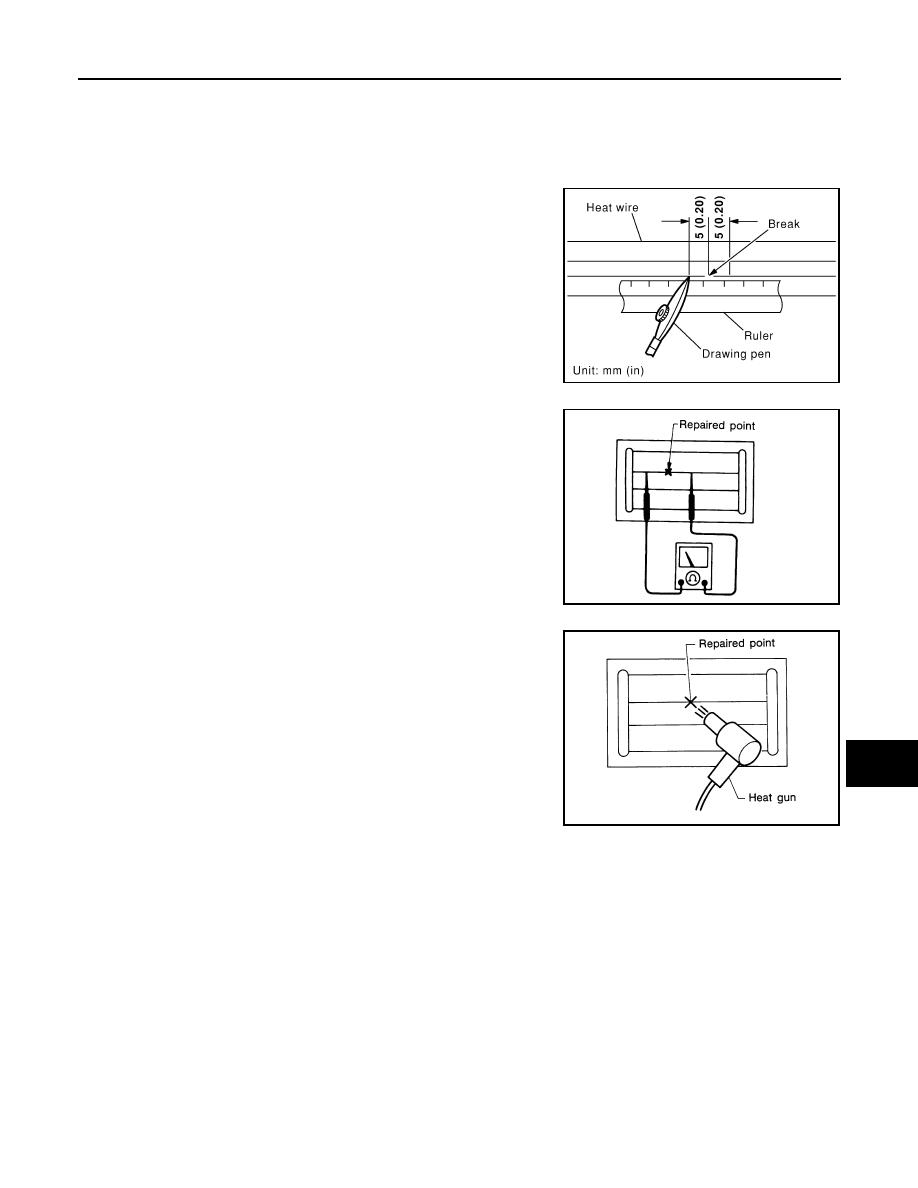

REPAIRING PROCEDURE

1.

Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.

2.

Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.

3.

Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4.

After repair has been completed, check repaired wire for conti-
nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.

5.

Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.

PIIA0215E

SEL012D

SEL013D
