DEF-28

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

Wiring Diagram

INFOID:0000000003935839

ABLWA0003GB

2009 Pathfinder

BCM (BODY CONTROL MODULE)

DEF-29

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

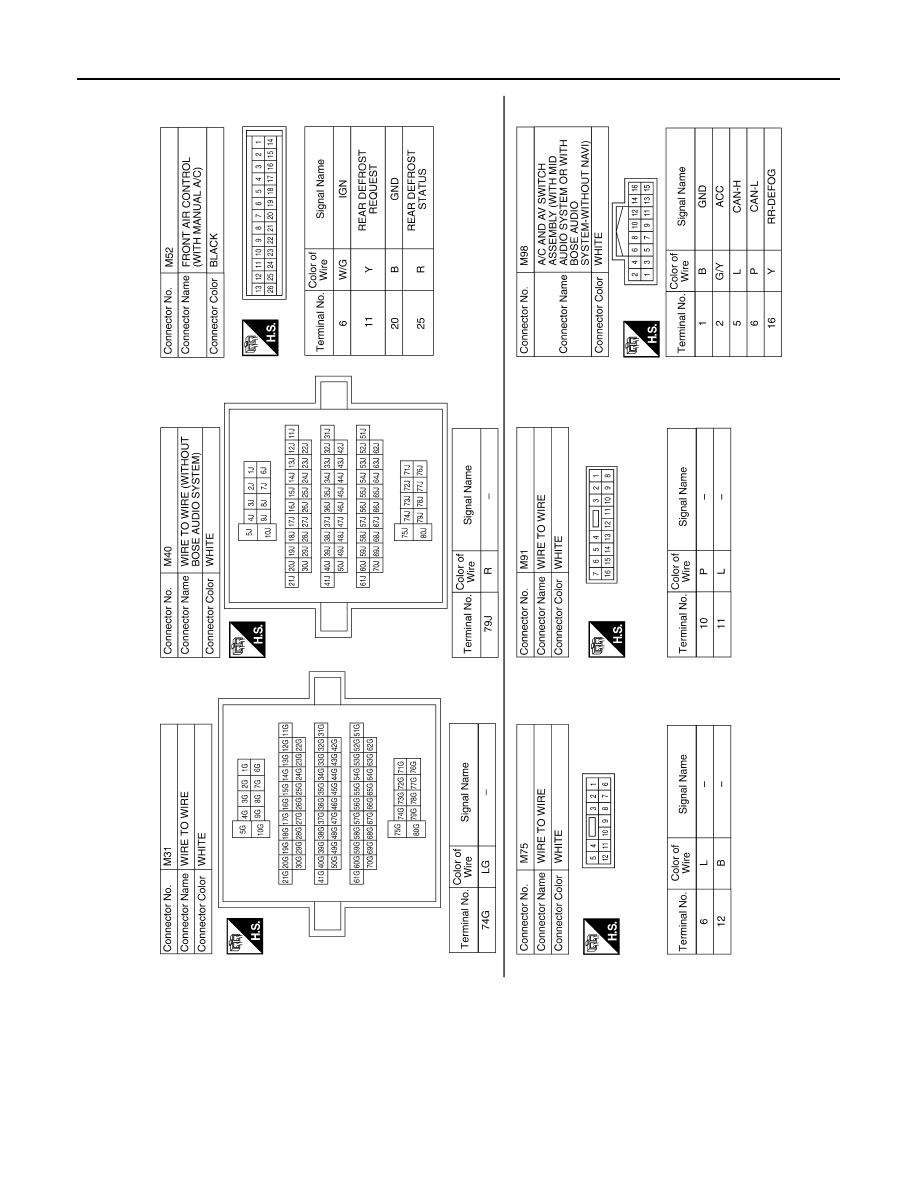

ABLIA0002GB

2009 Pathfinder

DEF-30

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

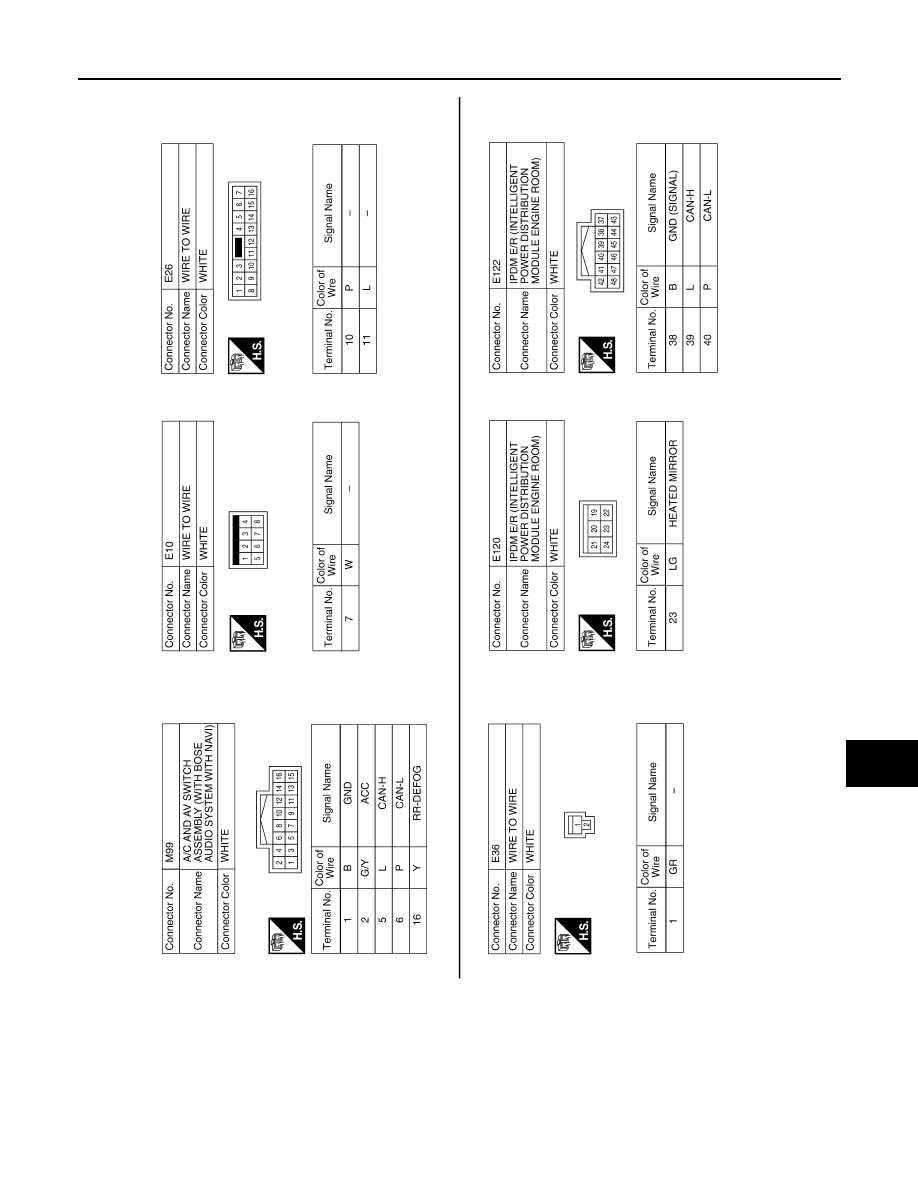

ABLIA0003GB

2009 Pathfinder

BCM (BODY CONTROL MODULE)

DEF-31

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

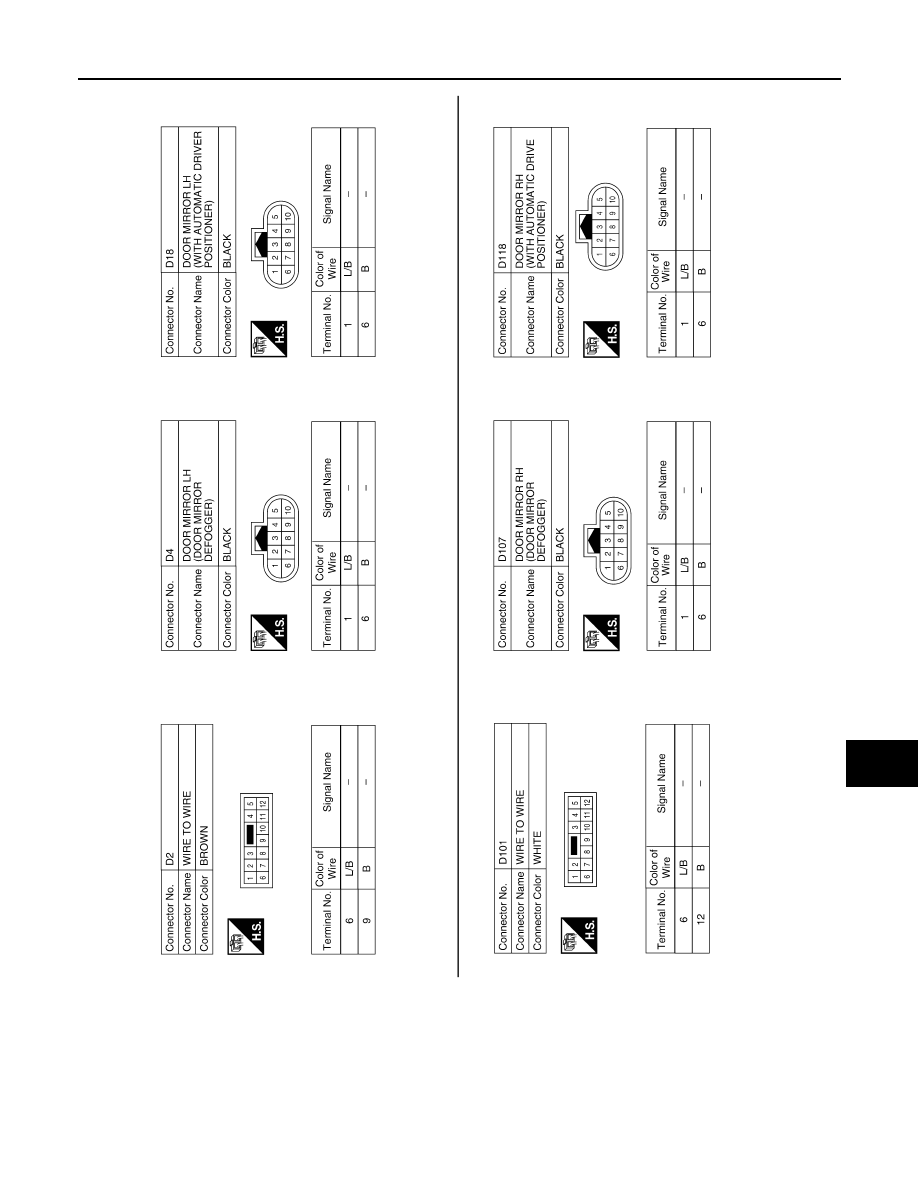

ABLIA0004GB

2009 Pathfinder

DEF-32

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

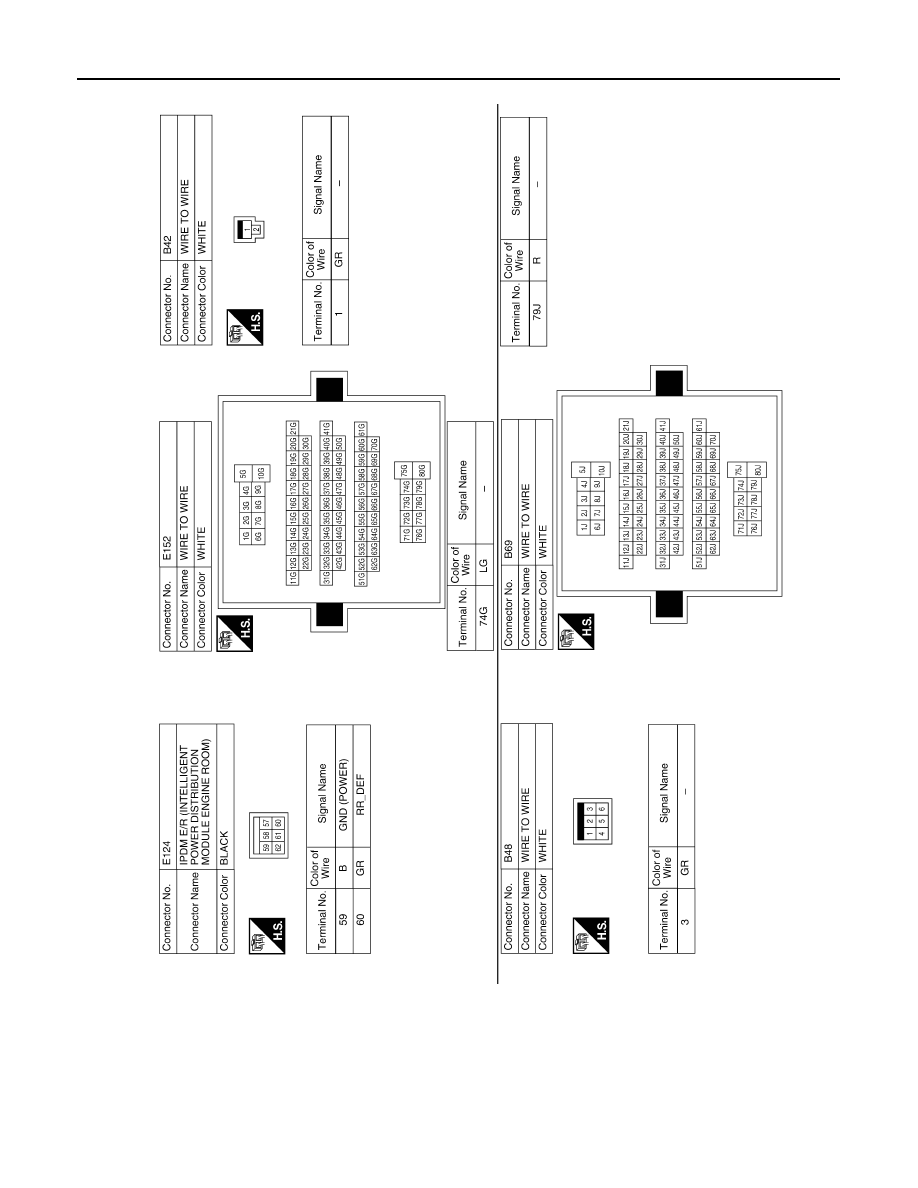

ABLIA0005GB

2009 Pathfinder

BCM (BODY CONTROL MODULE)

DEF-33

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

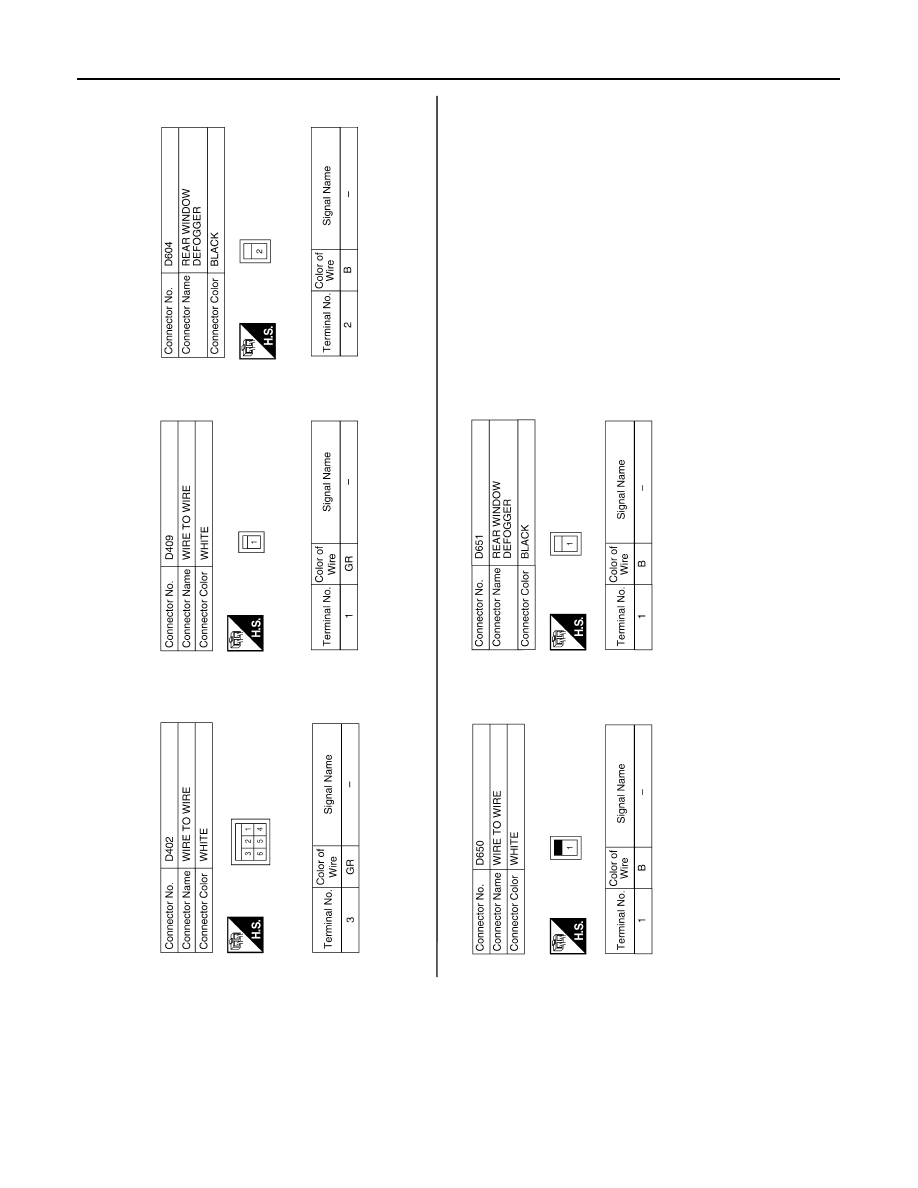

ABLIA0006GB

2009 Pathfinder

DEF-34

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ABLIA0392GB

2009 Pathfinder

REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER DO NOT OPER-

ATE.

DEF-35

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

SYMPTOM DIAGNOSIS

REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER DO NOT
OPERATE.

Diagnosis Procedure

INFOID:0000000003935840

1.

 CHECK REAR WINDOW DEFOGGER SWITCH

Check rear window defogger switch.
Refer to

DEF-11, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

 CHECK REAR WINDOW DEFOGGER RELAY

Check rear window defogger relay.
Refer to

DEF-10, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

2009 Pathfinder
