CHG-10

< COMPONENT DIAGNOSIS >

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPERATION

INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect generator connector E205 and IPDM E/R connector
E122.

3.

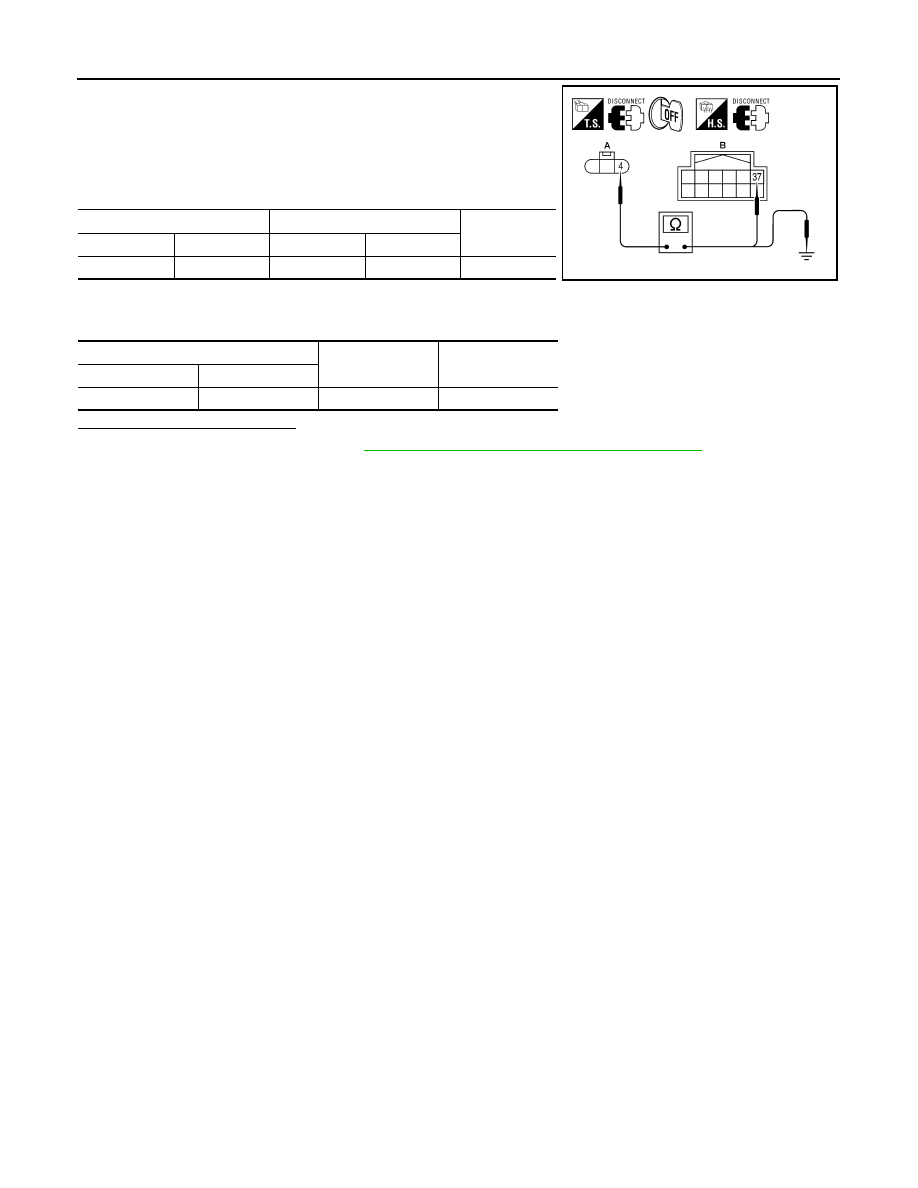

Check continuity between generator harness connector E205
(A) terminal 4 and IPDM E/R harness connector E122 (B) termi-
nal 37.

4.

Check continuity between generator harness connector E122
(A) terminal 4 and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> Repair harness or connector between IPDM E/R and generator.

A

B

Continuity

Connector

Terminal

Connector

Terminal

E205

4

E122

37

Yes

A

—

Continuity

Connector

Terminal

E205

4

Ground

No

ALMIA0196ZZ

2009 Pathfinder

CHG

B TERMINAL CIRCUIT

CHG-11

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B TERMINAL CIRCUIT

Description

INFOID:0000000003939684

The terminal “1” (B) circuit supplies power to charge the battery and operate the vehicles electrical system.

Diagnosis Procedure

INFOID:0000000003939685

1.

CHECK TERMINAL “1” CONNECTION

1.

Turn ignition switch OFF.

2.

Verify terminal “1” is clean and tight.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair terminal “1” connection. Confirm repair by performing complete Starting/Charging system

test. Refer to diagnostic station instruction manual.

2.

CHECK TERMINAL “1” CIRCUIT

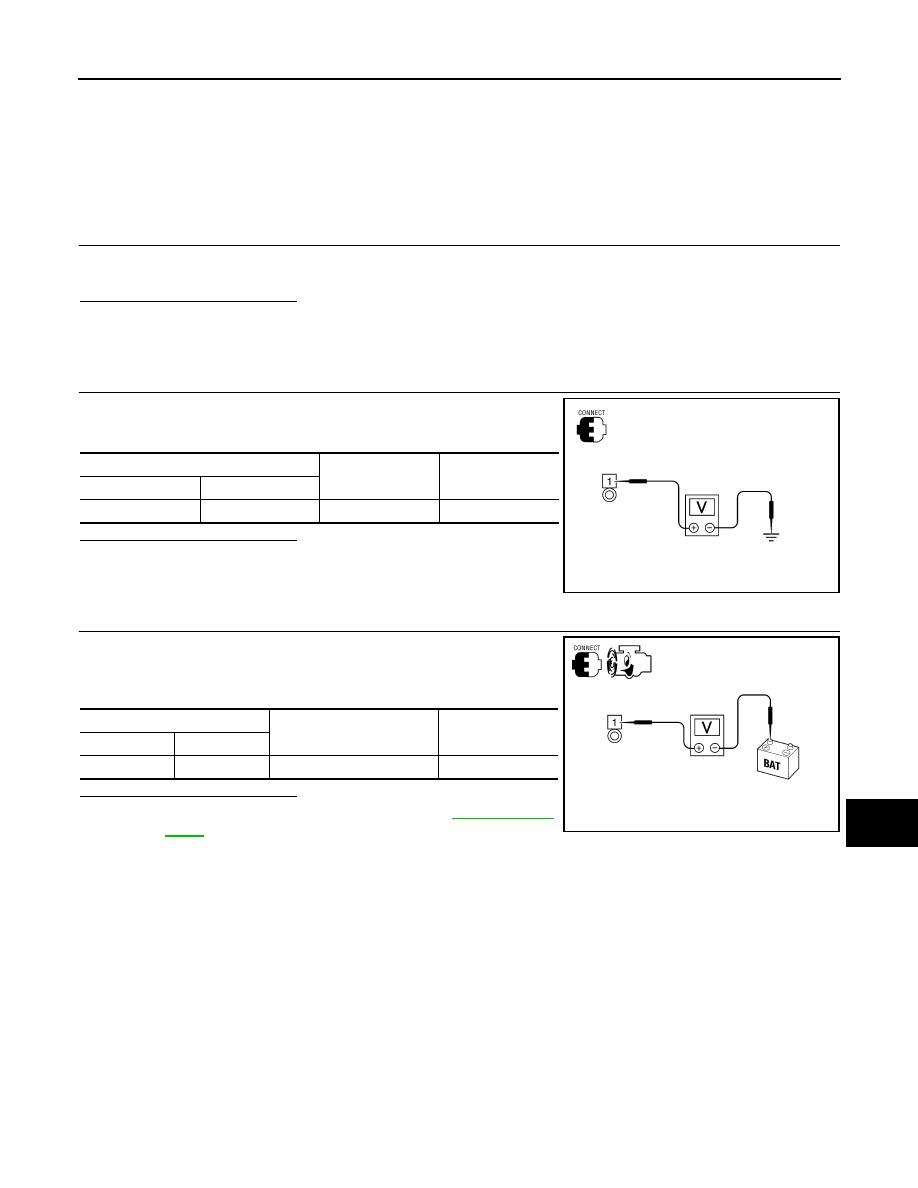

Check voltage between generator connector E206 terminal 1 and
ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check harness for open between generator and fusible

link.

3.

CHECK TERMINAL “1” CONNECTION (VOLTAGE DROP TEST)

1.

Start engine, then engine running at idle and warm.

2.

Check voltage between battery positive terminal and generator
connector E206 terminal 1.

Is the inspection result normal?

YES

>> Terminal “1” circuit is normal. Refer to

CHG-5, "Work

Flow"

.

NO

>> Check harness between battery and generator for high resistance.

(+)

(-)

Voltage

Connector

Terminal

E206

1

Ground

Battery voltage

ALMIA0197ZZ

(+)

(-)

Voltage

Connector

Terminal

E206

1

Battery positive terminal

Less than 0.2V

ALMIA0198ZZ

2009 Pathfinder

CHG-12

< COMPONENT DIAGNOSIS >

L TERMINAL CIRCUIT

L TERMINAL CIRCUIT

Description

INFOID:0000000003939686

The terminal “2” (L) circuit controls the charge warning lamp. The charge warning lamp illuminates when the
ignition switch is set to ON or START. When the generator is providing sufficient voltage with the engine run-
ning, the charge warning lamp will go off. If the charge warning lamp illuminates with the engine running, a
malfunction is indicated.

Diagnosis Procedure

INFOID:0000000003939687

1.

CHECK CHARGE WARNING LAMP CIRCUIT CONNECTION

Verify generator connector E205 terminal 2 is clean and tight.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair the connection. Confirm repair by performing complete Starting/Charging system test.

Refer to diagnostic station instruction manual.

2.

CHECK CHARGE WARNING LAMP CIRCUIT

1.

Disconnect generator connector E205.

2.

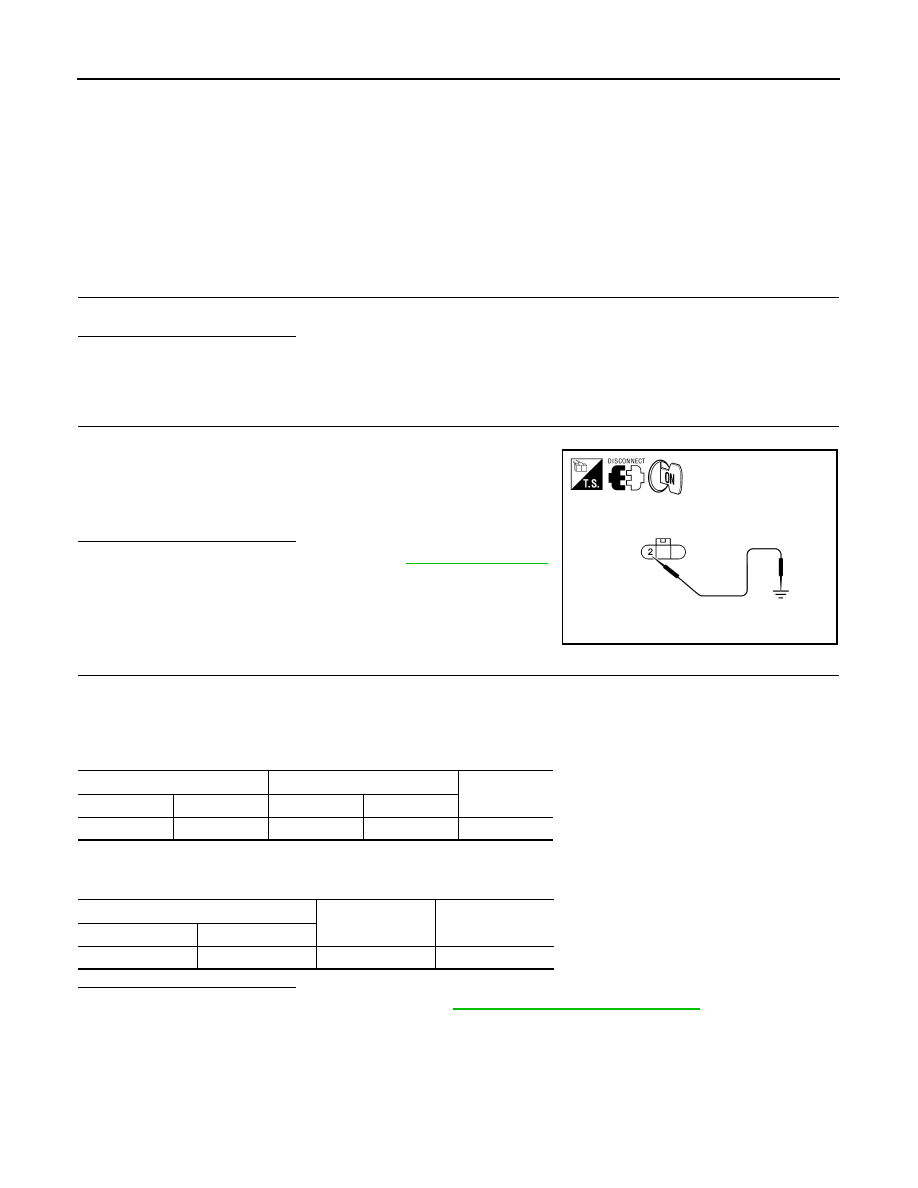

Apply ground to generator harness connector E205 terminal 2
with the ignition switch in the ON position.

Is the inspection result normal?

YES

>> Check generator function. Refer to

CHG-5, "Work Flow"

.

NO

>> GO TO 3

3.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect the generator connector E205 and combination meter connector M23.

3.

Check continuity between generator harness connector E205 terminal 2 and combination meter harness
connector M24 terminal 2.

4.

Check continuity between generator harness connector E205 terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace the combination meter. Refer to

MWI-94, "Removal and Installation"

.

NO

>> Repair the harness or connector.

Charge lamp should illuminate

ALMIA0200ZZ

Terminal

Terminal

Continuity

Connector

Terminal

Connector

Terminal

E205

2

M24

2

Yes

Terminal

—

Continuity

Connector

Terminal

E205

2

Ground

No

2009 Pathfinder

CHG

S TERMINAL CIRCUIT

CHG-13

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

S TERMINAL CIRCUIT

Description

INFOID:0000000003939688

The output voltage of the generator is controlled by the IC regulator at terminal “3” (S) detecting the input volt-
age. Terminal “3” circuit detects the battery voltage to adjust the generator output voltage with the IC regulator.

Diagnosis Procedure

INFOID:0000000003939689

1.

CHECK VOLTAGE REGULATOR CIRCUIT CONNECTION

Check to see if connector E205 terminal 3 is clean and tight.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair terminal connection. Confirm repair by performing complete Starting/Charging system test.

Refer to diagnostic station instruction manual.

2.

CHECK VOLTAGE REGULATOR CIRCUIT

Check voltage between generator harness connector E205 terminal
3 and ground.

Is the inspection result normal?

YES

>> Refer to

CHG-5, "Work Flow"

.

NO

>> Check harness for open between generator and fuse.

3 - ground

Battery voltage

ALMIA0201ZZ

2009 Pathfinder

CHG-14

< COMPONENT DIAGNOSIS >

CHARGING SYSTEM

CHARGING SYSTEM

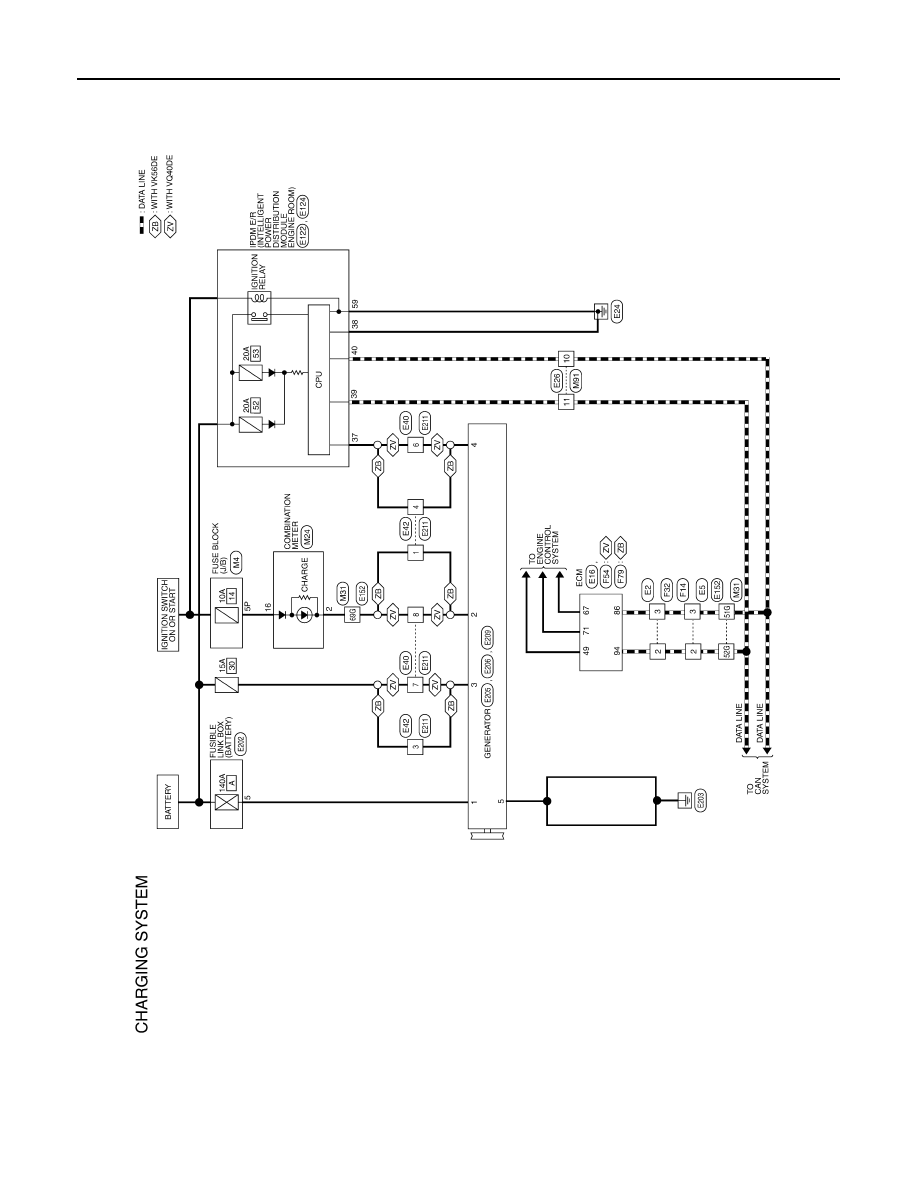

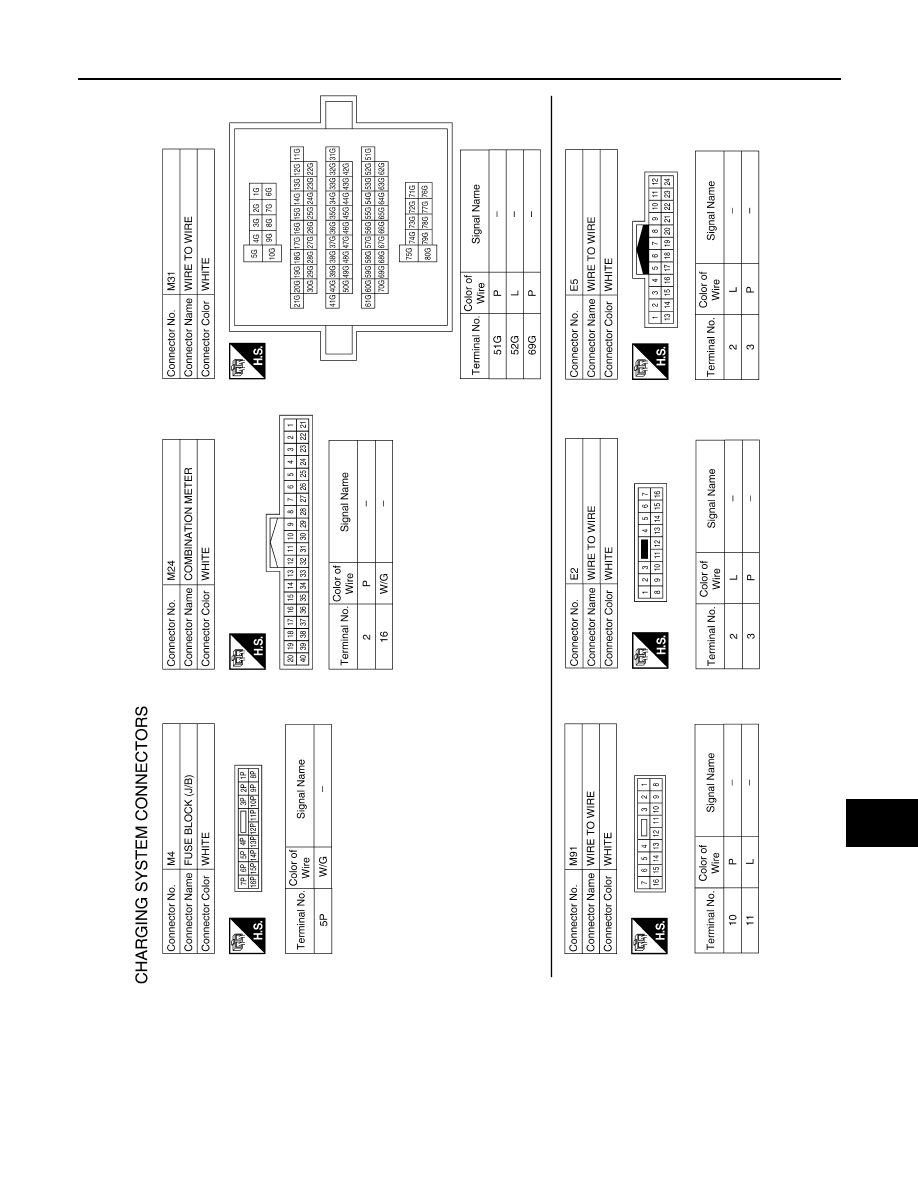

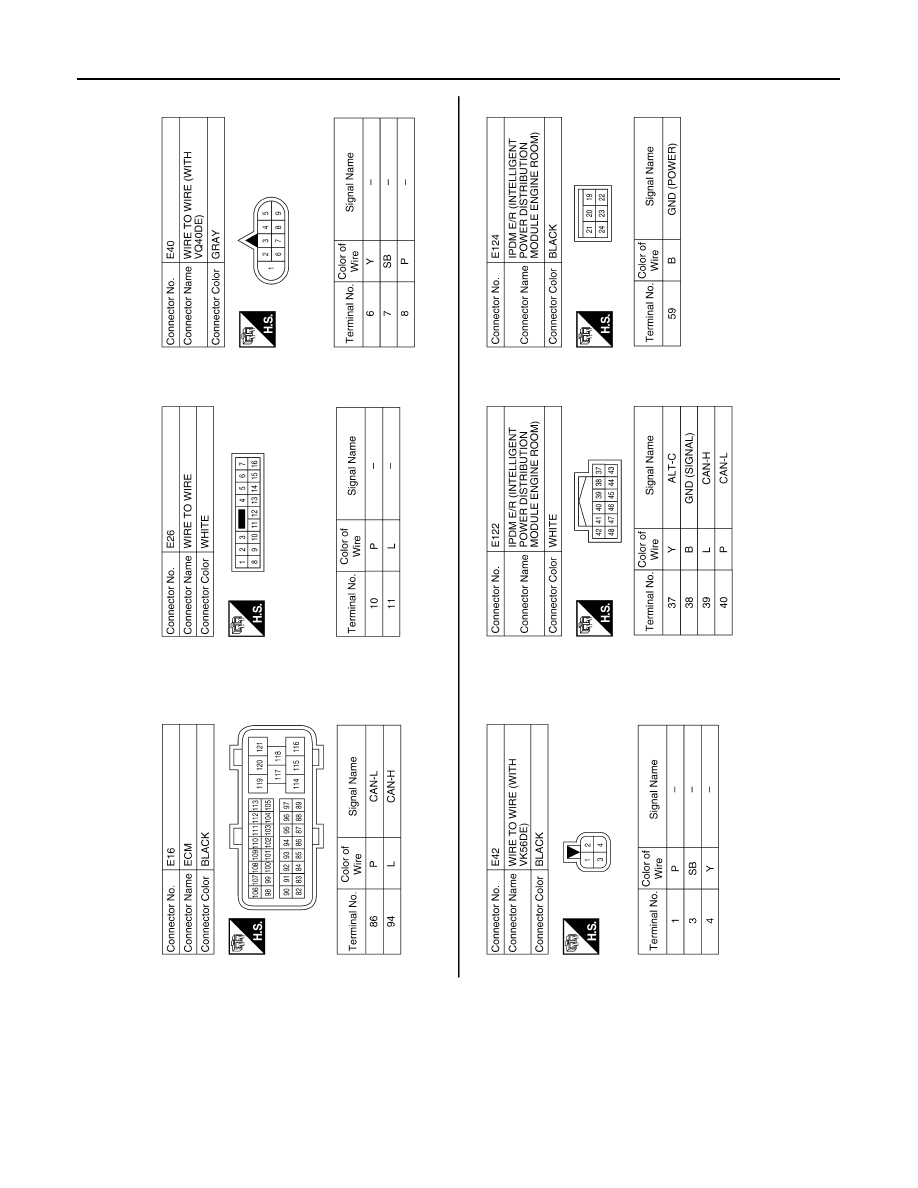

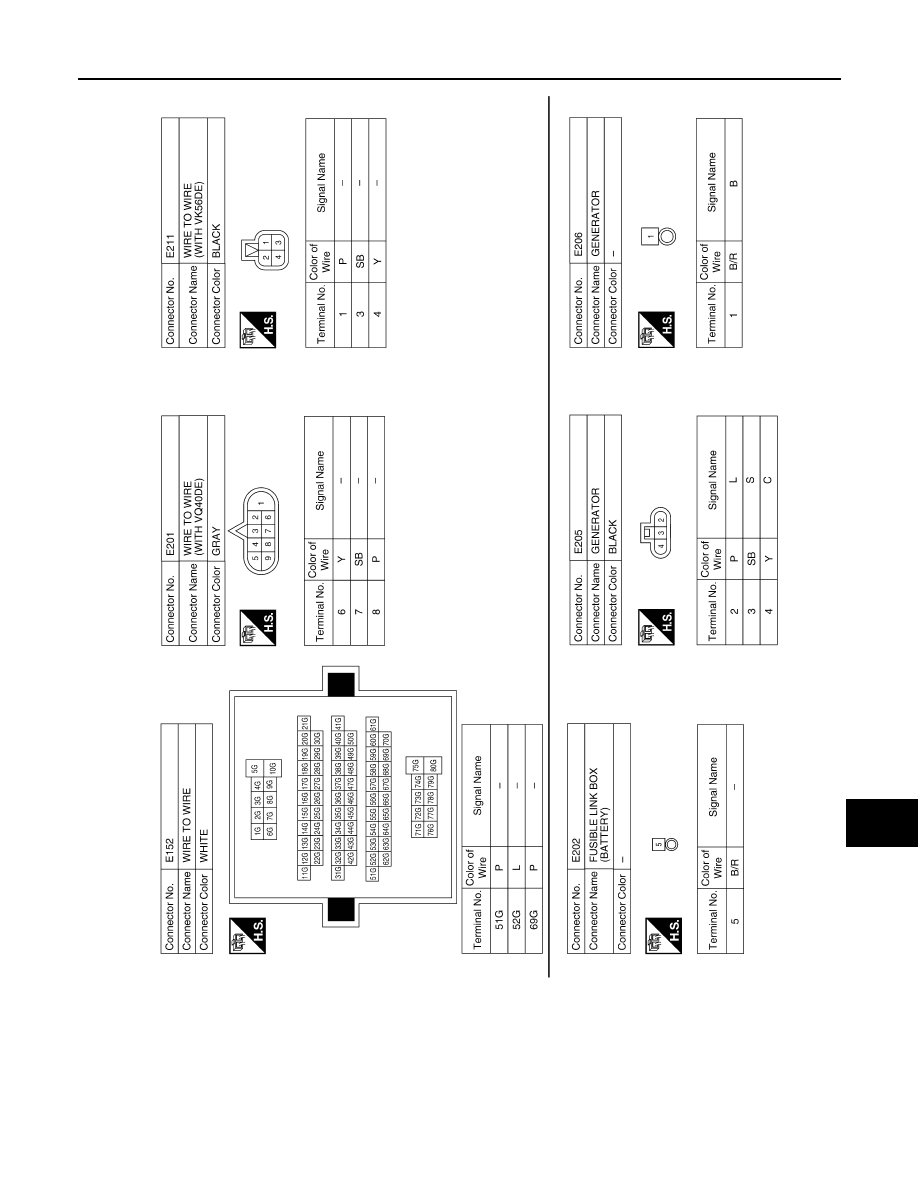

Wiring Diagram

INFOID:0000000003939690
