Nissan Pathfinder (2009 year). Manual - part 133

BRM-50

< SERVICE INFORMATION >

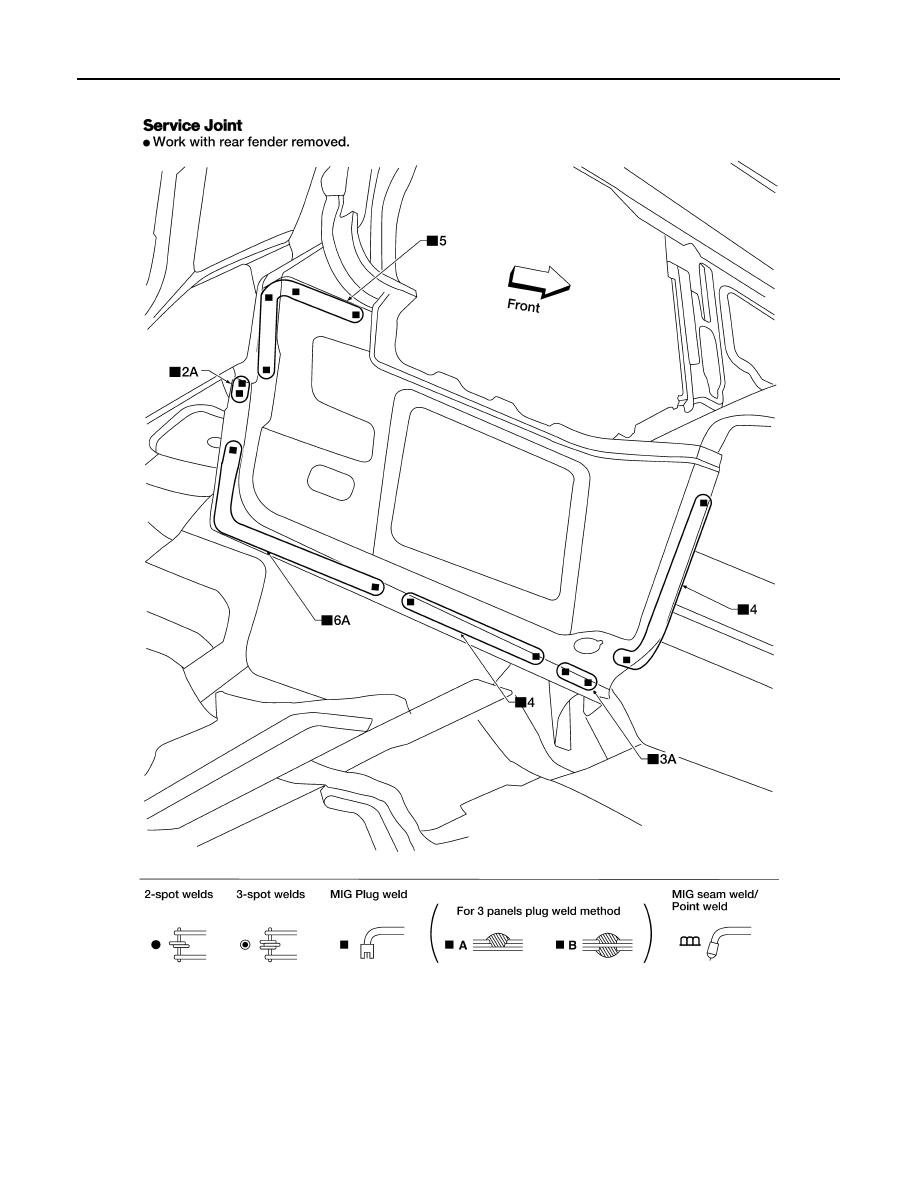

BODY REPAIR

RH

LIIA1819E

2009 Pathfinder

BODY REPAIR

BRM-51

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

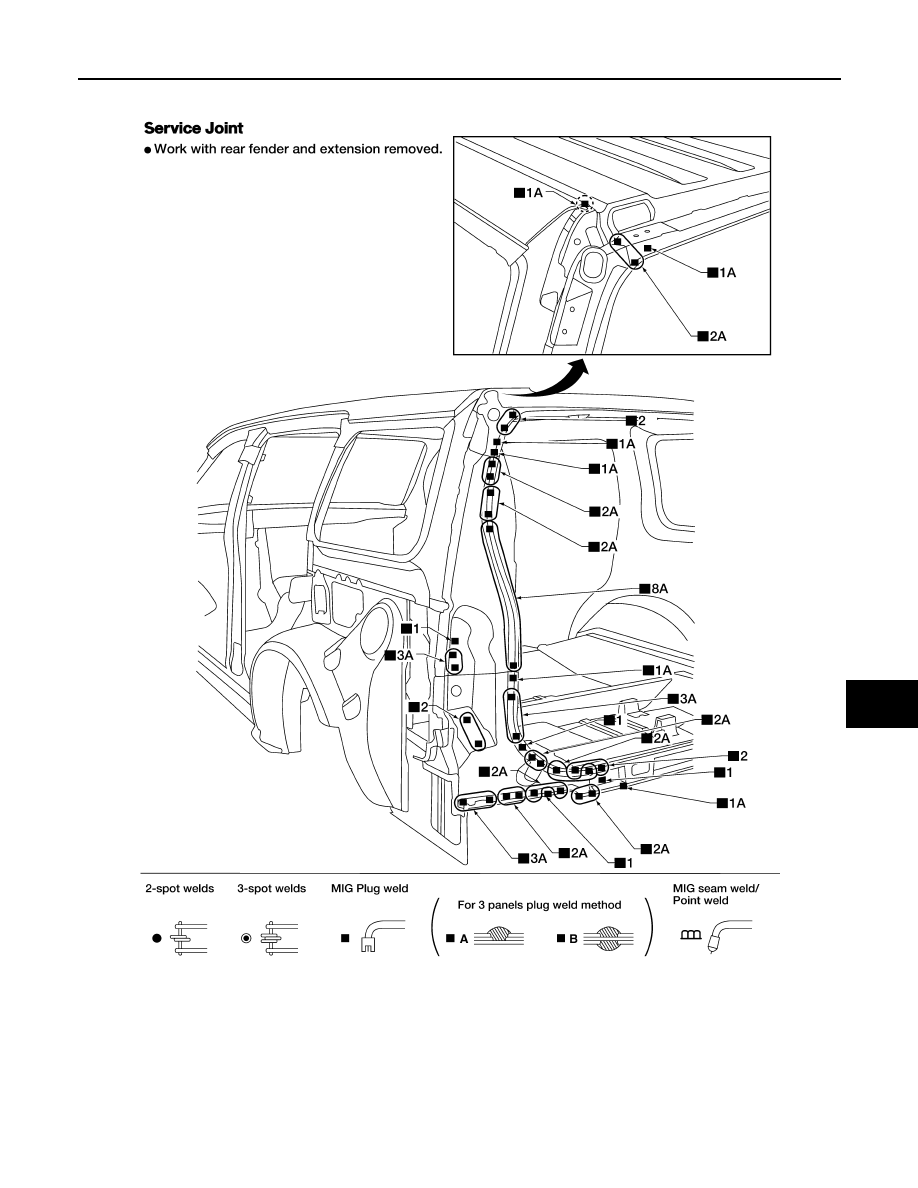

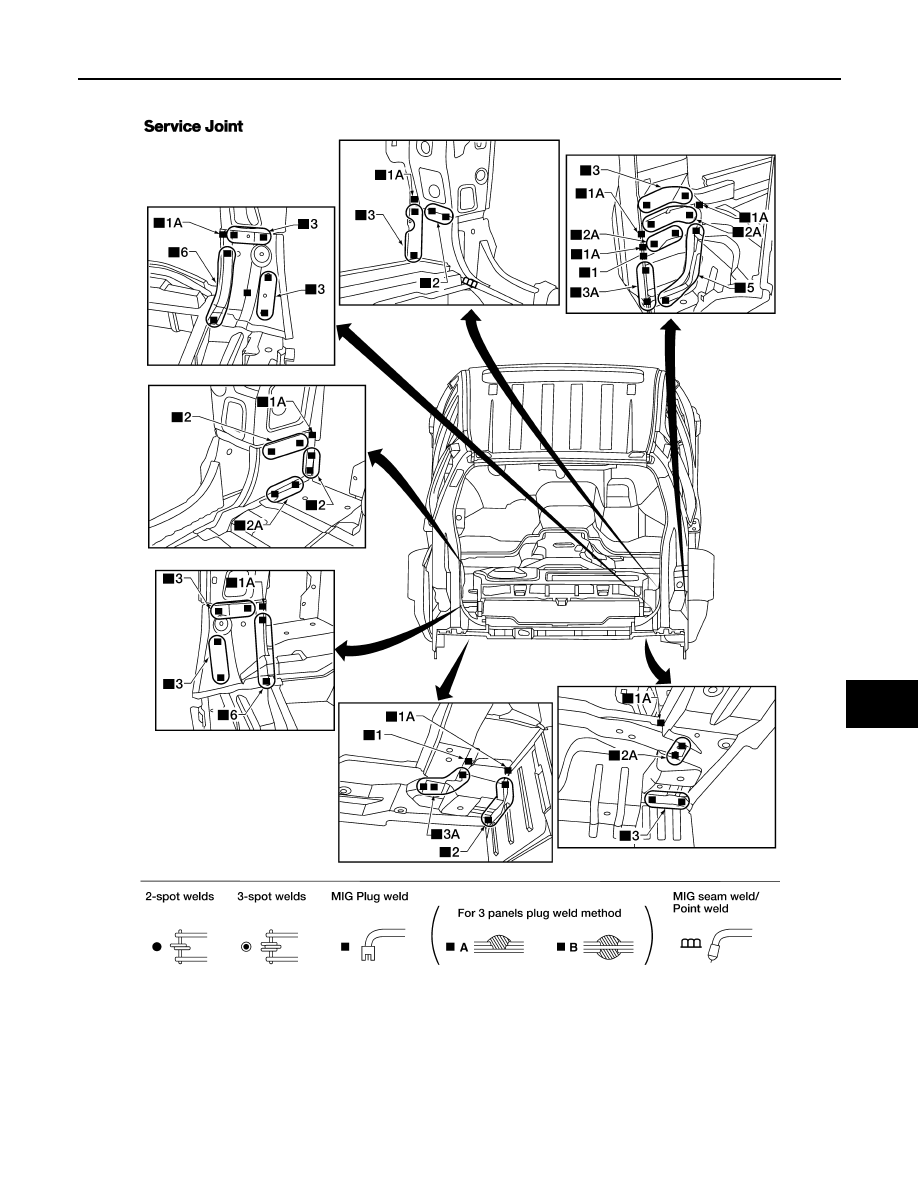

REAR FENDER REINFORCEMENT

LIIA1820E

2009 Pathfinder

BRM-52

< SERVICE INFORMATION >

BODY REPAIR

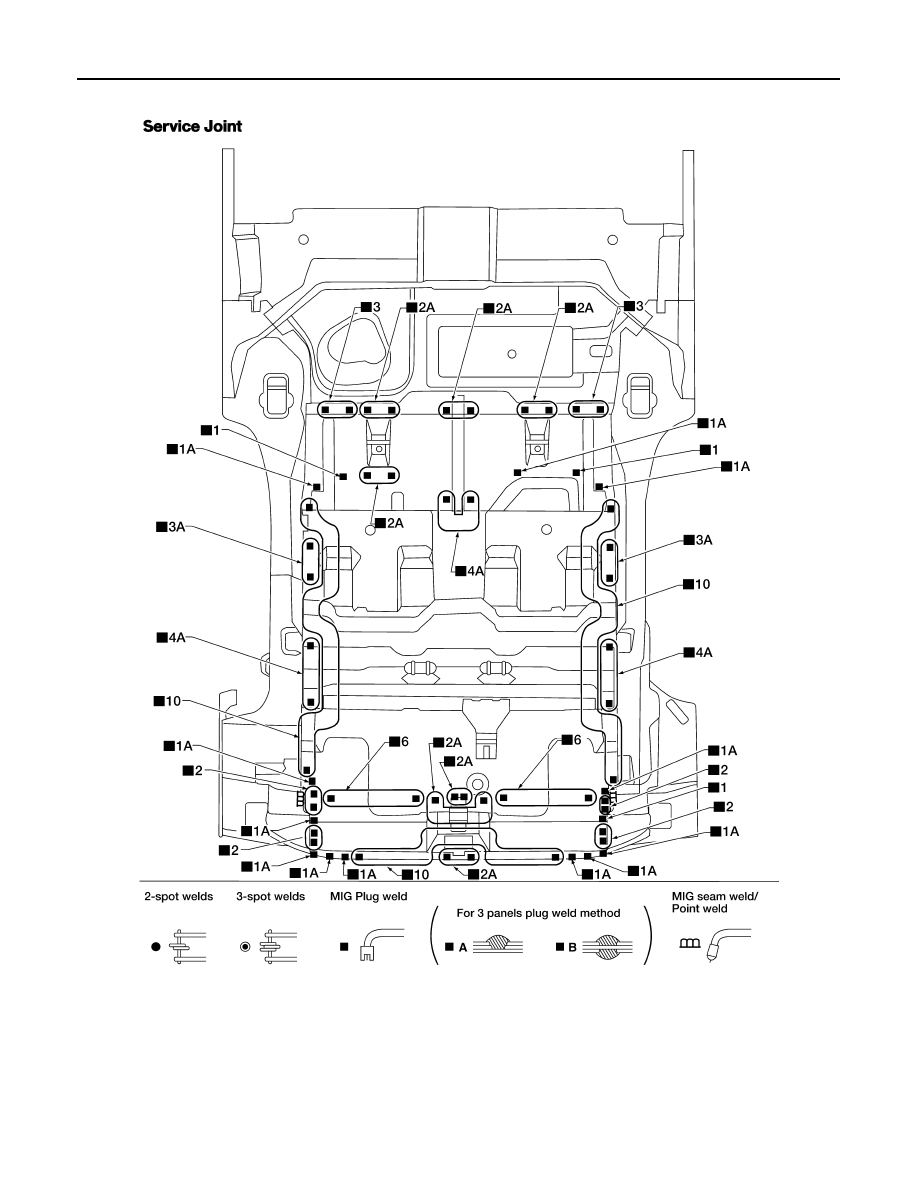

REAR FLOOR REAR

LIIA1815E

2009 Pathfinder

BODY REPAIR

BRM-53

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REAR CROSSMEMBER

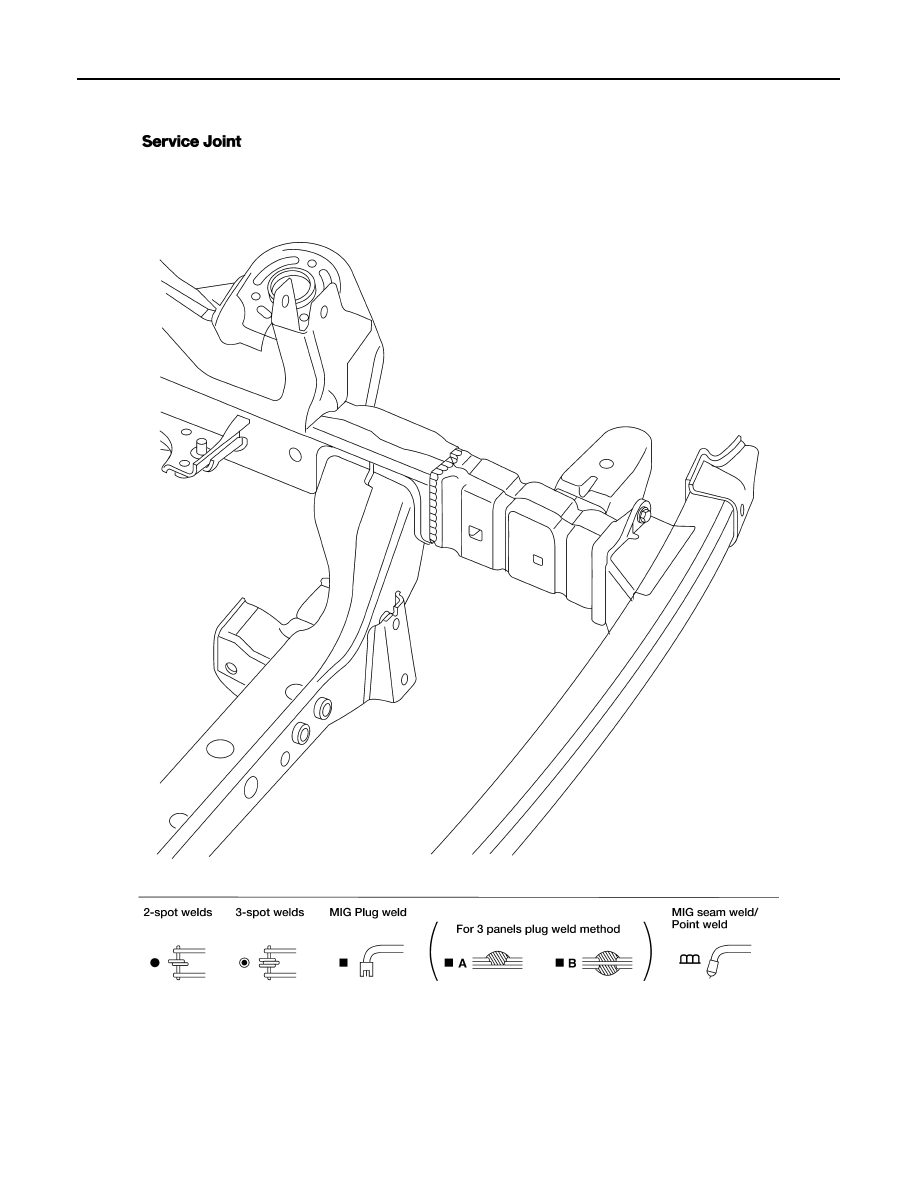

CRUSH HORN

CAUTION:

When replacing a damaged crush horn on N50 model, do not choose partial replacement method,
such as cutting and butt-joint welding the crush horn.

LIIA1816E

2009 Pathfinder

BRM-54

< SERVICE INFORMATION >

BODY REPAIR

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body
mounting bracket.

LIIA2148E

2009 Pathfinder
