C1116 STOP LAMP SWITCH

BRC-177

< COMPONENT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1.

Disconnect stop lamp relay connector.

2.

Check continuity between stop lamp relay connector E12 (A)
terminal 5 and ABS actuator and electric unit (control unit) con-
nector E125 (B) terminal 39.

Is the inspection result normal?

YES

>> Refer to

EXL-4, "Work Flow"

.

NO

>> Repair or replace malfunctioning components.

Special Repair Requirement

INFOID:0000000003937930

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to

BRC-141, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to

BRC-142, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

Continuity should exist.

AWFIA0473ZZ

2009 Pathfinder

BRC-178

< COMPONENT DIAGNOSIS >

[TYPE 2]

C1120, C1122, C1124, C1126 IN ABS SOL

C1120, C1122, C1124, C1126 IN ABS SOL

Description

INFOID:0000000003937931

The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the sig-
nals transmitted by the ABS actuator and electric unit (control unit).

DTC Logic

INFOID:0000000003937932

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-178, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000003937933

1.

CHECK CONNECTOR

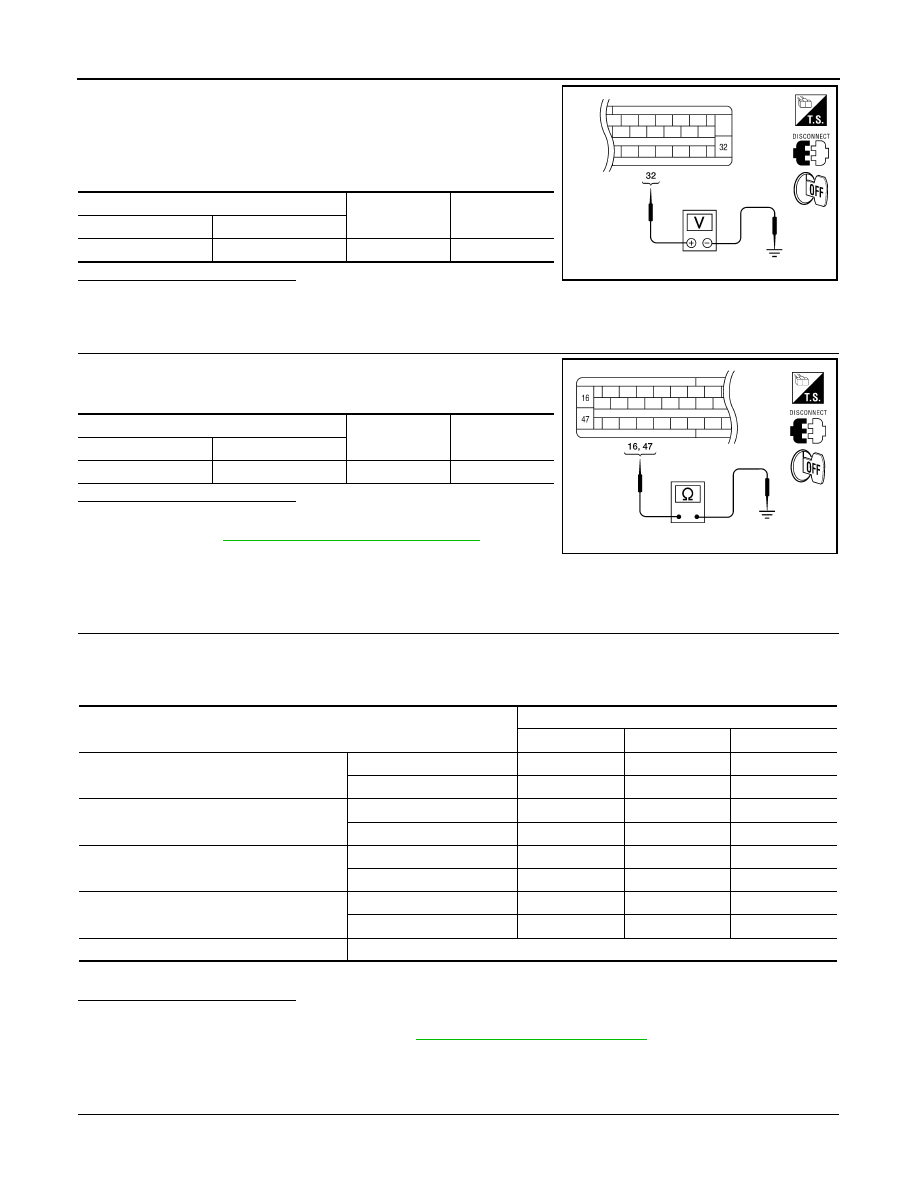

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connector.

3.

Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.

4.

Reconnect connectors and then perform the self-diagnosis. Refer to

BRC-153, "CONSULT-III Function

(ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> GO TO 2

NO

>> Poor connection of connector terminal. Repair or replace connector.

2.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT

DTC

Display item

Malfunction detected condition

Possible cause

C1120

FR LH IN ABS SOL

When the control unit detects a malfunction in the front
LH inlet solenoid circuit.

• ABS actuator and electric unit

(control unit)

C1122

FR RH IN ABS SOL

When the control unit detects a malfunction in the front
RH inlet solenoid circuit.

C1124

RR LH IN ABS SOL

When the control unit detects a malfunction in the rear LH
inlet solenoid circuit.

C1126

RR RH IN ABS SOL

When the control unit detects a malfunction in the rear
RH inlet solenoid circuit.

Self-diagnosis results

FR LH IN ABS SOL

FR RH IN ABS SOL

RR LH IN ABS SOL

RR RH IN ABS SOL

2009 Pathfinder

C1120, C1122, C1124, C1126 IN ABS SOL

BRC-179

< COMPONENT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

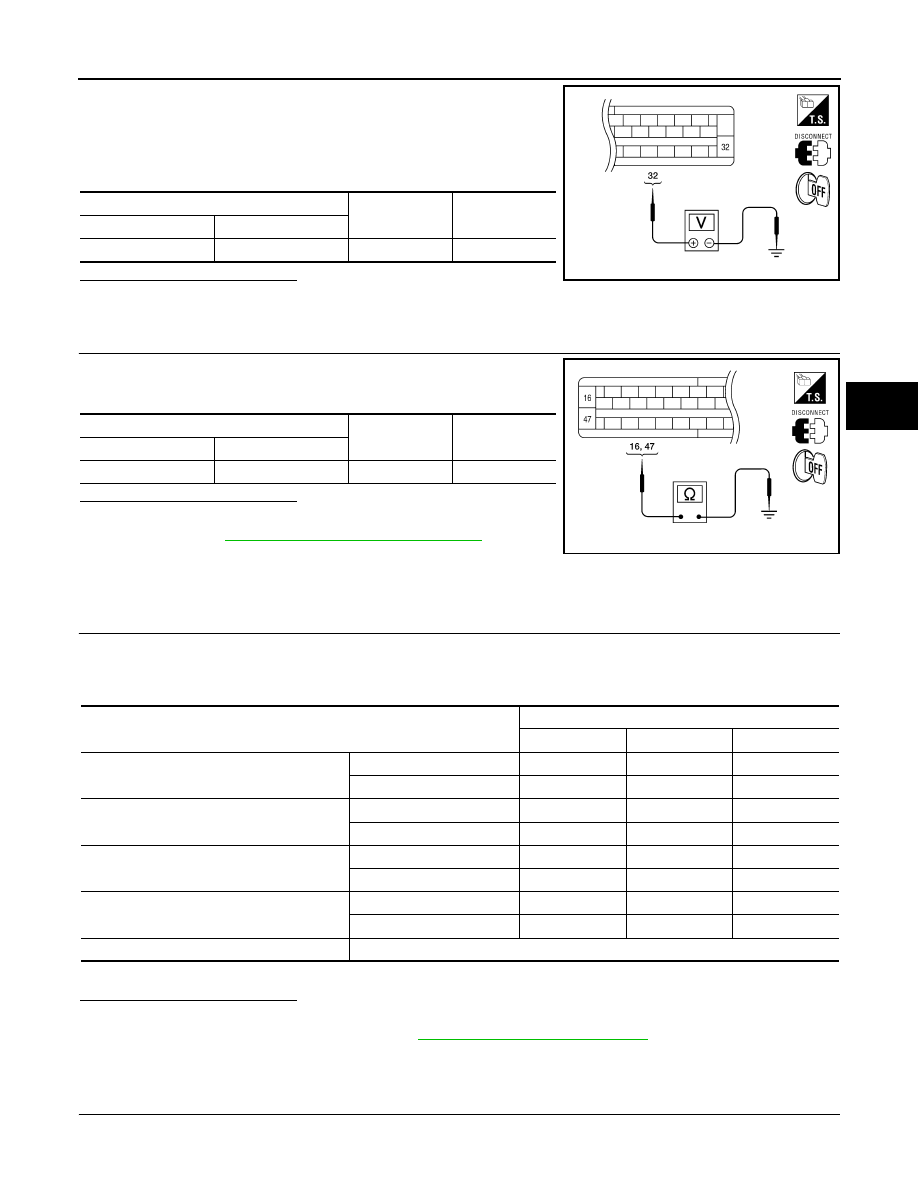

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connec-
tor.

3.

Check voltage between ABS actuator and electric unit (control
unit) harness connector E125 terminal 32 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT

Check continuity between ABS actuator and electric unit (control
unit) harness connector E125 terminals 16, 47 and ground.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit).

Refer to

BRC-236, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning components.

Component Inspection

INFOID:0000000003937934

1.

CHECK ACTIVE TEST

1.

Select each test menu item on ”ACTIVE TEST“.

2.

On the display, touch “Up”, “Keep”, and “Down”, and check that the system operates as shown in the table
below.

*: On for 1 to 2 seconds after the touch, and then Off

Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-178, "Diagnosis Procedure"

.

Special Repair Requirement

INFOID:0000000003937935

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

ABS actuator and electric unit (control unit)

—

Voltage

Connector

Terminal

E125

32

Ground

Battery voltage

AWFIA0018ZZ

ABS actuator and electric unit (control unit)

—

Continuity

Connector

Terminal

E125

16, 47

Ground

Yes

AWFIA0016ZZ

Operation

ABS solenoid valve

Up

Keep

Down

FR RH SOL

FR RH IN SOL

Off

On

On

FR RH OUT SOL

Off

Off

On*

FR LH SOL

FR LH IN SOL

Off

On

On

FR LH OUT SOL

Off

Off

On*

RR RH SOL

RR RH IN SOL

Off

On

On

RR RH OUT SOL

Off

Off

On*

RR LH SOL

RR LH IN SOL

Off

On

On

RR LH OUT SOL

Off

Off

On*

REAR SOL

This item is not used for this model.

2009 Pathfinder

BRC-180

< COMPONENT DIAGNOSIS >

[TYPE 2]

C1120, C1122, C1124, C1126 IN ABS SOL

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to

BRC-141, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to

BRC-142, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

2009 Pathfinder

C1121, C1123, C1125, C1127 OUT ABS SOL

BRC-181

< COMPONENT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1121, C1123, C1125, C1127 OUT ABS SOL

Description

INFOID:0000000003937936

The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the sig-
nals transmitted by the ABS actuator and electric unit (control unit).

DTC Logic

INFOID:0000000003937937

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-181, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000004422072

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connector.

3.

Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.

4.

Reconnect connectors and then perform the self-diagnosis. Refer to

BRC-153, "CONSULT-III Function

(ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> GO TO 2

NO

>> Poor connection of connector terminal. Repair or replace connector.

2.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT

DTC

Display item

Malfunction detected condition

Possible cause

C1121

FR LH OUT ABS SOL

When the control unit detects a malfunction in the front
LH outlet solenoid circuit.

• ABS actuator and electric unit

(control unit)

C1123

FR RH OUT ABS SOL

When the control unit detects a malfunction in the front
RH outlet solenoid circuit.

C1125

RR LH OUT ABS SOL

When the control unit detects a malfunction in the rear LH
outlet solenoid circuit.

C1127

RR RH OUT ABS SOL

When the control unit detects a malfunction in the rear
RH outlet solenoid circuit.

Self-diagnosis results

FR LH OUT ABS SOL

FR RH OUT ABS SOL

RR LH OUT ABS SOL

RR RH OUT ABS SOL

2009 Pathfinder

BRC-182

< COMPONENT DIAGNOSIS >

[TYPE 2]

C1121, C1123, C1125, C1127 OUT ABS SOL

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connec-
tor.

3.

Check voltage between ABS actuator and electric unit (control
unit) harness connector E125 terminal 32 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT

Check continuity between ABS actuator and electric unit (control
unit) harness connector E125 terminals 16, 47 and ground.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit).

Refer to

BRC-236, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning components.

Component Inspection

INFOID:0000000004427368

1.

CHECK ACTIVE TEST

1.

Select each test menu item on ”ACTIVE TEST“.

2.

On the display, touch “Up”, “Keep”, and “Down”, and check that the system operates as shown in the table
below.

*: On for 1 to 2 seconds after the touch, and then Off

Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-178, "Diagnosis Procedure"

.

Special Repair Requirement

INFOID:0000000003937940

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

ABS actuator and electric unit (control unit)

—

Voltage

Connector

Terminal

E125

32

Ground

Battery voltage

AWFIA0018ZZ

ABS actuator and electric unit (control unit)

—

Continuity

Connector

Terminal

E125

16, 47

Ground

Yes

AWFIA0016ZZ

Operation

ABS solenoid valve

Up

Keep

Down

FR RH SOL

FR RH IN SOL

Off

On

On

FR RH OUT SOL

Off

Off

On*

FR LH SOL

FR LH IN SOL

Off

On

On

FR LH OUT SOL

Off

Off

On*

RR RH SOL

RR RH IN SOL

Off

On

On

RR RH OUT SOL

Off

Off

On*

RR LH SOL

RR LH IN SOL

Off

On

On

RR LH OUT SOL

Off

Off

On*

REAR SOL

This item is not used for this model.

2009 Pathfinder

C1121, C1123, C1125, C1127 OUT ABS SOL

BRC-183

< COMPONENT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to

BRC-141, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to

BRC-142, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

2009 Pathfinder

BRC-184

< COMPONENT DIAGNOSIS >

[TYPE 2]

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL

Description

INFOID:0000000003937941

ABS actuator and electric unit (control unit) and ECM exchange the engine signal with CAN communication
line.

DTC Logic

INFOID:0000000003937942

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-184, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000003937943

INSPECTION PROCEDURE

1.

CHECK ENGINE SYSTEM

1.

Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
Refer to

EC-73, "CONSULT-III Function (ENGINE)"

.

2.

Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to

BRC-153, "CONSULT-III

Function (ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> Repair or replace the affected part.

NO

>> Inspection End

Special Repair Requirement

INFOID:0000000003937944

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to

BRC-141, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

DTC

Display item

Malfunction detected condition

Possible cause

C1130

ENGINE SIGNAL 1

Based on the signal from ECM, ABS actuator and electric
unit (control unit) judges that engine fuel cut system is
malfunctioning.

• Harness or connector
• ABS actuator and electric unit

(control unit)

• ECM
• CAN communication line

C1131

ENGINE SIGNAL 2

C1132

ENGINE SIGNAL 3

C1133

ENGINE SIGNAL 4

C1136

ENGINE SIGNAL 6

Self-diagnosis results

ENGINE SIGNAL 1

ENGINE SIGNAL 2

ENGINE SIGNAL 3

ENGINE SIGNAL 4

ENGINE SIGNAL 6

2009 Pathfinder
