Nissan Pathfinder (2009 year). Manual - part 84
BCS
POWER CONSUMPTION CONTROL SYSTEM
BCS-13
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N

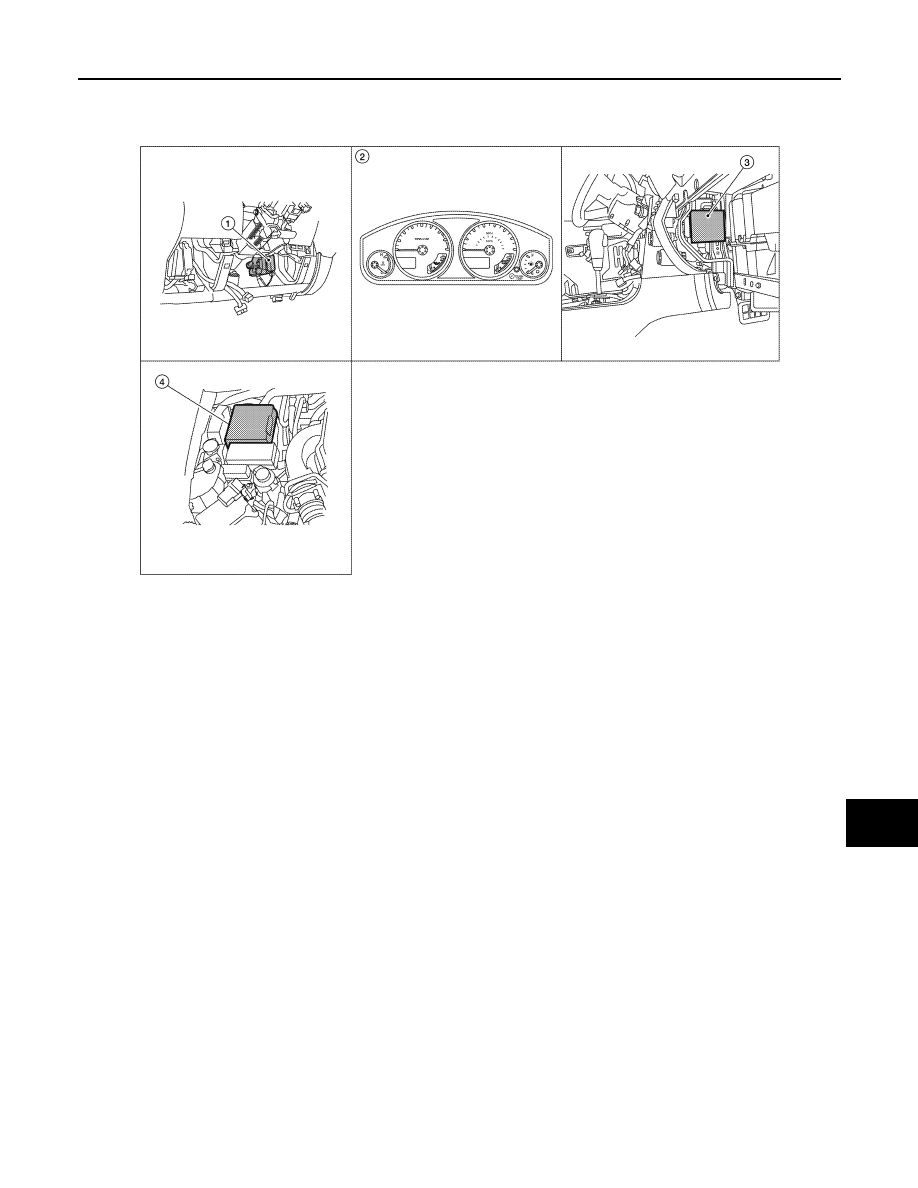

POWER CONSUMPTION CONTROL SYSTEM

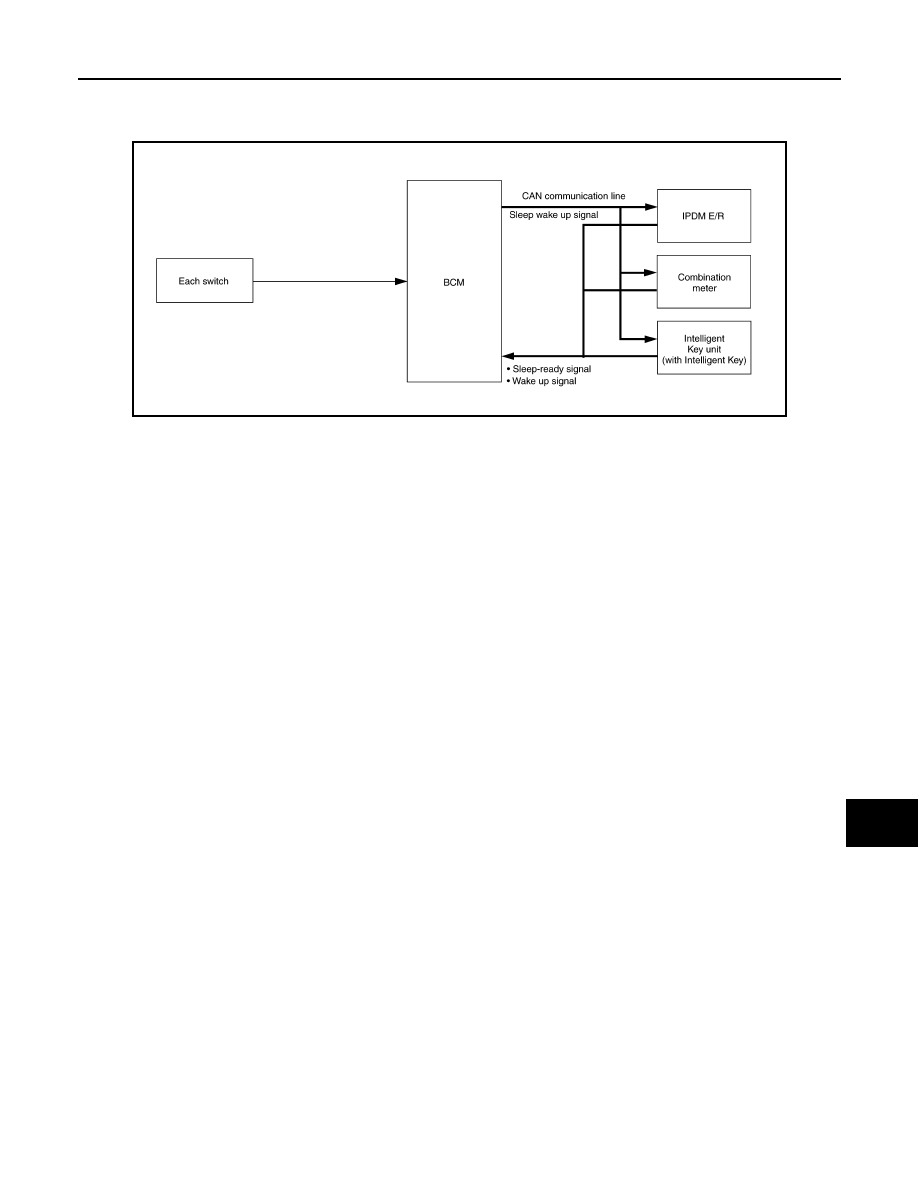

System Diagram
INFOID:0000000003935253
System Description
INFOID:0000000003935254
OUTLINE
• BCM incorporates a power consumption control function that reduces the power consumption according to
the vehicle status.
• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep
request to each unit [IPDM E/R, combination meter and Intelligent Key unit (with Intelligent Key)] that oper-
ates with the ignition switch OFF.
Normal mode (wake-up)
- CAN communication is normally performed with other units
- Each control with BCM is operating properly
CAN communication sleep mode (CAN sleep)
- CAN transmission is stopped
- Control with BCM only is operating
Low power consumption mode (BCM sleep)
- Low power consumption control is active
- CAN transmission is stopped
LOW POWER CONSUMPTION CONTROL WITH BCM
BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of the each switches changes from 10 ms interval to 20 ms interval.
Sleep mode activation
• BCM receives the sleep-ready signal (ready) from IPDM E/R, combination meter and Intelligent Key unit
(with Intelligent Key) via CAN communication.
• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-
filled.
• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-
munication sleep mode.
• BCM is in the low power consumption mode and perform the low power consumption control when all of the
BCM sleep conditions are fulfilled with CAN sleep condition.
AWMIA0019GB
2009 Pathfinder
