DOOR MIRROR REMOTE CONTROL SWITCH

ADP-59

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Check door mirror remote control switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror remote control switch. Refer to

ADP-161, "Removal and Installation"

.

MIRROR SWITCH

MIRROR SWITCH : Description

INFOID:0000000003935537

It operates angle of the door mirror face.
It transmits mirror face adjust operation to automatic drive positioner control unit.

MIRROR SWITCH : Component Function Check

INFOID:0000000003935538

1.

 CHECK MIRROR SWITCH FUNCTION

Check the operation on “MIR CON SW–UP/DN” and “MIR CON SW–RH/LH” in “DATA MONITOR” mode
with CONSULT-III.
Refer to

ADP-25, "CONSULT-III Function"

.

Is the inspection result normal?

YES

>> Mirror switch function is OK.

NO

>> Refer to

ADP-59, "MIRROR SWITCH : Diagnosis Procedure"

.

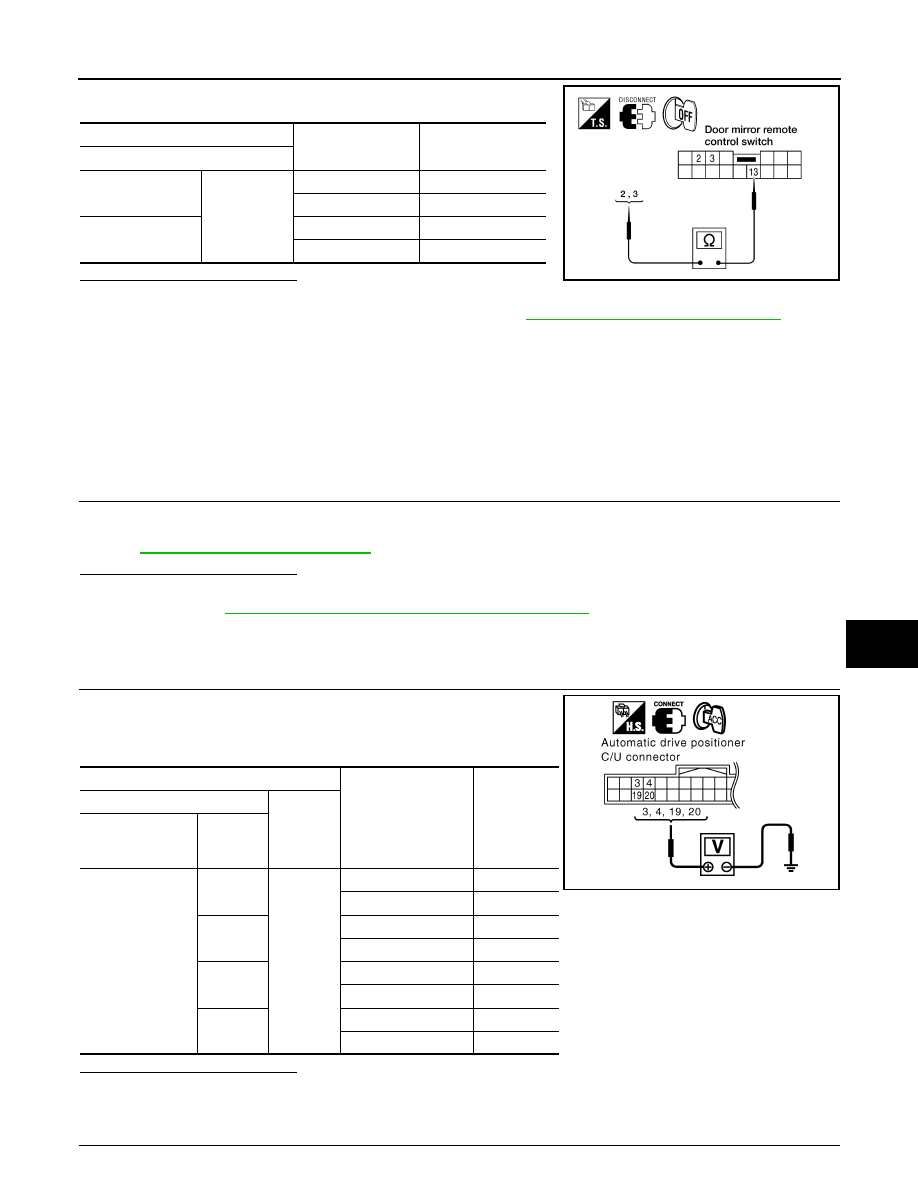

MIRROR SWITCH : Diagnosis Procedure

INFOID:0000000003935539

1.

 CHECK MIRROR SWITCH FUNCTION

1.

Turn ignition switch ON.

2.

Check voltage between automatic drive positioner control unit
connector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

Terminal

Change over switch

condition

Continuity

Door mirror remote control switch

2

13

LEFT

Yes

Other than above

No

3

RIGHT

Yes

Other than above

No

LIIA2052E

Terminals

Mirror switch

Condition

Voltage (V)

(Approx.)

(+)

(–)

Automatic drive

positioner control

unit connector

Terminal

M33

3

Ground

UP

0

Other than above

5

4

LEFT

0

Other than above

5

19

DOWN

0

Other than above

5

20

RIGHT

0

Other than above

5

PIIA4771E

2009 Pathfinder

ADP-60

< COMPONENT DIAGNOSIS >

DOOR MIRROR REMOTE CONTROL SWITCH

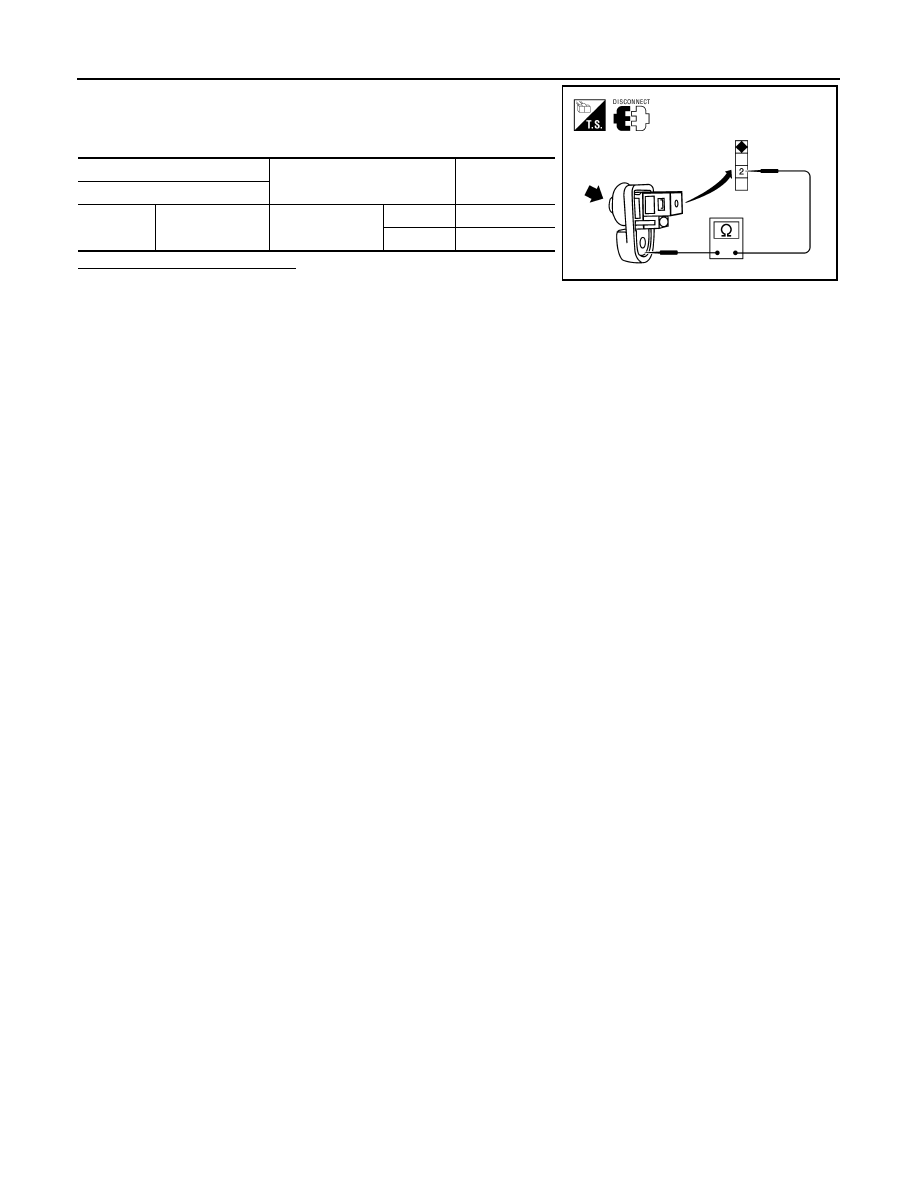

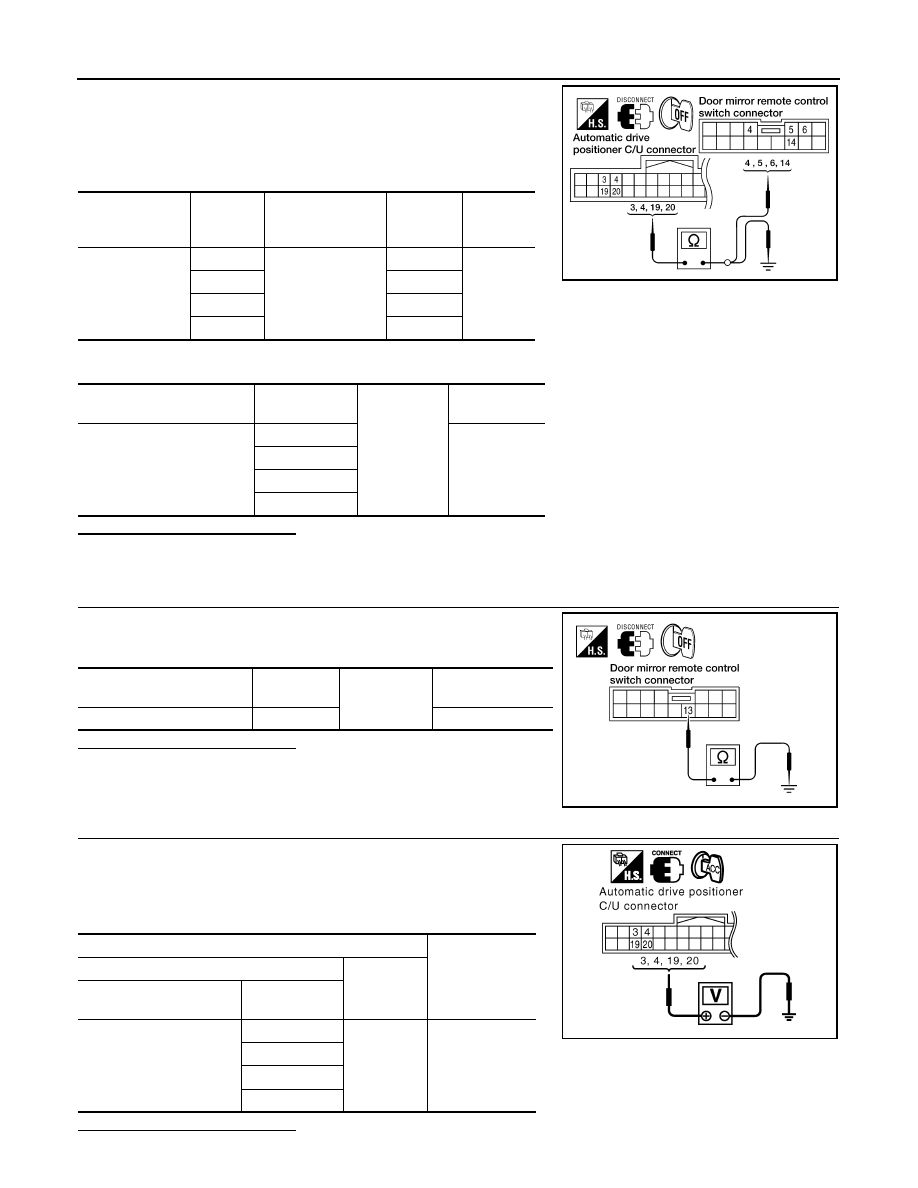

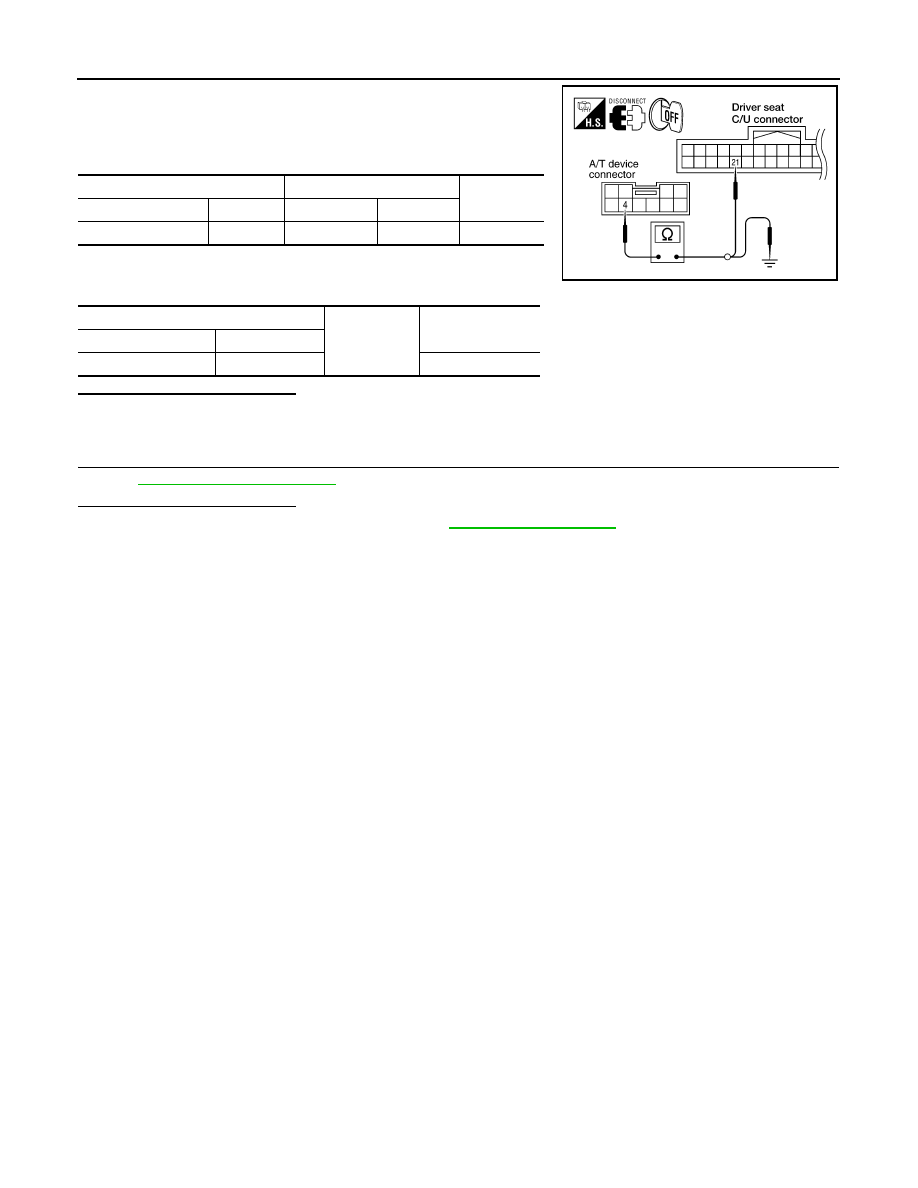

1.

Turn ignition switch OFF.

2.

Disconnect automatic drive positioner control unit and door mir-
ror remote control switch.

3.

Check continuity between automatic drive positioner control unit
connector and door mirror remote control switch connector.

4.

Check continuity between automatic drive positioner control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

Check continuity between door mirror remote control switch connec-
tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL

1.

Connect automatic drive positioner control unit.

2.

Turn ignition switch ON.

3.

Check voltage between automatic drive positioner control unit
and ground.

Is the inspection result normal?

Automatic drive

positioner control

unit connector

Terminal

Door mirror remote

control switch con-

nector

Terminal

Continuity

M33

3

M163

6

Yes

4

5

19

14

20

4

Automatic drive positioner

control unit connector

Terminal

Ground

Continuity

M33

3

No

4

19

20

LIIA1823E

Door mirror remote control

switch connector

Terminal

Ground

Continuity

M163

13

Yes

LIIA1825E

Terminals

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive positioner

control unit connector

Terminal

M33

3

Ground

5

4

19

20

PIIA4771E

2009 Pathfinder

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-61

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

YES

>> GO TO 5

NO

>> Replace automatic drive positioner control unit. Refer to

ADP-159, "Removal and Installation"

.

5.

 CHECK MIRROR SWITCH

Check mirror switch.
Refer to

ADP-61, "MIRROR SWITCH : Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Replace door mirror remote control switch. Refer to

ADP-161, "Removal and Installation"

.

6.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to

GI-49, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-159, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

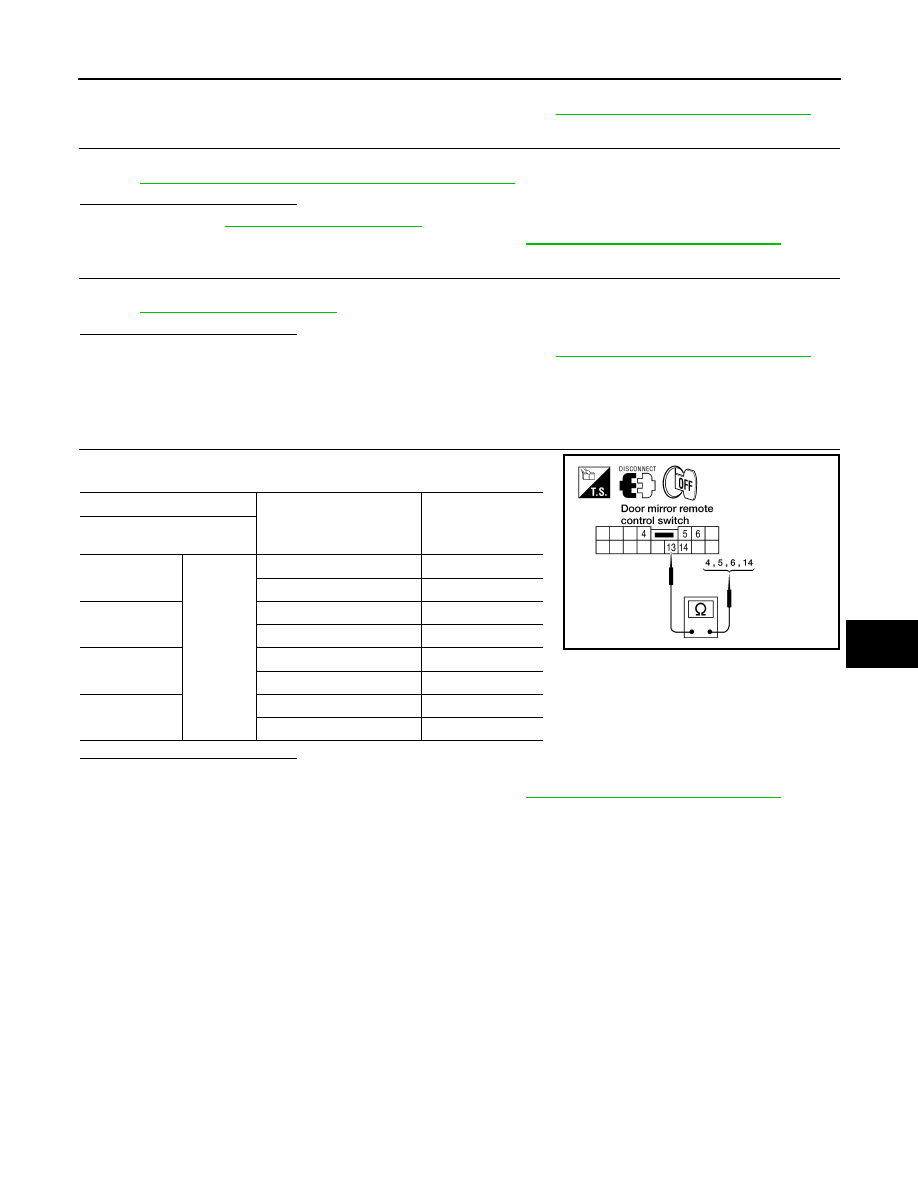

MIRROR SWITCH : Component Inspection

INFOID:0000000003935540

1.

 CHECK MIRROR SWITCH

Check door mirror remote control switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror remote control switch. Refer to

ADP-161, "Removal and Installation"

.

Terminal

Mirror switch condition

Continuity

Door mirror remote

control switch

4

13

RIGHT

Yes

Other than above

No

5

LEFT

Yes

Other than above

No

6

UP

Yes

Other than above

No

14

DOWN

Yes

Other than above

No

LIIA2053E

2009 Pathfinder

ADP-62

< COMPONENT DIAGNOSIS >

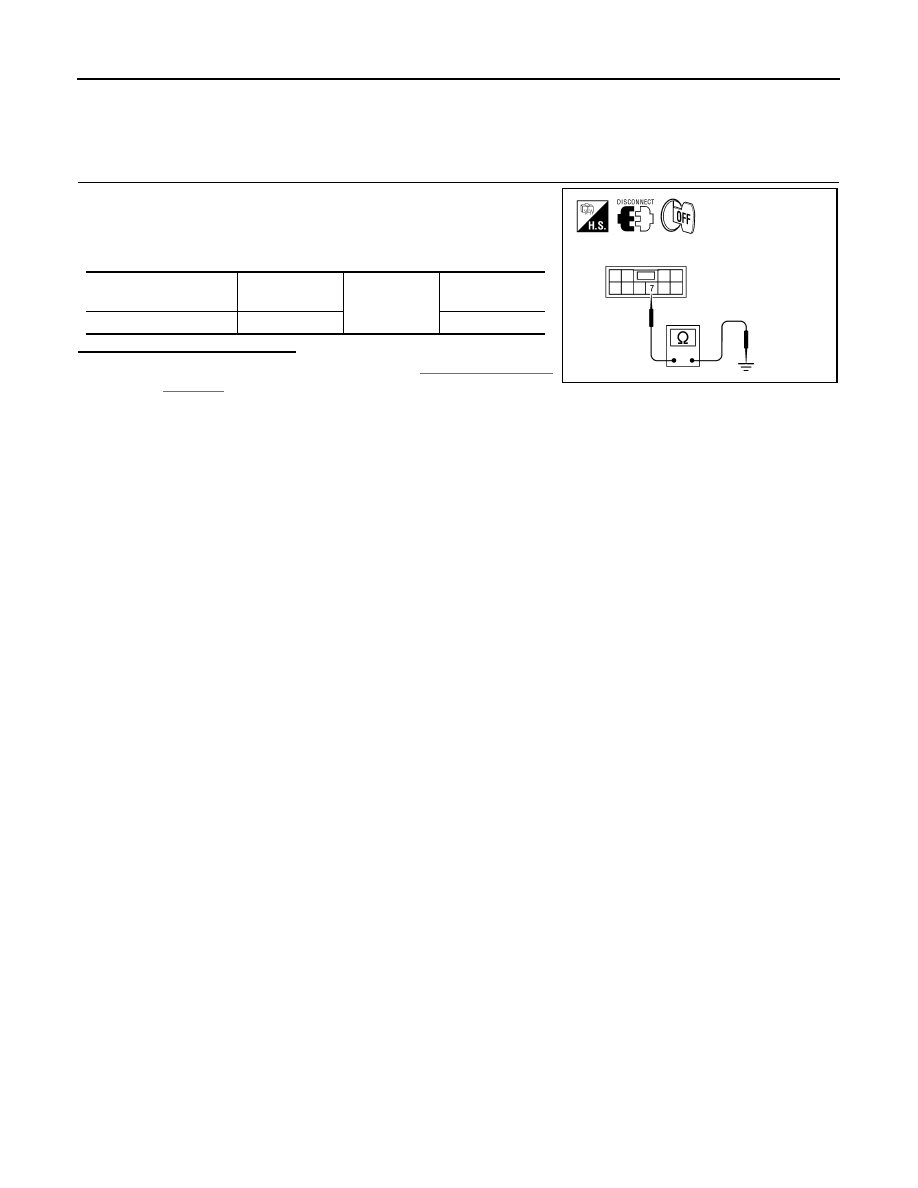

POWER SEAT SWITCH GROUND CIRCUIT

POWER SEAT SWITCH GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000003935541

1.

 CHECK POWER SEAT SWITCH LH GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power seat switch LH.

3.

Check continuity between power seat switch LH connector and
ground.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-49, "Intermittent

Incident"

.

NO

>> Repair or replace harness.

Power seat switch LH

connector

Terminal

Ground

Continuity

B208

7

Yes

ALJIA0316ZZ

2009 Pathfinder

DETENTION SWITCH

ADP-63

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

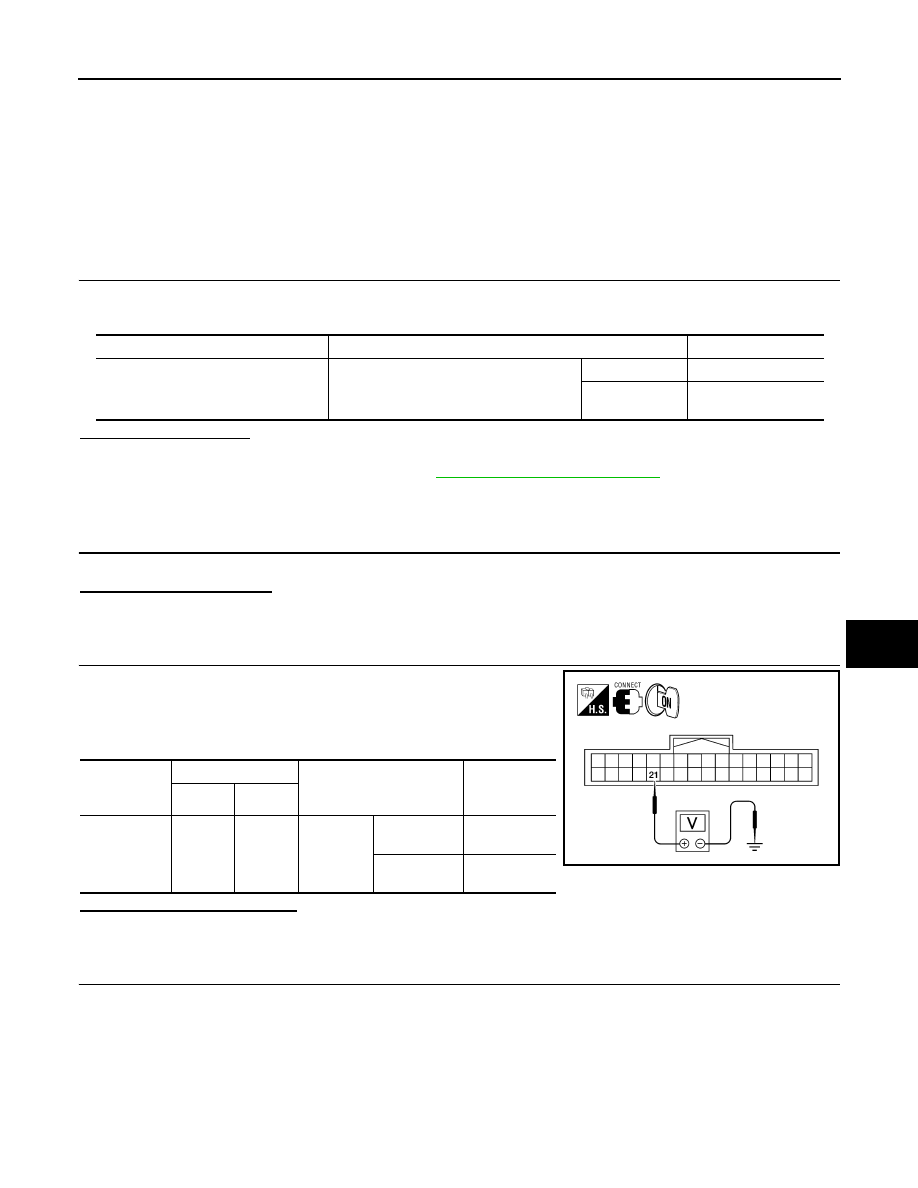

DETENTION SWITCH

Description

INFOID:0000000003935542

Park position switch is installed on A/T device. It is turned OFF when the A/T selector lever is in P position.
The driver seat control unit judges that the A/T selector lever is in P position if continuity does not exist in this
circuit.

Component Function Check

INFOID:0000000003935543

1.

 CHECK FUNCTION

1.

Select  “DETENT SW” signal in “Data monitor” mode with CONSULT-III.

2.

Check park position switch signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-63, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003935544

1.

 CHECK DTC WITH “BCM”

Check “Self Diagnostic Result” for BCM with CONSULT-lll.

Is any other DTC detected?

YES

>> Check the DTC.

NO

>> GO TO 2

2.

 CHECK PARK POSITION SWITCH INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Mechanical key must be removed from the key switch.

3.

Check voltage between driver seat control unit harness connec-
tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

 CHECK PARK POSITION SWITCH CIRCUIT

Monitor item

Condition

Status

DETENT SW

A/T selector lever

P position

OFF

Other than
above

ON

Driver seat
control unit

connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

B202

21

Ground

A/T selec-
tor lever

P position

Battery volt-

age

Other than
above

0V

LIIA2238E

2009 Pathfinder

ADP-64

< COMPONENT DIAGNOSIS >

DETENTION SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect driver seat control unit and A/T device.

3.

Check continuity between driver seat control unit harness con-
nector and A/T device harness connector.

4.

Check continuity between A/T device harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-49, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

SE-25, "Exploded View"

.

NO

>> Repair or replace the malfunctioning part.

Driver seat control unit

A/T device

Continuity

Connector

Terminal

Connector

Terminal

B202

21

M158

4

Yes

A/T device

Ground

Continuity

Connector

Terminal

M158

4

No

LIIA1774E

2009 Pathfinder

FRONT DOOR SWITCH (DRIVER SIDE)

ADP-65

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

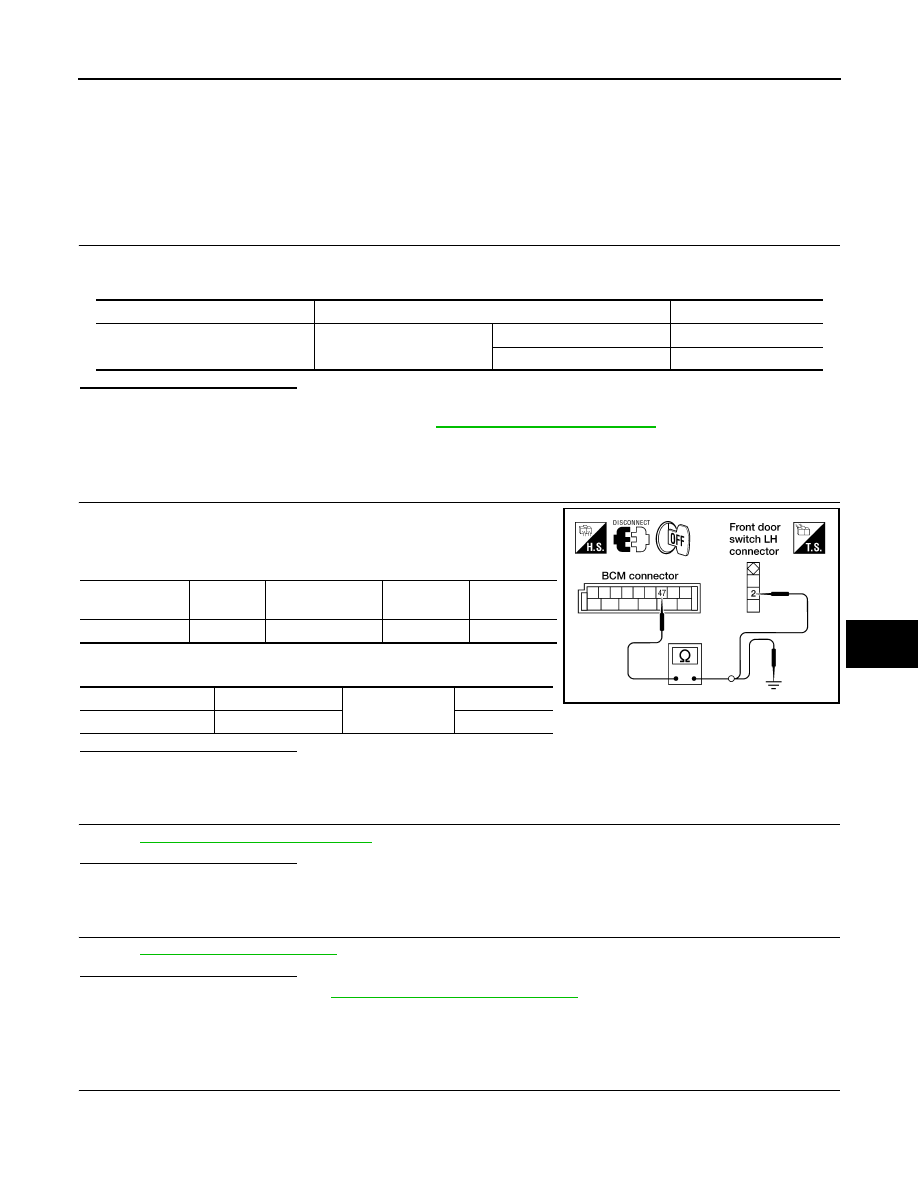

FRONT DOOR SWITCH (DRIVER SIDE)

Description

INFOID:0000000003935545

Detects front door LH open/close condition.

Component Function Check

INFOID:0000000003935546

1.

 CHECK FUNCTION

1.

Select “DOOR SW-DR” in “Data monitor” mode with CONSULT-III.

2.

Check the front door switch LH signal under the following conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-65, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003935547

1.

 CHECK FRONT DOOR SWITCH LH CIRCUIT

1.

Disconnect BCM.

2.

Check continuity between BCM connector and front door switch
LH connector.

3.

Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK FRONT DOOR SWITCH LH

Refer to

ADP-65, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace front door switch LH.

3.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-49, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Component Inspection

INFOID:0000000003935548

1.

 CHECK FRONT DOOR SWITCH LH

Monitor item

Condition

Status

DOOR SW-DR

Front door switch LH

Open

ON

Close

OFF

BCM connector

Terminal

Front door switch

LH connector

Terminal

Continuity

M19

47

B8

2

Yes

BCM connector

Terminal

Ground

Continuity

M19

47

No

LIIA1027E

2009 Pathfinder

ADP-66

< COMPONENT DIAGNOSIS >

FRONT DOOR SWITCH (DRIVER SIDE)

1.

Turn ignition switch OFF.

2.

Disconnect front door switch LH.

3.

Check continuity between front door switch LH terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace front door switch LH.

Terminal

Condition

Continuity

Front door switch LH

2

Ground part of

door switch

Front door switch
LH

Pushed

No

Released

Yes

LIIA2377E
