DLN-328

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 2S1350]

PROPELLER SHAFT

Journal

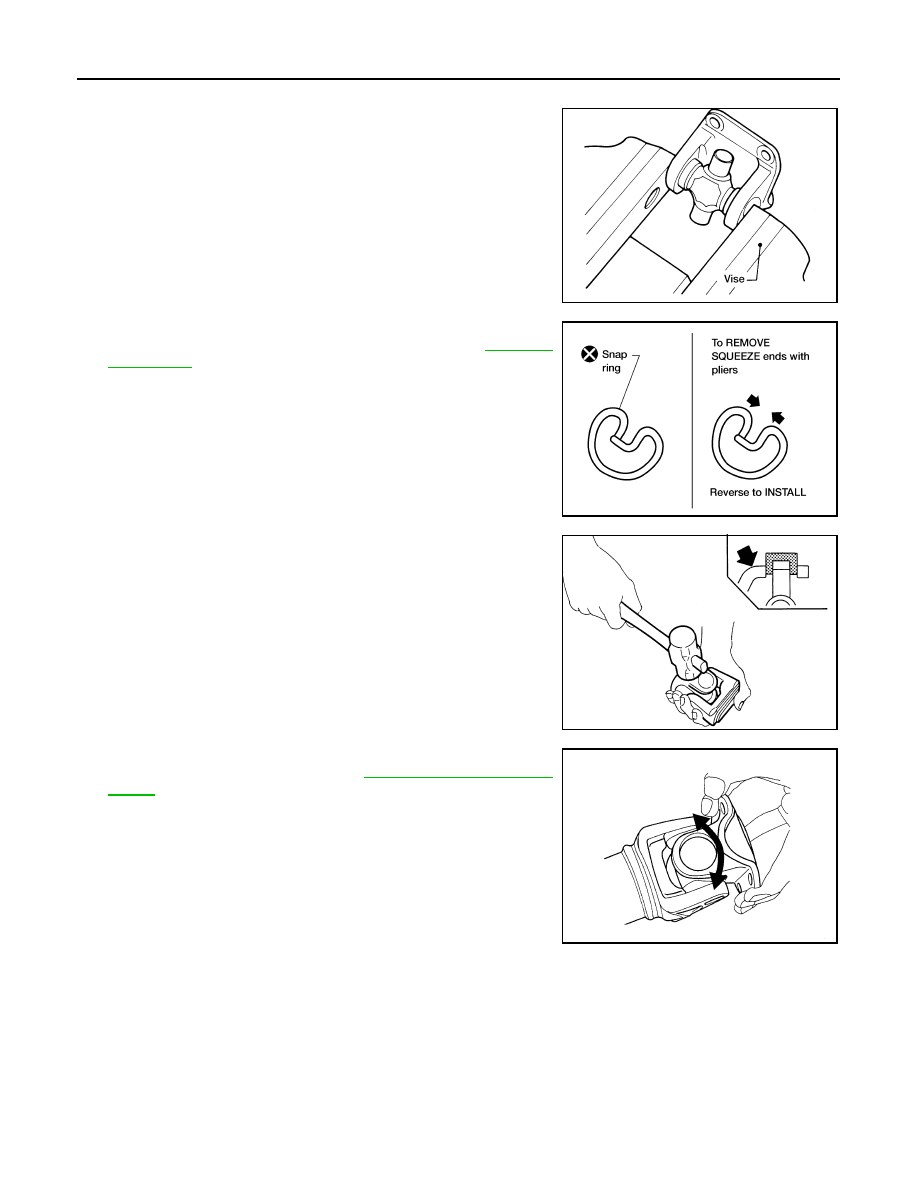

1.

Assemble the journal bearings. Apply multipurpose grease on
the bearing inner surface.
NOTE:
During assembly, use caution so that the needle bearings do not
fall down.

2.

Select new snap rings that will provide the specified play in an
axial direction of the journal, and install them. Refer to

DLN-330,

"Snap Ring"

.

CAUTION:

Do not reuse snap rings
NOTE:
Select snap rings with a difference in thickness at both sides
within 0.02 mm (0.0008 in).

3.

Adjust the thrust clearance between the bearing and snap ring
to zero by tapping the yoke.

4.

Make sure that the journal moves smoothly and is below the
joint flex effort specification. Refer to

DLN-329, "General Specifi-

cation"

.

WPD019

APD012

SPD732

LDIA0119E

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-329

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 2S1350]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001315156

2WD models

Unit: mm (in)

Propeller Shaft Runout

Unit: mm (in)

Propeller Shaft Joint Flex Effort

Unit: N·m (kg-m, lb)

Journal Axial Play

Unit: mm (in)

4WD models

Propeller Shaft Runout

Propeller Shaft Joint Flex Effort

Applied model

2WD

VK56DE

A/T

Propeller shaft model

2S1350 (aluminum tube)

Number of joints

2

Coupling method with rear final drive

Flange type

Coupling method with transmission

Sleeve type

Shaft length (Spider to spider)

1360 mm (53.54 in)

Shaft outer diameter

127.6 mm (5.02 in)

Item

Limit

Propeller shaft runout

1.02 mm (0.0402 in) or less

Item

Limit

Propeller shaft joint flex effort

2.26 N·m (0.23 kg-m, 20 in-lb) or less

Item

Limit

Journal axial play

0.02 mm (0.0008 in) or less

Applied model

4WD

VK56DE

A/T

Propeller shaft model

2S1350 (aluminum tube)

Number of joints

2

Coupling method with rear final drive

Flange type

Coupling method with transfer

Sleeve type

Shaft length (Spider to spider)

1167.2 mm (45.95 in)

Shaft outer diameter

102.5 mm (4.04 in)

Item

Limit

Propeller shaft runout

0.6 mm (0.024 in) or less

Item

Limit

Propeller shaft joint flex effort

2.26 N·m (0.23 kg-m, 20 in-lb) or less

DLN-330

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 2S1350]

SERVICE DATA AND SPECIFICATIONS (SDS)

Journal Axial Play

Snap Ring

INFOID:0000000001315157

Model 2F1310 and 2S1330 (4WD)

Unit: mm (in)

*Always check with the Parts Department for the latest parts information.

Model 2S1330 (2WD)

Unit: mm (in)

*Always check with the Parts Department for the latest parts information.

Item

Limit

Journal axial play

0.02 mm (0.0008 in) or less

Thickness

Color

Part Number*

1.99 (0.0783)

White

37146-C9400

 2.02 (0.0795)

Yellow

37147-C9400

2.05 (0.0807)

Red

37148-C9400

2.08 (0.0819)

Green

37149-C9400

2.11 (0.0831)

Blue

37150-C9400

2.14 (0.0843)

Light brown

37151-C9400

2.17 (0.0854)

Black

37152-C9400

2.20 (0.0866)

No paint

37153-C9400

Thickness

Color

Part Number*

1.600 - 1.638 (0.0630 - 0.0645)

Black

37146-EA500

1.549 - 1.588 (0.0610 - 0.0625)

Black

37147-EA500

1.524 - 1.562 (0.0600 - 0.0615)

Black

37148-EA500

1.499 - 1.537 (0.0590 - 0.0605)

Black

37149-EA500

PRECAUTIONS

DLN-331

< PRECAUTION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Servicing Front Final Drive

INFOID:0000000001297270

• Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic

operations.

• Check for the correct installation status prior to removal or disassembly. When matching marks are required,

be certain they do not interfere with the function of the parts they are applied to.

• Overhaul should be done in a clean work area, a dust proof area is recommended.
• Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from

entering into the unit during disassembly or assembly.

• Always use shop paper for cleaning the inside of components.
• Avoid using cotton gloves or a shop cloth to prevent the entering of lint.
• Check appearance of the disassembled parts for damage, deformation, and abnormal wear. Replace them

with new ones if necessary.

• Gaskets, seals and O-rings should be replaced any time the unit is disassembled.
• Clean and flush the parts sufficiently and blow them dry.
• Be careful not to damage sliding surfaces and mating surfaces.
• When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil, and

foreign materials from the application and mating surfaces.

• In principle, tighten nuts or bolts gradually in several steps working diagonally from inside to outside. If a

tightening sequence is specified, observe it.

• During assembly, observe the specified tightening torque.
• Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.

DLN-332

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000001297271

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

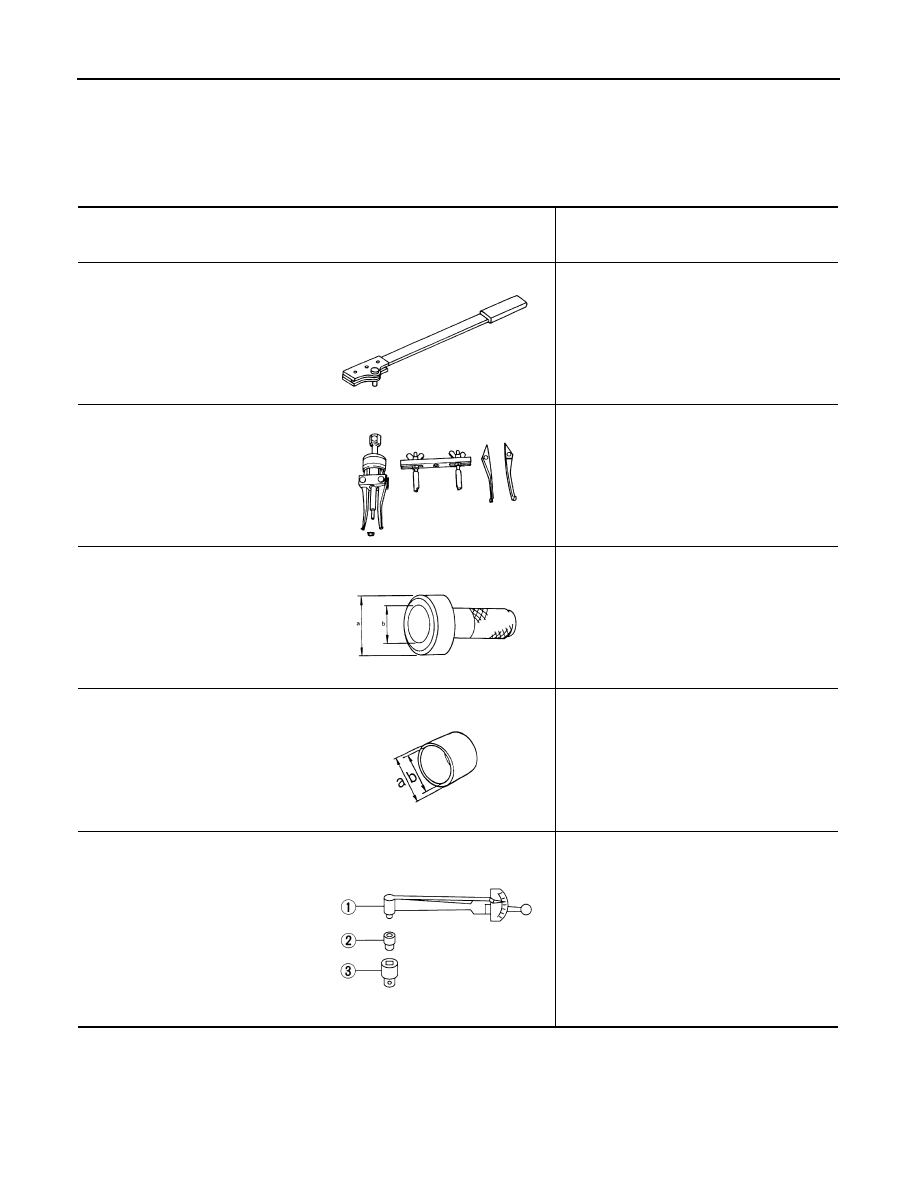

KV38108300
(J-44195)
Flange wrench

Removing and installing drive pinion lock nut

KV381054S0
(J-34286)
Puller

Removing front oil seal

ST30720000
(J-25405)
Drift

• Installing front oil seal
• Installing side oil seal
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

ST27863000
(

)

Drift

• Installing front oil seal
• Installing side oil seal
a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000

(J-25765)
Torque wrench

2: HT62940000

(

)

Socket adapter (1/2

)

3: HT62900000

(

)

Socket adapter (3/8

)

Measuring drive pinion bearing preload torque
and total preload torque

NT771

ZZA0601D

ZZA0811D

ZZA1003D

NT124

PREPARATION

DLN-333

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

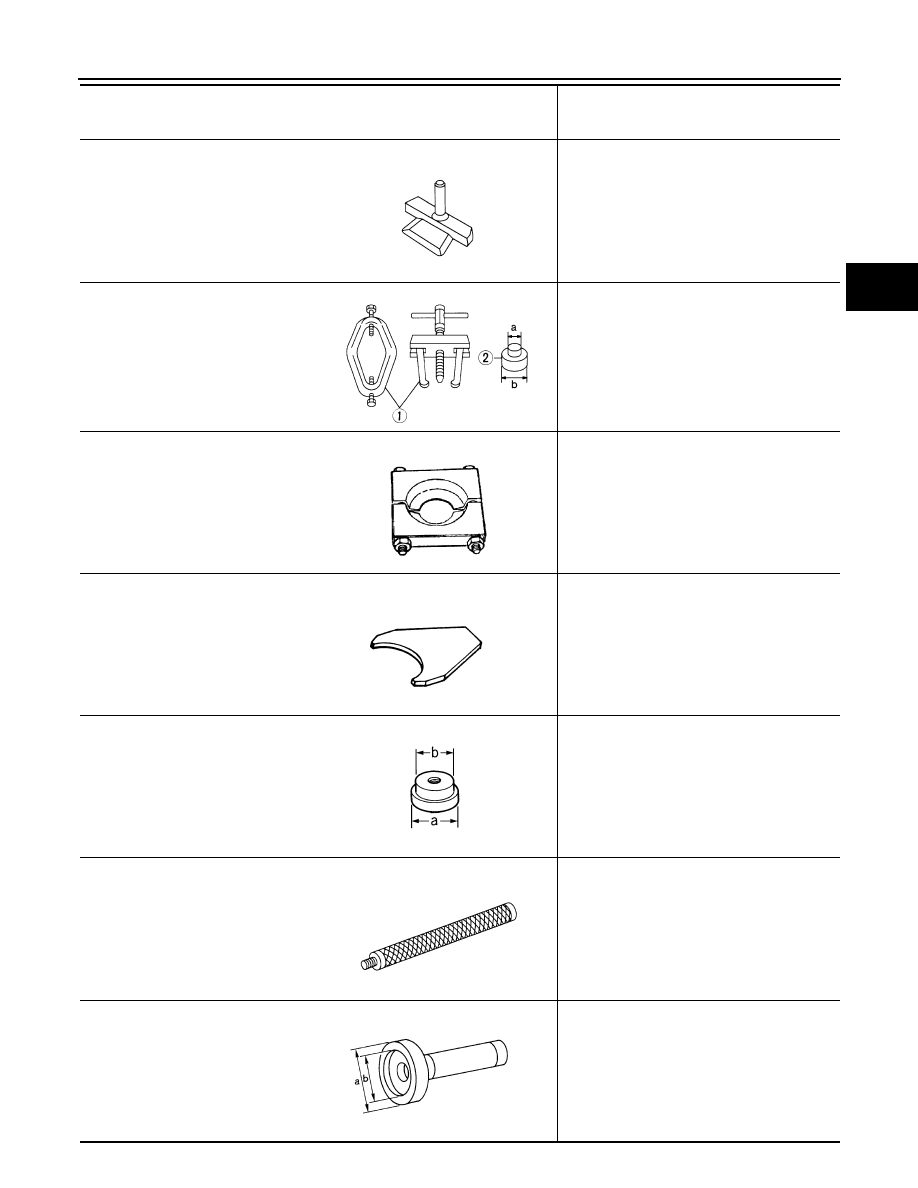

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

ST3306S001
(

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30031000
(J-22912-01)
Replacer

Removing drive pinion rear bearing inner race

KV38100600
(J-25267)
Drift

Installing side bearing adjusting washer

ST30613000
(J-25742-3)
Drift

Installing drive pinion rear bearing outer race
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

ST30611000
(J-25742-1)
Drift bar

Installing drive pinion rear bearing outer race
(Use with ST30613000)

KV38100200
(J-26233)
Drift

Installing drive pinion front bearing outer race
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT046

NT072

ZZA0700D

SDIA0429J

ZZA1000D

S-NT090

ZZA1143D

DLN-334

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

PREPARATION

Commercial Service Tool

INFOID:0000000001297272

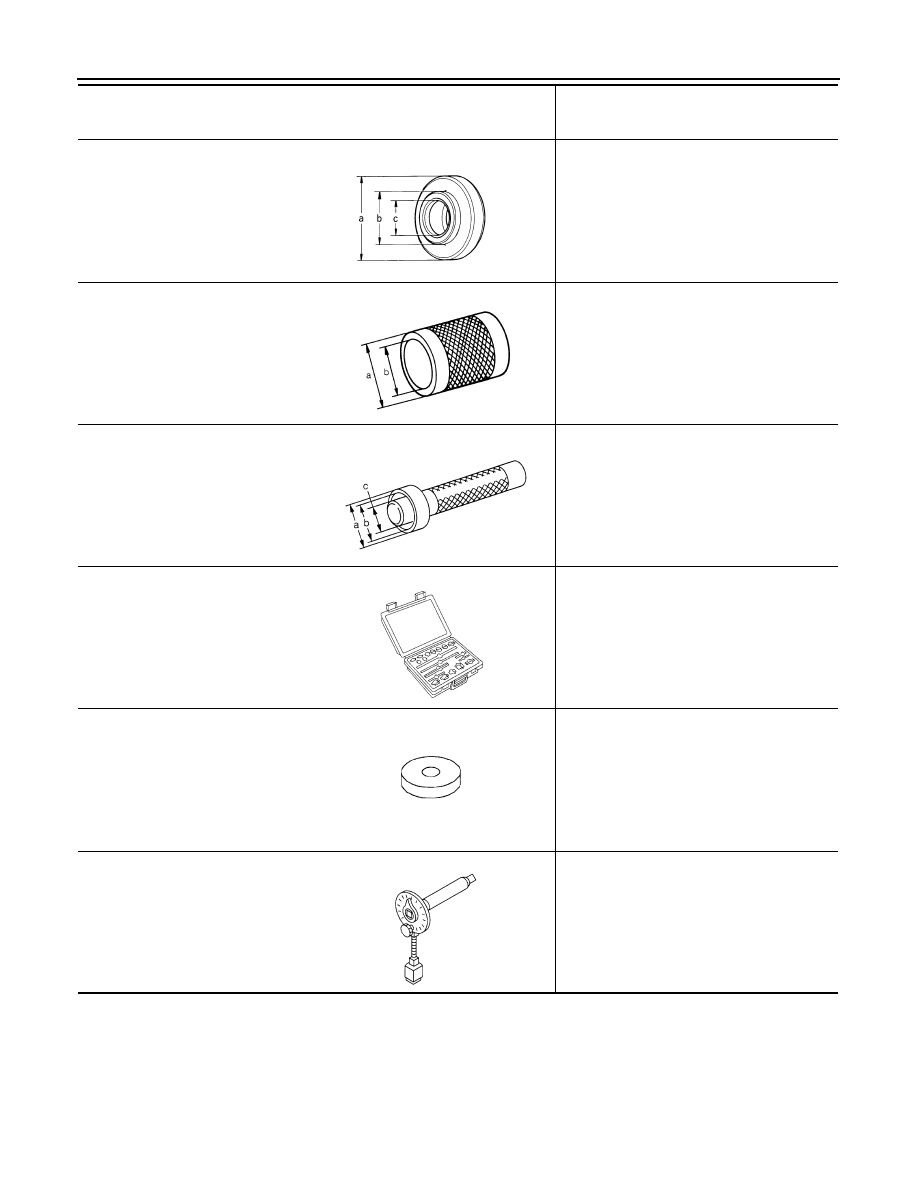

ST30901000
(J-26010-01)
Drift

Installing drive pinion rear bearing inner race
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

ST33200000
(J-26082)
Drift

Installing drive pinion front bearing inner race
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

ST33230000
(J-35867)
Drift

Installing side bearing inner race
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28 mm (1.10 in) dia.

(

)

(J-34309)
Differential shim selector tool

Adjusting bearing preload and drive pinion
height

(

)

(J-25269-18)
Side bearing disc (2 Req'd)

Selecting drive pinion height adjusting washer

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0978D

ZZA1002D

ZZA1046D

NT134

NT135

NT014

PREPARATION

DLN-335

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Tool name

Description

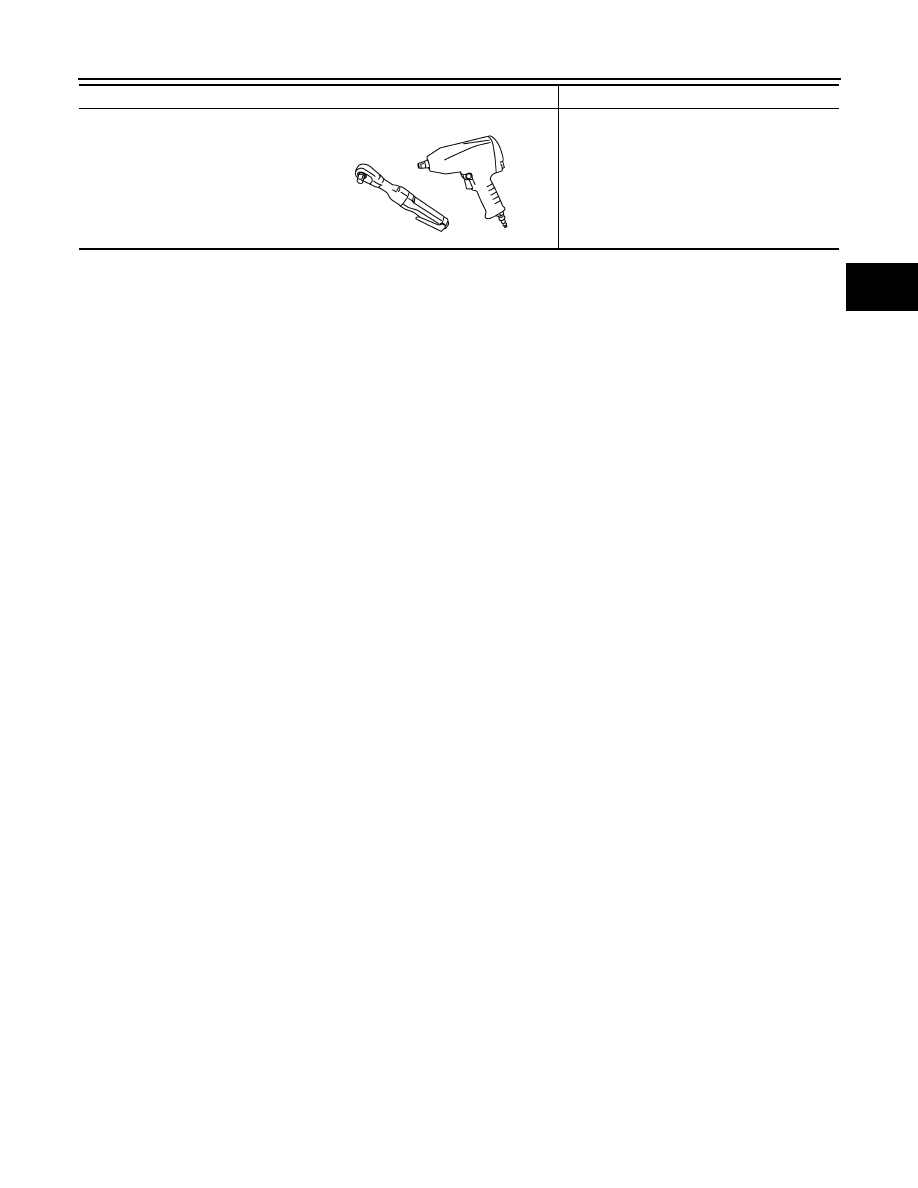

Power tool

Loosening nuts and bolts

PBIC0190E
