Installation

Installation is in the reverse order of removal.

NOTE:
Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to

WW-41, "Rear Washer

Nozzle Adjustment"

 .

WASHER FLUID RESERVOIR

Refer to

WW-26, "WASHER FLUID RESERVOIR"

 .

WIPER AND WASHER SWITCH

Refer to

WW-25, "WIPER AND WASHER SWITCH"

 .

WASHER MOTOR

Refer to

WW-27, "WASHER MOTOR"

 .

Rear Washer Nozzle Adjustment

EKS00G0A

●

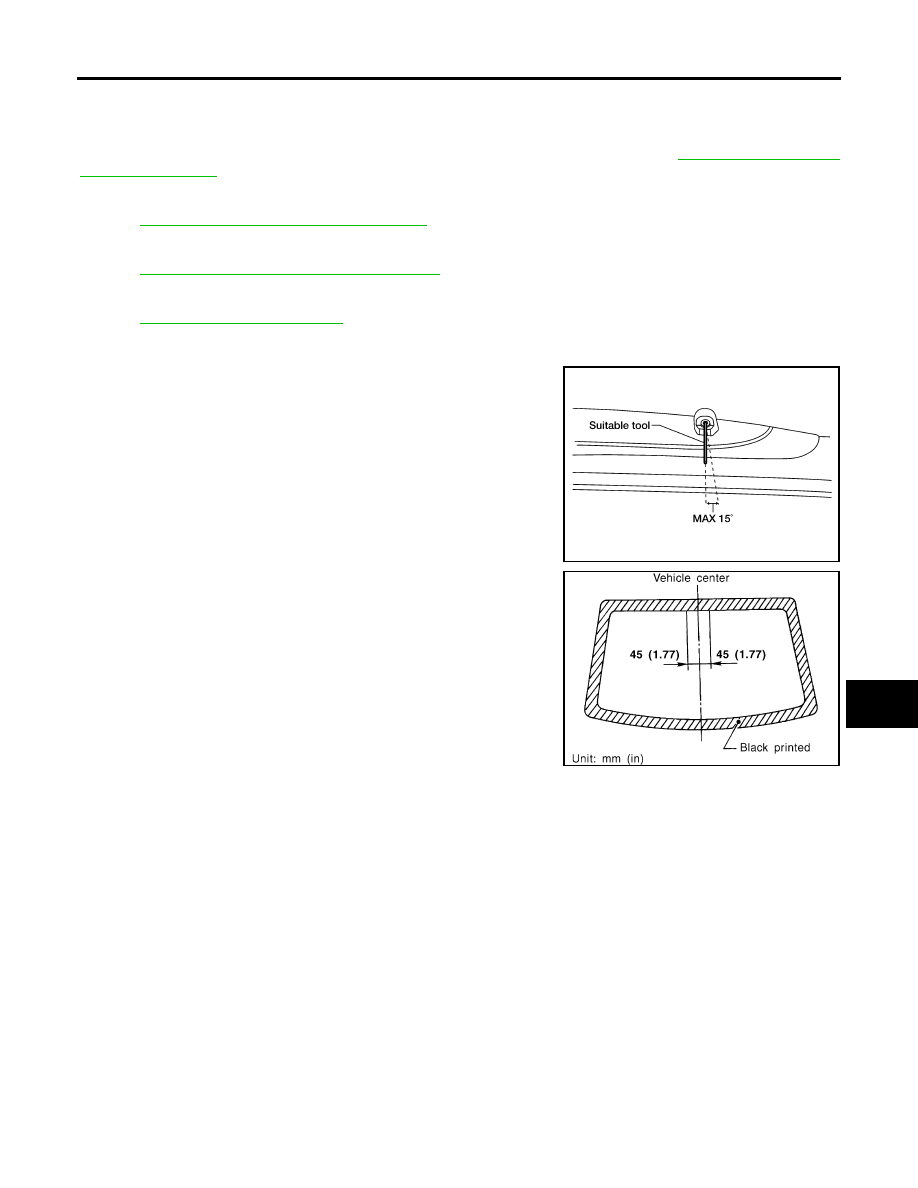

Adjust washer nozzle with suitable tool as shown in the figure.

Adjustable range

:

±

15

°

 (In any direction)

LKIA0349E

WEL912A

WW-42

POWER SOCKET

2007 Pathfinder

POWER SOCKET

PFP:253A2

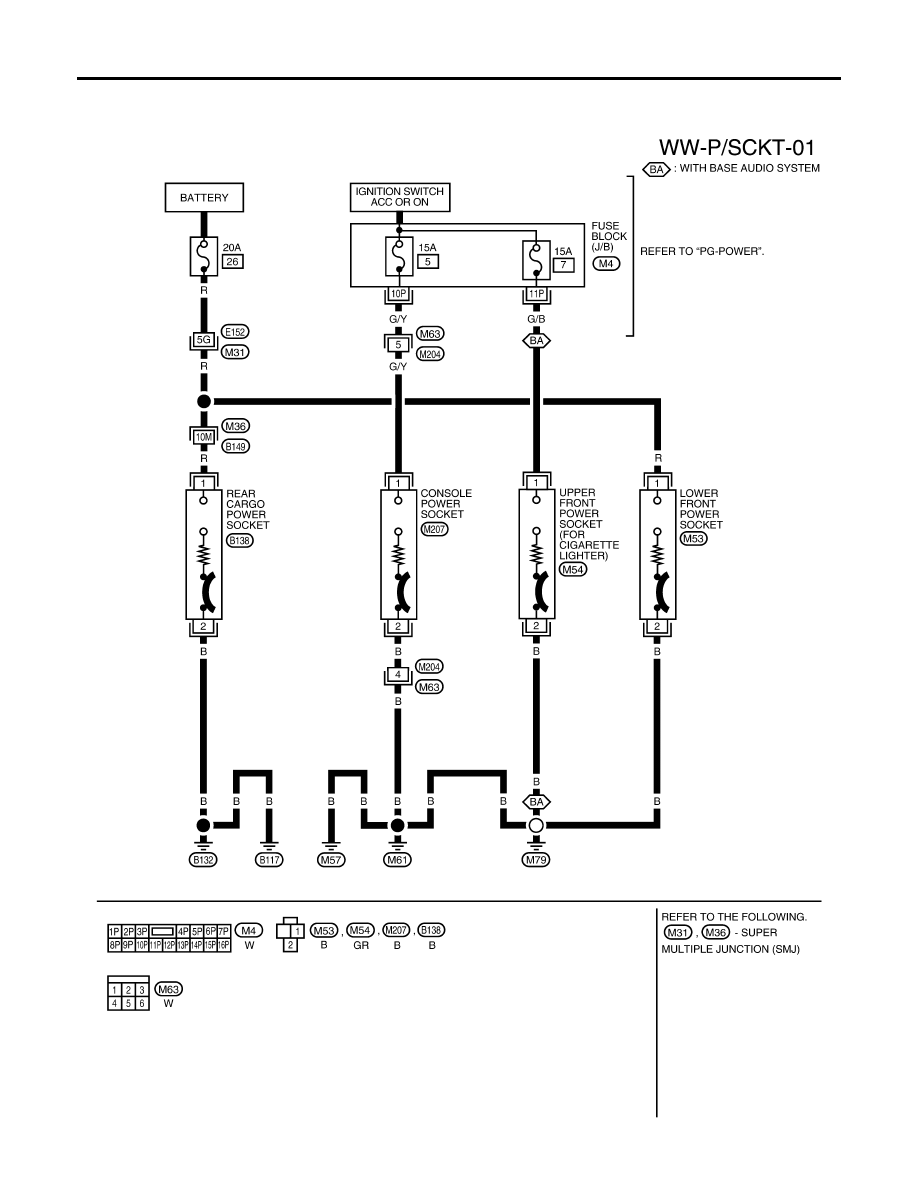

Wiring Diagram — P/SCKT —

EKS00G0H

WKWA5392E

POWER SOCKET

WW-43

C

D

E

F

G

H

I

J

L

M

A

B

WW

2007 Pathfinder

Removal and Installation

EKS00G0I

LOWER FRONT POWER SOCKET AND REAR CARGO POWER SOCKET
Removal

1.

Disconnect battery negative terminal.

2.

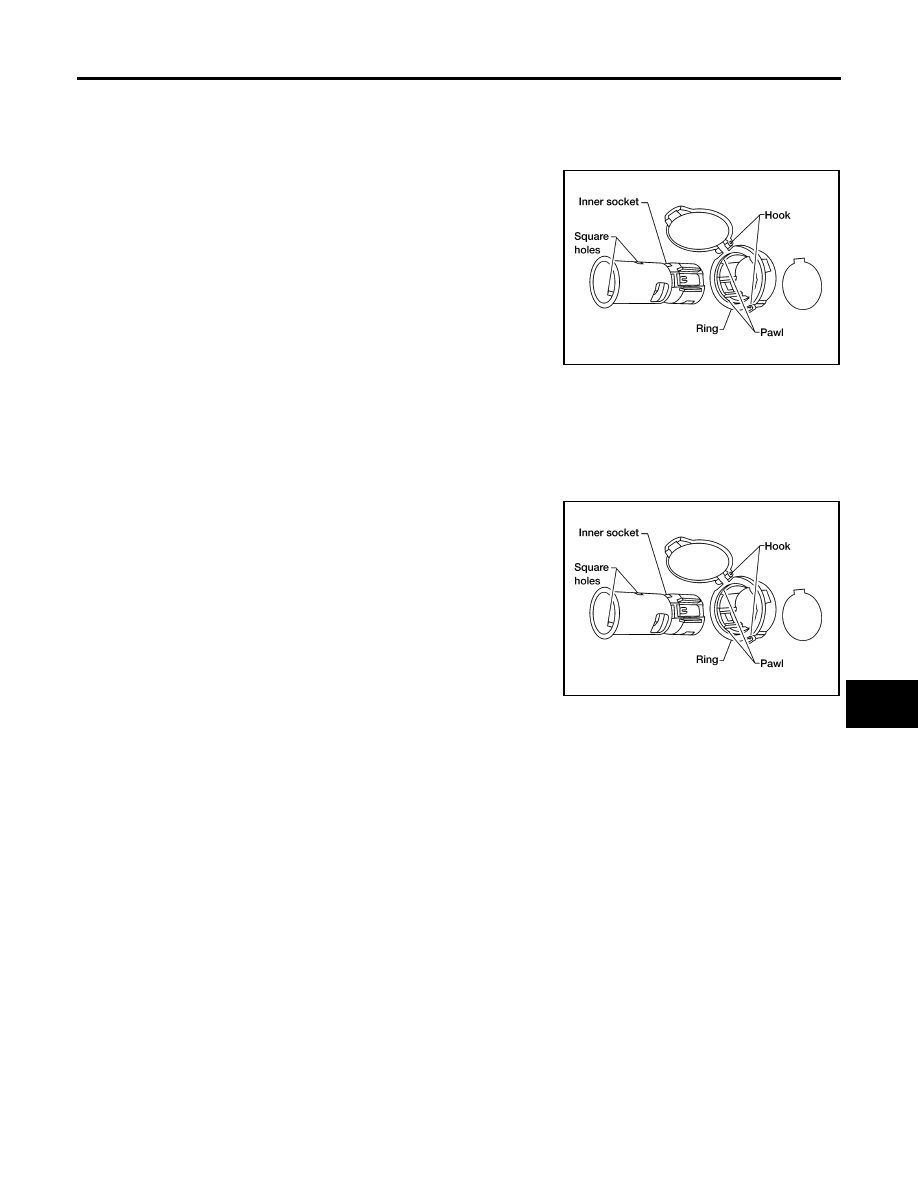

Remove inner socket from the ring, while pressing the hook on
the ring out from square hole.

3.

Disconnect power socket connector.

4.

Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

UPPER FRONT POWER SOCKET (FOR CIGARETTE LIGHTER) AND CONSOLE POWER
SOCKET
Removal

1.

Remove inner socket from the ring, while pressing the hook on
the ring out from square hole.

2.

Disconnect power socket connector.

3.

Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

WKIA1035E

WKIA1035E

WW-44

HORN

2007 Pathfinder

HORN

PFP:25610

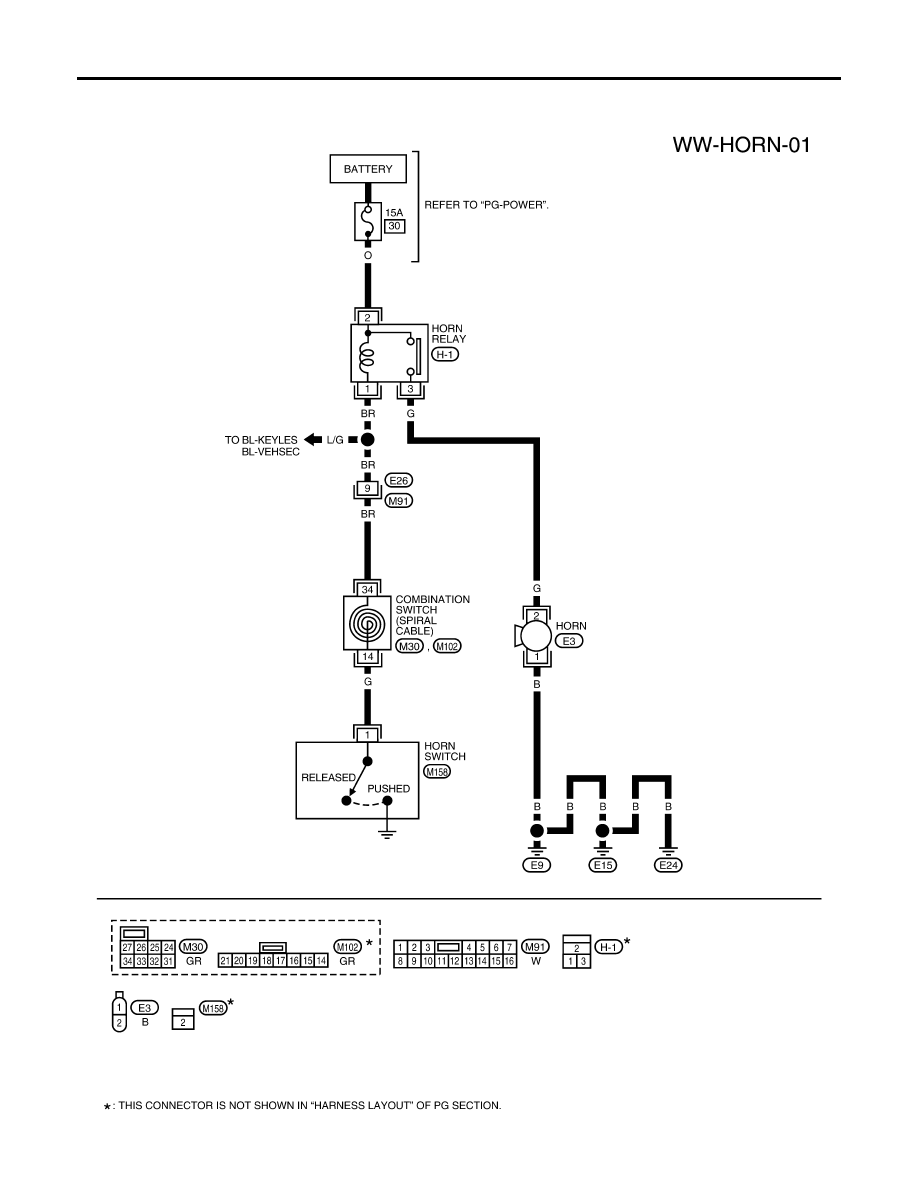

Wiring Diagram — HORN —

EKS00G0J

WKWA5393E

HORN

WW-45

C

D

E

F

G

H

I

J

L

M

A

B

WW

2007 Pathfinder

Removal and Installation

EKS00G0K

REMOVAL

1.

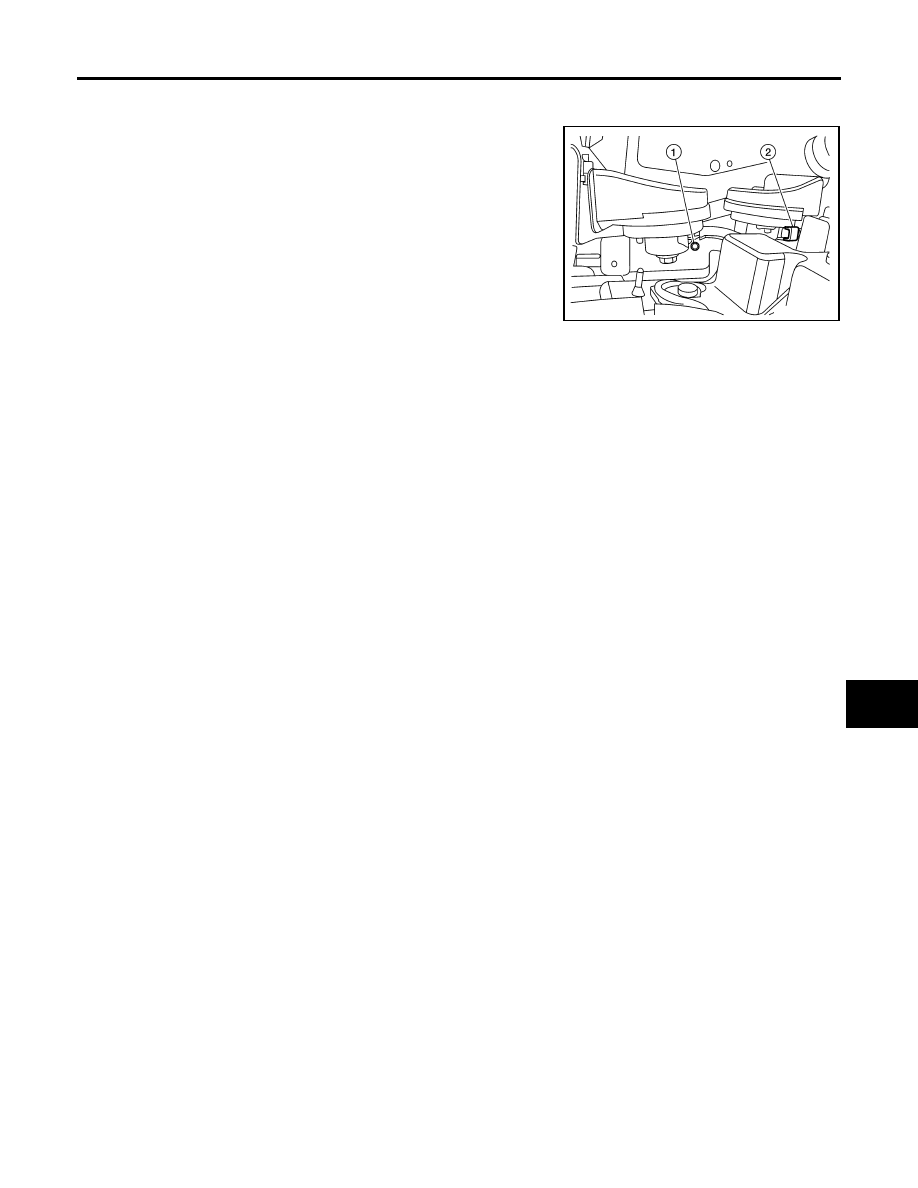

Disconnect horn connector (2).

2.

Remove horn bolt (1).

3.

Remove horn.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0685E

WW-46

HORN
