SIDE OIL SEAL

TF-137

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

SIDE OIL SEAL

PFP:33142

Removal and Installation

EDS0037E

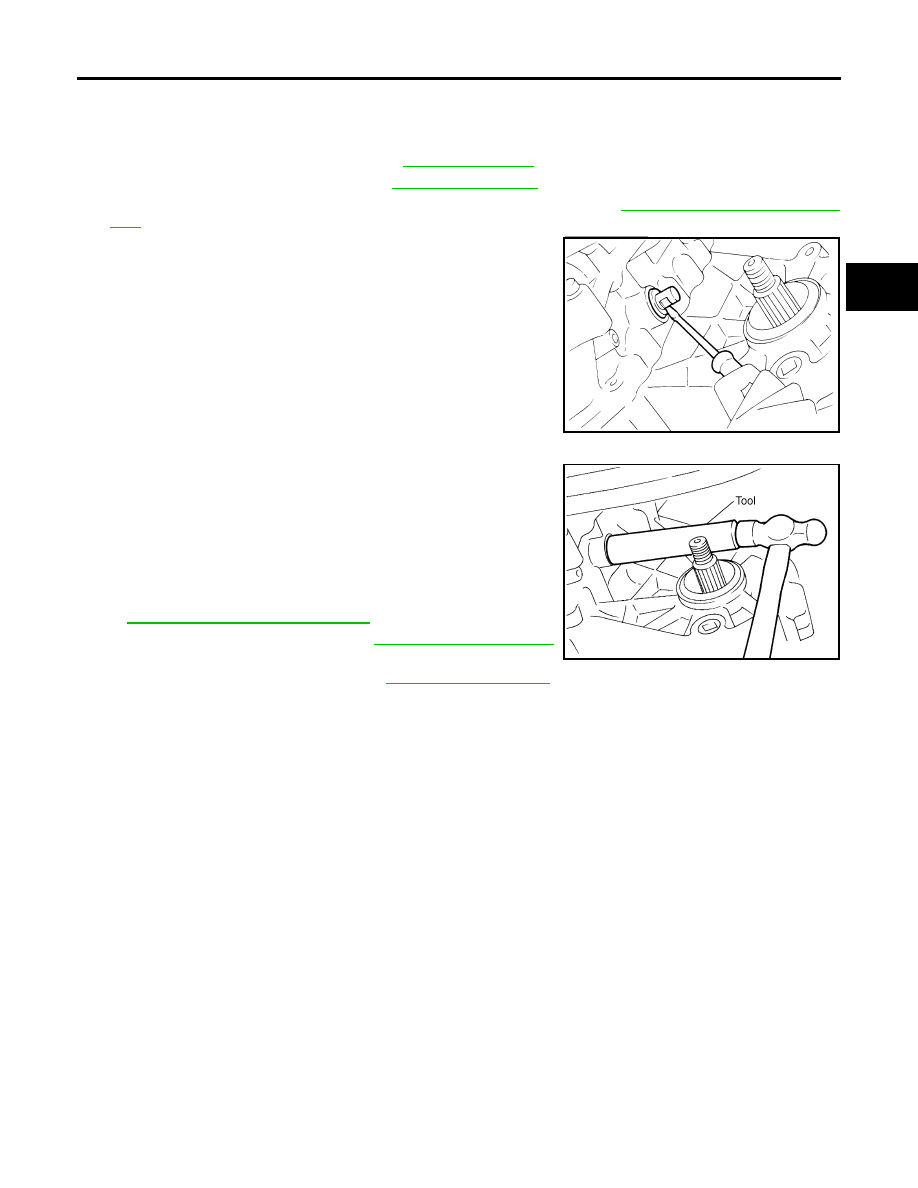

REMOVAL

1.

Remove the front propeller shaft. Refer to

PR-5, "REMOVAL"

 .

2.

Remove the companion flange. Refer to

TF-133, "REMOVAL"

 .

3.

Remove the transfer control device from the transfer assembly. Refer to

TF-138, "Removal and Installa-

tion"

 .

4.

Remove the side oil seal using suitable tool.

CAUTION:

Do not damage shift cross.

INSTALLATION

1.

Install the new side oil seal until it is flush with the end face of
case using Tool.

CAUTION:

●

Do not reuse oil seal.

●

Apply petroleum jelly to oil seal.

2.

Install the transfer control device to the transfer assembly. Refer
to

TF-138, "Removal and Installation"

 .

3.

Install the companion flange. Refer to

TF-134, "INSTALLATION"

.

4.

Install the front propeller shaft. Refer to

PR-6, "INSTALLATION"

 .

SDIA2666E

Tool number

: ST22360002 (J-25679-01)

SDIA2665E

TF-138

[ATX14B]

TRANSFER CONTROL DEVICE

2007 Pathfinder

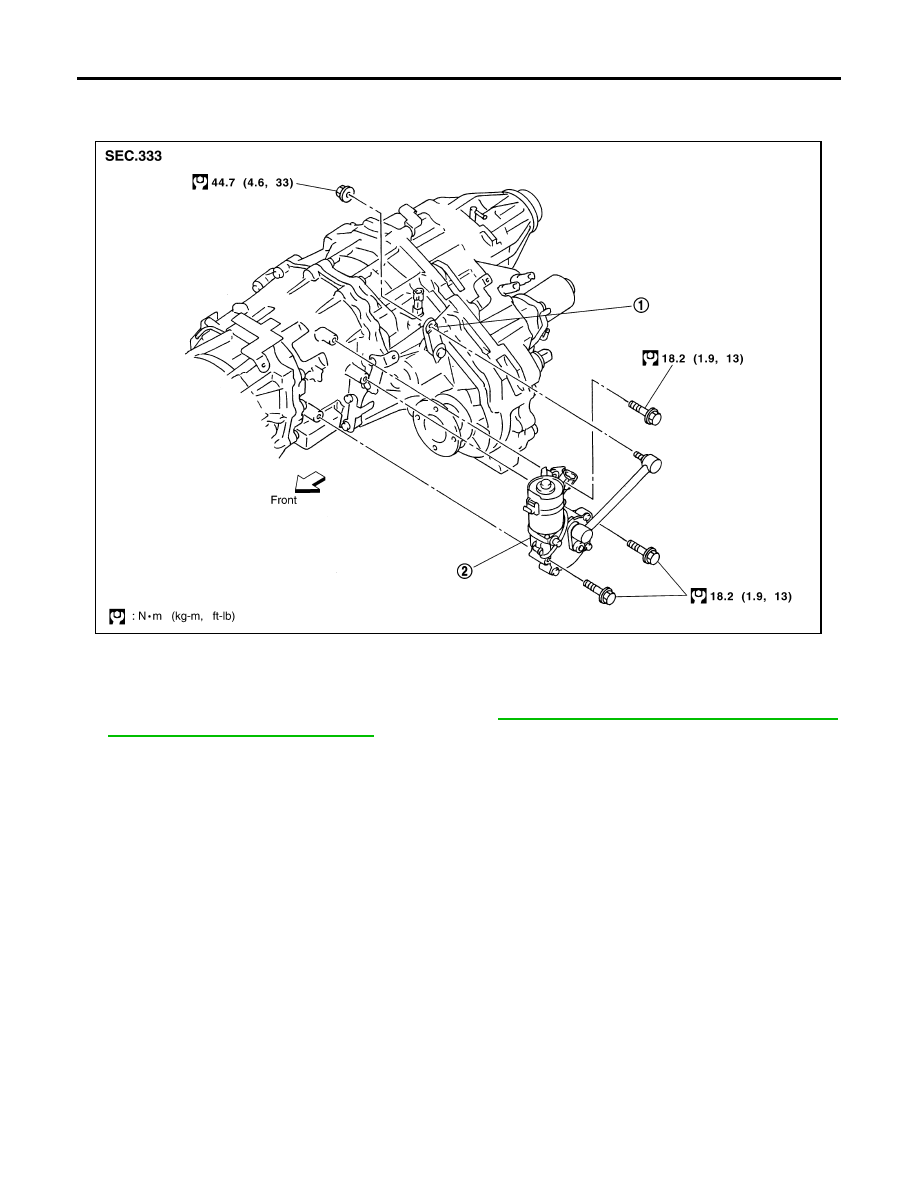

TRANSFER CONTROL DEVICE

PFP:33251

Removal and Installation

EDS0037F

CAUTION:

●

Change vehicle state to 2WD, and then remove and install transfer control device.

●

Check 4WD shift indicator after installation. Refer to

TF-6, "Precautions for Transfer Assembly and

Transfer Control Unit Replacement"

 .

1.

Shift lever

2.

Actuator

SDIA2654E

AIR BREATHER HOSE

TF-139

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

AIR BREATHER HOSE

PFP:31098

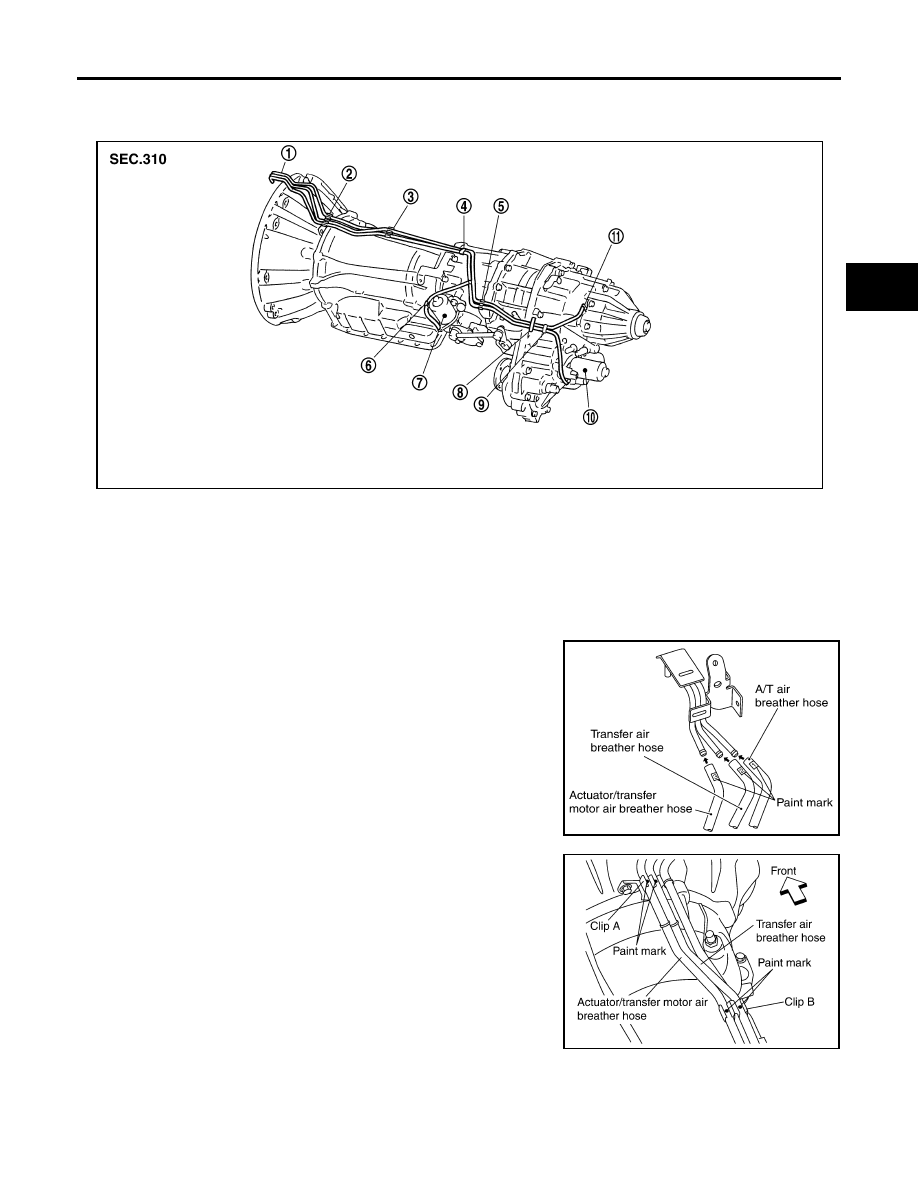

Removal and Installation

EDS003LE

CAUTION:

●

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or
bending when installing it.

●

Install each air breather hose into the breather tube (metal
connector) until the hose end reaches the end of the curve
section. Set each air breather hose with paint mark facing
upward.

●

Install actuator/transfer motor air breather hose and trans-
fer air breather hose on clip A and clip B with the paint mark
facing upward.

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Clip E

7.

Actuator

8.

Air breather hose clamp

9.

Clip F

10. Transfer motor

11.

Breather tube (transfer)

SDIA3339E

SDIA3340E

SDIA3342E

TF-140

[ATX14B]

AIR BREATHER HOSE

2007 Pathfinder

●

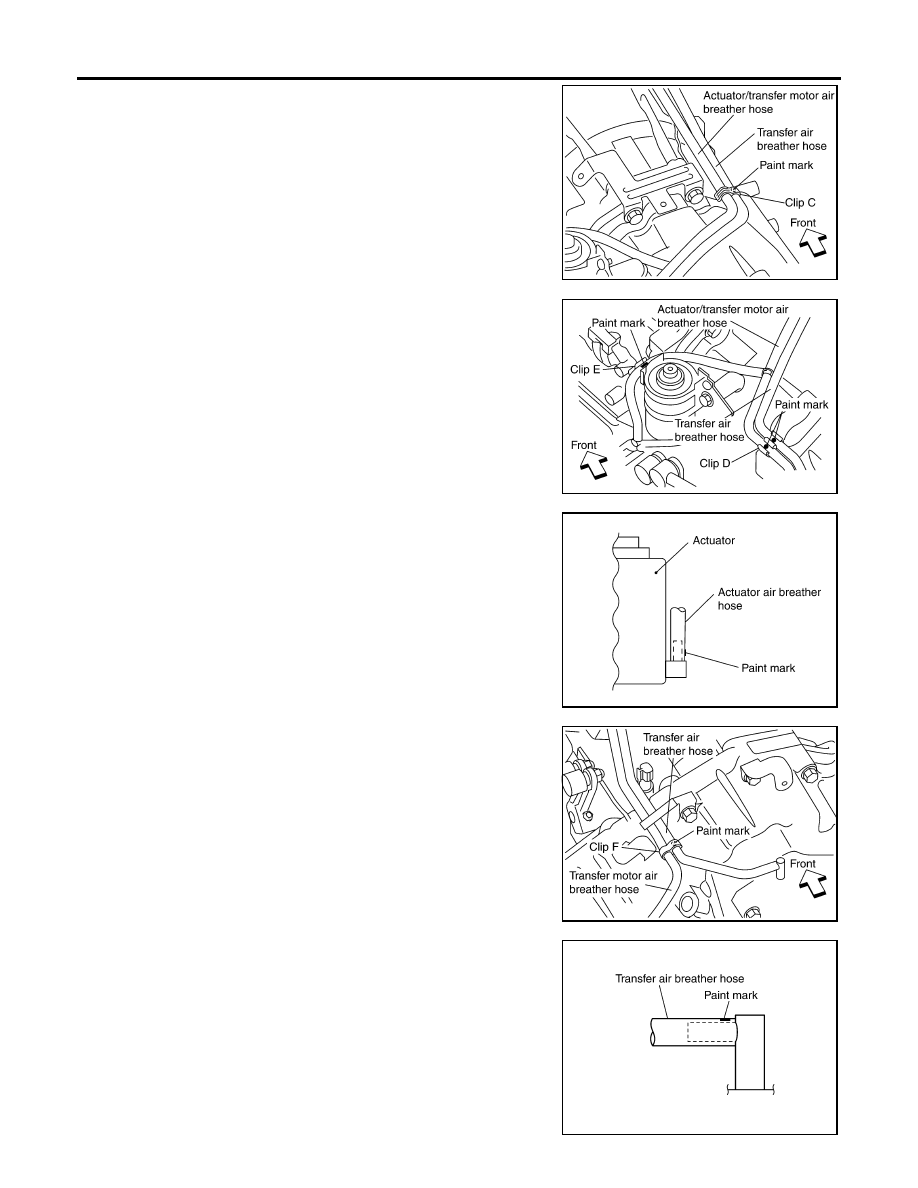

Install clip C on actuator/transfer motor air breather hose
and transfer air breather hose with the paint mark matched.

●

Install actuator/transfer motor air breather hose and trans-
fer air breather hose on clip D and clip E with the paint mark
facing upward.

●

Install the actuator air breather hose into the actuator (case
connector) until the hose end reaches the base of the tube.
Set actuator air breather hose with paint mark facing left-
ward.

●

Install clip F on transfer motor air breather hose and trans-
fer air breather hose with the paint mark matched.

●

Install the transfer air breather hose into the breather tube
(transfer, metal connector) until the hose end reaches the
base of the tube. Set transfer air breather hose with paint
mark facing upwards.

SDIA3343E

SDIA3344E

SDIA3226E

SDIA3345E

SDIA3196E

AIR BREATHER HOSE

TF-141

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

●

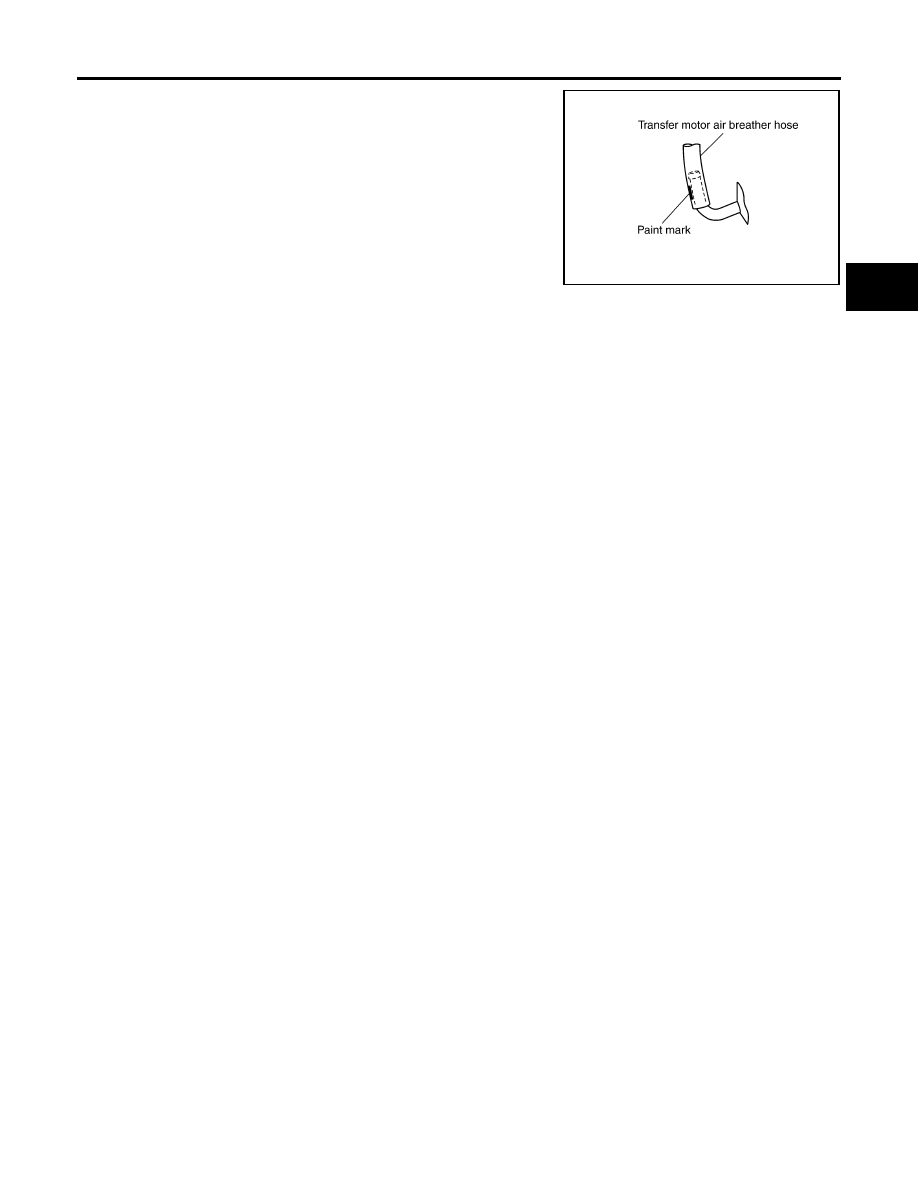

Install the transfer motor air breather hose into the transfer
motor (case connector) until the hose end reaches the end
of the curved section. Set transfer motor air breather hose
with paint mark facing leftward.

SDIA3194E

TF-142

[ATX14B]

TRANSFER MOTOR

2007 Pathfinder

TRANSFER MOTOR

PFP:00000

Removal and Installation

EDS0037H

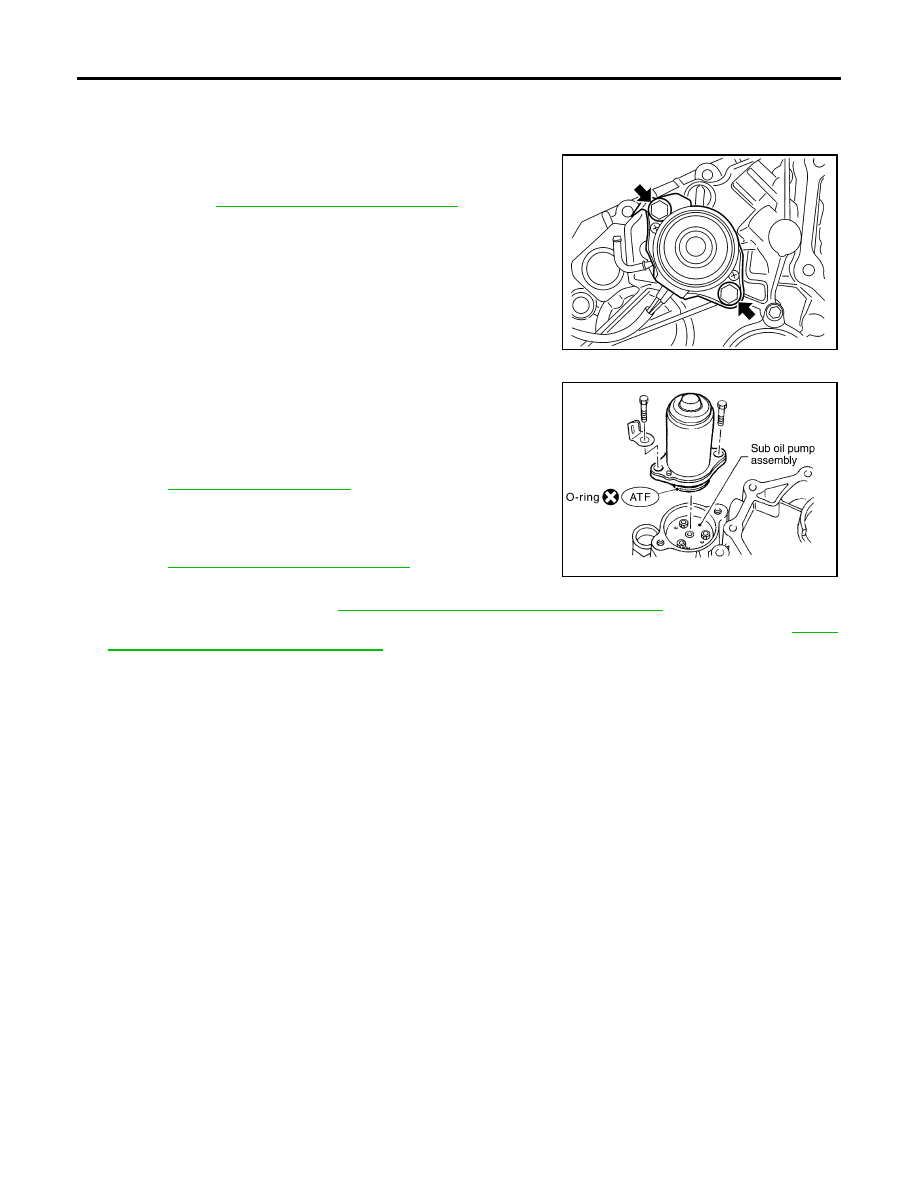

REMOVAL

1.

Disconnect the transfer motor connector.

2.

Remove the transfer motor air breather hose from the transfer
motor. Refer to

TF-139, "Removal and Installation"

 .

3.

Remove the transfer motor bolts.

4.

Remove the transfer motor.

INSTALLATION

1.

Apply ATF to the new O-ring and install it to the transfer motor.

CAUTION:

Do not reuse O-rings.

2.

Fit the double-flat end of the transfer motor shaft into the slot of
the sub-oil pump assembly. Then tighten to the specified torque.
Refer to

TF-146, "COMPONENTS"

 .

CAUTION:

Be sure to install connector bracket.

3.

Install the transfer motor air breather hose to the transfer motor.
Refer to

TF-139, "Removal and Installation"

 .

4.

Connect the transfer motor connector.

5.

Check the transfer fluid. Refer to

TF-13, "FLUID LEAKAGE AND FLUID LEVEL"

 .

6.

Start the engine for one minute. Then stop the engine and recheck the transfer fluid. Refer to

TF-13,

"FLUID LEAKAGE AND FLUID LEVEL"

 .

SDIA2133E

SDIA2787E

TRANSFER OIL FILTER

TF-143

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

TRANSFER OIL FILTER

PFP:00000

Removal and Installation

EDS0037I

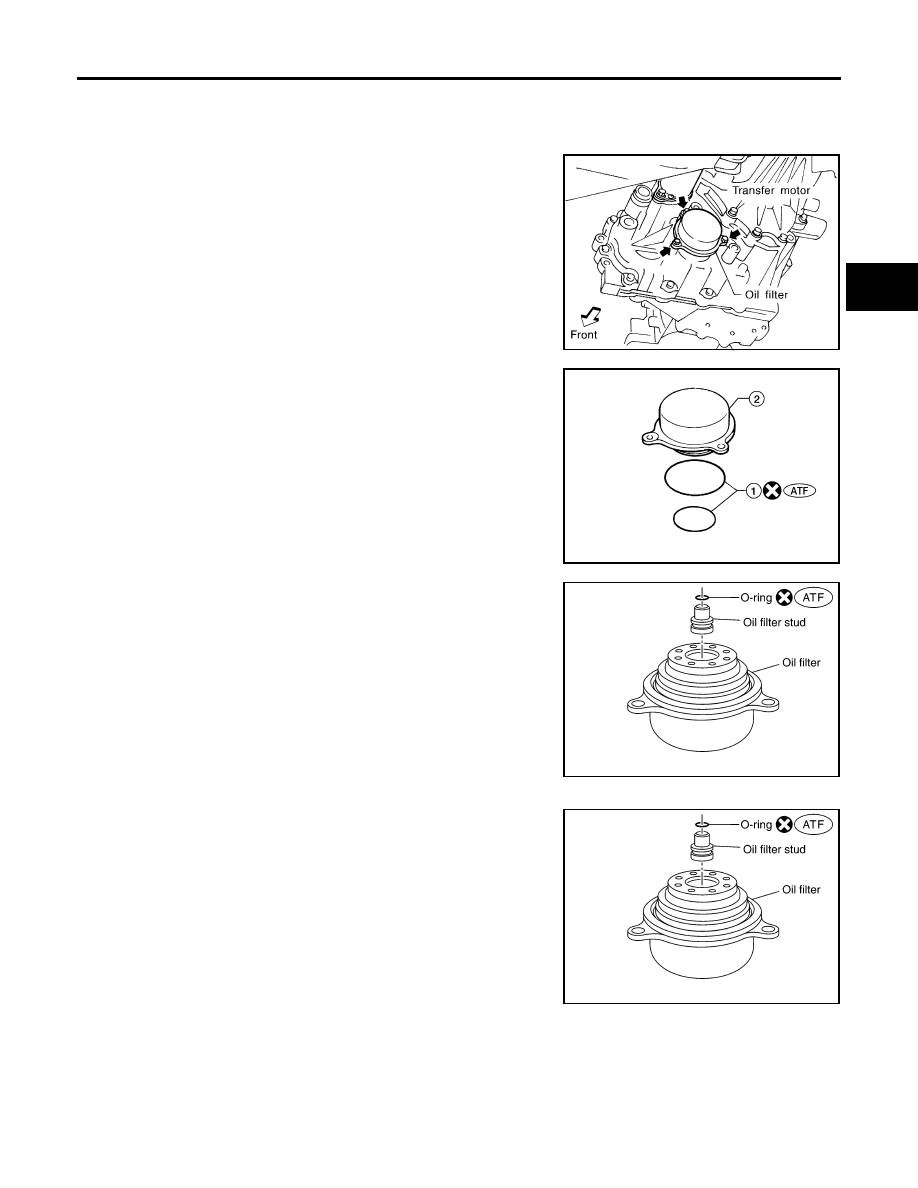

REMOVAL

1.

Remove the oil filter bolts and oil filter.

CAUTION:

●

Do not damage center case or oil filter.

●

Loosen bolts and detach oil filter evenly.

2.

Remove the O-rings (1) from the oil filter (2).

3.

Remove the oil filter stud from the oil filter.

4.

Remove the O-ring from the oil filter stud.

INSTALLATION

1.

Apply ATF to the new O-ring, and install it on the oil filter stud.

CAUTION:

Do not reuse O-ring.

2.

Install the oil filter stud to the oil filter.

SMT875C

WDIA0285E

SDIA3180E

SDIA3180E

TF-144

[ATX14B]

TRANSFER OIL FILTER

2007 Pathfinder

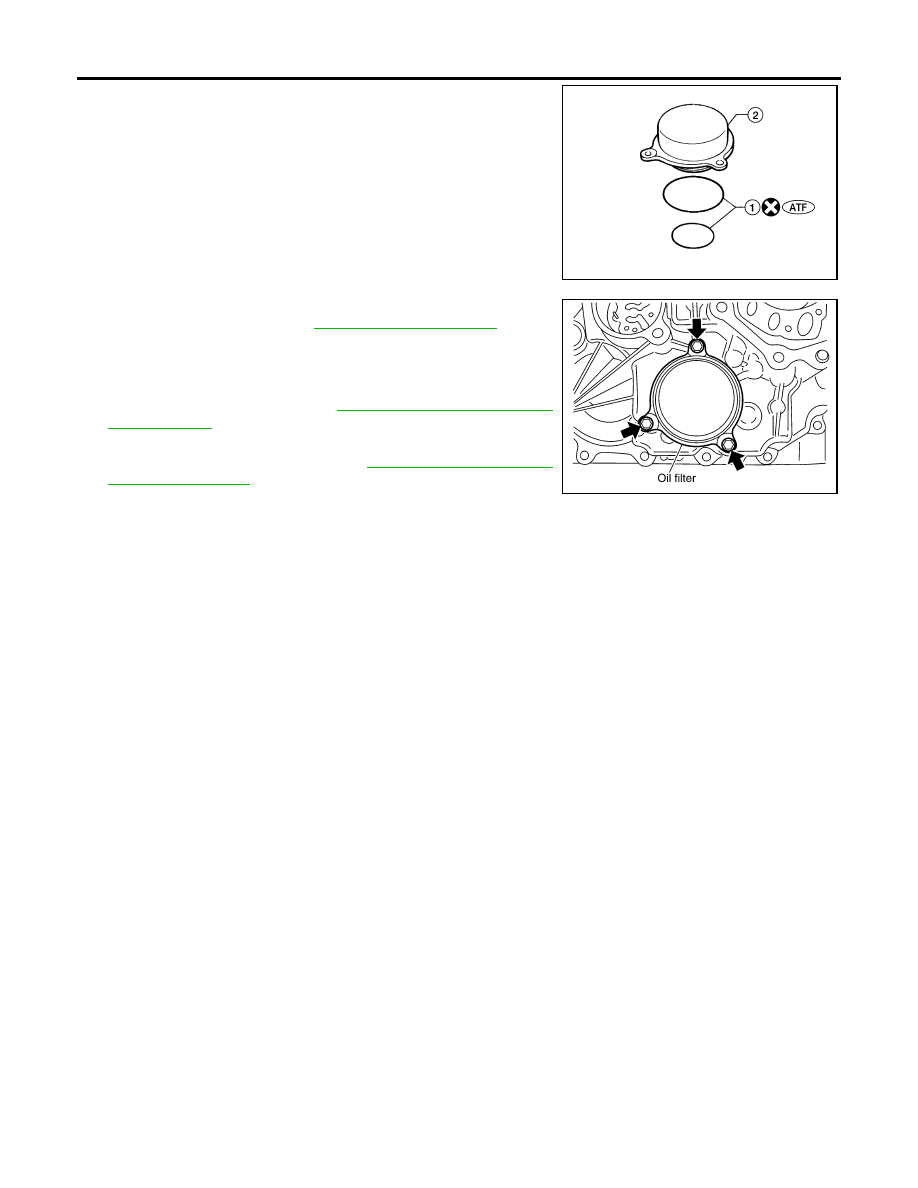

3.

Apply ATF to the two new O-rings (1), and install them on the oil
filter (2).

CAUTION:

Do not reuse O-rings.

4.

Install the oil filter to the transfer assembly. Tighten the bolts to
the specified torque. Refer to

TF-146, "COMPONENTS"

 .

CAUTION:

●

Do not damage oil filter.

●

Attach oil filter and tighten bolts evenly.

5.

Check the transfer fluid. Refer to

TF-13, "FLUID LEAKAGE AND

FLUID LEVEL"

 .

6.

Start the engine for one minute. Then stop the engine and
recheck the transfer fluid. Refer to

TF-13, "FLUID LEAKAGE

AND FLUID LEVEL"

 .

WDIA0285E

SDIA2136E
