Nissan Pathfinder (2007 year). Manual - part 377





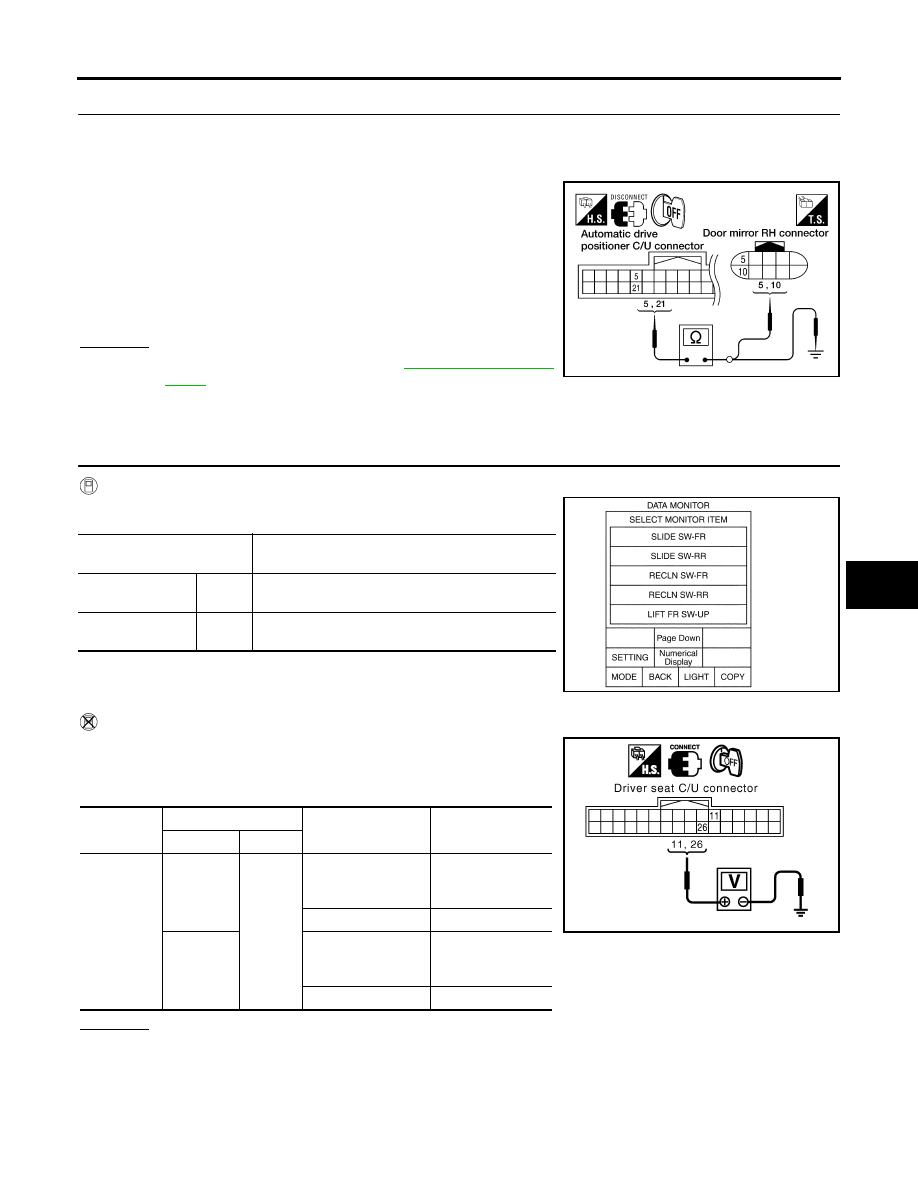

AUTOMATIC DRIVE POSITIONER

SE-55

C

D

E

F

G

H

J

K

L

M

A

B

SE

2007 Pathfinder

4.

CHECK HARNESS CONTINUITY 2

1.

Disconnect automatic drive positioner control unit and door mirror RH.

2.

Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and door
mirror RH connector D107 terminals 5, 10.

3.

Check continuity between automatic drive positioner control unit
connector M33 terminals 5, 21 and ground.

OK or NG

OK

>> Replace door mirror RH. Refer to

GW-90, "DOOR MIR-

ROR"

 .

NG

>> Repair or replace harness.

Sliding Switch Circuit Inspection

EIS007VJ

1.

CHECK FUNCTION

With CONSULT-II

With “SLIDE SW-FR, SLIDE SW-RR” on the DATA MONITOR, oper-
ate the sliding switch to check ON/OFF operation.

Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between driver seat control unit connector and
ground.

OK or NG

OK

>> Sliding switch circuit is OK.

NG

>> GO TO 2.

5 - 10

: Continuity should exist.

21 - 5

: Continuity should exist.

5 - Ground

: Continuity should not exist.

21 - Ground

: Continuity should not exist.

LIIA1772E

Monitor item [OPERATION

or UNIT]

Contents

SLIDE SW-FR

"ON/

OFF"

ON/OFF status judged from the sliding switch (FR)
signal is displayed.

SLIDE SW-RR

"ON/

OFF"

ON/OFF status judged from the sliding switch (RR)
signal is displayed.

PIIA0313E

Connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

P2

11

Ground

Sliding switch ON
(BACKWARD oper-
ation)

0

Other than above

Battery voltage

26

Sliding switch ON
(FORWARD opera-
tion)

0

Other than above

Battery voltage

PIIA4577E

SE-56

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

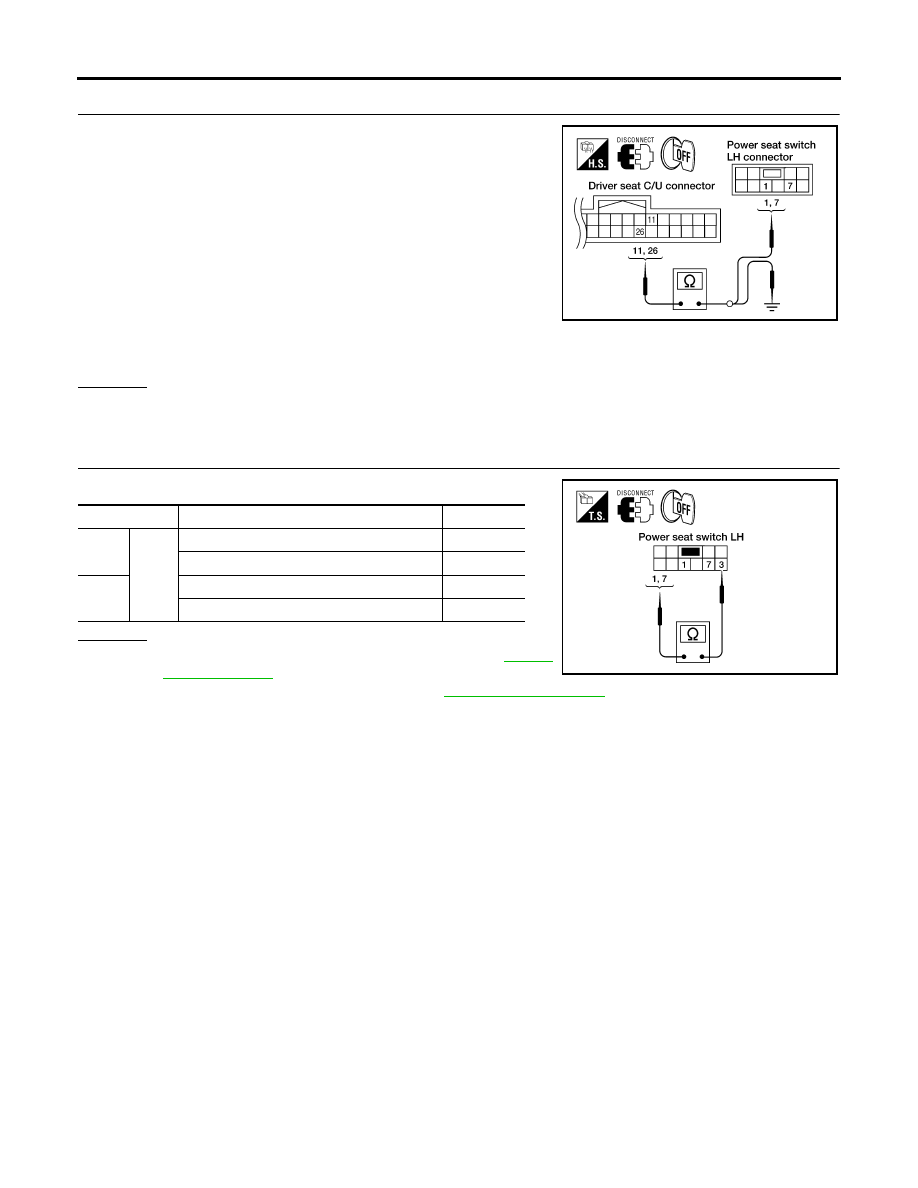

2.

CHECK SLIDING SWITCH CIRCUIT HARNESS CONTINUITY

1.

Disconnect driver seat control unit connector and power seat
switch LH connector.

2.

Check continuity between driver seat control unit connector P2
terminals 11, 26 and power seat switch LH connector P8 termi-
nals 1, 7.

3.

Check continuity between driver seat control unit connector P2
terminals 11, 26 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK SLIDING SWITCH

Check continuity between power seat switch LH as follows.

OK or NG

OK

>> Replace driver seat control unit. Refer to

SE-84,

"FRONT SEAT"

 .

NG

>> Replace power seat switch LH. Refer to

SE-84, "FRONT SEAT"

 .

11 - 7

: Continuity should exist.

26 - 1

: Continuity should exist.

11 - Ground

: Continuity should not exist.

26 - Ground

: Continuity should not exist.

LIIA1125E

Terminal

Condition

Continuity

7

3

Sliding switch ON (BACKWARD operation)

Yes

Other than above

No

1

Sliding switch ON (FORWARD operation)

Yes

Other than above

No

LIIA1126E

AUTOMATIC DRIVE POSITIONER

SE-57

C

D

E

F

G

H

J

K

L

M

A

B

SE

2007 Pathfinder

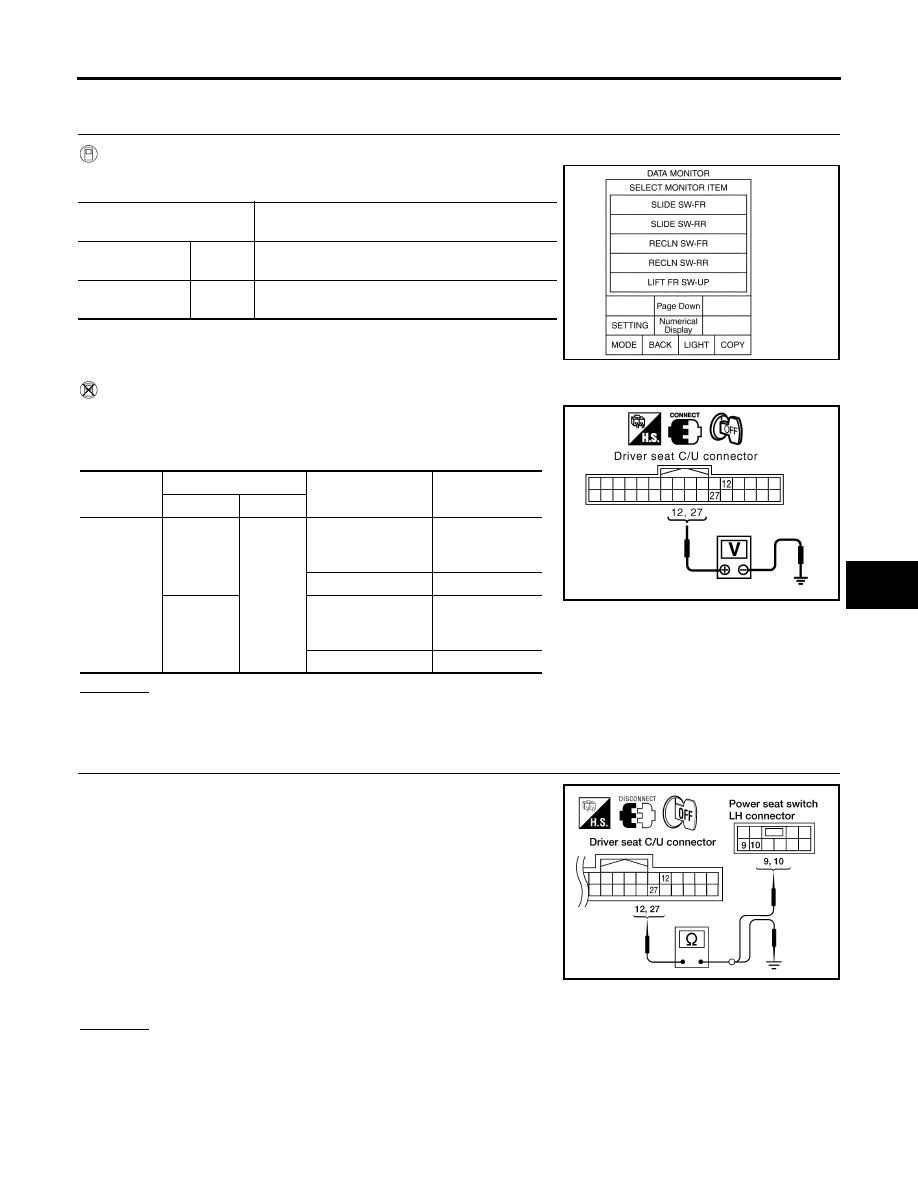

Reclining Switch Inspection

EIS007VK

1.

CHECK FUNCTION

 With CONSULT-II

With “RECLN SW-FR, RECLN SW-RR” on the DATA MONITOR,
operate the reclining switch to check ON/OFF operation.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between driver seat control unit connector and
ground.

OK or NG

OK

>> Reclining switch circuit is OK.

NG

>> GO TO 2.

2.

CHECK RECLINING SWITCH CIRCUIT HARNESS CONTINUITY

1.

Disconnect driver seat control unit and power seat switch LH.

2.

Check continuity between driver seat control unit connector P2
terminals 12, 27 and power seat switch LH connector P8 termi-
nals 9, 10.

3.

Check continuity between driver seat control unit connector P2
terminals 12, 27 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Monitor item [OPERATION

or UNIT]

Contents

RECLN SW-FR

“ON/

OFF”

ON/OFF status judged from the reclining switch
(FR) signal is displayed.

RECLIN SW-RR

“ON/

OFF”

ON/OFF status judged from the reclining switch
(RR) signal is displayed.

PIIA0313E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

P2

12

Ground

Reclining switch ON
(BACKWARD oper-
ation)

0

Other than above

Battery voltage

27

Reclining switch ON
(FORWARD opera-
tion)

0

Other than above

Battery voltage

PIIA4580E

12 - 9

: Continuity should exist.

27 - 10

: Continuity should exist.

12 - Ground

: Continuity should not exist.

27 - Ground

: Continuity should not exist.

LIIA1127E

SE-58

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

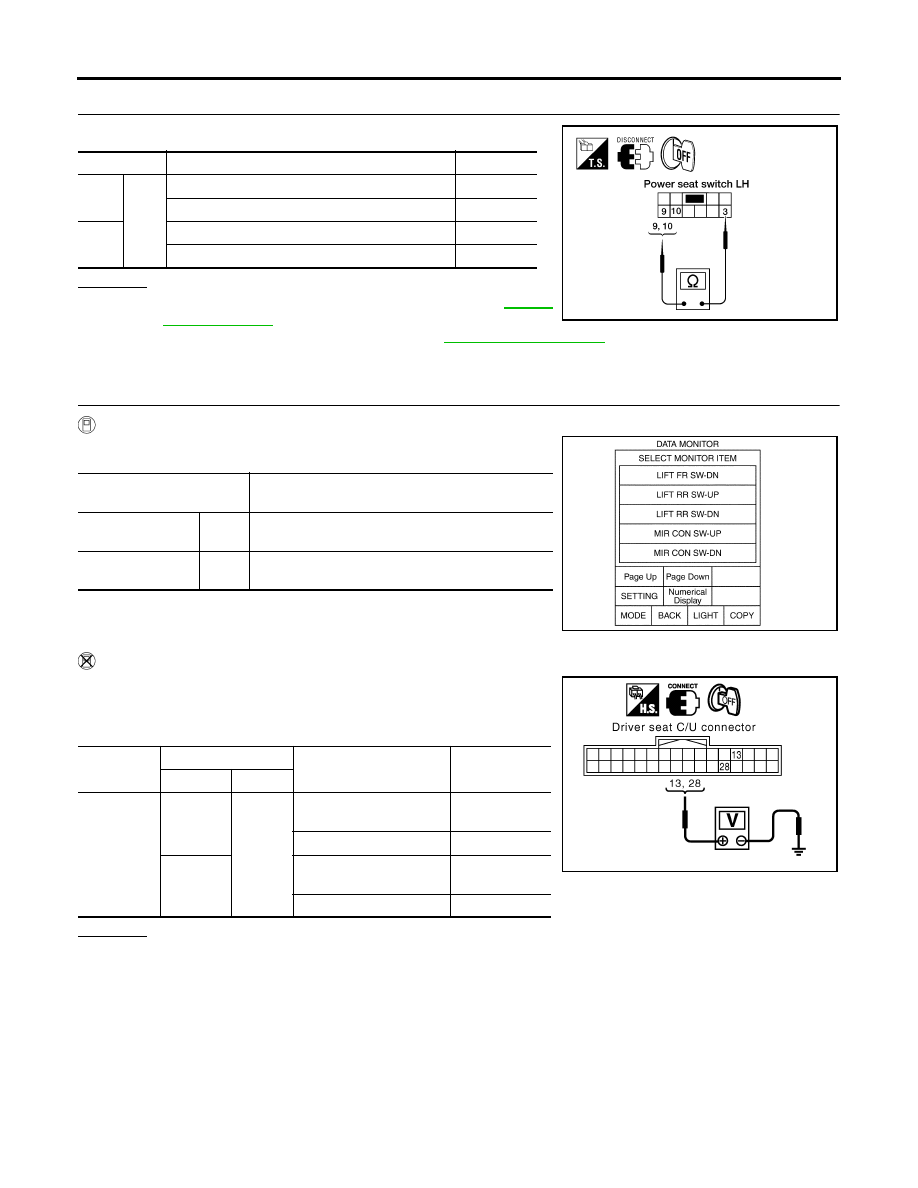

3.

RECLINING SWITCH INSPECTION

Check continuity between power seat switch LH as follows.

OK or NG

OK

>> Replace driver seat control unit. Refer to

SE-84,

"FRONT SEAT"

 .

NG

>> Replace power seat switch LH. Refer to

SE-84, "FRONT SEAT"

 .

Lifting Switch (Front) Circuit Inspection

EIS007VL

1.

CHECK FUNCTION

 With CONSULT-II

With “LIFT FR SW-UP, LIFT FR SW-DN” on the DATA MONITOR,
operate the lifting switch (front) to check ON/OFF operation.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between driver seat control unit connector and
ground.

OK or NG

OK

>> Lifting switch (front) circuit is OK.

NG

>> GO TO 2.

Terminal

Condition

Continuity

9

3

Reclining switch ON (BACKWARD operation)

Yes

Other than above

No

10

Reclining switch ON (FORWARD operation)

Yes

Other than above

No

LIIA1128E

Monitor item [OPERATION

or UNIT]

Contents

LIFT FR SW-DN

"ON/

OFF"

ON/OFF status judged from the FR lifter switch
(DOWN) signal is displayed.

LIFT RR SW-UP

"ON/

OFF"

ON/OFF status judged from the RR lifter switch
(UP) signal is displayed.

PIIA0323E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

P2

13

Ground

Lifting switch (front) ON
(DOWN operation)

0

Other than above

Battery voltage

28

Lifting switch (front) ON
(UP operation)

0

Other than above

Battery voltage

PIIA4583E

AUTOMATIC DRIVE POSITIONER

SE-59

C

D

E

F

G

H

J

K

L

M

A

B

SE

2007 Pathfinder

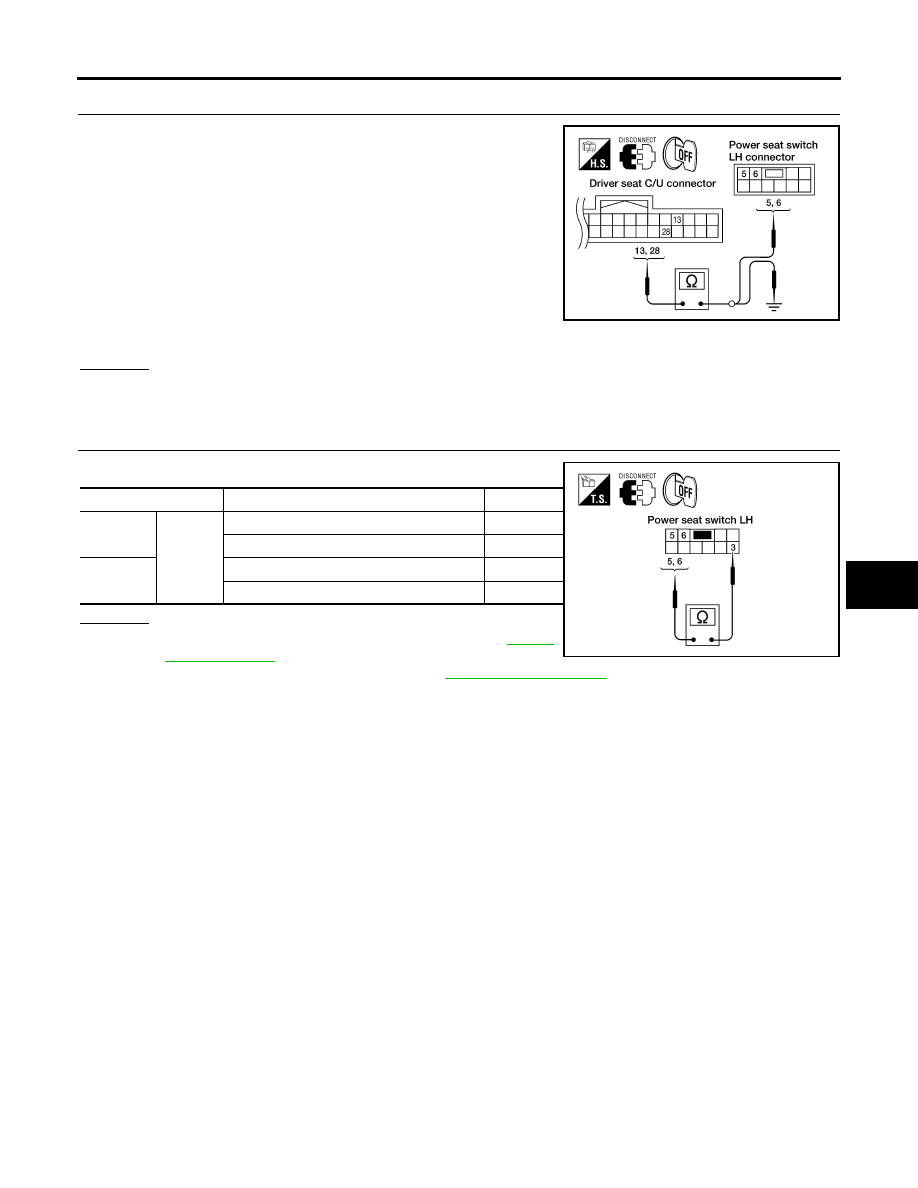

2.

CHECK LIFTING SWITCH (FRONT) CIRCUIT HARNESS CONTINUITY

1.

Disconnect driver seat control unit and power seat switch LH.

2.

Check continuity between driver seat control unit connector P2
terminals 13, 28 and power seat switch LH connector P8 termi-
nals 5, 6.

3.

Check continuity between driver seat control unit connector P2
terminals 13, 28 and ground

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK LIFTING SWITCH (FRONT)

Check continuity between power seat switch LH as follows.

OK or NG

OK

>> Replace driver seat control unit. Refer to

SE-84,

"FRONT SEAT"

 .

NG

>> Replace power seat switch LH. Refer to

SE-84, "FRONT SEAT"

 .

13 - 5

: Continuity should exist.

28 - 6

: Continuity should exist.

13 - Ground

: Continuity should not exist.

28 - Ground

: Continuity should not exist.

LIIA1129E

Terminals Condition

Continuity

5

3

Lifting switch (front) ON (DOWN operation)

Yes

Other than above

No

6

Lifting switch (front) ON (UP operation)

Yes

Other than above

No

LIIA1130E

SE-60

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

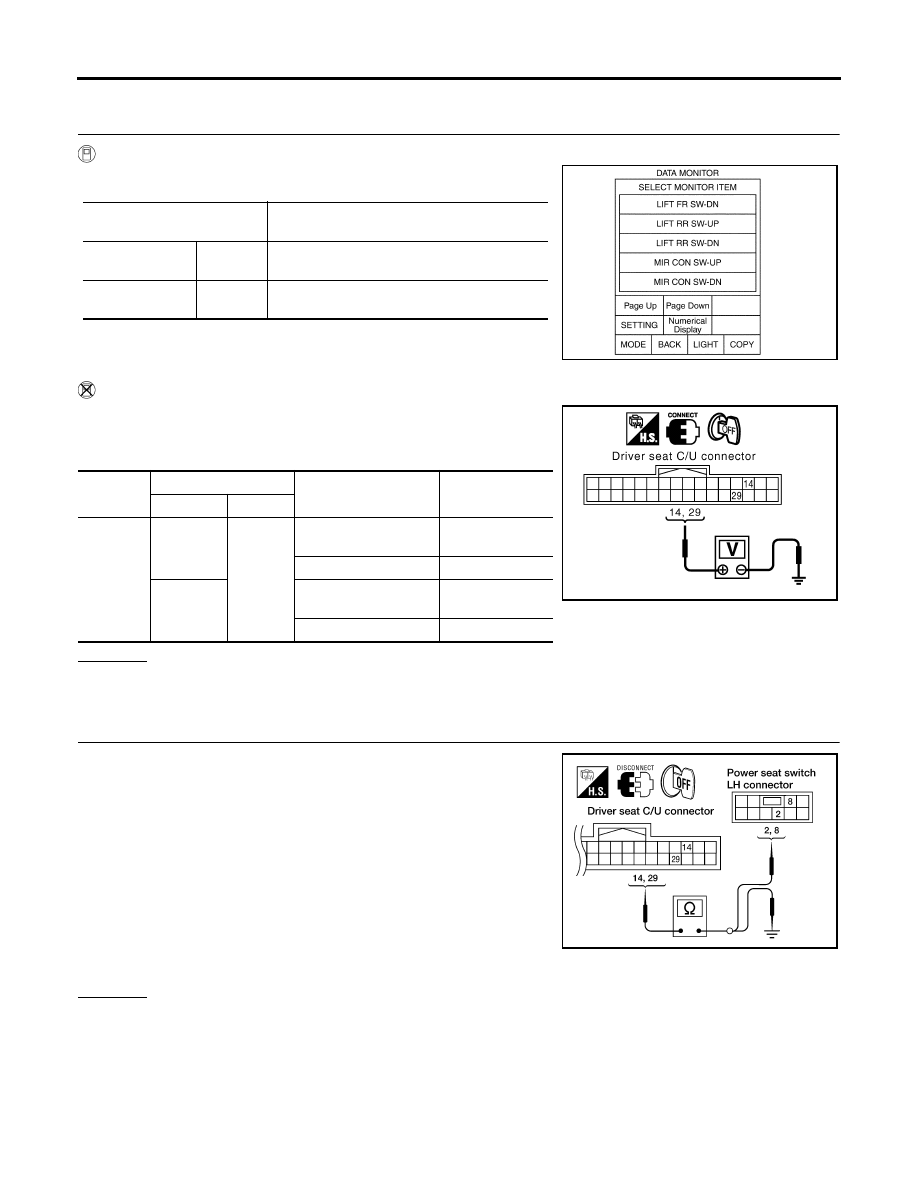

Lifting Switch (Rear) Circuit Inspection

EIS007VM

1.

CHECK FUNCTION

 With CONSULT-II

With “LIFT RR SW-UP, LIFT RR SW-DN” on the DATA MONITOR,
operate the rear lifting switch to check ON/OFF operation.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between driver seat control unit connector and
ground.

OK or NG

OK

>> Rear lifting switch circuit is OK.

NG

>> GO TO 2.

2.

CHECK LIFTING SWITCH (REAR) CIRCUIT HARNESS CONTINUITY

1.

Disconnect driver seat control unit and power seat switch LH.

2.

Check continuity between driver seat control unit connector P2
terminals 14, 29 and power seat switch connector P8 terminals
2, 8.

3.

Check continuity between driver seat control unit connector P2
terminals 14, 29 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Monitor item [OPERATION or

UNIT]

Contents

LIFT RR SW-UP

“ON/OFF”

Operation (ON)/open (OFF) status judged from
the RR lifter switch (UP) signal is displayed.

LIFT RR SW-DN

“ON/OFF”

Operation (ON)/open (OFF) status judged from
the RR lifter switch (DOWN) signal is displayed.

PIIA0323E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

P2

14

Ground

Rear lifting switch ON
(DOWN operation)

0

Other than above

Battery voltage

29

Rear lifting switch ON
(UP operation)

0

Other than above

Battery voltage

PIIA4586E

14 - 8

: Continuity should exist.

29 - 2

: Continuity should exist.

14 - Ground

: Continuity should not exist.

29 - Ground

: Continuity should not exist.

LIIA1131E

AUTOMATIC DRIVE POSITIONER

SE-61

C

D

E

F

G

H

J

K

L

M

A

B

SE

2007 Pathfinder

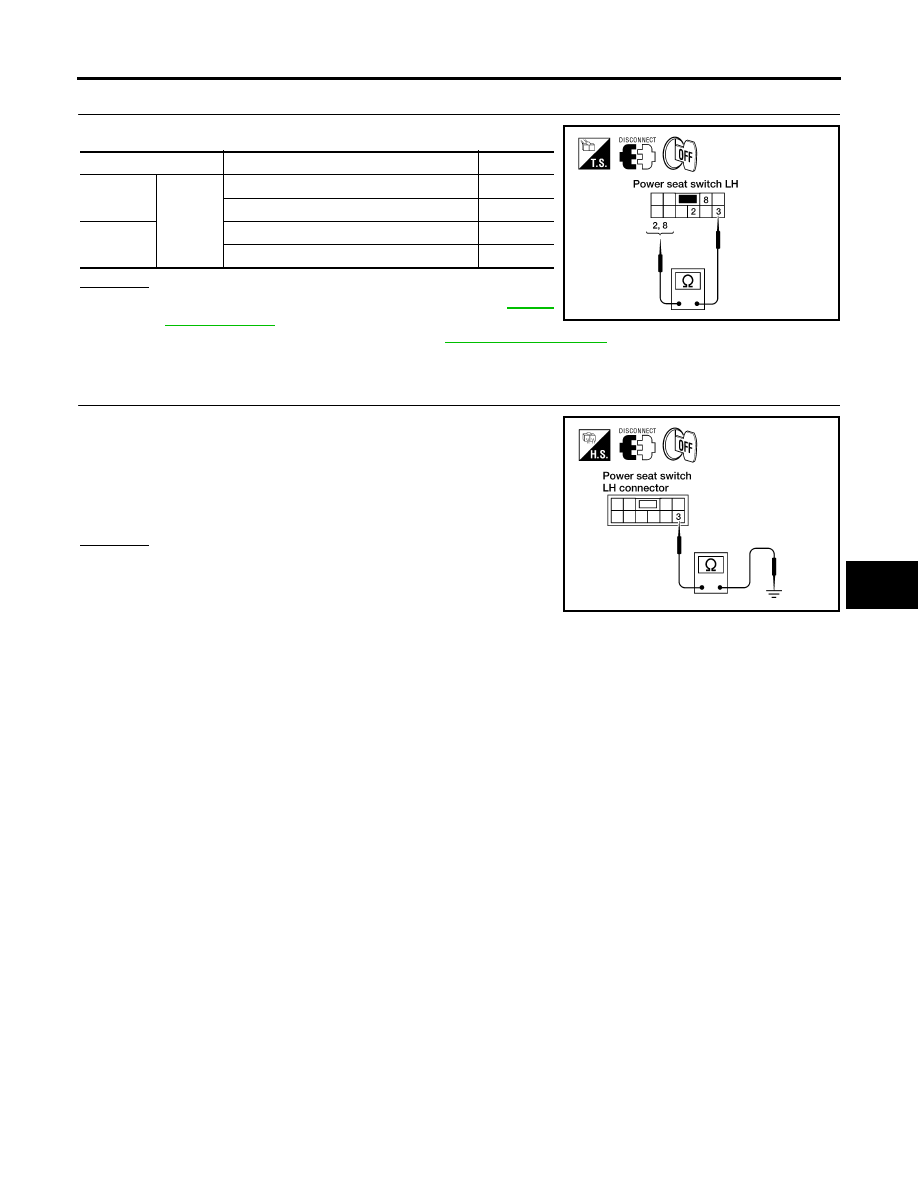

3.

CHECK LIFTING SWITCH (REAR)

Check continuity between power seat switch LH as follows.

OK or NG

OK

>> Replace driver seat control unit. Refer to

SE-84,

"FRONT SEAT"

 .

NG

>> Replace power seat switch LH. Refer to

SE-84, "FRONT SEAT"

 .

Power Seat Switch Ground Inspection

EIS007VN

1.

CHECK POWER SEAT SWITCH GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power seat switch LH.

3.

Check continuity between power seat switch LH connector P8
terminal 3 and ground.

OK or NG

OK

>> Check the condition of the harness and connector.

NG

>> Repair or replace harness.

Terminals

Condition

Continuity

8

3

Lifting switch (rear) ON (DOWN operation)

Yes

Other than above

No

2

Lifting switch (rear) ON (UP operation)

Yes

Other than above

No

LIIA1132E

3 - Ground

: Continuity should exist.

LIIA1133E

SE-62

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

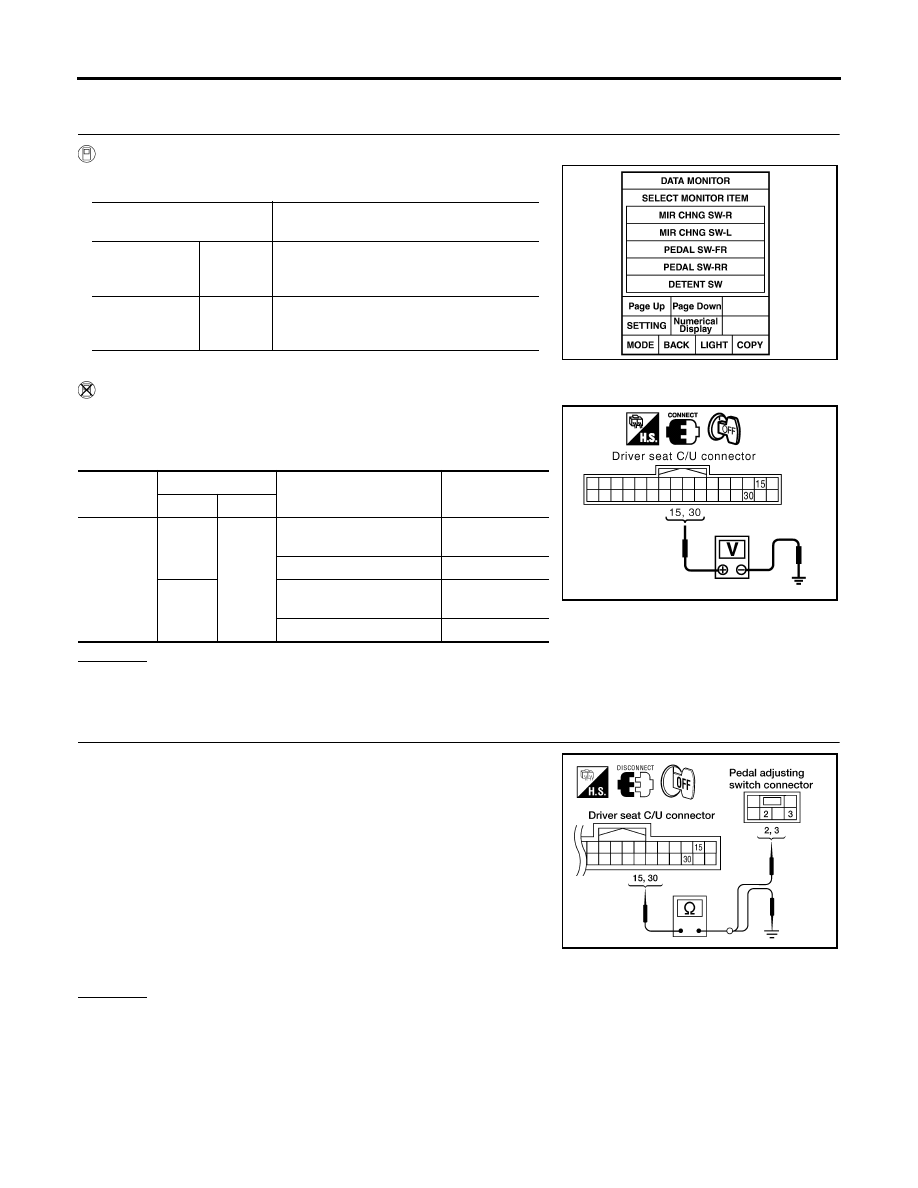

Pedal Adjusting Switch Circuit Inspection

EIS007VO

1.

CHECK FUNCTION

 With CONSULT-II

With “PEDAL SW-FR, PEDAL SW-RR” on the DATA MONITOR,
operate the pedal adjusting switch to check ON/OFF operation.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between driver seat control unit connector and
ground.

OK or NG

OK

>> Pedal adjusting switch circuit is OK.

NG

>> GO TO 2.

2.

CHECK PEDAL ADJUSTING SWITCH CIRCUIT HARNESS CONTINUITY

1.

Disconnect driver seat control unit and pedal adjusting switch.

2.

Check continuity between driver seat control unit connector P2
terminals 15, 30 and pedal adjusting switch connector M96 ter-
minals 2, 3.

3.

Check continuity between driver seat control unit connector P2
terminals 15, 30 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Monitor item [OPERATION or

UNIT]

Contents

PEDAL SW-FR

“ON/OFF”

Operation (ON)/open (OFF) status judged
from the pedal adjusting switch (FR) signal is
displayed.

PEDAL SW-RR

“ON/OFF”

Operation (ON)/open (OFF) status judged
from the pedal adjusting switch (RR) signal is
displayed.

PIIA4590E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

P2

15

Ground

Pedal adjusting switch ON
(BACKWARD operation)

0

Other than above

Battery voltage

30

Pedal adjusting switch ON
(FORWARD operation)

0

Other than above

Battery voltage

PIIA4591E

15 - 2

: Continuity should exist.

30 - 3

: Continuity should exist.

15 - Ground

: Continuity should not exist.

30 - Ground

: Continuity should not exist.

LIIA0726E















Content      ..     375      376      377      378     ..
