Nissan Pathfinder (2007 year). Manual - part 374

AUTOMATIC DRIVE POSITIONER

SE-31

2007 Pathfinder

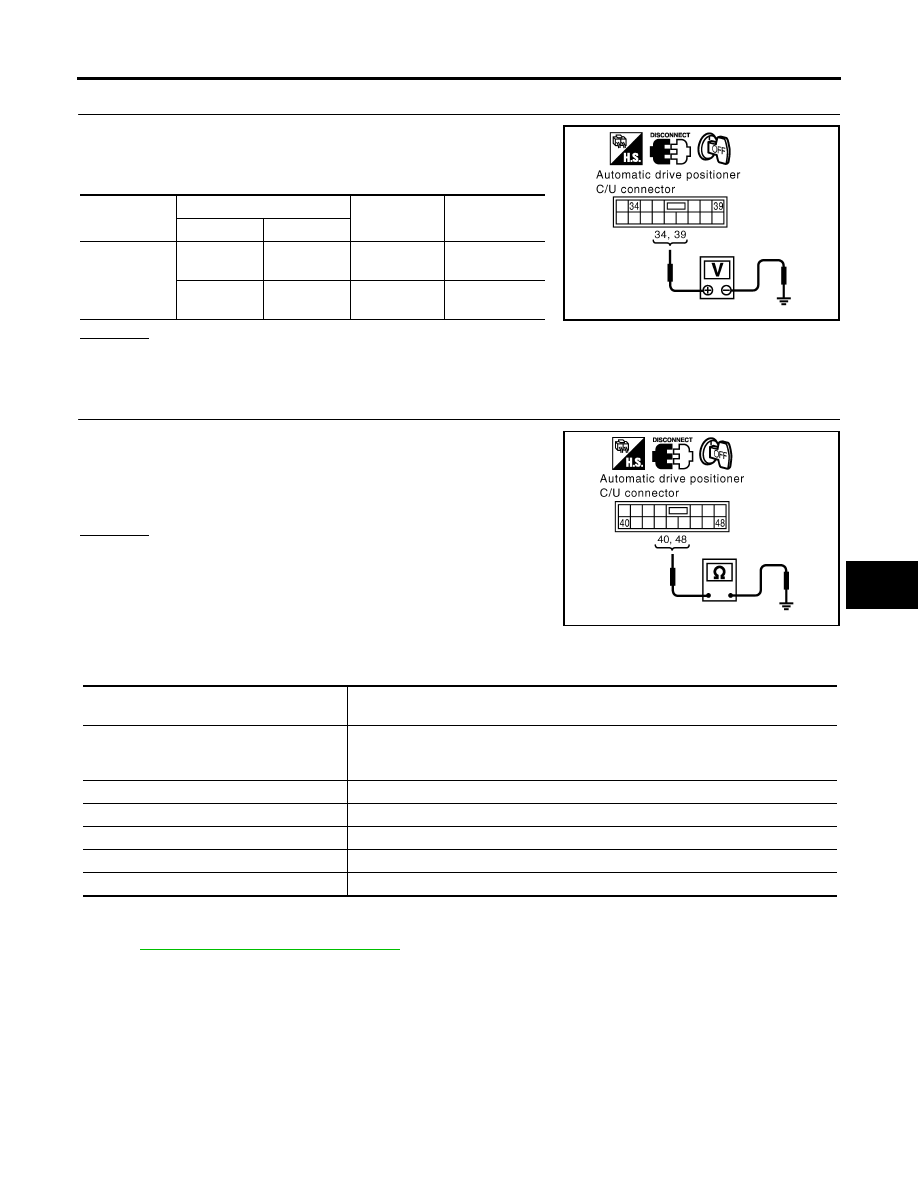

CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT POWER SUPPLY CIRCUIT

Disconnect automatic drive positioner control unit.

Check voltage between automatic drive positioner control unit
connector M34 terminal 34, 39 and ground.

OK or NG

>> GO TO 6.

>> Repair or replace harness.

CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT GROUND CIRCUIT

Check continuity between the automatic drive positioner control unit
connector M34 terminal 40, 48 and ground.

OK or NG

>> Automatic drive positioner control unit circuit is OK.

>> Repair or replace harness.

CONSULT-II Function (AUTO DRIVE POS.)

EIS007V2

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II START PROCEDURE

Refer to

GI-38, "CONSULT-II Start Procedure"

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M34

Ground

Ignition switch

OFF

Battery voltage

Ground

Ignition switch

OFF

Battery voltage

PIIA4543E

40 - Ground

: Continuity should exist.

48 - Ground

: Continuity should exist.

PIIA4544E

AUTO DRIVE POS.

diagnostic mode

Description

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the driver seat
control unit for setting the status suitable for required operation, input/output signals
are received from the driver seat control unit and received data is displayed.

SELF-DIAG RESULTS

Displays driver seat control unit self-diagnosis results.

DATA MONITOR

Displays driver seat control unit input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

ECU PART NUMBER

Driver seat control unit part number can be read.

SE-32

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

SELF-DIAGNOSIS RESULTS

DISPLAY ITEM LIST

NOTE:

●

If park position switch error is detected, manual adjustable pedal operation cannot be performed when
ignition switch turns ON.

●

The displays of CAN communication and park position switch display error detecting condition from mem-
ory erase to the present on “TIME”.

–

If error is detected in the past and present error is detected, “CRNT” is displayed.

–

If error is detected in the past and present error is not detected, “PAST” is displayed.

–

If error has never been detected, nothing is displayed on “TIME”.

●

Any items other than CAN communication and park position switch count error detection frequency
occurred after erase history to “1-127”.

–

If error was detected in the past, error detection frequency from memory erase to the present is displayed
on “TIME”.

–

If error has never been detected, nothing is displayed on “TIME”.

–

Can clear the detected memory.
Normal: Clear memory in normal condition, history is erased and nothing is displayed on “TIME”.
Error: Clear memory in error condition, error is detected again and “1” is displayed on “TIME”.

DATA MONITOR

CAN DIAGNOSIS SUPPORT MONITOR

CONSULT-II display

Item

Malfunction is detected when...

Reference

page

CAN COMM CIRC
[U1000]

CAN communication

Malfunction is detected in CAN communication.

SE-34

SEAT SLIDE
[B2112]

Seat slide motor

When any manual and automatic operations are not performed, if
any motor operations of seat slide is detected for 0.1 second or
more, status is judged “Output error”.

SE-36

SE-46

SEAT RECLINING
[B2113]

Seat reclining motor

When any manual and automatic operations are not performed, if
any motor operations of seat reclining is detected for 0.1 second or
more, status is judged “Output error”.

SE-37

SE-47

SEAT LIFTER FR
[B2114]

Seat lifting FOR-
WARD motor

When any manual and automatic operations are not performed, if
any motor operations of seat lifting FORWARD is detected for 0.1
second or more, status is judged “Output error”.

SE-38

SE-48

SEAT LIFTER RR
[B2115]

Seat lifting BACK-
WARD motor

When any manual and automatic operations are not performed, if
any motor operations of seat lifting BACKWARD is detected for 0.1
second or more, status is judged “Output error”.

SE-40

SE-49

ADJ PEDAL
MOTOR
[B2117]

Pedal adjust motor

When any manual and automatic operations are not performed, if
motor operation of pedal is detected for 0.1 second or more, status is
judged “Output error”.

SE-41

SE-50

ADJ PEDAL SEN-
SOR
[B2120]

Pedal adjust sensor

When pedal adjust sensor detects 0.5V or lower, or 4.5V or higher,
for 0.5 seconds or more.

SE-50

DETENT SW
[B2126]

Park SW

With the A/T selector lever in P position (park position switch OFF), if
the vehicle speed of 7 km/h (4 MPH) or higher was input the park
position switch input system is judged malfunctioning.

SE-71

UART COMM
[B2128]

UART communica-
tion

Malfunction is detected in UART communication.

SE-74

Monitor item [UNIT]

Contents

INITIAL DIAG

[OK/NG]

When CAN communication circuit is malfunctioning, it displays “NG”.

TRANSMIT DIAG

[OK/UNKWN]

Displays [OK/UNKWN] condition of the CAN communication judged by each sig-
nal input.

BCM

[OK/UNKWN]

METER/M&A

[OK/UNKWN]

ECM

[OK/UNKWN]

AUTOMATIC DRIVE POSITIONER

SE-33

2007 Pathfinder

SELECTIOM FROM MEMU

Monitor item [OPERATION or UNIT]

Contents

SLIDE SW–FR

“ON/OFF”

ON/OFF status judged from the sliding switch (FR) signal is displayed.

SLIDE SW–RR

“ON/OFF”

ON/OFF status judged from the sliding switch (RR) signal is displayed.

RECLN SW–FR

“ON/OFF”

ON/OFF status judged from the reclining switch (FR) signal is displayed.

RECLN SW–RR

“ON/OFF”

ON/OFF status judged from the reclining switch (RR) signal is displayed.

LIFT FR SW–UP

“ON/OFF”

ON/OFF status judged from the FR lifter switch (UP) signal is displayed.

LIFT FR SW–DN

“ON/OFF”

ON/OFF status judged from the FR lifter switch (DOWN) signal is displayed.

LIFT RR SW–UP

“ON/OFF”

ON/OFF status judged from the RR lifter switch (UP) signal is displayed.

LIFT RR SW–DN

“ON/OFF”

ON/OFF status judged from the RR lifter switch (DOWN) signal is displayed.

MIR CON SW–UP

“ON/OFF”

ON/OFF status judged from the door mirror remote control switch (UP) signal is
displayed.

MIR CON SW–DN

“ON/OFF”

ON/OFF status judged from the door mirror remote control switch (DOWN) signal
is displayed.

MIR CON SW–RH

“ON/OFF”

ON/OFF status judged from the door mirror remote control switch (RIGHT) signal
is displayed.

MIR CON SW–LH

“ON/OFF”

ON/OFF status judged from the door mirror remote control switch (LEFT) signal is
displayed.

MIR CHNG SW–R

“ON/OFF”

ON/OFF status judged from the door mirror remote control switch (switching to
RIGHT) signal is displayed.

MIR CHNG SW–L

“ON/OFF”

ON/OFF status judged from the door mirror remote control switch (switching to
LEFT) signal is displayed.

SET SW

“ON/OFF”

ON/OFF status judged from the setting switch signal is displayed.

PEDAL SW-FR

“ON/OFF”

ON/OFF status judged from the pedal adjusting switch (FR) signal is displayed.

PEDAL SW-RR

“ON/OFF”

ON/OFF status judged from the pedal adjusting switch (RR) signal is displayed.

MEMORY SW1

“ON/OFF”

ON/OFF status judged from the seat memory switch 1 signal is displayed.

MEMORY SW2

“ON/OFF”

ON/OFF status judged from the seat memory switch 2 signal is displayed.

DETENT SW

“ON/OFF”

The A/T selector lever position “OFF (P position) / ON (other than P position)”
judged from the park position switch signal is displayed.

STARTER SW

“ON/OFF”

Ignition switch ON (START, ON) /OFF (ignition switch IGN, ACC, or OFF) status
judged from the ignition switch signal is displayed.

SLIDE PULSE

—

Value (32768) when battery connects is as standard. If it moves backward, the
value increases. If it moves forward, the value decreases.

RECLN PULSE

—

Value (32768) when battery connects is as standard. If it moves backward, the
value increases. If it moves forward, the value decreases.

LIFT FR PULSE

—

Value (32768) when battery connects is as standard. If it moves DOWN, the value
increases. If it moves UP, the value decreases.

LIFT RR PULSE

—

Value (32768) when battery connects is as standard. If it moves DOWN, the value
increases. If it moves UP, the value decreases.

MIR/SEN RH R–L

“V”

Voltage output from RH door mirror sensor (LH/RH) is displayed.

MIR/SEN RH U–D

“V”

Voltage output from RH door mirror sensor (UP/DOWN) is displayed.

MIR/SEN LH R–L

“V”

Voltage output from LH door mirror sensor (LH/RH) is displayed.

MIR/SEN LH U–D

“V”

Voltage output from LH door mirror sensor (UP/DOWN) is displayed.

PEDAL SEN

“V”

The pedal position (voltage) judged from the pedal adjust sensor signal is dis-
played.

SE-34

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

ACTIVE TEST

CAUTION:

During vehicle driving, do not perform active test.

NOTE:
If active test is performed, reset automatic drive positioner seat memory after performing work.
DISPLAY ITEM LIST

CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)

EIS007V3

SELF-DIAGNOSTIC RESULT CHECK

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

Connect to CONSULT-II, and select “AUTO DRIVE POS.” on the “SELECT DIAG SYSTEM” screen.

Select “SELF-DIAG RESULTS” on "SELECT DIAG MODE" screen.

Check display content in self-diagnostic results.

Contents displayed

No malfunction>>Inspection End.
Malfunction in CAN communication system>>After printing the monitor items, go to “CAN System”. Refer to

LAN-3, "Precautions When Using CONSULT-II"

Symptom Chart

EIS007V4

Test item

Description

SEAT SLIDE

The sliding motor is activated by receiving the drive signal.

SEAT RECLINING

The reclining motor is activated by receiving the drive signal.

SEAT LIFTER FR

The lifting motor (front) is activated by receiving the drive signal.

SEAT LIFTER RR

The lifting motor (rear) is activated by receiving the drive signal.

PEDAL MOTOR

The pedal adjust motor is activated by receiving the drive signal.

MEMORY SW INDCTR

The memory switch indicator is lit by receiving the drive signal.

MIRROR MOTOR RH

The RH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive
signal.

MIRROR MOTOR LH

The LH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive
signal.

CONSULT-II display code

Diagnosis item

U1000

INITIAL DIAG

TRANSMIT DIAG

ECM

IPDM E/R

METER/M&A

I-KEY

Symptom

Diagnoses/service procedure

Refer to

page

Only setting change function cannot be set with display.

1. Preliminary check

SE-29

2. CAN communication inspection using CONSULT-II (self-
diagnosis)

SE-34

3. If the above systems are normal, check display system

AV-78

AUTOMATIC DRIVE POSITIONER

SE-35

2007 Pathfinder

A part of seat system does not operate (both automati-
cally and manually).

1. Sliding motor circuit inspection

SE-36

2. Reclining motor circuit inspection

SE-37

3. Lifting motor (front) circuit inspection

SE-38

4. Lifting motor (rear) circuit inspection

SE-40

5. If the above systems are normal, replace the driver seat
control unit.

SE-11

A part of pedal adjust and door mirror does not operate
(both automatically and manually).

1. Pedal adjusting motor circuit inspection

SE-41

2. Mirror motor LH circuit check

SE-42

3. Mirror motor RH circuit check

SE-44

4. If the above systems are normal, replace the automatic
drive positioner control unit.

SE-11

A part of seat system does not operate (only automatic
operation).

1. Sliding sensor circuit inspection

SE-46

2. Reclining sensor circuit inspection

SE-47

3. Lifting sensor (front) circuit inspection

SE-48

4. Lifting sensor (rear) circuit inspection

SE-49

5. If the above systems are normal, replace the driver seat
control unit.

SE-11

A part of door mirror system does not operate (only
automatic operation).

1. Mirror sensor LH circuit check

SE-51

2. Mirror sensor RH circuit check

SE-53

3. If the above systems are normal, replace the automatic
drive positioner control unit.

SE-11

All of the automatic operations do not operate.

1. A/T device (park position switch) circuit inspection

SE-71

2. UART communication line circuit inspection

SE-74

3. Pedal adjusting sensor circuit inspection

SE-50

4. If all the above systems are normal, replace the auto-
matic drive positioner control unit.

SE-11

A part of seat system does not operate (only manual
operation).

1. Sliding switch circuit inspection

SE-55

2. Reclining switch circuit inspection

SE-57

3. Lifting switch (front) circuit inspection

SE-58

4. Lifting switch (rear) circuit inspection

SE-60

5. If the above systems are normal, replace the driver seat
control unit.

SE-11

A part of door mirror does not operate (only manual
operation).

1. Door mirror remote control switch (changeover switch)
circuit inspection

SE-64

2. Door mirror remote control switch (mirror switch) switch-
ing circuit inspection

SE-65

3. If the above systems are normal, replace the automatic
drive positioner control unit.

SE-11

Pedal adjust does not operate.

1. Pedal adjusting switch circuit inspection

SE-62

2. If the above systems are normal, replace the automatic
drive positioner control unit.

SE-11

Automatic drive positioner system does not operate
(only memory switch operation).

1. Seat memory switch circuit inspection

SE-67

2. If the above systems are normal, replace the automatic
drive positioner control unit.

SE-11

Seat memory indicator lamps 1 and 2 do not illuminate.

1. Seat memory indicator lamp circuit inspection

SE-69

2. If all the above systems are normal, replace the auto-
matic drive positioner control unit.

SE-11

Symptom

Diagnoses/service procedure

Refer to

page

SE-36

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

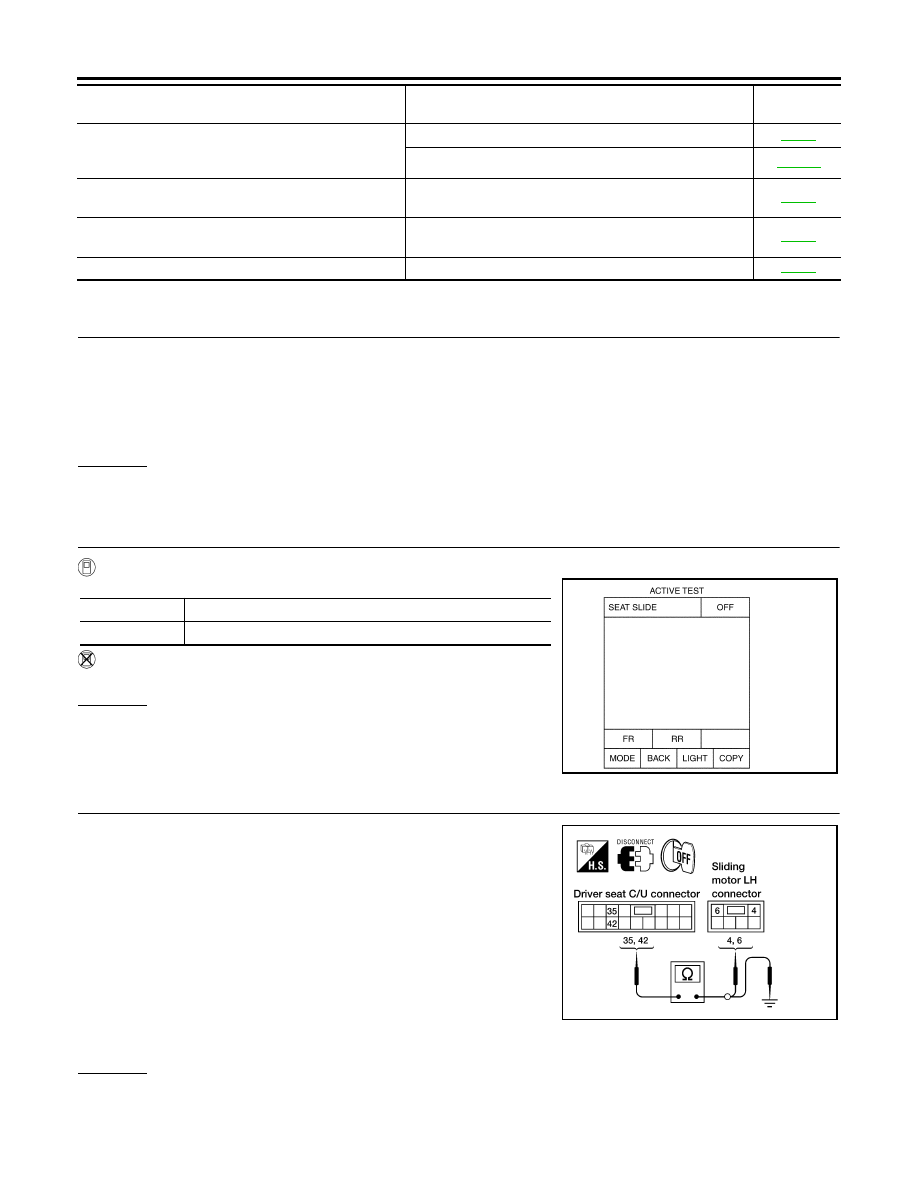

Sliding Motor Circuit Inspection

EIS007V5

CHECK SEAT SLIDING MECHANISM

Check the following.

●

Operation malfunction caused by sliding rail deformation, pinched harness or other foreign materials

●

Operation malfunction caused by foreign materials adhered to the sliding motor LH or sliding rail connec-
tor rod

●

Operation malfunction and interference with other parts by poor installation

OK or NG

>> GO TO 2.

>> Repair or replace the malfunctioning part and check again.

CHECK FUNCTION

With CONSULT-II

Check operation with “SEAT SLIDE” in ACTIVE TEST.

Without CONSULT-II

GO TO 3.

OK or NG

>> Sliding motor circuit is OK.

>> GO TO 3.

CHECK SLIDING MOTOR CIRCUIT HARNESS CONTINUITY

Turn ignition switch OFF.

Disconnect driver seat control unit and sliding motor LH.

Check continuity between driver seat control unit connector P3
terminals 35, 42 and sliding motor connector P4 terminals 4, 6.

Check continuity between driver seat control unit connector P3
terminals 35, 42 and ground.

OK or NG

>> GO TO 4.

>> Repair or replace harness.

The Entry/Exiting does not operate when door is opened
and closed.
(the Entry/Exiting operates with key switch)

1. Front door switch circuit inspection

SE-73

2. If all the above systems are normal, replace the BCM.

BCS-25

Door mirror system does not operate (only manual oper-
ation).

1. Door mirror remote control switch ground circuit inspec-
tion

SE-67

Door mirror system does not operate (only automatic
operation).

1. Door mirror sensor power supply and ground circuit
inspection

SE-70

Seat system does not operate (only manual operation).

1. Power seat switch ground circuit inspection

SE-61

Symptom

Diagnoses/service procedure

Refer to

page

Test item

Description

SEAT SLIDE

The sliding motor is activated by receiving the drive signal.

PIIA0265E

35 - 6

: Continuity should exist.

42 - 4

: Continuity should exist.

35 - Ground

: Continuity should not exist.

42 - Ground

: Continuity should not exist.

LIIA0696E

AUTOMATIC DRIVE POSITIONER

SE-37

2007 Pathfinder

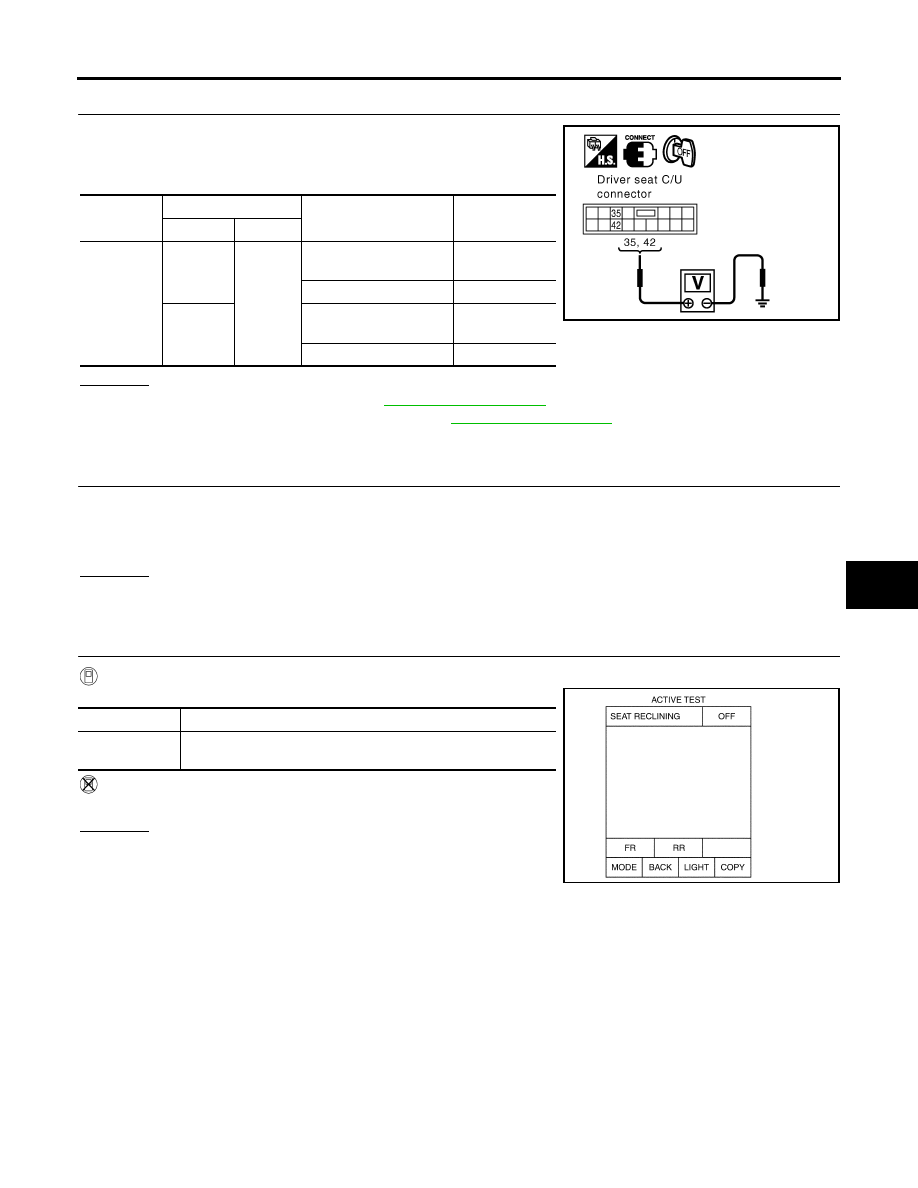

CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL

Connect the driver seat control unit and sliding motor LH.

Check voltage between driver seat control unit connector and
ground.

OK or NG

>> Replace sliding motor. Refer to

SE-84, "FRONT SEAT"

>> Replace driver seat control unit. Refer to

SE-84, "FRONT SEAT"

Reclining Motor LH Circuit Inspection

EIS007V6

CHECK SEAT RECLINING MECHANISM

Check the following.

●

Operation malfunction caused by an interference with the center pillar or center console

●

Operation malfunction and interference with other parts by poor installation

OK or NG

>> GO TO 2.

>> Repair or replace the malfunctioning part and check again.

CHECK FUNCTION

With CONSULT-II

Check operation with “SEAT RECLINING” in ACTIVE TEST.

Without CONSULT-II

GO TO 3.

OK or NG

>> Reclining motor LH circuit is OK.

>> GO TO 3.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Ground

Sliding switch ON
(FORWARD operation)

Battery voltage

Other than above

Sliding switch ON
(BACKWARD operation)

Battery voltage

Other than above

PIIA4801E

Test item

Description

SEAT
RECLINING

The reclining motor LH is activated by receiving the drive signal.

PIIA0268E

SE-38

AUTOMATIC DRIVE POSITIONER

2007 Pathfinder

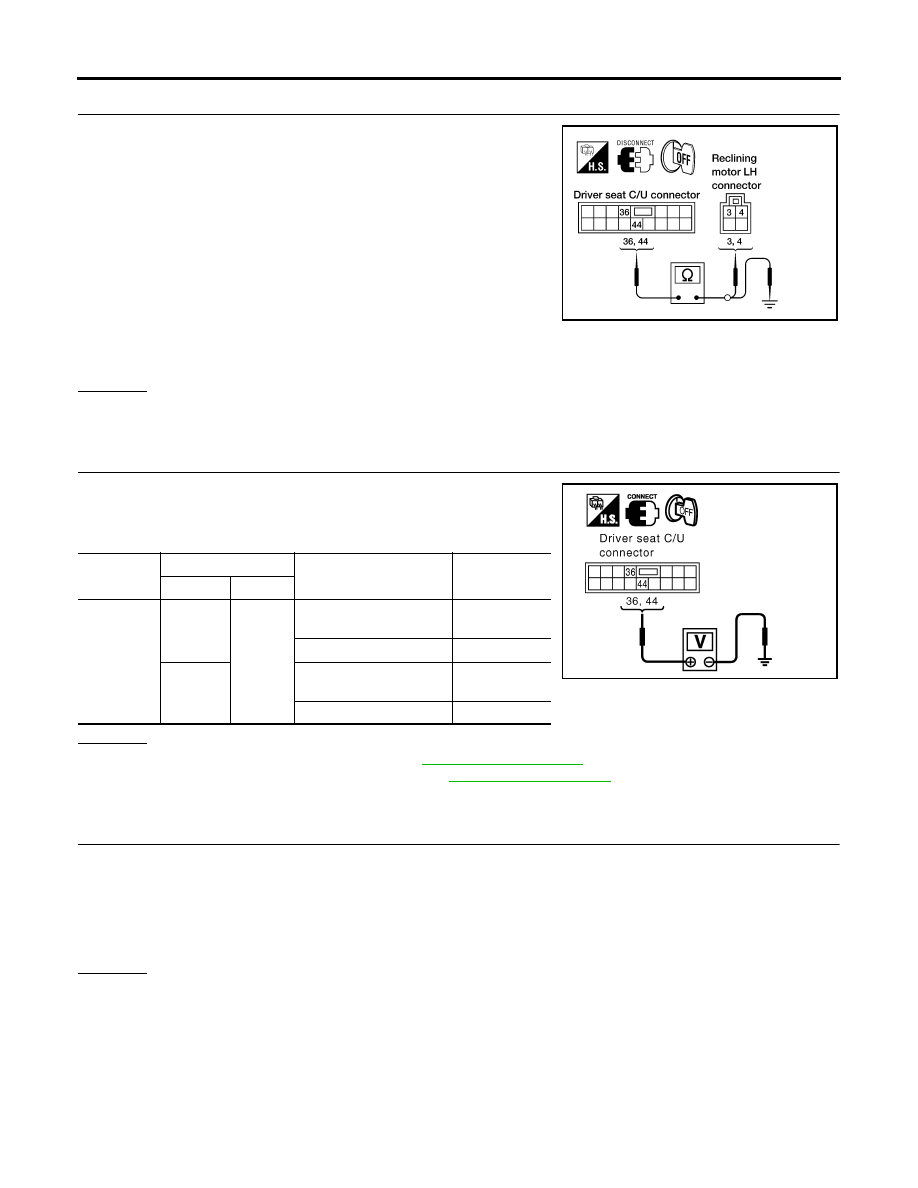

CHECK RECLINING MOTOR CIRCUIT HARNESS CONTINUITY

Turn ignition switch OFF.

Disconnect driver seat control unit and reclining motor LH.

Check continuity between driver seat control unit connector P3
terminals 36, 44 and reclining motor LH connector P5 terminals
3, 4.

Check continuity between driver seat control unit connector P3
terminals 36, 44 and ground.

OK or NG

>> GO TO 4.

>> Repair or replace harness.

CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL

Connect the driver seat control unit and reclining motor LH.

Check voltage between driver seat control unit connector and
ground.

OK or NG

>> Replace reclining motor LH. Refer to

SE-84, "FRONT SEAT"

>> Replace driver seat control unit. Refer to

SE-84, "FRONT SEAT"

Lifting Motor (Front) Circuit Inspection

EIS007V7

CHECK FRONT END SEAT LIFTING MECHANISM

Check the following.

●

Operation malfunction caused by lifter mechanism deformation, pinched harness or other foreign materi-
als

●

Operation malfunction caused by foreign materials adhered to the lifting motor (front) or lead screws

●

Operation malfunction and interference with other parts by installation

OK or NG

>> GO TO 2.

>> Repair or replace the malfunctioning part and check again.

36 - 4

: Continuity should exist.

44 - 3

: Continuity should exist.

36 - Ground

: Continuity should not exist.

44 - Ground

: Continuity should not exist.

LIIA0697E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Ground

Reclining switch ON
(FORWARD operation)

Battery voltage

Other than above

Reclining switch ON
(BACKWARD operation)

Battery voltage

Other than above

PIIA4802E

Content .. 372 373 374 375 ..
