Nissan Pathfinder (2007 year). Manual - part 310

INTERIOR ROOM LAMP

LT-121

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

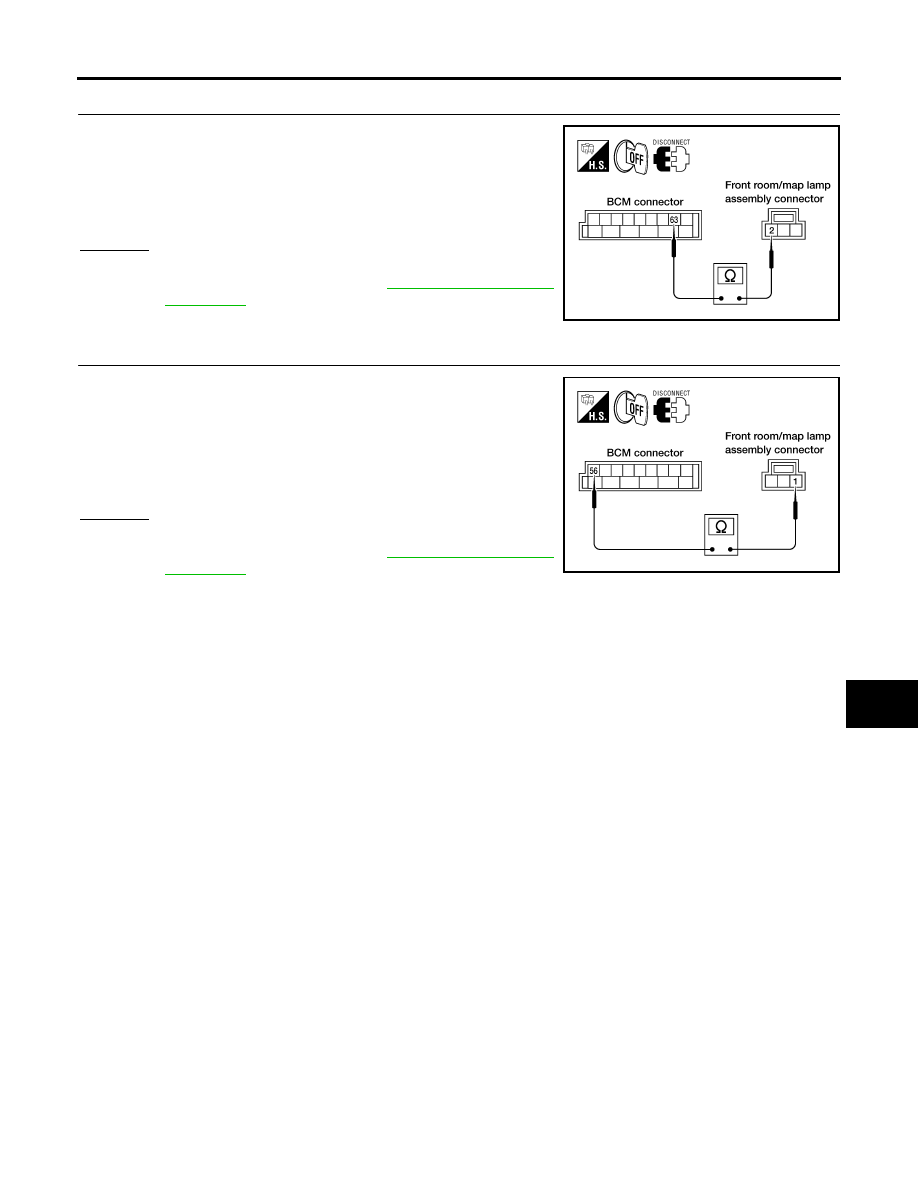

4.

CHECK INTERIOR ROOM LAMP CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector M20 terminal
63 and front room/map lamp assembly harness connector R9
terminal 2.

OK or NG

OK

>> Replace BCM if interior lamp does not work after setting

the connector again. Refer to

BCS-25, "Removal and

Installation"

 .

NG

>> Repair harness or connector.

5.

CHECK INTERIOR ROOM LAMP CIRCUIT

1.

Disconnect BCM connector and front room/map lamp assembly
connector.

2.

Check continuity between BCM harness connector M20 terminal
56 and front room/map lamp assembly harness connector R9
terminal 1.

OK or NG

OK

>> Replace BCM if interior lamp does not work after setting

the connector again. Refer to

BCS-25, "Removal and

Installation"

 .

NG

>> Repair harness or connector between BCM and room/

map lamp.

63 - 2

: Continuity should exist.

WKIA3324E

56 - 1

: Continuity should exist.

WKIA3325E

LT-122

INTERIOR ROOM LAMP

2007 Pathfinder

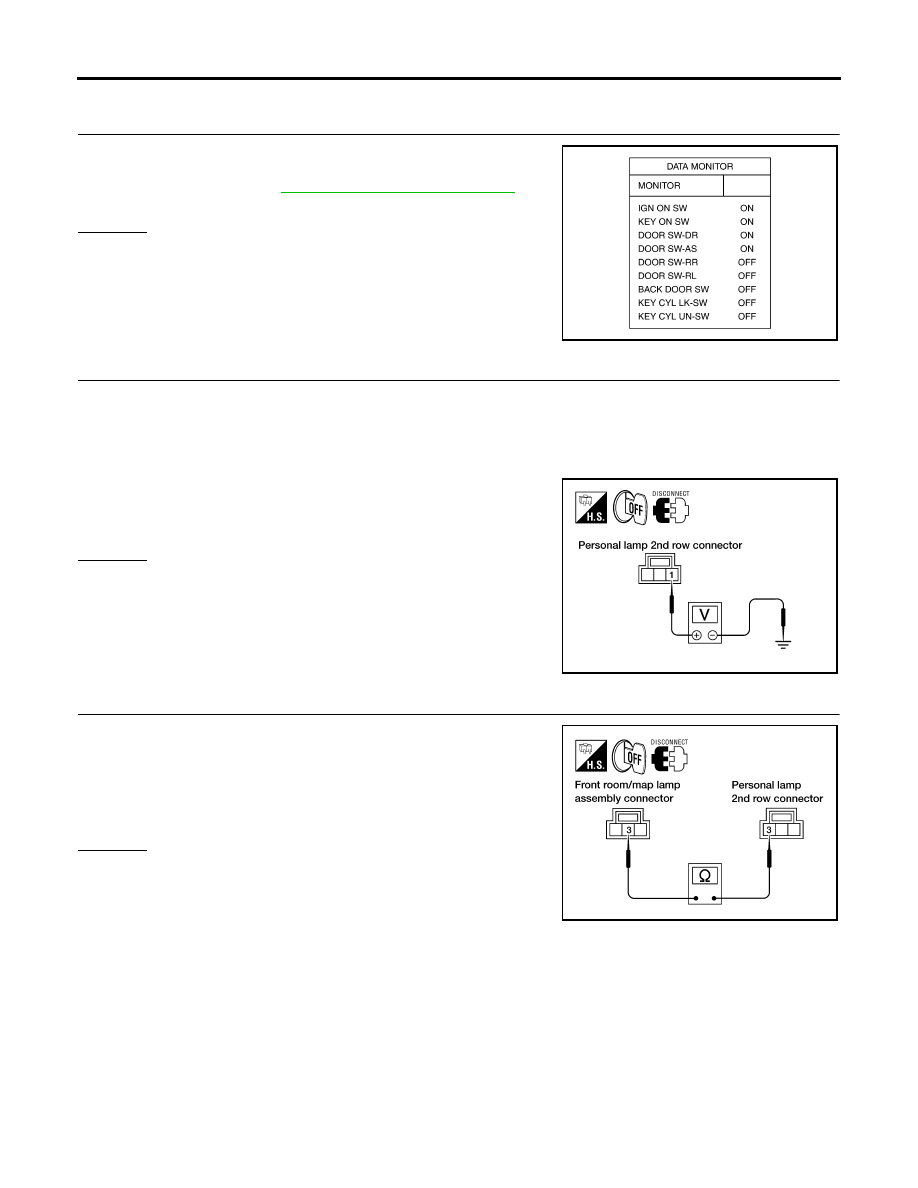

Personal Lamp Control Does Not Operate (Room/Map Lamps Operate)

EKS00FXH

1.

CHECK EACH DOOR SWITCH

Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to

LT-110, "SWITCH OPERATION"

  for

switches and their function.

OK or NG

OK

>> GO TO 2.

NG

>> Inspect malfunctioning door switch.

2.

CHECK PERSONAL LAMP OUTPUT

1.

Turn ignition switch OFF.

2.

Confirm lamp switch is in the DOOR position.

3.

Disconnect personal lamp 2nd row connector.

4.

Open any door.

5.

Check voltage between personal lamp 2nd row harness connec-
tor R10 terminal 1 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK PERSONAL LAMP CONTROL CIRCUIT

1.

Disconnect front room/map lamp assembly connector.

2.

Check continuity between front room/map lamp assembly har-
ness connector R9 terminal 3 and personal lamp 2nd row har-
ness connector R10 terminal 3.

OK or NG

OK

>> Replace personal lamp 2nd row.

NG

>> Repair harness or connector.

SKIA5930E

1 - Ground

: Battery voltage should exist.

WKIA3326E

3 - 3

: Continuity should exist.

WKIA3327E

INTERIOR ROOM LAMP

LT-123

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

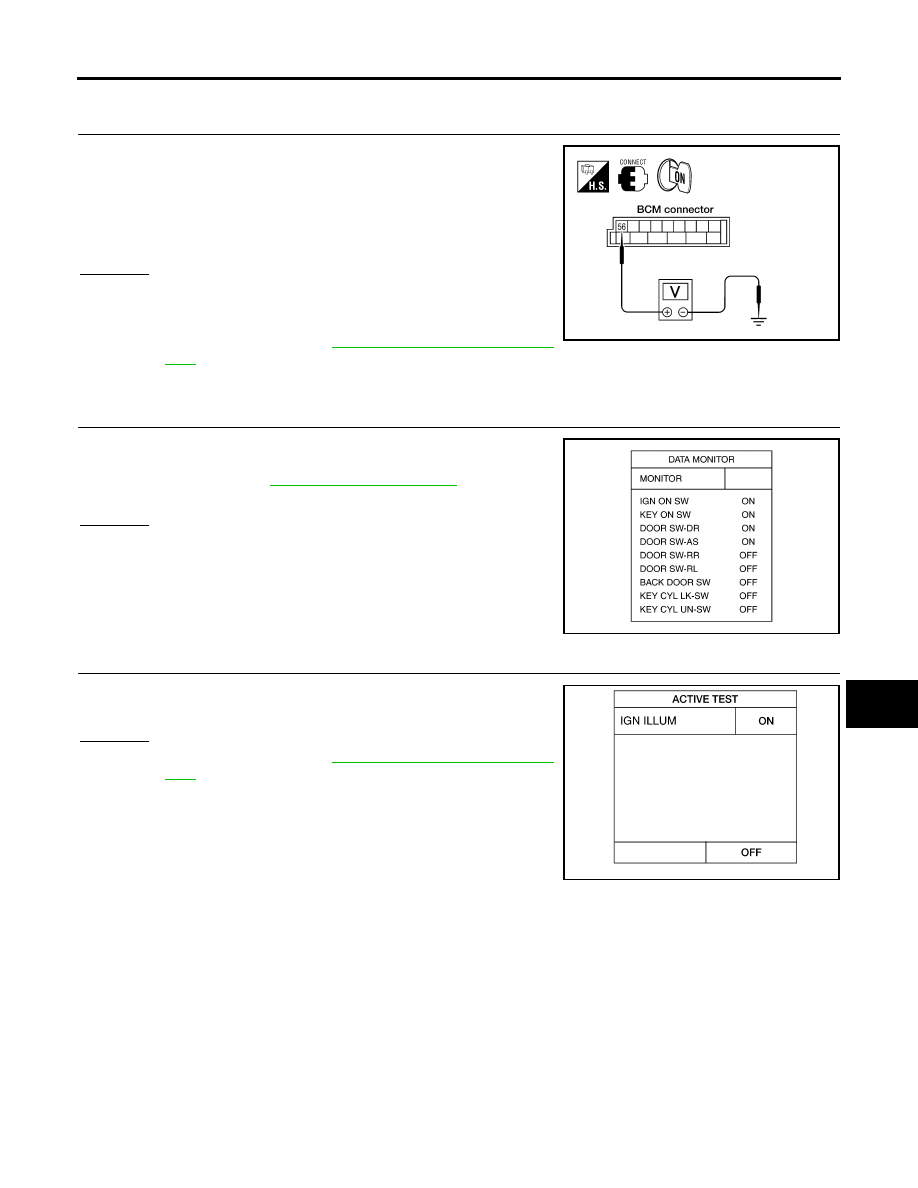

All Interior Room Lamps Do Not Operate

EKS00FXI

1.

CHECK POWER SUPPLY CIRCUIT

1.

All interior room lamp switches are OFF.

2.

Turn ignition switch ON.

3.

Check voltage between BCM harness connector M20 terminal
56 and ground.

OK or NG

OK

>> Repair harness or connector. To prevent making a short

circuit, be sure to disconnect battery negative cable
after repairing harness, and then reconnect.

NG

>> Replace BCM. Refer to

BCS-25, "Removal and Installa-

tion"

 .

Ignition Keyhole Illumination Control Does Not Operate

EKS00FXJ

1.

CHECK EACH SWITCH

Select “BCM” on CONSULT-II. With “INT LAMP” data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to

LT-119, "Display Item List"

  for switches

and their functions.

OK or NG

OK

>> GO TO 2.

NG

>> Inspect malfunctioning switch system.

2.

ACTIVE TEST

1.

Select “BCM” on CONSULT-II. Select “INT LAMP”.

2.

Select “IGN ILLUM” active test to make sure lamp operates.

OK or NG

OK

>> Replace BCM. Refer to

BCS-25, "Removal and Installa-

tion"

 .

NG

>> GO TO 3.

56 - Ground

: Battery voltage should exist.

WKIA1486E

SKIA5930E

SKIA3992E

LT-124

INTERIOR ROOM LAMP

2007 Pathfinder

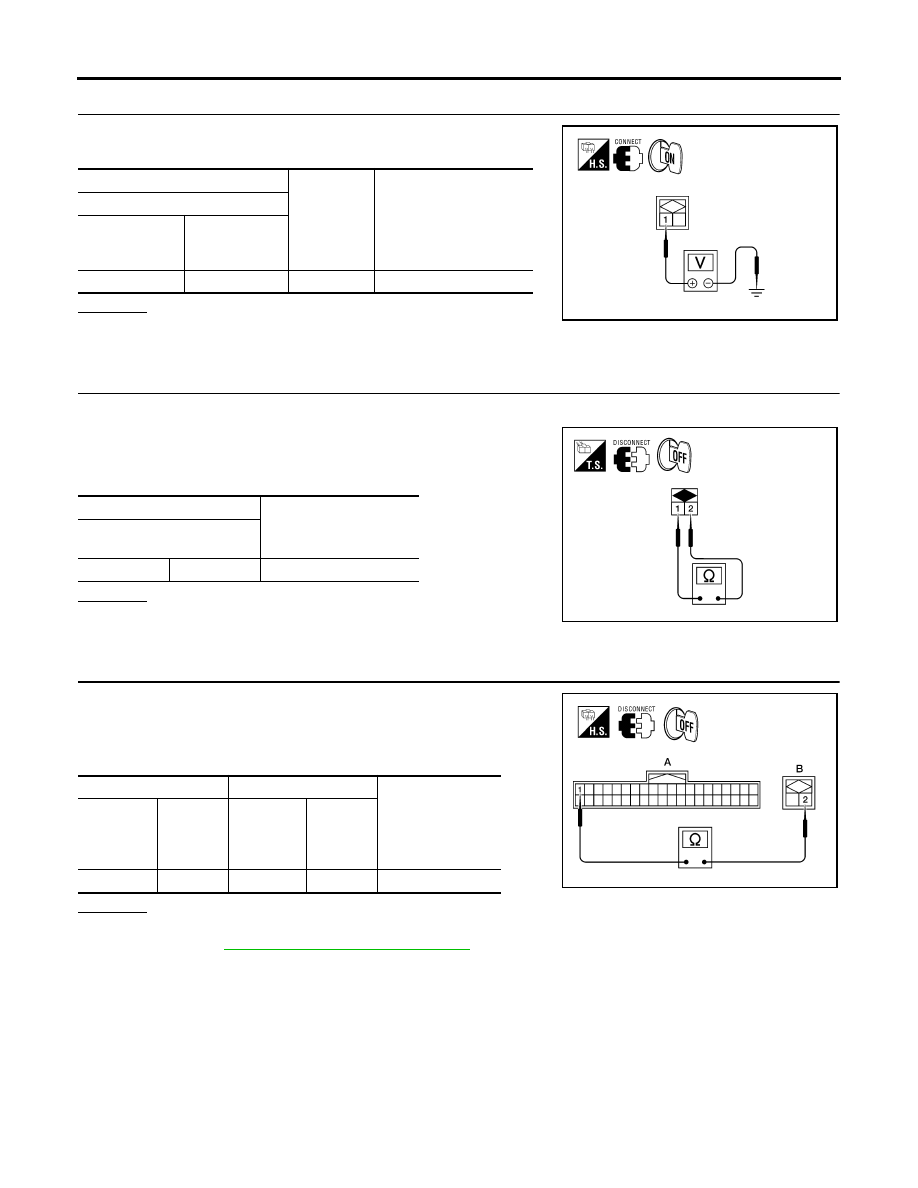

3.

CHECK IGNITION KEYHOLE ILLUMINATION POWER SUPPLY INPUT

1.

Check voltage between ignition keyhole illumination harness
connector M150 terminal 1 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 6.

4.

CHECK IGNITION KEYHOLE ILLUMINATION BULB

1.

Turn ignition switch OFF.

2.

Disconnect ignition keyhole illumination connector.

3.

Check continuity between ignition keyhole illumination terminals
1 and 2.

OK or NG

OK

>> GO TO 5.

NG

>> Replace ignition keyhole illumination bulb.

5.

CHECK IGNITION KEYHOLE ILLUMINATION CONTROL CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector M18 (A) ter-
minal 1 and ignition keyhole illumination harness connector
M150 (B) terminal 2.

OK or NG

OK

>> Replace BCM if ignition keyhole illumination does not work after setting the connector again.

Refer to

BCS-25, "Removal and Installation"

 .

NG

>> Repair harness or connector.

Terminals

(–)

Voltage

(Approx.)

(+)

Ignition keyhole

illumination

connector

Terminal

M150

1

Ground

Battery voltage

WKIA5801E

Terminals

Continuity

Ignition keyhole illumination

terminal

1

2

Yes

WKIA5802E

A

B

Continuity

BCM

connector

Terminal

Ignition

keyhole

illumination

connector

Terminal

M18

1

M150

2

Yes

WKIA5803E

INTERIOR ROOM LAMP

LT-125

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

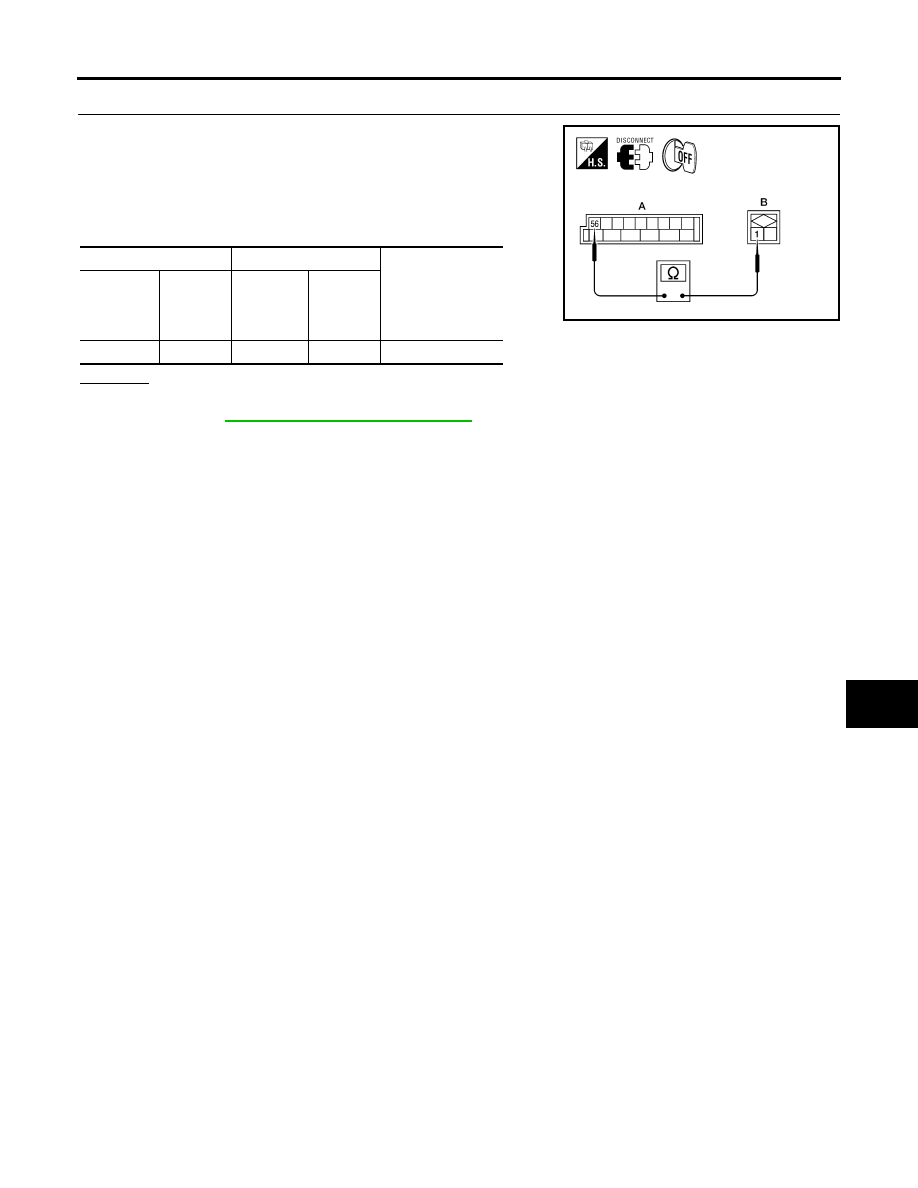

6.

CHECK IGNITION KEYHOLE ILLUMINATION POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and ignition keyhole illumination
connector.

3.

Check continuity between BCM harness connector M20 (A) ter-
minal 56 and ignition keyhole illumination harness connector
M150 (B) terminal 1.

OK or NG

OK

>> Replace BCM if ignition keyhole illumination does not work after setting the connector again.

Refer to

BCS-25, "Removal and Installation"

 .

NG

>> Repair harness or connector.

A

B

Continuity

BCM

connector

Terminal

Ignition

keyhole

illumination

connector

Terminal

M20

56

M150

1

Yes

WKIA5806E

LT-126

ILLUMINATION

2007 Pathfinder

ILLUMINATION

PFP:27545

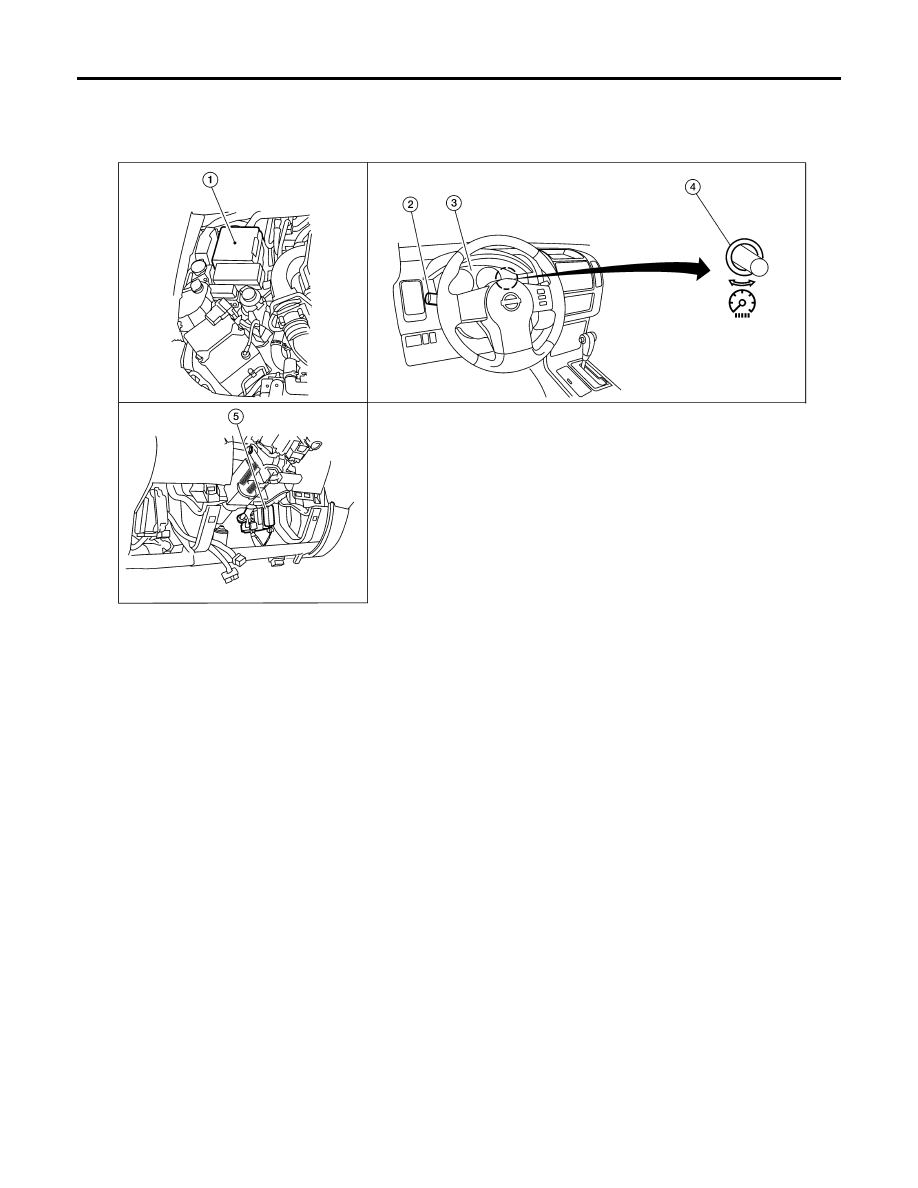

Component Parts and Harness Connector Location

EKS00FXK

System Description

EKS00FXL

Control of the illumination lamps operation is dependent upon the position of the lighting switch (combination
switch). When the lighting switch is placed in the 1ST or 2ND position (or if the auto light system is activated)
the BCM (body control module) receives input signal requesting the illumination lamps to illuminate. This input
signal is communicated to the IPDM E/R (intelligent power distribution module engine room) across the CAN
communication lines. The CPU (central processing unit) of the IPDM E/R controls the tail lamp relay coil. This
relay, when energized, directs power to the illumination lamps, which then illuminate.
Power is supplied at all times

●

to ignition relay, located in the IPDM E/R,

●

to tail lamp relay, located in the IPDM E/R,

●

through 50A fusible link (letter g , located in the fuse and fusible link box)

●

to BCM terminal 70,

●

through 20A fuse (No. 53, located in the IPDM E/R)

●

to CPU of the IPDM E/R, and

●

through 10A fuse [No.19, located in fuse block (J/B)]

●

to combination meter terminal 3.

With the ignition switch in the ON or START position, power is supplied

●

to ignition relay, located in the IPDM E/R, and

●

through 10A fuse [No. 1, located in the fuse block (J/B)]

WKIA4973E

1.

IPDM E/R
E118, E119, E120, E121, E122,
E123, E124

2.

Combination switch (lighting switch)
M28

3.

Combination meter
M24

4.

Illumination control switch
(built into combination meter)

5.

BCM
M18, M19, M20
(view with instrument lower panel LH removed)

ILLUMINATION

LT-127

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

●

to BCM terminal 38.

Ground is supplied

●

to BCM terminal 67 and

●

to combination meter terminals 13 and 23

●

through grounds M57, M61 and M79, and

●

to IPDM E/R terminals 38 and 59

●

through grounds E9, E15 and E24.

ILLUMINATION OPERATION BY LIGHTING SWITCH

With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The CPU of the IPDM E/R controls the tail lamp relay coil, which, when
energized, directs power

●

through 10A fuse (No. 37, located in the IPDM E/R)

●

through IPDM E/R terminal 57

●

to AV switch terminal 3 (with NAVI)

●

to hazard switch terminal 3

●

to audio unit terminal 8

●

to main power window and door lock/unlock switch terminal 16 (early production)

●

to power window and door lock/unlock switch RH terminal 5 (early production)

●

to glove box lamp terminal 1

●

to display control unit terminal 14 (with NAVI)

●

to 4WD shift switch terminal 7 (with 4-wheel drive)

●

to front air control terminal 8

●

to DVD player terminal 12 (with DVD entertainment system)

●

to NAVI control unit terminal 61 (with NAVI)

●

to rear air control terminal 1 (with auto A/C)

●

to pedal adjusting switch terminal 5 (with adjustable pedals)

●

to door mirror remote control switch terminal 16

●

to electric brake (pre-wiring) terminal 4 (with trailer tow 7 pin)

●

to A/T device terminal 3

●

to front heated seat switch LH and RH terminal 5 (with heated seats)

●

to VDC OFF switch terminal 3 and

●

to HDC switch terminal 5 (with hill descent control and hill start assist).

Illumination ground is controlled

●

through combination meter terminal 22

●

to AV switch terminal 4 (with NAVI)

●

to hazard switch terminal 4

●

to audio unit terminal 7

●

to main power window and door lock/unlock switch terminal 12 (early production)

●

to power window and door lock/unlock switch RH terminal 1 (early production)

●

to 4WD switch terminal 8 (with 4-wheel drive)

●

to front air control terminal 9

●

to DVD player terminal 10 (with DVD entertainment system)

●

to pedal adjusting switch terminal 6 (with adjustable pedals)

●

to door mirror remote control switch terminal 15

●

to A/T device terminal 5

●

to front heated seat switch LH and RH terminal 6 (with heated seats)

●

to VDC OFF switch terminal 4 and

●

to HDC switch terminal 6 (with hill descent control and hill start assist).

LT-128

ILLUMINATION

2007 Pathfinder

Ground is supplied

●

to glove box lamp terminal 2

●

to display control unit terminal 3 (with NAVI)

●

to electric brake (pre-wiring) terminal 1 (with trailer tow 7 pin) and

●

to rear air control terminal 3 (with auto A/C)

●

through grounds M57, M61 and M79, and

●

to NAVI control unit terminal 1 (with NAVI)

●

through grounds B117 and B132.

With power and ground supplied, illumination lamps illuminate.

EXTERIOR LAMP BATTERY SAVER CONTROL

When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, the illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.

CAN Communication System Description

EKS00FXM

Refer to

LAN-4, "CAN Communication System"

 .
