Nissan Pathfinder (2007 year). Manual - part 201





DTC P0643 SENSOR POWER SUPPLY

EC-475

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

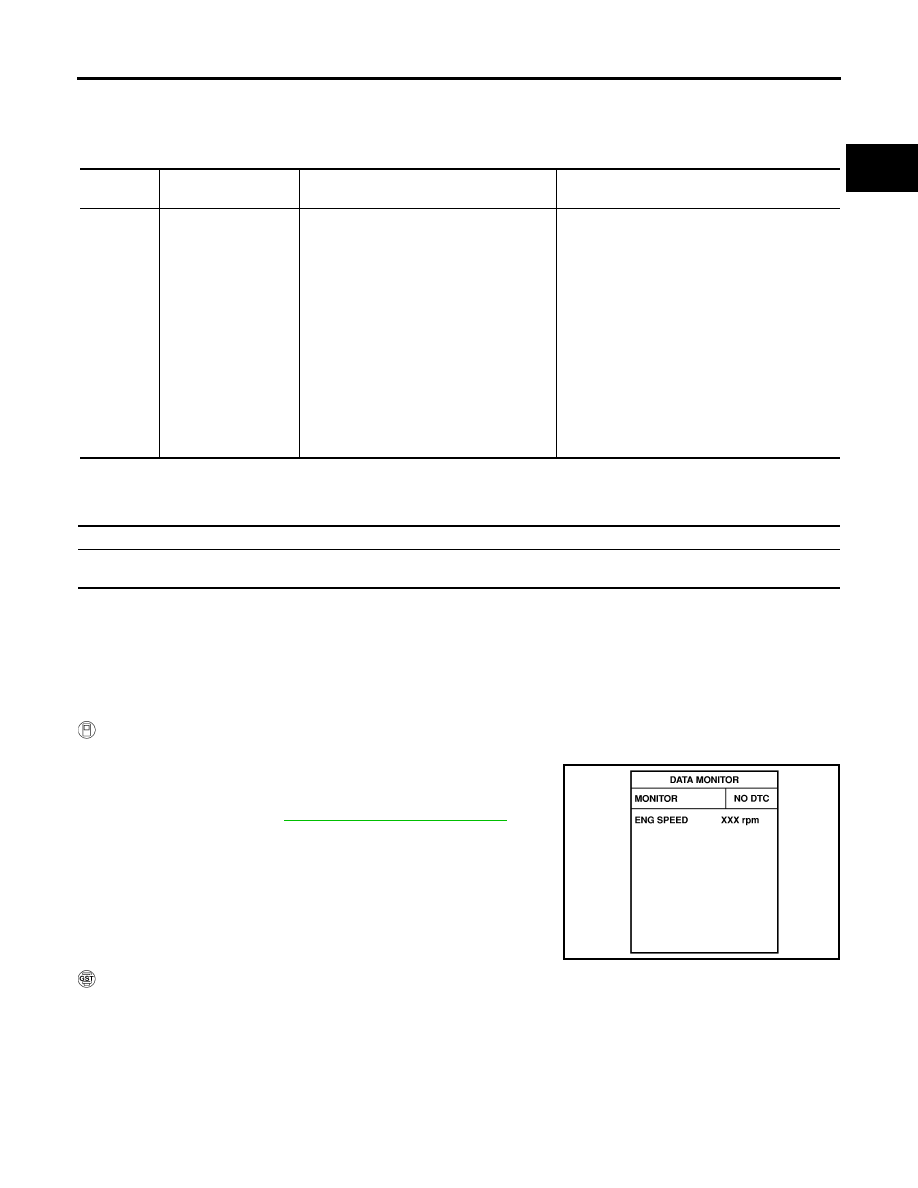

DTC P0643 SENSOR POWER SUPPLY

PFP:18919

On Board Diagnosis Logic

UBS00KDY

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

DTC Confirmation Procedure

UBS00KDZ

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-478, "Diagnostic Procedure"

  .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P0643
0643

Sensor power supply
circuit short

ECM detects a voltage of power source for
sensor is excessively low or high.

Harness or connectors
(APP sensor 1 circuit is shorted.)
(PSP sensor circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
(Battery current sensor circuit is shorted.)
(EVAP control system pressure sensor circuit
is shorted.)

Accelerator pedal position sensor
(APP sensor 1)

EVAP control system pressure sensor

Power steering pressure sensor

Refrigerant pressure sensor

Battery current sensor

Engine operation condition in fail-safe mode

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

SEF058Y

EC-476

DTC P0643 SENSOR POWER SUPPLY

2007 Pathfinder

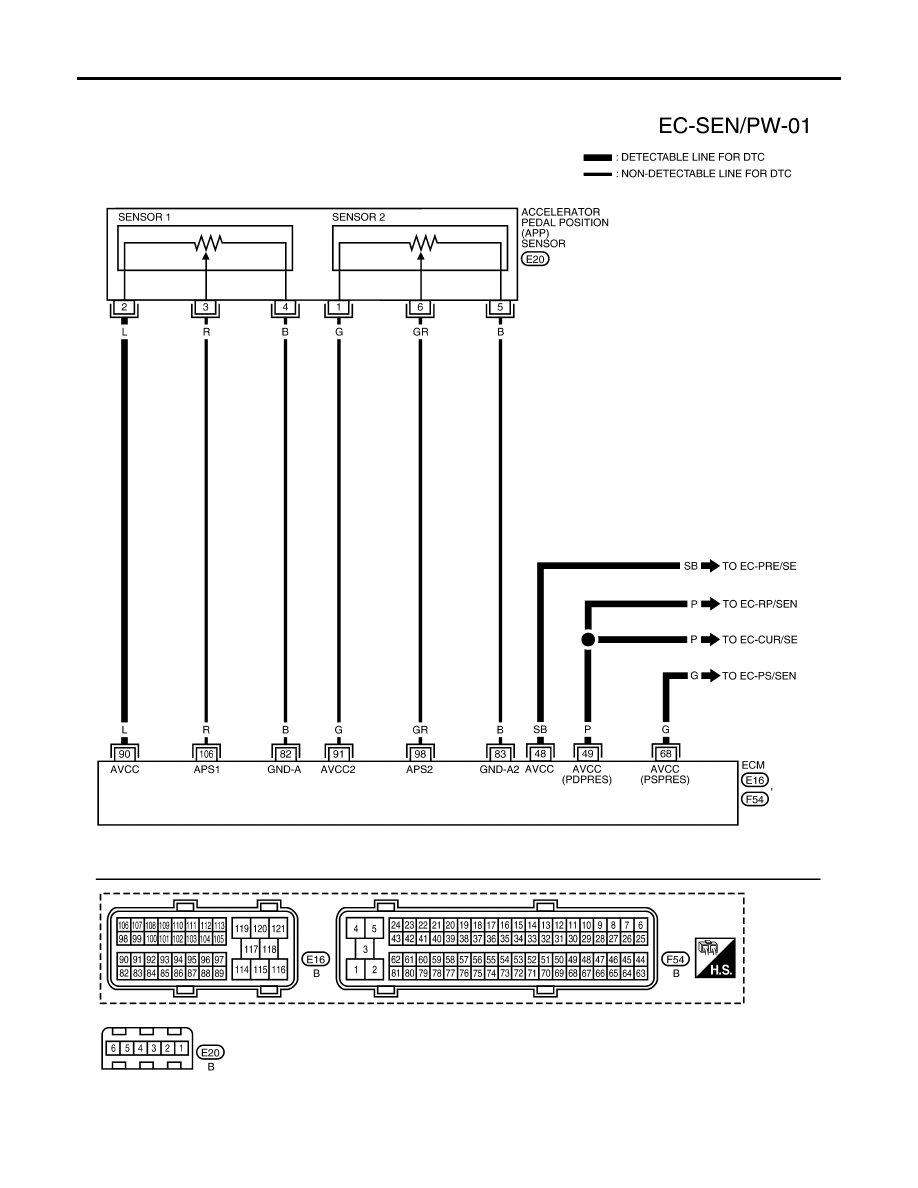

Wiring Diagram

UBS00KE0

BBWA1764E

DTC P0643 SENSOR POWER SUPPLY

EC-477

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

48

SB

Sensor power supply
(EVAP control system pres-
sure sensor)

[Ignition switch: ON]

Approximately 5V

49

P

Sensor power supply
(Refrigerant pressure sen-
sor/Battery current sensor)

[Ignition switch: ON]

Approximately 5V

68

G

Sensor power supply
(Power steering pressure
sensor)

[Ignition switch: ON]

Approximately 5V

82

B

Sensor ground
(APP sensor 1)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

83

B

Sensor ground
(APP sensor 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

90

L

Sensor power supply
(APP sensor 1)

[Ignition switch: ON]

Approximately 5V

91

G

Sensor power supply
(APP sensor 2)

[Ignition switch: ON]

Approximately 5V

98

GR

Accelerator pedal position
sensor 2

[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully released

0.28 - 0.48V

[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressed

More than 2.0V

106

R

Accelerator pedal position
sensor 1

[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully released

0.65 - 0.87V

[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressed

More than 4.3V

EC-478

DTC P0643 SENSOR POWER SUPPLY

2007 Pathfinder

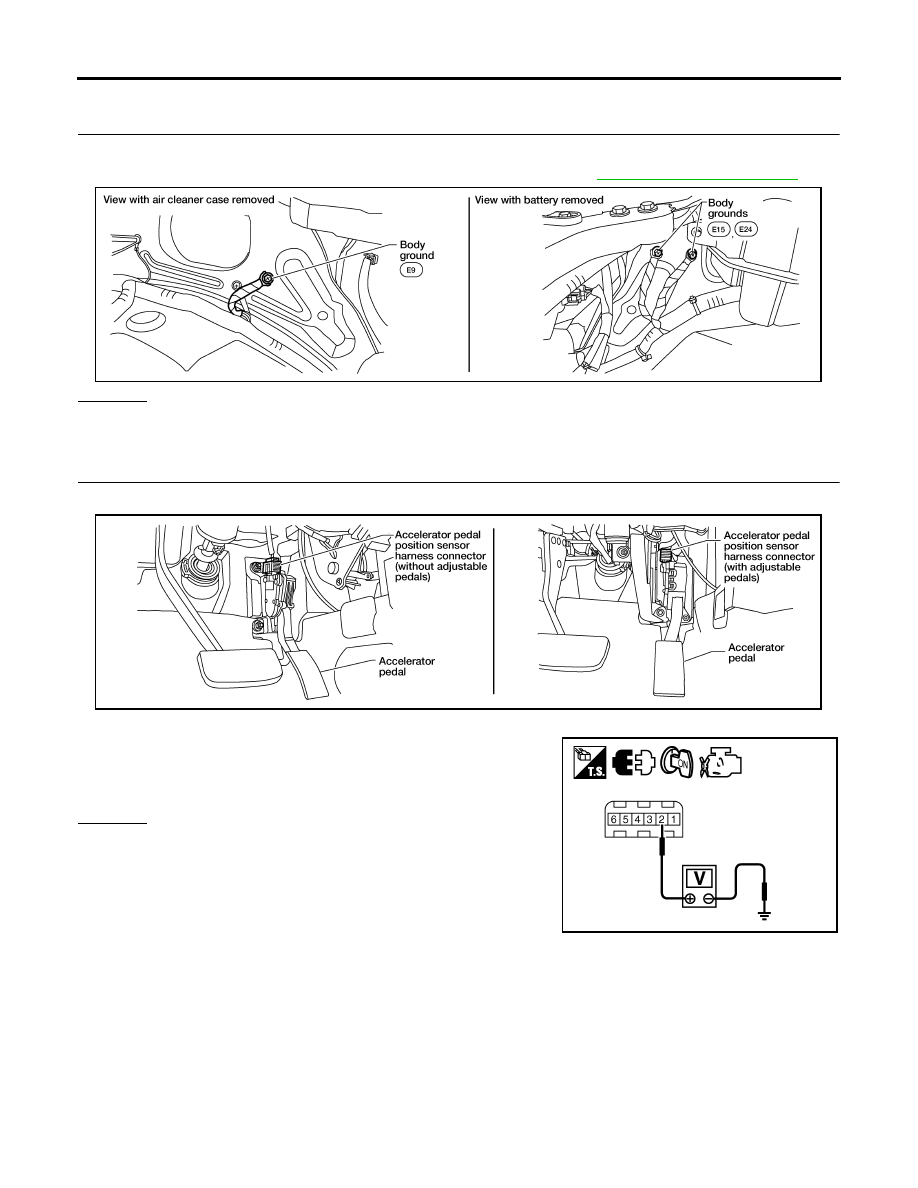

Diagnostic Procedure

UBS00KE1

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground three screws on the body. Refer to

EC-153, "Ground Inspection"

  .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position (APP) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between APP sensor terminal 2 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

BBIA0539E

Voltage: Approximately 5V

BBIA0556E

PBIB2608E

DTC P0643 SENSOR POWER SUPPLY

EC-479

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

3.

CHECK SENSOR POWER SUPPLY CIRCUITS

Check harness for short to power and short to ground, between the following terminals.

OK or NG

OK

>> GO TO 4.

NG

>> Repair short to ground or short to power in harness or connectors.

4.

CHECK COMPONENTS

Check the following.

EVAP control system pressure sensor (Refer to

EC-420, "Component Inspection"

  .)

Refrigerant pressure sensor (Refer to

ATC-18, "Components"

  .)

Battery current sensor (Refer to

EC-509, "Component Inspection"

  .)

Power steering pressure sensor (Refer to

EC-467, "Component Inspection"

  .)

OK or NG

OK

>> GO TO 5.

NG

>> Replace malfunctioning component.

5.

CHECK APP SENSOR

Refer to

EC-584, "Component Inspection"

  .

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1.

Replace accelerator pedal assembly.

2.

Perform

EC-77, "Accelerator Pedal Released Position Learning"

  .

3.

Perform

EC-77, "Throttle Valve Closed Position Learning"

  .

4.

Perform

EC-77, "Idle Air Volume Learning"

  .

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-145, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

  .

>> INSPECTION END

ECM terminal

Sensor terminal

Reference Wiring Diagram

48

EVAP control system pressure sensor terminal 3

EC-423

49

Refrigerant pressure sensor terminal 3

EC-657

Battery current sensor terminal 1

EC-506

68

PSP sensor terminal 3

EC-464

90

APP sensor terminal 2

EC-476

EC-480

DTC P0850 PNP SWITCH

2007 Pathfinder

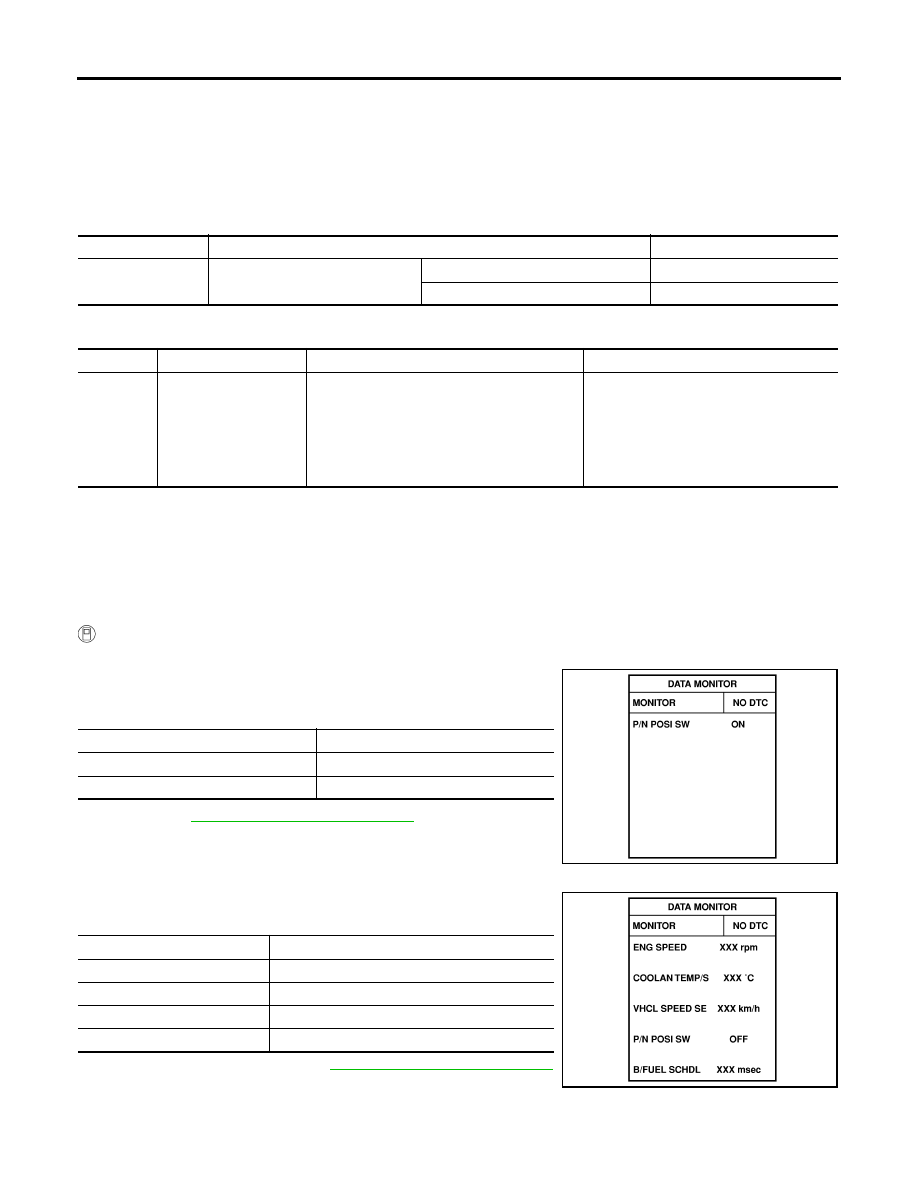

DTC P0850 PNP SWITCH

PFP:23006

Component Description

UBS00KGD

When the selector lever position is P or N, park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.

CONSULT-II Reference Value in Data Monitor Mode

UBS00KGE

Specification data are reference values.

On Board Diagnosis Logic

UBS00KGF

DTC Confirmation Procedure

UBS00KGG

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.

If NG, go to

EC-483, "Diagnostic Procedure"

  .

If OK, go to following step.

3.

Select “DATA MONITOR” mode with CONSULT-II.

4.

Start engine and warm it up to normal operating temperature.

5.

Maintain the following conditions for at least 60 consecutive sec-
onds.

6.

If 1st trip DTC is detected, go to

EC-483, "Diagnostic Procedure"

.

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

Ignition switch: ON

Shift lever: P or N

ON

Shift lever: Except above

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0850
0850

Park/neutral position
switch

The signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.

Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]

Park/neutral position (PNP) switch

Combination meter

TCM

Position (Selector lever)

Known-good signal

P or N position

ON

Except above position

OFF

ENG SPEED

1,400 - 6,375 rpm

COOLAN TEMP/S

More than 70

°

C (158

°

F)

B/FUEL SCHDL

2.0 - 31.8 msec

VHCL SPEED SE

More than 64 km/h (40 MPH)

Selector lever

Suitable position

SEF212Y

SEF213Y

DTC P0850 PNP SWITCH

EC-481

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

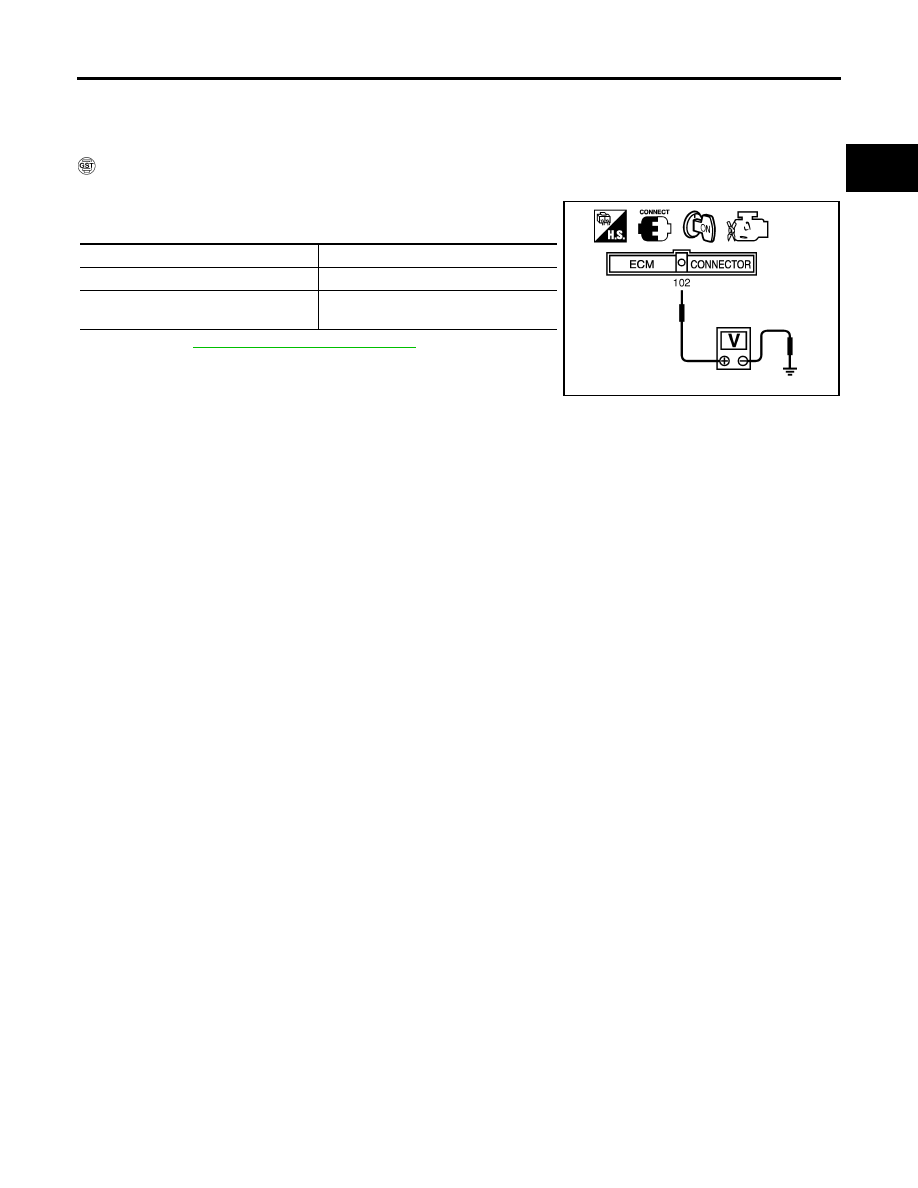

Overall Function Check

UBS00KGH

Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.

 WITH GST

1.

Turn ignition switch ON.

2.

Check voltage between ECM terminal 102 (PNP switch signal)
and ground under the following conditions.

3.

If NG, go to

EC-483, "Diagnostic Procedure"

  .

Condition (Gear position)

Voltage V (Known-good data)

P or N position

Approx. 0

Except above position

BATTERY VOLTAGE

(11 - 14V)

MBIB0043E

EC-482

DTC P0850 PNP SWITCH

2007 Pathfinder

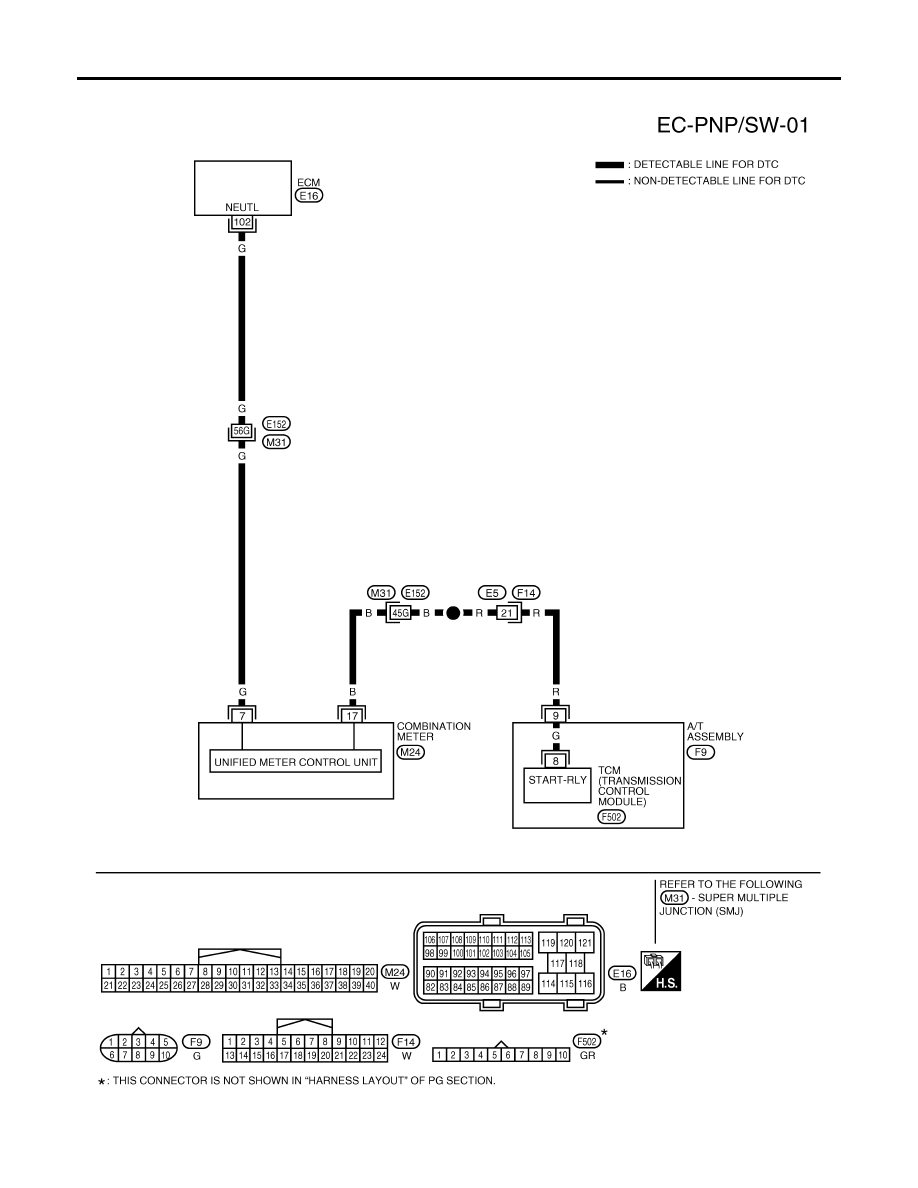

Wiring Diagram

UBS00KGI

BBWA2374E
