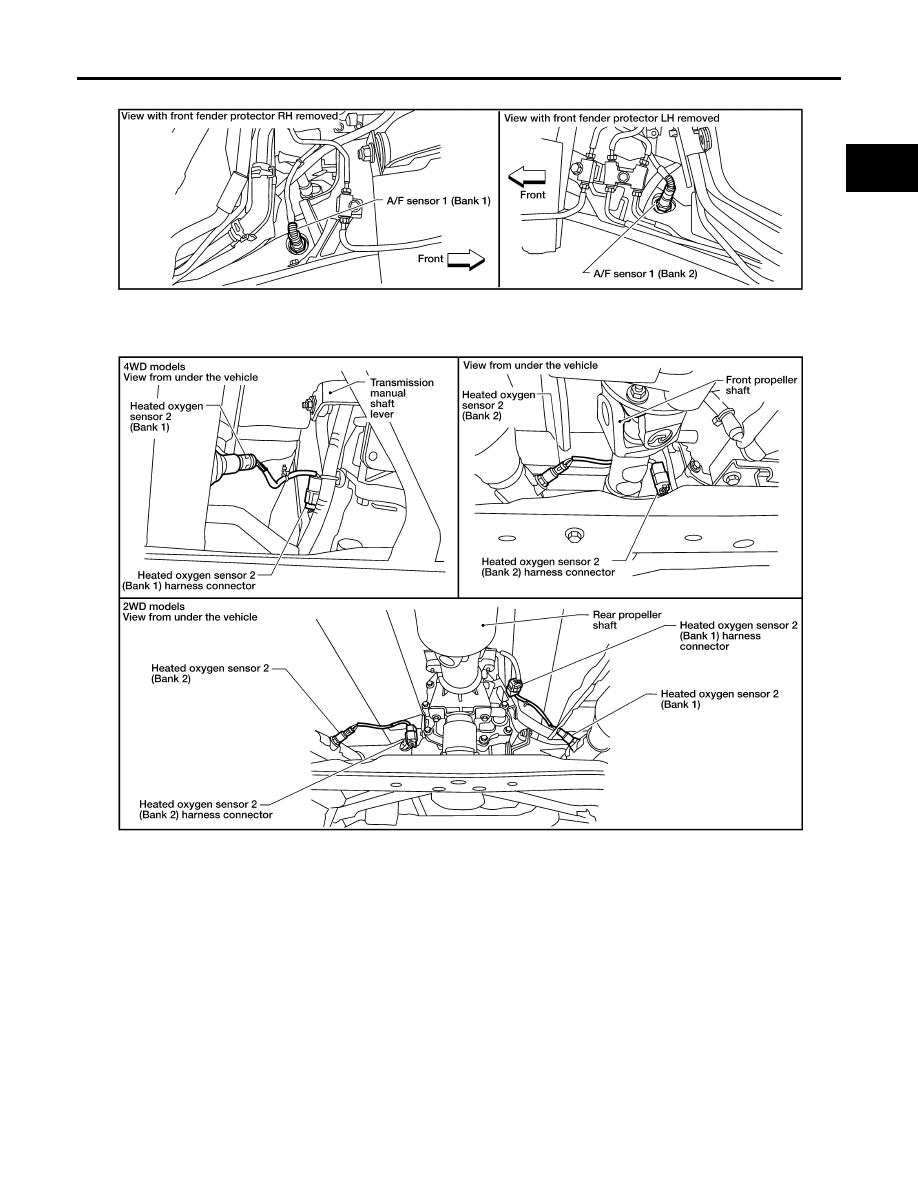

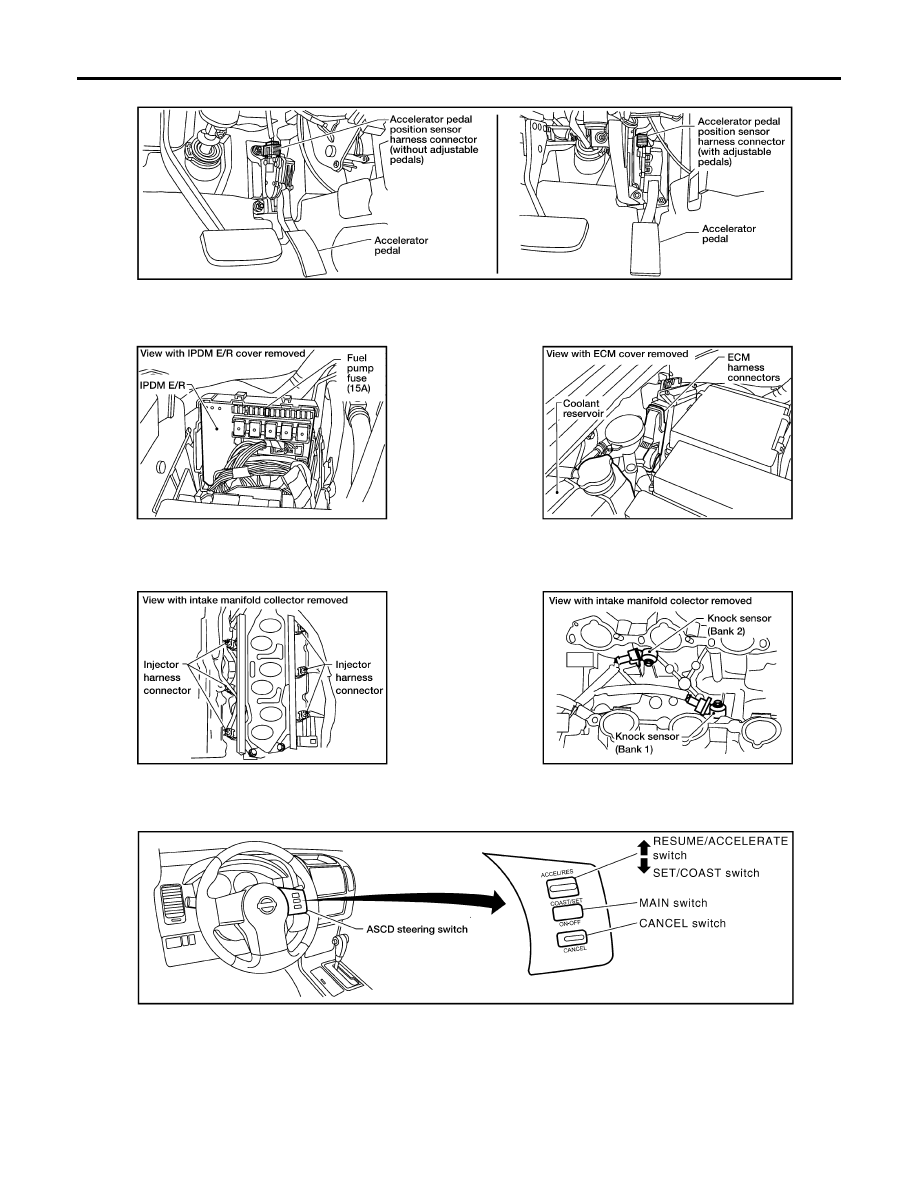

EC-100

TROUBLE DIAGNOSIS

2007 Pathfinder

PBIB2646E

TROUBLE DIAGNOSIS

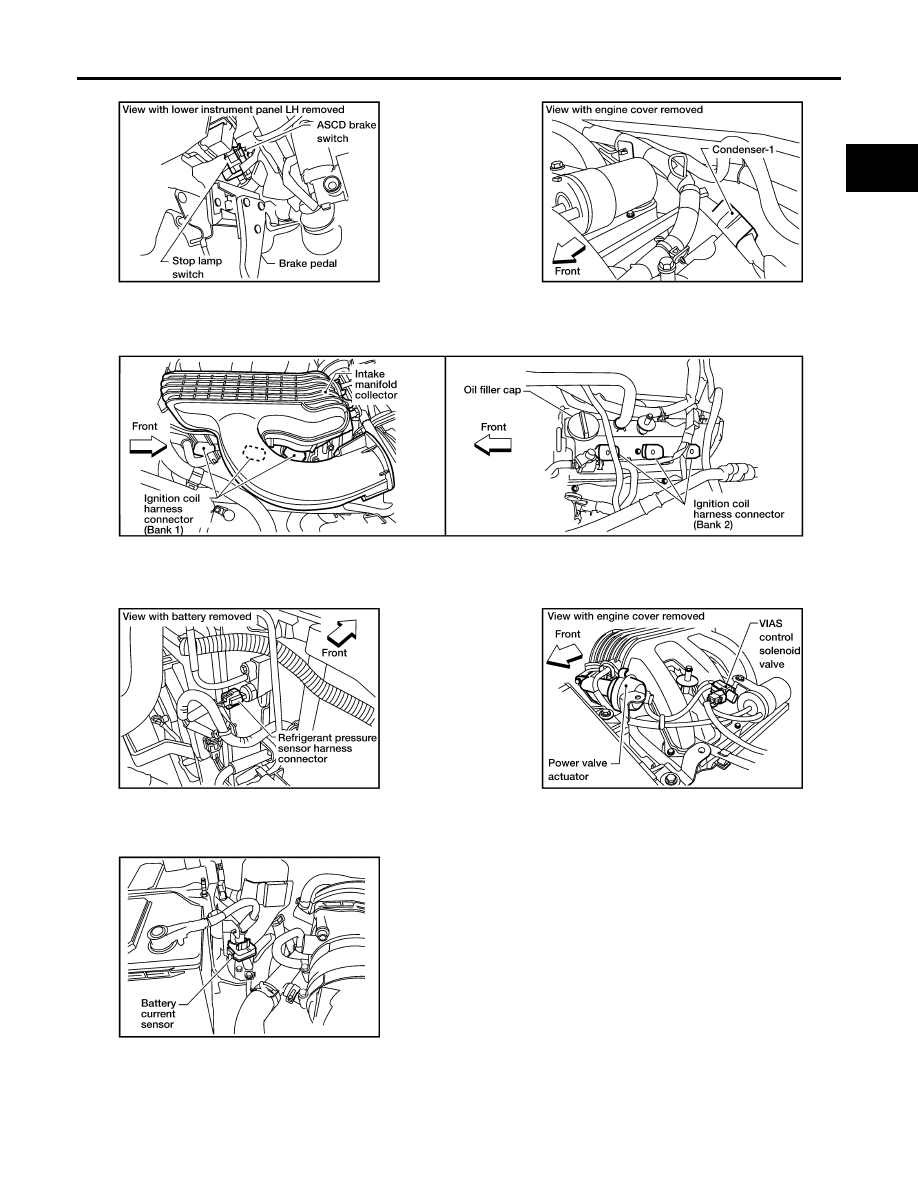

EC-101

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

BBIA0581E

EC-102

TROUBLE DIAGNOSIS

2007 Pathfinder

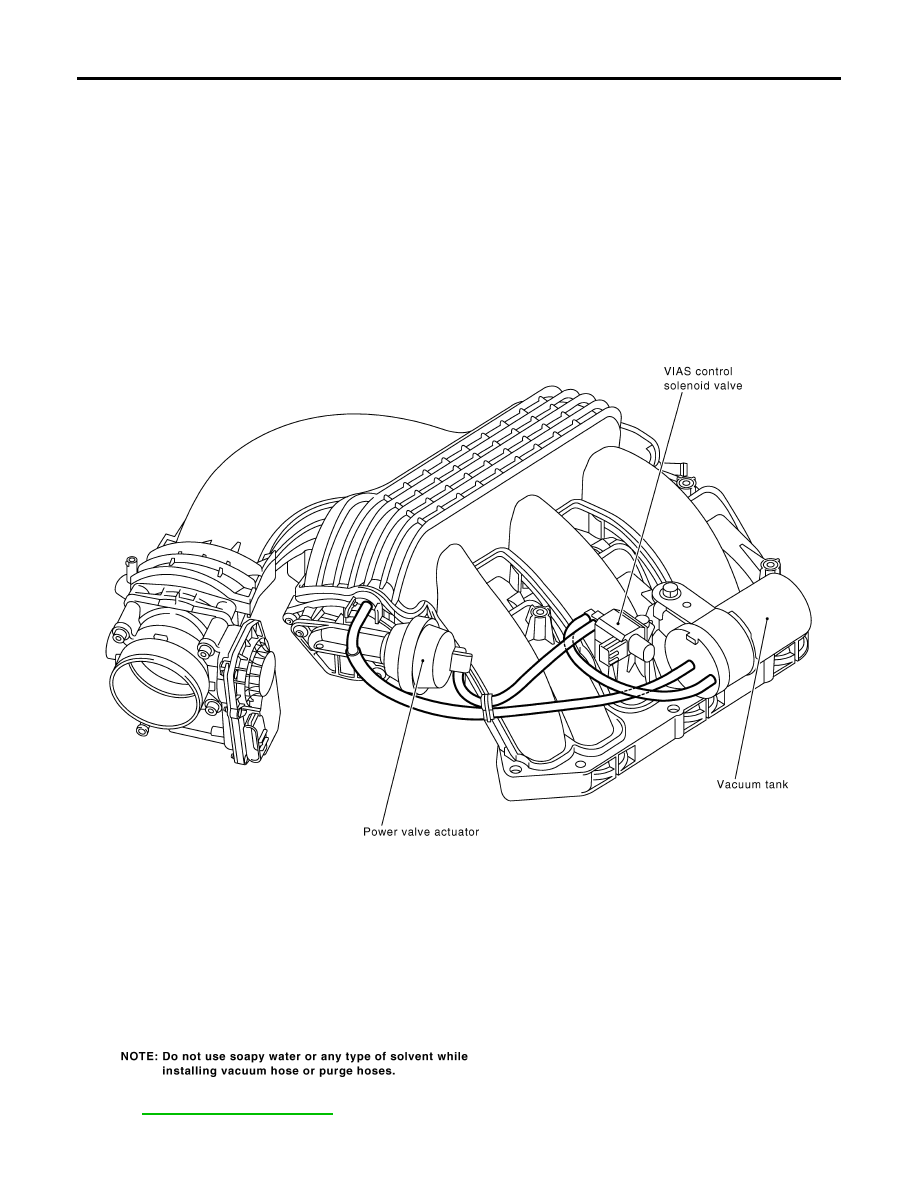

Vacuum Hose Drawing

UBS00K48

Refer to

EC-23, "System Diagram"

    for Vacuum Control System.

PBIB2529E

TROUBLE DIAGNOSIS

EC-103

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

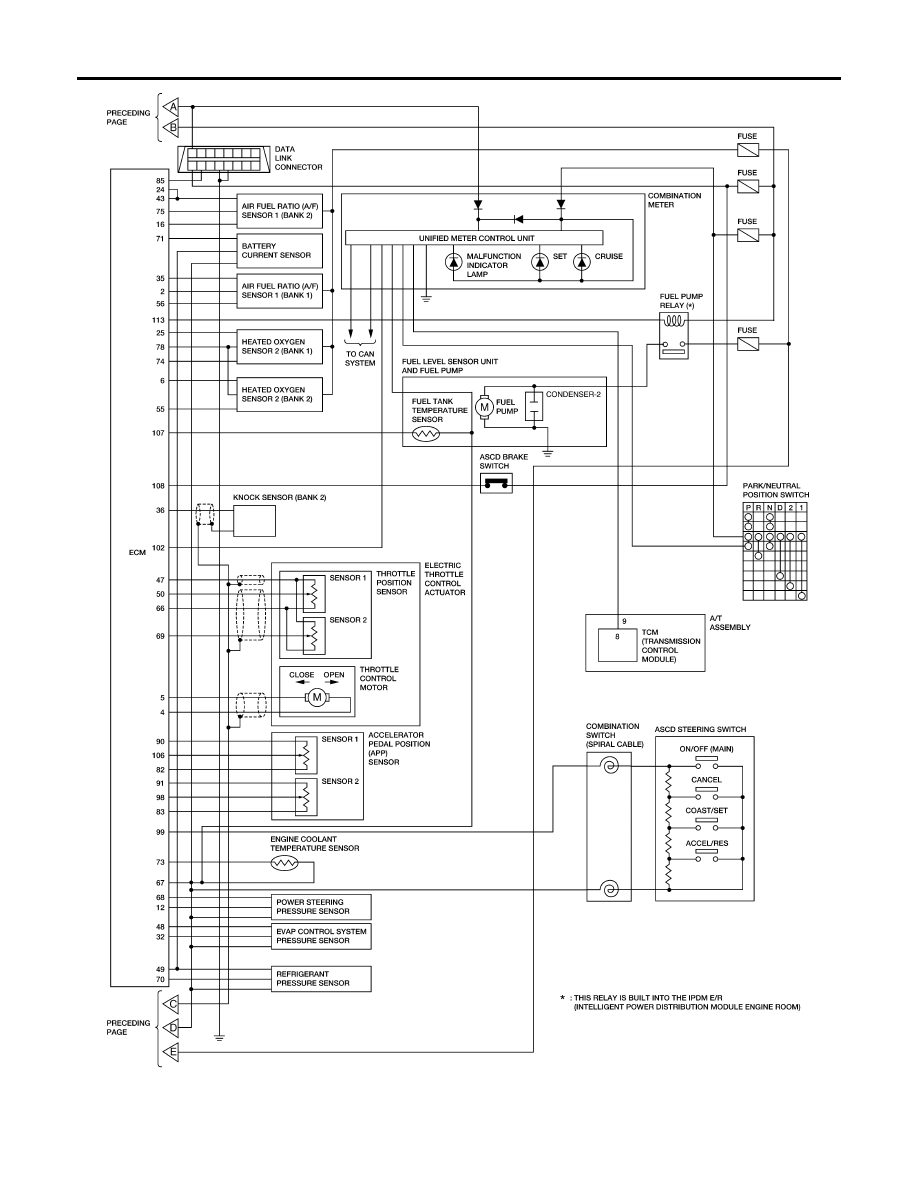

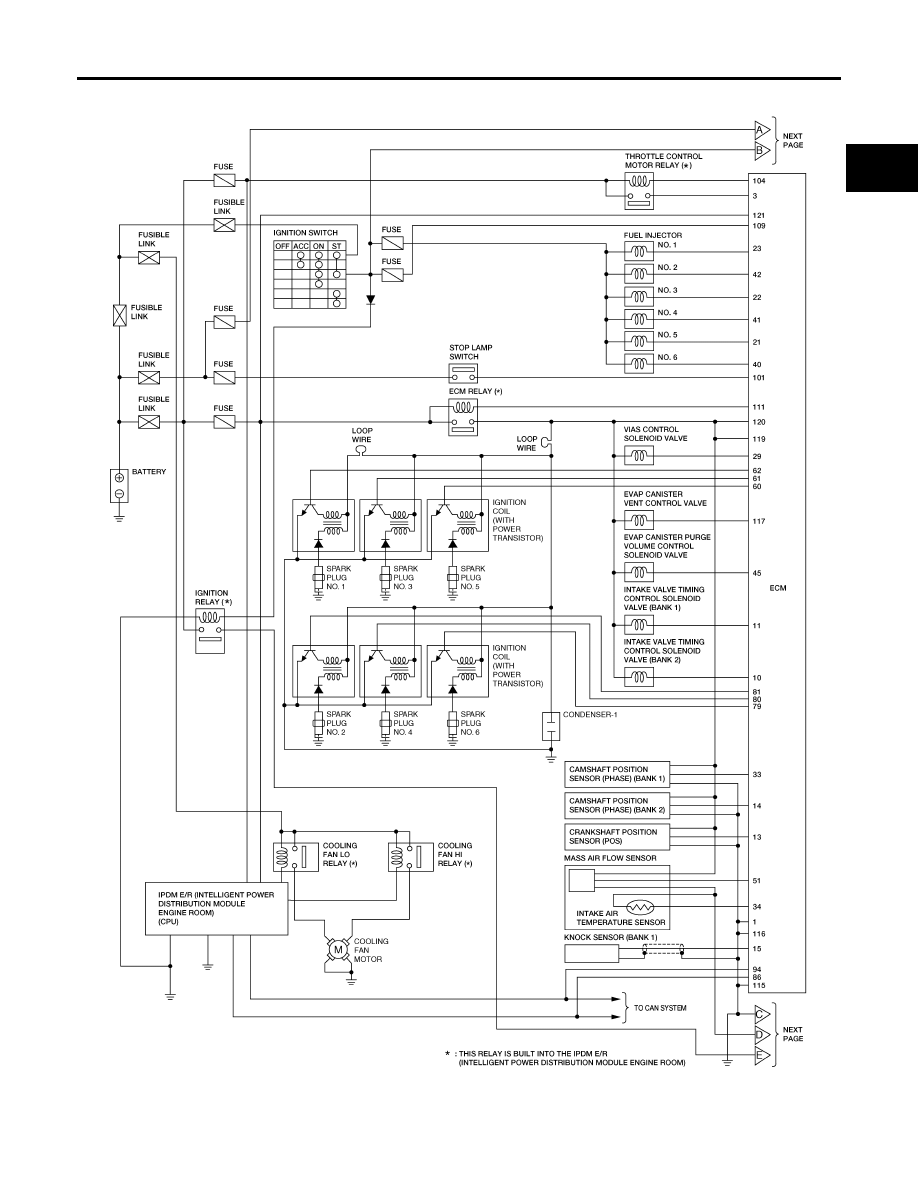

Circuit Diagram

UBS00K49

BBWA2356E

EC-104

TROUBLE DIAGNOSIS

2007 Pathfinder

BBWA2810E

TROUBLE DIAGNOSIS

EC-105

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

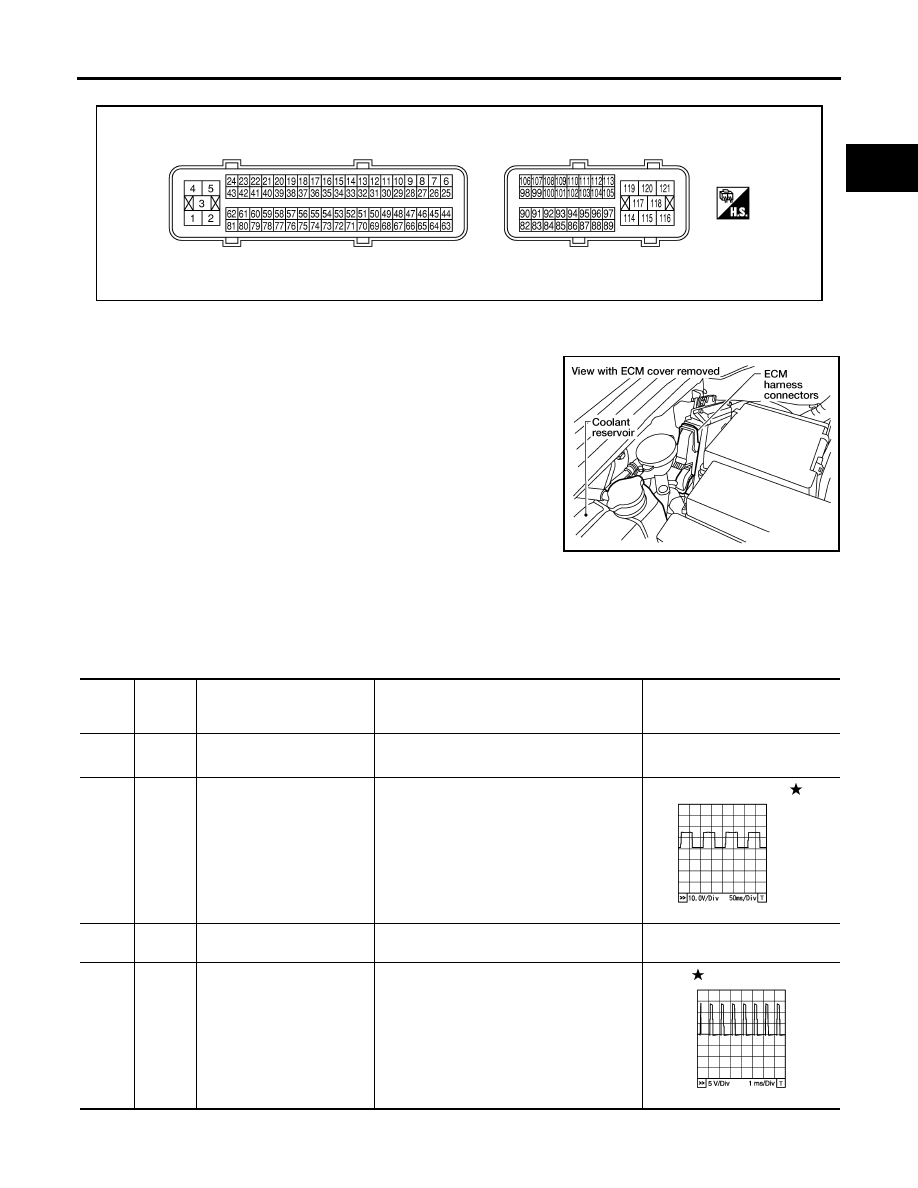

ECM Harness Connector Terminal Layout

UBS00K4A

ECM Terminals and Reference Value

UBS00K4B

PREPARATION

ECM located in the engine room passenger side behind reservoir
tank.

ECM INSPECTION TABLE

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

MBIB0045E

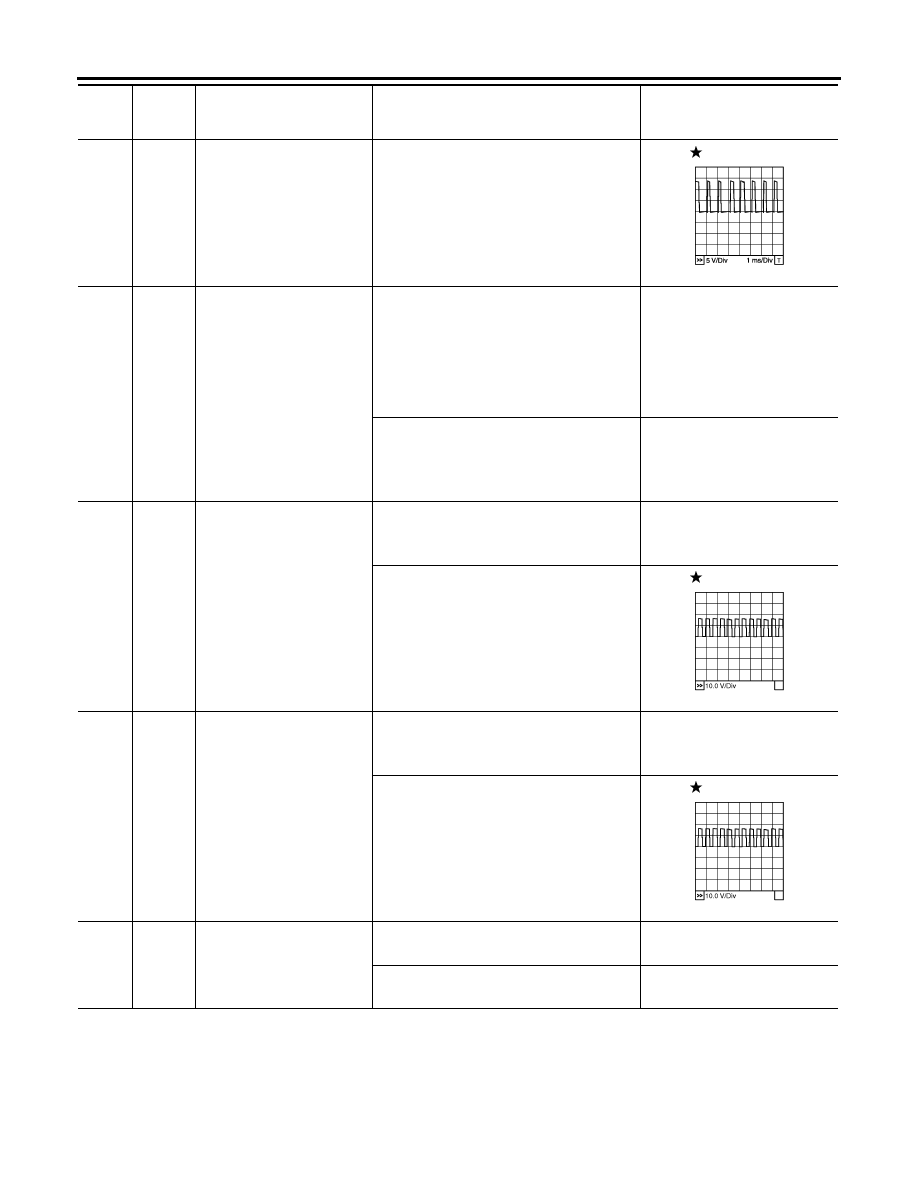

BBIA0537E

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

1

BR

ECM ground

[Engine is running]

●

Idle speed

Body ground

2

G

A/F sensor 1 heater (Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed
(More than 140 seconds after starting
engine)

Approximately 2.9 - 8.8V

3

V

Throttle control motor relay
power supply

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

4

L/W

Throttle control motor (Close)

[Ignition switch: ON]

●

Engine: Stopped

●

Shift lever: D

●

Accelerator pedal: Fully released

0 - 14V

PBIA8148J

PBIB1104E

EC-106

TROUBLE DIAGNOSIS

2007 Pathfinder

5

L/B

Throttle control motor (Open)

[Ignition switch: ON]

●

Engine: Stopped

●

Shift lever: D

●

Accelerator pedal: Fully depressed

0 - 14V

6

R

Heated oxygen sensor 2
heater (Bank 2)

[Engine is running]

●

Engine speed is below 3,600 rpm after the
following conditions are met

–

Engine: After warming up

–

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

●

Engine: Stopped

[Engine is running]

●

Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

10

W

Intake valve timing control
solenoid valve (Bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,500 rpm

7 - 12V

11

LG

Intake valve timing control
solenoid valve (Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,500 rpm

7 - 12V

12

P

Power steering pressure
sensor

[Engine is running]

●

Steering wheel: Being turned

0.5 - 4.5V

[Engine is running]

●

Steering wheel: Not being turned

0.4 - 0.8V

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

PBIB1105E

PBIB1790E

PBIB1790E
