Nissan Pathfinder (2007 year). Manual - part 141





WARNING CHIME

DI-51

C

D

E

F

G

H

I

J

L

M

A

B

DI

2007 Pathfinder

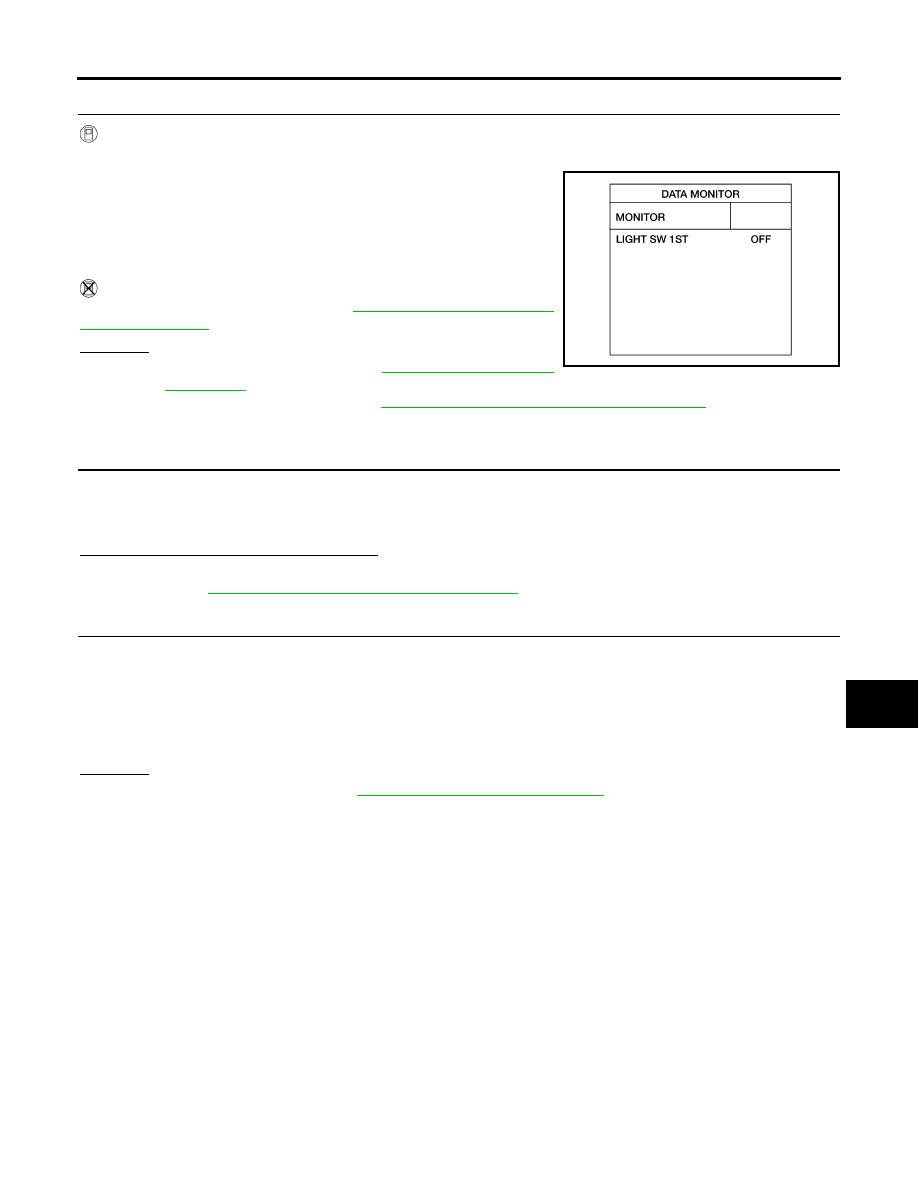

2.

CHECK BCM INPUT SIGNAL

With CONSULT-II

1.

Select "BCM".

2.

With "DATA MONITOR" of "BUZZER", confirm "LIGHT SW 1ST"
status changes when the lighting switch is moved from ON (1st
position) to OFF.

Without CONSULT-II

Check combination switch. Refer to

LT-74, "Combination Switch

Reading Function"

 .

OK or NG

OK

>> Replace the BCM. Refer to

BCS-25, "Removal and

Installation"

 .

NG

>> Check lighting switch. Refer to

LT-74, "Combination Switch Reading Function"

 .

Seat Belt Warning Chime Does Not Operate

EKS00FZ5

1.

CHECK WARNING CHIME OPERATION

1.

With key removed from the ignition and the front door LH open, turn the lighting switch to 1st or 2nd posi-
tion.

2.

Return lighting switch to OFF position, and insert key into ignition.

Does warning chime sound for both steps?

YES

>> GO TO 2.

NO

>> Go to

DI-47, "All Warning Chimes Do Not Operate"

 .

2.

CHECK SEAT BELT WARNING LAMP OPERATION

1.

Turn ignition switch ON.

2.

Buckle and unbuckle the driver seat belt while watching seat belt warning lamp.

OK or NG

OK

>> Replace the BCM. Refer to

BCS-25, "Removal and Installation"

 .

NG

>> GO TO 3.

Lighting switch ON (1st position)

: LIGHT SW 1ST ON

Lighting switch OFF

: LIGHT SW 1ST OFF

WKIA1877E

When seat belt is fastened

: Warning lamp OFF

When seat belt is unfastened

: Warning lamp ON

DI-52

WARNING CHIME

2007 Pathfinder

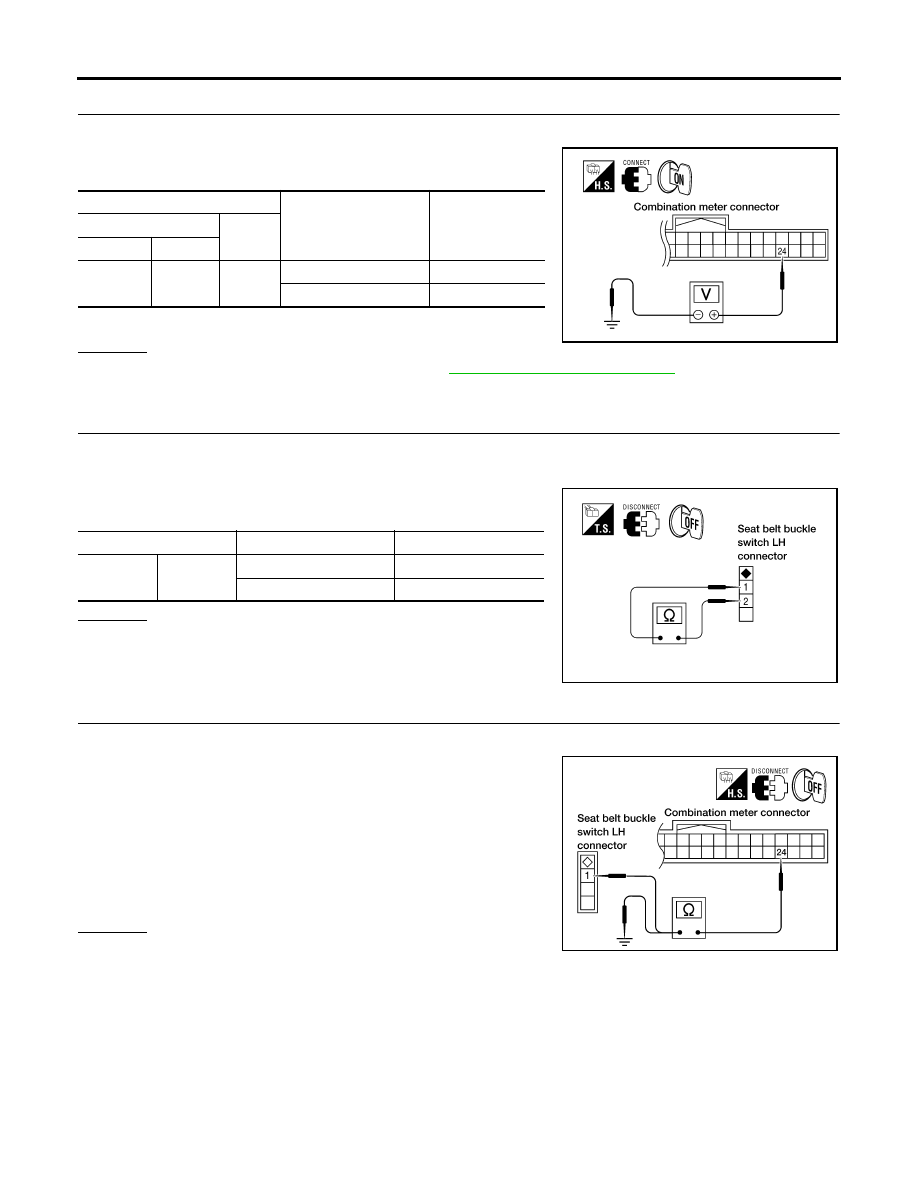

3.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between combination meter harness connector
M24 terminal 24 and ground.

OK or NG

OK

>> Replace the combination meter. Refer to

IP-14, "COMBINATION METER"

 .

NG

>> GO TO 4.

4.

CHECK SEAT BELT BUCKLE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect seat belt buckle switch LH connector B12.

3.

Check continuity between seat belt buckle switch LH terminals 1
and 2.

OK or NG

OK

>> GO TO 5.

NG

>> Replace the seat belt buckle switch LH.

5.

CHECK SEAT BELT BUCKLE SWITCH CIRCUIT

1.

Disconnect combination meter connector.

2.

Check continuity between combination meter harness connector
M24 terminal 24 and seat belt buckle switch LH harness con-
nector B12 terminal 1.

3.

Check continuity between combination meter harness connector
M24 terminal 24 and ground.

OK or NG

OK

>> Check seat belt buckle switch ground circuit.

NG

>> Repair harness or connector.

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

Connector

Terminal

M24

24

Ground

Seat belt is fastened

Battery voltage

Seat belt is unfastened

0V

WKIA3294E

Terminals

Condition

Continuity

1

2

Seat belt is fastened

No

Seat belt is unfastened

Yes

WKIA1522E

Continuity should exist.

Continuity should not exist.

WKIA3295E

BOARD COMPUTER

DI-53

C

D

E

F

G

H

I

J

L

M

A

B

DI

2007 Pathfinder

BOARD COMPUTER

PFP:24810

System Description

EKS00FZ6

FUNCTION

The board computer can indicate the following items.

DTE (distance to empty)

Trip distance

Trip time

Average fuel consumption

Average vehicle speed

DTE (DISTANCE TO EMPTY) INDICATION

The range indication provides the driver with an estimation of the distance that can be driven before refueling.
The range is calculated by signals from the fuel level sensor unit (fuel remaining), ECM (fuel consumption)
and the ABS actuator and electric unit (vehicle speed). The indication will be refreshed every 30 seconds.
When fuel remaining is less than approximately 11.6  (3 1/8 US gal, 2 1/2 Imp gal), the indication will blink as
a warning. If the fuel remaining is less than approximately 9.6  (2 1/2 US gal, 2 1/8 Imp gal), the indication will
show "---". In this case, the display will change to the DTE mode even though the display is showing a different
mode. When the battery is disconnected and reconnected, DTE mode will display "---" until the vehicle is
driven 0.3 miles (0.5 km).

TRIP DISTANCE

Trip distance is calculated by signal from the ABS actuator and electric unit (vehicle speed). If trip distance is
reset, trip time will be reset at the same time.

TRIP TIME

Trip time displays cumulative ignition switch ON time. If trip time is reset, trip distance will be reset at the same
time.

AVERAGE FUEL CONSUMPTION

Average fuel consumption indication is calculated by signals from the ABS actuator and electric unit (vehicle
speed) and the ECM (fuel consumption). The indication will be refreshed every 30 seconds.

AVERAGE VEHICLE SPEED

Average vehicle speed indication is calculated by running distance and running time. The indication will be
refreshed every 30 seconds. If average vehicle speed is reset, average fuel consumption will be reset at the
same time. After resetting, the display will show "---" for 30 seconds.

HOW TO CHANGE/RESET INDICATION

Indication can be changed in the following order by momentarily depressing the board computer switch.
Trip distance

 dte

 Average vehicle speed

 Average fuel consumption

 Trip time

.

Holding the switch for more than 1 second will reset the indication of the currently displayed mode (trip dis-
tance, trip time, average vehicle speed or average fuel consumption).

NOTE:
After the display changes automatically, the indication can be changed to the next mode by pushing the board
computer switch.

CAN Communication System Description

EKS00FZ7

Refer to

LAN-4, "SYSTEM DESCRIPTION"

 .

DI-54

BOARD COMPUTER

2007 Pathfinder

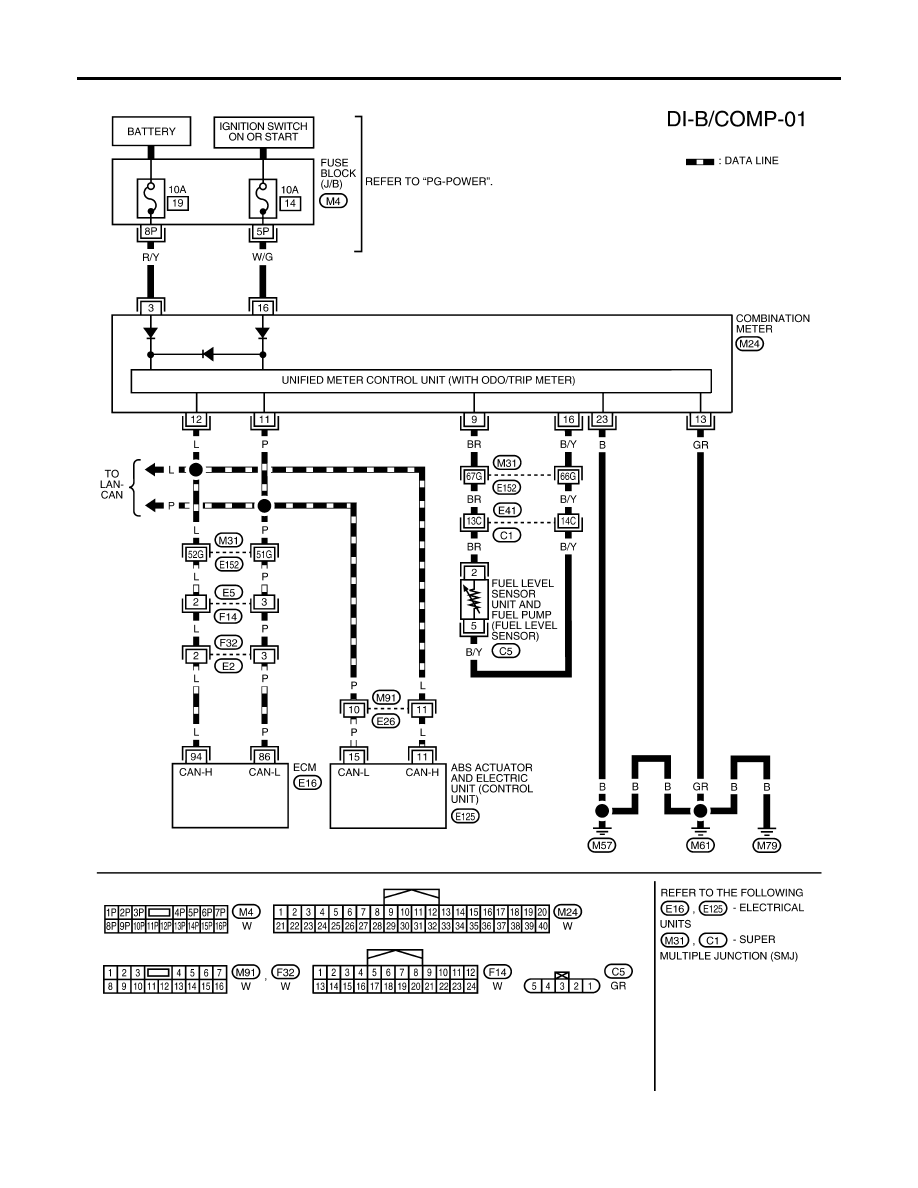

Wiring Diagram — B/COMP —

EKS00FZ8

WKWA4220E

BOARD COMPUTER

DI-55

C

D

E

F

G

H

I

J

L

M

A

B

DI

2007 Pathfinder

Trouble Diagnoses

EKS00FZ9

SEGMENT CHECK

The board computer segment display can be checked by entering combination meter self-diagnostic mode.
Refer to

DI-11, "SELF-DIAGNOSIS FUNCTION"

 .

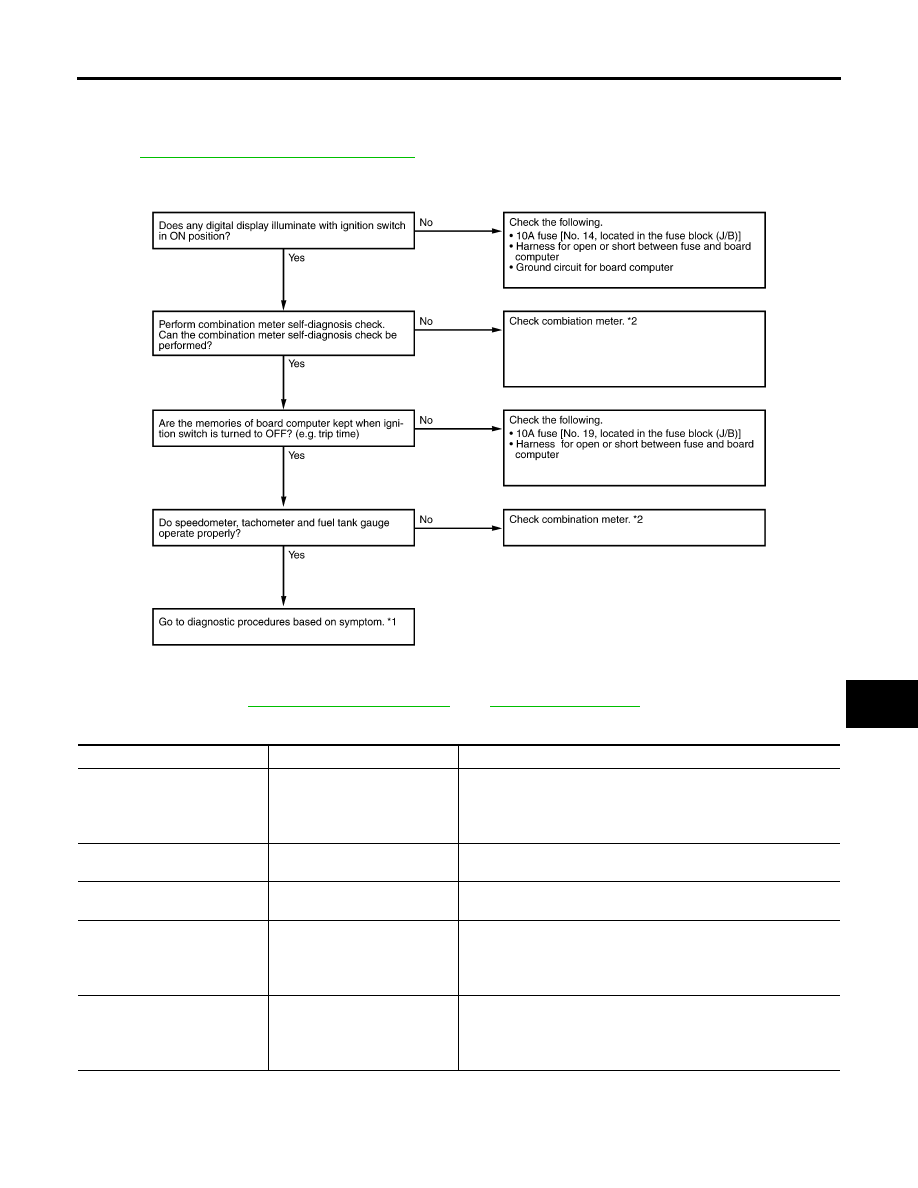

PRELIMINARY CHECK

DIAGNOSIS PROCEDURE

WKIA3296E

*1

DI-55, "DIAGNOSIS PROCEDURE"

*2

DI-17, "Preliminary Check"

Symptom

Possible cause

Repair order

DTE (distance to empty) is not
displayed properly.

1. Average fuel consumption

display

2. Fuel tank gauge signal circuit

1. Make sure fuel consumption is displayed properly. If NG, check

fuel consumption display.

2. Make sure fuel gauge operates properly. If NG, check fuel

gauge.

Trip distance is not indicated
properly.

1. ABS actuator and electric

unit (control unit)

1. Perform ABS actuator and electric unit (control unit) self diag-

nosis.

Trip time is not indicated prop-
erly.

1. Fuse

1. 10A fuse [No. 19 located in fuse block (J/B)]. Verify battery volt-

age is present at combination meter terminal 3.

Average fuel consumption is
not displayed properly.

1. Trip distance display

2. Fuel consumption signal

1. Perform ABS actuator and electric unit (control unit) self-diag-

nosis.

2. Check CAN lines for open or short between ECM and combina-

tion meter.

Average vehicle speed is not
indicated properly.

1. Trip distance display

2. Trip time display

1. Perform ABS actuator and electric unit (control unit) self-diag-

nosis.

2. Make sure trip time is displayed properly. If NG, check trip time

display.

DI-56

BOARD COMPUTER

2007 Pathfinder

EC-1

ENGINE CONTROL SYSTEM

B  ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

EC

A

EC

2007 Pathfinder

INDEX FOR DTC  ........................................................ 9

DTC No. Index  ......................................................... 9
Alphabetical Index  .................................................. 13

PRECAUTIONS ........................................................ 17

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................ 17
Precautions for Procedures without Cowl Top Cover

... 17

On Board Diagnostic (OBD) System of Engine and
A/T .......................................................................... 17
Precaution .............................................................. 18

PREPARATION ......................................................... 21

Special Service Tools  ............................................. 21
Commercial Service Tools ...................................... 22

ENGINE CONTROL SYSTEM  .................................. 23

System Diagram ..................................................... 23
Multiport Fuel Injection (MFI) System  .................... 24
Electronic Ignition (EI) System  ............................... 26
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................... 27

AIR CONDITIONING CUT CONTROL  ..................... 28

Input/Output Signal Chart ....................................... 28
System Description  ................................................ 28

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

... 29

System Description  ................................................ 29
Component Description .......................................... 30

CAN COMMUNICATION  .......................................... 31

System Description  ................................................ 31

EVAPORATIVE EMISSION SYSTEM ....................... 32

Description ............................................................. 32
Component Inspection  ........................................... 35
Removal and Installation  ........................................ 36
How to Detect Fuel Vapor Leakage  ....................... 36

ON BOARD REFUELING VAPOR RECOVERY
(ORVR) ...................................................................... 39

System Description  ................................................ 39
Diagnostic Procedure ............................................. 40
Component Inspection  ........................................... 42

POSITIVE CRANKCASE VENTILATION  ................. 44

Description .............................................................. 44
Component Inspection ............................................ 44

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS) ........................................................................ 46

Description .............................................................. 46

ON BOARD DIAGNOSTIC (OBD) SYSTEM  ............ 47

Introduction ............................................................. 47
Two Trip Detection Logic  ........................................ 47
Emission-related Diagnostic Information  ................ 48
Malfunction Indicator Lamp (MIL)  ........................... 61
OBD System Operation Chart  ................................ 64

BASIC SERVICE PROCEDURE ............................... 70

Basic Inspection  ..................................................... 70
Idle Speed and Ignition Timing Check  .................... 75
Procedure After Replacing ECM  ............................ 76
VIN Registration  ..................................................... 76
Accelerator Pedal Released Position Learning  ...... 77
Throttle Valve Closed Position Learning ................. 77
Idle Air Volume Learning  ........................................ 77
Fuel Pressure Check  .............................................. 79

TROUBLE DIAGNOSIS  ............................................ 82

Trouble Diagnosis Introduction  ............................... 82
DTC Inspection Priority Chart ................................. 88
Fail-safe Chart  ........................................................ 90
Symptom Matrix Chart ............................................ 91
Engine Control Component Parts Location  ............ 95
Vacuum Hose Drawing  ......................................... 102
Circuit Diagram ..................................................... 103
ECM Harness Connector Terminal Layout  ........... 105
ECM Terminals and Reference Value ................... 105
CONSULT-II Function (ENGINE) .......................... 114
Generic Scan Tool (GST) Function ....................... 126
CONSULT-II Reference Value in Data Monitor  ..... 129
Major Sensor Reference Graph in Data Monitor
Mode ..................................................................... 133

TROUBLE DIAGNOSIS - SPECIFICATION VALUE .135

Description ............................................................ 135
Testing Condition  .................................................. 135
Inspection Procedure ............................................ 135
Diagnostic Procedure  ........................................... 136

EC-2

2007 Pathfinder

TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT ....................................................................... 145

Description ............................................................ 145
Diagnostic Procedure  ........................................... 145

POWER SUPPLY AND GROUND CIRCUIT ........... 146

Wiring Diagram  ..................................................... 146
Diagnostic Procedure  ........................................... 149
Ground Inspection  ................................................ 153

DTC U1000, U1001 CAN COMMUNICATION LINE .154

Description ............................................................ 154
On Board Diagnosis Logic  .................................... 154
DTC Confirmation Procedure  ............................... 154
Wiring Diagram  ..................................................... 155
Diagnostic Procedure  ........................................... 156

DTC U1010 CAN COMMUNICATION  ..................... 157

Description ............................................................ 157
On Board Diagnosis Logic  .................................... 157
DTC Confirmation Procedure  ............................... 157
Diagnostic Procedure  ........................................... 158

DTC P0011, P0021 IVT CONTROL  ........................ 159

Description ............................................................ 159
CONSULT-II Reference Value in Data Monitor Mode

. 159

On Board Diagnosis Logic  .................................... 160
DTC Confirmation Procedure  ............................... 160
Diagnostic Procedure  ........................................... 161
Component Inspection .......................................... 162
Removal and Installation  ...................................... 162

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1
HEATER .................................................................. 163

Description ............................................................ 163
CONSULT-II Reference Value in Data Monitor Mode

. 163

On Board Diagnosis Logic  .................................... 163
DTC Confirmation Procedure  ............................... 163
Wiring Diagram  ..................................................... 165
Diagnostic Procedure  ........................................... 168
Component Inspection .......................................... 170
Removal and Installation  ...................................... 170

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER .171

Description ............................................................ 171
CONSULT-II Reference Value in Data Monitor Mode

. 171

On Board Diagnosis Logic  .................................... 171
DTC Confirmation Procedure  ............................... 172
Wiring Diagram  ..................................................... 173
Diagnostic Procedure  ........................................... 176
Component Inspection .......................................... 178
Removal and Installation  ...................................... 179

DTC P0075, P0081 IVT CONTROL SOLENOID
VALVE ..................................................................... 180

Component Description  ........................................ 180
CONSULT-II Reference Value in Data Monitor Mode

. 180

On Board Diagnosis Logic  .................................... 180
DTC Confirmation Procedure  ............................... 180
Wiring Diagram  ..................................................... 181
Diagnostic Procedure  ........................................... 185

Component Inspection  ..........................................186
Removal and Installation .......................................186

DTC P0101 MAF SENSOR  .....................................187

Component Description  ........................................187
CONSULT-II Reference Value in Data Monitor Mode

.187

On Board Diagnosis Logic  ....................................187
DTC Confirmation Procedure ................................188
Overall Function Check .........................................189
Wiring Diagram  .....................................................190
Diagnostic Procedure ............................................191
Component Inspection  ..........................................193
Removal and Installation .......................................195

DTC P0102, P0103 MAF SENSOR  .........................196

Component Description  ........................................196
CONSULT-II Reference Value in Data Monitor Mode

.196

On Board Diagnosis Logic  ....................................196
DTC Confirmation Procedure ................................197
Wiring Diagram  .....................................................198
Diagnostic Procedure ............................................199
Component Inspection  ..........................................201
Removal and Installation .......................................202

DTC P0112, P0113 IAT SENSOR ............................203

Component Description  ........................................203
On Board Diagnosis Logic  ....................................203
DTC Confirmation Procedure ................................203
Wiring Diagram  .....................................................205
Diagnostic Procedure ............................................206
Component Inspection  ..........................................207
Removal and Installation .......................................207

DTC P0117, P0118 ECT SENSOR  ..........................208

Component Description  ........................................208
On Board Diagnosis Logic  ....................................208
DTC Confirmation Procedure ................................209
Wiring Diagram  .....................................................210
Diagnostic Procedure ............................................ 211
Component Inspection  ..........................................212
Removal and Installation .......................................212

DTC P0122, P0123 TP SENSOR  ............................213

Component Description  ........................................213
CONSULT-II Reference Value in Data Monitor Mode

.213

On Board Diagnosis Logic  ....................................213
DTC Confirmation Procedure ................................214
Wiring Diagram  .....................................................215
Diagnostic Procedure ............................................216
Component Inspection  ..........................................219
Removal and Installation .......................................219

DTC P0125 ECT SENSOR  ......................................220

Component Description  ........................................220
On Board Diagnosis Logic  ....................................220
DTC Confirmation Procedure ................................221
Diagnostic Procedure ............................................221
Component Inspection  ..........................................222
Removal and Installation .......................................222

DTC P0127 IAT SENSOR ........................................223

Component Description  ........................................223
On Board Diagnosis Logic  ....................................223















Content      ..     139      140      141      142     ..
