COMBINATION METERS

DI-11

C

D

E

F

G

H

I

J

L

M

A

B

DI

2007 Pathfinder

Self-Diagnosis Mode of Combination Meter

EKS00FY1

SELF-DIAGNOSIS FUNCTION

The following items can be checked during Combination Meter Self-Diagnosis Mode.

Gauge sweep and present gauge values.

Illuminates all odometer/trip meters and A/T indicator segments.

Illuminates all micro controlled lamps/LEDs regardless of switch position.

Displays estimated present battery voltage.

Displays seat belt buckle switch LH status.

HOW TO INITIATE COMBINATION METER SELF-DIAGNOSIS MODE

NOTE:
Once entered, Combination Meter Self-Diagnosis Mode will function with the ignition switch in ON or START.
Combination Meter Self-Diagnosis Mode will exit upon turning the ignition switch to OFF or ACC.
To initiate Combination Meter Self-Diagnosis Mode, refer to the following procedure.

1.

Turn the ignition switch ON, while pressing the odometer/trip meter switch for 5 - 8 seconds. When the
diagnosis function is activated, the odometer/trip meter will display tESt.

NOTE:
Check combination meter power supply and ground circuit when self-diagnosis mode of combination
meter does not start. Refer to

DI-18, "Power Supply and Ground Circuit Inspection"

 . Replace combination

meter if normal. Refer to

IP-14, "COMBINATION METER"

 .

COMBINATION METER SELF-DIAGNOSIS MODE FUNCTIONS

To interpret Combination Meter Self-Diagnosis Mode functions, refer to the following table.

Event

Odometer Display

Description of Test/Data

Notes:

Odometer/trip meter A/B
switch held from 5 to 8
seconds (or until
released)

tESt

Initiating self-diagnosis mode

Next test requested

GAGE

Performs sweep of all
gauges, then displays
present gauge values.
Performs checksum tests
on ROM and EE.

Gauges sweep within 10 sec-
onds

Next test requested

(All segments illuminated)

Lights all odometer/trip
meter segments.

Initiating self-diagnosis mode
complete

Next test requested

bulb

Illuminates all micro-con-
trolled lamps/LEDs
regardless of SW configu-
ration.

Odometer/trip meter A/B
switch engaged and
released = next test
requested

rXXXX, FAIL

Return to normal opera-
tion of all lamps/LEDs and
displays hex ROM rev. If
a ROM checksum fault
exists, display alternates
between "r XXXX" and
"FAIL".

Next test requested

nrXXXX

Displays hex ROM rev as
stored in NVM.

Next test requested

EE XX, FAIL

Hex EE level. If EE
checksum fault exists,
display alternates
between "EE XX" and
"FAIL".

Next test requested

dtXXXX

Hex coding of final manu-
facturing test date.

DI-12

COMBINATION METERS

2007 Pathfinder

Next test requested

Sc1XX

Displays 8-bit software
configuration value in Hex
format.

Bit Coding
7-3 = reserved for future use
2 = TCS/VDC 0 = not present
                        1 = present
1 = Shift type   0 = Column shift
                        1 = Floor shift
0 = ICC            0 = not present
                        1 = present

Next test requested

Sc2XX

Displays 8-bit software
configuration value in Hex
format.

Bit coding
7-0 = Reserved for future use

Next test requested

EprXX

Displays 8-bit software
configuration value in Hex
format.

Bit Coding
7-2 = reserved for future use
1 = A/T Oil Temp (gauge)
                        0 = not present
                        1 = present
1 = Odo Units 0 = kilometers
                        1 = miles

Next test requested

1nFXX

Displays 8-bit market info
value in Hex format.

$31 = USA
$2A = Canada

Next test requested

cYLXX

Displays 8-bit engine con-
figuration value in Hex
format.

$08 = 8 cylinder
$06 = 6 cylinder

Next test requested

FFXXXX

Displays 16-bit fuel flow
constant "Q" in tenths of
cc/min in Hex format.

$0000 - $FFFF

Next test requested

tF

Displays 16-bit tire factor
"A" in hundredths in Hex
format.

$0000 - $FFFF

Next test requested

ot1XX

Displays oil pressure tell-
tale "on" threshold in A/D
counts in Hex format.

$00 - $FF

Next test requested

ot0XX

Displays oil pressure tell-
tale "off" threshold in A/D
counts in Hex format.

$00 - $FF

Next test requested

XXXXX

Raw uncompensated
english speed value in
hundredths of MPH.
Speedometer indicates
present speed.

Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid

Next test requested

XXXXX

Raw uncompensated
metric speed value in
hundredths of km/h.
Speedometer indicates
present speed.

Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid

Next test requested

tXXXX

Tachometer value in
RPM. Tachometer indi-
cates present RPM.

Will display "-----" if message is
not received.

Next test requested

F1 XXXX

Present ratioed fuel level
A/D input 1 in decimal for-
mat. Fuel gauge indicates
present filtered level.

000-009 = Short circuit
010-254 = Normal range
255 = Open circuit
--- = Missing 5 seconds

Next test requested

XXXC

Last temperature gauge
input value in degrees C.
Temperature gauge indi-
cates present filtered tem-
perature.

Will display "---"C if message is
not received.
Will display "999" if data
received is invalid.

Event

Odometer Display

Description of Test/Data

Notes:

COMBINATION METERS

DI-13

C

D

E

F

G

H

I

J

L

M

A

B

DI

2007 Pathfinder

Next test requested

BAtXX.X

Estimated present bat-
tery voltage.

Next test requested

rES -X

Seat belt buckle switch
LH status.

1= Buckled
0 = Unbuckled

Next test requested

PA -XX

Hex value port A.

Next test requested

Pb -XX

Hex value port B.

Next test requested

PE -XX

Hex value port E.

Next test requested

PL -XX

Hex value port L.

Next test requested

P6 -XX

Hex value port K.

Next test requested

Pn -XX

Hex value port M.

Next test requested

PP -XX

Hex value port P.

Next test requested

PS -XX

Hex value port S.

Next test requested

Pt -XX

Hex value port T.

Next test requested

Pu -XX

Hex value port U.

Next test requested

P4 -XX

Hex value port V.

Next test requested

Puu -XX

Hex value port W.

Next test requested

A00XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A01XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A02XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A03XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A04XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A05XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A06XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A07XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A08XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A09XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A10XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A11XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A12XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A13XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A14XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

A15XXX

A/D port A/D value (non-
ratioed).

0-255

Next test requested

PA0-XX

Hex value representing
state of A/D ports 0-7.

Event

Odometer Display

Description of Test/Data

Notes:

DI-14

COMBINATION METERS

2007 Pathfinder

Next test requested

PA1-XX

Hex value representing
state of A/D ports 0-7.

Next test requested

GAGE

Return to beginning of self-
diagnosis.

Event

Odometer Display

Description of Test/Data

Notes:

COMBINATION METERS

DI-15

C

D

E

F

G

H

I

J

L

M

A

B

DI

2007 Pathfinder

CONSULT-II Function (METER)

EKS00FY2

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II START PROCEDURE

Refer to

GI-38, "CONSULT-II Start Procedure"

 .

SELF-DIAGNOSTIC RESULTS
Display Item List

"TIME" indicates the condition of the self-diagnosis results judged by each signal input.

Normal: If the system is presently operating properly, but had a malfunction in the past, the time will indi-
cate "1-63".

Malfunction: Soon after detecting malfunctions by self-diagnoses or current malfunction, "0" is indicated.

After the system returns to normal operating condition, every time the ignition switch is cycled (turned to OFF
from ON), a value of one is added to the counter (i.e. "1"

"2"

"3"···"63"). When the ignition switch is cycled

64 times, the result of the self-diagnoses will be erased. If a malfunction is detected again, "0" will be indi-
cated.

DATA MONITOR
Display Item List

METER diagnosis mode

Description

SELF-DIAG RESULTS

Displays combination meter self-diagnosis results.

DATA MONITOR

Displays combination meter input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

CONSULT-II display

Malfunction

CAN COMM CIRC [U1000]

Malfunction is detected in CAN communication lines.

CAUTION:

Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7V-8V for about 2 sec-
onds) or 10A fuse [No. 19, located in the fuse block (J/B)] is removed.

VEHICLE SPEED CIRC [B2205]

Malfunction is detected when an erroneous speed signal is input.

CAUTION:

Even when there is no malfunction on speed signal system, malfunctions may be misin-
terpreted when battery has low voltage (when maintaining 7V-8V for about 2 seconds).

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Contents

SPEED METER [km/h] or [mph]

X

X

This is the angle correction value after the speed signal
from the ABS actuator and electric unit (control unit) is con-
verted into the vehicle speed.

SPEED OUTPUT [km/h] or [mph]

X

X

This is the angle correction value before the speed signal
from the ABS actuator and electric unit (control unit) is con-
verted into the vehicle speed.

TACHO METER [rpm]

X

X

This is the converted value for the engine speed signal from
the ECM.

W TEMP METER [

°

C] or [

°

F]

X

X

This is the converted value for the water temp signal from
the ECM.

FUEL METER [lit.]

X

X

This is the processed value for the signal (resistance value)
from the fuel gauge.

DISTANCE [km]

X

X

This is the calculated value for the speed signal from the
ABS actuator and electric unit (control unit), the signal
(resistance signal) from the fuel gauge and fuel consump-
tion from ECM.

FUEL W/L [ON/OFF]

X

X

Indicates [ON/OFF] condition of low fuel warning lamp.

C-ENG W/L [ON/OFF]

X

Indicates [ON/OFF] condition of malfunction indicator lamp.

DI-16

COMBINATION METERS

2007 Pathfinder

*: Monitor keeps indicating “OFF” when brake warning lamp is on because of parking brake operation or low brake fluid level.

AIR PRES W/L [ON/OFF]

X

Indicates [ON/OFF] condition of low tire pressure indicator
lamp.

SEAT BELT W/L [ON/OFF]

X

Indicates [ON/OFF] condition of seat belt warning lamp.

BUZZER [ON/OFF]

X

X

Indicates [ON/OFF] condition of buzzer.

DOOR W/L [ON/OFF]

X

Indicates [ON/OFF] condition of door warning lamp.

HI-BEAM IND [ON/OFF]

X

Indicates [ON/OFF] condition of high beam indicator.

TURN IND [ON/OFF]

X

Indicates [ON/OFF] condition of turn indicator.

OIL W/L [ON/OFF]

X

Indicates [ON/OFF] condition of oil pressure warning lamp.

VDC/TCS IND [ON/OFF]

X

Indicates [ON/OFF] condition of VDC OFF indicator lamp.

ABS W/L [ON/OFF]

X

Indicates [ON/OFF] condition of ABS warning lamp.

SLIP IND [ON/OFF]

X

Indicates [ON/OFF] condition of SLIP indicator lamp.

BRAKE W/L [ON/OFF]

X

Indicates [ON/OFF] condition of brake warning lamp.*

M RANGE SW [ON/OFF]

X

X

Indicates [ON/OFF] condition of manual mode range switch.

NM RANGE SW [ON/OFF]

X

X

Indicates [ON/OFF] condition of except for manual mode
range switch.

AT SFT UP SW [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift-up switch.

AT SFT DWN SW [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift-down switch.

O/D OFF SWITCH [ON/OFF]

X

Indicates [ON/OFF] condition of O/D OFF switch.

BRAKE SW [ON/OFF]

X

Indicates [ON/OFF] condition of parking brake switch.

AT-M IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T manual mode indicator.

AT-M GEAR [1, 2, 3, 4, 5]

X

X

Indicates [1, 2, 3, 4, 5] condition of A/T manual mode gear
position.

P RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift P range indicator.

R RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift R range indicator.

N RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift N range indicator.

D RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift D range indicator.

4 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 4 range indicator.

3 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 3 range indicator.

2 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 2 range indicator.

1 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 1range indicator.

O/D OFF W/L [ON/OFF]

X

Indicates [ON/OFF] condition of O/D OFF indicator lamp.

CRUISE IND [ON/OFF]

X

Indicates [ON/OFF] condition of CRUISE indicator.

SET IND [ON/OFF]

X

Indicates [ON/OFF] condition of SET indicator.

4WD LOCK SW [ON/OFF]

X

Indicates [ON/OFF] condition of 4WD lock switch.

4WD LOCK IND [ON/OFF]

X

Indicates [ON/OFF] condition of 4WD lock indicator.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Contents

COMBINATION METERS

DI-17

C

D

E

F

G

H

I

J

L

M

A

B

DI

2007 Pathfinder

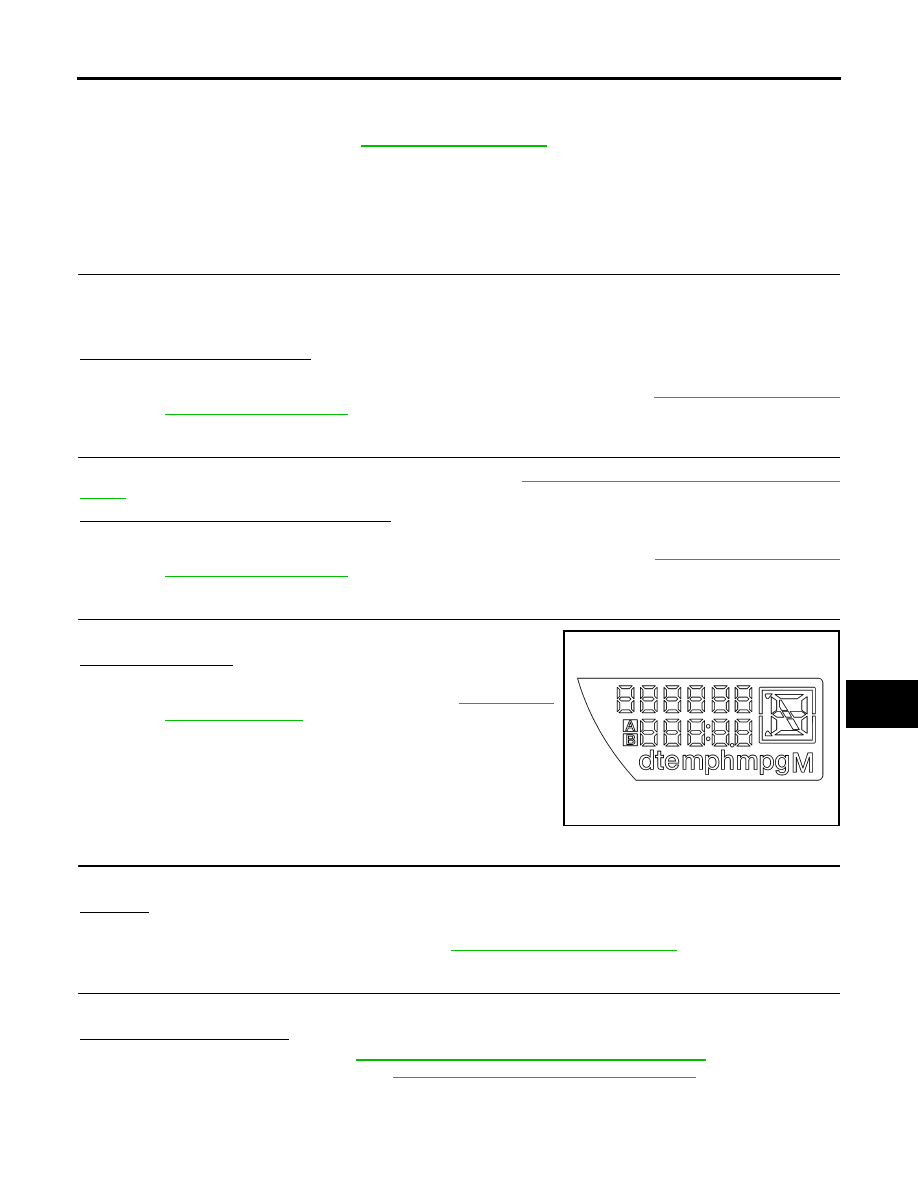

How to Proceed With Trouble Diagnosis

EKS00FY3

1.

Confirm the symptom or customer complaint.

2.

Perform preliminary check. Refer to

DI-17, "Preliminary Check"

 .

3.

According to the symptom chart, repair or replace the cause of the symptom.

4.

Does the meter operate normally? If so, go to 5. If not, go to 2.

5.

Inspection End.

Preliminary Check

EKS00FY4

1.

CHECK WARNING INDICATOR ILLUMINATION

1.

Turn ignition switch ON.

2.

Make sure warning indicators (such as malfunction indicator lamp and oil pressure warning indicator) illu-
minate.

Do warning indicators illuminate?

YES

>> GO TO 2.

NO

>> Check ignition power supply system of combination meter. Refer to

DI-18, "Power Supply and

Ground Circuit Inspection"

 .

2.

CHECK OPERATION OF SELF-DIAGNOSIS MODE (COMBINATION METER)

Perform self-diagnosis mode of combination meter. Refer to

DI-11, "Self-Diagnosis Mode of Combination

Meter"

 .

Does self-diagnosis mode operate normally?

YES

>> GO TO 3.

NO

>> Check combination meter power supply and ground circuit. Refer to

DI-18, "Power Supply and

Ground Circuit Inspection"

 .

3.

CHECK ODOMETER OPERATION

Check segment display status of odometer.

Is the display normal?

YES

>> GO TO 4.

NO

>> Replace the combination meter. Refer to

IP-14, "COM-

BINATION METER"

 .

4.

CHECK COMBINATION METER CIRCUIT

Check operation of each meter/gauge in self-diagnosis mode.

OK or NG

OK

>> GO TO 5.

NG

>> Replace the combination meter. Refer to

IP-14, "COMBINATION METER"

 .

5.

CHECK SELF-DIAGNOSTIC RESULTS OF METER

Select "METER" on CONSULT-II and perform self-diagnosis of meter.

Self-diagnostic results content

CAN COMM CIRC [U1000]>>Refer to

DI-23, "DTC [U1000] CAN Communication Circuit"

 .

VEHICLE SPEED CIRC [B2205]>>Refer to

DI-23, "DTC [B2205] Vehicle Speed Circuit"

 .

LKIA0581E

DI-18

COMBINATION METERS

2007 Pathfinder

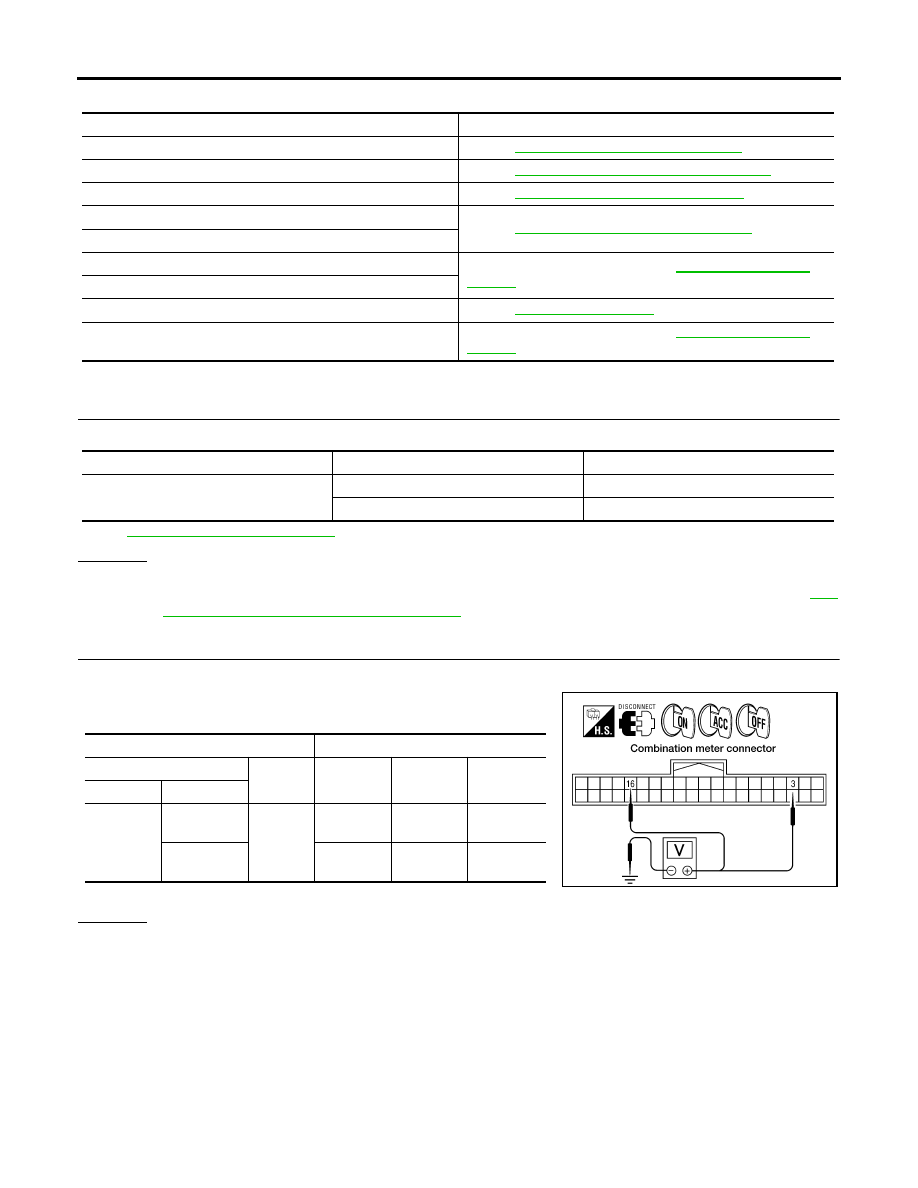

Symptom Chart

EKS00FY6

Power Supply and Ground Circuit Inspection

EKS00FY5

1.

CHECK FUSES

Check for blown combination meter fuses.

Refer to

DI-8, "Wiring Diagram — METER —"

 .

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

4, "POWER SUPPLY ROUTING CIRCUIT"

 .

2.

CHECK POWER SUPPLY CIRCUIT

1.

Disconnect combination meter connector.

2.

Check voltage between combination meter harness connector
terminals and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check the harness for open between combination meter and fuse.

Trouble phenomenon

Possible cause

Improper tachometer indication.

Refer to

DI-20, "Engine Speed Signal Inspection"

 .

Improper water temperature gauge indication.

Refer to

DI-20, "Water Temperature Signal Inspection"

 .

Improper speedometer or odometer.

Refer to

DI-19, "Vehicle Speed Signal Inspection"

 .

Improper fuel gauge indication.

Refer to

DI-20, "Fuel Level Sensor Unit Inspection"

 .

Fuel warning lamp indication is irregular.

Improper voltage gauge indication.

Replace combination meter. Refer to

IP-14, "COMBINATION

METER"

 .

More than one gauge does not give proper indication.

Improper A/T position indication.

Refer to

DI-39, "A/T INDICATOR"

 .

Illumination control does not operate properly.

Replace combination meter. Refer to

IP-14, "COMBINATION

METER"

 .

Unit

Power source

Fuse No.

Combination meter

Battery

19

Ignition switch ON or START

14

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Connector

Terminal

M24

3

Ground

Battery
voltage

Battery
voltage

Battery
voltage

16

0V

0V

Battery
voltage

WKIA3279E















Content      ..     134      135      136      137     ..
