Nissan Pathfinder (2007 year). Manual - part 124

TROUBLE DIAGNOSIS

BRC-77

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2007 Pathfinder

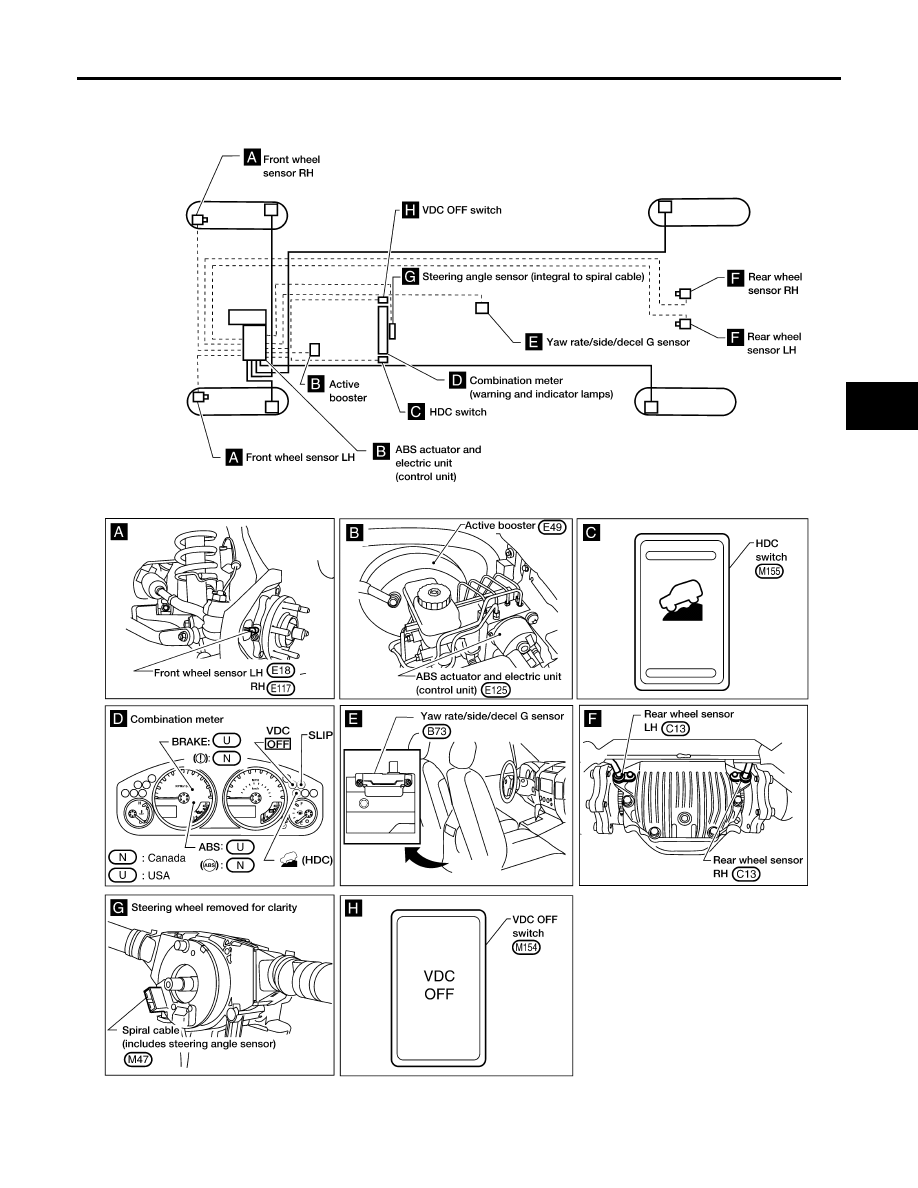

Component Parts and Harness Connector Location

EFS0066L

WFIA0348E

BRC-78

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2007 Pathfinder

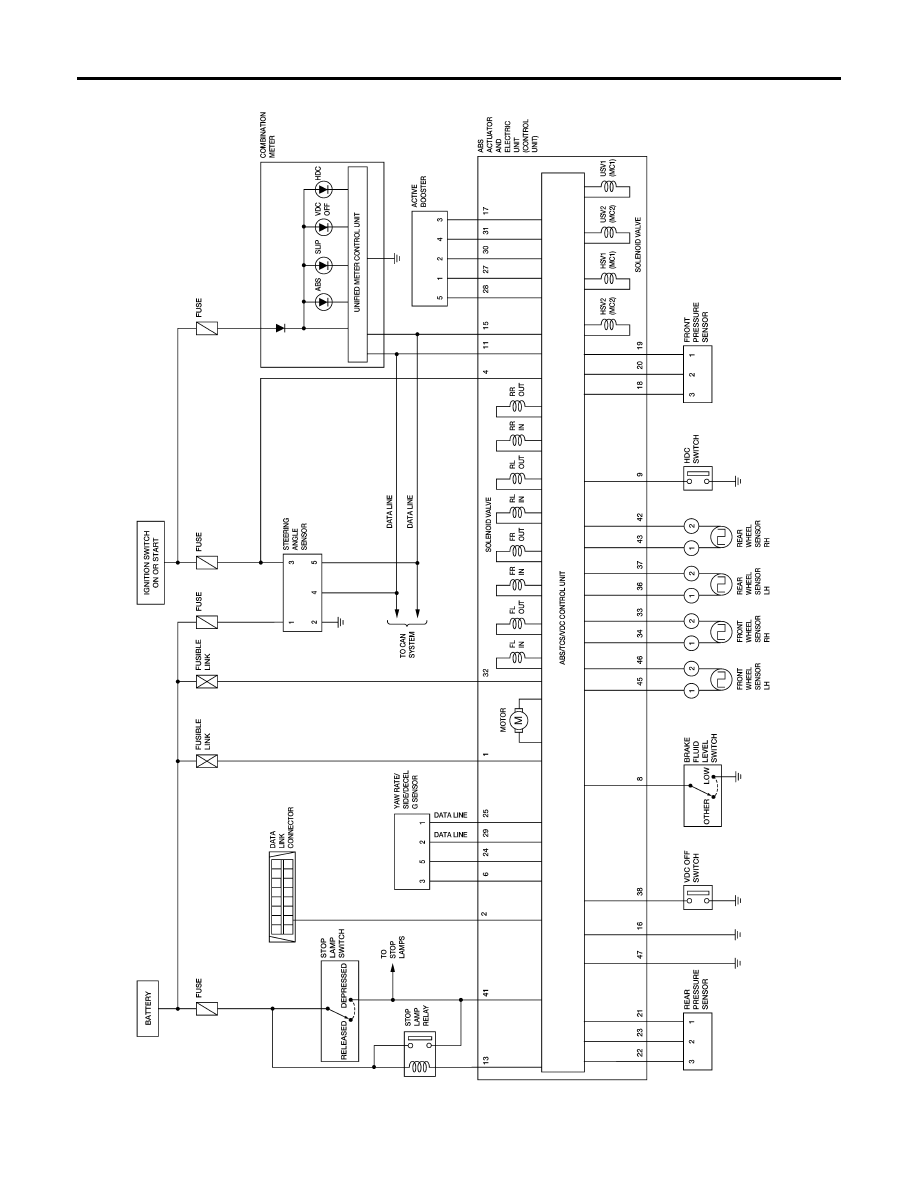

Schematic

EFS0066M

WFWA0369E

TROUBLE DIAGNOSIS

BRC-79

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2007 Pathfinder

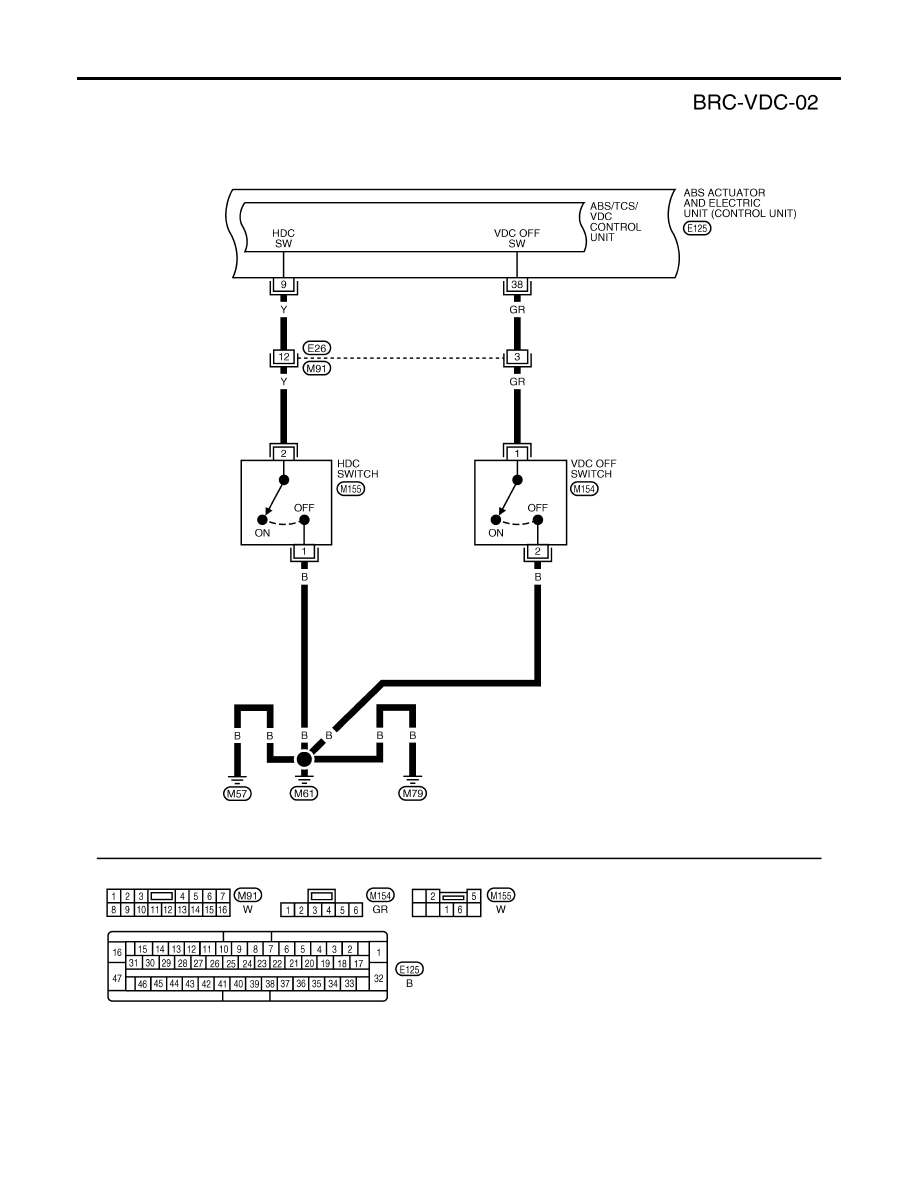

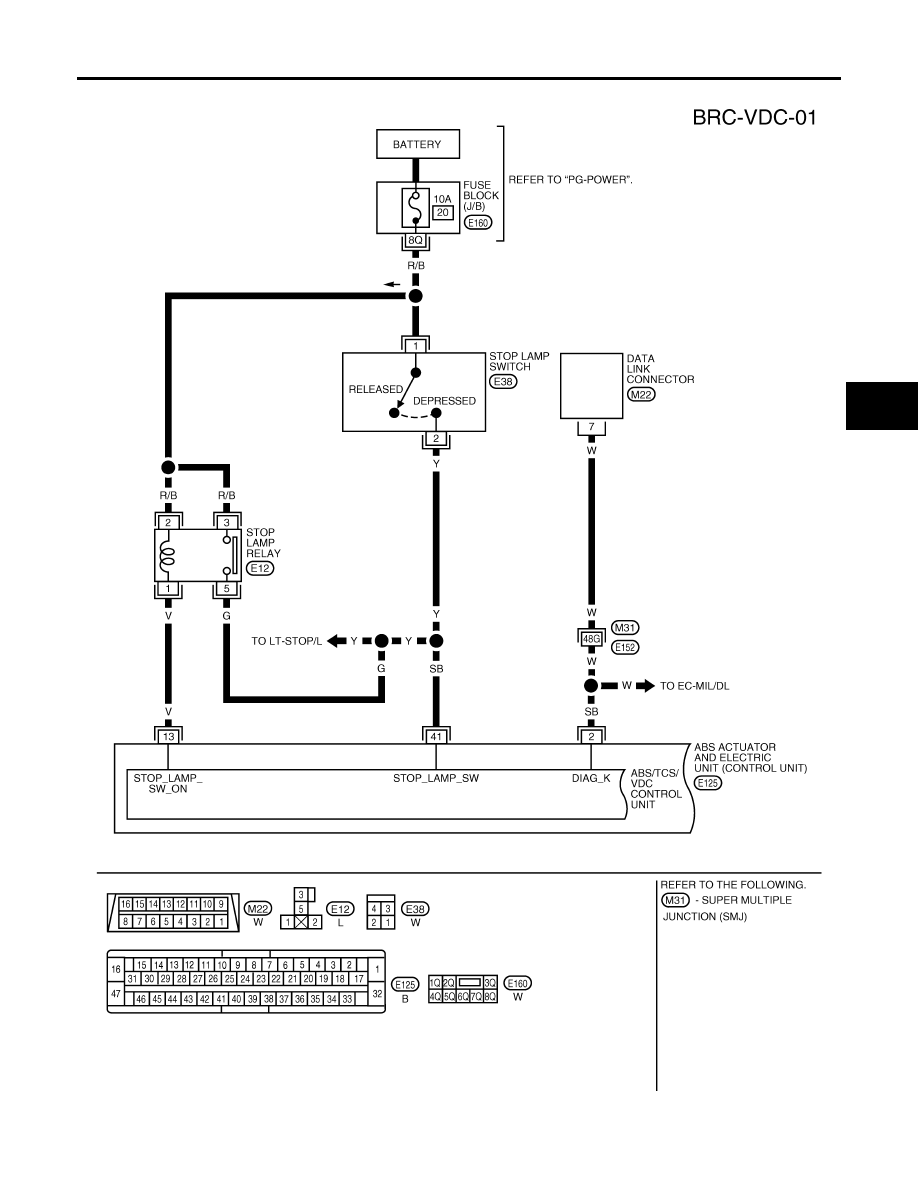

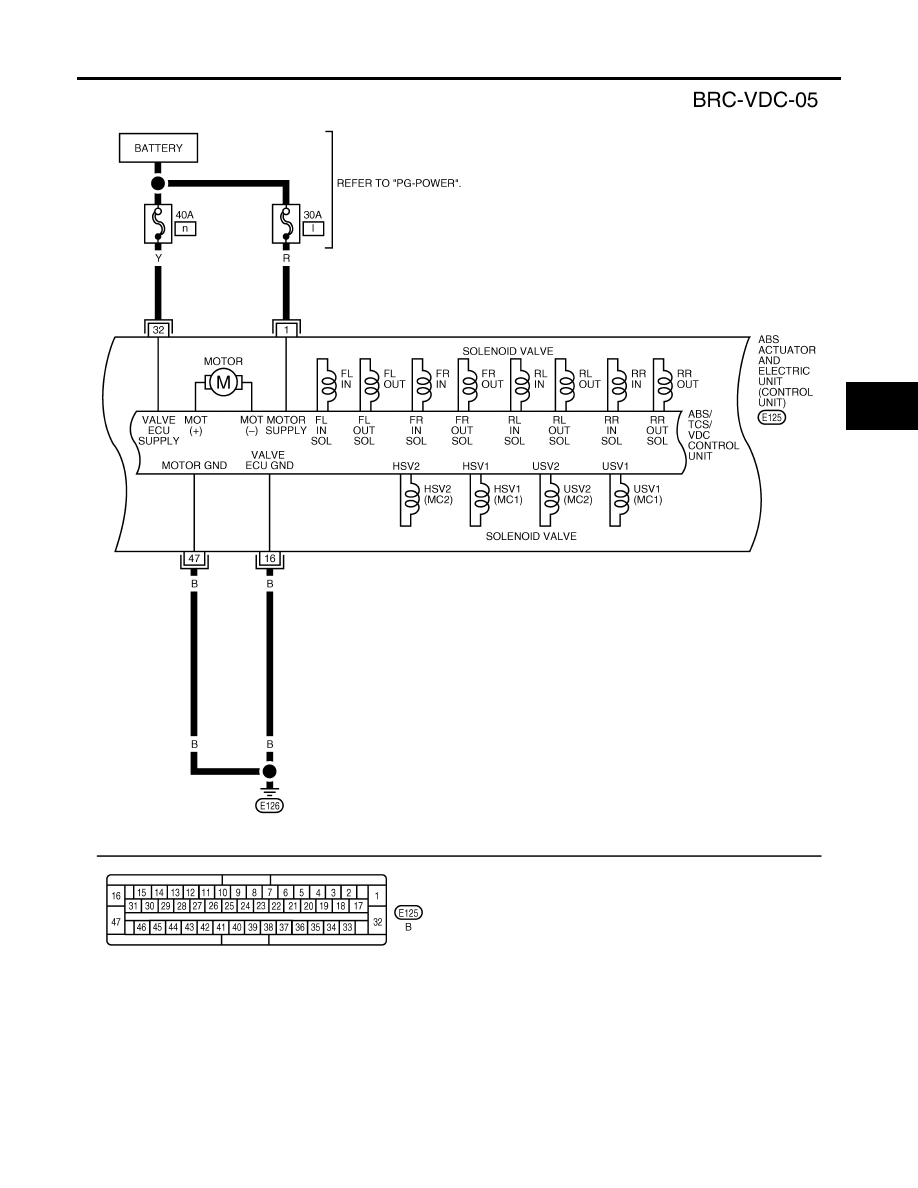

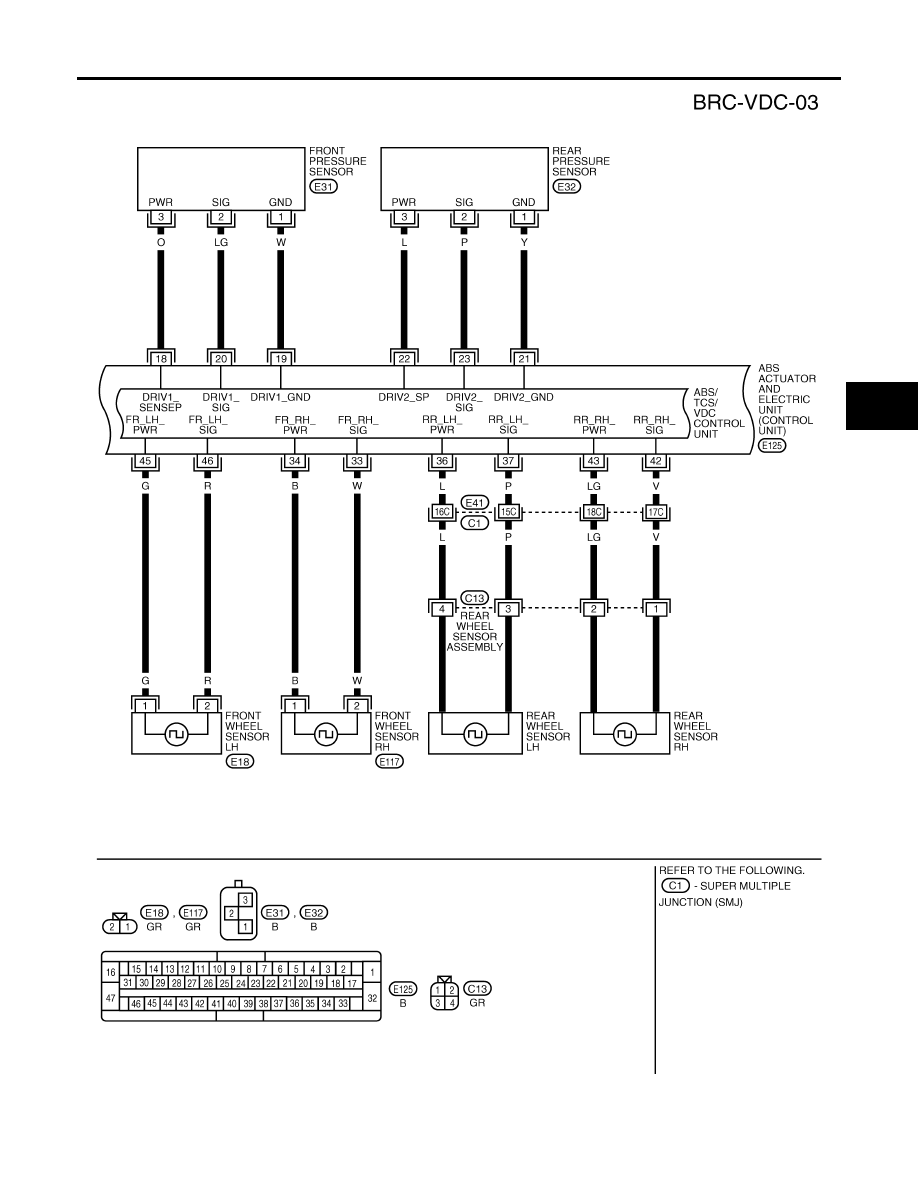

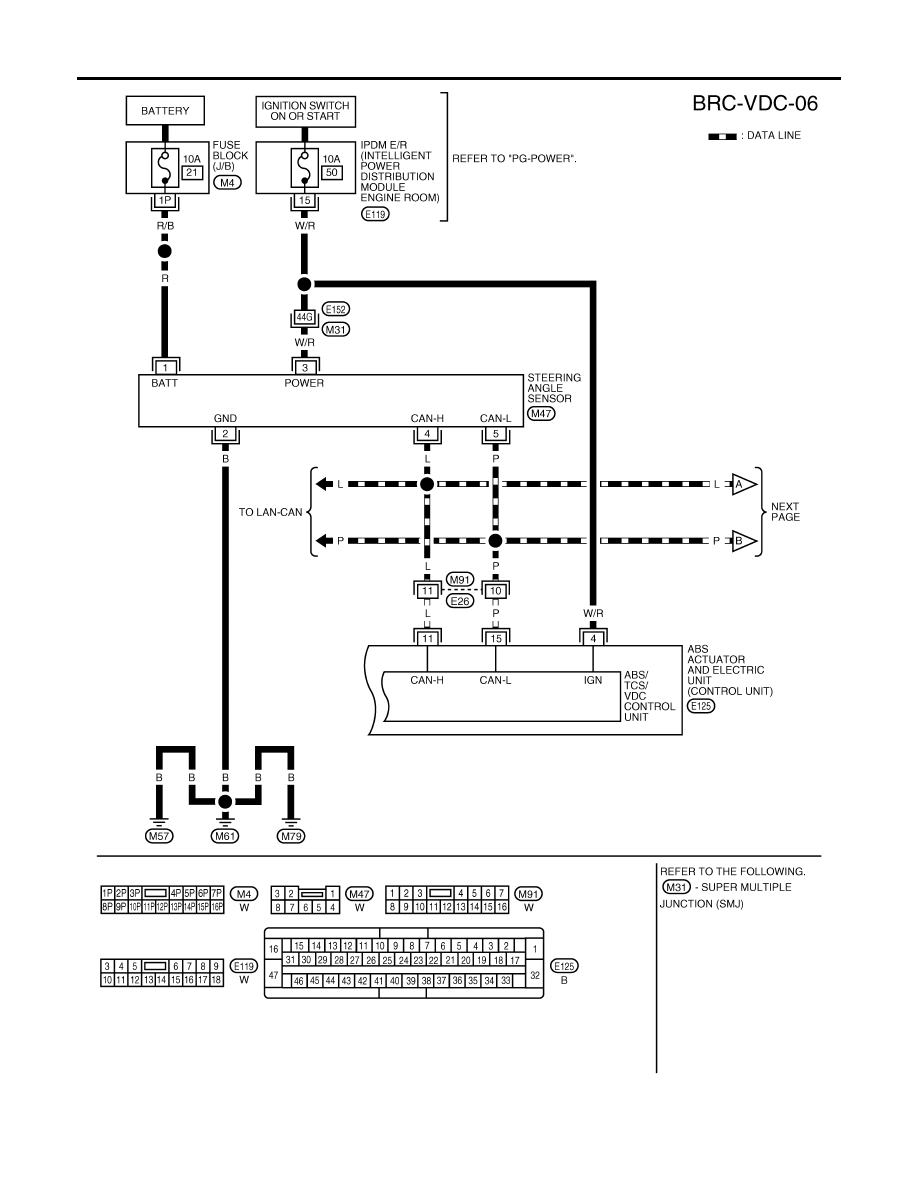

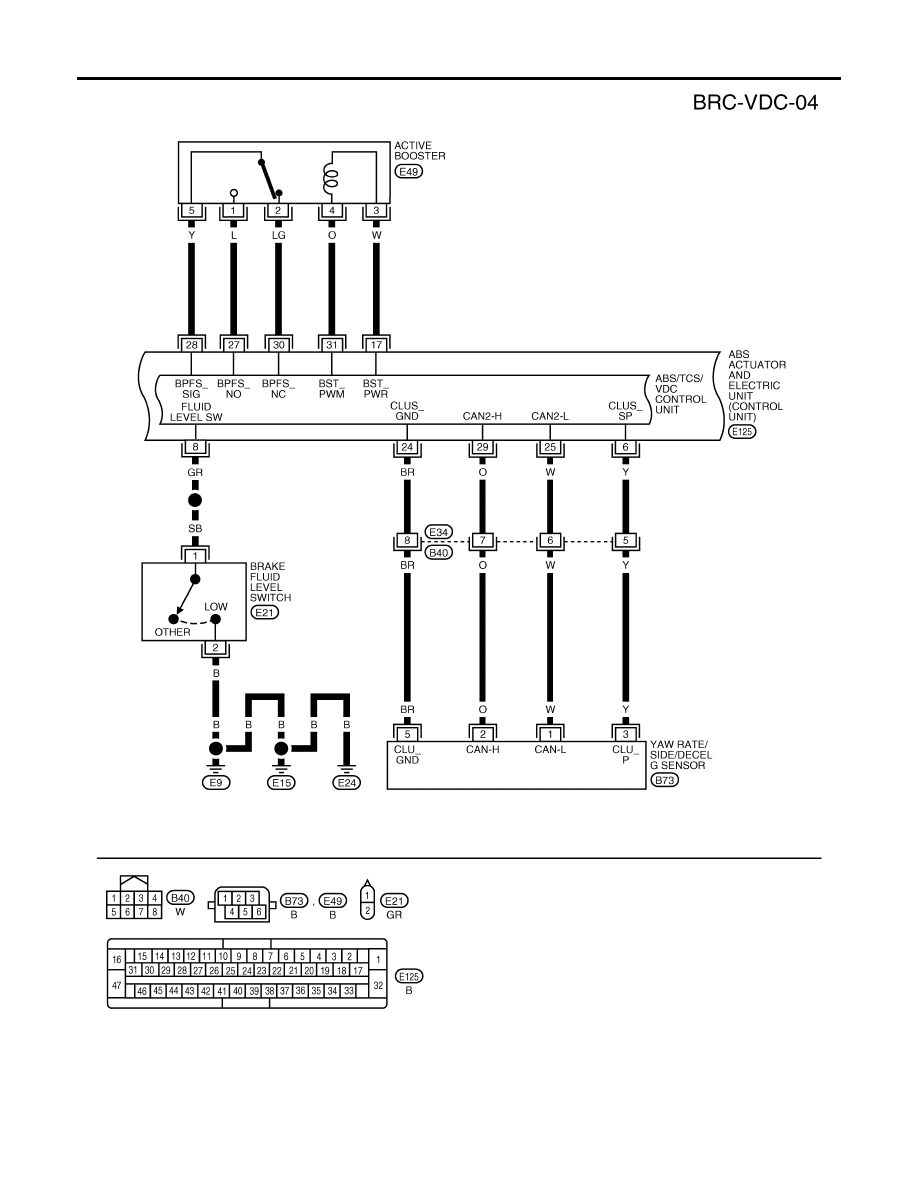

Wiring Diagram — VDC —

EFS0066N

WFWA0370E

BRC-80

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2007 Pathfinder

WFWA0371E

TROUBLE DIAGNOSIS

BRC-81

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2007 Pathfinder

WFWA0372E

BRC-82

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2007 Pathfinder

WFWA0373E

TROUBLE DIAGNOSIS

BRC-83

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2007 Pathfinder

WFWA0374E

BRC-84

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2007 Pathfinder

WFWA0375E
