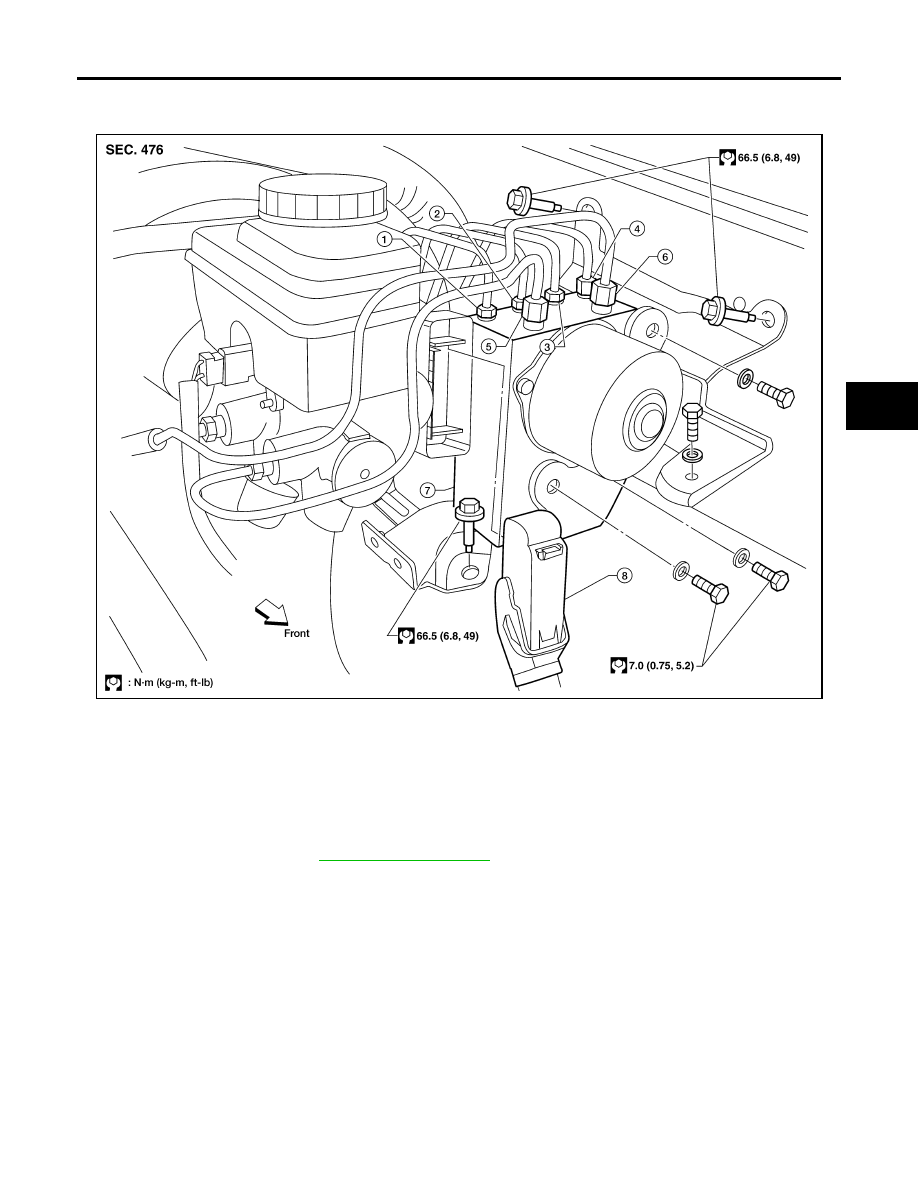

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY) BRC-61 [VDC/TCS/ABS] C D E G H I J K L M A B BRC 2007 Pathfinder ACTUATOR AND ELECTRIC UNIT (ASSEMBLY) PFP:47660 Removal and Installation EFS0065Z REMOVAL 1. Disconnect the battery negative terminal. 2. Drain the brake fluid. Refer to 3. Disconnect the actuator harness from the ABS actuator and electric unit (control unit). CAUTION: ● To remove the brake tubes, use a flare nut wrench to prevent the flare nuts and brake tubes from ● Be careful not to splash brake fluid on painted areas. 4. Disconnect the brake tubes. 5. Remove the three bolts and remove the ABS actuator and electric unit (control unit). LFIA0244E 1. To rear left disc brake 2. To rear right disc brake 3. To front left disc brake 4. To front right disc brake 5. From the master cylinder secondary side 6. From the master cylinder primary side 7. ABS actuator and electric unit (control 8. Harness connector |
