Nissan Pathfinder (2007 year). Manual - part 94

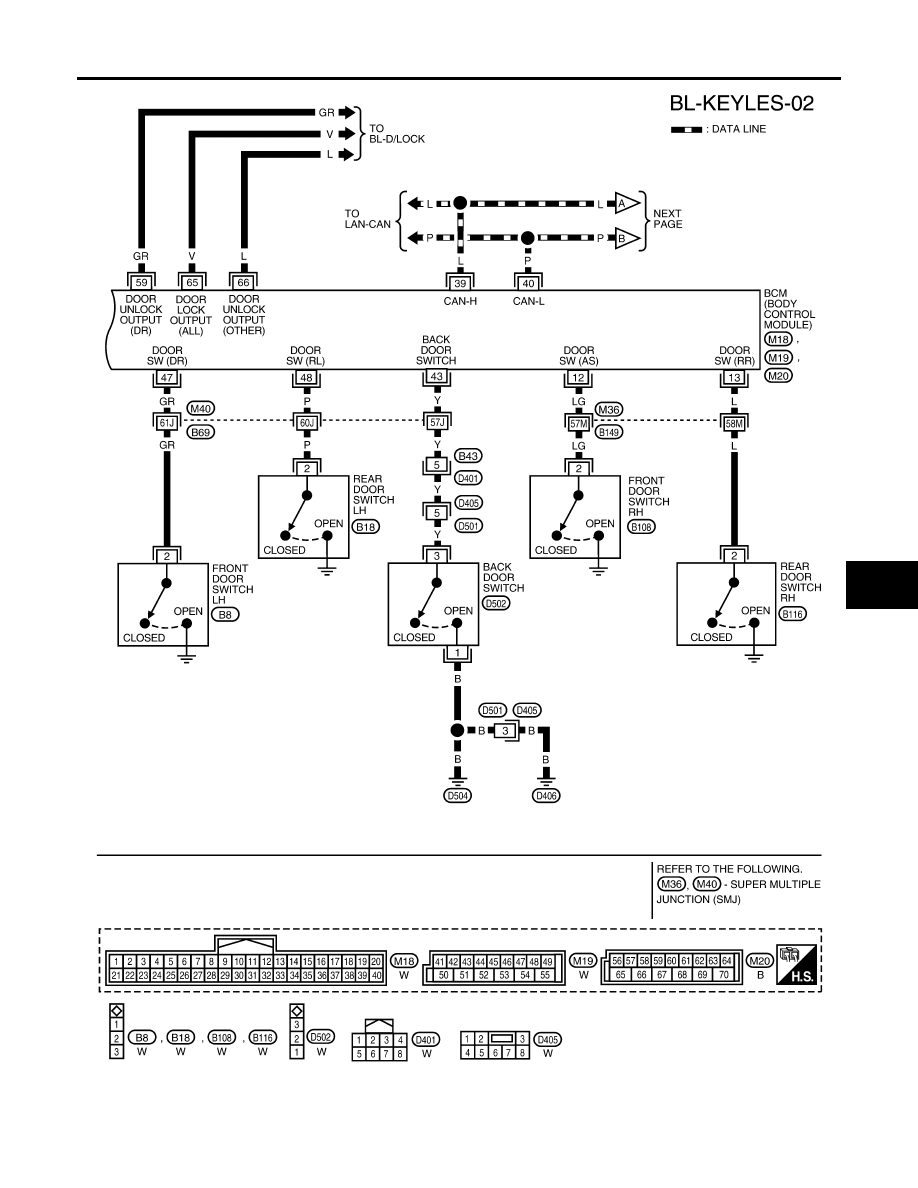

REMOTE KEYLESS ENTRY SYSTEM

BL-45

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

WIWA2137E

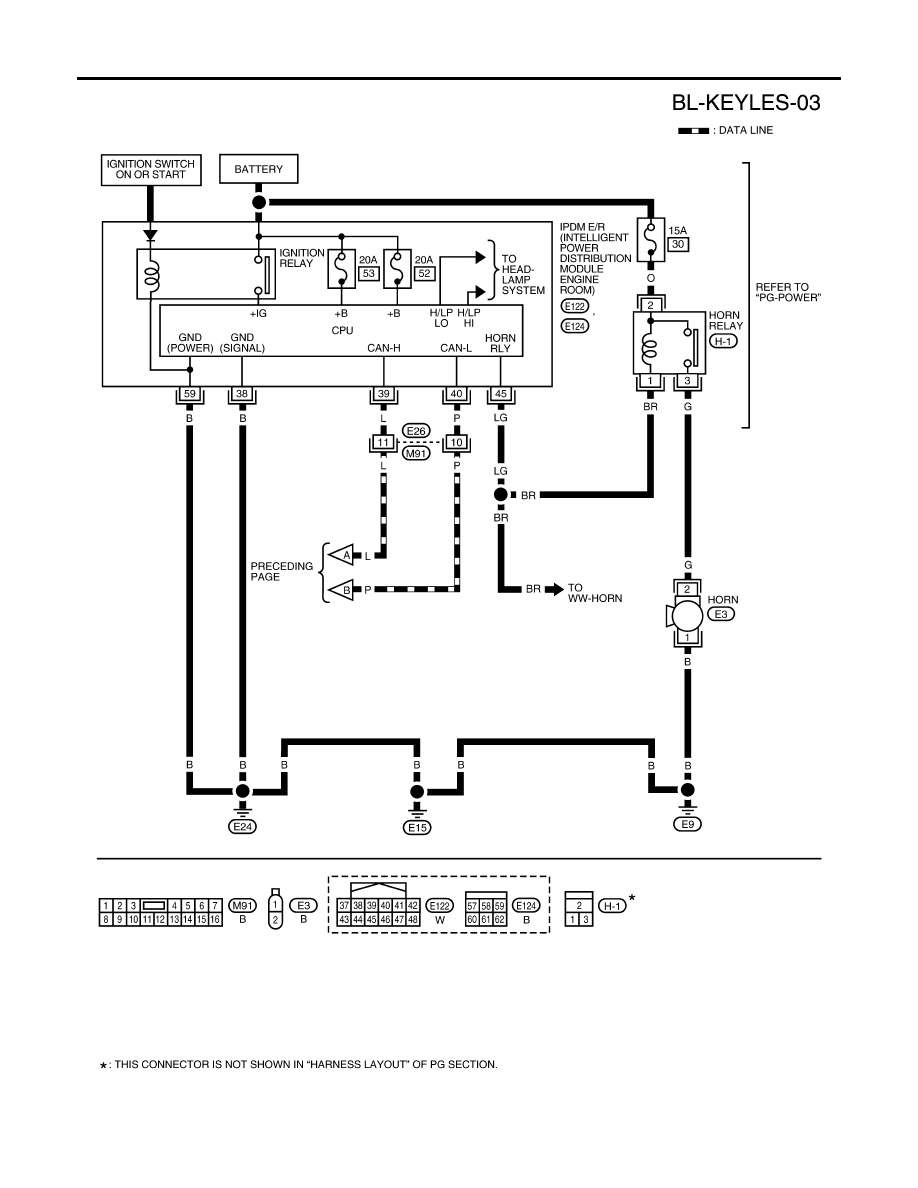

BL-46

REMOTE KEYLESS ENTRY SYSTEM

2007 Pathfinder

WIWA1614E

REMOTE KEYLESS ENTRY SYSTEM

BL-47

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

Terminals and Reference Values for BCM

EIS007P0

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

Terminals and Reference Values for IPDM E/R

EIS007P1

Refer to

PG-27, "Terminals and Reference Values for IPDM E/R"

 .

CONSULT-II Function (BCM)

EIS007P2

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II Start Procedure

EIS007P3

Refer to

GI-38, "CONSULT-II Start Procedure"

 .

CONSULT-II Application Items

EIS007P4

“MULTI REMOTE ENT”
Data Monitor

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

Monitored Item

Description

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

BACK DOOR SW

Indicates [ON/OFF] condition of back door switch.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

KEYLESS PANIC

Indicates [ON/OFF] condition of panic signal from keyfob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from keyfob.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from keyfob.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from lock/unlock switch.

RKE LCK-UNLCK

Indicates [ON/OFF] condition of lock/unlock signal at the same time from keyfob.

RKE KEEP UNLK

Indicates [ON/OFF] condition of unlock signal from keyfob.

BL-48

REMOTE KEYLESS ENTRY SYSTEM

2007 Pathfinder

Active Test

Work Support

*: Perform this mode always in the state of C mode. Refer to

BL-42, "Hazard and Horn Reminder"

 .

HORN CHIRP SET*

*: Perform this mode always in the state of C mode. Refer to

BL-42, "Hazard and Horn Reminder"

 .

HAZARD LAMP BACK SET*

*: Perform this mode always in the state of C mode. Refer to

BL-42, "Hazard and Horn Reminder"

 .

MULTI ANSWER BACK SET

AUTO LOCK SET

PANIC ALARM SET

Test Item

Description

FLASHER

This test is able to check right and left hazard reminder operation. The right hazard lamp turns on
when “RH” on CONSULT-II screen is touched and the left hazard lamp turns on when "LH" on CON-
SULT-II screen is touched.

HORN

This test is able to check panic alarm and horn reminder operations. The alarm activate for 0.5 sec-
onds after “ON” on CONSULT-II screen is touched.

DOOR LOCK

This test is able to check door lock operation. The doors lock and unlock based on the item on CON-
SULT-II screen touched.

Test Item

Description

REMO CONT ID REGIST

Keyfob ID code can be registered.

REMO CONT ID ERASUR

Keyfob ID code can be erased.

REMO CONT ID CONFIR

It can be checked whether keyfob ID code is registered or not in this mode.

HORN CHIRP SET*

Horn chirp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-II screen is touched.

HAZARD LAMP SET*

Hazard lamp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-II screen is touched.

MULTI ANSWER BACK SET

Hazard and horn reminder mode can be changed in this mode. The reminder mode will be changed
when “CHANG SETT” on CONSULT-II screen is touched.

AUTO LOCK SET

Auto locking function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-II screen is touched.

PANIC ALRM SET

Panic alarm operation mode can be changed in this mode. The operation mode will be changed
when "CHANG SETT" on CONSULT-II screen is touched.

Horn chirp function

ON

OFF

MODE1

MODE2

MODE3

MODE4

Hazard lamp operation mode

Nothing

Unlock only

Lock only

Lock and Unlock

MODE 1

(C mode)

MODE 2

(S mode)

Keyfob operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp flash

Twice

Once

Twice

Horn  sound

Once

MODE 1

MODE 2

MODE 3

Auto locking function

1 minutes

Nothing

5 minutes

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

1.5 seconds

REMOTE KEYLESS ENTRY SYSTEM

BL-49

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

Trouble Diagnosis Procedure

EIS007P5

1.

Check the symptom and customer's requests.

2.

Understand outline of system. Refer to

BL-40, "System Description"

 .

3.

Confirm system operation.

Check that the power door lock system operates normally. Refer to

BL-16, "POWER DOOR LOCK

SYSTEM"

 .

4.

Perform pre-diagnosis inspection. Refer to

BL-49, "Pre-Diagnosis Inspection"

 .

5.

Refer to trouble diagnosis chart by symptom, repair or replace any malfunctioning parts. Refer to

BL-50,

"Trouble Diagnoses"

 .

6.

Inspection End.

Pre-Diagnosis Inspection

EIS007P6

BCM POWER SUPPLY AND GROUND CIRCUIT INSPECTION

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

BL-50

REMOTE KEYLESS ENTRY SYSTEM

2007 Pathfinder

Trouble Diagnoses

EIS007P7

SYMPTOM CHART

NOTE:

Always check the "Trouble Diagnosis Procedure" before troubleshooting. Refer to

BL-49, "Trouble Diag-

nosis Procedure"

 .

Always check keyfob battery before replacing keyfob. Refer to

BL-55, "Keyfob Battery and Function

Check"

 .

The panic alarm operation of remote keyless entry system does not activate with the ignition key inserted
in the ignition key cylinder.

Use Remote Keyless Entry Tester J-43241 (follow instructions on tester) to check operation of keyfob
before replacing keyfob.

Symptom

Diagnoses/service procedure

Reference

page

All functions of remote keyless entry system do not
operate.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241)

NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

BL-55

2. Check BCM and remote keyless entry receiver.

BL-56

The new ID of keyfob cannot be entered.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241)

NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

BL-55

2. Key switch (insert) check

BL-52

3. Door switch check

BL-53

4. ACC power check

BL-57

5. Replace BCM.

BCS-25

Door lock or unlock does not function.
(If the power door lock system does not operate
manually, check power door lock system. Refer to

BL-16, "POWER DOOR LOCK SYSTEM"

 )

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241)

NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

BL-55

2. Replace BCM.

BCS-25

Hazard and horn reminder does not activate prop-
erly when pressing lock or unlock button of keyfob.

1. Check hazard and horn reminder mode with CONSULT-II.

NOTE:
Hazard and horn reminder mode can be changed.
First check the hazard and horn reminder mode setting.

BL-48

2. Door switch check

BL-53

3. Replace BCM.

BCS-25

Hazard reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Horn reminder OK)

1. Check hazard reminder mode with CONSULT-II.

NOTE:
Hazard reminder mode can be changed.
First check the hazard reminder mode setting.

BL-48

2. Check hazard function with hazard switch.

3. Replace BCM.

BCS-25

Horn reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Hazard reminder OK)

1. Check horn reminder mode with CONSULT-II.

NOTE:
Horn reminder mode can be changed.
First check the horn reminder mode setting.

BL-48

2. Check horn function with horn switch.

3. IPDM E/R operation check

BL-58

4. Replace BCM.

BCS-25

REMOTE KEYLESS ENTRY SYSTEM

BL-51

C

D

E

F

G

H

J

K

L

M

A

B

BL

2007 Pathfinder

Room lamp and ignition keyhole illumination opera-
tion do not activate properly.

1. Room lamp operation check

BL-58

2. Ignition keyhole illumination operation check

BL-59

3. Door switch check

BL-53

4. Replace BCM.

BCS-25

Panic alarm (horn and headlamp) does not activate
when panic alarm button is continuously pressed.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241)

NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

BL-55

2. Key switch (insert) check

BL-52

3. Replace BCM.

BCS-25

Auto door lock operation does not activate properly.
(All other remote keyless entry functions OK.)

1. Check auto door lock operation mode with CONSULT-II.

NOTE:
Auto door lock operation mode can be changed.
First check the auto door lock operation mode setting.

BL-48

2. Replace BCM.

BCS-25

Symptom

Diagnoses/service procedure

Reference

page

BL-52

REMOTE KEYLESS ENTRY SYSTEM

2007 Pathfinder

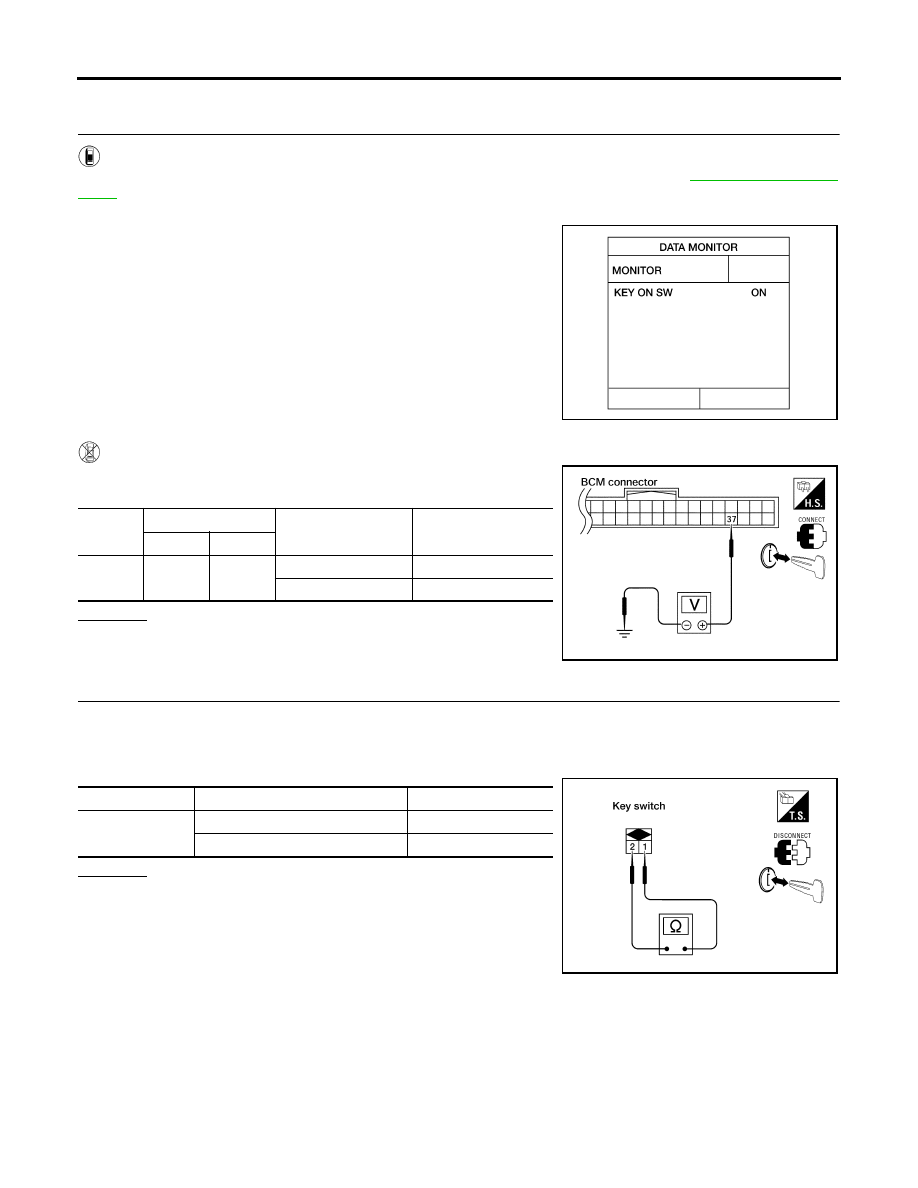

Key Switch (Insert) Check

EIS007P8

1.

CHECK KEY SWITCH INPUT SIGNAL

With CONSULT-II

Check key switch "KEY ON SW" in DATA MONITOR mode with CONSULT–II. Refer to

BL-25, "DATA MONI-

TOR"

 .

When key is inserted to ignition key cylinder:

When key is removed from ignition key cylinder:

Without CONSULT-II

Check voltage between BCM connector M18 terminal 37 and
ground.

OK or NG

OK

>> Key switch (insert) circuit is OK.

NG

>> GO TO 2.

2.

CHECK KEY SWITCH (INSERT)

1.

Turn ignition switch OFF.

2.

Disconnect key switch connector.

3.

Check continuity between key switch terminals.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace key switch.

KEY ON SW

: ON

KEY ON SW

: OFF

LIIA0169E

Connec-

tor

Terminal

Condition

Voltage (V)

(+)

(–)

M18

37

Ground

Key is inserted.

Battery voltage

Key is removed.

0

LIIA0567E

Terminals

Condition

Continuity

1 – 2

Key is inserted.

Yes

Key is removed.

No

WIIA0559E
