BCM (BODY CONTROL MODULE)

BCS-15

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2007 Pathfinder

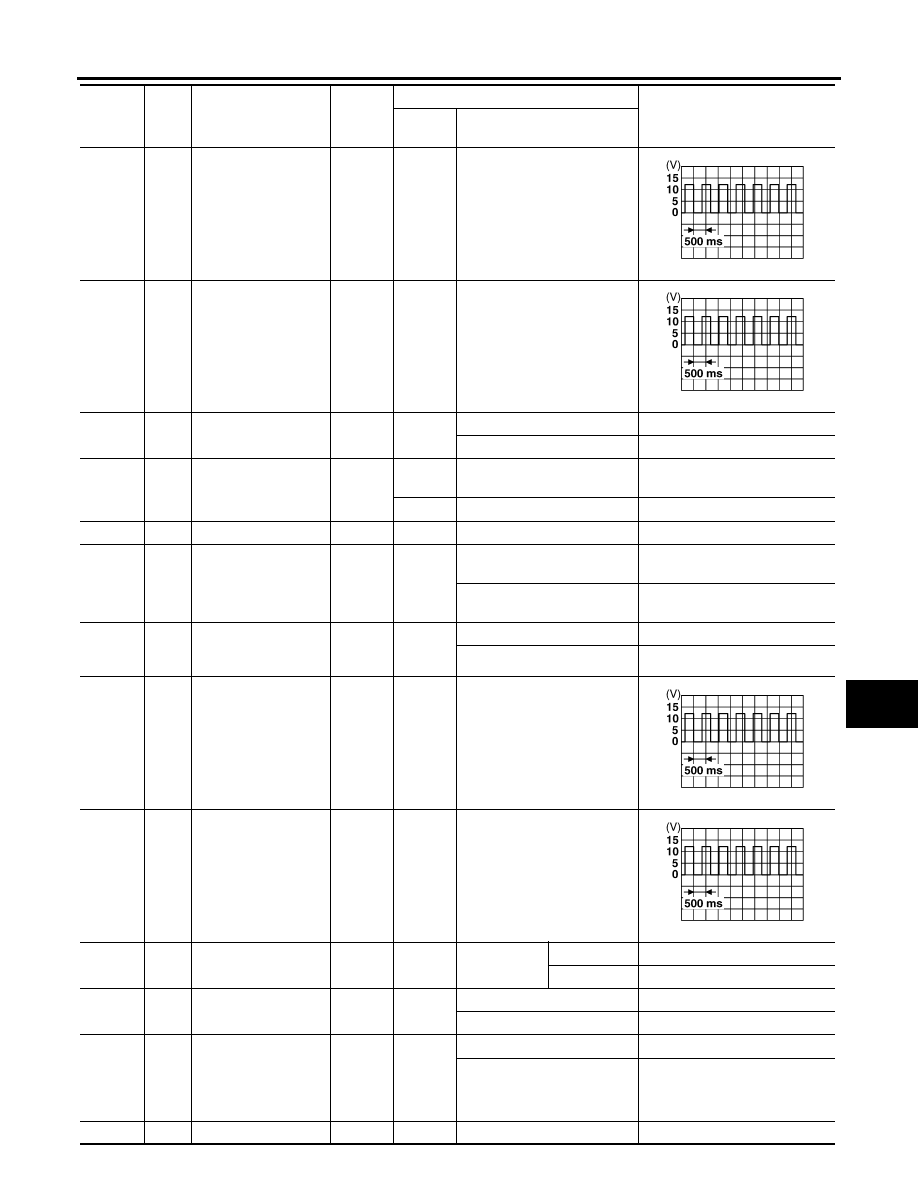

51

G

Trailer turn signal
(right)

Output

ON

Turn right ON

52

V

Trailer turn signal (left)

Output

ON

Turn left ON

55

W

Rear wiper output cir-
cuit

Output

ON

OFF

0

ON

Battery voltage

56

V

Battery saver output

Output

OFF

30 minutes after ignition
switch is turned OFF

0V

ON

—

Battery voltage

57

R/Y

Battery power supply

Input

OFF

—

Battery voltage

58

W

Optical sensor

Input

ON

When optical sensor is illumi-
nated

3.1V or more

When optical sensor is not
illuminated

0.6V or less

59

GR

Front door lock
assembly LH actuator
(unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

60

LG

Turn signal LH

Output

ON

Turn left ON

61

G

Turn signal RH

Output

ON

Turn right ON

63

BR

Interior room/map
lamp

Output

OFF

Any door
switch

ON (open)

0V

OFF (closed)

Battery voltage

65

V

All door lock actuators
(lock)

Output

OFF

OFF (neutral)

0V

ON (lock)

Battery voltage

66

L

Front door lock actua-
tor RH, rear door lock
actuators LH/RH and
back door lock actua-
tor (unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

67

B

Ground

Input

ON

—

0V

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA3009J

SKIA3009J

SKIA3009J

SKIA3009J

BCS-16

BCM (BODY CONTROL MODULE)

2007 Pathfinder

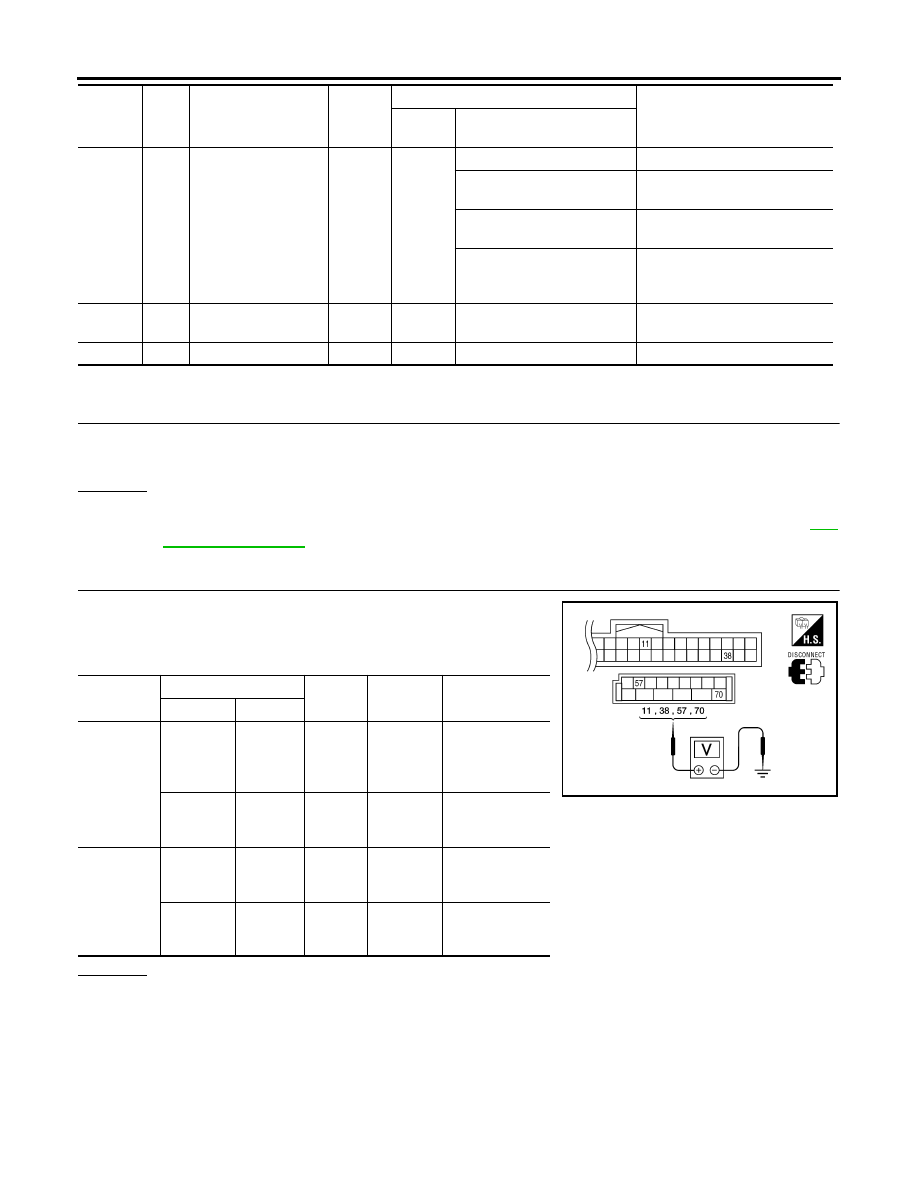

BCM Power Supply and Ground Circuit Check

EKS00HK0

1.

CHECK FUSES AND FUSIBLE LINK

●

Check 50A fusible link (letter g , located in the fuse and fusible link box).

●

Check 10A fuses [No. 1, 4 and 18, located in the fuse block (J/B)].

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

3, "PRECAUTIONS"

 .

2.

CHECK BCM POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM.

3.

Check voltage between BCM connectors and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace the harness.

68

O

Power window power
supply (RAP)

Output

—

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after
ignition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

69

L

Power window power
supply

Output

—

—

Battery voltage

70

W

Battery power supply

Input

OFF

—

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

Connector

Terminals

Power

source

Condition

Voltage (V)

(Approx.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

BCM (BODY CONTROL MODULE)

BCS-17

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2007 Pathfinder

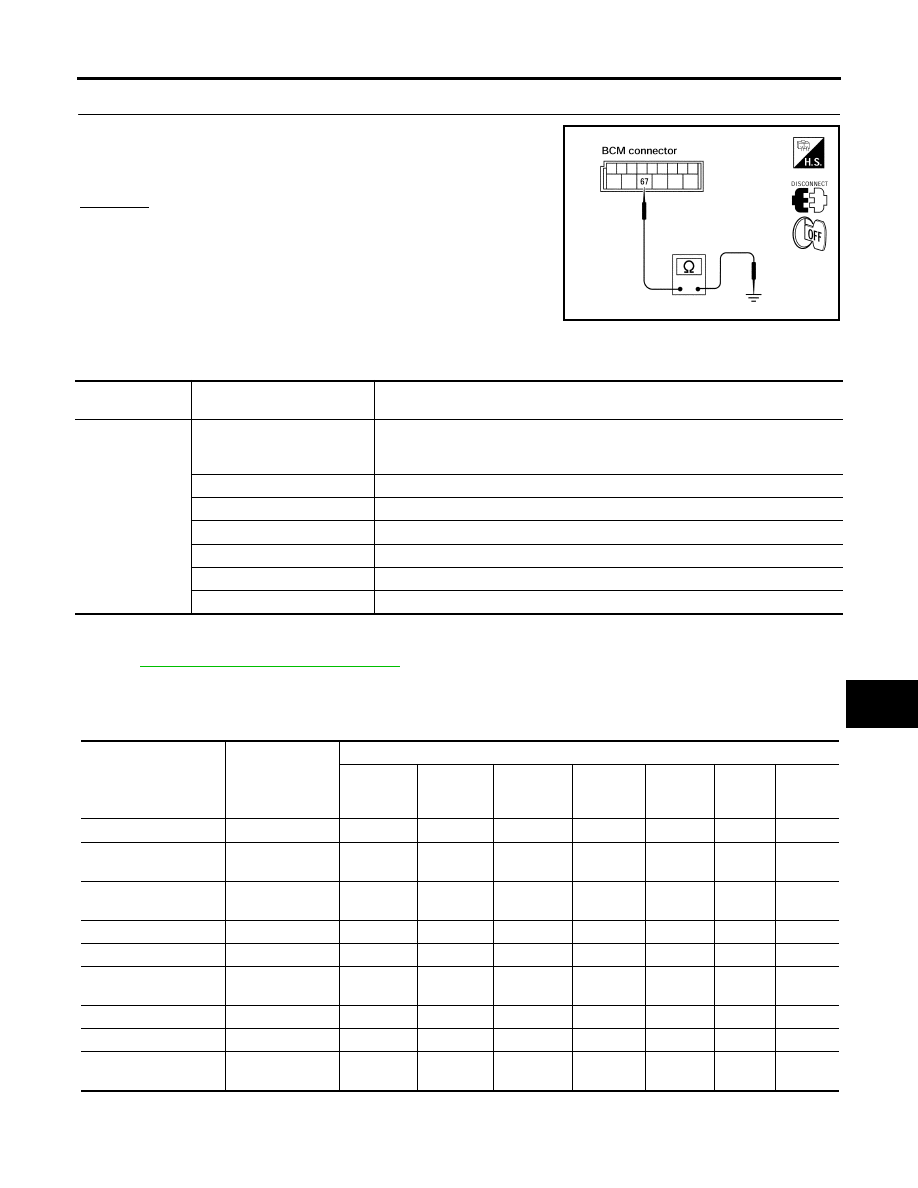

3.

CHECK GROUND CIRCUIT

Check continuity between BCM connector M20 terminal 67 and
ground.

OK or NG

OK

>> Power supply and ground circuit is OK.

NG

>> Repair or replace harness.

CONSULT-II Function (BCM)

EKS00G0P

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II START PROCEDURE

Refer to

GI-38, "CONSULT-II Start Procedure"

 .

ITEMS OF EACH PART

NOTE:
CONSULT-II will only display systems the vehicle possesses.

67 - Ground

: Continuity should exist.

LIIA0915E

BCM diagnostic

test item

Diagnostic mode

Content

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The results of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

System and item

CONSULT-II

display

Diagnostic test mode (Inspection by part)

WORK

SUPPORT

SELF-

DIAG

RESULTS

CAN DIAG
SUPPORT

MNTR

DATA

MONITOR

ECU

PART

NUMBER

ACTIVE

TEST

CON-

FIGU-

RATION

BCM

BCM

×

×

×

×

×

Power door lock sys-
tem

DOOR LOCK

×

×

×

Rear defogger

REAR
DEFOGGER

×

×

Warning chime

BUZZER

×

×

Room lamp timer

INT LAMP

×

×

×

Remote keyless entry
system

MULTI REMOTE
ENT

×

×

×

Headlamp

HEAD LAMP

×

×

×

Wiper

WIPER

×

×

×

Turn signal lamp
Hazard lamp

FLASHER

×

×

BCS-18

BCM (BODY CONTROL MODULE)

2007 Pathfinder

WORK SUPPORT
Display Item List

CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)

EKS00G0Q

1.

SELF-DIAGNOSTIC RESULT CHECK

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

Connect to CONSULT-II, and select “BCM” on “SELECT SYSTEM” screen.

2.

Select “BCM ” on “SELECT TEST ITEM” screen, and select “SELF-DIAG RESULTS”.

3.

Check display content in self-diagnostic results.

Contents displayed

No malfunction>>Inspection End
Malfunction in CAN communication system>>After printing the monitor items, go to

LAN-7, "TROUBLE

DIAGNOSIS"

 .

Blower fan switch sig-
nal
Air conditioner switch
signal

AIR
CONDITIONER

×

Combination switch

COMB SW

×

NVIS (NATS)

IMMU

×

×

Interior lamp battery
saver

BATTERY
SAVER

×

×

×

Back door

TRUNK

×

×

Theft alarm

THEFT ALARM

×

×

×

Retained accessory
power control

RETAINED PWR

×

×

×

Oil pressure sensor

SIGNAL BUFFER

×

×

Low tire pressure mon-
itor

AIR PRESSURE
MONITOR

×

×

×

×

Panic alarm

PANIC ALARM

×

System and item

CONSULT-II

display

Diagnostic test mode (Inspection by part)

WORK

SUPPORT

SELF-

DIAG

RESULTS

CAN DIAG
SUPPORT

MNTR

DATA

MONITOR

ECU

PART

NUMBER

ACTIVE

TEST

CON-

FIGU-

RATION

Item

Description

RESET SETTING VALUE

Return a value set with WORK SUPPORT of each system to a default value in factory shipment.

CONSULT-II display code

Diagnosis item

U1000

INITIAL DIAG

TRANSMIT DIAG

ECM

IPDM E/R

METER/M&A

I-KEY

BCM (BODY CONTROL MODULE)

BCS-19

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2007 Pathfinder

Configuration

EKS00G0R

DESCRIPTION

CONFIGURATION has two functions as follows:

●

READ CONFIGURATION is the function to confirm vehicle configuration of current BCM.

●

WRITE CONFIGURATION is the function to write vehicle configuration on BCM.

CAUTION:

●

When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-II.

●

Complete the procedure of WRITE CONFIGURATION in order.

●

If you set incorrect WRITE CONFIGURATION, incidents will occur.

●

Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

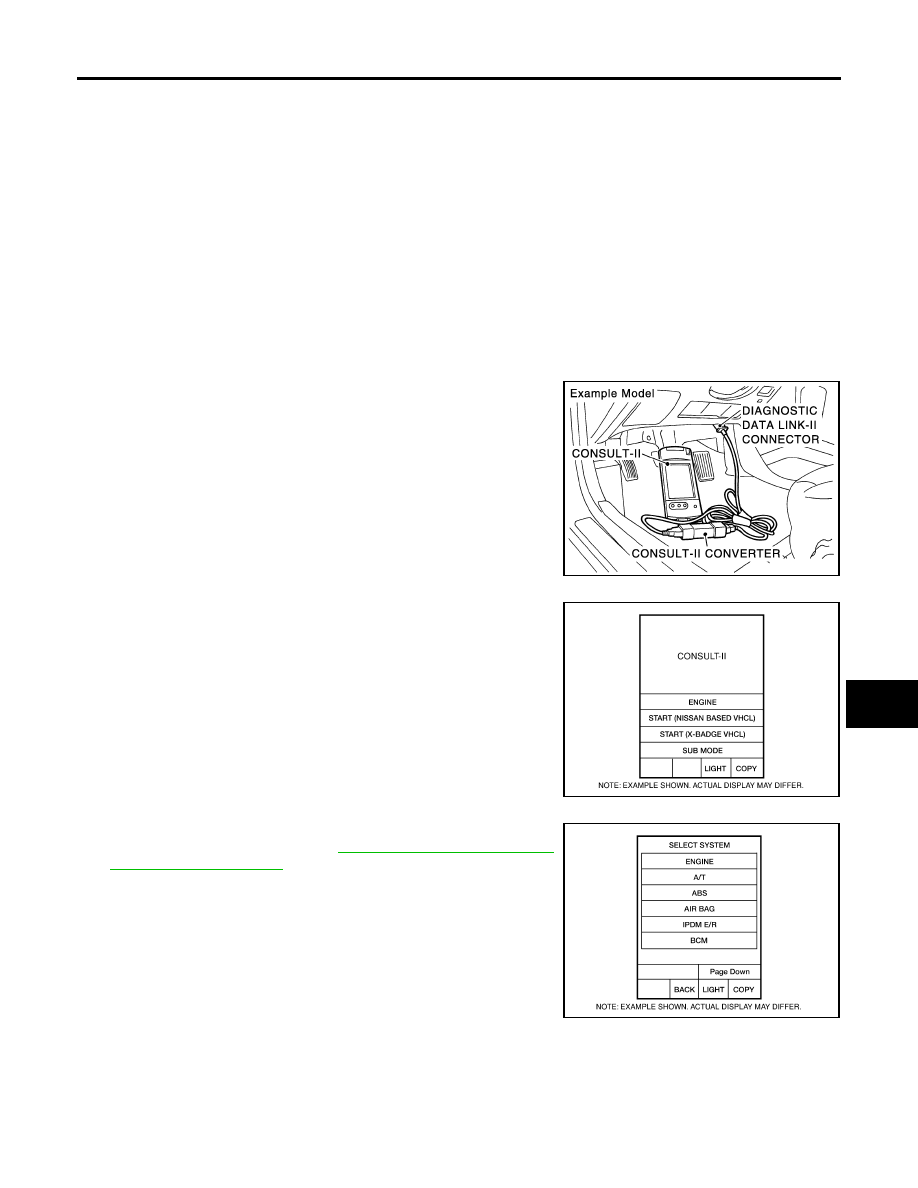

READ CONFIGURATION PROCEDURE

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

With ignition switch OFF, connect CONSULT-II and CONSULT-II
CONVERTER to data link connector and turn ignition switch ON.

2.

Touch “START (NISSAN BASED VHCL)”.

3.

Touch “BCM” on “SELECT SYSTEM” screen.
If "BCM" is not indicated, go to

GI-40, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

PAIA0070E

BCIA0029E

BCIA0030E

BCS-20

BCM (BODY CONTROL MODULE)

2007 Pathfinder

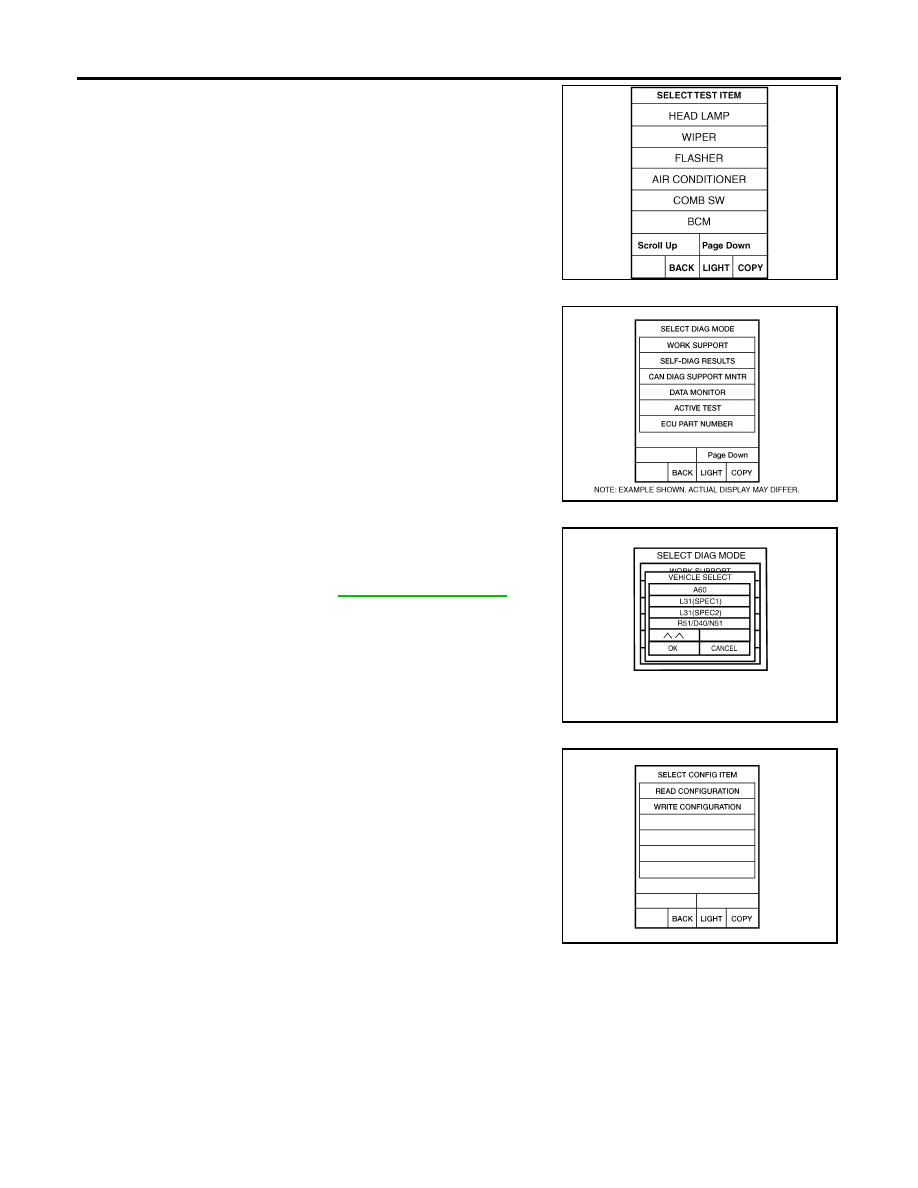

4.

Touch “BCM” on “SELECT TEST ITEM” screen.

5.

Touch “CONFIGURATION” on “SELECT DIAG MODE” screen.

6.

Touch “R51/D40/N51” and "OK" on “VEHICLE SELECT” screen.
For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.

NOTE:
Confirm vehicle model. Refer to

GI-48, "Model Variation"

  in GI

section.

7.

Touch “READ CONFIGURATION” on “SELECT CONFIG ITEM”
screen.

LKIA0183E

BCIA0031E

LKIA0613E

LKIA0547E

BCM (BODY CONTROL MODULE)

BCS-21

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2007 Pathfinder

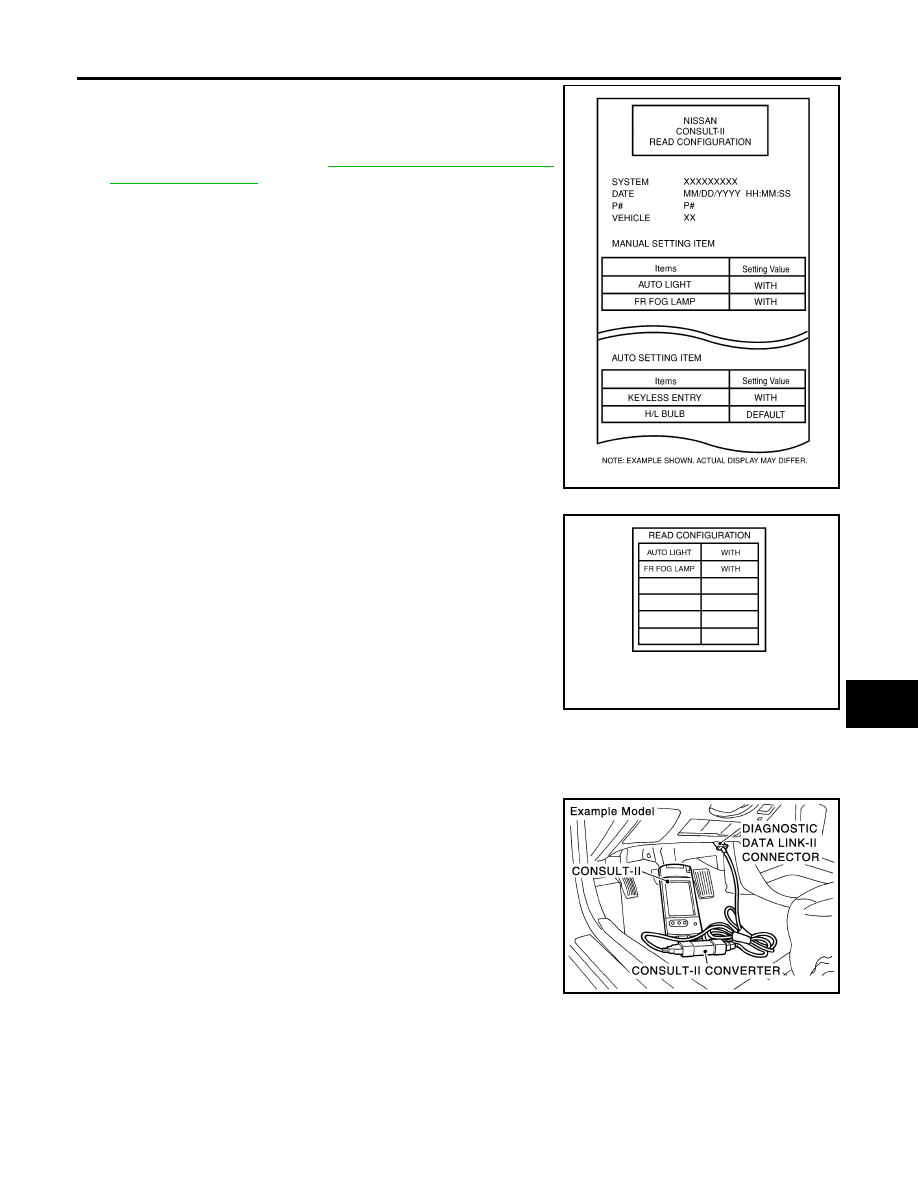

8.

Configuration of current BCM is printed out automatically. A list-
ing of manual setting items and auto setting items will be dis-
played. Auto setting items are preset and cannot be changed.
Manual setting items can be set by using WRITE CONFIGURA-
TION PROCEDURE. Refer to

BCS-21, "WRITE CONFIGURA-

TION PROCEDURE"

 .

9.

Touch “BACK” on “READ CONFIGURATION” screen.

WRITE CONFIGURATION PROCEDURE

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

With ignition switch OFF, connect CONSULT-II and CONSULT-II
CONVERTER to data link connector and turn ignition switch ON.

LKIA0504E

LKIA0395E

PAIA0070E

BCS-22

BCM (BODY CONTROL MODULE)

2007 Pathfinder

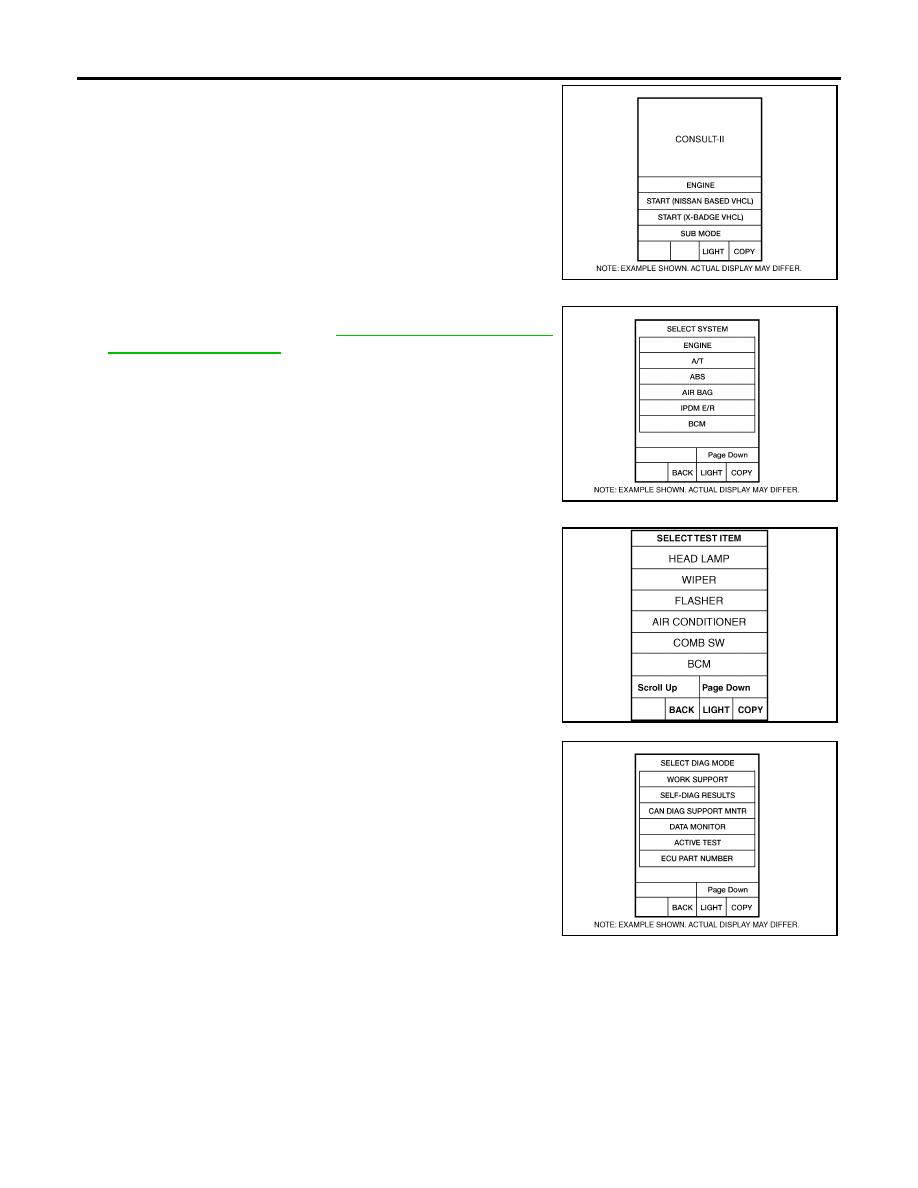

2.

Touch “START (NISSAN BASED VHCL)”.

3.

Touch “BCM” on “SELECT SYSTEM” screen.
If "BCM" is not indicated, go to

GI-40, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

4.

Touch “BCM” on “SELECT TEST ITEM” screen.

5.

Touch “CONFIGURATION” on “SELECT DIAG MODE” screen.

BCIA0029E

BCIA0030E

LKIA0183E

BCIA0031E
