TROUBLE DIAGNOSIS

ATC-115

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

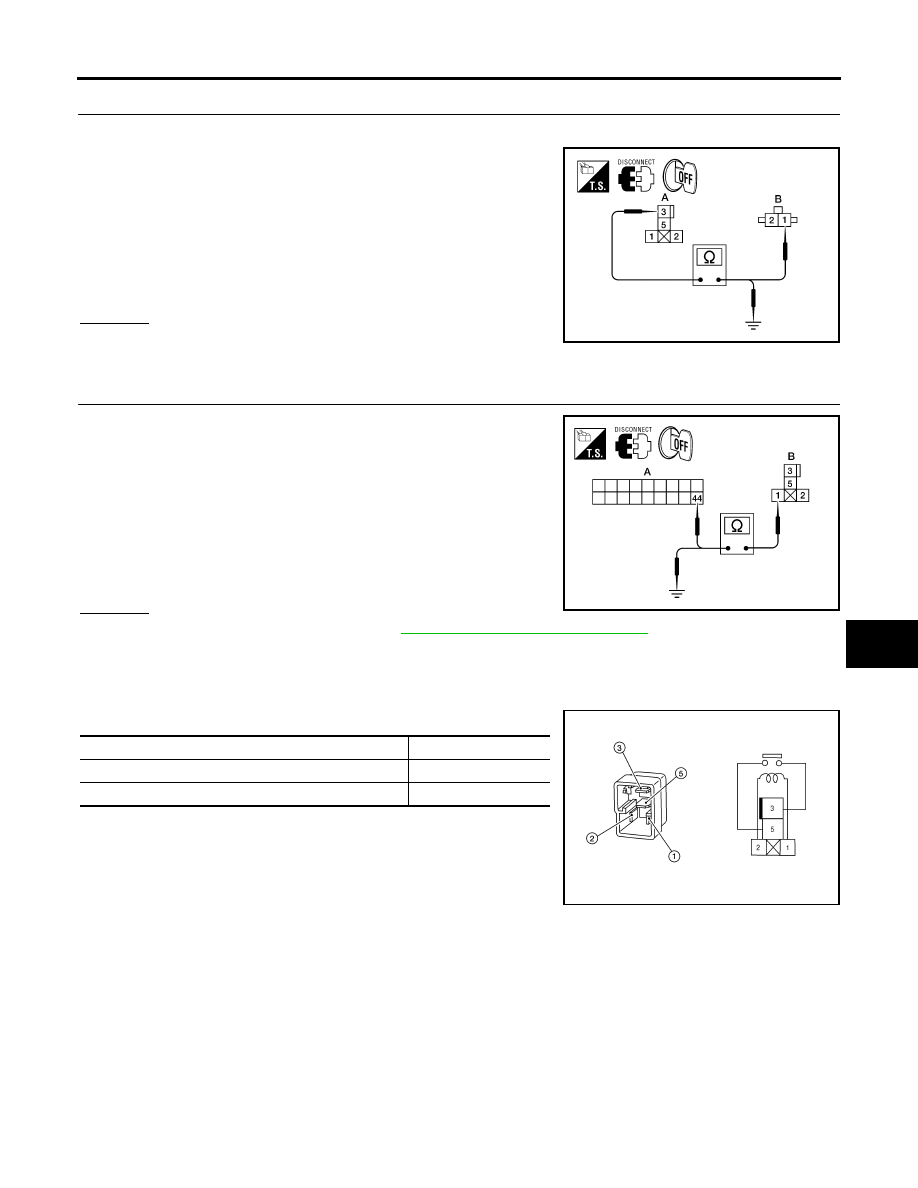

5.

CHECK HEATER PUMP MOTOR POWER CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between heater pump relay harness connector
(A) E144 terminal 3 and heater pump harness connector (B)
E141 terminal 1.

3.

Check continuity between heater pump relay harness connector
(A) E144 terminal 3 and ground.

OK or NG

OK

>> GO TO 6.

NG

>> Repair harness or connector.

6.

CHECK CIRCUIT BETWEEN HEATER PUMP RELAY AND FRONT AIR CONTROL

1.

Disconnect front air control connector.

2.

Check continuity between front air control harness connector (A)
M50 terminal 44 and heater pump relay harness connector (B)
E144 terminal 1.

3.

Check continuity between heater pump relay harness connector
(B) E144 terminal 1 and ground.

OK or NG

OK

>> Replace front air control. Refer to

ATC-131, "FRONT AIR CONTROL"

 .

NG

>> Repair harness or connector.

COMPONENT INSPECTION
Heater Pump Relay

Check continuity between terminals 3 and 5.

If NG, replace relay.

3 - 1

: Continuity should exist.

3 - Ground

: Continuity should not exist.

WJIA1987E

1 - 44

: Continuity should exist.

1 - Ground

: Continuity should not exist.

WJIA1988E

Conditions

Continuity

12V direct current supply between terminals 1 and 2

Yes

No current supply

No

LHA160

ATC-116

TROUBLE DIAGNOSIS

2007 Pathfinder

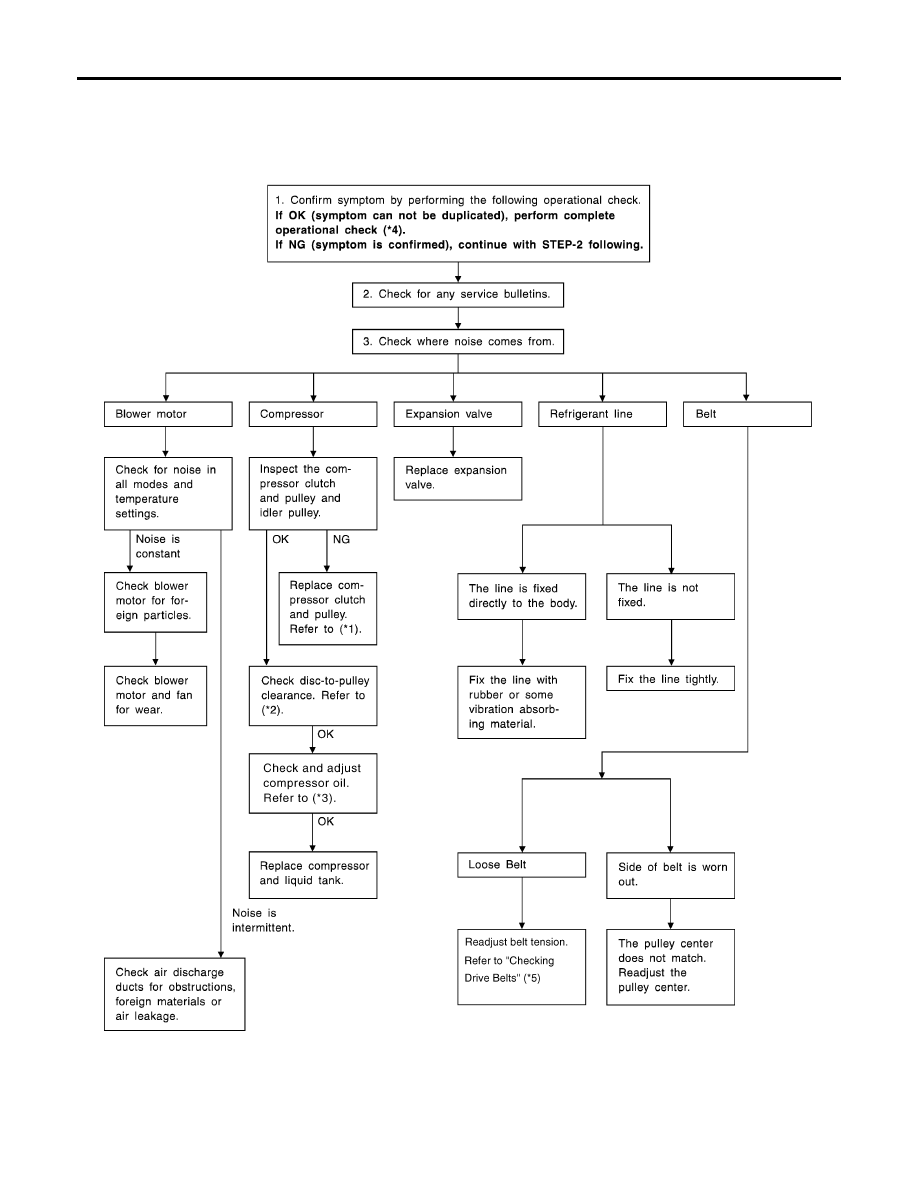

Noise

EJS004PE

SYMPTOM: Noise

INSPECTION FLOW

WJIA1972E

ATC-118

TROUBLE DIAGNOSIS

2007 Pathfinder

Self-diagnosis

EJS004PF

SYMPTOM: Self-diagnosis cannot be performed.

INSPECTION FLOW

1.

CONFIRM AUTO MODE OPERATION

1.

Press the AUTO switch.

2.

Display should indicate AUTO. (Discharge air and blower speed will depend on ambient, in-vehicle and
set temperatures.)

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

PERFORM COMPLETE OPERATIONAL CHECK (FRONT)

Perform a complete operational check and check for any symptoms. Refer to

ATC-52, "Operational Check

(Front)"

  .

Can a symptom be duplicated?

YES

>> Refer to

ATC-34, "SYMPTOM TABLE"

  .

NO

>> System OK.

3.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

Have any service bulletins been issued?

YES

>> Refer to appropriate service bulletin.

NO

>> GO TO 4.

4.

CHECK POWER AND GROUND CIRCUIT

Check main power supply and ground circuit. Refer to

ATC-56, "DIAGNOSTIC PROCEDURE FOR A/C SYS-

TEM"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Refer to

ATC-55, "Power Supply and Ground Circuit for Front Air Control"

  .

5.

CHECK AMBIENT SENSOR CIRCUIT

Check ambient sensor circuit. Refer to

ATC-121, "Ambient Sensor 1 Circuit"

  .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace as necessary.

6.

CHECK IN-VEHICLE SENSOR CIRCUIT

Check in-vehicle sensor circuit. Refer to

ATC-124, "In-vehicle Sensor Circuit"

  .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace as necessary.

7.

CHECK OPTICAL SENSOR CIRCUIT

Check optical sensor circuit. Refer to

ATC-127, "Optical Sensor Circuit"

  .

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace as necessary.

TROUBLE DIAGNOSIS

ATC-119

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

8.

CHECK INTAKE SENSOR CIRCUIT

Check intake sensor circuit. Refer to

ATC-129, "Intake Sensor Circuit"

  .

OK or NG

OK

>> GO TO 9.

NG

>> Repair or replace as necessary.

9.

CHECK AIR MIX DOOR MOTORS PBR CIRCUIT

Check air mix door motors PBR circuit. Refer to

ATC-63, "Air Mix Door Motor Circuit"

  .

OK or NG

OK

>> GO TO 10.

NG

>> Repair or replace as necessary.

10.

RECHECK FOR SYMPTOMS

Perform a complete operational check for any symptoms. Refer to

ATC-52, "Operational Check (Front)"

  .

Does another symptom exist?

YES

>> Refer to

ATC-34, "SYMPTOM TABLE"

 .

NO

>> Replace front air control. Refer to

ATC-131, "FRONT AIR CONTROL"

  .

ATC-120

TROUBLE DIAGNOSIS

2007 Pathfinder

Memory Function

EJS004PG

SYMPTOM: Memory function does not operate.

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - MEMORY FUNCTION

1.

Set the temperature to 32

°

C (90

°

F).

2.

Rotate the front blower control dial (driver) to turn system OFF.

3.

Turn ignition switch OFF.

4.

Turn ignition switch ON.

5.

Press the AUTO switch.

6.

Confirm that the set temperature remains at previous temperature.

7.

Rotate the front blower control dial (driver) to turn system OFF.

Can the symptom be duplicated?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

PERFORM COMPLETE OPERATIONAL CHECK

Perform a complete operational check and check for any symptoms. Refer to

ATC-52, "Operational Check

(Front)"

 .

Can a symptom be duplicated?

YES

>> Refer to

ATC-34, "SYMPTOM TABLE"

 .

NO

>> System OK.

3.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 4.

4.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis to check for any codes. Refer to

ATC-50, "A/C System Self-diagnosis Function"

 .

Are any self-diagnosis codes present?

YES

>> Refer to

ATC-51, "SELF-DIAGNOSIS CODE CHART"

 .

NO

>> GO TO 5.

5.

CHECK POWER AND GROUND CIRCUIT

Check main power supply and ground circuit. Refer to

ATC-56, "DIAGNOSTIC PROCEDURE FOR A/C SYS-

TEM"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace as necessary.

6.

RECHECK FOR SYMPTOMS

Perform a complete operational check for any symptoms. Refer to

ATC-52, "Operational Check (Front)"

 .

Does another symptom exist?

YES

>> Refer to

ATC-34, "SYMPTOM TABLE"

 .

NO

>> Replace front air control. Refer to

ATC-131, "FRONT AIR CONTROL"

 .

TROUBLE DIAGNOSIS

ATC-121

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

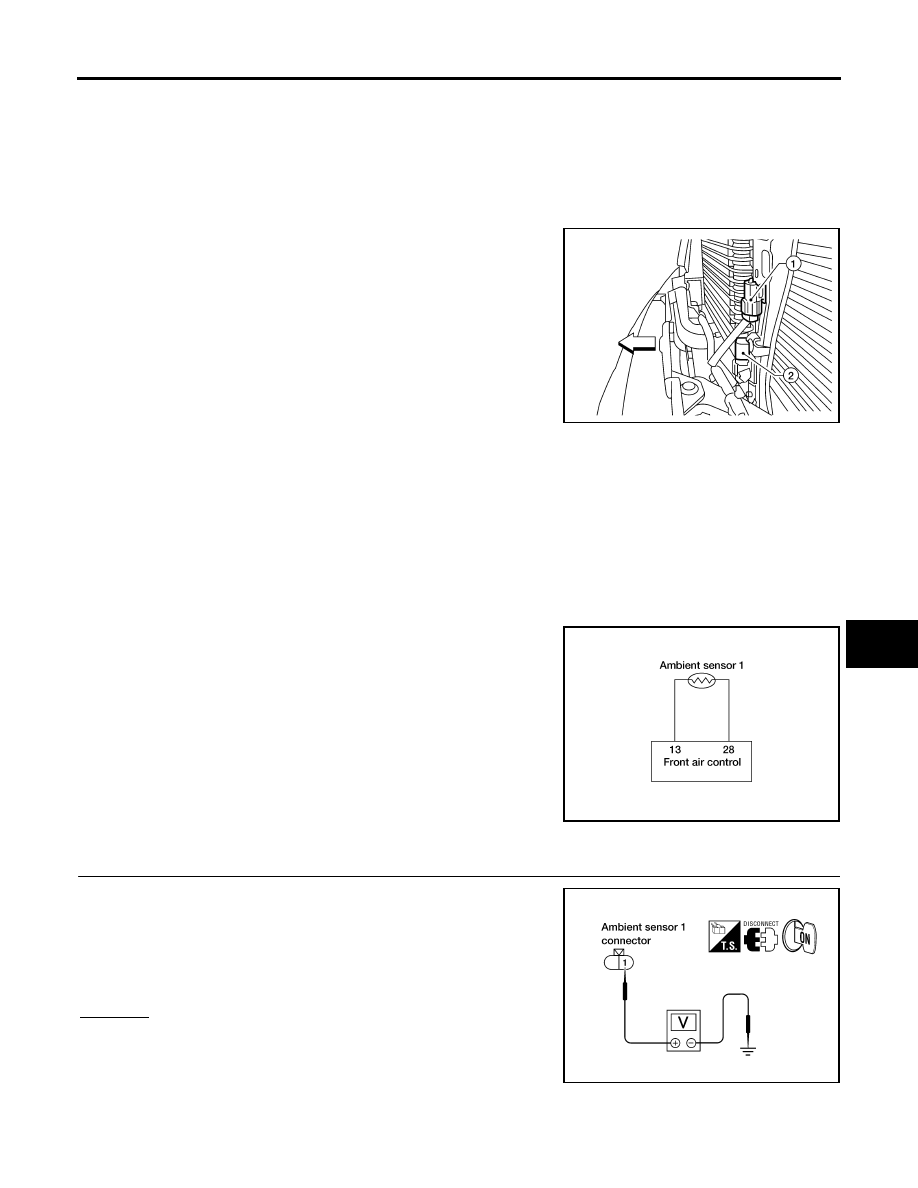

Ambient Sensor 1 Circuit

EJS004PH

COMPONENT DESCRIPTION
Ambient Sensor 1

Ambient sensor 1 (1) is attached to the radiator core support (left side). It detects ambient temperature and
converts it into a value which is then input into the front air control.

: Front

NOTE:
Both of the ambient sensors are located behind the front grille, below
the hood latch. The upper ambient sensor 1 (1) provides input for the
automatic A/C system. The lower ambient sensor 2 (2) provides
input for the compass/temperature driver information system.

AMBIENT TEMPERATURE INPUT PROCESS

The front air control includes a processing circuit for ambient sensor 1 input. However, when the temperature
detected by ambient sensor 1 increases quickly, the processing circuit retards the front air control function. It
only allows the front air control to recognize an ambient temperature increase of 0.33

°

C (0.6

°

F) per 100 sec-

onds.
This prevents constant adjustments due to momentary conditions, such as stopping after high speed driving.
Although the actual ambient temperature has not changed, the temperature detected by ambient sensor 1 will
increase. This is because the heat from the engine compartment can radiate to the front grille area, location of
ambient sensor 1.

DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR 1

SYMPTOM: Ambient sensor 1 circuit is open or shorted. [40 or 41 is
indicated on the navi screen (only if equipped) as a result of conduct-
ing the front air control self-diagnosis].

1.

CHECK VOLTAGE BETWEEN AMBIENT SENSOR 1 AND GROUND

1.

Disconnect ambient sensor 1 connector.

2.

Turn ignition switch ON.

3.

Check voltage between ambient sensor 1 harness connector E1
terminal 1 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 4.

LJIA0192E

WJIA1141E

1 - Ground

: Approx. 5V

WJIA1273E

ATC-122

TROUBLE DIAGNOSIS

2007 Pathfinder

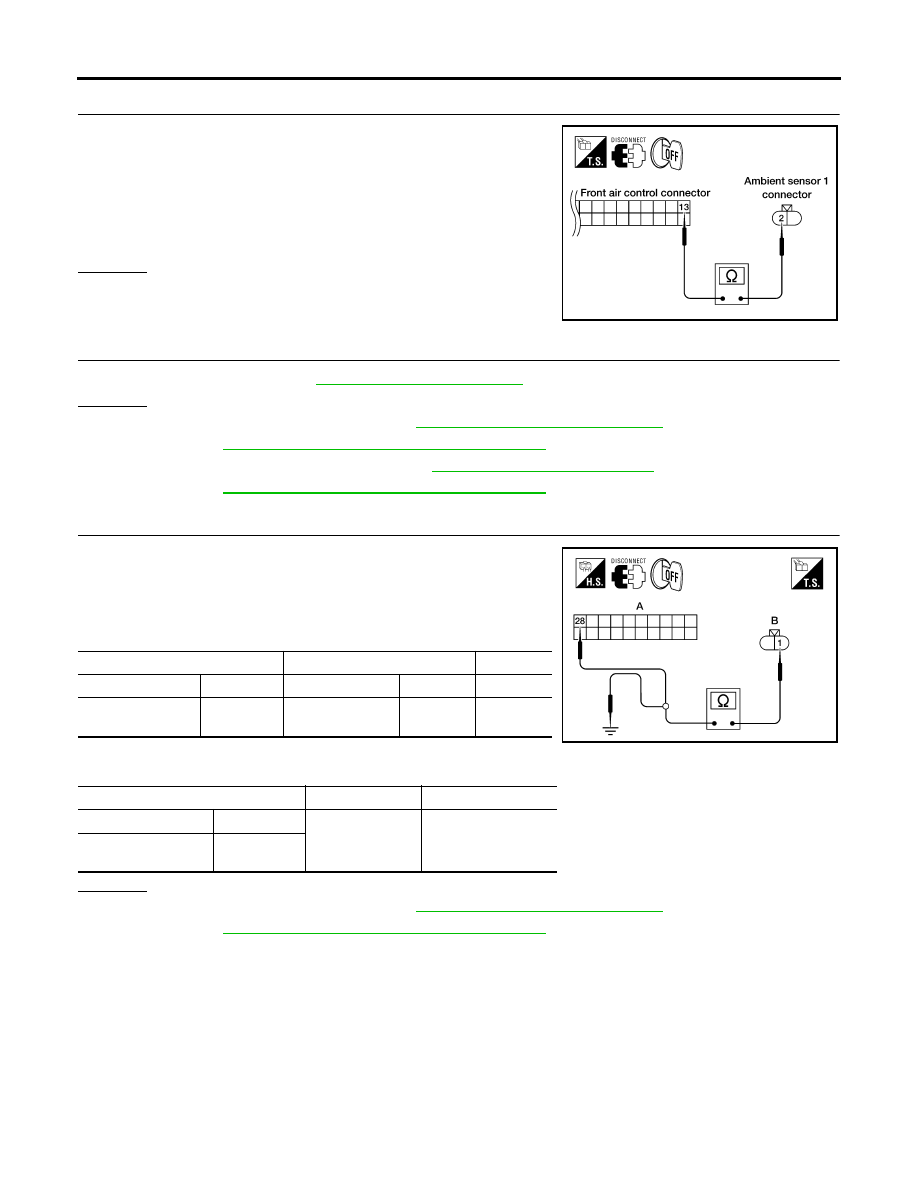

2.

CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR 1 AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between ambient sensor 1 harness connector
E1 terminal 2 and front air control harness connector M49 termi-
nal 13.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK AMBIENT SENSOR 1

Check ambient sensor 1. Refer to

ATC-123, "Ambient Sensor 1"

 .

OK or NG

OK

>> 1. Replace front air control. Refer to

ATC-131, "FRONT AIR CONTROL"

 .

2. Go to

ATC-50, "A/C System Self-diagnosis Function"

  and perform self-diagnosis.

NG

>> 1. Replace ambient sensor 1. Refer to

ATC-132, "AMBIENT SENSOR"

 .

2. Go to

ATC-50, "A/C System Self-diagnosis Function"

  and perform self-diagnosis.

4.

CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR 1 AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between ambient sensor 1 harness connector
E1 (B) terminal 1 and front air control harness connector M50
(A) terminal 28.

4.

Check continuity between ambient sensor 1 harness connector
E1 terminal 2 and ground.

OK or NG

OK

>> 1. Replace front air control. Refer to

ATC-131, "FRONT AIR CONTROL"

 .

2. Go to

ATC-50, "A/C System Self-diagnosis Function"

  and perform self-diagnosis.

NG

>> Repair harness or connector.

2 - 13

: Continuity should exist.

WJIA1274E

A

B

Connector

Terminal Connector

Terminal

Continuity

Front air control:

M50

28

Ambient sensor 1:

E1

1

Yes

B

Continuity

Connector

Terminal

Ground

No

Ambient Sensor 1:

E1

WJIA1653E
