TROUBLE DIAGNOSIS

ATC-59

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

7.

RECHECK FOR CODES

Perform self-diagnosis. Refer to

ATC-50, "A/C System Self-diagnosis Function"

 .

Are any self-diagnostic codes present?

YES

>> Refer to

ATC-51, "SELF-DIAGNOSIS CODE CHART"

 .

NO

>> GO TO 8.

8.

RECHECK FOR SYMPTOMS

Perform a complete operational check and check for any symptoms. Refer to

ATC-52, "Operational Check

(Front)"

 .

Does another symptom exist?

YES

>> Repair as necessary.

NO

>> Replace front air control. Refer to

ATC-131, "FRONT AIR CONTROL"

 .

ATC-60

TROUBLE DIAGNOSIS

2007 Pathfinder

SYSTEM DESCRIPTION
Component Parts

Mode door control system components are:

Front air control

Mode door motor

PBR (built into mode door motor)

In-vehicle sensor

Ambient sensor

Optical sensor

Intake sensor

System Operation

The mode door position (vent, B/L, foot, and defrost) is set by the front air control by means of the mode door
motor. When a mode door position is selected on the front air control, voltage is applied to one circuit of the
mode door motor while ground is applied to the other circuit, causing the mode door motor to rotate. The direc-
tion of rotation is determined by which circuit has voltage applied to it, and which one has ground applied to it.
The front air control monitors the mode door position by measuring the voltage signal on the PBR circuit.
In AUTO mode the mode door position is set by the front air control which determines the proper position
based on inputs from the in-vehicle sensor, ambient sensor, optical sensor, intake sensor, and the temperature
selected by the driver or passenger.

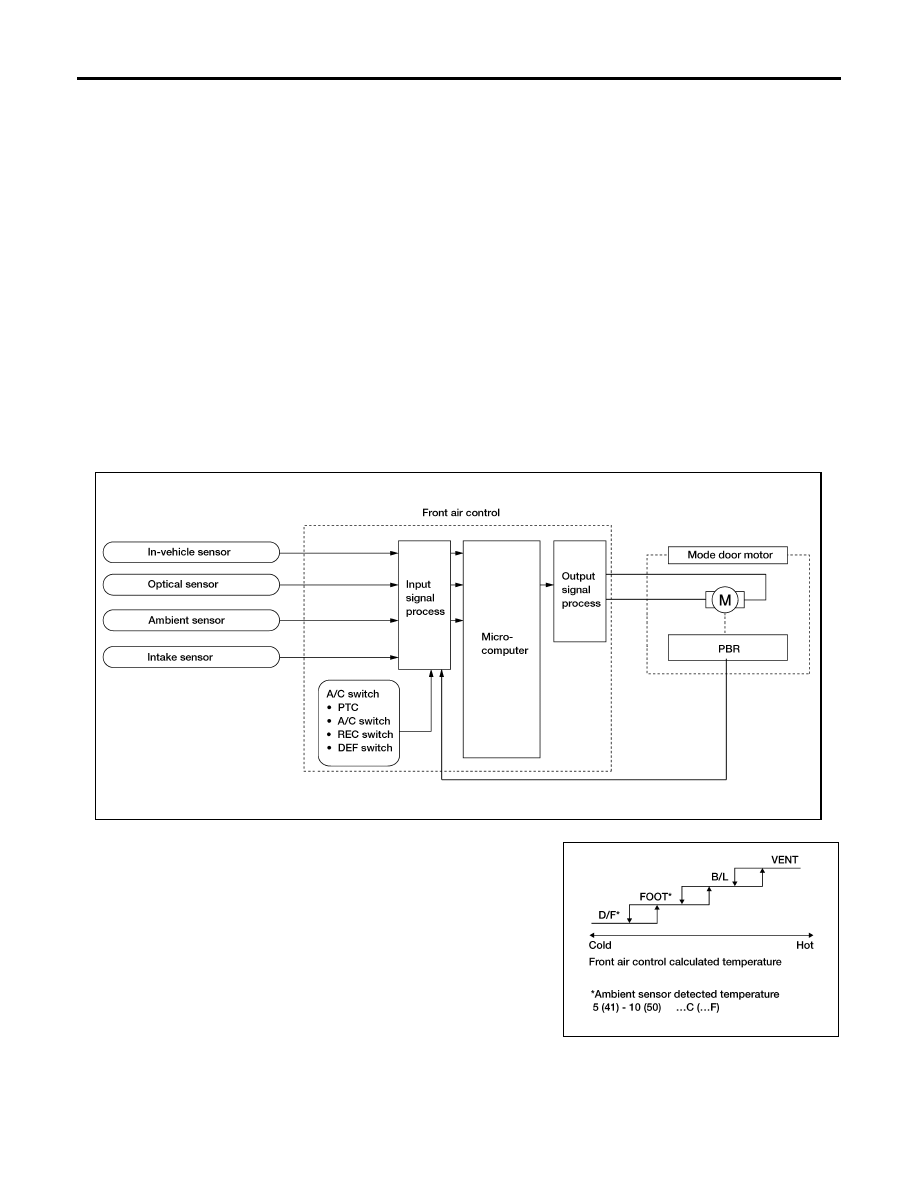

Mode Door Control Specification

WJIA1240E

WJIA0434E

TROUBLE DIAGNOSIS

ATC-61

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

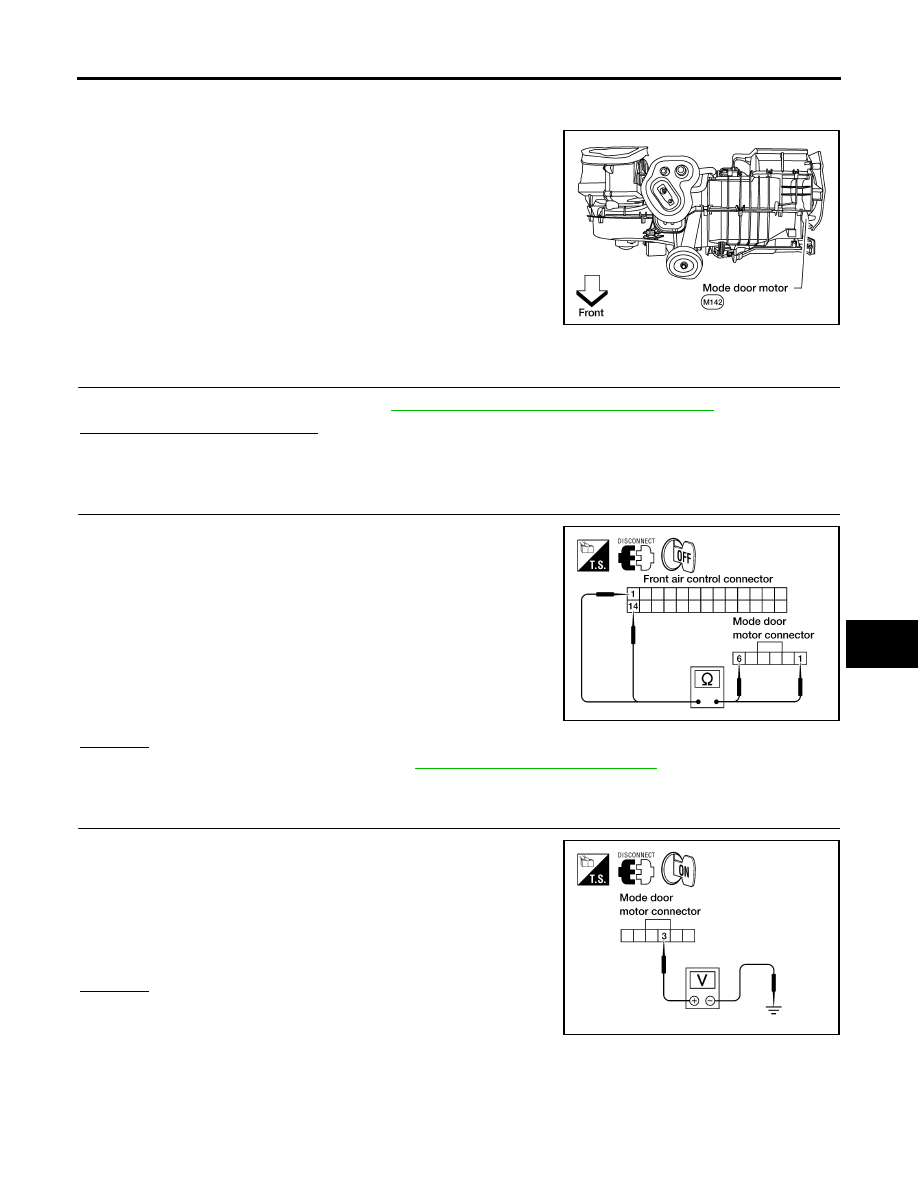

COMPONENT DESCRIPTION
Mode Door Motor

The mode door motor is attached to the heater & cooling unit assem-
bly. It rotates so that air is discharged from the outlet as indicated by
the front air control. Motor rotation is conveyed to a link which acti-
vates the mode door.

DIAGNOSTIC PROCEDURE FOR MODE DOOR MOTOR

1.

CHECK RESULT FROM FRONT AIR CONTROL SELF-DIAGNOSIS

Perform A/C system self-diagnosIs. Refer to

ATC-50, "A/C System Self-diagnosis Function"

 .

Is self-diagnosis code 92 present?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK POWER SUPPLY AND GROUND CIRCUITS FOR MODE DOOR MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector and mode door motor
connector.

3.

Check continuity between front air control harness connector
M49 terminal 1 and mode door motor harness connector M142
terminal 1 and between front air control harness connector M49
terminal 14 and mode door motor harness connector M142 ter-
minal 6.

OK or NG

OK

>> Replace mode door motor. Refer to

ATC-148, "MODE DOOR MOTOR"

 .

NG

>> Repair or replace harness as necessary.

3.

CHECK PBR REFERENCE SIGNAL VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect the mode door motor connector.

3.

Turn ignition switch ON.

4.

Check voltage between mode door motor harness connector
M142 terminal 3 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

WJIA1084E

1 - 1

: Continuity should exist.

14 - 6

: Continuity should exist.

WJIA1241E

 3 - Ground

: Approx. 5V

WJIA1242E

ATC-62

TROUBLE DIAGNOSIS

2007 Pathfinder

4.

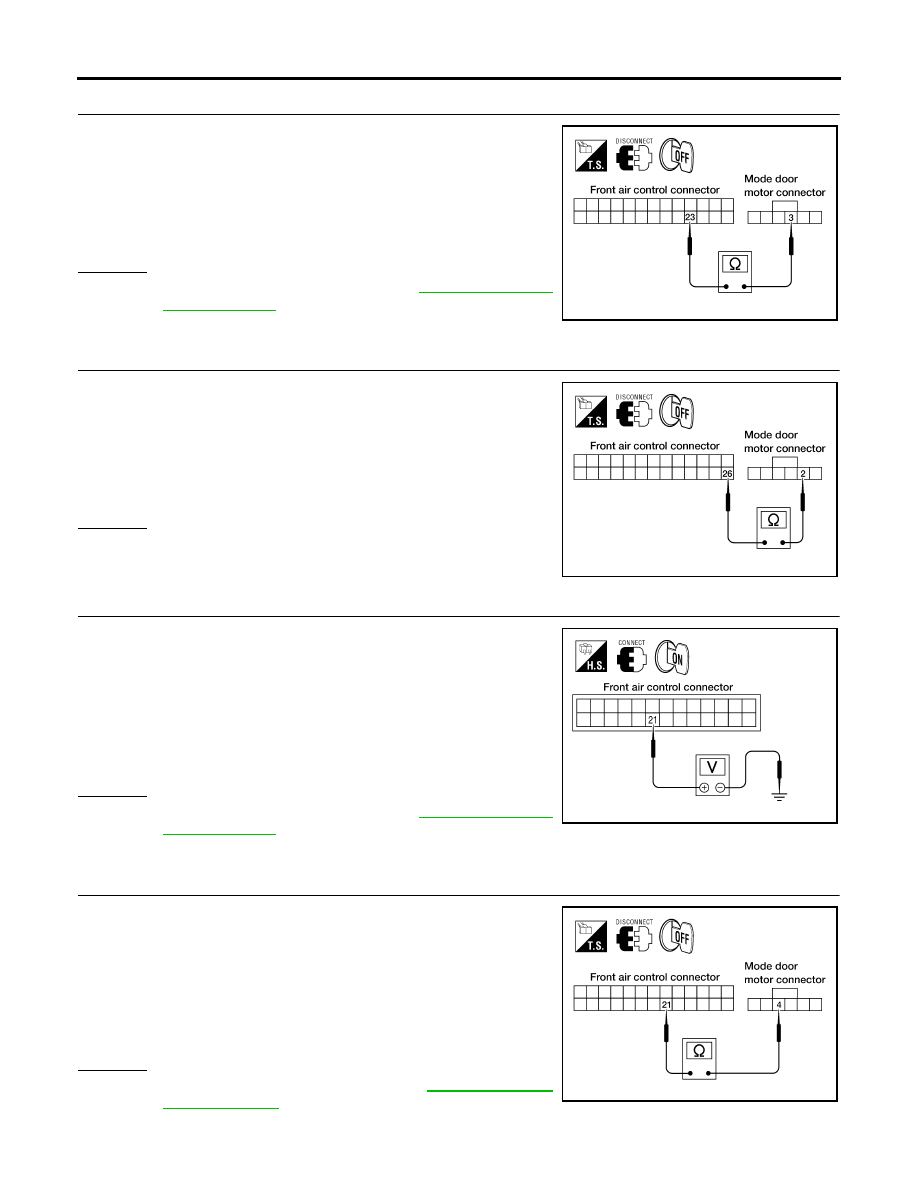

CHECK PBR REFERENCE VOLTAGE CIRCUIT BETWEEN MODE DOOR AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between mode door motor harness connector
M142 terminal 3 and front air control harness connector M49 ter-
minal 23.

OK or NG

OK

>> Replace front air control. Refer to

ATC-131, "FRONT

AIR CONTROL"

 .

NG

>> Repair or replace harness as necessary.

5.

CHECK PBR GROUND REFERENCE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between mode door motor harness connector
M142 terminal 2 and front air control harness connector M49 ter-
minal 26.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness as necessary.

6.

CHECK PBR FEEDBACK SIGNAL

1.

Reconnect the front air control connector and mode door motor
connector.

2.

Turn ignition switch ON.

3.

Check voltage between front air control harness connector M49
terminal 21 and ground.

4.

Press mode switch through all modes.

OK or NG

OK

>> Replace front air control. Refer to

ATC-131, "FRONT

AIR CONTROL"

 .

NG

>> GO TO 7.

7.

CHECK PBR FEEDBACK CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the mode door motor connector and front air control
harness connector.

3.

Check continuity between mode door motor harness connector
M142 terminal 4 and front air control harness connector M49 ter-
minal 21.

OK or NG

OK

>> Replace mode door motor. Refer to

ATC-148, "MODE

DOOR MOTOR"

 .

NG

>> Repair or replace harness as necessary.

3 - 23

: Continuity should exist.

WJIA1085E

2 - 26

: Continuity should exist.

WJIA1087E

21 - Ground

: Approx. 0 - 5V

WJIA1088E

4 - 21

: Continuity should exist.

WJIA1089E

TROUBLE DIAGNOSIS

ATC-63

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

Air Mix Door Motor Circuit

EJS004P6

SYMPTOM:

Discharge air temperature does not change.

Air mix door motor does not operate.

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - TEMPERATURE INCREASE

1.

Turn the temperature control dial (driver) clockwise until 32

°

C (90

°

F) is displayed.

2.

Check for hot air at discharge air outlets.

>> GO TO 2.

2.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - TEMPERATURE DECREASE

1.

Turn the temperature control dial (driver) counterclockwise until 16

°

C (60

°

F) is displayed.

2.

Check for cold air at discharge air outlets.

Can a symptom be duplicated?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

PERFORM COMPLETE OPERATIONAL CHECK

Perform a complete operational check and check for any symptoms. Refer to

ATC-52, "Operational Check

(Front)"

  .

Can a symptom be duplicated?

YES

>> Refer to

ATC-34, "SYMPTOM TABLE"

  .

NO

>> System OK.

4.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 5.

5.

CHECK AIR MIX DOOR OPERATION

Check and verify air mix door mechanism for smooth operation from 16

°

C (60

°

F) to 32

°

C (90

°

F) in each

mode.

OK or NG

OK

>> GO TO 6.

NG

>> Repair as necessary.

6.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis to check for any codes. Refer to

ATC-50, "A/C System Self-diagnosis Function"

  .

Are any self-diagnosis codes present?

YES

>> Refer to

ATC-51, "SELF-DIAGNOSIS CODE CHART"

  .

NO

>> GO TO 7.

ATC-64

TROUBLE DIAGNOSIS

2007 Pathfinder

7.

CHECK THE AIR MIX DOOR MOTOR PBR CIRCUIT

Perform diagnostic procedure for the air mix door motors. Refer to

ATC-66, "DIAGNOSTIC PROCEDURE

FOR AIR MIX DOOR MOTOR (DRIVER)"

  an

ATC-68, "DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR

MOTOR (PASSENGER)"

 .

OK or NG

OK

>> GO TO 8.

NG

>> Repair PBR circuit or replace air mix door motor. Refer to

ATC-149, "AIR MIX DOOR MOTOR"

 .

8.

RECHECK FOR CODES

Perform self-diagnosis. Refer t

ATC-50, "A/C System Self-diagnosis Function"

  .

Are any self-diagnostic codes present?

YES

>> Refer to

ATC-51, "SELF-DIAGNOSIS CODE CHART"

  .

NO

>> GO TO 9.

9.

RECHECK FOR ANY SYMPTOMS

Perform a complete operational check for any symptoms. Refer to

ATC-52, "Operational Check (Front)"

  .

Does another symptom exist?

YES

>> Refer to

ATC-34, "SYMPTOM TABLE"

  .

NO

>> Replace front air control. Refer to

ATC-131, "FRONT AIR CONTROL"

  .

TROUBLE DIAGNOSIS

ATC-65

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

SYSTEM DESCRIPTION
Component Parts

Air mix door control system components are:

Front air control.

Air mix door motors (driver, passenger, and rear)

PBR (built into air mix door motors)

In-vehicle sensor

Ambient sensor

Optical sensor

Intake sensor

System Operation

The front air control receives data from the temperature selected by the driver side, passenger side, and rear.
The front air control then applies a voltage to one circuit of the appropriate air mix door motor, while ground is
applied to the other circuit, causing the appropriate air mix door motor to rotate. The direction of rotation is
determined by which circuit has voltage applied to it, and which one has ground applied to it. The front air con-
trol monitors the air mix door positions by measuring the voltage signal on the PBR circuits of each door.
In AUTO mode the air mix, intake, mode door, and defrost door positions are set by the front air control which
determines the proper position based on inputs from the in-vehicle sensor, ambient sensor, optical sensor,
intake sensor, and the temperature selected by the driver and front and rear passengers.
Subsequently, HOT/COLD or DEFROST/VENT or FRESH/RECIRCULATION operation is selected. The new
door position data is returned to the front air control.

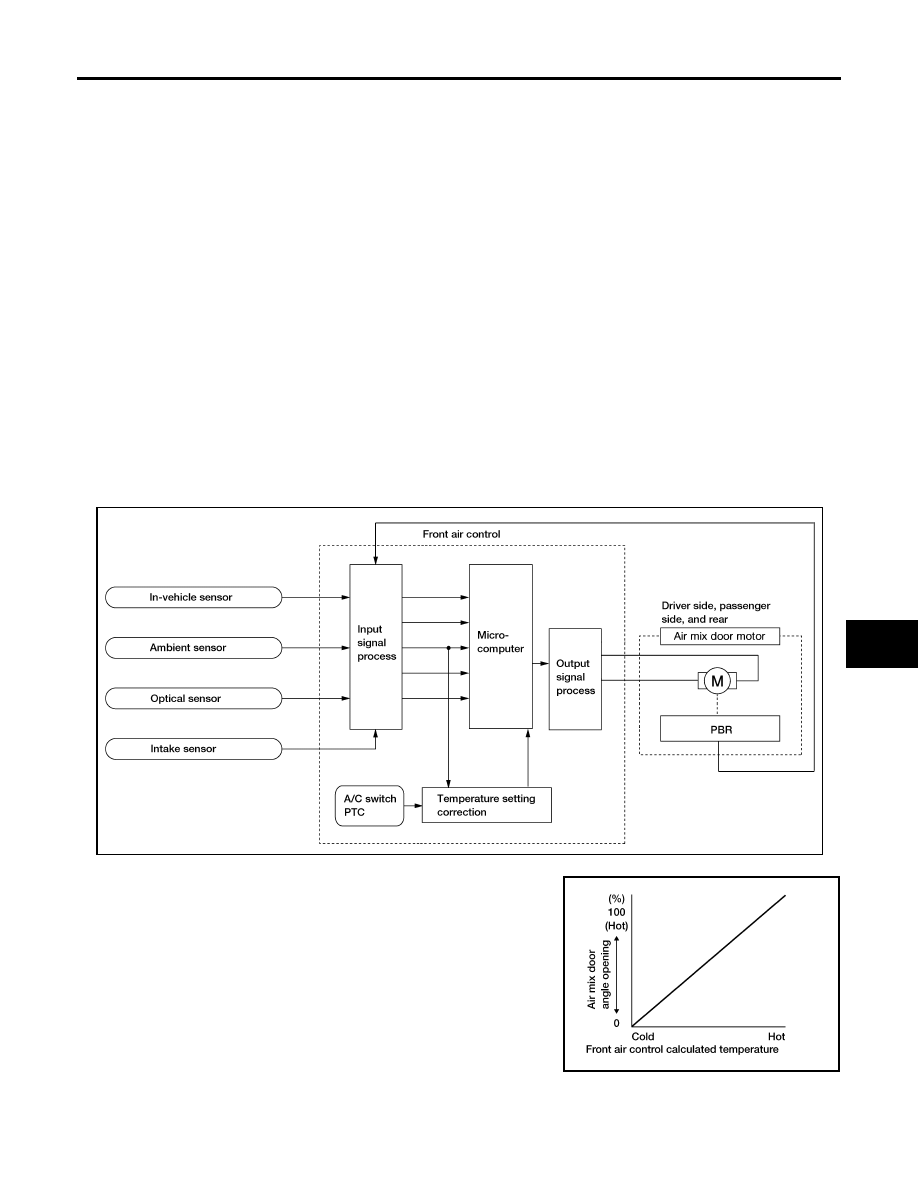

Air Mix Door Control Specification

WJIA1244E

WJIA0435E

ATC-66

TROUBLE DIAGNOSIS

2007 Pathfinder

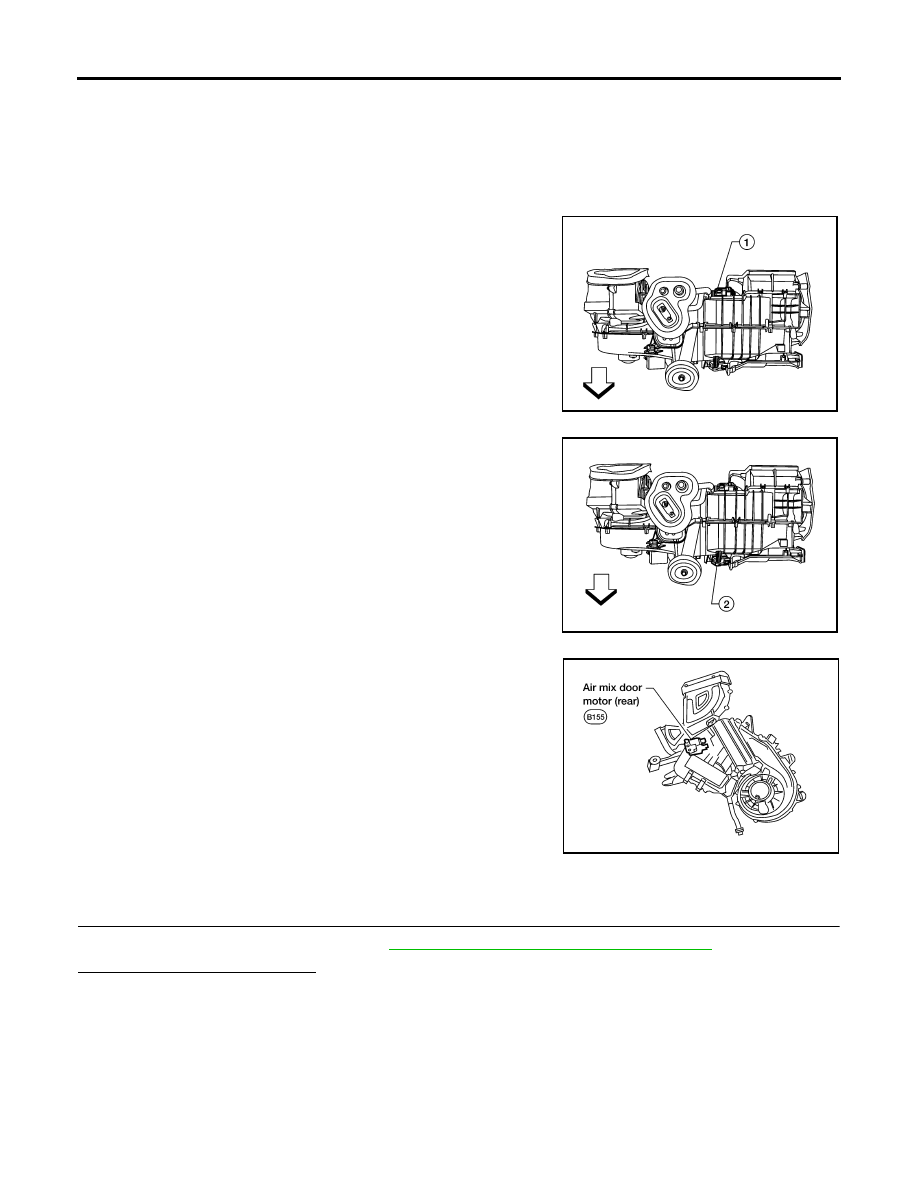

COMPONENT DESCRIPTION
Air Mix Door Motors

The air mix door motor (passenger) (1) and the air mix door motor (driver) (2) are attached to the front heater
& cooling unit assembly. The air mix door motor (rear) is attached to the rear heater & cooling unit assembly.
These motors rotate so that the air mix door is opened or closed to a position set by the front (or rear) air con-
trol. Motor rotation is then conveyed through a shaft and the air mix door position is then fed back to the front
air control by the PBR built into the air mix door motors.

: Front

DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (DRIVER)

1.

CHECK RESULT FROM FRONT AIR CONTROL SELF-DIAGNOSIS

Perform A/C system self-diagnosIs. Refer to

ATC-50, "A/C System Self-diagnosis Function"

 .

Is self-diagnosis code 12 present?

YES

>> GO TO 2.

NO

>> GO TO 3.

WJIA1978E

WJIA1979E

WJIA1245E
