Nissan Pathfinder (2007 year). Manual - part 47





AIR CONDITIONER CONTROL

ATC-27

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

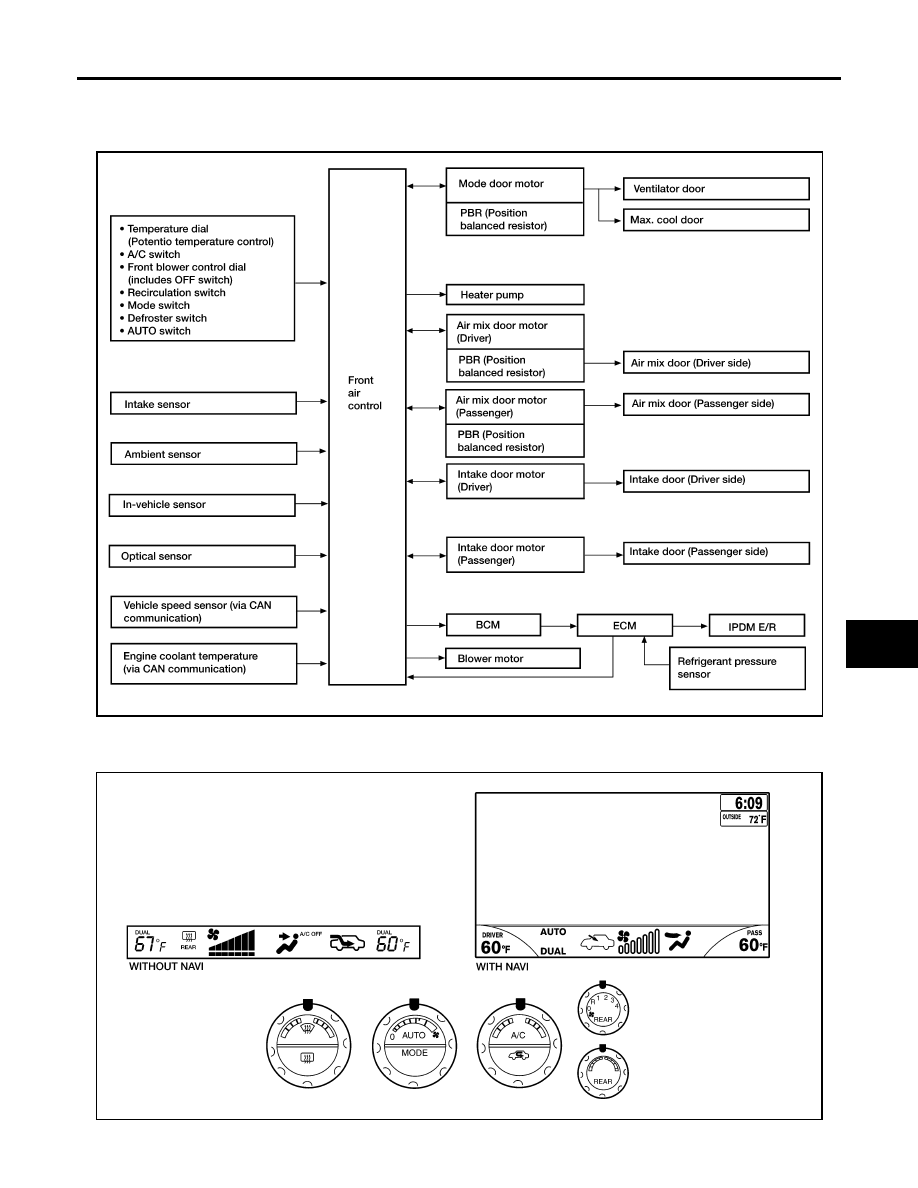

Description of Control System

EJS004OP

The control system consists of input sensors, switches, the front air control (microcomputer) and outputs.
The relationship of these components is shown in the figure below:

Control Operation

EJS004OQ

Front air control

WJIA1976E

WJIA1878E

ATC-28

AIR CONDITIONER CONTROL

2007 Pathfinder

DISPLAY SCREEN

Displays the operational status of the system.

AUTO SWITCH

The compressor, intake door, air mix doors, outlet doors and blower speed are automatically controlled so
that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the oper-
ator.

When pressing AUTO switch, air inlet, air outlet, blower speed, and discharge air temperature are auto-
matically controlled.

TEMPERATURE CONTROL DIAL (TEMPERATURE CONTROL) (DRIVER SIDE)

Increases or decreases the set temperature.

TEMPERATURE CONTROL DIAL (TEMPERATURE CONTROL) (PASSENGER SIDE)

Increases or decreases the set temperature.

TEMPERATURE CONTROL DIAL (TEMPERATURE AND MODE CONTROL) (REAR)

Increases or decreases the set temperature. The mode also changes from foot at full hot setting, to foot/vent
mid-range (warm) setting, and then to vent on full cold setting.

RECIRCULATION () SWITCH

When REC switch is ON, REC switch indicator turns ON, and air inlet is set to REC.

When REC switch is turned OFF, or when compressor is turned from ON to OFF, REC switch is automati-
cally turned OFF. REC mode can be re-entered by pressing REC switch again.

REC switch is not operated when DEF switch is turned ON, or at the D/F position.

DEFROSTER () SWITCH

Positions the air outlet doors to the defrost position. Also positions the intake doors to the outside air position.

REAR WINDOW DEFOGGER SWITCH

When switch is ON, rear window is defogged.

OFF SWITCH

The compressor and blower are OFF, the intake doors are set to the outside air position, and the air outlet
doors are set to the foot (75% foot and 25% defrost) position.

A/C SWITCH

The compressor is ON or OFF.
(Pressing the A/C switch when the AUTO switch is ON will turn off the A/C switch and compressor.)

MODE SWITCH (FRONT)

Controls the air discharge outlets.

FRONT BLOWER CONTROL DIAL

Manually control the blower speed. Seven speeds are available for manual control (as shown on the display
screen on all models with Navi).

MODE SWITCH (REAR)

Controls the air/temperature at discharge outlets.

AIR CONDITIONER CONTROL

ATC-29

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

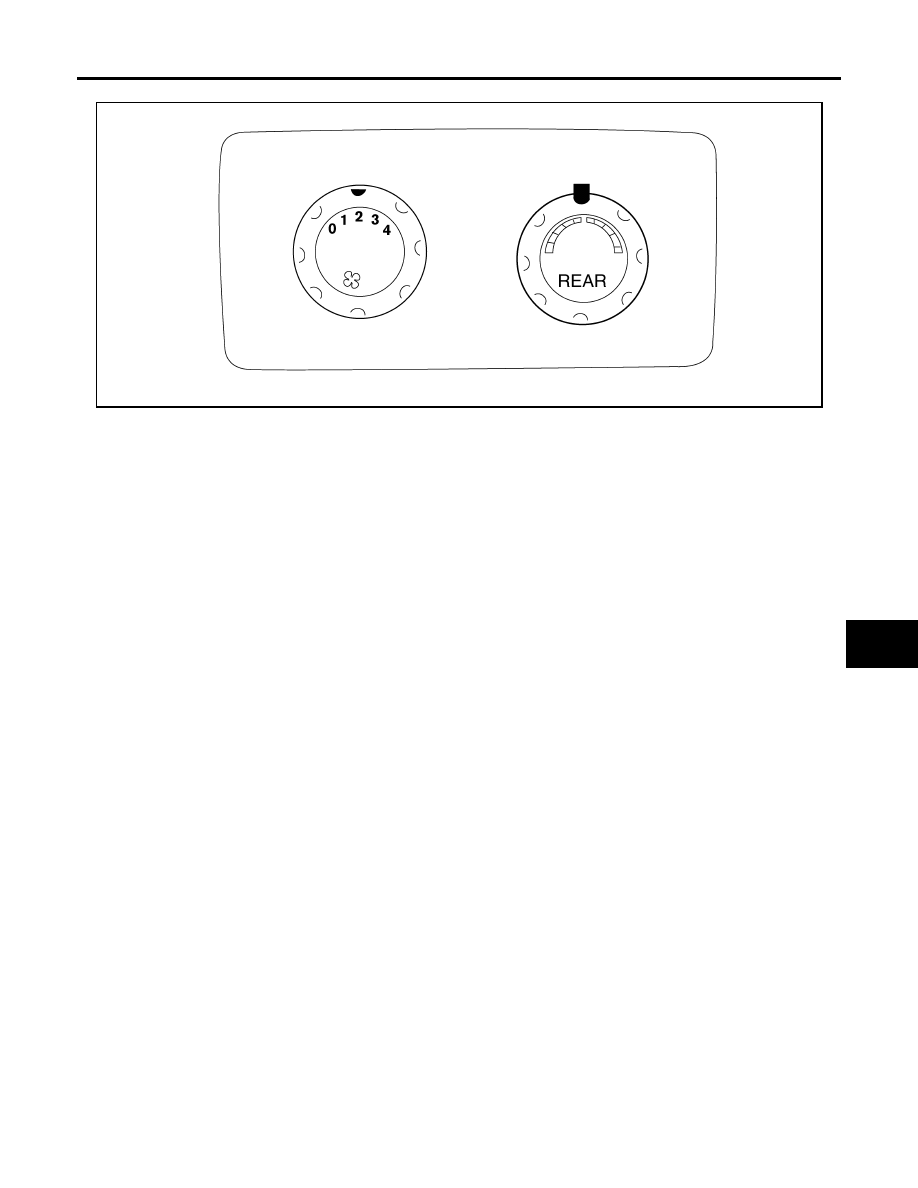

Rear Air Control

TEMPERATURE CONTROL DIAL (TEMPERATURE AND MODE CONTROL)

The temperature increases or decreases the set temperature. The mode also changes from foot at full hot set-
ting, to foot/vent at mid-range (warm) setting, and then to vent at full cold setting.

REAR BLOWER CONTROL DIAL

When the rear blower switch (front) is in the OFF position, the rear blower motor cannot operate.
When the rear blower switch (front) is in the REAR position, it allows the rear blower switch (rear) to control
the rear blower motor speed. In any other position (1-4), the rear blower switch (front) controls the rear blower
motor speed regardless of the rear blower switch (rear) position.

WJIA1042E

ATC-30

AIR CONDITIONER CONTROL

2007 Pathfinder

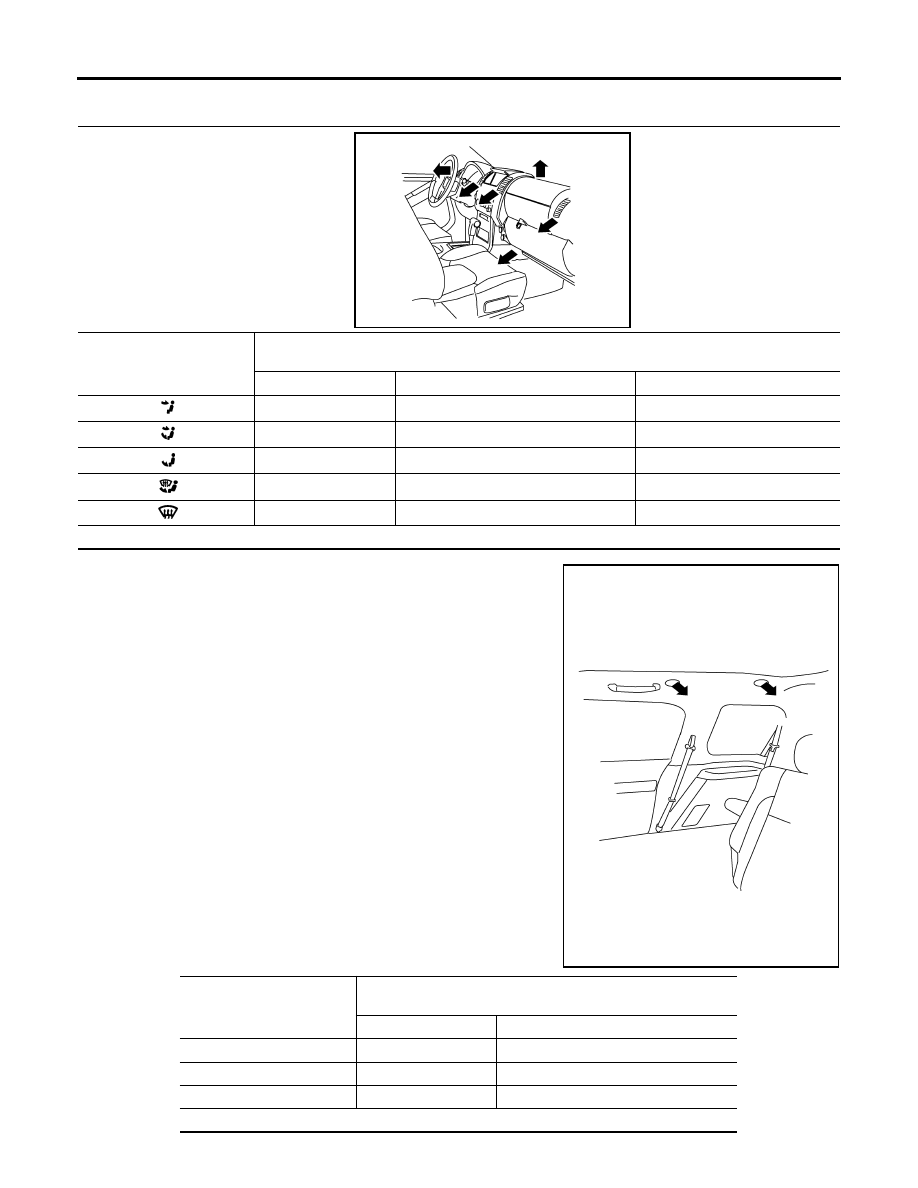

Discharge Air Flow

EJS004OR

FRONT

REAR

Mode door position

Air outlet/distribution

Vent

Foot

Defroster

100%

0%

60%

40%

18%

64%

18%

14%

53%

33%

13%

87%

Airflow always present at driver and passenger side demisters

LJIA0172E

WJIA1076E

Mode door position

Air outlet/distribution

Roof Vent

Foot

Cool

80%

20%

Mid

80%

20%

Hot

80%

20%

Airflow distribution is always constant

AIR CONDITIONER CONTROL

ATC-31

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

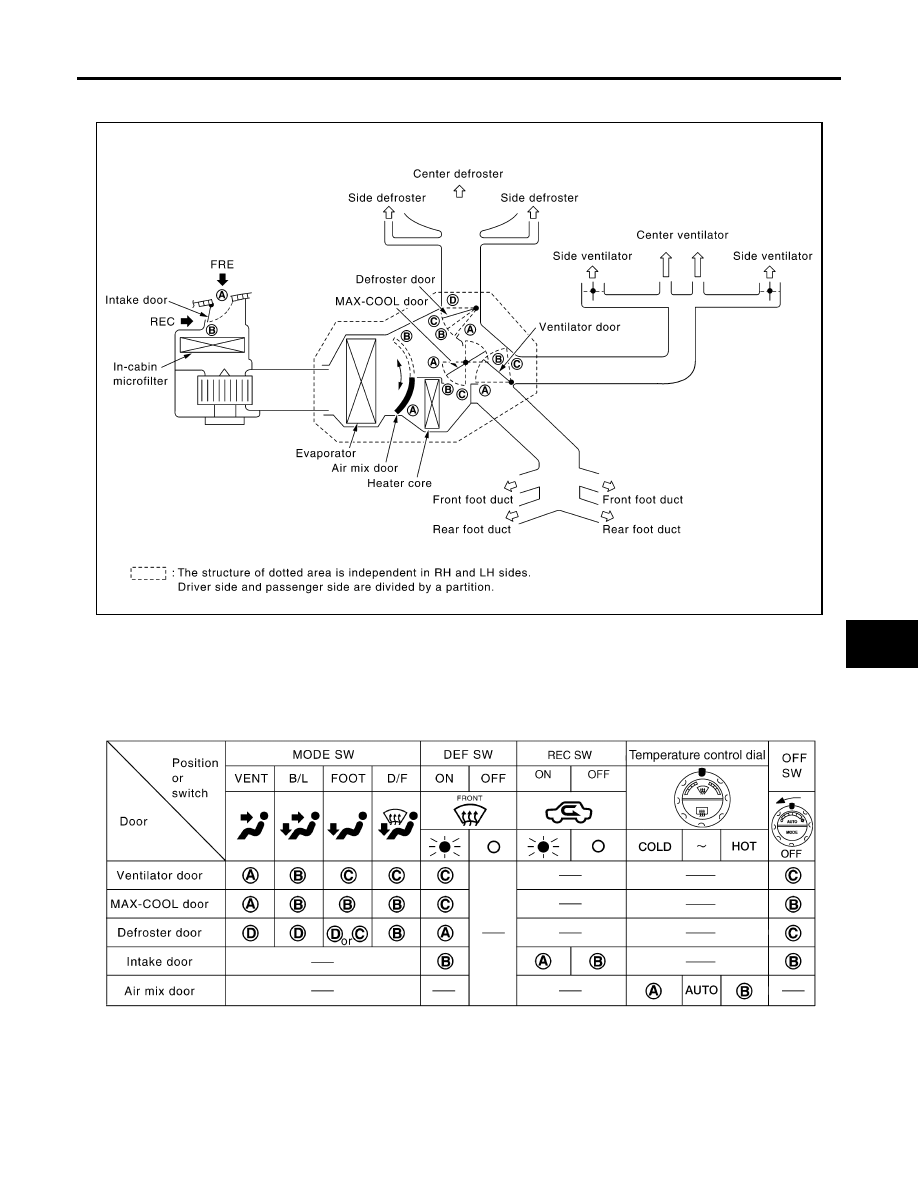

System Description (Front)

EJS004OS

SWITCHES AND THEIR CONTROL FUNCTION

WJIA1680E

WJIA1237E

ATC-32

AIR CONDITIONER CONTROL

2007 Pathfinder

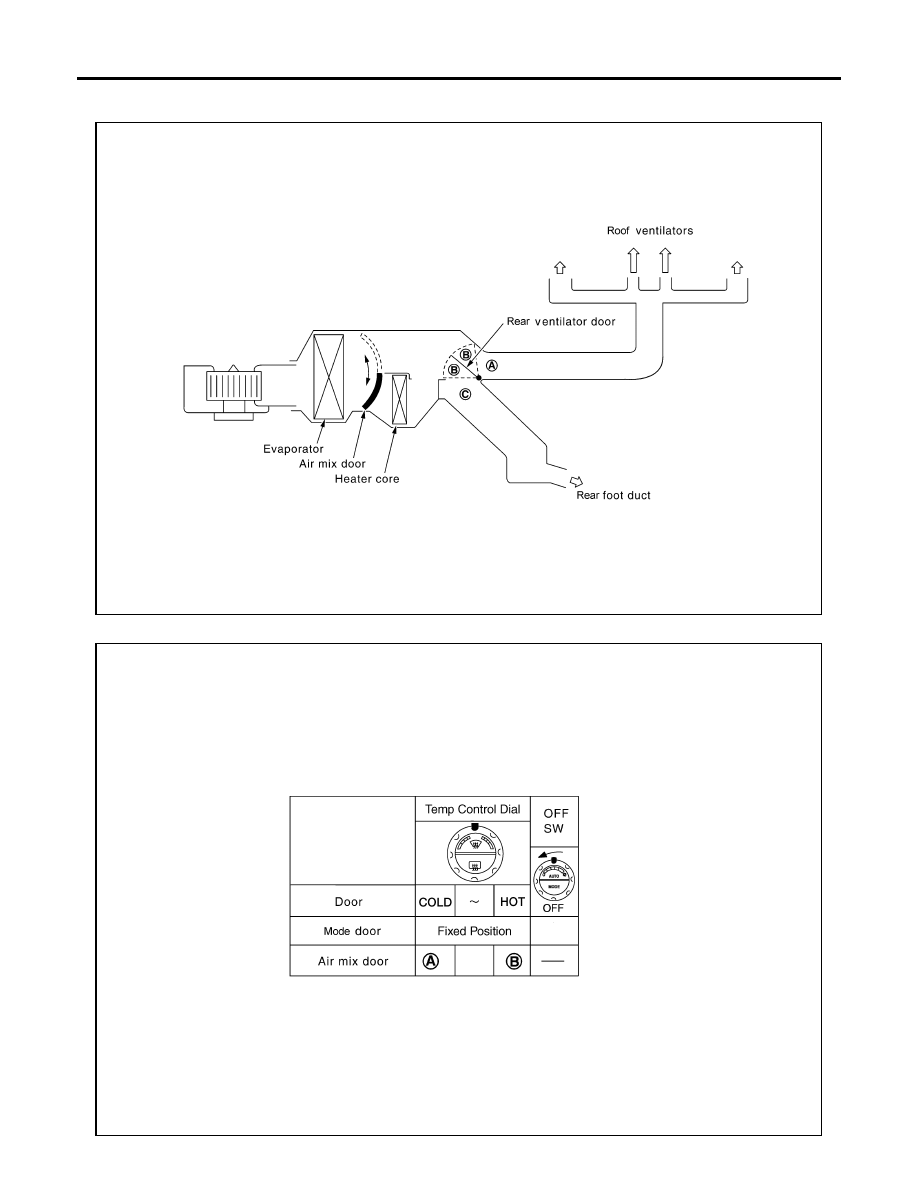

System Description (Rear)

EJS004OT

SWITCHES AND THEIR CONTROL FUNCTION

WJIA0623E

WJIA1685E

AIR CONDITIONER CONTROL

ATC-33

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2007 Pathfinder

CAN Communication System Description

EJS004OU

Refer to

LAN-4, "SYSTEM DESCRIPTION"

 .

ATC-34

TROUBLE DIAGNOSIS

2007 Pathfinder

TROUBLE DIAGNOSIS

PFP:00004

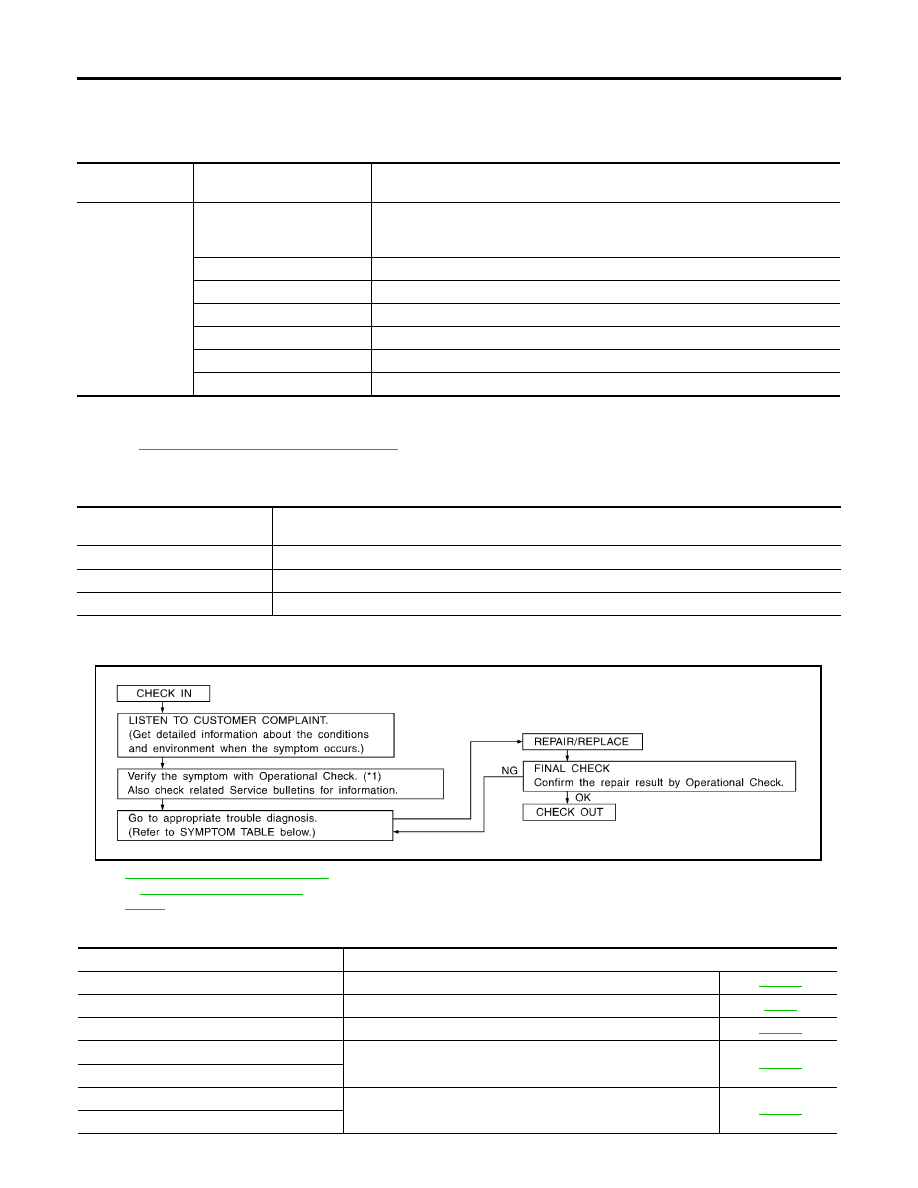

CONSULT-II Function (BCM)

EJS004OV

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II START PROCEDURE

Refer to

GI-38, "CONSULT-II Start Procedure"

 .

DATA MONITOR
Display Item List

How to Perform Trouble Diagnosis for Quick and Accurate Repair

EJS004OW

WORK FLOW

SYMPTOM TABLE

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

Monitor item name

 “OPERATION OR UNIT”

Contents

IGN ON SW

“ON/OFF”

Displays “IGN Position (ON)/OFF, ACC Position (OFF)” status as judged from ignition switch signal.

COMP ON SIG

“ON/OFF”

Displays “COMP (ON)/COMP (OFF)” status as judged from air conditioner switch signal.

FAN ON SIG

“ON/OFF”

Displays “FAN (ON)/FAN (OFF)” status as judged from blower motor switch signal.

*1

ATC-52, "Operational Check (Front)"



or

ATC-54, "Operational Check

(Rear)"

 .

SHA900E

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

ATC-55

A/C system display is malfunctioning.

Go to Navigation System.

AV-78

A/C system cannot be controlled.

Go to Self-diagnosis Function.

ATC-50

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor.

ATC-58

Mode door motor is malfunctioning.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor.

ATC-63

Air mix door motor is malfunctioning.
