REPAIR FOR COMPONENT PARTS

AT-291

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

5.

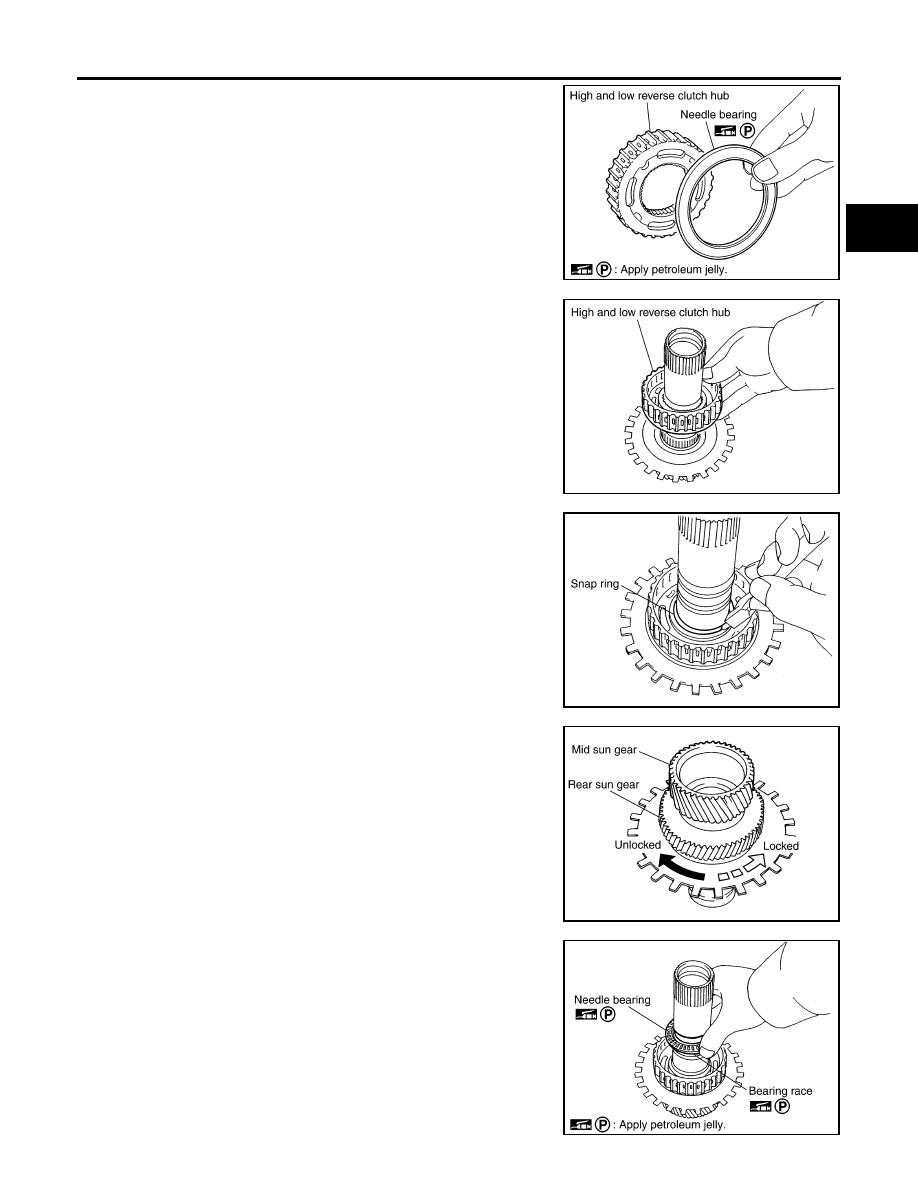

Install needle bearing to high and low reverse clutch hub.

CAUTION:

Apply petroleum jelly to needle bearing.

6.

Install high and low reverse clutch hub to mid sun gear assem-
bly.

7.

Install snap ring to mid sun gear assembly using suitable tool.

CAUTION:

Do not excessively expand snap ring.

8.

Check operation of 1st one-way clutch.

a.

Hold mid sun gear and turn rear sun gear.

b.

Check 1st one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown, check installation direction of 1st one-way
clutch.

9.

Install needle bearing and bearing race to high and low reverse
clutch hub.

CAUTION:

Apply petroleum jelly to needle bearing and bearing race.

SCIA2857E

SCIA2856E

SCIA2855E

SCIA3132E

SCIA2854E

AT-292

REPAIR FOR COMPONENT PARTS

2007 Pathfinder

High and Low Reverse Clutch

ECS00EM7

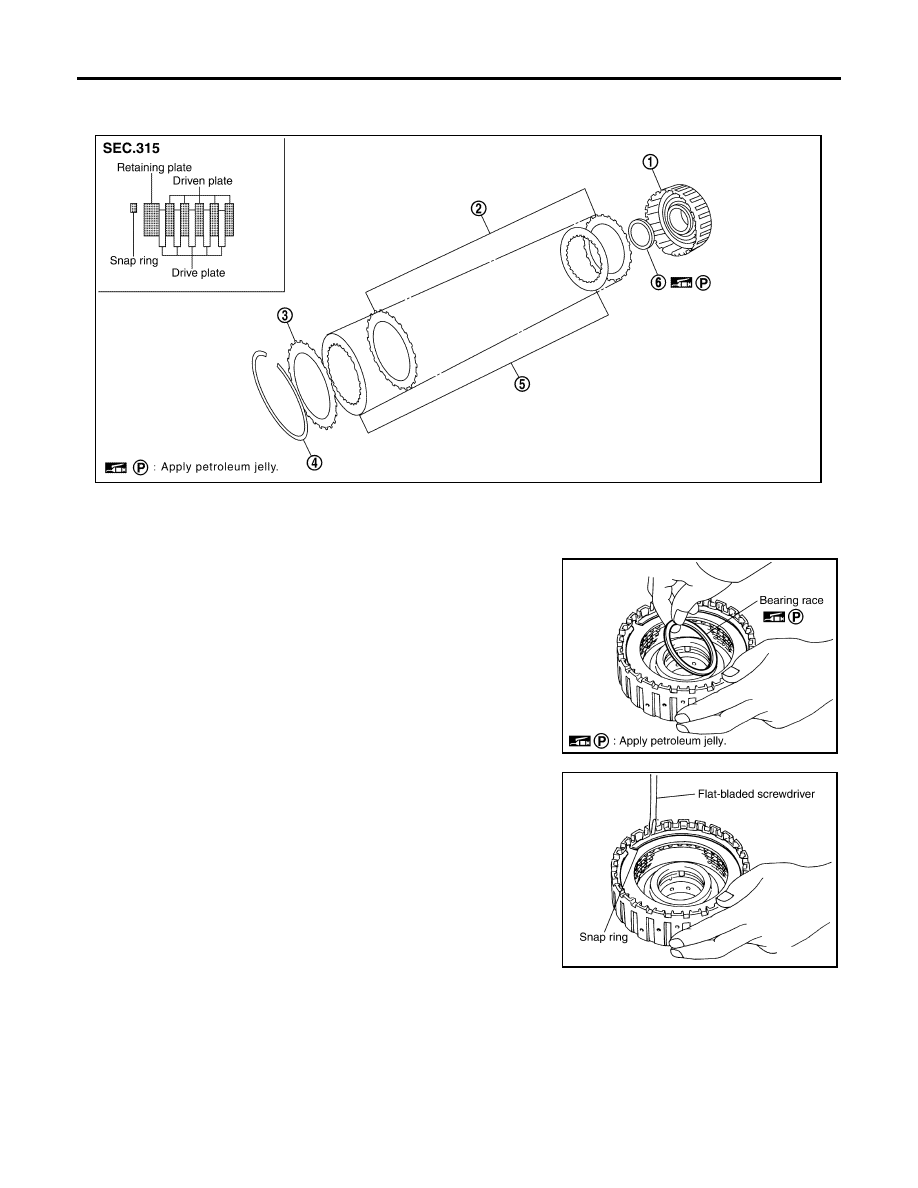

COMPONENTS

DISASSEMBLY

1.

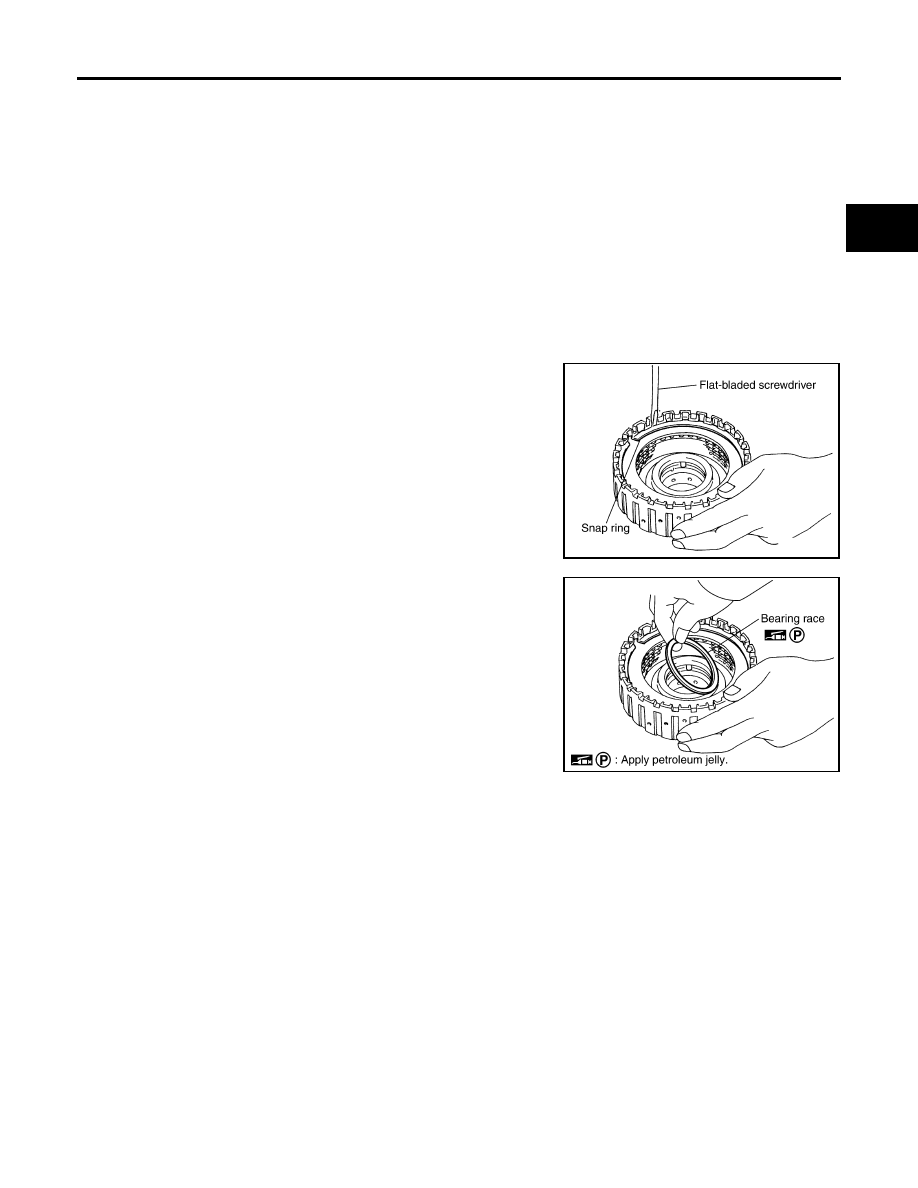

Remove bearing race from high and low reverse clutch drum.

2.

Remove snap ring from high and low reverse clutch drum using
suitable tool.

3.

Remove drive plates, driven plates and retaining plate from high
and low reverse clutch drum.

1.

High and low reverse clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Bearing race

SCIA5224E

SCIA5215E

SCIA2868E

REPAIR FOR COMPONENT PARTS

AT-293

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

INSPECTION

Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.

CAUTION:

Take care with order of plates.

2.

Install snap ring in high and low reverse clutch drum using suit-
able tool.

3.

Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

SCIA2868E

SCIA5215E

AT-294

REPAIR FOR COMPONENT PARTS

2007 Pathfinder

Direct Clutch

ECS00EM8

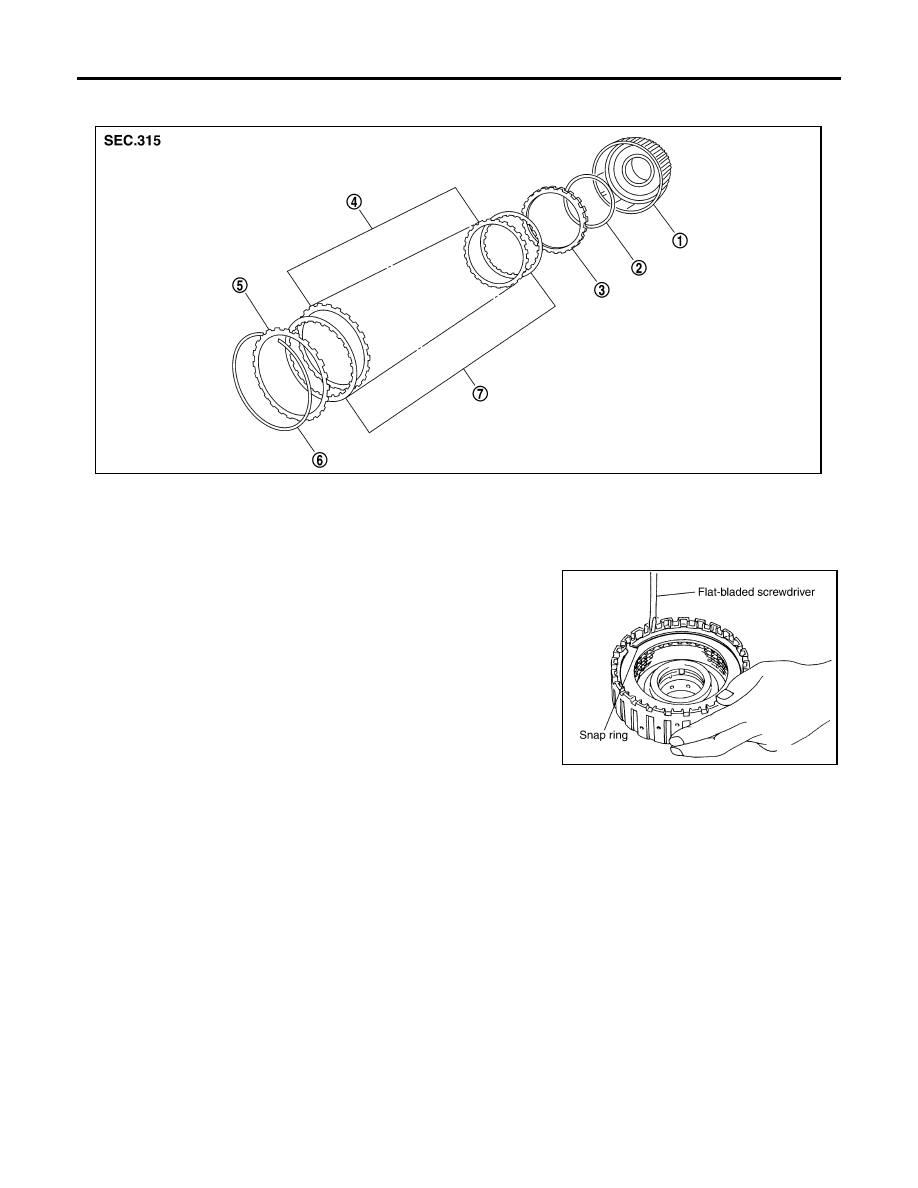

COMPONENTS

DISASSEMBLY

1.

Remove snap ring from direct clutch drum using suitable tool.

2.

Remove retaining plates, drive plates, driven plates and dish
plate from direct clutch drum.

INSPECTION

Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

1.

Direct clutch drum

2.

Dish plate

3.

Retaining plate

4.

Driven plate

5.

Retaining plate

6.

Snap ring

7.

Drive plate

SCIA7015E

SCIA2868E

REPAIR FOR COMPONENT PARTS

AT-295

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

ASSEMBLY

1.

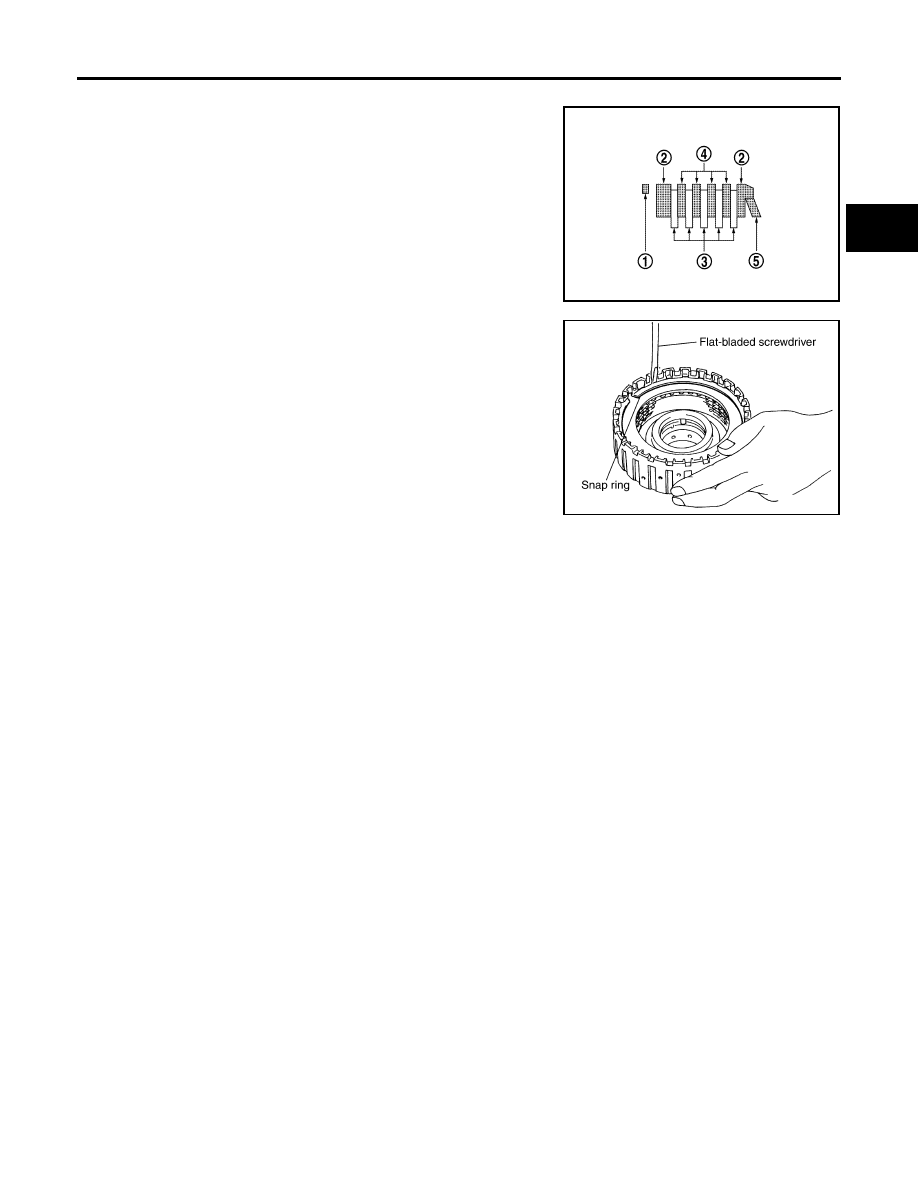

Install dish plate (5), retaining plates (2), drive plates (3) and
driven plates (4) in direct clutch drum.

Snap ring (1)

CAUTION:

Take care with order of plates.

NOTE:
There are 5 drive plates and 4 driven plates.

2.

Install snap ring in direct clutch drum using suitable tool.

SCIA6952E

SCIA2868E

AT-296

ASSEMBLY

2007 Pathfinder

ASSEMBLY

PFP:00000

Assembly (1)

ECS00EM9

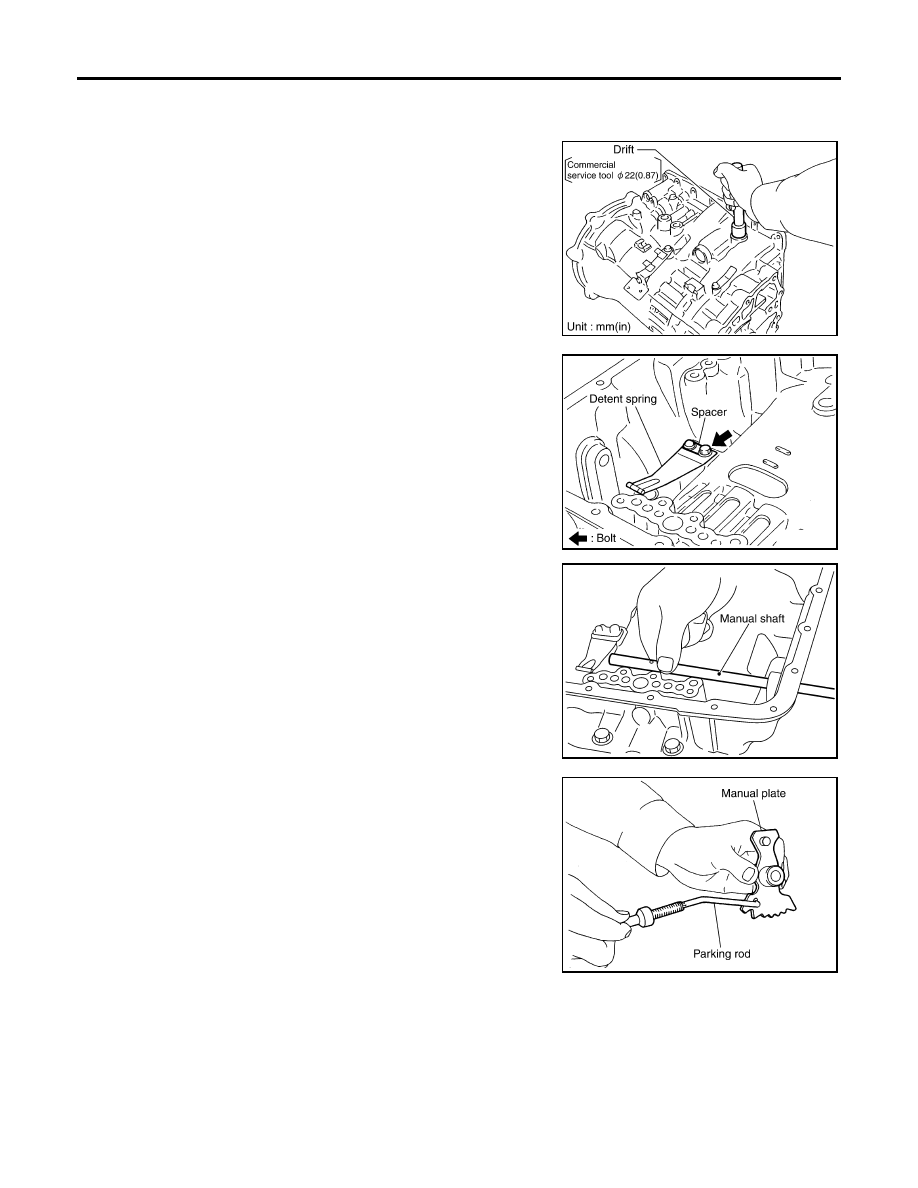

1.

Drive manual shaft oil seals into the transmission case until they
are flush using suitable tool.

CAUTION:

Apply ATF to manual shaft oil seals.

Do not reuse manual shaft oil seals.

2.

Install detent spring and spacer in transmission case and secure
with the bolt.

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

SCIA5259E

Bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5248E

SCIA5716E

SCIA5220E

ASSEMBLY

AT-297

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

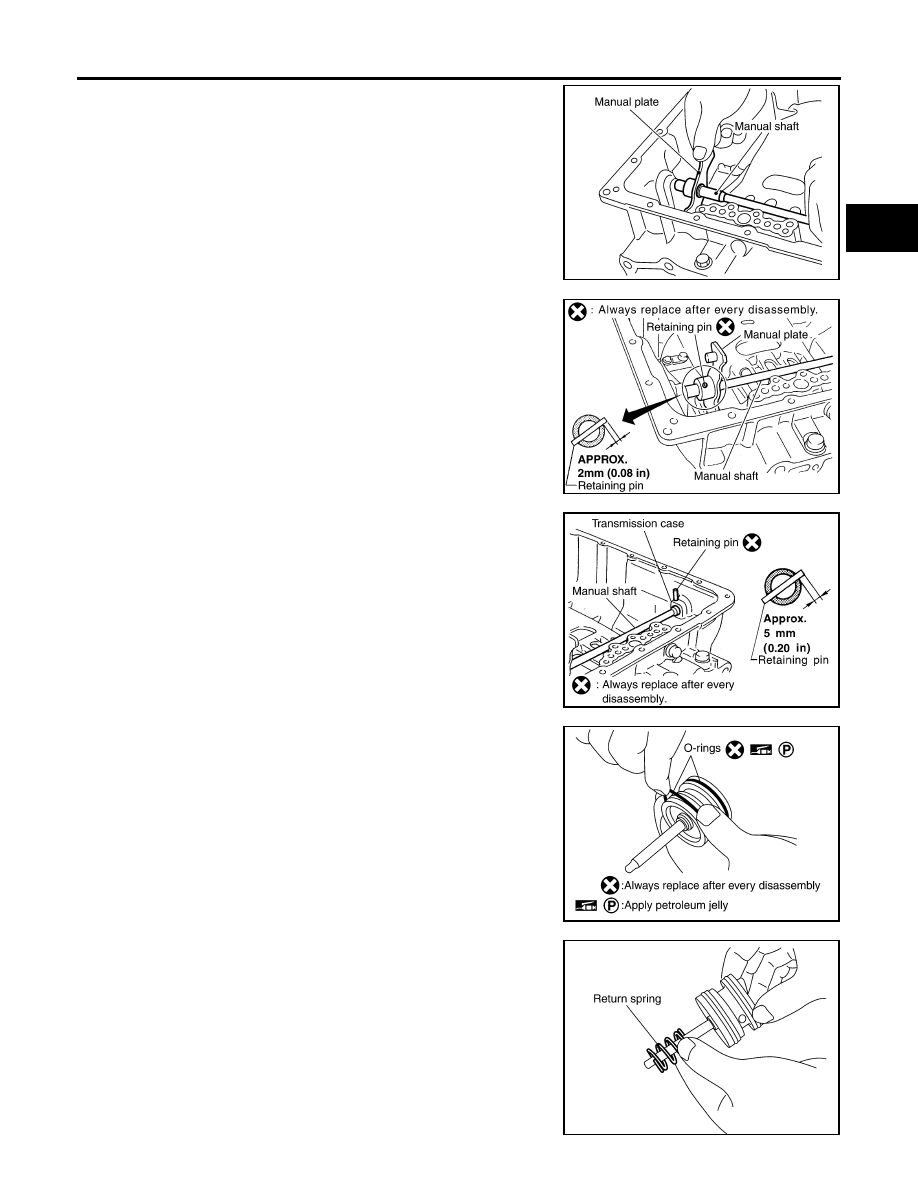

5.

Install manual plate (with parking rod) to manual shaft.

6.

Install retaining pin into the manual plate and manual shaft.

a.

Align pinhole of the manual plate to pinhole of the manual shaft
using suitable tool.

b.

Tap the retaining pin into the manual plate using suitable tool.

CAUTION:

Drive retaining pin to 2

±

0.5 mm (0.08

±

0.020 in) over the

manual plate.

Do not reuse retaining pin.

7.

Install retaining pin into the transmission case and manual shaft.

a.

Align pinhole of the transmission case to pinhole of the manual
shaft using suitable tool.

b.

Tap the retaining pin into the transmission case using suitable
tool.

CAUTION:

Drive retaining pin to 5

±

1 mm (0.20

±

0.04 in) over the

transmission case.

Do not reuse retaining pin.

8.

Install O-rings to servo assembly.

CAUTION:

Do not reuse O-rings.

Apply petroleum jelly to O-rings.

9.

Install return spring to servo assembly.

SCIA5715E

SCIA5297E

SCIA2427E

SCIA5719E

SCIA5717E

AT-298

ASSEMBLY

2007 Pathfinder

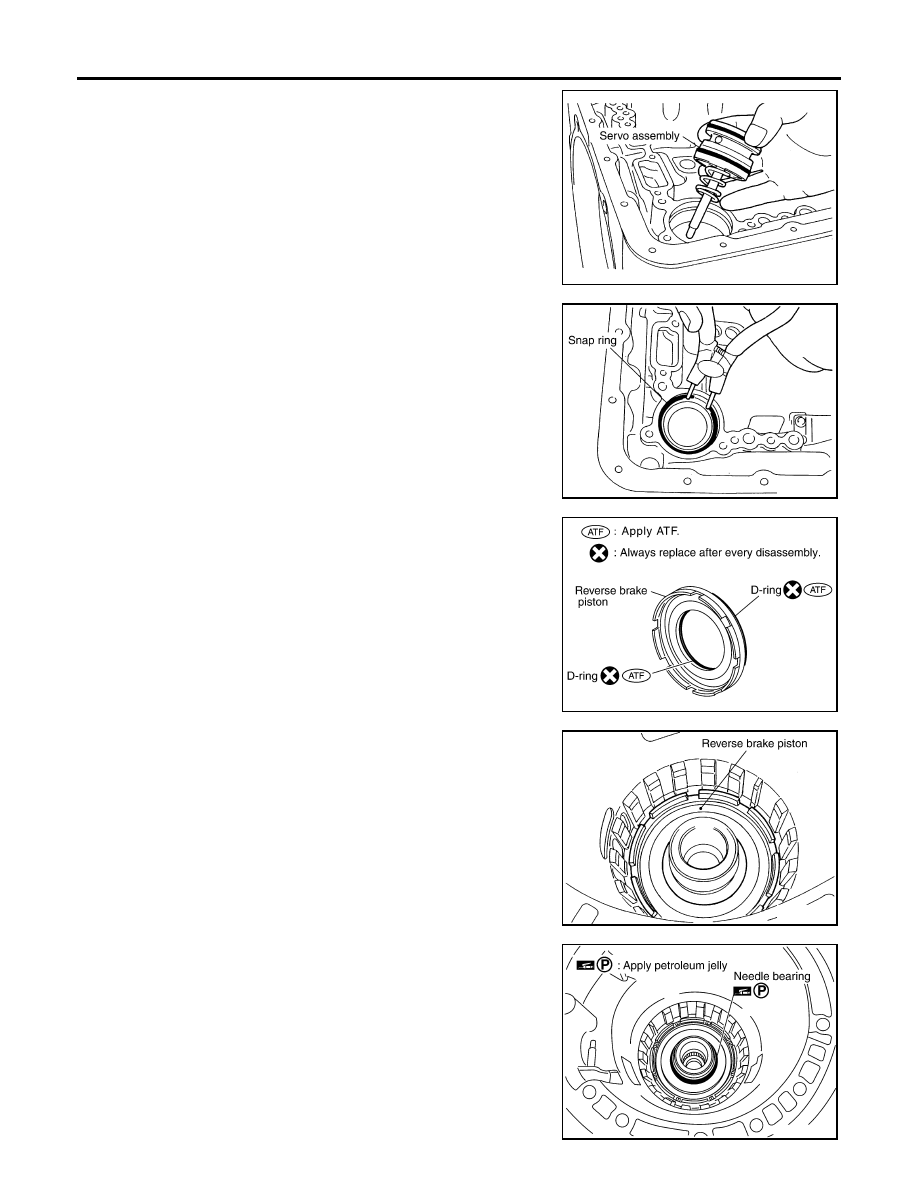

10. Install servo assembly in transmission case.

11. Install snap ring to transmission case using suitable tool.

12. Install D-rings in reverse brake piston.

CAUTION:

Do not reuse D-rings.

Apply ATF to D-rings.

13. Install reverse brake piston in transmission case.

14. Install needle bearing to drum support edge surface.

CAUTION:

Apply petroleum jelly to needle bearing.

SCIA5679E

SCIA2333E

SCIA6330E

SCIA2325E

SCIA2796E
