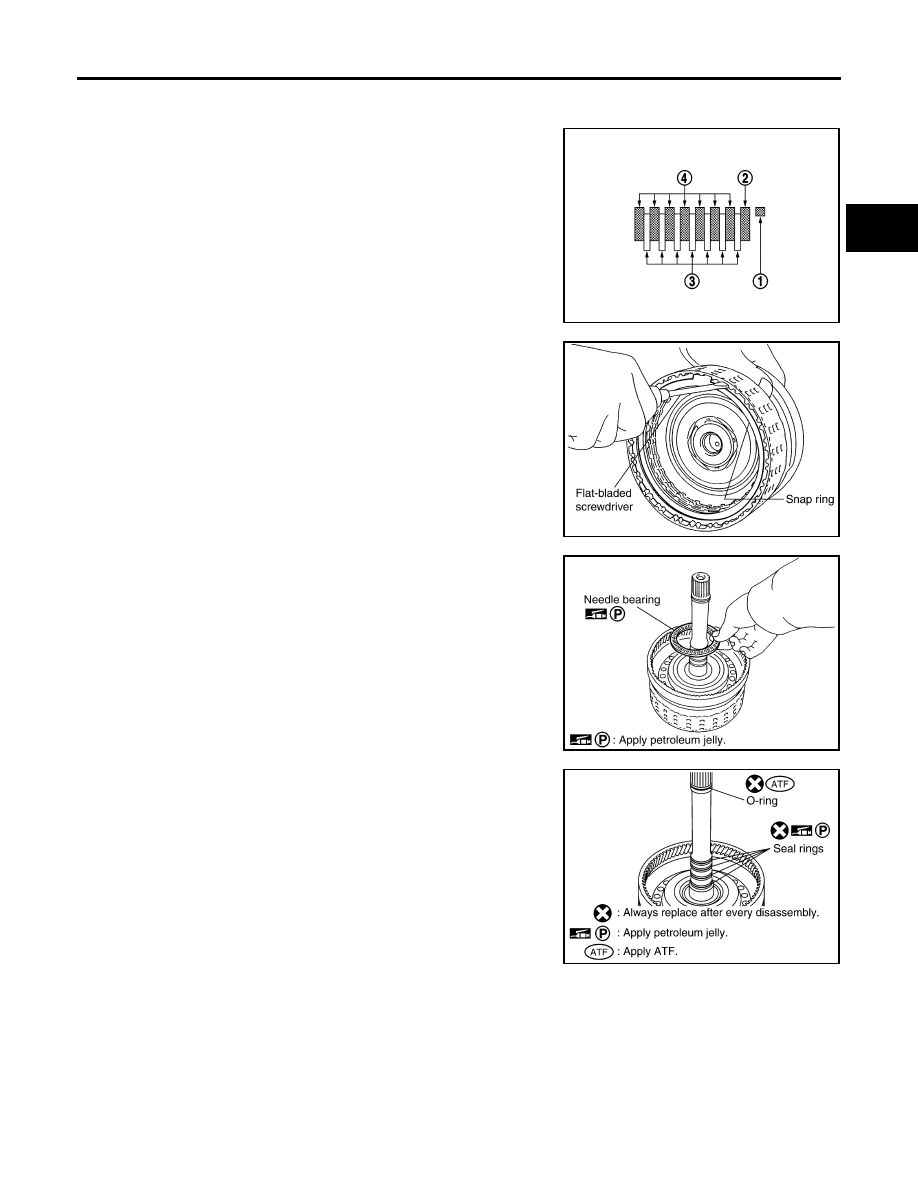

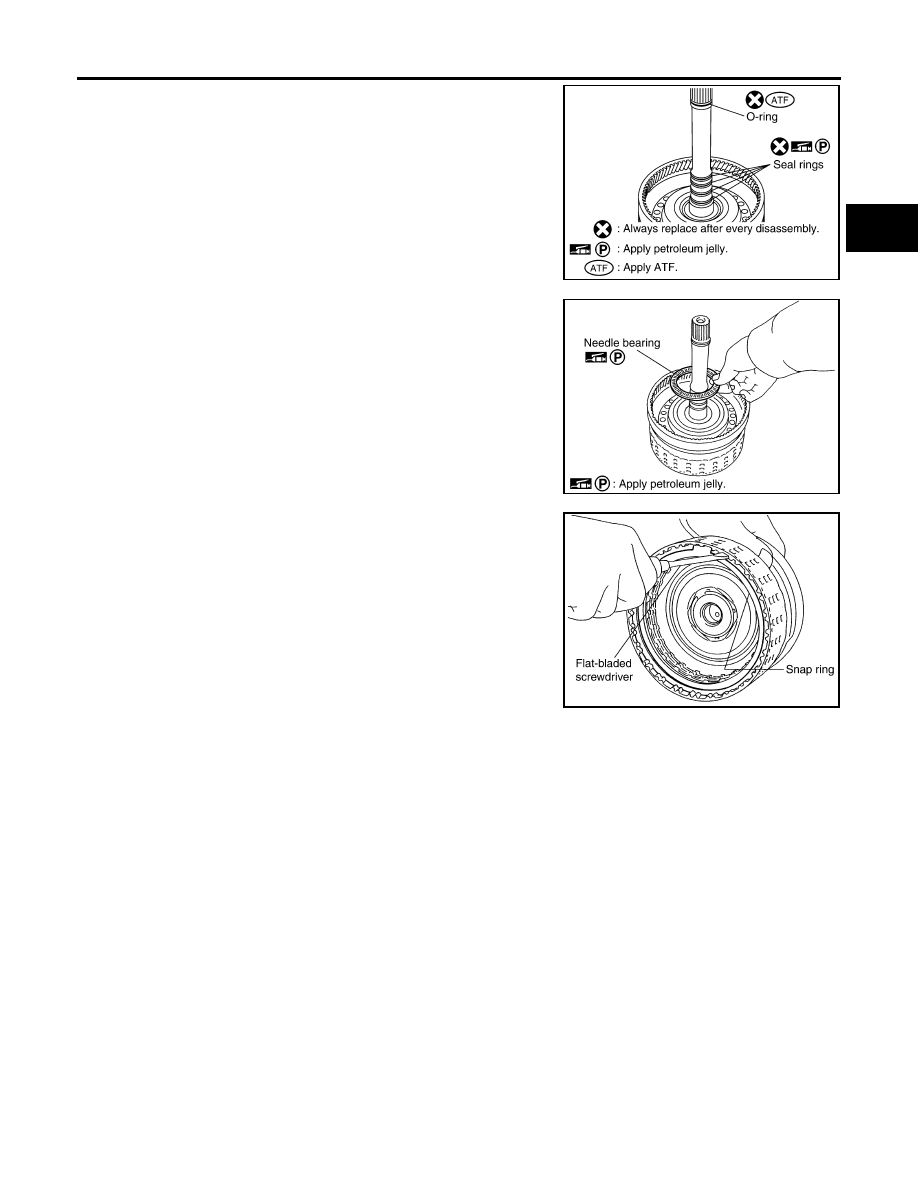

REPAIR FOR COMPONENT PARTS AT-283 D E F G H I J K L M A B AT 2007 Pathfinder 4. Disassemble input clutch assembly. a. Remove O-ring and seal rings from input clutch assembly. b. Remove needle bearing from input clutch assembly. c. Remove snap ring from input clutch drum using suitable tool. d. Remove drive plates, driven plates and retaining plate from input INSPECTION ● Check for deformation, fatigue or damage. CAUTION: If necessary, replace the snap ring. Input Clutch Snap Ring ● Check for deformation, fatigue or damage. CAUTION: If necessary, replace the input clutch assembly. Input Clutch Drum ● Check for deformation, fatigue or damage or burns. CAUTION: If necessary, replace the input clutch assembly. Input Clutch Drive Plates ● Check facing for burns, cracks or damage. CAUTION: If necessary, replace the input clutch assembly. Input Clutch Retaining Plate and Driven Plates ● Check facing for burns, cracks or damage. SCIA5235E SCIA2853E SCIA2864E |
