ON-VEHICLE SERVICE

AT-227

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

Control Valve With TCM and A/T Fluid Temperature Sensor 2

ECS00ELU

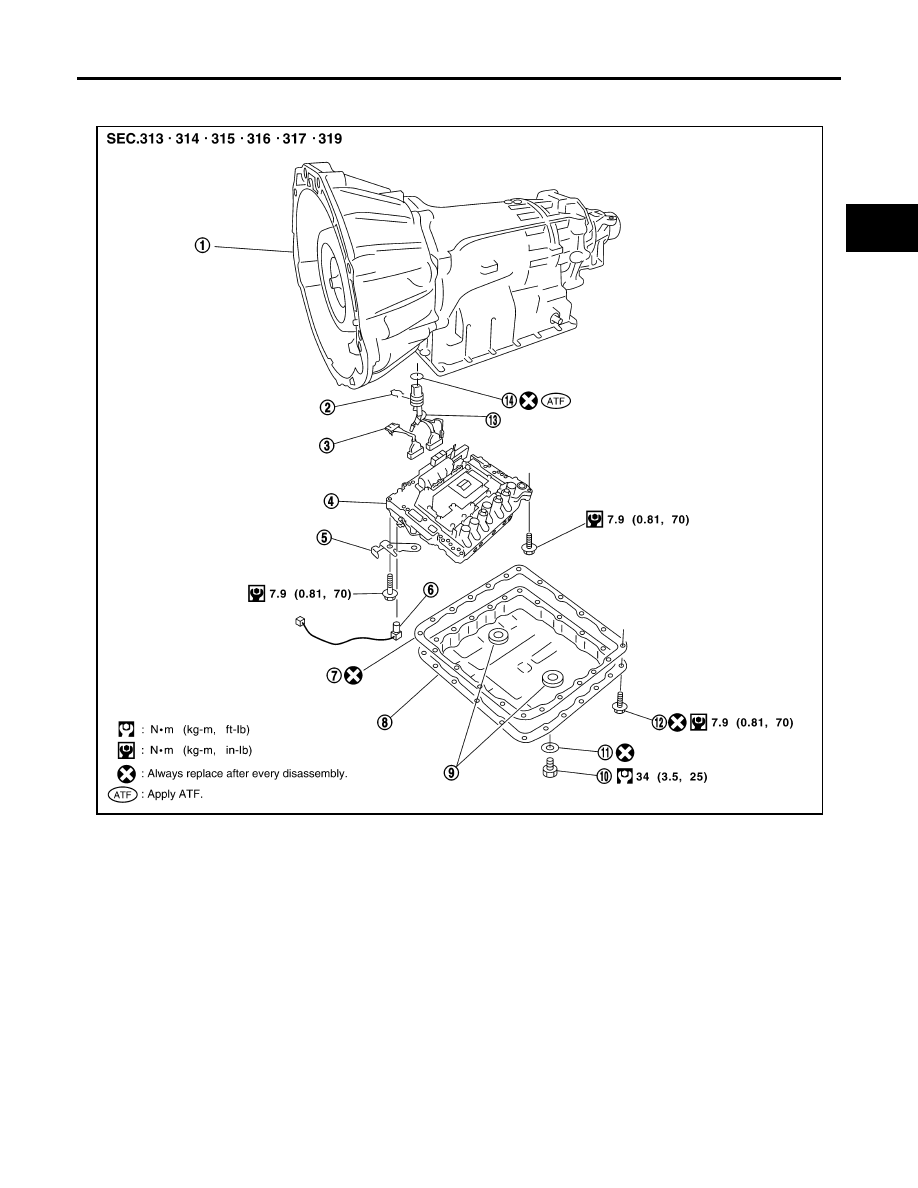

COMPONENTS

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

A/T fluid temperature sensor 2

7.

Oil pan gasket

8.

Oil pan

9.

Magnet

10. Drain plug

11.

Drain plug gasket

12. Oil pan bolt

13. Terminal cord assembly

14. O-ring

SCIA5478E

AT-228

ON-VEHICLE SERVICE

2007 Pathfinder

CONTROL VALVE WITH TCM REMOVAL AND INSTALLATION
Removal

1.

Disconnect negative battery terminal.

2.

Drain A/T fluid. Refer to

AT-12, "A/T FLUID"

 .

3.

Disconnect A/T assembly harness connector.

4.

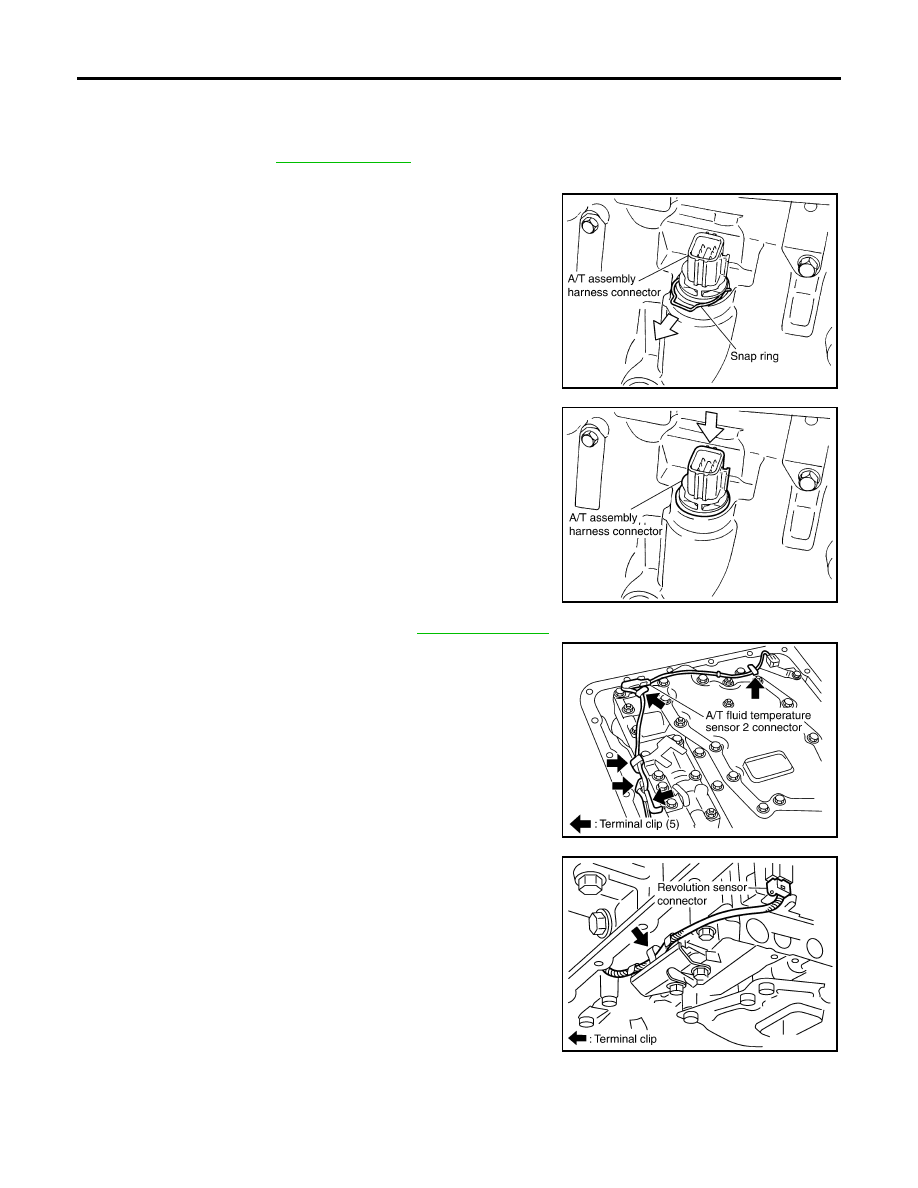

Remove snap ring from A/T assembly harness connector.

5.

Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

6.

Remove oil pan and oil pan gasket. Refer to

AT-225, "Removal"

 .

7.

Straighten the terminal clip to free the terminal cord assembly for
A/T fluid temperature sensor 2 harness.

8.

Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

 Do not damage connector.

9.

Straighten terminal clip to free the revolution sensor harness.

10. Disconnect revolution sensor connector.

CAUTION:

Do not damage connector.

SCIA5021E

SCIA5022E

SCIA5446E

SCIA7525E

ON-VEHICLE SERVICE

AT-229

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

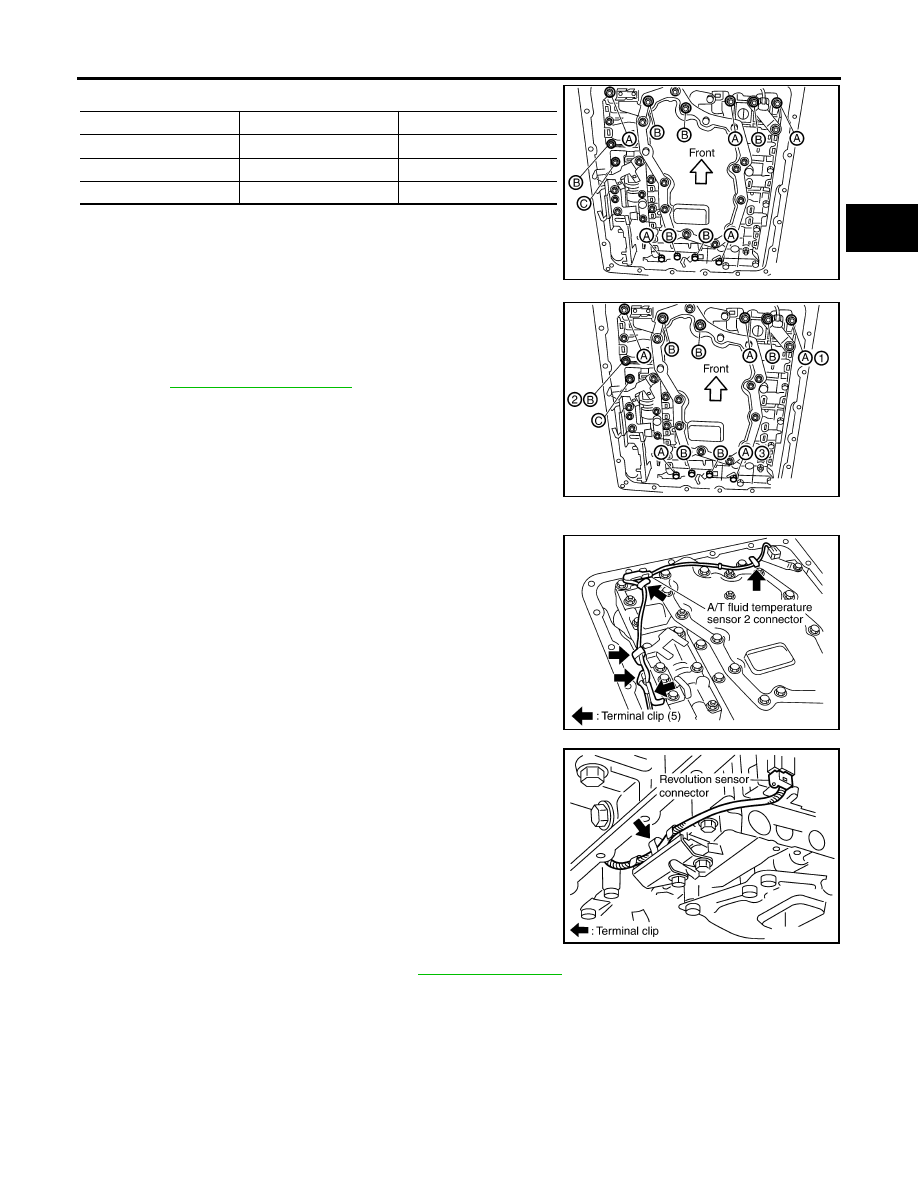

11. Remove bolts (A), (B) and (C) from control valve with TCM.

12. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

13. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

14. Remove bracket from A/T fluid temperature sensor 2.

15. Remove O-ring from A/T assembly harness connector.

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5139E

SCIA5142E

SCIA5301E

SCIA5264E

SCIA5155E

AT-230

ON-VEHICLE SERVICE

2007 Pathfinder

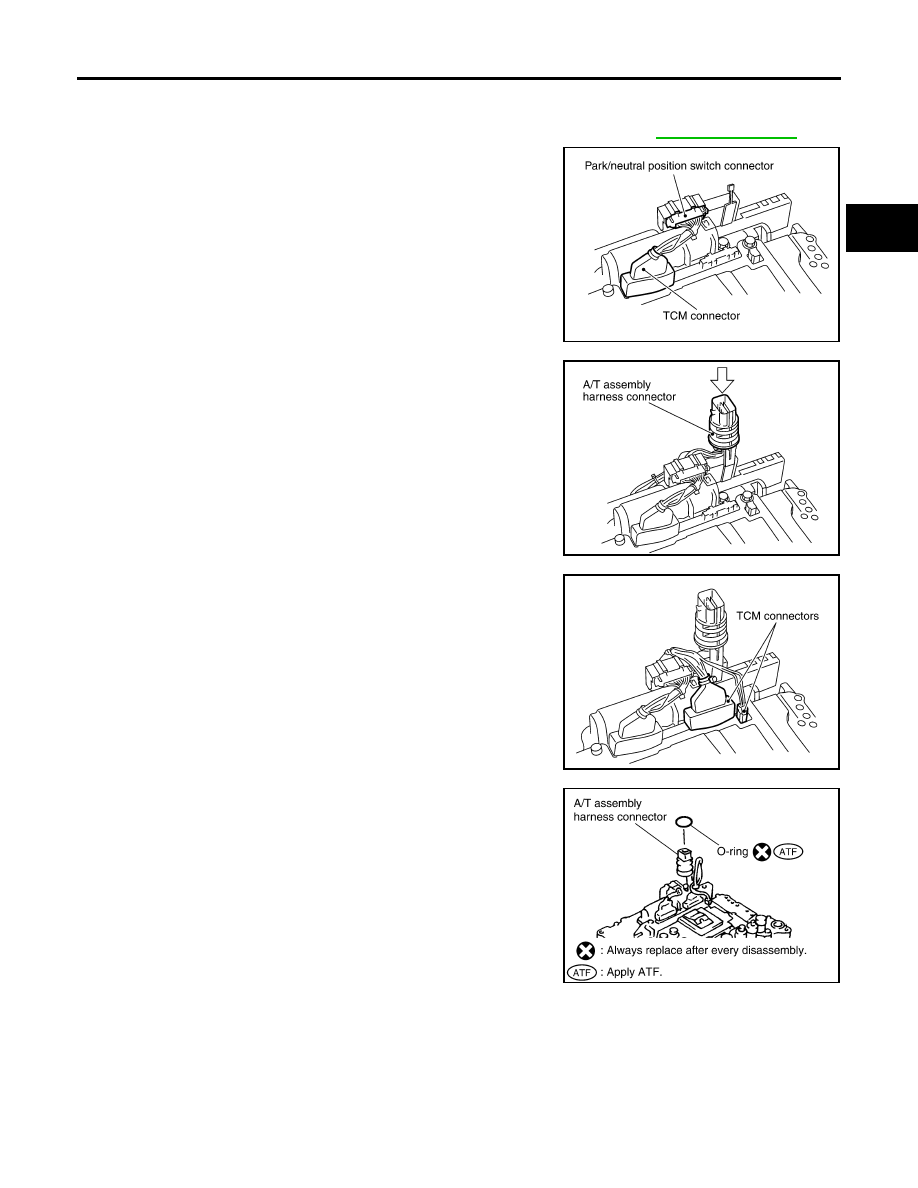

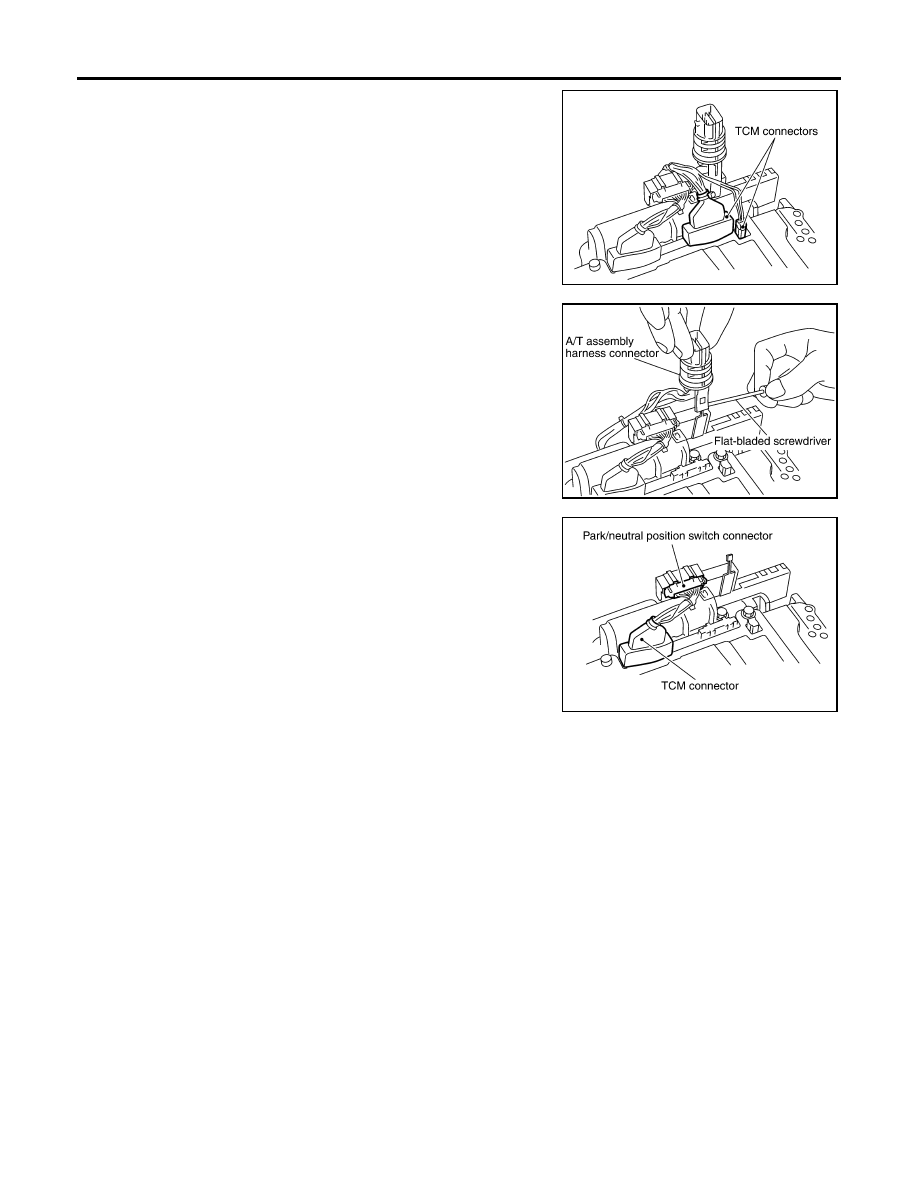

16. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

17. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

18. Disconnect TCM connector and park/neutral position switch

connector

CAUTION:

Do not damage connectors.

SCIA5447E

SCIA5448E

SCIA5449E

ON-VEHICLE SERVICE

AT-231

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

Installation

CAUTION:

After completing installation, check A/T fluid leakage and fluid level. Refer to

AT-12, "A/T FLUID"

 .

1.

Connect TCM connector and park/neutral position switch con-
nector.

2.

Install A/T assembly harness connector to control valve with
TCM.

3.

Connect TCM connector.

4.

Install new O-ring in A/T assembly harness connector.

CAUTION:

Do not reuse O-ring.

Apply ATF to O-ring.

SCIA5449E

SCIA5450E

SCIA5447E

SCIA5155E

AT-232

ON-VEHICLE SERVICE

2007 Pathfinder

5.

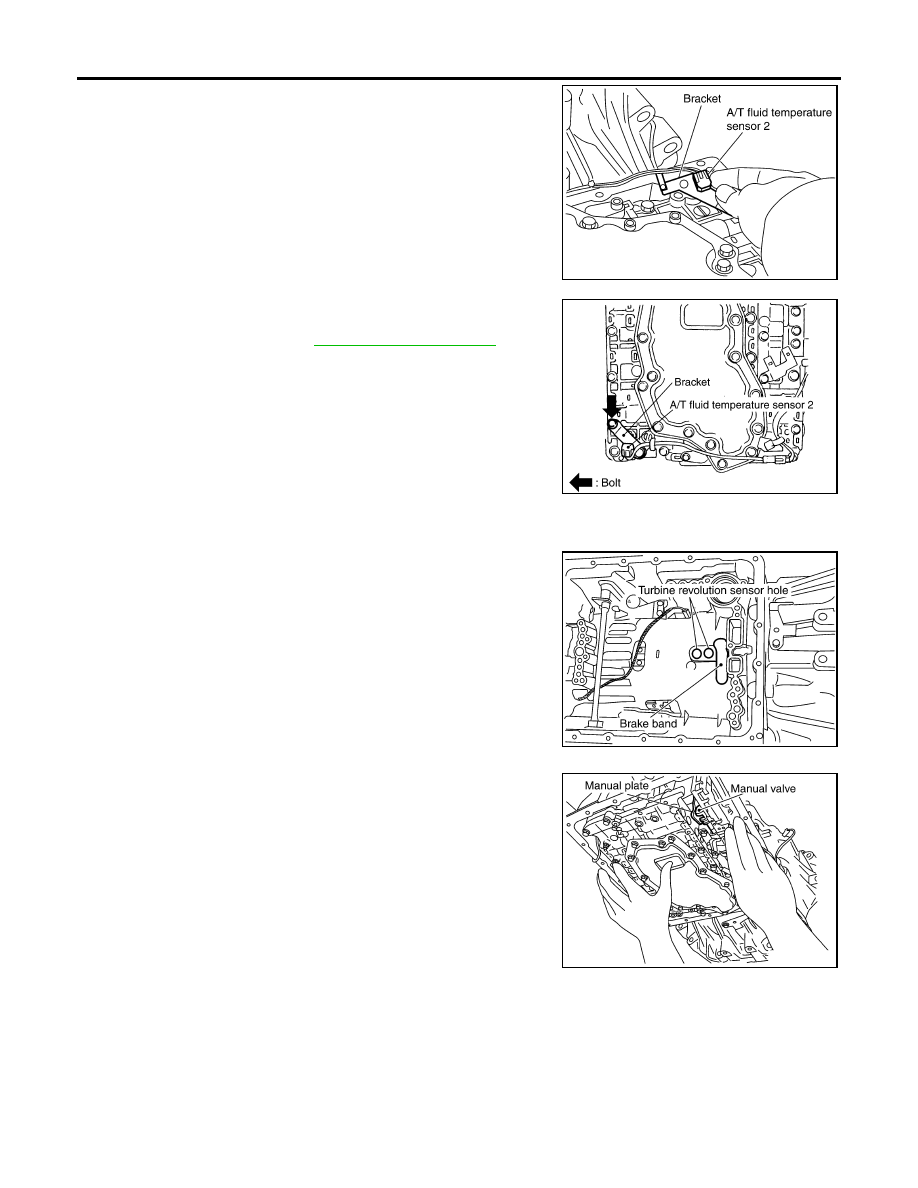

Install A/T fluid temperature sensor 2 to bracket.

6.

Install A/T fluid temperature sensor 2 (with bracket) to control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to
the specified torque. Refer to

AT-227, "COMPONENTS"

 .

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with
TCM.

7.

Install control valve with TCM in transmission case.

CAUTION:

Make sure that turbine revolution sensor is securely
installed into turbine revolution sensor hole.

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

Assemble it so that manual valve cutout is engaged with
manual plate projection.

SCIA5264E

SCIA5301E

SCIA5034E

SCIA5142E

ON-VEHICLE SERVICE

AT-233

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

8.

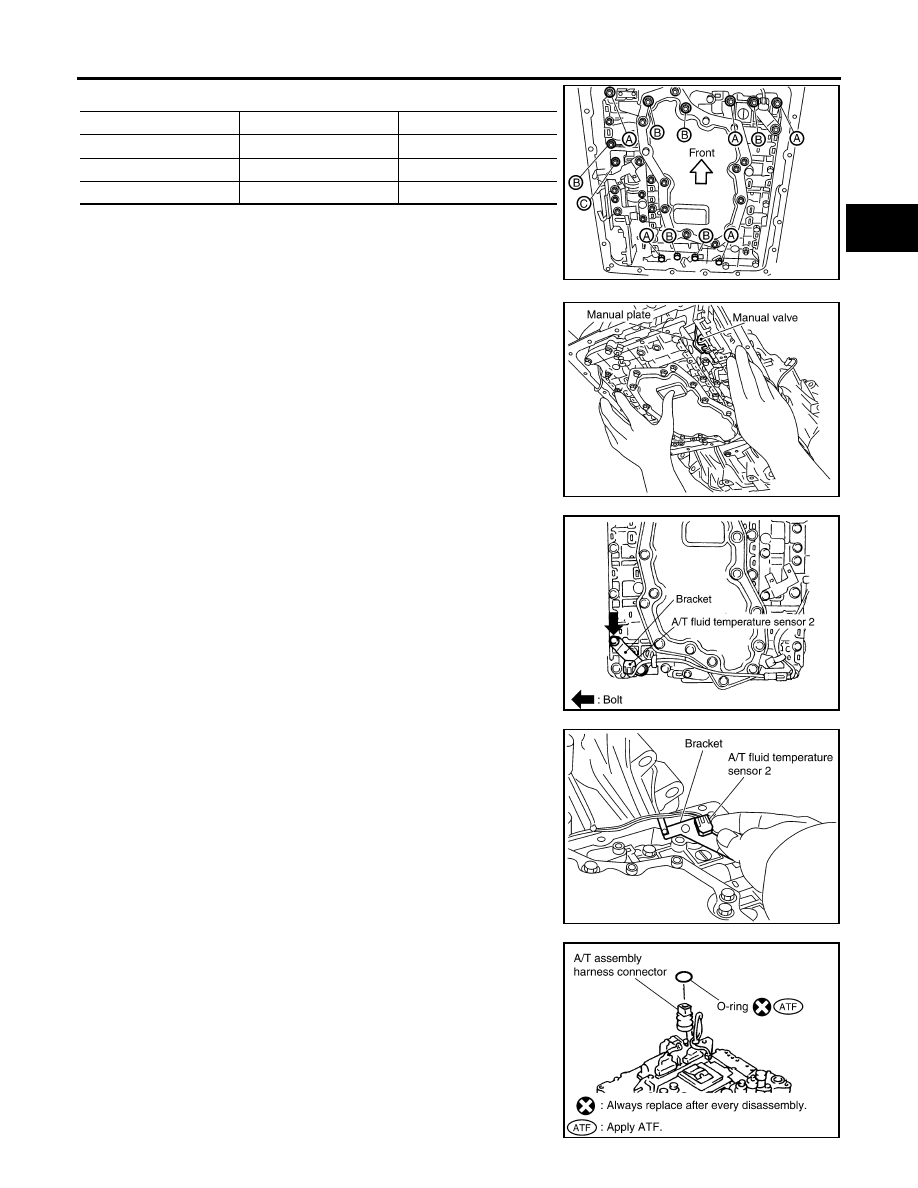

Install bolts (A), (B) and (C) in control valve with TCM.

9.

Tighten bolt (1), (2) and (3) temporarily to prevent dislocation.
After that tighten them in order (1

 2

 3). Then tighten other

bolts.

10. Tighten control valve with TCM bolts to the specified torque.

Refer to

AT-227, "COMPONENTS"

 .

11. Connect A/T fluid temperature sensor 2 connector.

12. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

13. Connect revolution sensor connector.

14. Securely fasten revolution sensor harness with terminal clip.

15. Install oil pan to transmission case. Refer to

AT-225, "Installation"

 .

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5139E

SCIA5140E

SCIA5446E

SCIA7525E

AT-234

ON-VEHICLE SERVICE

2007 Pathfinder

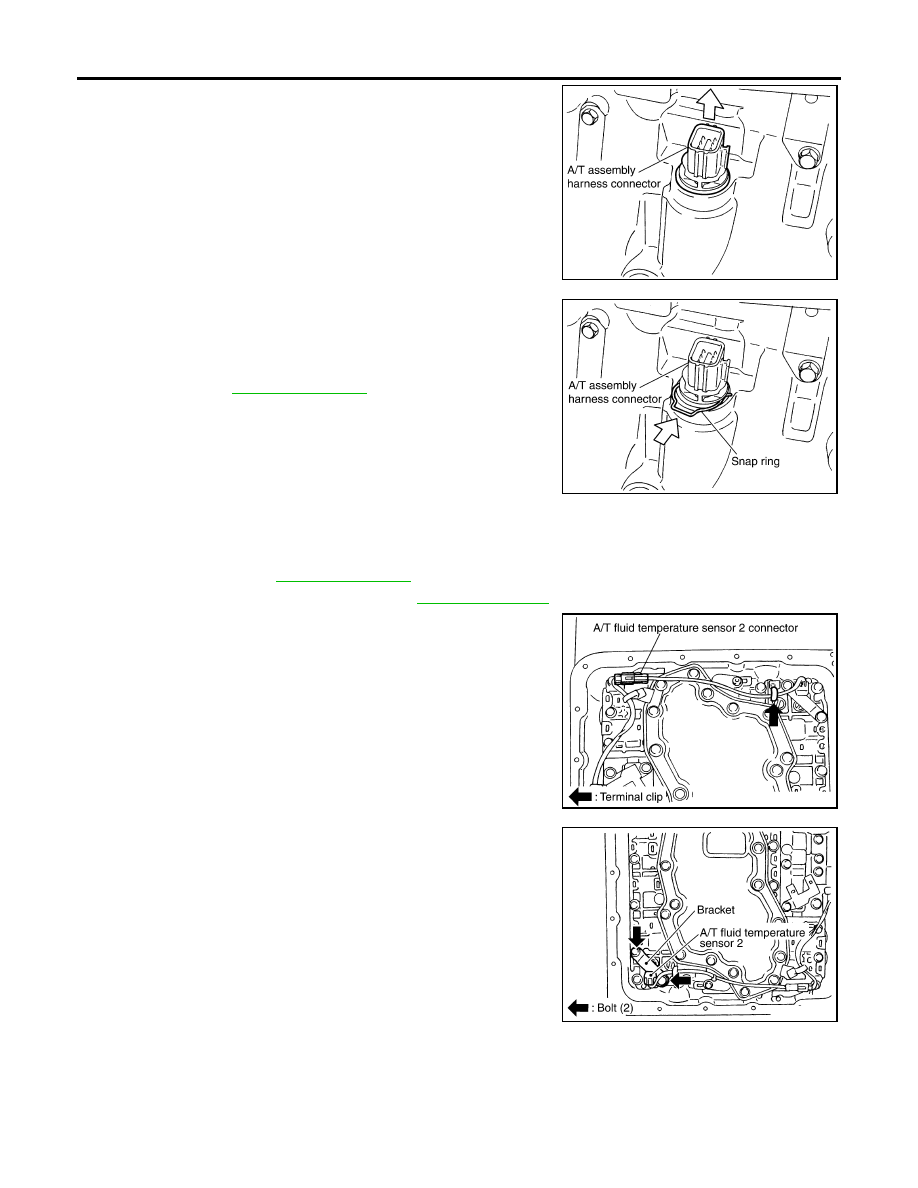

16. Pull up A/T assembly harness connector.

CAUTION:

Do not damage connector.

17. Install snap ring to A/T assembly harness connector.

18. Connect A/T assembly harness connector.

19. Connect the negative battery terminal.

20. Refill the A/T with fluid and check the fluid level and for fluid

leakage. Refer to

AT-12, "A/T FLUID"

 .

A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION
Removal

1.

Disconnect negative battery terminal.

2.

Drain A/T fluid. Refer to

AT-12, "A/T FLUID"

 .

3.

Remove oil pan and oil pan gasket. Refer to

AT-225, "Removal"

 .

4.

Straighten terminal clip to free A/T fluid temperature sensor 2
harness.

5.

Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

Do not damage connector.

6.

Remove A/T fluid temperature sensor 2 with bracket from con-
trol valve with TCM.

SCIA5038E

SCIA5039E

SCIA5146E

SCIA5253E
