FRONT WIPER AND WASHER SYSTEM

WW-21

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

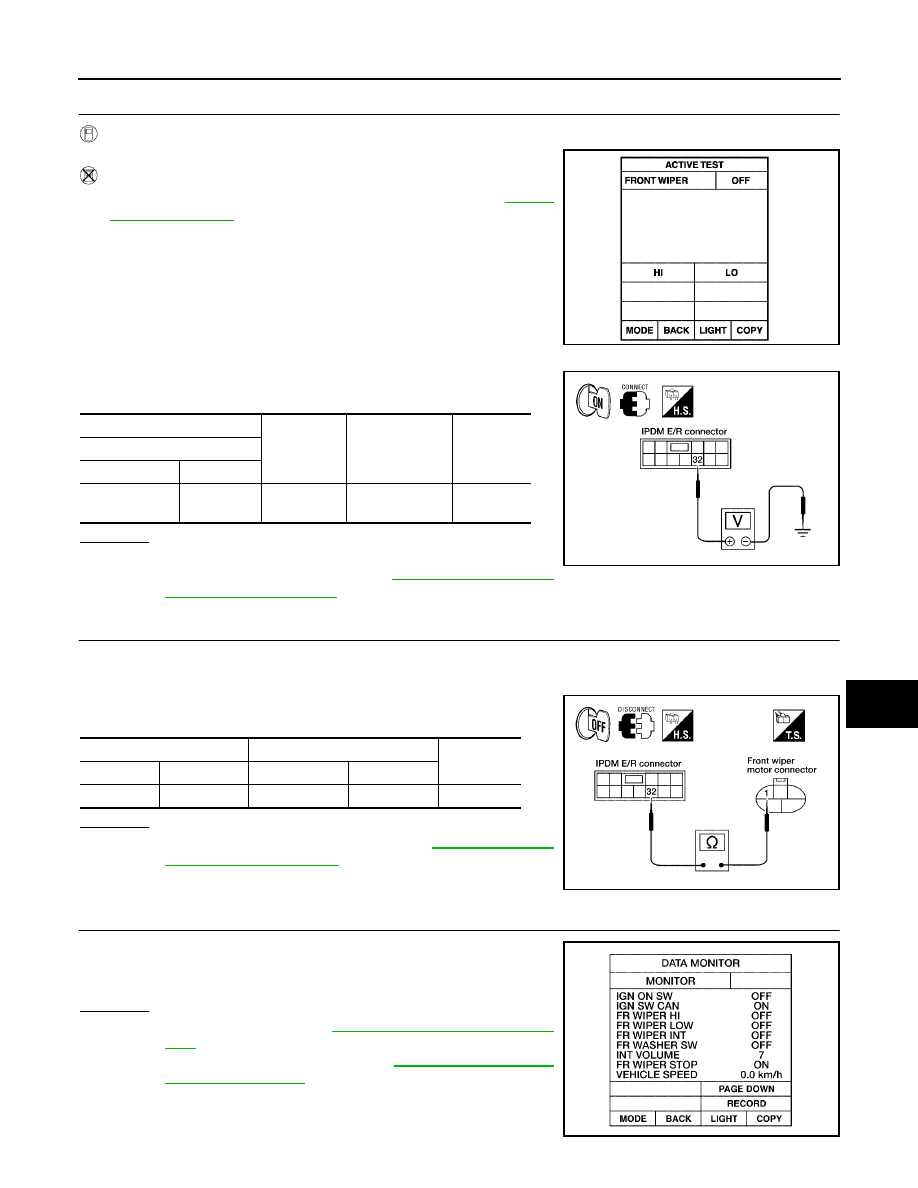

2.

IPDM E/R INSPECTION

With CONSULT-II

1.

Select "LO" on "ACTIVE TEST" screen.

Without CONSULT-II

1.

Turn on front wipers using the auto active test. Refer to

PG-24,

"Auto Active Test"

  .

When front wiper relay is operating, check voltage between IPDM E/
R terminal and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Replace IPDM E/R. Refer to

PG-32, "Removal and

Installation of IPDM E/R"

 .

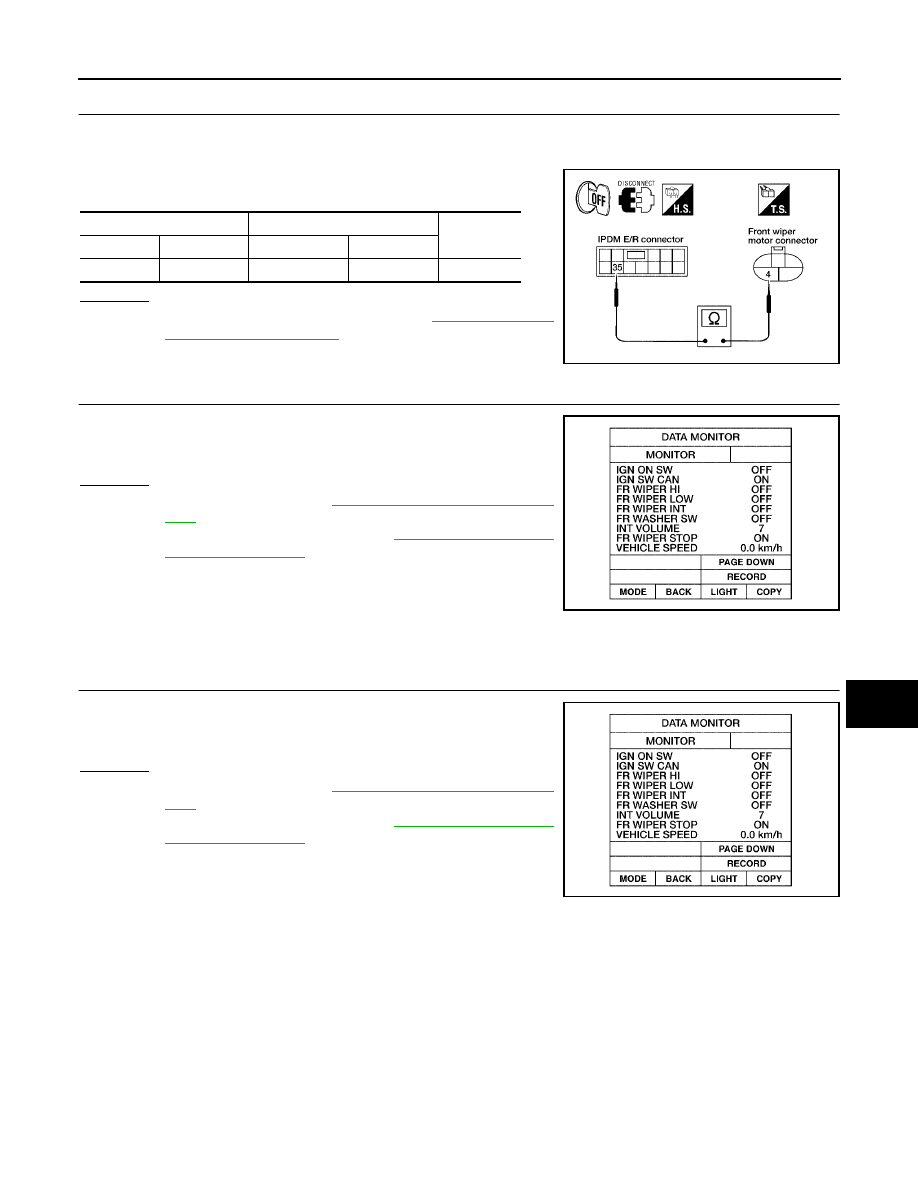

3.

IPDM E/R TO FRONT WIPERS CIRCUIT INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and front wiper motor connector.

3.

Check continuity between IPDM E/R harness connector terminal
and front wiper motor harness connector terminal.

OK or NG

OK

>> Replace the wiper motor. Refer to

WW-27, "WIPER

MOTOR AND LINKAGE"

 .

NG

>> Repair harness or connector.

4.

COMBINATION SWITCH TO BCM INSPECTION

Select "BCM" on CONSULT-II. With "WIPER" data monitor, check
that "FR WIPER LO" turns ON-OFF according to operation of wiper
switch.
OK or NG

OK

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

NG

>> Replace wiper switch. Refer to

WW-28, "WIPER AND

WASHER SWITCH"

 .

SKIA3486E

IPDM E/R

(–)

Condition

Voltage

(Approx.)

(+)

Connector

Terminal

E121

32

Ground

Wiper operating

Battery
voltage

WKIA3759E

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E121

32

E23

1

Yes

WKIA3197E

WKIA1018E

WW-22

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

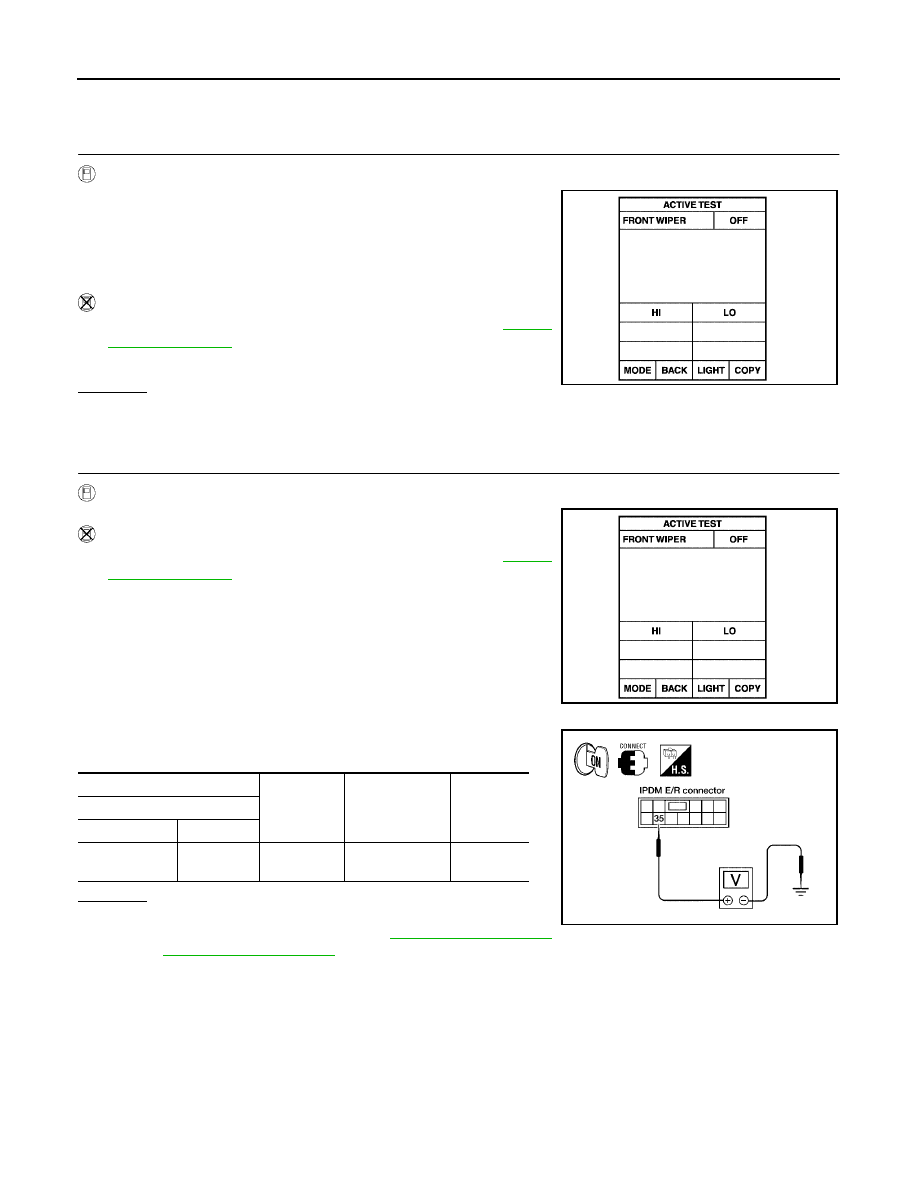

ONLY FRONT WIPER HI DOES NOT OPERATE

Inspection Procedure

1.

CHECK IPDM E/R TO FRONT WIPERS

With CONSULT-II

1.

Select "IPDM E/R" with CONSULT-II, and select "ACTIVE
TEST" on "SELECT DIAG MODE" screen.

2.

Select "FRONT WIPER" on "SELECT TEST ITEM" screen.

3.

Select "HI" on "ACTIVE TEST" screen.

4.

Confirm front wiper high operation.

Without CONSULT-II

1.

Turn on front wipers using auto active test. Refer to

PG-24,

"Auto Active Test"

 .

2.

Confirm front wiper operation.

OK or NG

OK

>>  GO TO 4.

NG

>>  GO TO 2.

2.

IPDM E/R INSPECTION

With CONSULT-II

1.

Select "HI" on "ACTIVE TEST" screen.

Without CONSULT-II

1.

Turn on front wipers using the auto active test. Refer to

PG-24,

"Auto Active Test"

 .

When front wiper relay high is operating, check voltage between
IPDM E/R terminal and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Replace IPDM E/R. Refer to

PG-32, "Removal and

Installation of IPDM E/R"

 .

SKIA3486E

SKIA3486E

IPDM E/R

(–)

Condition

Voltage

(Approx.)

(+)

Connector

Terminal

E121

35

Ground

Wiper operating

Battery
voltage

WKIA3760E

FRONT WIPER AND WASHER SYSTEM

WW-23

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

3.

IPDM E/R TO FRONT WIPERS CIRCUIT INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and front wiper motor connector.

3.

Check continuity between IPDM E/R harness connector terminal
and front wiper motor harness connector terminal.

OK or NG

OK

>> Replace the wiper motor. Refer to

WW-27, "WIPER

MOTOR AND LINKAGE"

 .

NG

>> Repair harness or connector.

4.

COMBINATION SWITCH TO BCM INSPECTION

Select "BCM" on CONSULT-II. With "WIPER" data monitor, check
that "FR WIPER HI" turns ON-OFF according to operation of wiper
switch.
OK or NG

OK

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

NG

>> Replace wiper switch. Refer to

WW-28, "WIPER AND

WASHER SWITCH"

 .

ONLY FRONT WIPER INT DOES NOT OPERATE

Inspection Procedure

1.

COMBINATION SWITCH TO BCM INSPECTION

Select "BCM" on CONSULT-II. With "WIPER" data monitor, check
that "FR WIPER INT" turns ON-OFF according to operation of wiper
switch.

OK or NG

OK

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

NG

>> Replace wiper switch. Refer to

WW-28, "WIPER AND

WASHER SWITCH"

 .

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E121

35

E23

4

Yes

WKIA3199E

WKIA1018E

WKIA1018E

WW-24

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

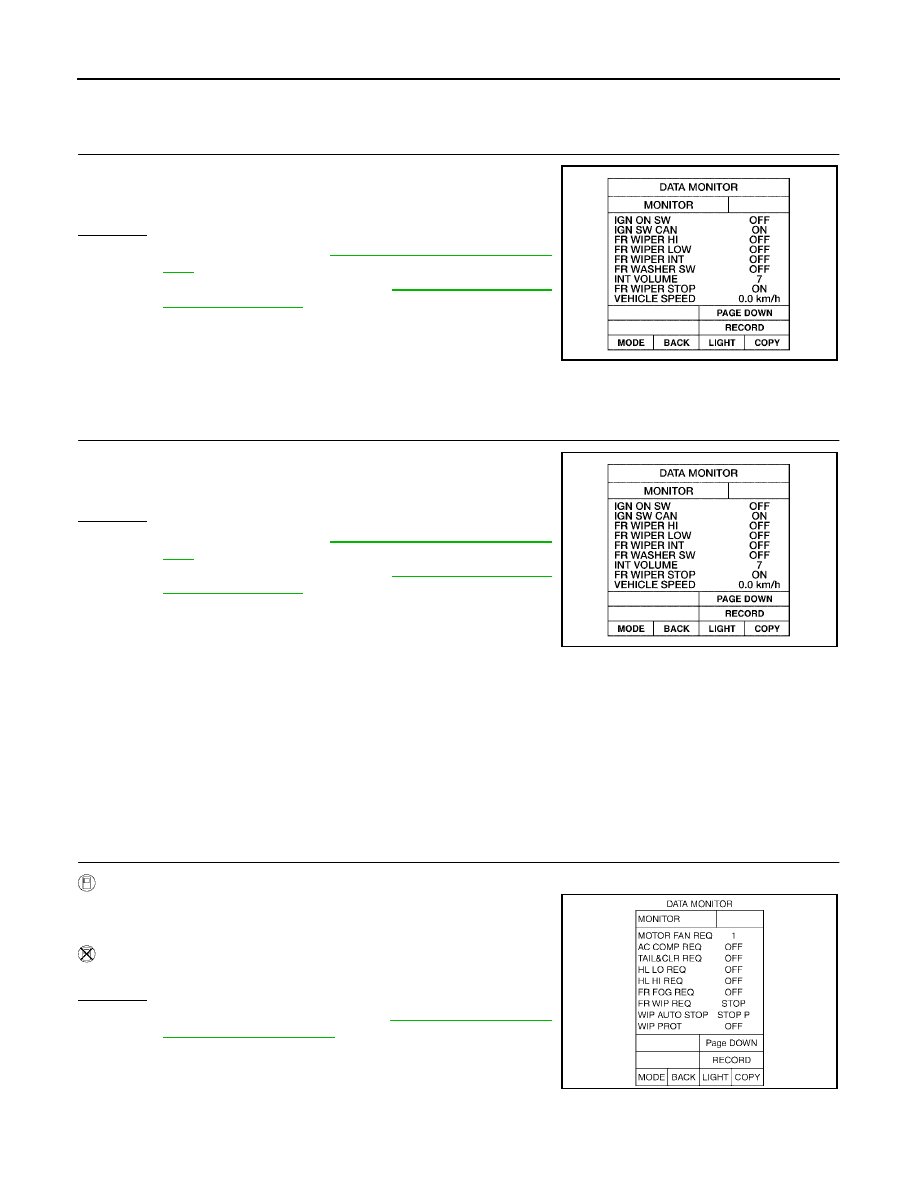

FRONT WIPER INTERMITTENT OPERATION SWITCH POSITION CANNOT BE ADJUSTED

Inspection Procedure

1.

COMBINATION SWITCH TO BCM INSPECTION

Select "BCM" on CONSULT-II. With "WIPER" data monitor, check
that "INT VOLUME" changes in order from 1 to 7 according to opera-
tion of the intermittent switch dial position.
OK or NG

OK

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

NG

>> Replace wiper switch. Refer to

WW-28, "WIPER AND

WASHER SWITCH"

 .

WIPERS DO NOT WIPE WHEN FRONT WASHER OPERATES

Inspection Procedure

1.

COMBINATION SWITCH TO BCM INSPECTION

Select "BCM" on CONSULT-II. With "WIPER" data monitor, check
that "FR WASHER SW" turns ON-OFF according to operation of
front washer switch.

OK or NG

OK

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

NG

>> Replace wiper switch. Refer to

WW-28, "WIPER AND

WASHER SWITCH"

 .

FRONT WIPERS OPERATE FOR 10 SECONDS, STOP FOR 20 SECONDS, AND AFTER
REPEATING THIS OPERATION FIVE TIMES, THEY BECOME INOPERATIVE

CAUTION:

●

When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers front wipers locked and stops wiper output, which causes this symp-
tom.

●

This status can be checked by using IPDM E/R "DATA MONITOR". Under this condition, "WIP
PROT" reads "BLOCK".

Inspection Procedure

1.

CHECK IPDM E/R TO FRONT WIPER MOTOR

With CONSULT-II

Select "IPDM E/R" with CONSULT-II. With data monitor, confirm that
"WIP AUTO STOP" changes from "ACT P" to "STOP P" according to
wiper operation.

Without CONSULT-II

GO TO 2.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-32, "Removal and

Installation of IPDM E/R"

 .

NG

>> GO TO 2.

WKIA1018E

WKIA1018E

SKIA5301E

FRONT WIPER AND WASHER SYSTEM

WW-25

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

2.

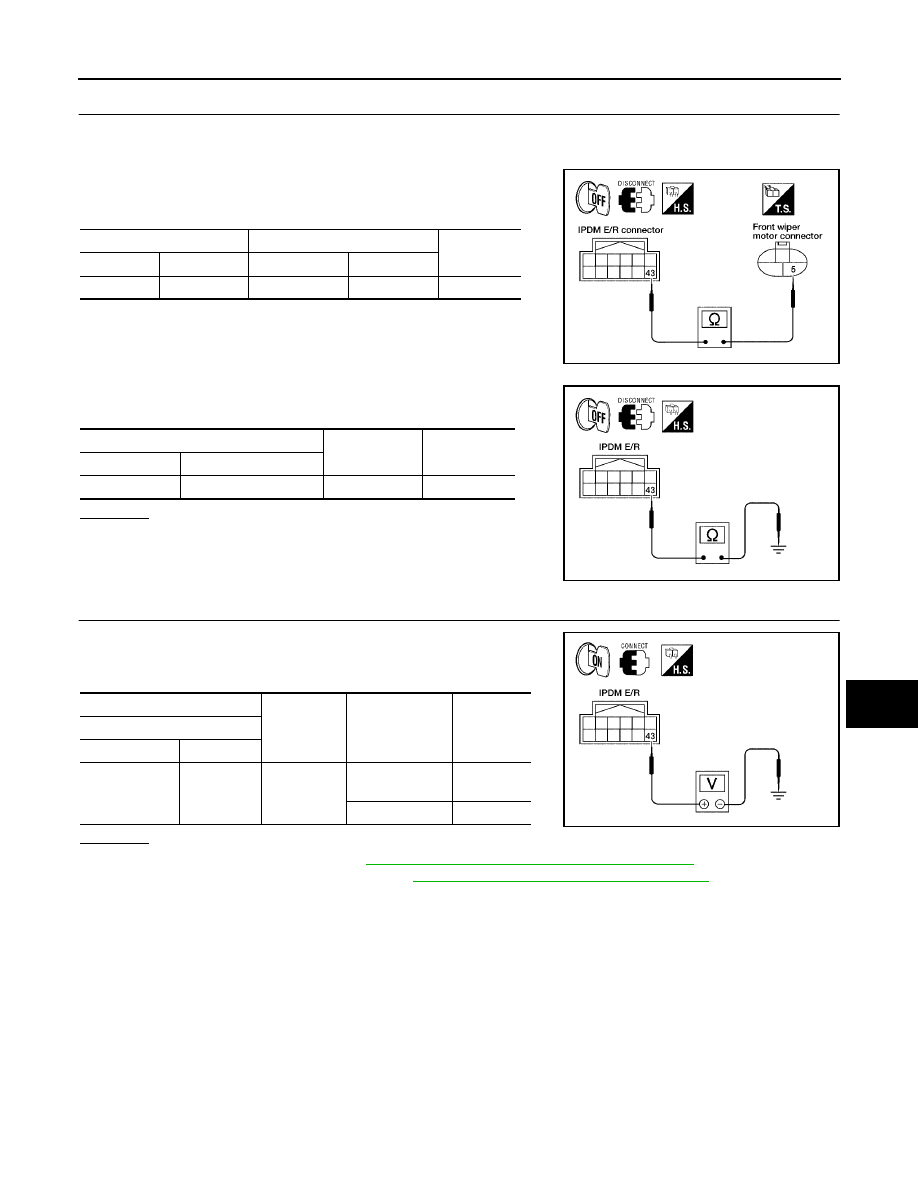

IPDM E/R TO FRONT WIPER MOTOR AUTO STOP CIRCUIT INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and front wiper motor connector.

3.

Check continuity between IPDM E/R harness connector E122
terminal 43 and front wiper motor harness connector E23 termi-
nal 5.

4.

Check continuity between IPDM E/R harness connector E122
terminal 43 and ground.

OK or NG

OK

>> Connect connectors. GO TO 3.

NG

>> Repair harness or connector.

3.

IPDM E/R TO FRONT WIPER MOTOR (3) INSPECTION

While front wiper motor is stopped and while operating, measure
voltage between IPDM E/R harness connector E122 terminal 43 and
ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-32, "Removal and Installation of IPDM E/R"

 .

NG

>> Replace front wiper motor. Refer to

WW-27, "WIPER MOTOR AND LINKAGE"

 .

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E122

43

E23

5

Yes

WKIA3195E

IPDM E/R

Continuity

Connector

Terminal

E122

43

Ground

No

WKIA1429E

IPDM E/R

(–)

Condition

Voltage

(Approx.)

(+)

Connector

Terminal

E122

43

Ground

Wiper operating

Battery
voltage

Wiper stopped

0V

WKIA1431E

WW-26

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

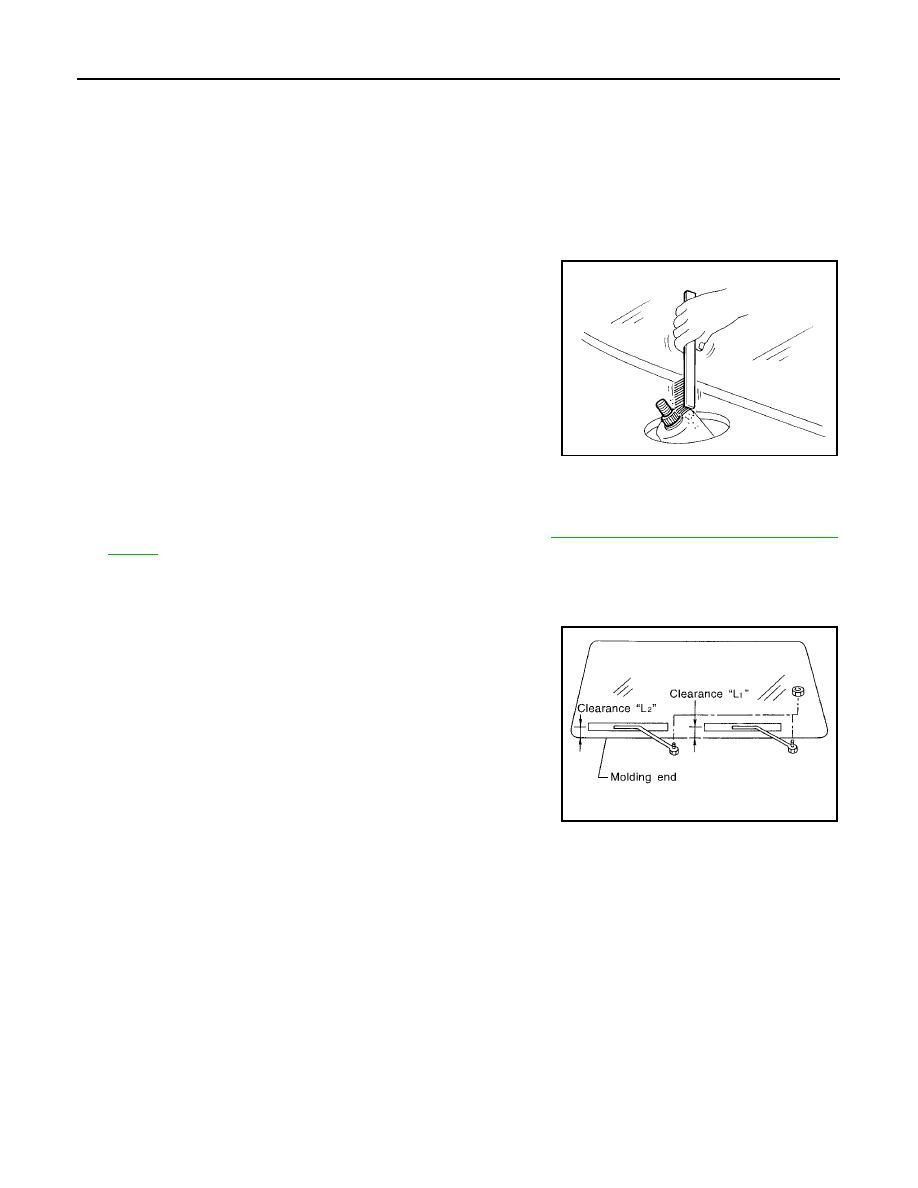

Removal and Installation

EKS00HJV

FRONT WIPER ARMS
Removal

1.

Remove wiper arm covers and wiper arm nuts.

2.

Remove front RH wiper arm and front LH wiper arm.

3.

Remove front RH blade assembly and front LH blade assembly.

Installation

1.

Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).

2.

Clean up the pivot area as shown. This will reduce possibility of
wiper arm looseness.

3.

Install front RH blade assembly and front LH blade assembly.

4.

Install front RH wiper arm and front LH wiper arm.

5.

Ensure that wiper blades stop within proper clearance. Refer to

WW-26, "FRONT WIPER ARM ADJUST-

MENT"

 .

FRONT WIPER ARM ADJUSTMENT

1.

Operate windshield washer and wiper motor one full cycle, then turn "OFF" (Auto Stop).

2.

Lift the wiper blade up and then rest it onto glass surface, check
the blade clearance "L1" and "L2".

3.

Remove wiper arm covers and wiper arm nuts.

4.

Adjust front wiper arms on wiper motor pivot shafts to obtain
above specified blade clearances.

5.

Tighten wiper arm nuts to specified torque, and install wiper arm
covers.

SEL024J

Clearance "L1"

: 24.5 - 39.5 mm (0.965 - 1.555 in)

Clearance "L2"

: 23.5 - 38.5 mm (0.925 - 1.516 in)

Front wiper arm nuts

: 23.6 N·m (2.4 kg-m, 17 ft-lb)

SEL543TA

FRONT WIPER AND WASHER SYSTEM

WW-27

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

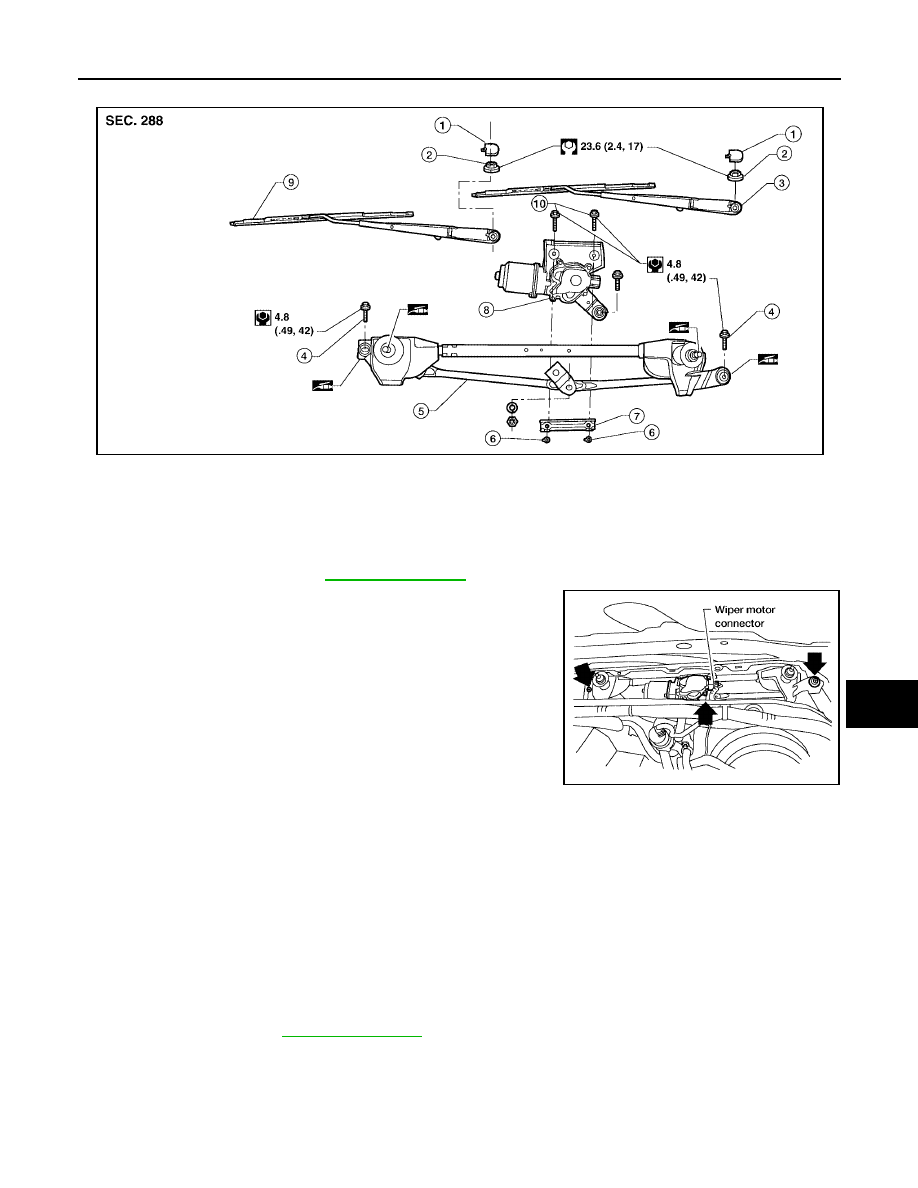

WIPER MOTOR AND LINKAGE

Removal

1.

Remove the cowl top. Refer to

EI-17, "COWL TOP"

 .

2.

Remove wiper frame bolts, and remove wiper frame assembly.

3.

Remove wiper motor from wiper frame assembly.

Installation

CAUTION:

●

Do not drop the wiper motor or cause it to contact other parts.

●

Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.

1.

Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper
switch OFF (auto stop).

2.

Disconnect wiper motor electrical connector.

3.

Install wiper motor to wiper frame assembly, and install wiper frame assembly.

4.

Connect wiper motor electrical connector.

5.

Install cowl top. Refer to

EI-17, "COWL TOP"

 .

1.

Wiper arm covers

2.

Wiper arm nuts

3.

Front LH wiper arm and blade assembly

4.

Wiper frame bolts

5.

Wiper frame assembly

6.

Wiper motor to frame nuts

7.

Wiper motor spacer

8.

Wiper motor

9.

Front RH wiper arm and blade assembly

10.

Wiper motor to frame bolts

WKIA4870E

LKIA0534E

WW-28

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

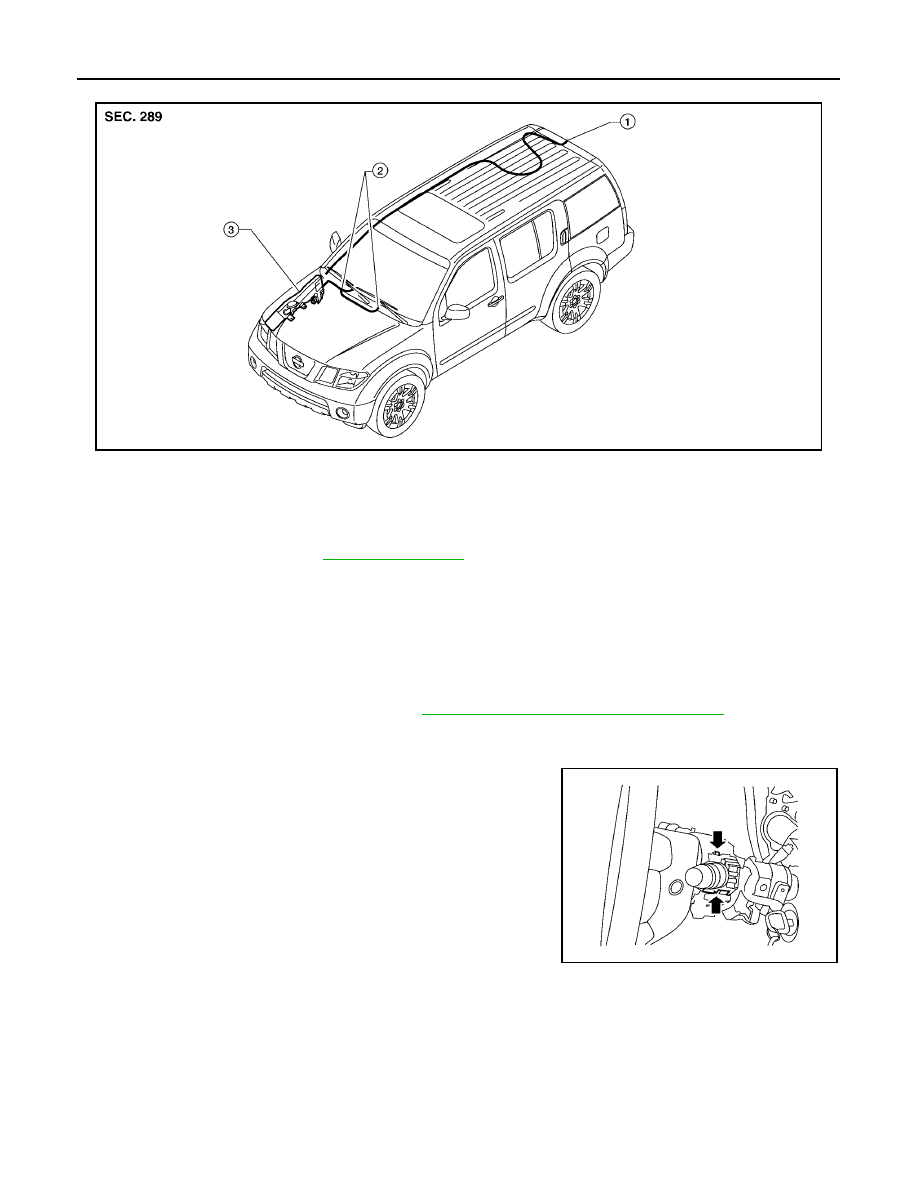

WASHER HOSE LAYOUT

WASHER NOZZLES
Removal

1.

Remove the cowl top. Refer to

EI-17, "COWL TOP"

 .

2.

Remove washer nozzles.

Installation

Installation is in the reverse order of removal.

WIPER AND WASHER SWITCH
Removal

1.

Remove instrument lower cover LH. Refer to

IP-14, "LOWER INSTRUMENT PANEL LH"

 .

2.

Remove steering column cover lower and steering column cover upper.

3.

Disconnect wiper and washer switch connector.

4.

Pinch tabs at wiper and washer switch base and slide switch
away from steering column.

Installation

Installation is in the reverse order of removal.

WKIA4139E

1.

Rear washer nozzle

2.

Washer nozzles

3.

Washer fluid reservoir

WKIA0071E
