TROUBLE DIAGNOSIS
SRS-35
C
D
E
F
G
I
J
K
L
M
A
B
SRS
2006 Pathfinder

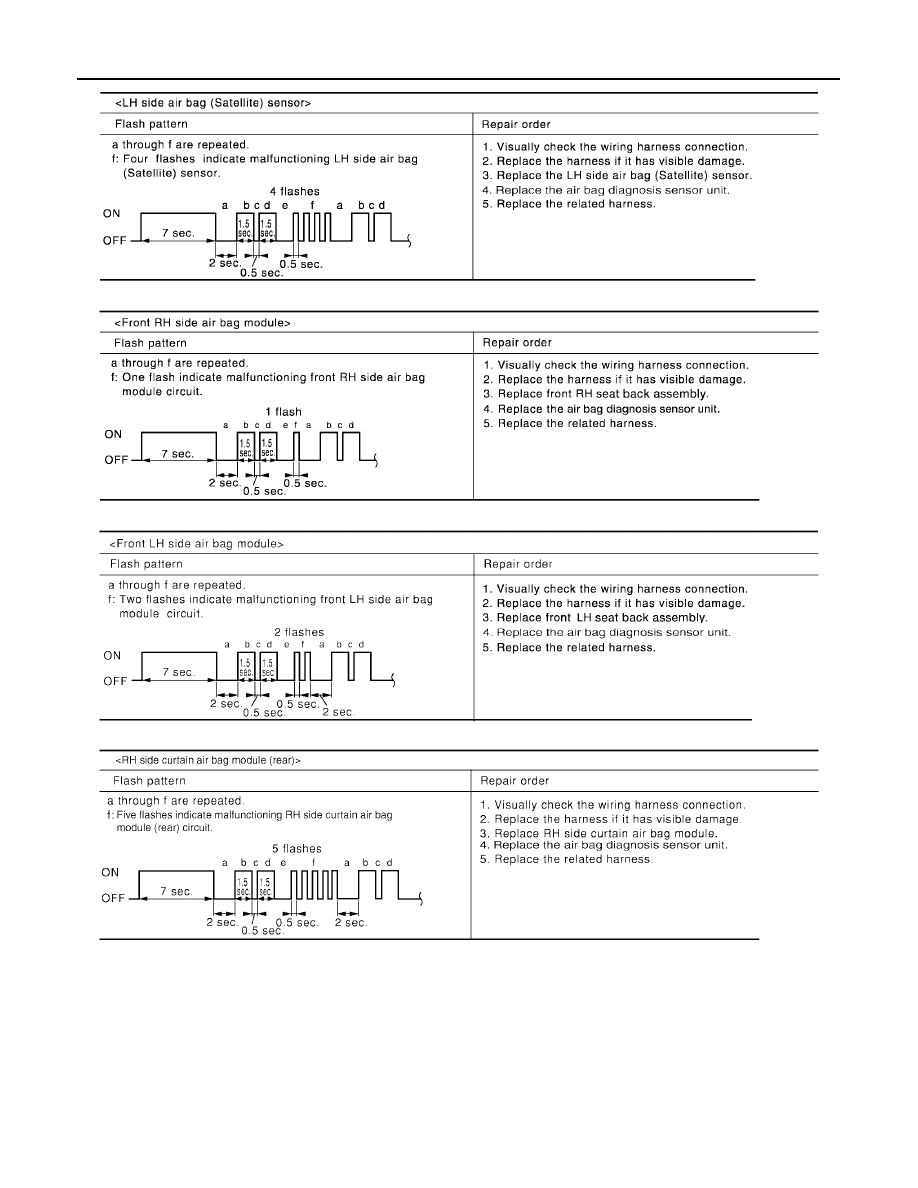

CURTAIN MODULE RH
[OPEN]
[B1145]
●
The circuit for RH side rear curtain air bag module is open.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH side curtain air bag
module.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness.
CURTAIN MODULE RH
[VB-SHORT]
[B1146]
●
The circuit for RH side rear curtain air bag module is
shorted to some power supply circuits.
CURTAIN MODULE RH
[GND-SHORT]
[B1147]
●
The circuit for RH side rear curtain air bag module is
shorted to ground.
CURTAIN MODULE RH
[SHORT]
[B1148]
●
The circuits for the RH side rear curtain air bag module are
shorted to each other.

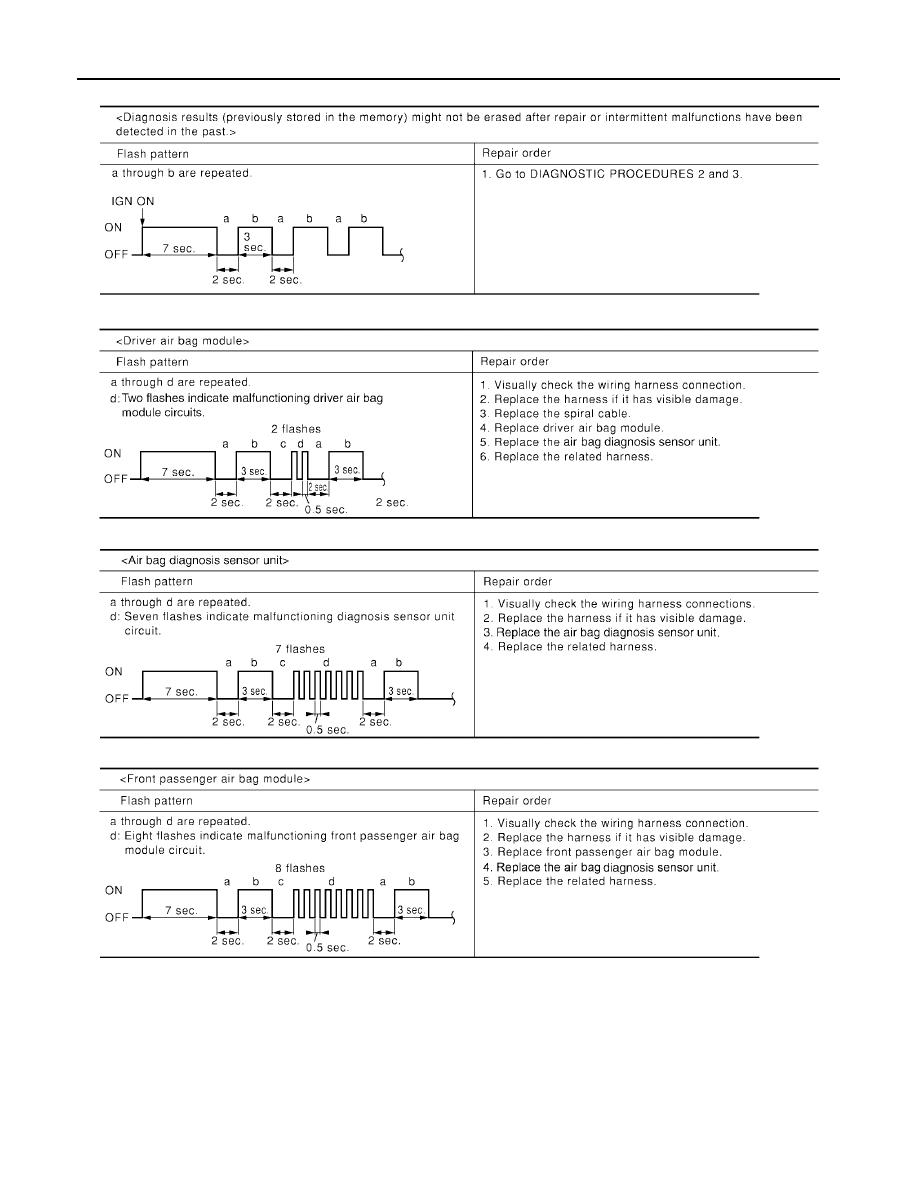

CONTROL UNIT
[B1XXX]
●
Air bag diagnosis sensor unit is malfunctioning.
1. Visually check the wiring harness
connection.
2. Replace the air bag diagnosis sen-
sor unit.

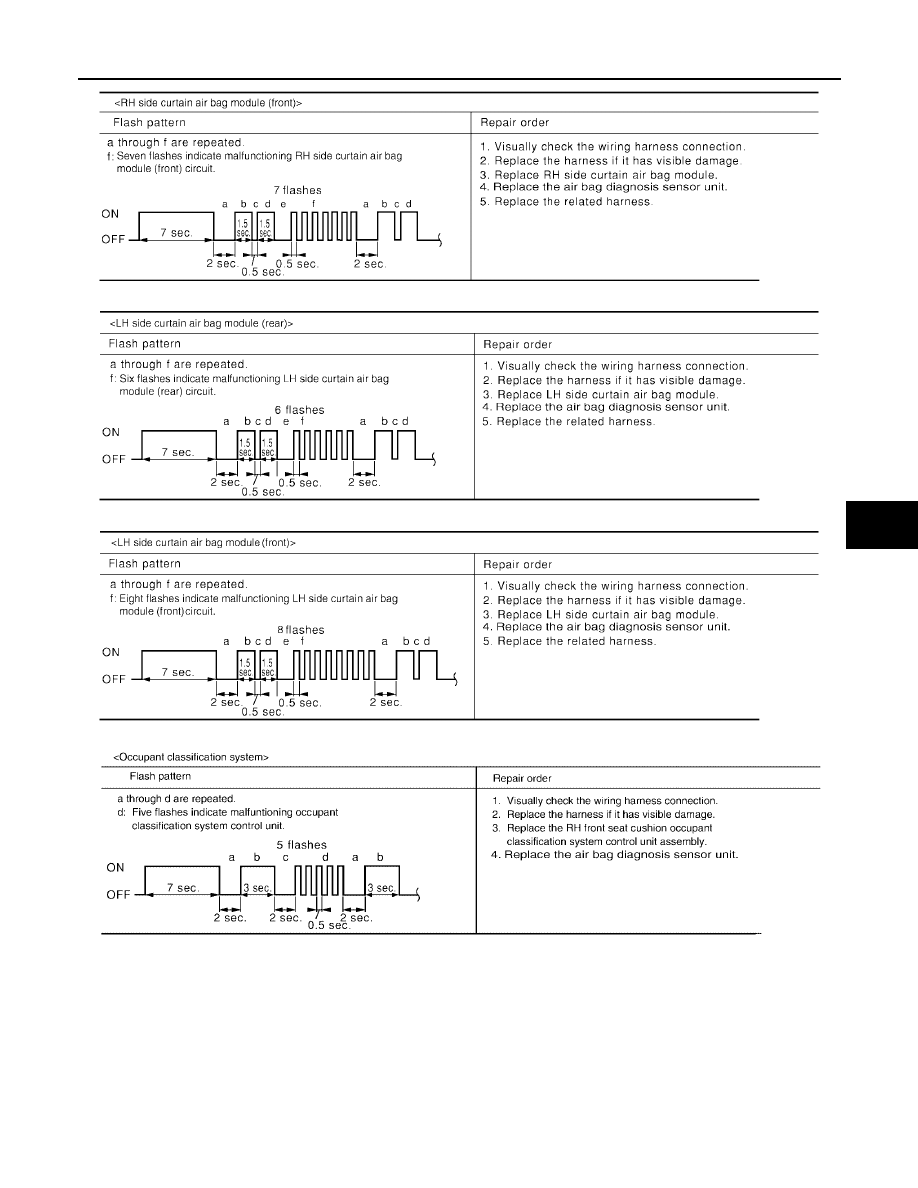

OCCUPANT SENS C/U
[UNIT FAIL]
[B1017], [B1020] or [B1021]
●
Occupant classification system is malfunctioning.
1. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly.
OCCUPANT SENS C/U
[COMM FAIL]
[B1022]
●
Communication between the occupant classification sys-
tem control unit and air bag diagnosis sensor unit is inter-
rupted.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness.
OCCUPANT SENS
[UNIT FAIL]
[B1018]
●
Occupant classification sensor is malfunctioning.
1. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly.
BELT TENSION SENS
[UNIT FAIL]
[B1019]
●
Belt tension sensor is malfunctioning.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH front seat belt assem-
bly.
4. Replace RH front seat cushion/
occupant classification system con-
trol unit assembly.
5. Replace the related harness.

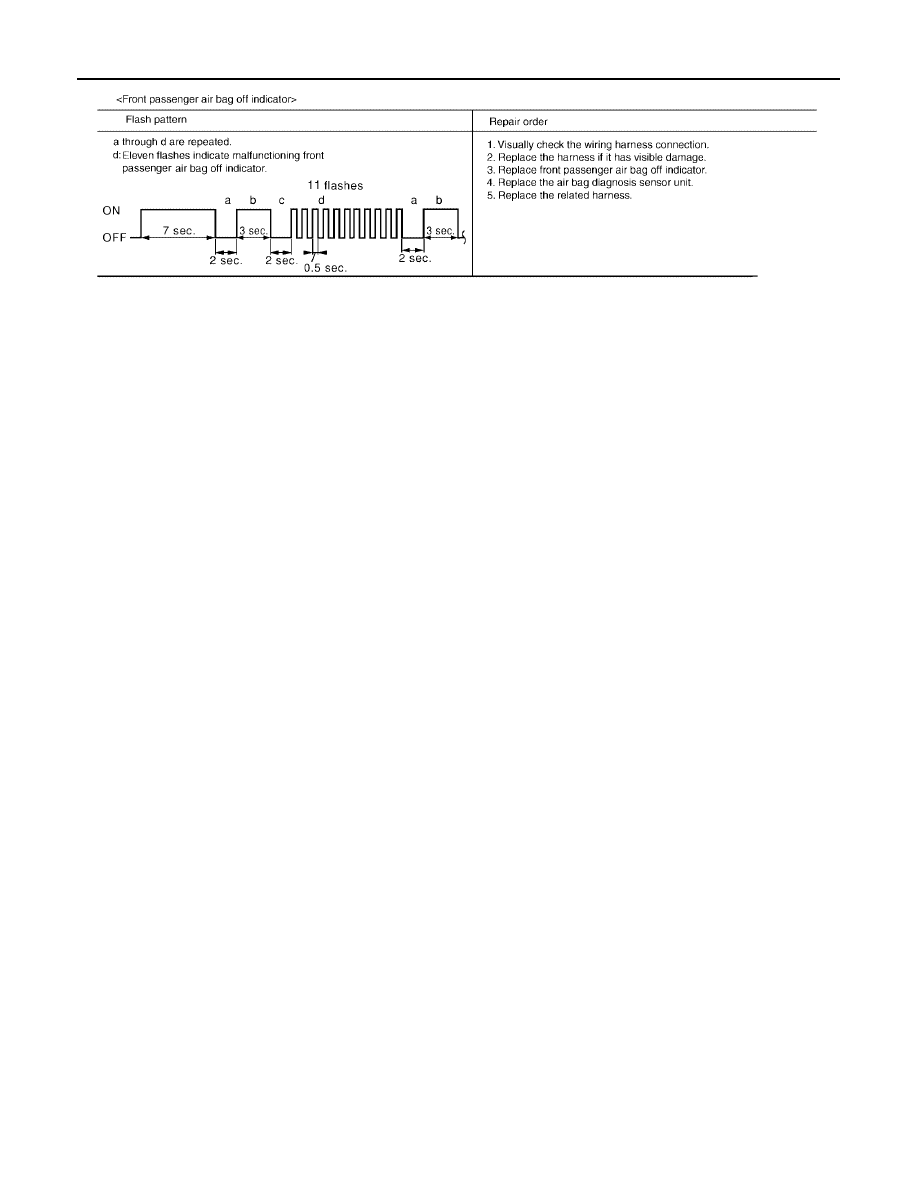

PASS A/B INDCTR CKT
[B1023]
●
Front passenger air bag off indicator is malfunctioning.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front passenger air bag off
indicator.
4. Replace the air bag diagnosis sen-
sor unit.
5. Replace the related harness.
FRONTAL COLLISION
DETECTION
[B1209]
●
Driver and front passenger air bag modules are deployed.
1. Refer to
Diagnostic item
Explanation
Repair order
Recheck SRS at each replacement
