TROUBLE DIAGNOSIS

SRS-19

SRS

2006 Pathfinder

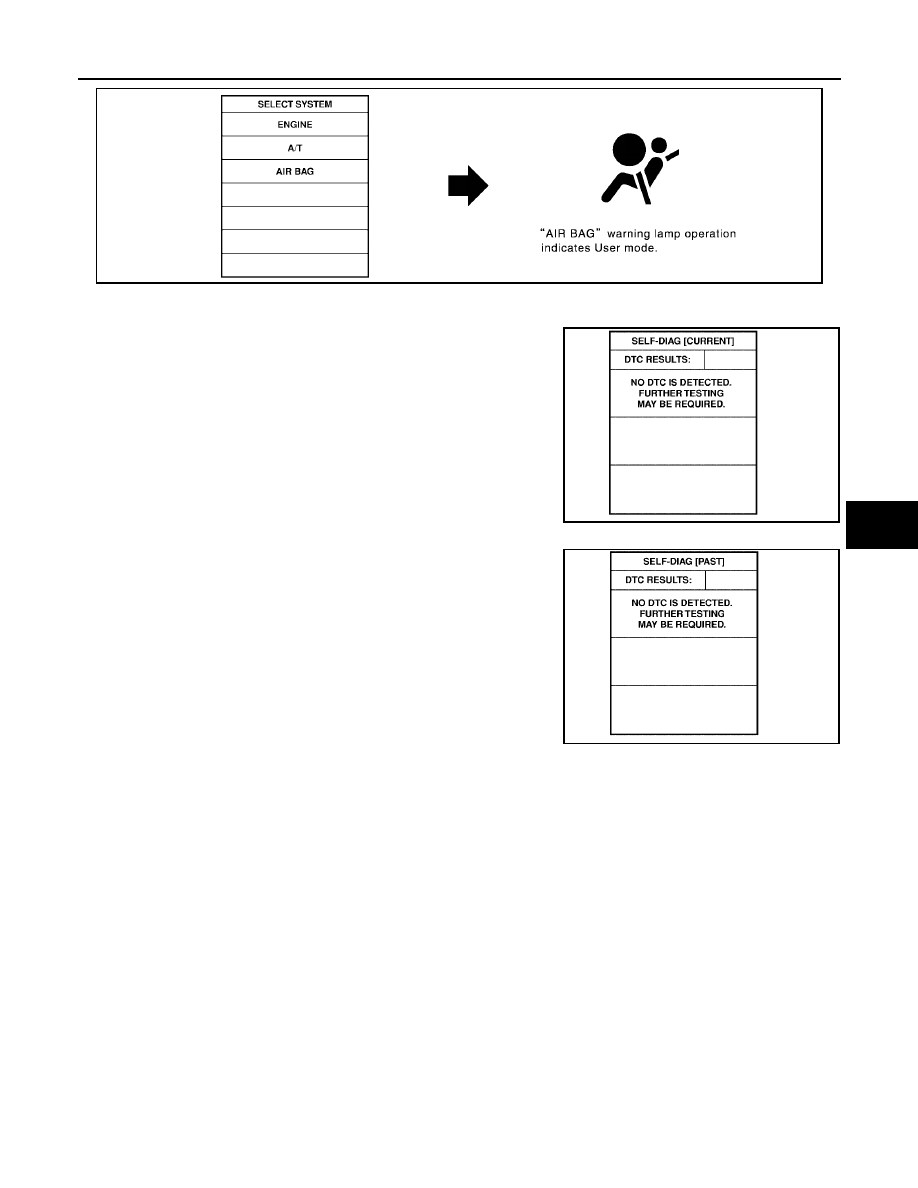

HOW TO ERASE SELF-DIAGNOSIS RESULTS

●

“SELF-DIAG [CURRENT]”
A current self-diagnosis result is displayed on the CONSULT-II
screen in real time.
After the malfunction is repaired completely, no malfunction is
detected on “SELF-DIAG [CURRENT]”.

●

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by
touching “BACK” key of CONSULT-II and select “SELF-DIAG
[PAST]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-
DIAG [PAST]” mode.

NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is
not erased, the User mode will continue to show the system
malfunction by the operation of the warning lamp even if
the malfunction is repaired completely.

●

“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased.

Self-Diagnosis Function (Without CONSULT-II)

EHS001M0

●

The reading of these results is accomplished using one of two modes — “User mode” and “Diagnosis
mode”.

●

After a malfunction is repaired, turn the ignition switch OFF for at least one second, then back ON. Diag-
nosis mode returns to the User mode. At that time, the self-diagnostic result is cleared.

SRS804

SRS701

SRS702

SRS-20

TROUBLE DIAGNOSIS

2006 Pathfinder

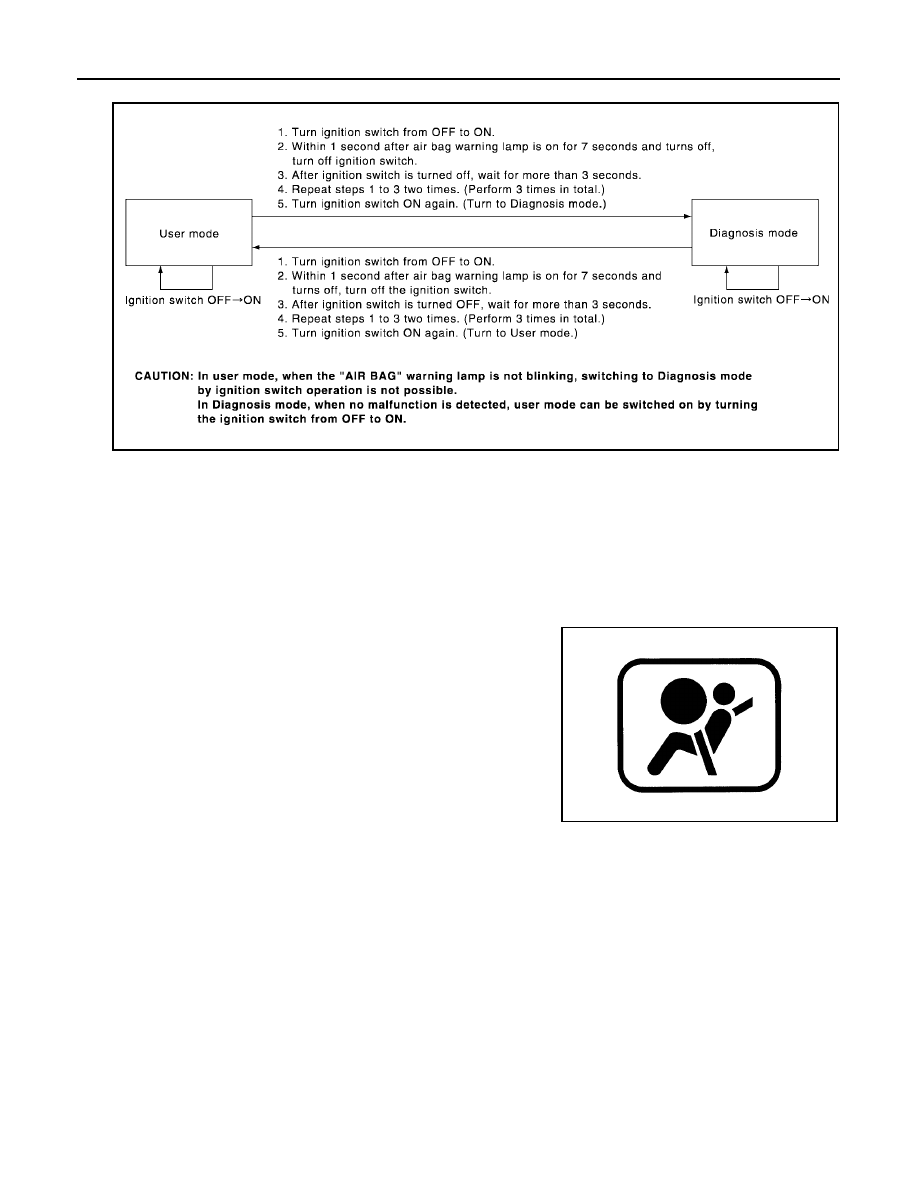

HOW TO CHANGE SELF-DIAGNOSIS MODE

HOW TO ERASE SELF-DIAGNOSIS RESULTS

After a malfunction is repaired, turn the ignition switch OFF for at least one second, then back ON. Diagnosis
mode returns to the User mode. At that time, the self-diagnostic result is cleared.

SRS Operation Check

EHS001M1

DIAGNOSTIC PROCEDURE 1
Checking SRS Operation Using “AIR BAG” Warning Lamp—User Mode

Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.

Compare the SRS air bag warning lamp blinking pattern with the
examples.

SHIA0183E

BF-1845D

TROUBLE DIAGNOSIS

SRS-21

SRS

2006 Pathfinder

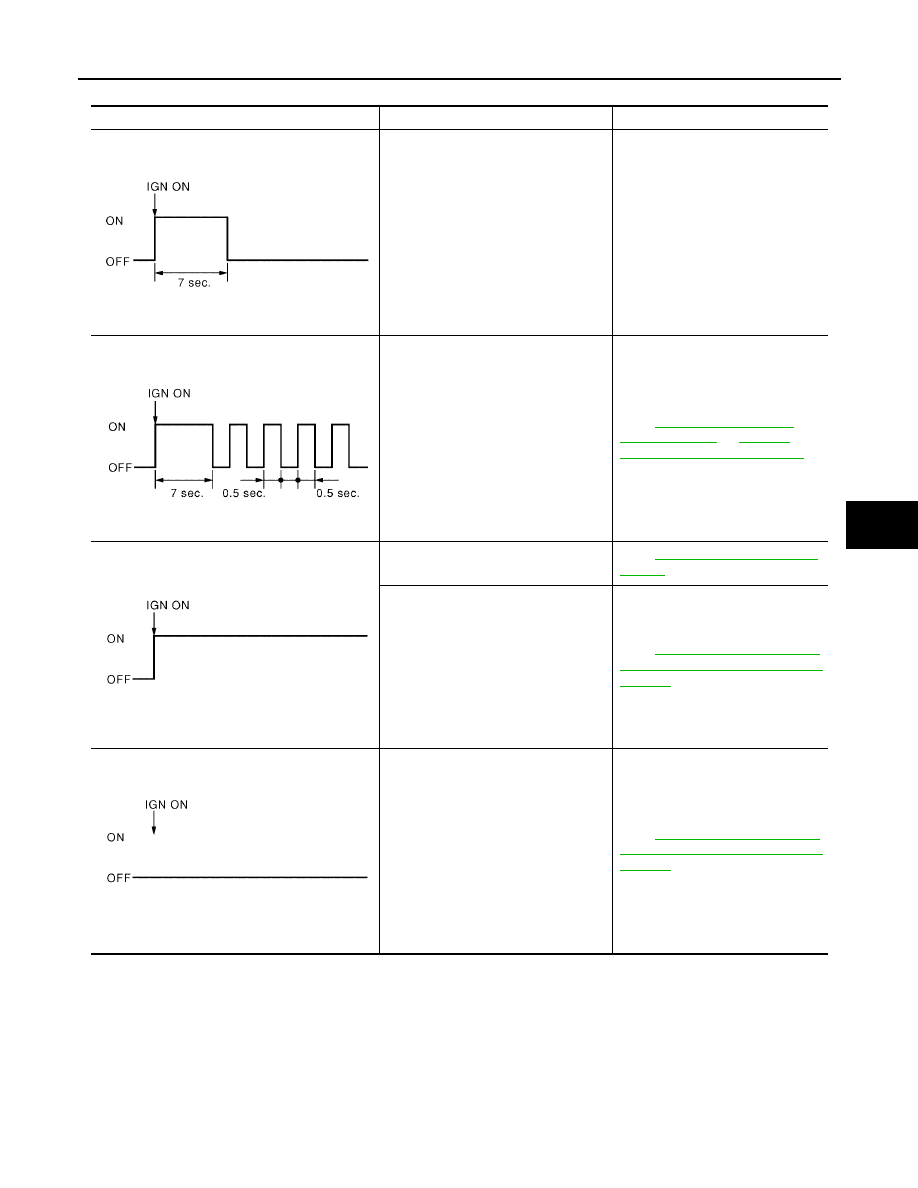

Warning lamp examples

“AIR BAG” warning lamp operation-User mode-

SRS condition

Reference item

●

No malfunction is detected.

●

No further action is necessary.

—

The system is malfunctioning and
needs to be repaired as indicated.

Go to

SRS-22, "DIAGNOSTIC

PROCEDURE 2"

SRS-37,

"DIAGNOSTIC PROCEDURE 6"

●

Air bag is deployed.

●

Seat belt pre-tensioner is deployed.

Go to

SRS-60, "COLLISION DIAG-

NOSIS"

●

Air bag diagnosis sensor unit is mal-
functioning.

●

Air bag power supply circuit is mal-
functioning.

●

SRS air bag warning lamp circuit is
malfunctioning.

Go to

SRS-43, "Trouble Diagnosis:

“AIR BAG” Warning Lamp Does Not
Turn Off"

●

Air bag diagnosis sensor unit is mal-
functioning.

●

Air bag warning lamp circuit is mal-
functioning.

Go to

SRS-44, "Trouble Diagnosis:

“AIR BAG” Warning Lamp Does Not
Turn On"

SHIA0011E

SHIA0012E

SHIA0013E

SHIA0014E

SRS-22

TROUBLE DIAGNOSIS

2006 Pathfinder

Trouble Diagnosis With CONSULT-II

EHS001M2

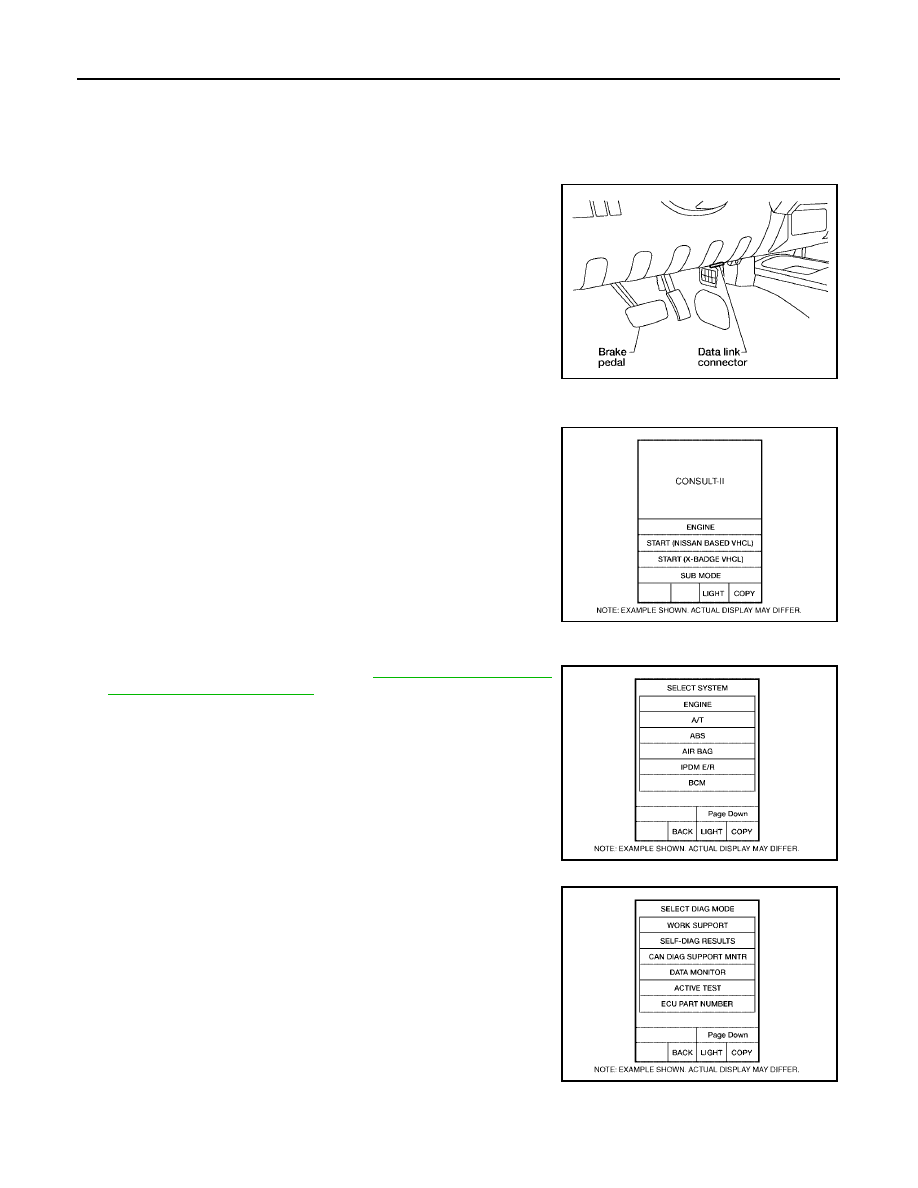

DIAGNOSTIC PROCEDURE 2

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected
in self-diagnosis depending on control unit which carries out CAN communication.
1.

Turn ignition switch OFF.

Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.

Turn ignition switch ON.

Touch “START (NISSAN BASED VHCL)”.

Touch “AIR BAG”.
If "AIR BAG" is not indicated, refer to

GI-40, "CONSULT-II Data

Link Connector (DLC) Circuit"

Touch "SELF-DIAG [CURRENT]".

BBIA0538E

BCIA0029E

BCIA0030E

BCIA0031E

TROUBLE DIAGNOSIS

SRS-23

SRS

2006 Pathfinder

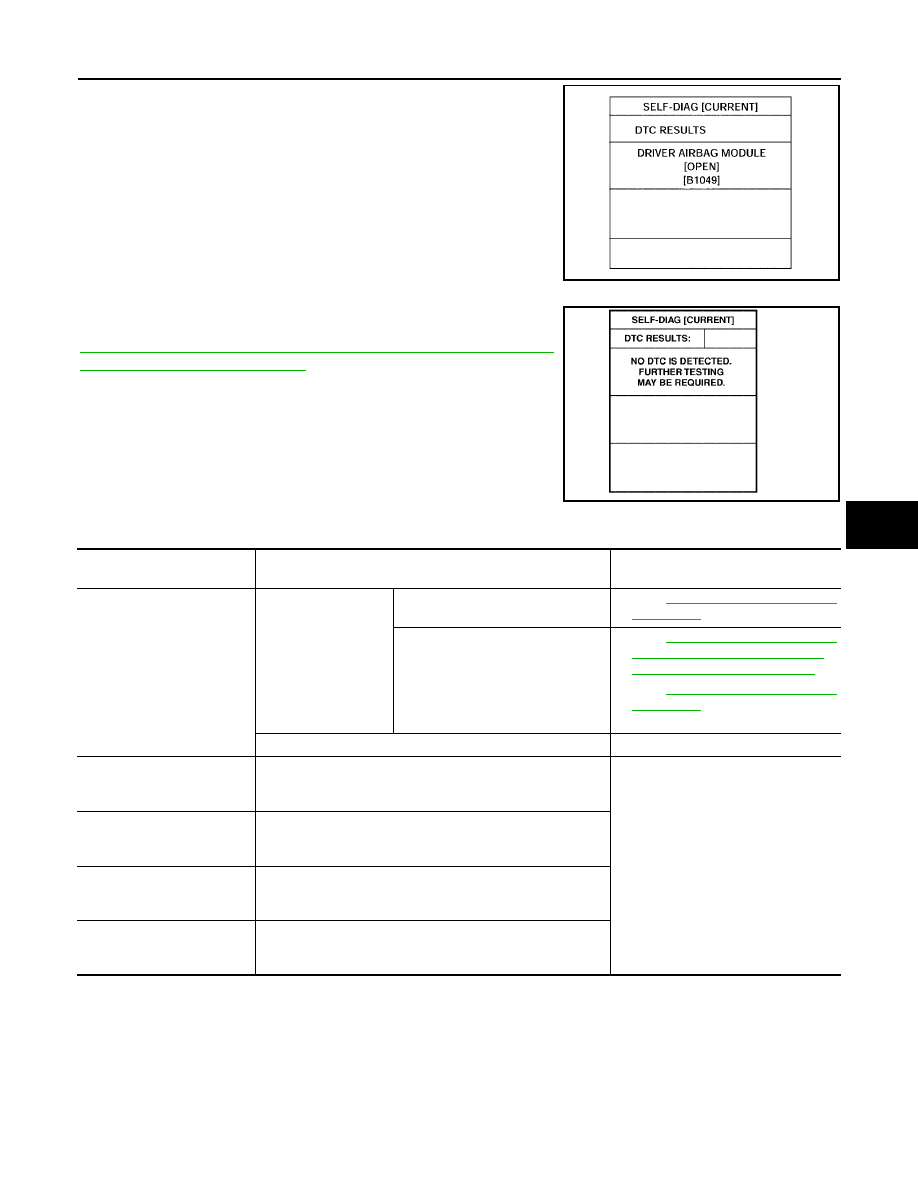

Diagnostic code is displayed on "SELF-DIAG [CURRENT]".

If no malfunction is detected on "SELF-DIAG [CURRENT]" even
though malfunction is detected in "SRS Operation Check", refer to

SRS-30, "DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)"

, to diagnose the following cases:

●

Self-diagnostic result "SELF-DIAG [PAST]" (previously stored in
the memory) might not be erased after repair.

●

The SRS system malfunctions intermittently.

CONSULT-II Diagnostic Code Chart ("SELF-DIAG [CURRENT]")

WHIA0151E

SRS701

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

NO DTC IS DETECTED

When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.

●

Low battery voltage (Less than
9V)

●

Go to

SRS-27, "DIAGNOSTIC PRO-

CEDURE 3"

●

Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased
after repair.

●

Intermittent malfunction has been
detected in the past.

●

Go to

SRS-30, "DIAGNOSTIC PRO-

CEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)"

●

Go to

SRS-30, "DIAGNOSTIC PRO-

CEDURE 5"

●

No malfunction is detected.

—

DRIVER AIRBAG MODULE

[OPEN]

[B1049] or [B1054]

●

Driver air bag module circuit is open (including the spiral
cable).

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace driver air bag module.

4. Replace the spiral cable.

5. Replace the air bag diagnosis sen-

sor unit.

6. Replace the related harness.

DRIVER AIRBAG MODULE

[VB-SHORT]

[B1050] or [B1055]

●

Driver air bag module circuit is shorted to some power sup-
ply circuit (including the spiral cable).

DRIVER AIRBAG MODULE

[GND-SHORT]

[B1051] or [B1056]

●

Driver air bag module circuit is shorted to ground (including
the spiral cable).

DRIVER AIRBAG MODULE

[SHORT]

[B1052] or [B1057]

●

Driver air bag module circuits are shorted to each other.

SRS-24

TROUBLE DIAGNOSIS

2006 Pathfinder

ASSIST A/B MODULE

[OPEN]

[B1065] or [B1070]

●

Front passenger air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front passenger air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

ASSIST A/B MODULE

[VB-SHORT]

[B1066] or [B1071]

●

Front passenger air bag module circuit is shorted to some
power supply circuit.

ASSIST A/B MODULE

[GND-SHORT]

[B1067] or [B1072]

●

Front passenger air bag module circuit is shorted to
ground.

ASSIST A/B MODULE

[SHORT]

[B1068] or [B1073]

●

Front passenger air bag module circuits are shorted to
each other.

CRASH ZONE SEN

[UNIT FAIL]

[B1033] or [B1034]

CRASH ZONE SEN

[COMM FAIL]

[B1035]

●

Crash zone sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the crash zone sensor.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

SIDE MODULE LH

[OPEN]
[B1134]

●

Front LH side air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front LH seat back assem-

bly (front LH side air bag module).

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

SIDE MODULE LH

[VB-SHORT]

[B1135]

●

Front LH side air bag module circuit is shorted to some
power supply circuit.

SIDE MODULE LH

[GND-SHORT]

[B1136]

●

Front LH side air bag module circuit is shorted to ground.

SIDE MODULE LH

[SHORT]

[B1137]

●

Front LH side air bag module circuits are shorted to each
other.

SIDE MODULE RH

[OPEN]
[B1129]

●

Front RH side air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front RH seat back assem-

bly (front RH side air bag module).

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

SIDE MODULE RH

[VB-SHORT]

[B1130]

●

Front RH side air bag module circuit is shorted to some
power supply circuit.

SIDE MODULE RH

[GND-SHORT]

[B1131]

●

Front RH side air bag module circuit is shorted to ground.

SIDE MODULE RH

[SHORT]

[B1132]

●

Front RH side air bag module circuits are shorted to each
other.

SATELLITE SENS LH

[UNIT FAIL]

[B1118] or [B1119]

SATELLITE SENS LH

[COMM FAIL]

[B1120]

●

LH side air bag (satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the LH side air bag (satel-

lite) sensor.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

TROUBLE DIAGNOSIS

SRS-25

SRS

2006 Pathfinder

SATELLITE SENS RH

[UNIT FAIL]

[B1113] or [B1114]

SATELLITE SENS RH

[COMM FAIL]

[B1115]

●

RH side air bag (satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the RH side air bag (satel-

lite) sensor.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT LH

[OPEN]
[B1086]

●

The circuit for front LH seat belt pre-tensioner is open.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. Replace front LH seat belt pre-ten-

sioner.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT LH

[VB-SHORT]

[B1087]

●

The circuit for front LH seat belt pre-tensioner is shorted to
some power supply circuit.

PRE-TEN FRONT LH

[GND-SHORT]

[B1088]

●

The circuit for front LH seat belt pre-tensioner is shorted to
ground.

PRE-TEN FRONT LH

[SHORT]

[B1089]

●

The circuits for the front LH seat belt pre-tensioner are
shorted to each other.

PRE-TEN FRONT RH

[OPEN]
[B1081]

●

The circuit for front RH seat belt pre-tensioner is open.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. Replace front RH seat belt pre-ten-

sioner.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT RH

[VB-SHORT]

[B1082]

●

The circuit for front RH seat belt pre-tensioner is shorted to
some power supply circuit.

PRE-TEN FRONT RH

[GND-SHORT]

[B1083]

●

The circuit for front RH seat belt pre-tensioner is shorted to
ground.

PRE-TEN FRONT RH

[SHORT]

[B1084]

●

The circuits for the front RH seat belt pre-tensioner are
shorted to each other.

FR CURTN MODULE LH

[OPEN]
[B1198]

●

The circuit for LH side front curtain air bag module is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace LH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

FR CURTN MODULE LH

[VB-SHORT]

[B1199]

●

The circuit for LH side front curtain air bag module is
shorted to some power supply circuits.

FR CURTN MODULE LH

[GND-SHORT]

[B1200]

●

The circuit for LH side front curtain air bag module is
shorted to ground.

FR CURTN MODULE LH

[SHORT]

[B1201]

●

The circuits for the LH side front curtain air bag module are
shorted to each other.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

SRS-26

TROUBLE DIAGNOSIS

2006 Pathfinder

FR CURTN MODULE RH

[OPEN]
[B1193]

●

The circuit for RH side front curtain air bag module is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

FR CURTN MODULE RH

[VB-SHORT]

[B1194]

●

The circuit for RH side front curtain air bag module is
shorted to some power supply circuits.

FR CURTN MODULE RH

[GND-SHORT]

[B1195]

●

The circuit for RH side front curtain air bag module is
shorted to ground.

FR CURTN MODULE RH

[SHORT]

[B1196]

●

The circuits for the RH side front curtain air bag module are
shorted to each other.

CURTAIN MODULE LH

[OPEN]
[B1150]

●

The circuit for LH side rear curtain air bag module is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace LH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

CURTAIN MODULE LH

[VB-SHORT]

[B1151]

●

The circuit for LH side rear curtain air bag module is
shorted to some power supply circuits.

CURTAIN MODULE LH

[GND-SHORT]

[B1152]

●

The circuit for LH side rear curtain air bag module is
shorted to ground.

CURTAIN MODULE LH

[SHORT]

[B1153]

●

The circuits for the LH side rear curtain air bag module are
shorted to each other.

CURTAIN MODULE RH

[OPEN]
[B1145]

●

The circuit for RH side rear curtain air bag module is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

CURTAIN MODULE RH

[VB-SHORT]

[B1146]

●

The circuit for RH side rear curtain air bag module is
shorted to some power supply circuits.

CURTAIN MODULE RH

[GND-SHORT]

[B1147]

●

The circuit for RH side rear curtain air bag module is
shorted to ground.

CURTAIN MODULE RH

[SHORT]

[B1148]

●

The circuits for the RH side rear curtain air bag module are
shorted to each other.

CONTROL UNIT

[B1XXX]

●

Air bag diagnosis sensor unit is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the air bag diagnosis sen-

sor unit.

OCCUPANT SENS C/U

[UNIT FAIL]

[B1017], [B1020] or [B1021]

●

Occupant classification system is malfunctioning.

1. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

OCCUPANT SENS C/U

[COMM FAIL]

[B1022]

●

Communication between the occupant classification sys-
tem control unit and air bag diagnosis sensor unit is inter-
rupted.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

OCCUPANT SENS

[UNIT FAIL]

[B1018]

●

Occupant classification sensor is malfunctioning.

1. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

Content .. 388 389 390 391 ..
