FRONT SEAT

SE-93

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

Conventional Passenger Seat

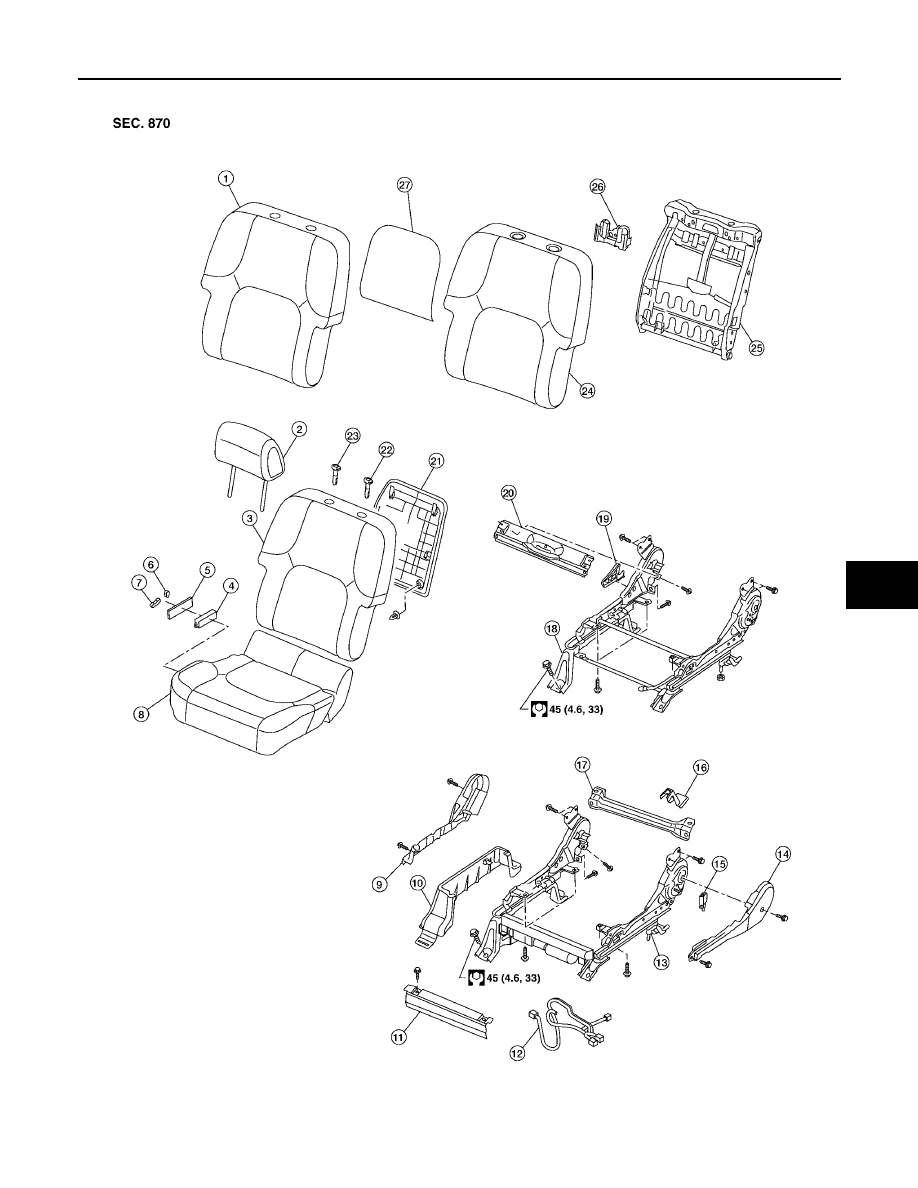

LIIA2408E

1.

Seatback trim without side air bag

2.

Headrest

3.

Seatback assembly with side air bag

4.

Switch assembly

5.

Power seat switch escutcheon

6.

Recliner switch knob

SE-94

FRONT SEAT

2006 Pathfinder

7.

Slide switch knob

8.

Seat cushion assembly

9.

Seat cushion outer cover

10. Leg cover

11. Seat cushion front finisher

12. Passenger seat wiring harness

13. Power seat frame assembly

14. Seat cushion inner finisher

15. Seat belt buckle assembly

16. Leg cover

17. Seat cushion rear finisher

18. Manual seat frame assembly

19. Recline lever

20. Seat cushion rear finisher

21. Seatback board

22. Headrest holder with multi position

lock

23. Headrest holder

24. Seatback pad without side air bag

25. Seatback frame without side air bag

26. Damper assembly

27. Seatback heating element

FRONT SEAT

SE-95

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

Fold Flat Passenger Seat

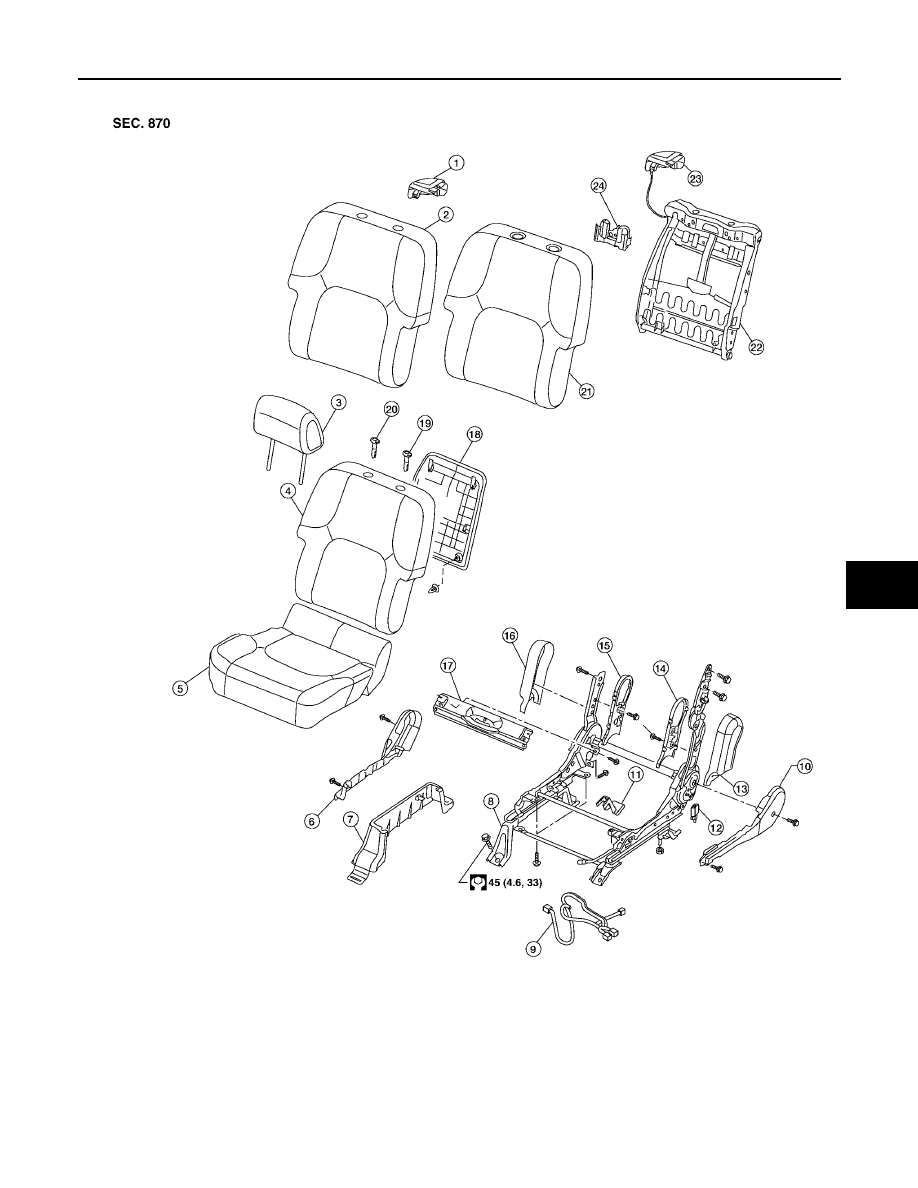

LIIA2409E

1.

Front seatback lever

2.

Seatback trim without side air bag

3.

Headrest

4.

Seatback assembly with side air bag 5.

Seat cushion assembly

6.

Seat cushion outer finisher

SE-96

FRONT SEAT

2006 Pathfinder

Removal and Installation

EIS007W4

REMOVAL

When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

CAUTION:

●

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait at least 3 minutes.

●

When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.

●

Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with
care.

●

After front side air bag module inflates, front seatback assembly must be replaced.

●

Front passenger seat is equipped with an Occupant Classification System sensor and control
module. Do not disassemble front passenger seat cushion assembly or remove the trim as this
will affect the Occupant Classification System calibration.

●

Always replace passenger seat cushion as an assembly.

1.

Slide the seat until the four body bolts are visible and a tool can be inserted.

NOTE:
Set the front/rear cushion lifters to the top position.

2.

Disconnect both battery cables and wait at least 3 minutes.

3.

Disconnect the side air bag module harness connector (if equipped).

4.

Remove the four body bolts.

5.

Disconnect the power seat harness connectors and remove the seat from the vehicle.

NOTE:
When removing and installing the seat, use shop cloths to protect the vehicle from damage.

INSTALLATION

Installation is in the reverse order of removal.

Seatback Assembly

EIS007W5

REMOVAL

NOTE:
On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.

1.

Remove the front seat assembly. Refer to

SE-96, "Removal and Installation"

 .

2.

Remove the seatback board from the back of the seatback.

7.

Leg cover

8.

Seat frame assembly

9.

Passenger seat wiring harness

10. Seat cushion inner cover

11. Leg cover

12. Seat belt buckle assembly

13. Inboard reclining arm outer cover

14. Inboard reclining arm inner cover

15. Outboard reclining arm inner cover

16. Outboard reclining arm outer cover

17. Seat cushion rear finisher

18. Seatback board

19. Headrest holder with multi position

lock

20. Headrest holder

21. Seatback pad without side air bag

22. Seat back frame without side air bag 23. Seatback fold flat release lever

assembly

24. Damper assembly

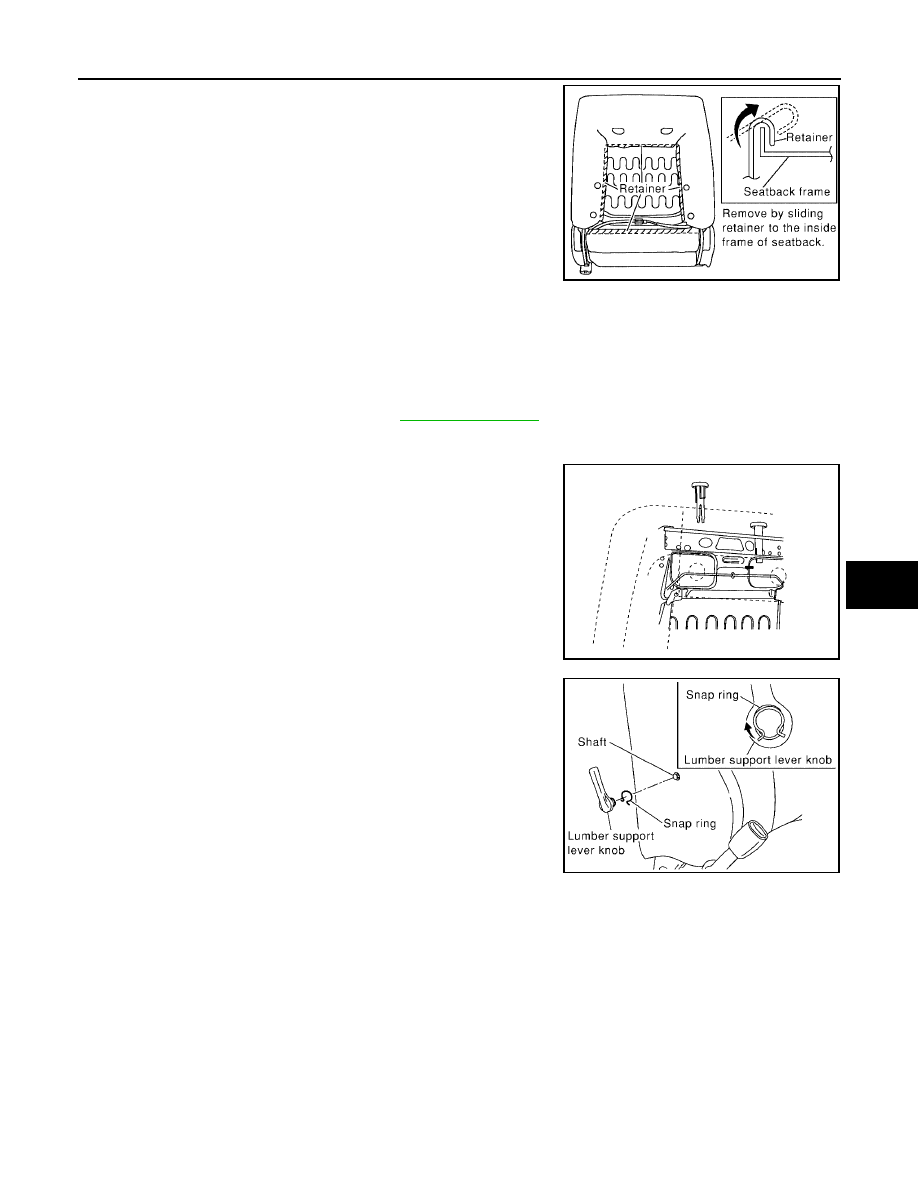

PIIA0163E

FRONT SEAT

SE-97

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

3.

Remove the retainer.

4.

Disconnect the seatback heater harness.

5.

Remove the seatback bolts (2 for each side) and seatback assembly.

DISASSEMBLY

NOTE:
On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.
1.

Remove the seatback assembly. Refer to

SE-96, "REMOVAL"

 .

2.

Remove the headrest.

3.

From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).

4.

Remove the snap ring and the lumbar support lever knob.

5.

Remove the seatback trim and pad assembly.

6.

Remove the hog ring to separate the seatback trim from the pad and the heating element (if equipped).

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

Seat Cushion Trim and Pad

EIS008IE

REMOVAL

CAUTION:

●

Front passenger seat is equipped with an Occupant Classification System sensor and control
module. Do not disassemble front passenger seat cushion assembly or remove the trim as this
will affect the Occupant Classification System calibration.

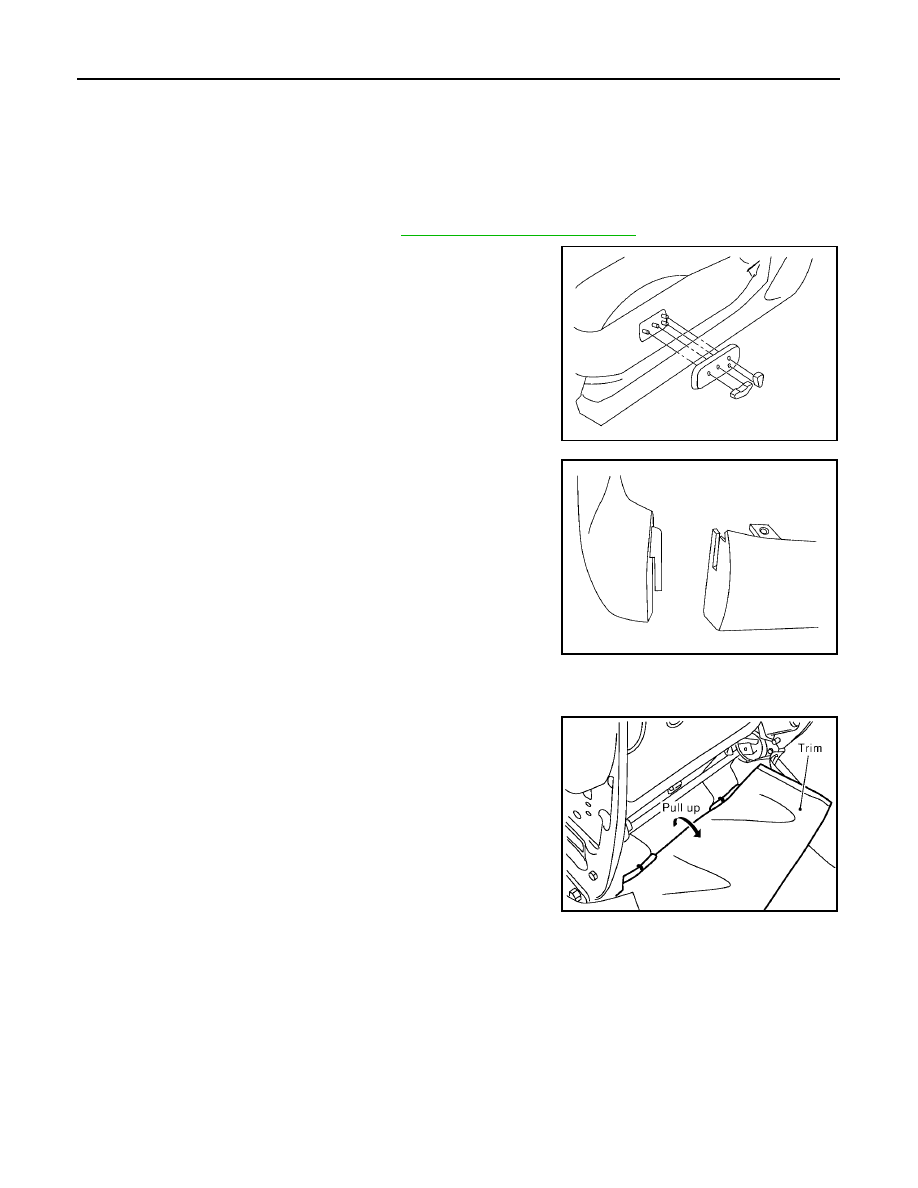

SIIA0113E

LRS023

PIIA1156E

SE-98

FRONT SEAT

2006 Pathfinder

●

Always replace passenger seat cushion as an assembly.

●

When removed, the passenger seat cushion must always be placed pan side UP to prevent dam-
age.

●

During installation, the wire harness clips must be reinstalled in the holes they were originally in.
Do not add additional clips.

●

The Occupant Classification System control module can only be replaced as part of the seat cush-
ion assembly.

1.

Remove the front seat assembly. Refer to

SE-96, "Removal and Installation"

 .

2.

Remove the power seat switch knobs and power seat switch
escutcheon (if equipped) (or lift knobs on manual seats). .

3.

Remove the seat cushion outer finisher.

4.

Remove the power seat switch screws .

5.

Remove four bolts and the seat cushion assembly.

●

On the fold flat passenger seat it is necessary to unclip the
rear flap j-clip from the seat pan.

6.

Remove the retainer on the seat cushion frame, then remove the harness connector for the seat cushion
heater (if equipped).

DISASSEMBLY

CAUTION:

●

Front passenger seat is equipped with an Occupant Classification System sensor and control
module. Do not disassemble front passenger seat cushion assembly or remove the trim as this
will affect the Occupant Classification System calibration.

1.

Remove the seat cushion assembly. Refer to .

2.

On the drivers seat only, remove the hog rings to separate the trim cover from the pad and seat cushion
heater unit.

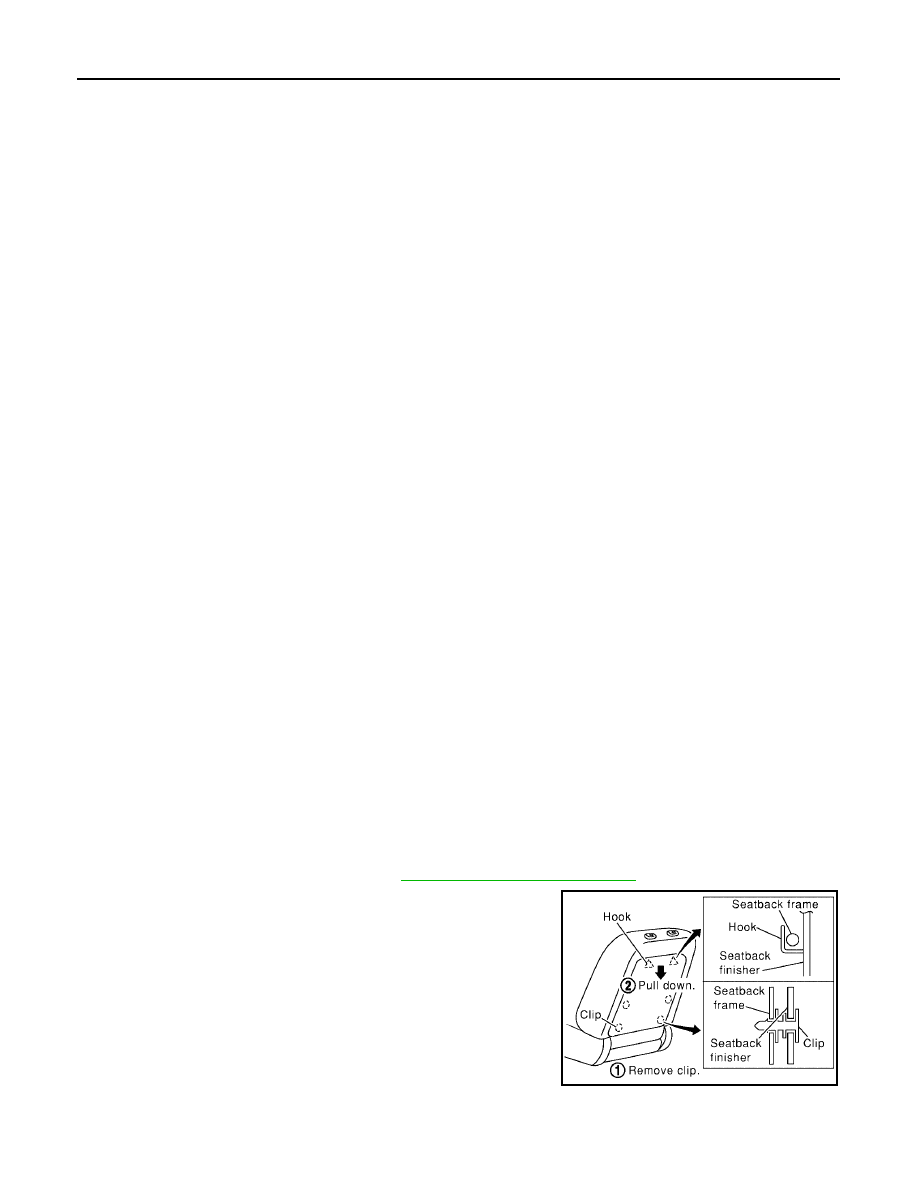

LIIA0681E

LIIA0285E

SIIA0503E

FRONT SEAT

SE-99

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

SE-100

REAR SEAT

2006 Pathfinder

REAR SEAT

PFP:88300

Removal and Installation

EIS007W6

SECOND ROW OUTBOARD
Removal

1.

Tilt seat cushion forward.

2.

Remove 2 seat bolts.

3.

Lower seat cushion and tilt seatback forward.

4.

Remove seat base trim cover.

5.

Remove forward seat nuts and assembly.

Installation

Installation is in the reverse order of removal.

SECOND ROW CENTER
Removal

1.

Tilt the seat cushion forward.

2.

Remove the seat cushion bolts and assembly.

3.

Remove the seat back bolts and assembly.

Installation

Installation is in the reverse order of removal.

THIRD ROW
Removal

1.

Remove the lower base trim covers.

2.

Remove front anchor bolts.

3.

Lower the seatback into the cargo floor position.

4.

Remove the rear anchor bolts from the seat assembly.

5.

Remove the seat assembly.

Installation

Installation is in the reverse order of removal.

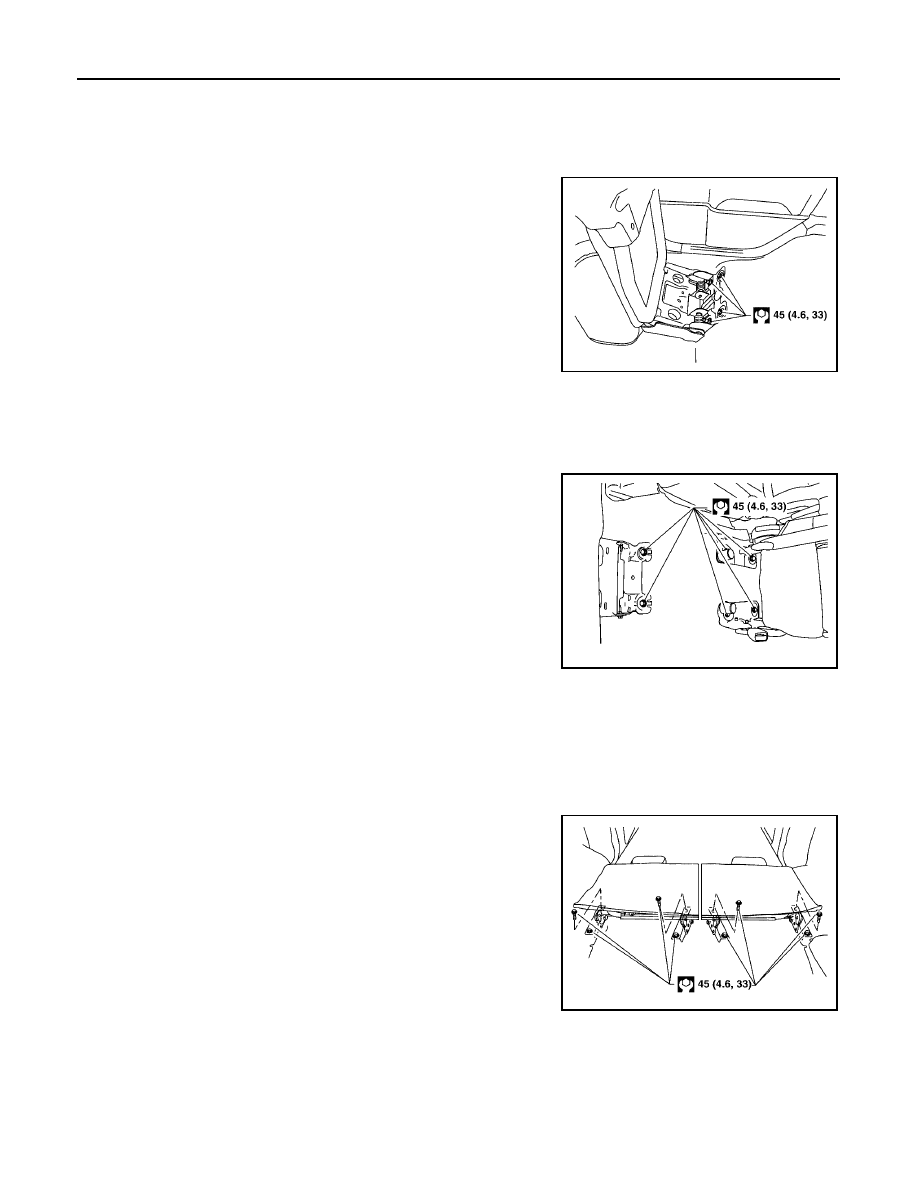

WIIA0762E

WIIA0763E

WIIA0764E
