AUTOMATIC DRIVE POSITIONER

SE-77

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

2.

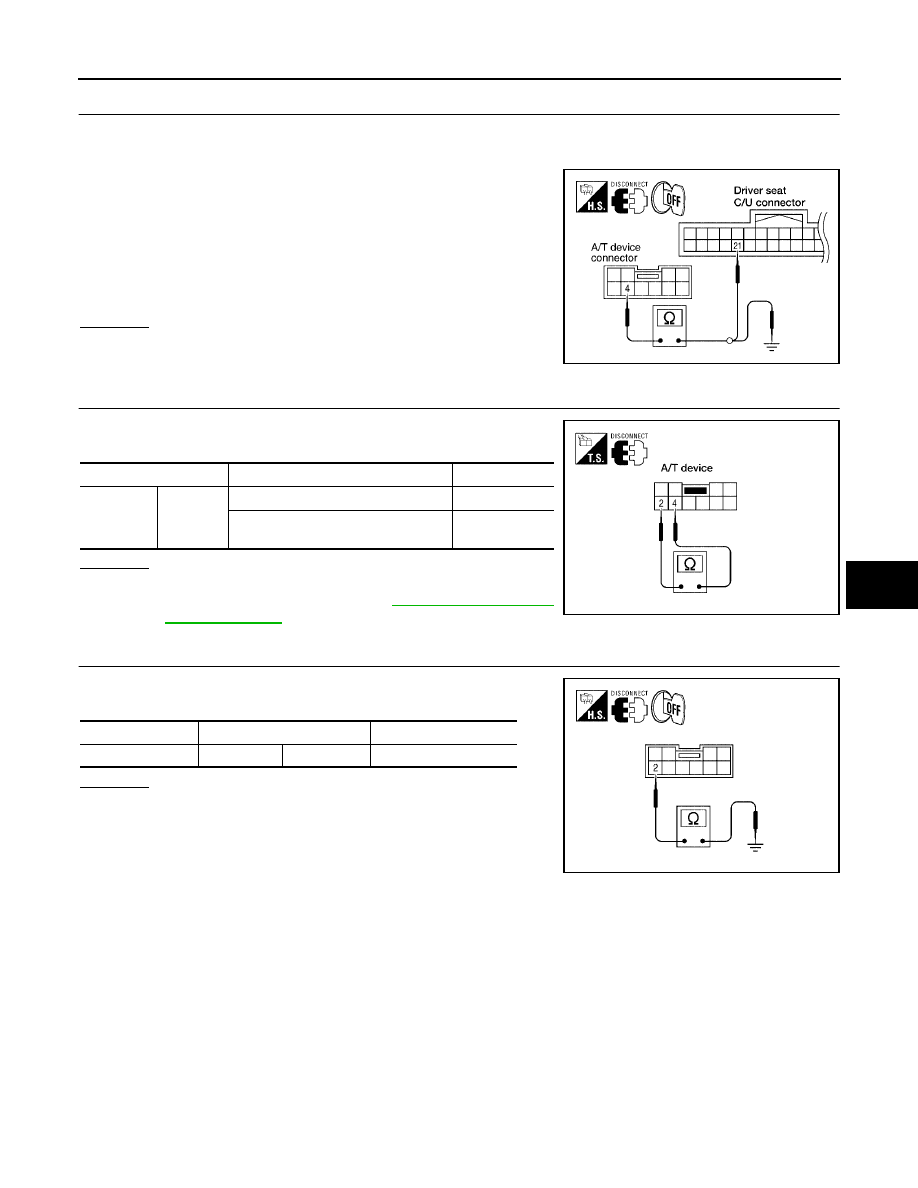

CHECK A/T DEVICE (PARK POSITION SWITCH) HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect A/T device and driver seat control unit.

3.

Check continuity between A/T device connector M156 terminal 4
and driver seat control unit connector P2 terminal 21.

4.

Check continuity between A/T device connector M156 terminal 4
and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK A/T DEVICE

Check continuity between A/T device (park position switch) as fol-
lows.

OK or NG

OK

>> GO TO 4.

NG

>> Replace A/T device. Refer to

AT-221, "SHIFT CON-

TROL SYSTEM"

 .

4.

CHECK A/T DEVICE

Check continuity between A/T device (park position switch) connec-
tor and ground.

OK or NG

OK

>> Check the condition of the harness and connector.

NG

>> Repair or replace harness.

4 - 21

: Continuity should exist.

4 - Ground

: Continuity should not exist.

LIIA1774E

Terminals

Condition

Continuity

4

2

A/T selector lever in P position

Yes

A/T selector lever in other than P
position

No

LIIA1775E

Connector

Terminals

Continuity

A/T device: M156

2

Ground

Yes

LIIA2239E

SE-78

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

Front Door Switch LH Circuit Inspection

EIS007VW

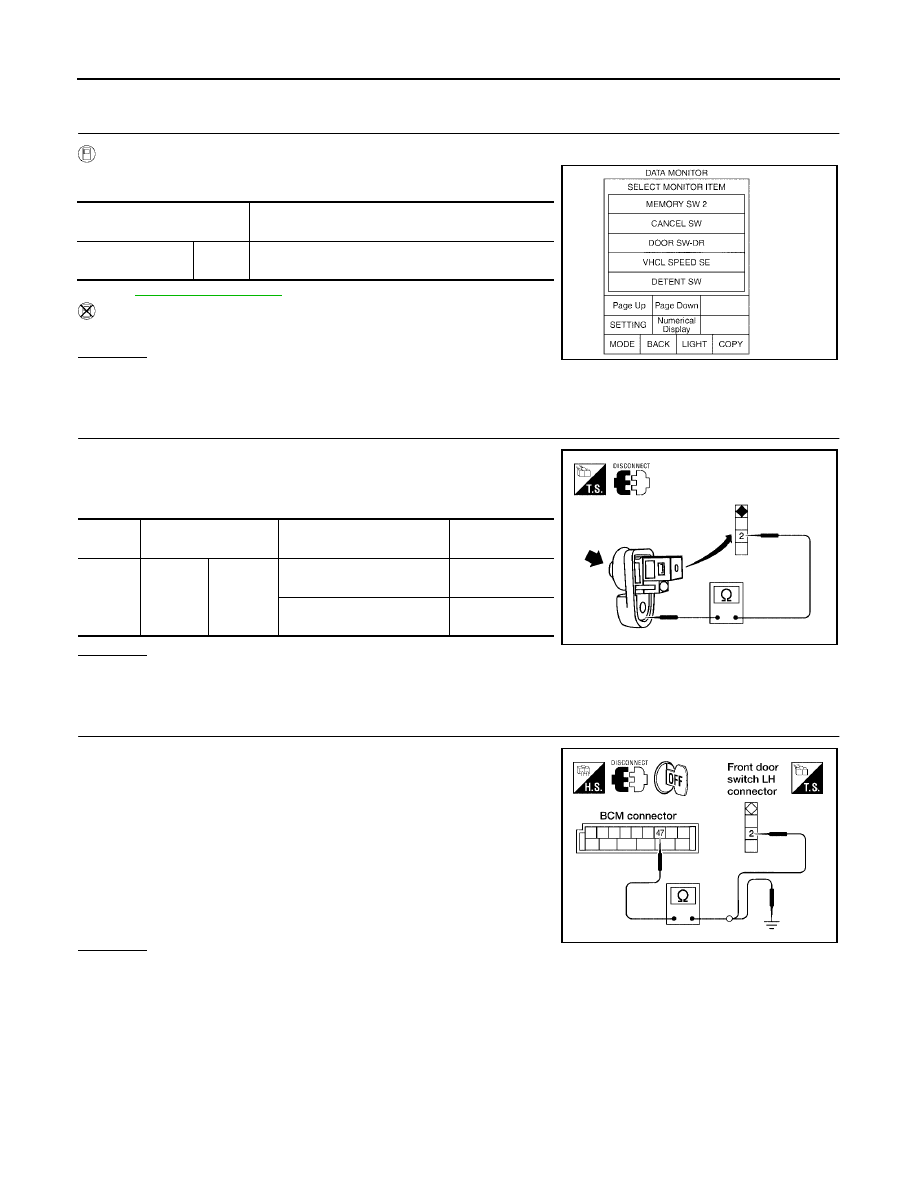

1.

CHECK FUNCTION

 With CONSULT-II

Touch "BCM" with “DOOR SW-DR” on the DATA MONITOR, check
ON/OFF operation when the front door is open and closed.

*:Refer to

SE-37, "DATA MONITOR"

 .

 Without CONSULT-II

GO TO 2.

OK or NG

OK

>> Front door switch LH circuit is OK.

NG

>> GO TO 2.

2.

CHECK FRONT DOOR SWITCH LH

1.

Disconnect front door switch LH.

2.

Check continuity between front door switch LH terminal 2 and
ground part of door switch as follows.

OK or NG

OK

>> GO TO 3.

NG

>> Replace front door switch LH.

3.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect BCM.

3.

Check continuity between BCM connector M19 terminal 47 and
front door switch LH connector B8 terminal 2.

4.

Check continuity between BCM connector M19 terminal 47 and
ground.

OK or NG

OK

>> Front door switch LH circuit is OK.

NG

>> Repair or replace harness.

Monitor item [OPERATION

or UNIT]

Contents

DOOR SW DR*

“ON/

OFF”

Door open (ON)/door closed (OFF) status judged
from the front door switch is displayed.

PIIA0291E

Connec-

tor

Terminals

Condition

Continuity

B8

2

Ground

part of

door

switch

With the front door switch
LH pressed

No

With the front door switch
LH released

Yes

LIIA2377E

47 - 2

: Continuity should exist.

47 - Ground

: Continuity should not exist.

LIIA1027E

AUTOMATIC DRIVE POSITIONER

SE-79

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

UART Communication Line Circuit Inspection

EIS007VX

1.

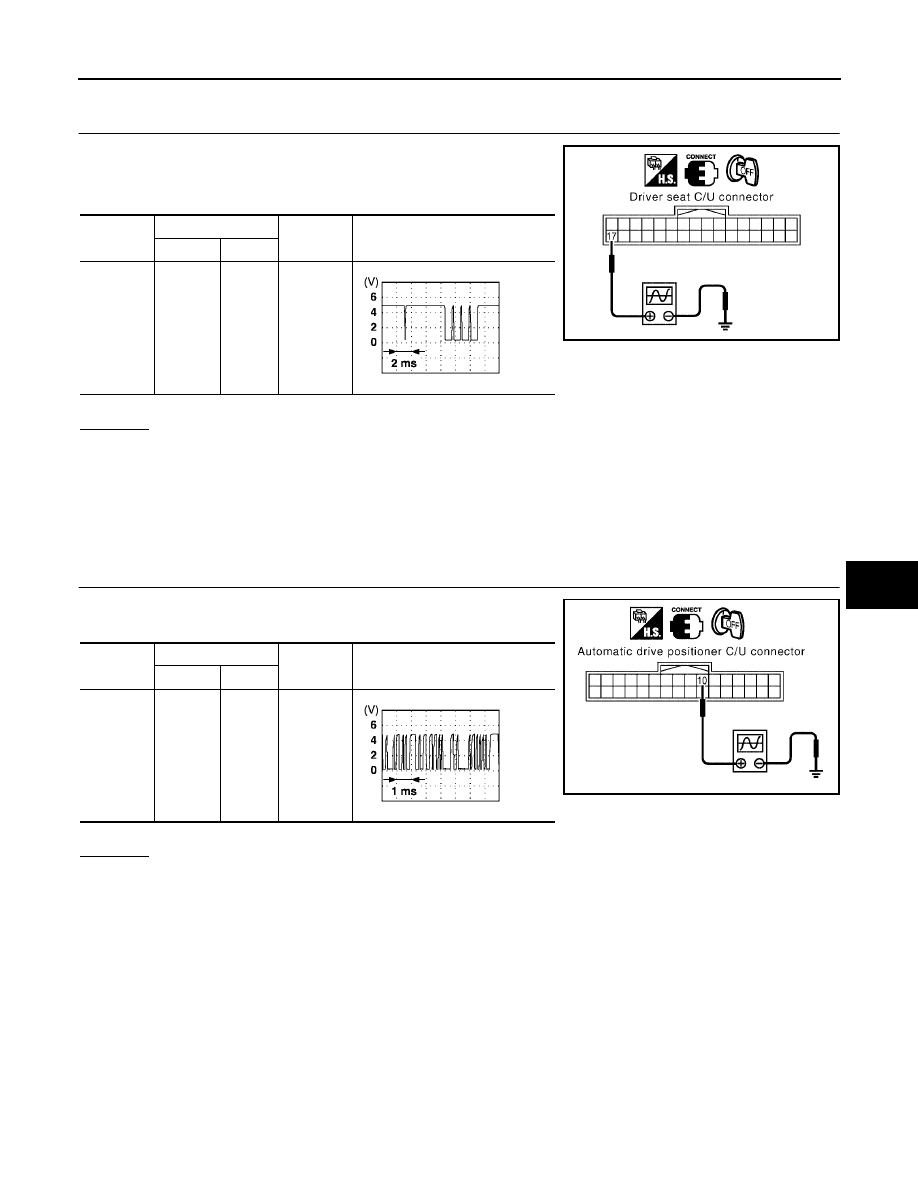

CHECK UART LINE INPUT/OUTPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between driver seat control unit connector and
ground, with oscilloscope.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following.

When voltage wave form does not appear with a constant voltage (approx. 5V), replace driver
seat control unit.

When voltage wave form does not appear with a constant voltage (approx. 0V), replace auto-
matic drive positioner control unit.

2.

CHECK UART LINE INPUT/OUTPUT SIGNAL 2

Check signal between automatic drive positioner control unit con-
nector ground, with oscilloscope.

OK or NG

OK

>> GO TO 3.

NG

>> Check the following.

When voltage wave form does not appear with a constant voltage (approx. 5V), replace auto-
matic drive positioner control unit.

When voltage wave form does not appear with a constant voltage (approx. 0V), replace driver
seat control unit.

Connector

Terminals

Condition

Signal

(+)

(-)

P2

17

Ground

Pedal
adjusting
switch ON
(FOR-
WARD or
BACK-
WARD
operation)

PIIA4599E

PIIA4814E

Connector

Terminals

Condition

Signal

(+)

(-)

M33

10

Ground

Pedal
adjusting
switch ON
(FOR-
WARD or
BACK-
WARD
operation)

PIIA4816E

PIIA4813E

SE-80

AUTOMATIC DRIVE POSITIONER

2006 Pathfinder

3.

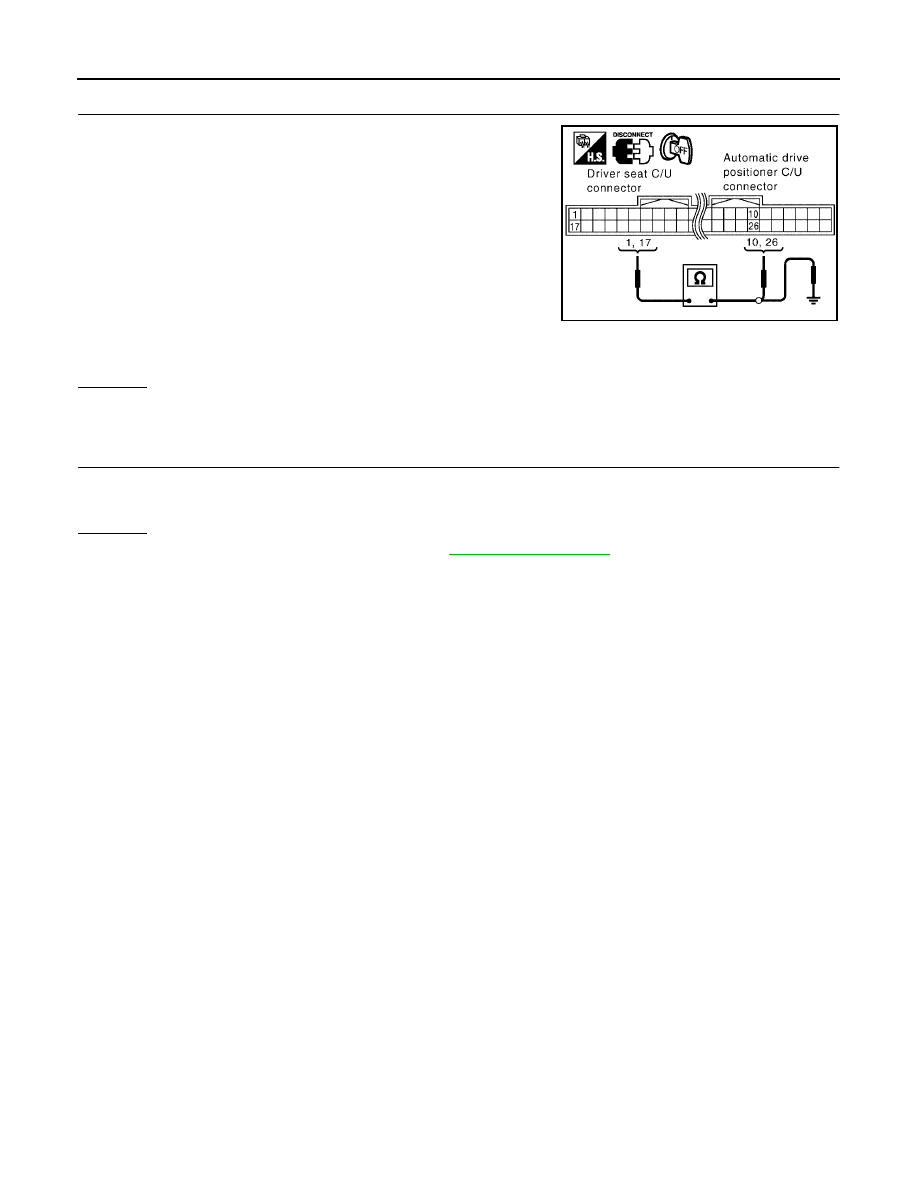

CHECK UART LINE HARNESS

1.

Disconnect driver seat control unit and automatic drive posi-
tioner control unit.

2.

Check continuity between driver seat control unit connector P2
terminals 1, 17, and automatic drive positioner connector M33
terminals 10, 26.

3.

Check continuity between driver seat control unit connector P2
terminals 1, 17 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK DRIVER SEAT CONTROL UNIT

Does the automatic drive positioner operate when the driver seat control unit is exchanged?

OK or NG

OK

>> Replace driver seat control unit. Refer to

SE-89, "FRONT SEAT"

 .

NG

>> Replace automatic drive positioner control unit.

1 - 10

: Continuity should exist.

17 - 26

: Continuity should exist.

1 - Ground

: Continuity should not exist.

17 - Ground

: Continuity should not exist.

PIIA4598E

AUTOMATIC DRIVE POSITIONER

SE-81

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

Removal and Installation

EIS007VY

Refer to

ACC-3, "ACCELERATOR CONTROL SYSTEM"

  an

BR-6, "BRAKE PEDAL"

 .

SE-82

POWER SEAT

2006 Pathfinder

POWER SEAT

PFP:87016

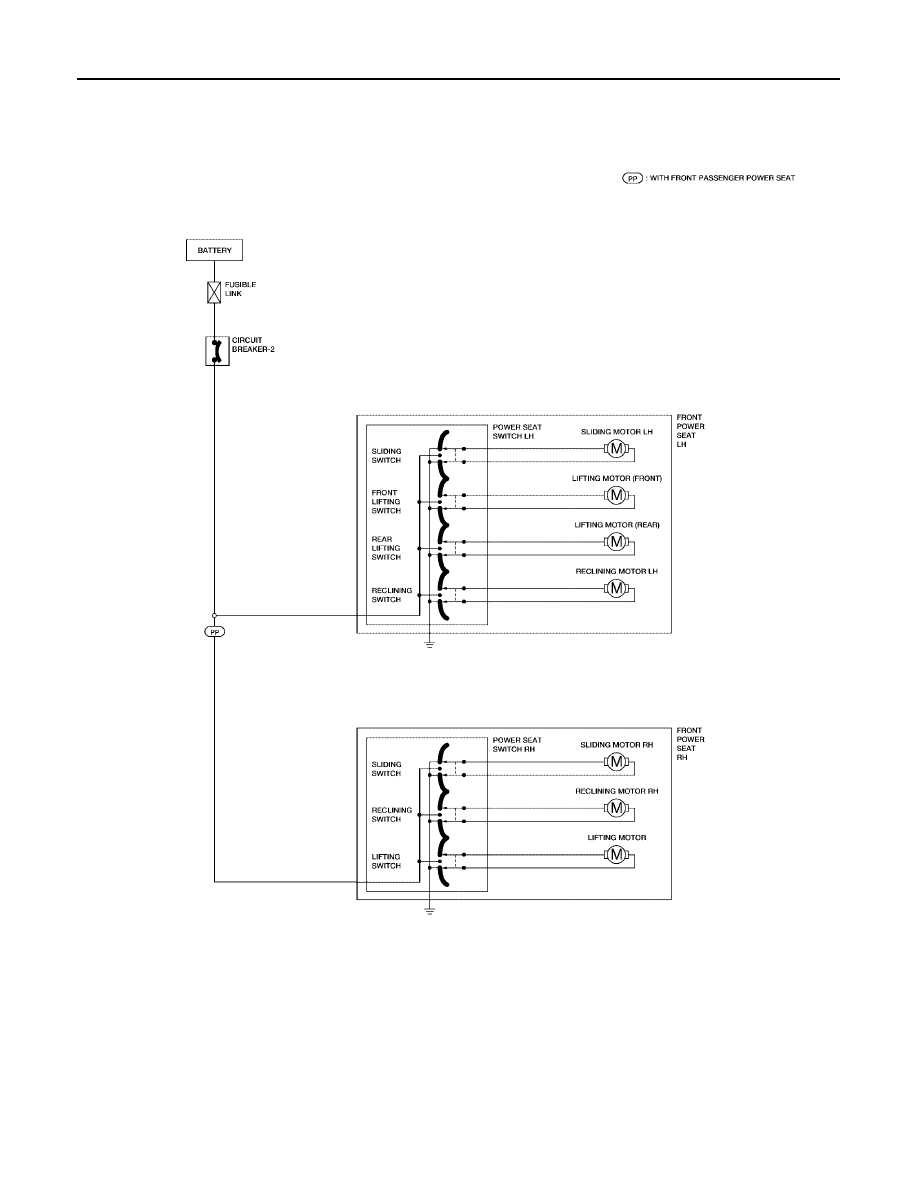

Schematic

EIS007VZ

WIWA1058E

POWER SEAT

SE-83

C

D

E

F

G

H

J

K

L

M

A

B

SE

2006 Pathfinder

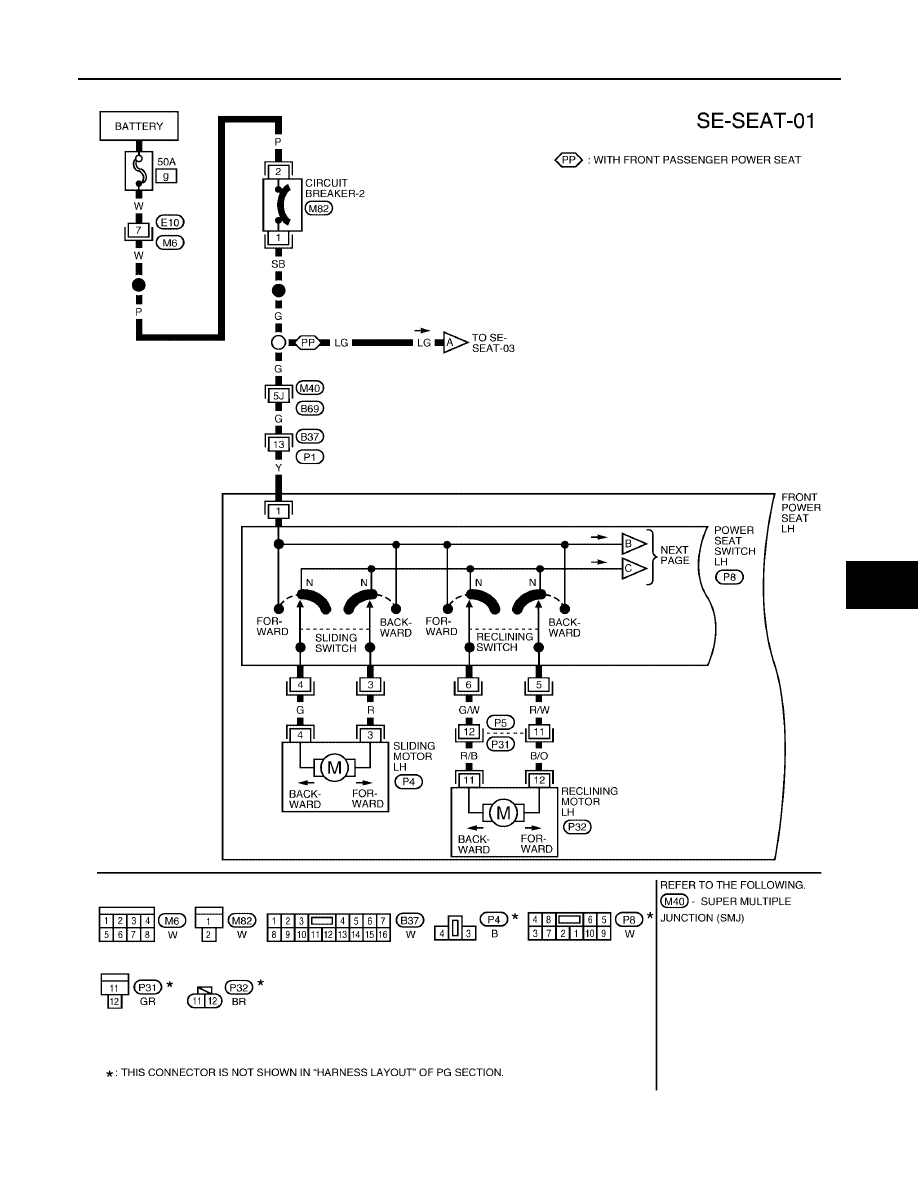

Wiring Diagram — SEAT —

EIS007W0

WIWA1602E

SE-84

POWER SEAT

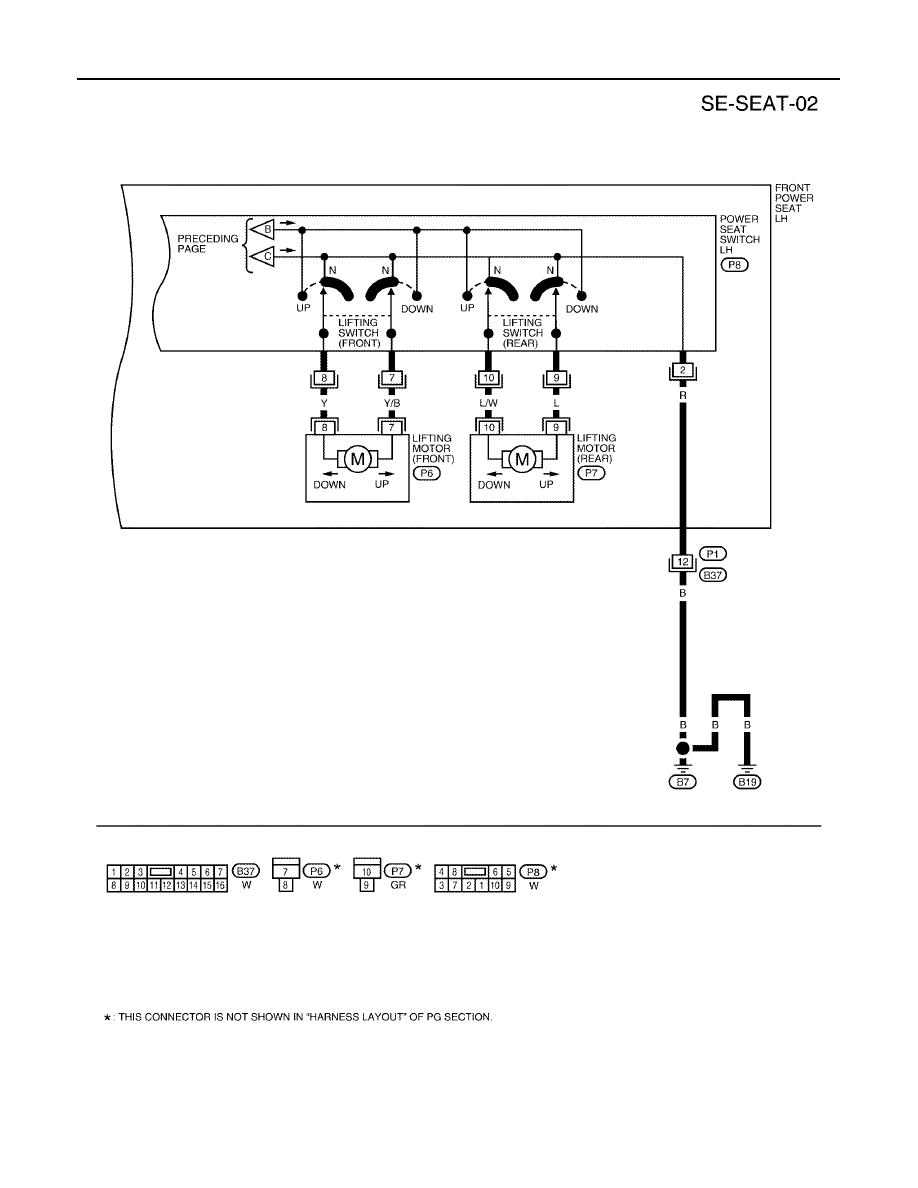

2006 Pathfinder

WIWA0567E
