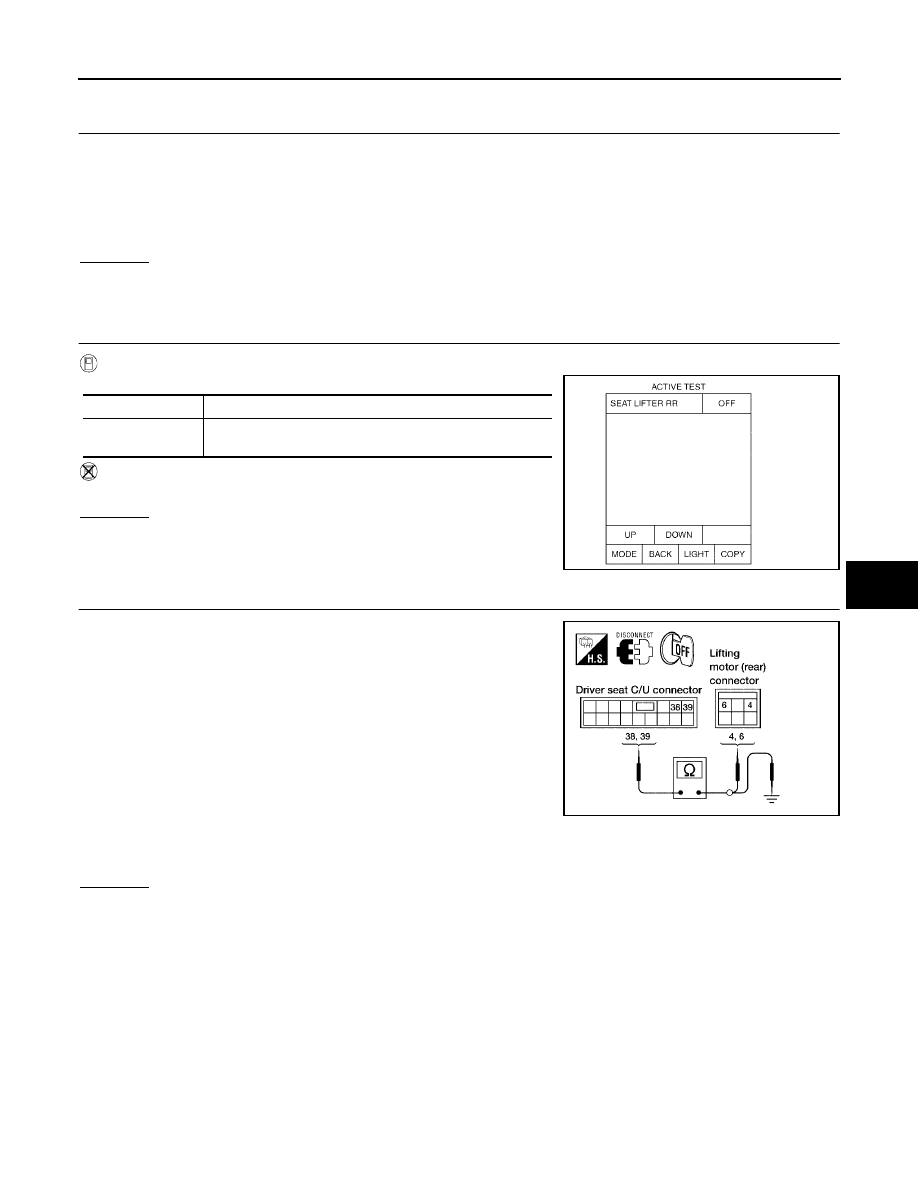

AUTOMATIC DRIVE POSITIONER SE-45 C D E F G H J K L M A B SE 2006 Pathfinder Lifting Motor (Rear) Circuit Inspection EIS007V8 1. CHECK REAR SEAT LIFTING MECHANISM Check the following. ● Operation malfunction caused by lifter mechanism deformation or pinched harness or other foreign mate- ● Operation malfunction caused by foreign materials adhered to the lifting motor (rear) or lead screws ● Operation malfunction and interference with other parts by poor installation OK or NG OK >> GO TO 2. NG >> Repair or replace the malfunctioning part and check again. 2. CHECK FUNCTION With CONSULT-II Check operation with “SEAT LIFTER RR” in ACTIVE TEST. Without CONSULT-II GO TO 3. OK or NG OK >> Lifting motor (rear) circuit is OK. NG >> GO TO 3. 3. CHECK LIFTING MOTOR (REAR) CIRCUIT HARNESS CONTINUITY 1. Turn ignition switch OFF. 2. Disconnect driver seat control unit and lifting motor (rear). 3. Check continuity between driver seat control unit connector P3 4. Check continuity between driver seat control unit P3 terminals OK or NG OK >> GO TO 4. NG >> Repair or replace harness. Test item Description SEAT LIFTER RR The lifting motor (rear) is activated by receiving the drive PIIA0274E 38 - 6 : Continuity should exist. 39 - 4 : Continuity should exist. 38 - Ground : Continuity should not exist. 39 - Ground : Continuity should not exist. LIIA0699E |
