SERVICE DATA AND SPECIFICATIONS (SDS)

MTC-113

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Service Data and Specifications (SDS)

EJS004SS

COMPRESSOR

OIL

REFRIGERANT

ENGINE IDLING SPEED

Refer to

EC-75, "Idle Speed and Ignition Timing Check"

 .

BELT TENSION

Refer to

MA-13, "DRIVE BELT TENSION"

 .

Make

CALSONIC KANSEI CO. LTD.

Model

DKS-17D

Type

Swash plate

Displacement

144 cm

3

  (8.79 in

3

 ) / revolution

Relief valve set pressure

3800

±

 300 kPa (38.76

±

 3.06 kg/cm

2

 , 551.0

±

 43.5 psi)

Direction of rotation

Clockwise (viewed from drive end)

Drive belt

Poly V ribbed

Description

NISSAN A/C System Oil Type S or equivalent

Capacity

180 m

 (6.1 US fl oz, 6.3 Imp fl oz)

Type

HFC 134a (R-134a)

Capacity

0.70

±

 0.05 kg (1.54

±

 0.11 lb)

MTC-114

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

PB-1

PARKING BRAKE SYSTEM

F  BRAKES

CONTENTS

C

D

E

G

H

I

J

K

L

M

SECTION

A

B

PB

2006 Pathfinder

PREPARATION ........................................................... 2

Commercial Service Tools ........................................ 2

PARKING BRAKE SYSTEM  ...................................... 3

On-Vehicle Service ................................................... 3

PEDAL STROKE ................................................... 3
INSPECTION ........................................................ 3
ADJUSTMENT ...................................................... 3

PARKING BRAKE CONTROL  ................................... 4

Components ............................................................. 4
Removal and Installation  .......................................... 4

REMOVAL ............................................................. 4
INSTALLATION ..................................................... 5

PARKING BRAKE SHOE  ........................................... 6

Removal and Installation  .......................................... 6

COMPONENTS ..................................................... 6
REMOVAL ............................................................. 6
INSPECTION AFTER REMOVAL  ......................... 7
INSTALLATION ..................................................... 7

SERVICE DATA AND SPECIFICATIONS (SDS)  ........ 9

Parking Drum Brake  ................................................. 9
Parking Brake Control  .............................................. 9

PB-2

PREPARATION

2006 Pathfinder

PREPARATION

PFP:00002

Commercial Service Tools

EFS0064A

Tool number
(Kent-Moore No.)
Tool name

Description

—

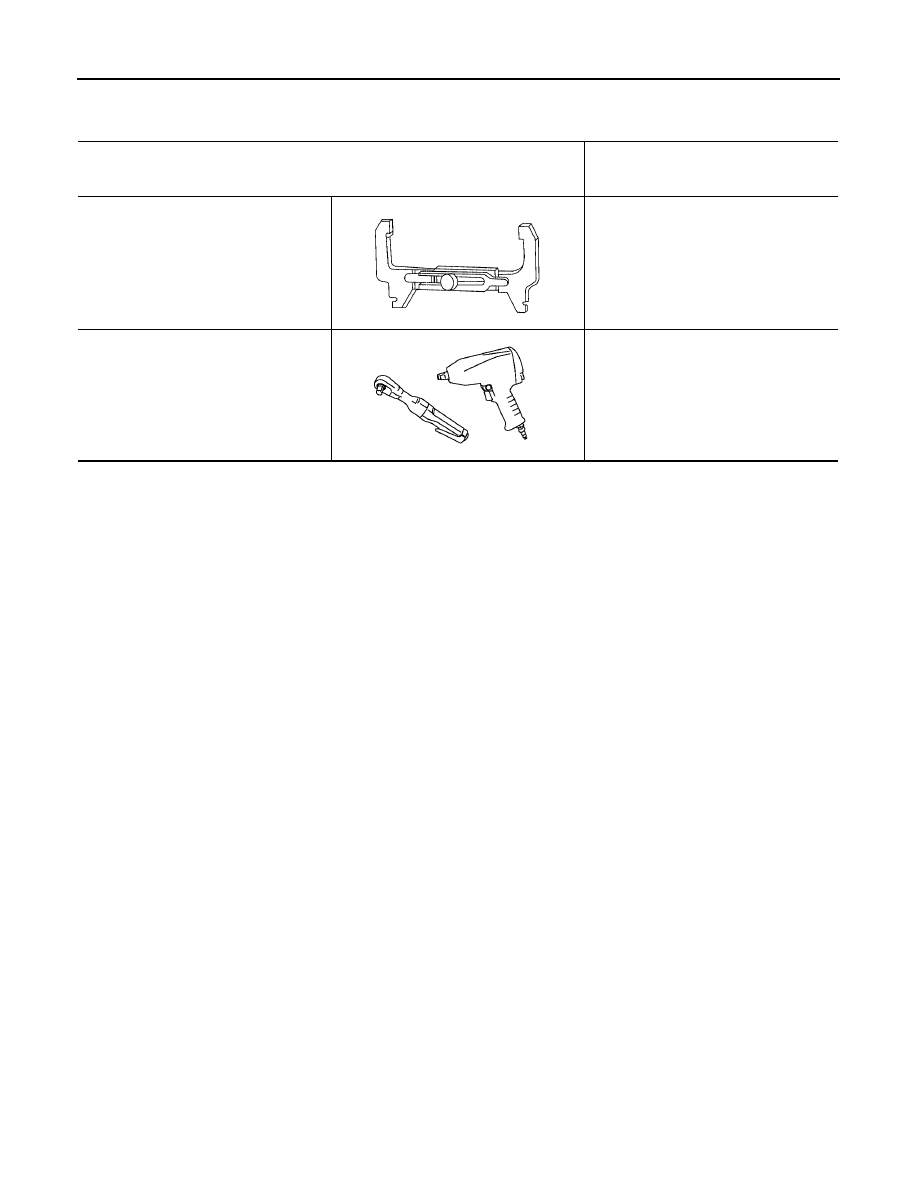

(J-21177-A)
Brake drum clearance gauge

Measuring rear rotor drum to parking
brake shoe clearance

Power tool

Loosening bolts and nuts

WFIA0167E

PBIC0190E

PARKING BRAKE SYSTEM

PB-3

C

D

E

G

H

I

J

K

L

M

A

B

PB

2006 Pathfinder

PARKING BRAKE SYSTEM

PFP:36010

On-Vehicle Service

EFS0064B

PEDAL STROKE

●

When parking brake pedal is operated with the specified force, make sure the stroke is within the specified
number of notches. Check by listening and counting the ratchet clicks.

INSPECTION

●

Make sure the components are attached properly, checking for looseness or backlash.

●

Check parking brake pedal assembly for bends, damage and cracks, and replace if necessary.

●

Check cable for wear and damage, and replace if necessary.

●

Check parking brake warning lamp switch for malfunction, and replace if necessary. Refer to

DI-34, "Wir-

ing Diagram — WARN —"

 .

ADJUSTMENT

1.

Remove lower instrument panel LH. Refer to

IP-14, "LOWER INSTRUMENT PANEL LH"

 .

2.

Partially engage parking brake pedal to access adjusting nut.

3.

Insert a deep socket wrench to rotate adjusting nut and loosen
cable until tension is sufficiently released. Then, disengage the
parking brake pedal.

4.

Remove the wheel and tire using power tool.

5.

Remove the rotor and measure inner diameter at widest point
using Tool.

6.

Transfer measurement less 0.6 mm to the parking brake shoes
and adjust accordingly.

7.

Using wheel nuts, secure the disc to the hub to prevent it from
tilting.

8.

Rotate disc rotor to make sure there is no drag.

9.

Adjust cable as follows:

a.

Operate pedal 10 or more times with a force of 490 N (50 kg,
110 lb).

b.

Rotate adjusting nut with deep socket to adjust pedal stroke to
specification.

c.

With parking brake pedal completely disengaged, make sure
there is no drag on the parking brake.

Pedal stroke

: 4

−

 5 notches [under force of 196 N (20.0 kg, 44.1 lb)]

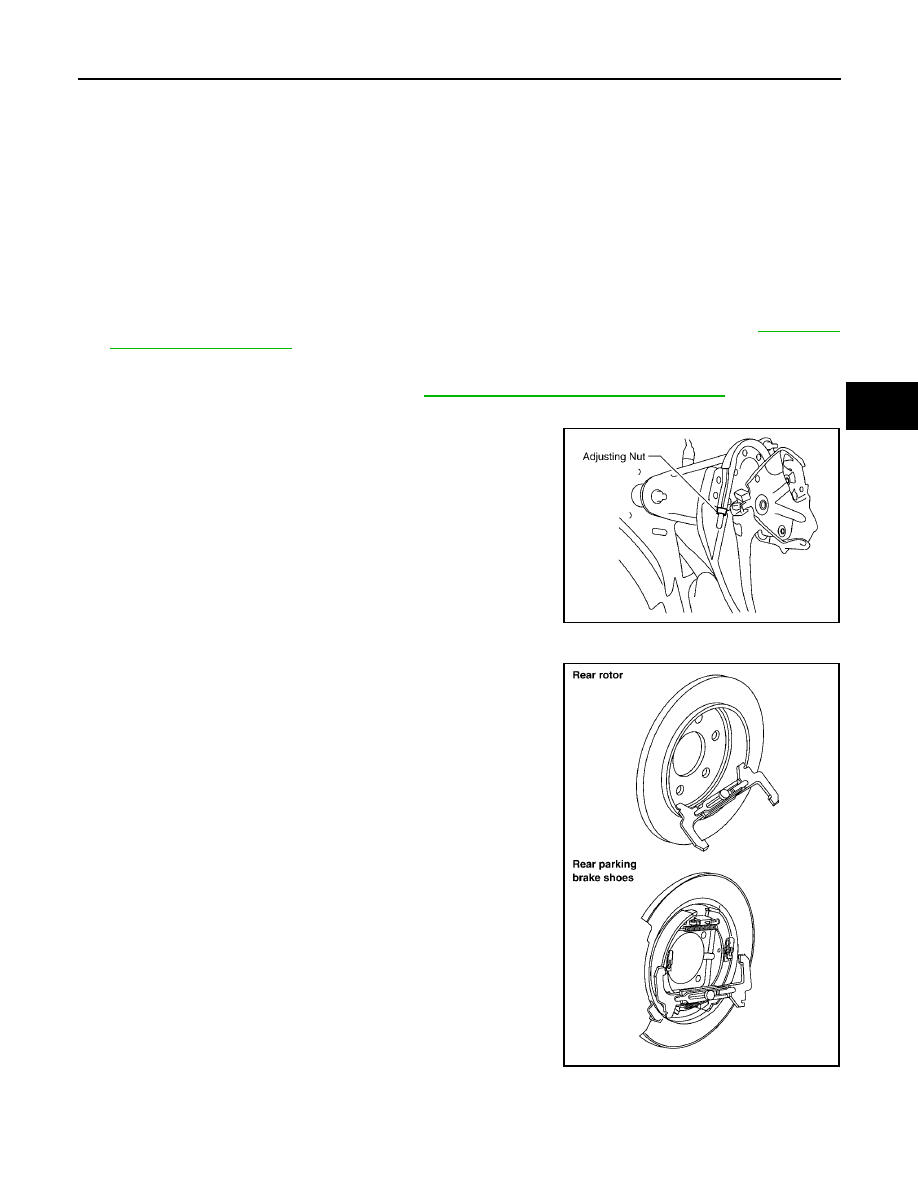

WFIA0165E

Tool number

:

—

(J-21177-A)

Pedal stroke

: 4

−

 5 notches [under force of

196 N (20.0 kg, 44.1 lb)]

WFIA0166E

PB-4

PARKING BRAKE CONTROL

2006 Pathfinder

PARKING BRAKE CONTROL

PFP:36010

Components

EFS0064C

Removal and Installation

EFS0064D

REMOVAL

1.

Remove the lower instrument panel LH and center console. Refer to

IP-14, "LOWER INSTRUMENT

PANEL LH"

  and

IP-16, "CENTER CONSOLE"

 .

2.

Remove the floor trim. Refer to

EI-29, "FLOOR TRIM"

 .

3.

Remove the parking brake control adjusting nut.

1.

Lock plate

2.

Pedal assembly

3.

Adjusting nut

4.

Left rear cable

5.

Right rear cable

6.

Pin

7.

Return spring

8.

Equalizer

9.

Front cable grommet

10. Front cable

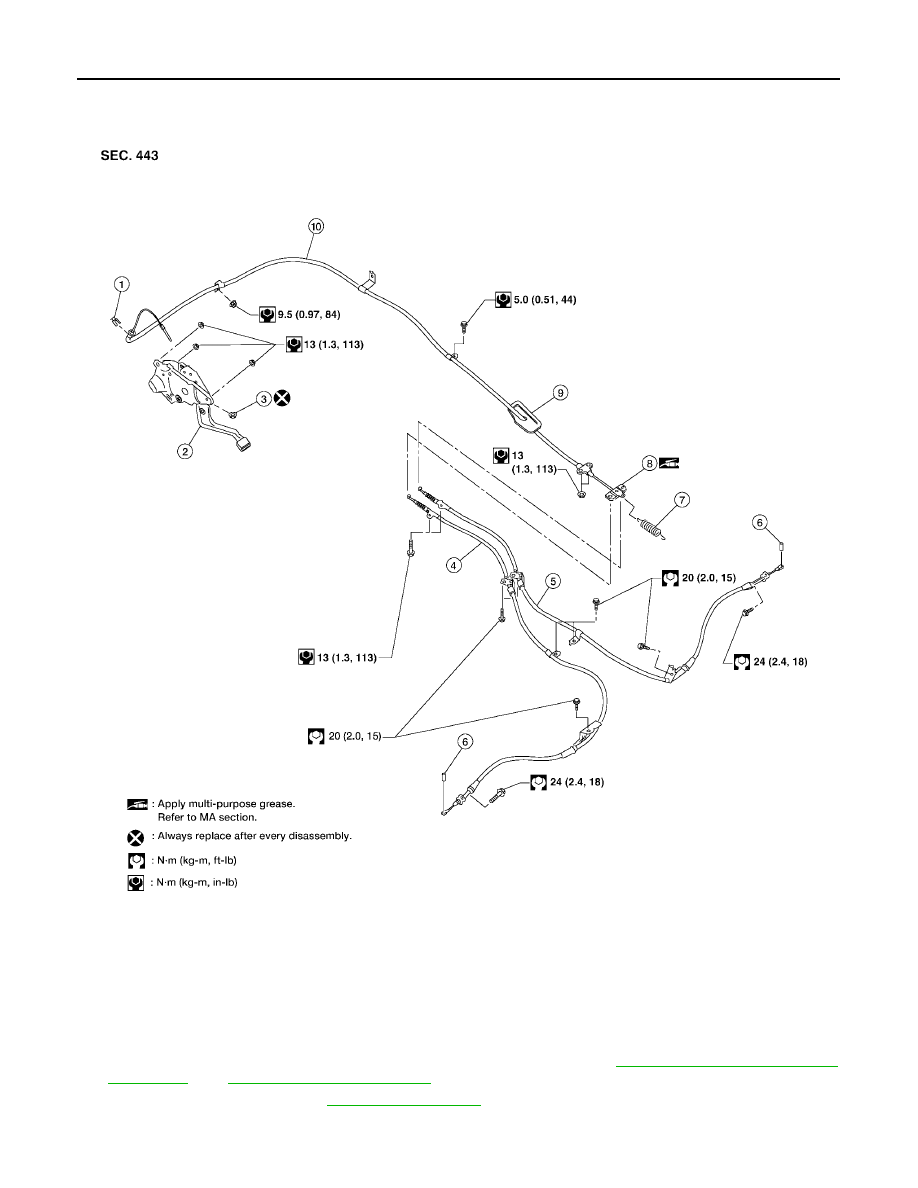

LFIA0229E

PARKING BRAKE CONTROL

PB-5

C

D

E

G

H

I

J

K

L

M

A

B

PB

2006 Pathfinder

CAUTION:

Do not reuse adjusting nut after removing it.

4.

Remove the lock plate from the front cable.

5.

Remove front parking brake cable bolt and nut.

6.

Disconnect return spring from equalizer.

7.

Disconnect the front parking brake cable from the equalizer and remove front cable.

8.

Remove the rear disc rotors. Refer to

BR-32, "Removal and Installation of Brake Caliper and Disc Rotor"

 .

9.

Remove parking brake shoes, and remove rear cable from toggle lever. Refer to

PB-6, "PARKING BRAKE

SHOE"

 .

10. Remove equalizer from right and left rear cables.

11. Remove right and left rear cable bolts and nuts, then remove right and left rear cables.

INSTALLATION

●

Installation is in the reverse order of removal.

CAUTION:

Do not reuse adjusting nut after removing it.

●

Adjust parking brake. Refer to

PB-3, "ADJUSTMENT"

 .

PB-6

PARKING BRAKE SHOE

2006 Pathfinder

PARKING BRAKE SHOE

PFP:44060

Removal and Installation

EFS0064E

COMPONENTS

REMOVAL

WARNING:

Clean the brakes with a vacuum dust collector to minimize the hazard of airborne particles or other
materials.

NOTE:
Remove the disc rotor only with the parking brake pedal completely disengaged.

1.

Back plate

2.

Anchor

3.

Shoes

4.

Toggle lever

5.

Upper return spring

6.

Shoe hold-down spring

7.

Retainer

8.

Shoe hold-down pin

9.

Adjuster

10. Lower return spring

11.

Disc rotor

12. Adjuster access plug

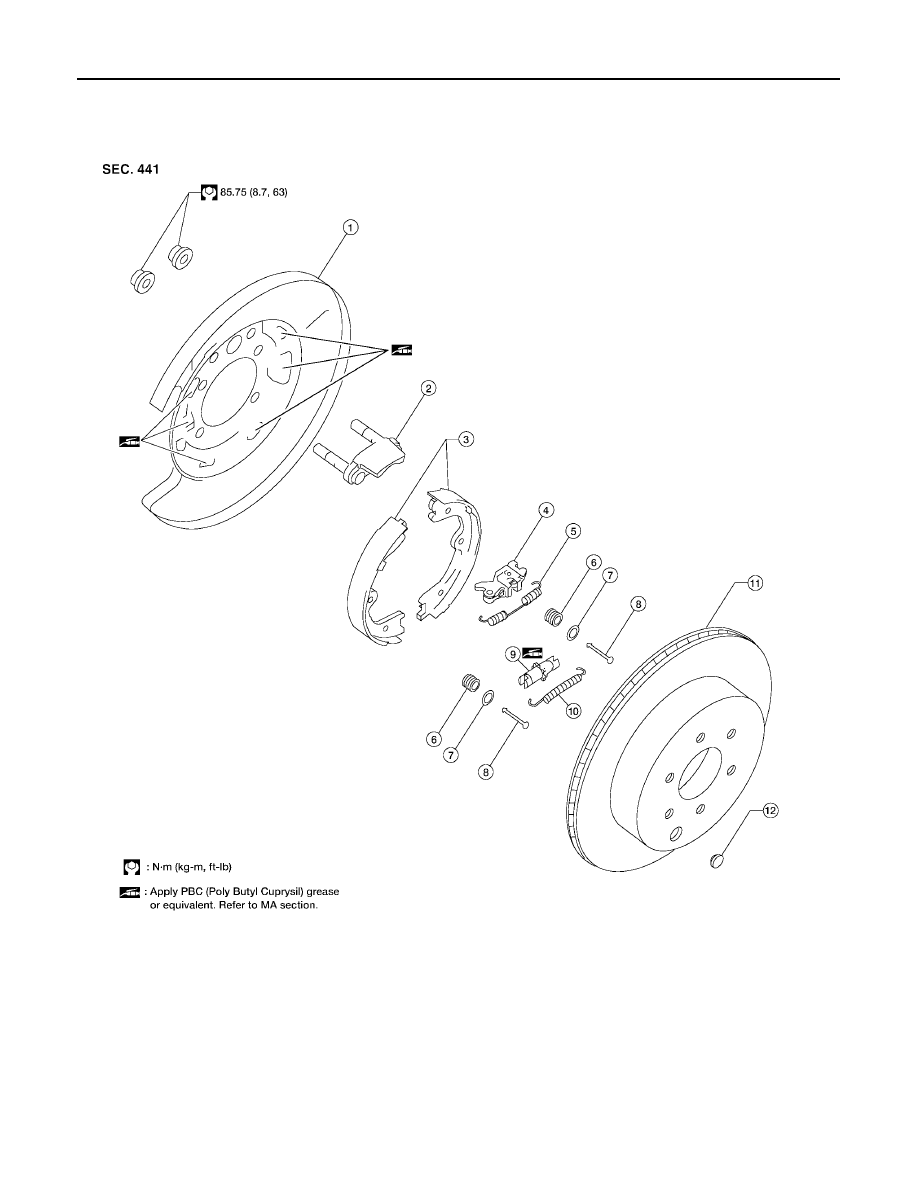

LFIA0230E
