Nissan Pathfinder (2006 year). Manual - part 343





DUCTS AND GRILLES

MTC-97

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2006 Pathfinder

GRILLES
Removal

1.

Remove the interior trim panel as necessary that contains the grille to be removed. Refer to

IP-10,

"INSTRUMENT PANEL ASSEMBLY"

  and

EI-27, "BODY SIDE TRIM"

 .

2.

Remove the grille from the interior trim panel.

Installation

Installation is in the reverse order of removal.

MTC-98

REFRIGERANT LINES

2006 Pathfinder

REFRIGERANT LINES

PFP:92600

HFC-134a (R-134a) Service Procedure

EJS004SC

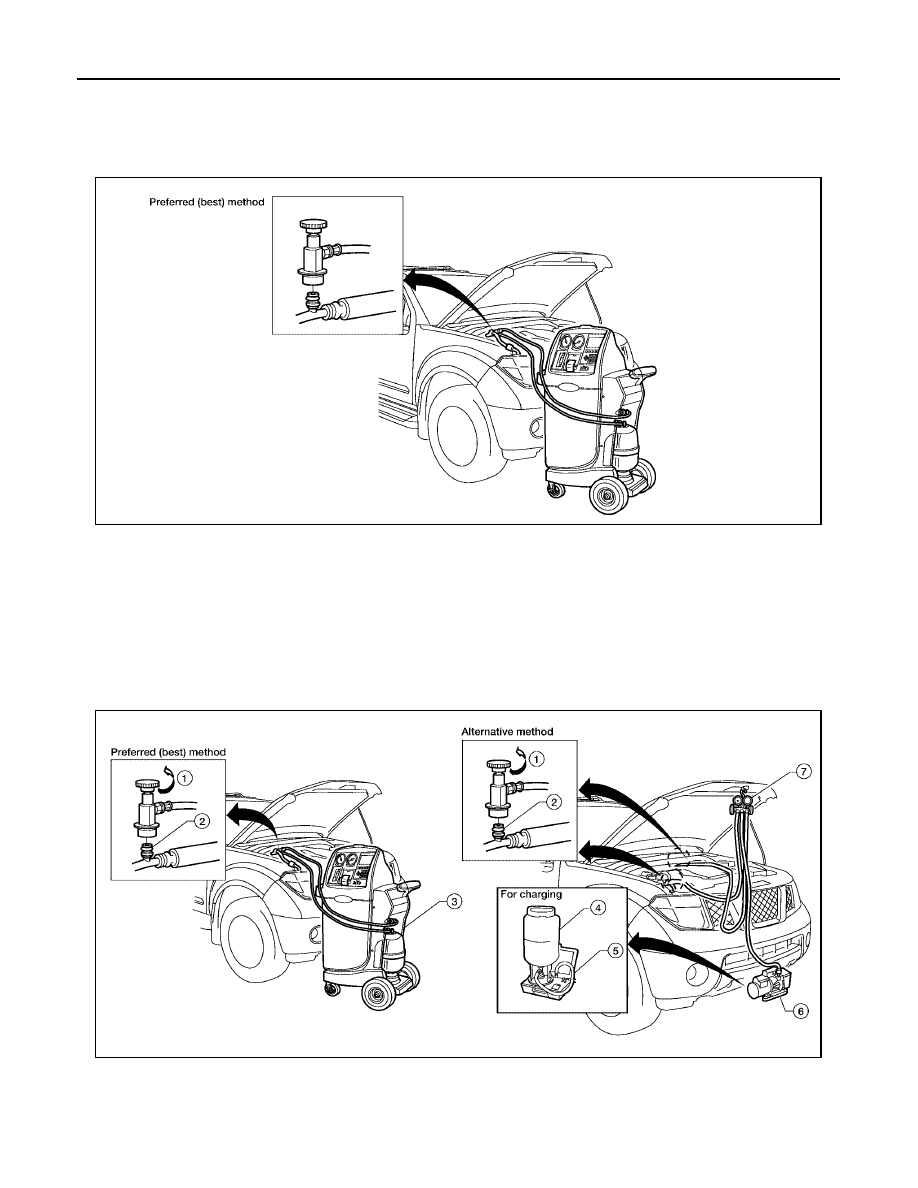

SETTING OF SERVICE TOOLS AND EQUIPMENT
Discharging Refrigerant

WARNING:

Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.
Remove HFC-134a (R-134a) refrigerant from the A/C system using certified service equipment meeting
requirements of SAE J2210 HFC-134a (R-134a) recycling equipment or SAE J2201 HFC-134a (R-134a)
recovery equipment. If an accidental system discharge occurs, ventilate the work area before resum-
ing service. Additional health and safety information may be obtained from the refrigerant and oil man-
ufacturers.

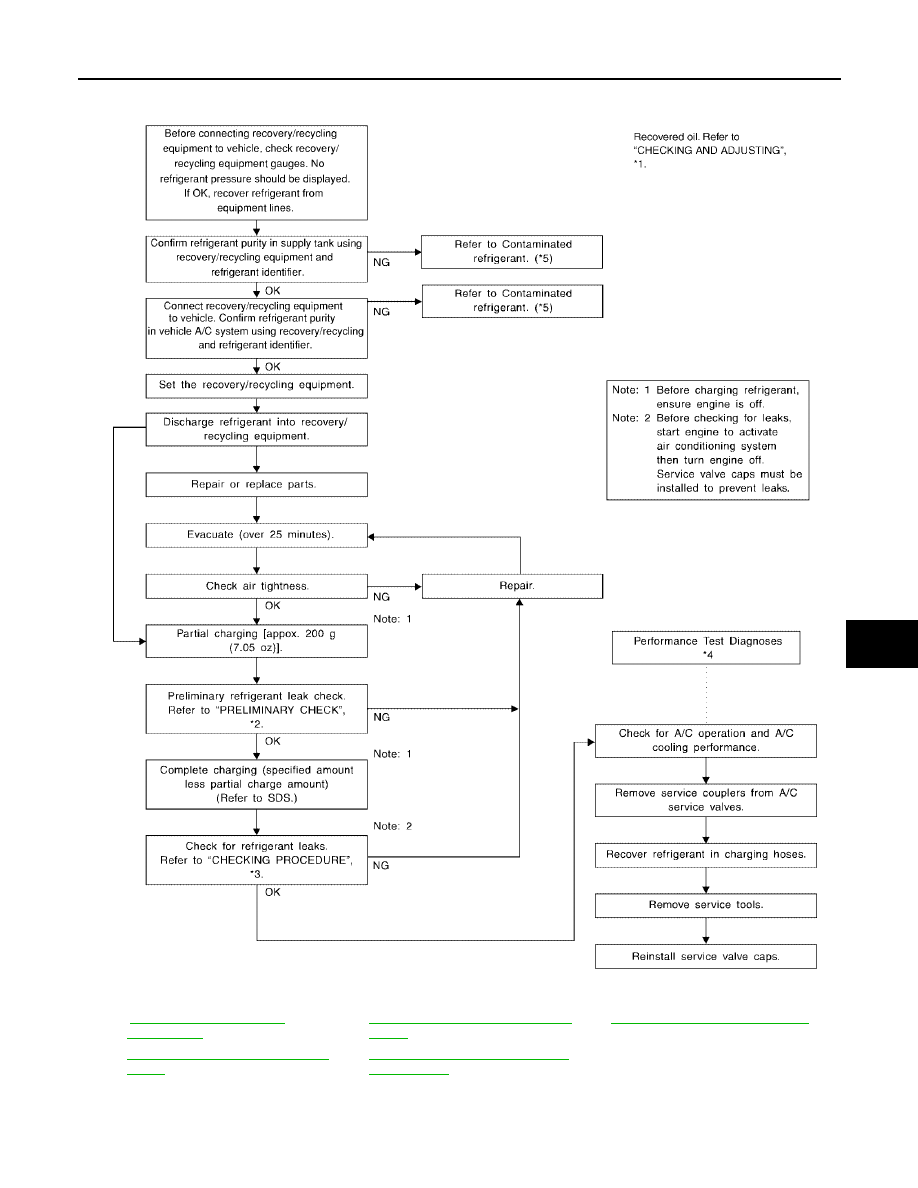

Evacuating System and Charging Refrigerant

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/recycling equipment

WJIA1160E

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/recycling equipment

4.

Refrigerant container (HFC-134a)

5.

Refrigerant weight scale (J-39699)

6.

Vacuum pump (J-39649)

7.

Manifold gauge set with hoses and
couplers (J-39183-C)

WJIA1161E

MTC-100

REFRIGERANT LINES

2006 Pathfinder

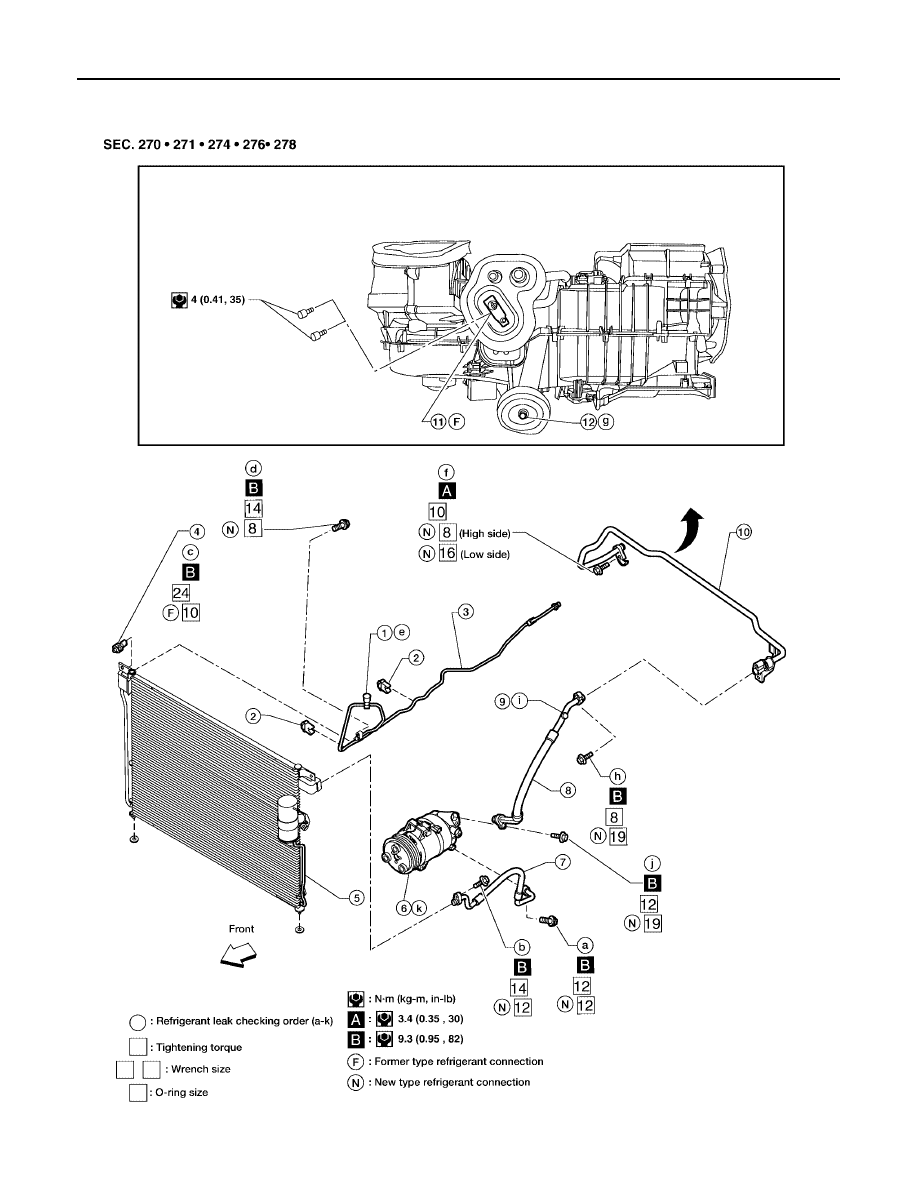

Components

EJS004SD

A/C Compressor and Condenser

WJIA1253E

REFRIGERANT LINES

MTC-101

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2006 Pathfinder

NOTE:
Refer to

MTC-5, "Precautions for Refrigerant Connection"

 .

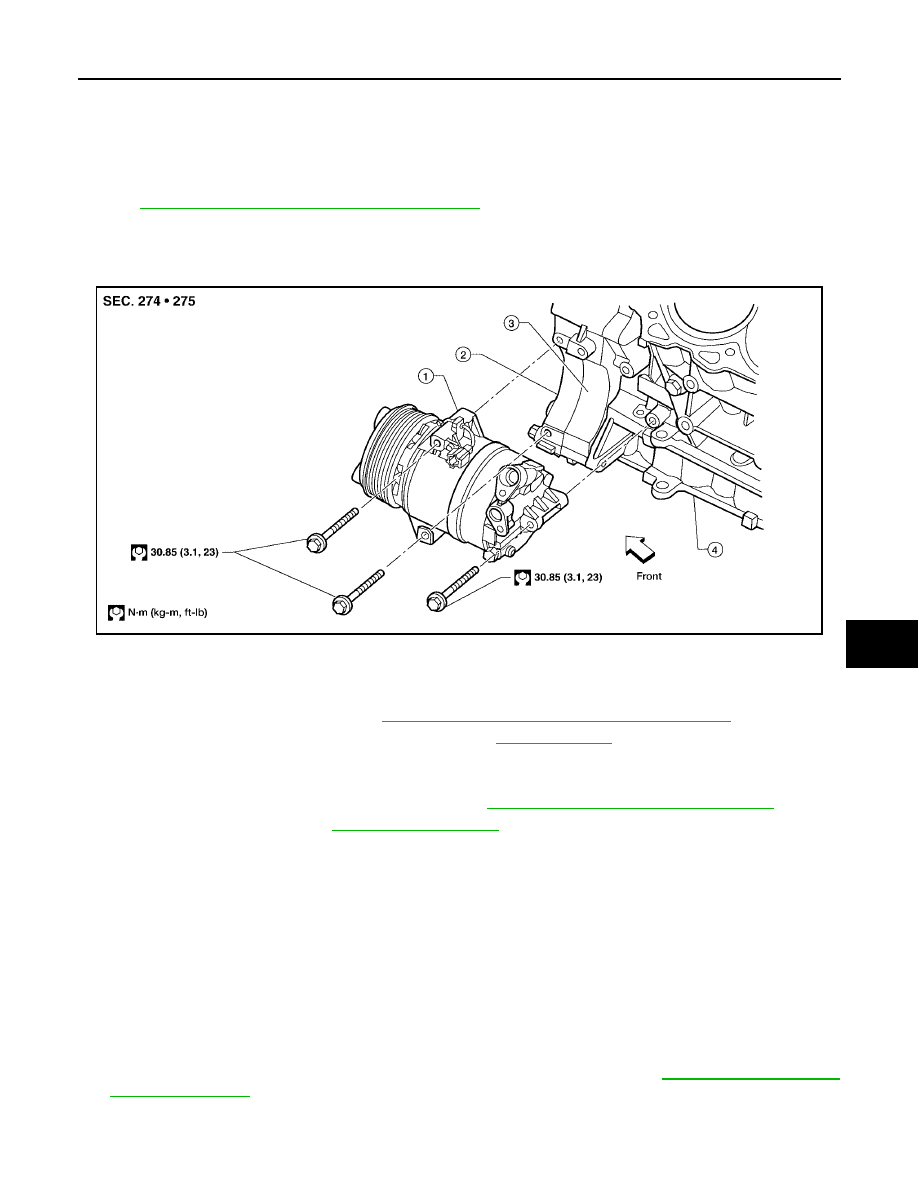

Removal and Installation for Compressor

EJS004SE

COMPONENTS

A/C Compressor Mounting

REMOVAL

1.

Discharge the A/C refrigerant. Refer to

MTC-98, "HFC-134a (R-134a) Service Procedure"

 .

2.

Remove the front left wheel and tire assembly. Refer to

WT-7, "Rotation"

 .

3.

Remove the front left mud guard.

4.

Remove the front left splash shield.

5.

Remove the engine air cleaner and air ducts. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

6.

Remove the drive belt. Refer to

EM-14, "DRIVE BELTS"

 .

7.

Disconnect the compressor harness connector.

8.

Disconnect both the high-pressure flexible A/C hose and low-pressure flexible A/C hose from the com-
pressor.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

9.

Remove the A/C compressor bolts using power tools.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

●

Replace the O-ring of the low-pressure flexible A/C hose and high-pressure flexible A/C hose with
a new one, apply compressor oil to the O-rings before installation.

●

After recharging the A/C system with refrigerant, check for leaks. Refer to

MTC-109, "Checking for

Refrigerant Leaks"

 .

1.

High-pressure service valve

2.

Clip

3.

High-pressure A/C pipe

4.

Refrigerant pressure sensor

5.

Condenser

6.

Compressor shaft seal

7.

High-pressure flexible A/C hose

8.

Low-pressure flexible A/C hose

9.

Low-pressure service valve

10. Low-pressure A/C pipe

11.

Expansion valve

12. A/C drain hose

LJIA0176E

1.

Compressor

2.

Front timing chain case

3.

Rear timing chain case

4.

Cylinder block

MTC-102

REFRIGERANT LINES

2006 Pathfinder

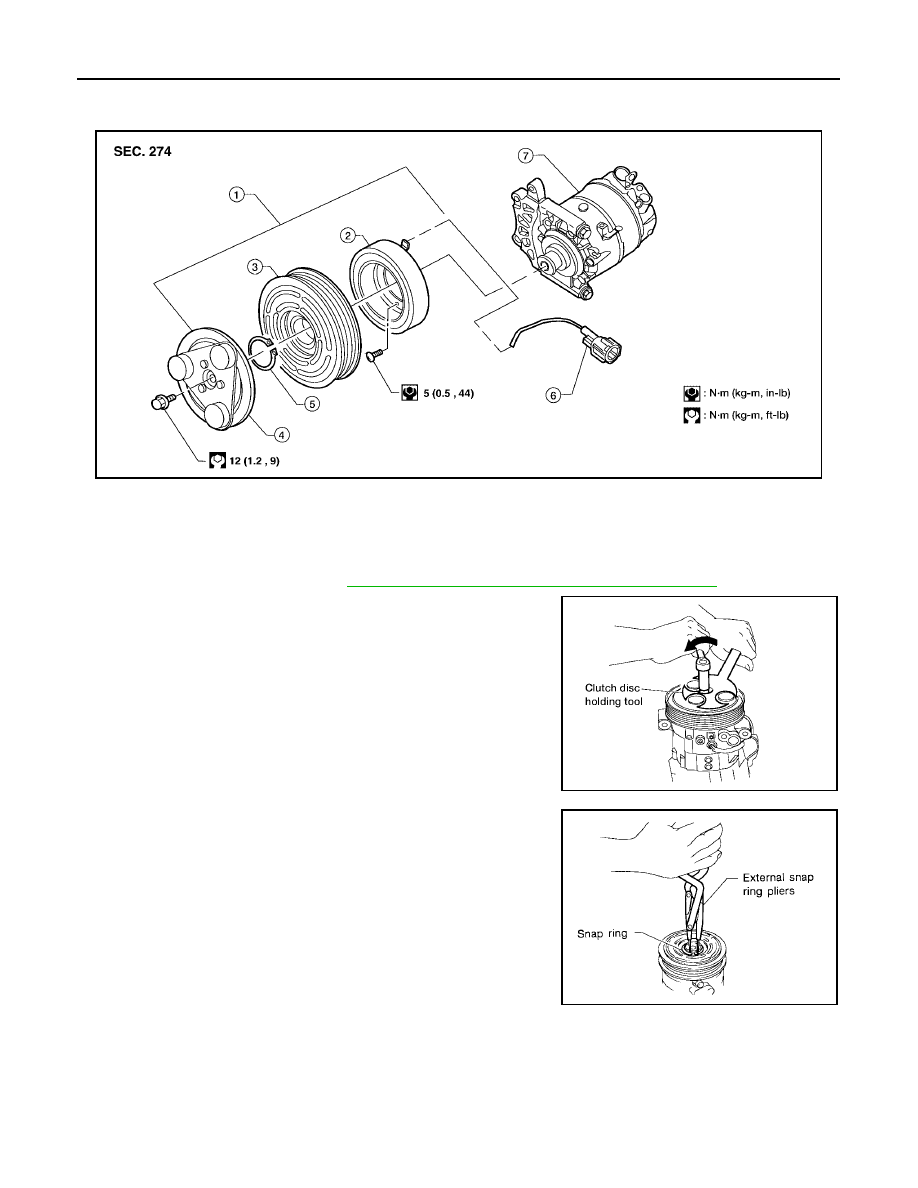

Removal and Installation for Compressor Clutch

EJS004SF

Magnet Clutch Assembly

REMOVAL

1.

Remove the compressor. Refer to

MTC-101, "Removal and Installation for Compressor"

 .

2.

Remove the center bolt while holding the clutch disc stationary
using Tool as shown.

3.

Remove the clutch disc.

4.

Remove the snap ring using external snap ring pliers or suitable
tool.

WJIA1162E

1.

Magnet clutch assembly

2.

Magnet coil

3.

Pulley

4.

Clutch disc

5.

Snap ring

6.

Thermal protector (built in)

7.

Compressor

Tool number

: J-44614

WHA228

RHA072C

REFRIGERANT LINES

MTC-103

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2006 Pathfinder

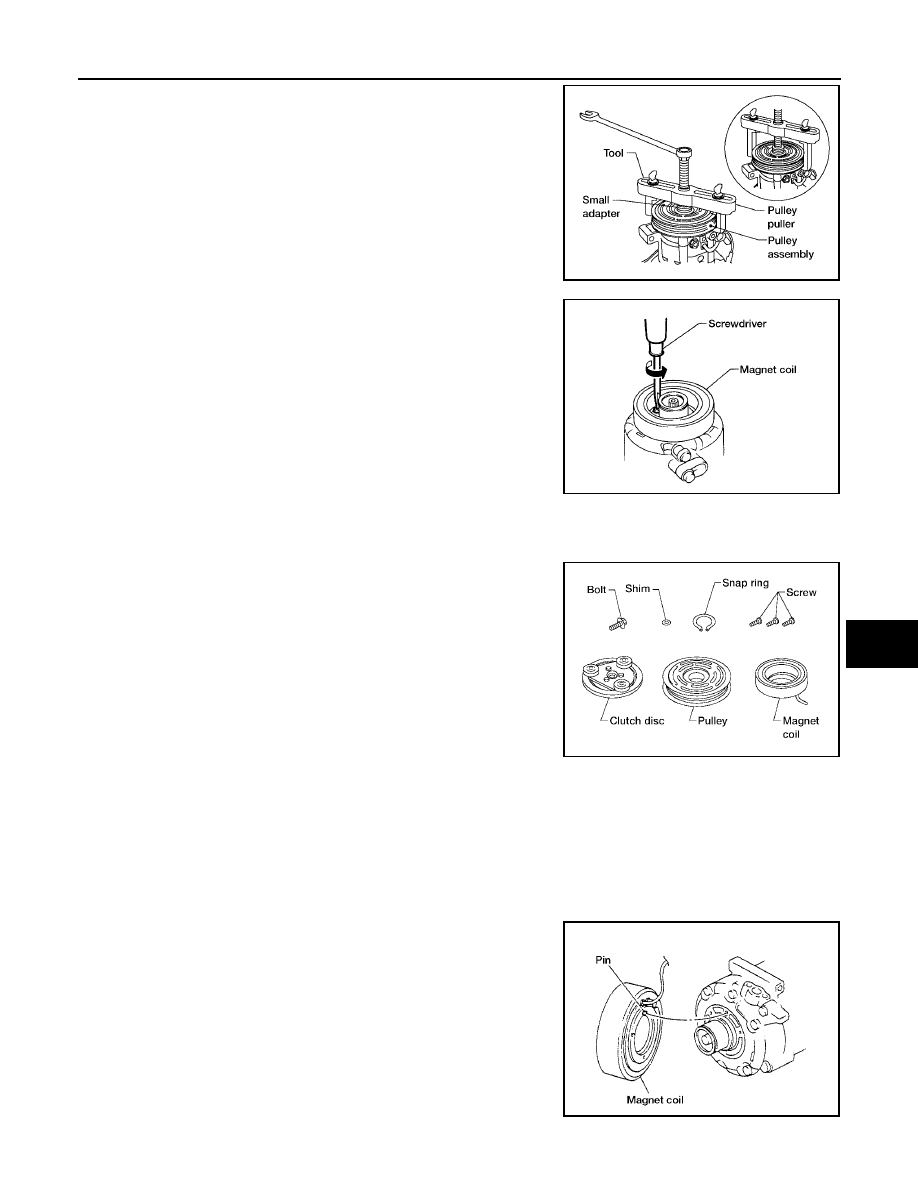

5.

Remove the pulley using Tool with a small adapter. Position the
small adapter on the end of the drive shaft and the center of the
puller on the small adapter.

CAUTION:

To prevent deformation of the pulley groove, the puller
claws should be hooked under the pulley groove and not
into the pulley groove.

6.

Remove the magnet coil harness clip using a screwdriver,
remove the three magnet coil fixing screws and remove the
magnet coil.

INSPECTION
Clutch Disc

If the contact surface shows signs of damage due to excessive heat,
replace clutch disc and pulley.

Pulley

Check the appearance of the pulley assembly. If contact surface of pulley shows signs of excessive grooving,
replace clutch disc and pulley. The contact surfaces of the pulley assembly should be cleaned with a suitable
solvent before reinstallation.

Coil

Check magnet coil for loose connections or any cracked insulation.

INSTALLATION

1.

Install the magnet coil.

CAUTION:

Be sure to align the magnet coil pin with the hole in the
compressor front head.

Tool number

: KV99233130 (J-29884)

WJIA1017E

WHA212

WHA183

WHA213

MTC-104

REFRIGERANT LINES

2006 Pathfinder

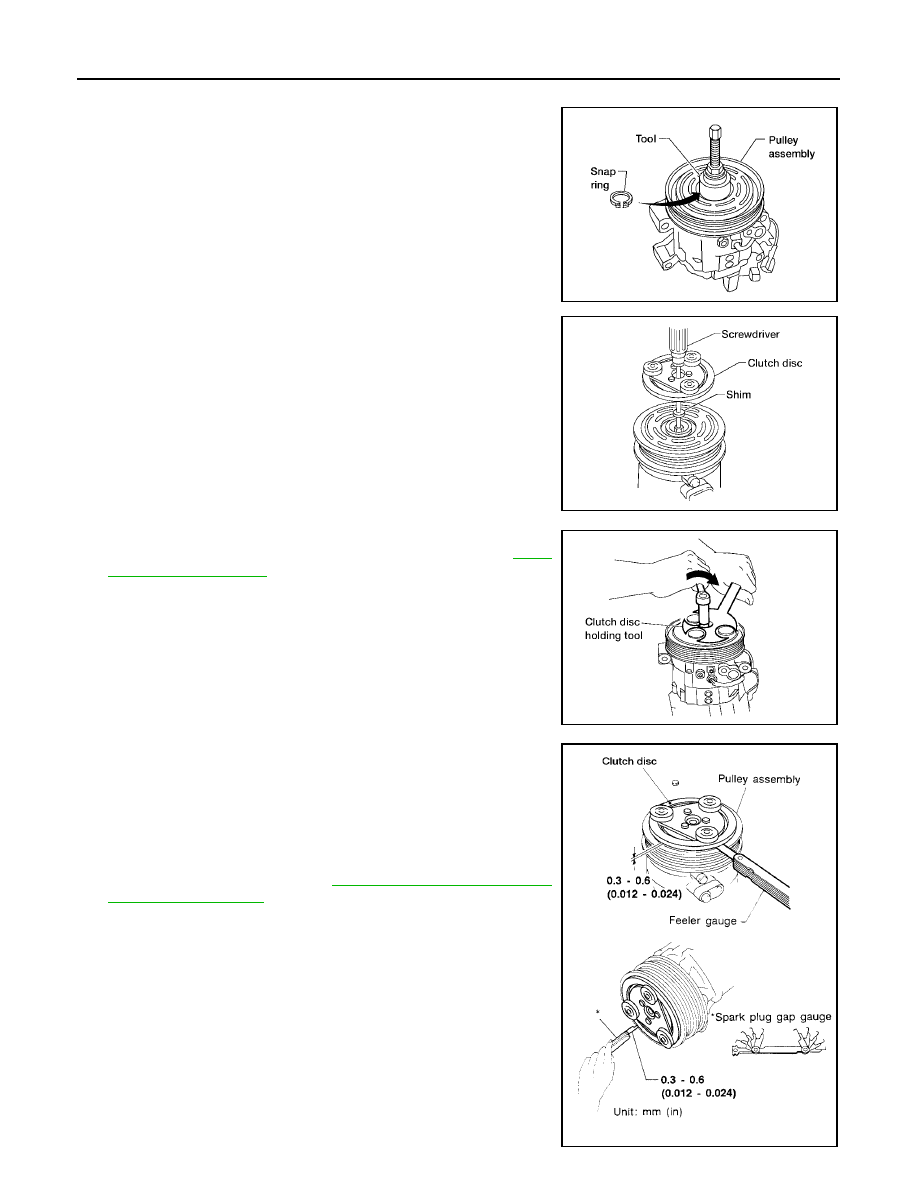

2.

Install the magnet coil harness clip using a screwdriver.

3.

Install the pulley assembly using Tool and a wrench, then install
the snap ring using snap ring pliers.

4.

Install the clutch disc on the compressor shaft, together with the
original shim(s). Press the clutch disc down by hand.

5.

Install the clutch pulley bolt using Tool, to prevent the clutch disc
from turning and tighten the bolt to specification. Refer to

MTC-

101, "COMPONENTS"

 .

CAUTION:

After tightening the clutch pulley bolt, check that the clutch
pulley rotates smoothly.

6.

Check the pulley clearance all the way around the clutch disc as
shown.

7.

If the specified clearance is not obtained, replace the adjusting
spacer to readjust.

8.

Install the compressor. Refer to

MTC-101, "Removal and Instal-

lation for Compressor"

 .

Tool number

:

—

(J-38873-A)

WJIA1016E

WHA184

Tool number

: J-44614

WHA229

Clutch disc-to-pulley clearance

: 0.3 - 0.6 mm
(0.012 - 0.024 in)

WHA194
