CAN SYSTEM (TYPE 10)

LAN-185

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

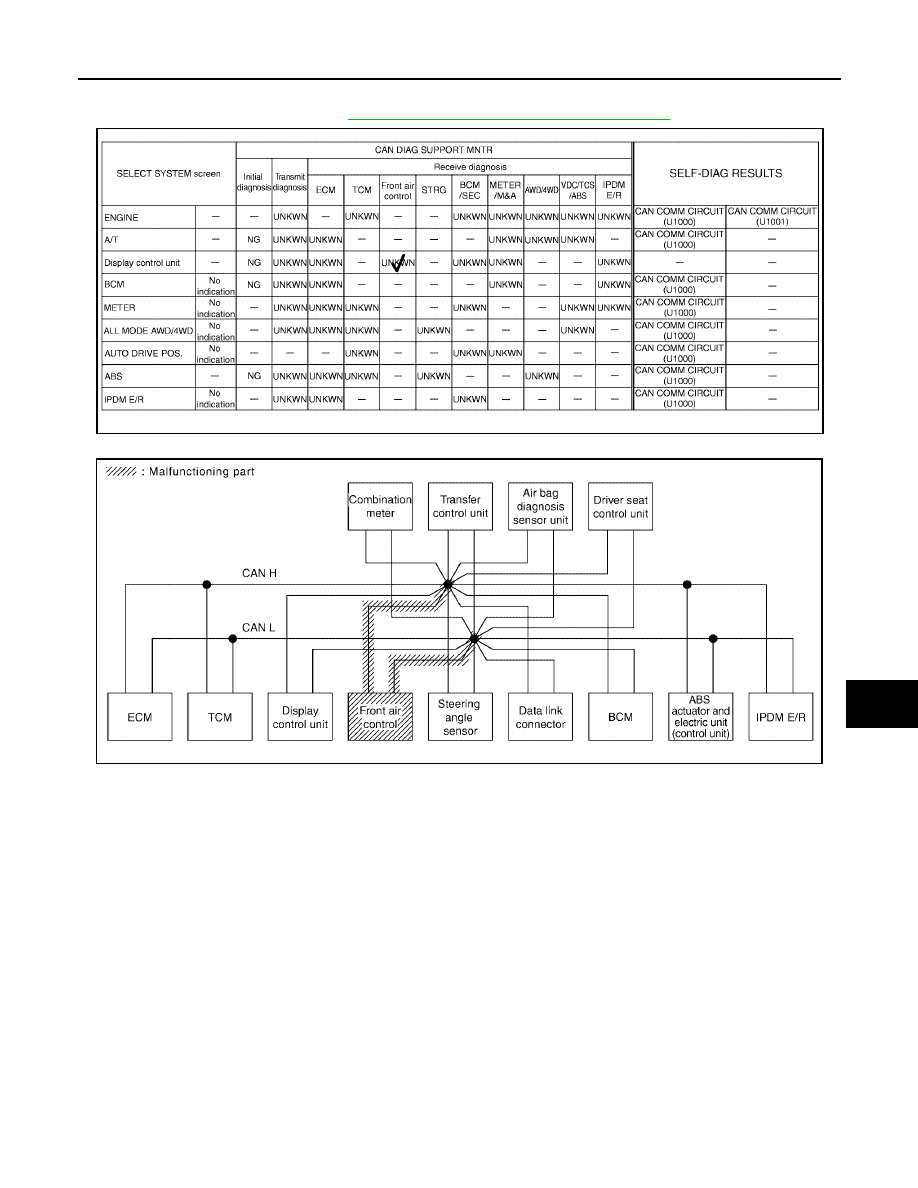

Case 6

Check front air control circuit. Refer to

LAN-198, "Front Air Control Circuit Inspection"

 .

PKIC5727E

PKIC5491E

LAN-186

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

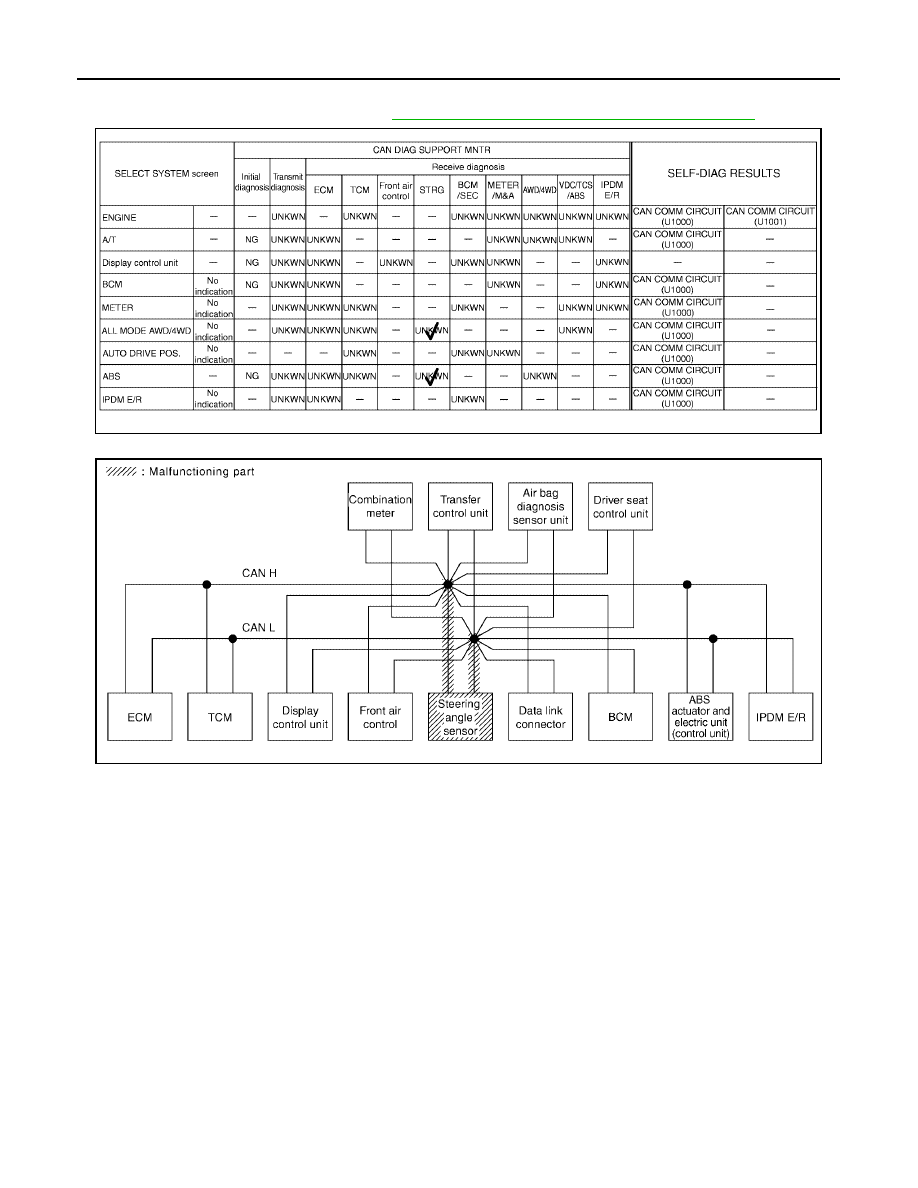

Case 7

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5728E

PKIC5492E

CAN SYSTEM (TYPE 10)

LAN-187

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

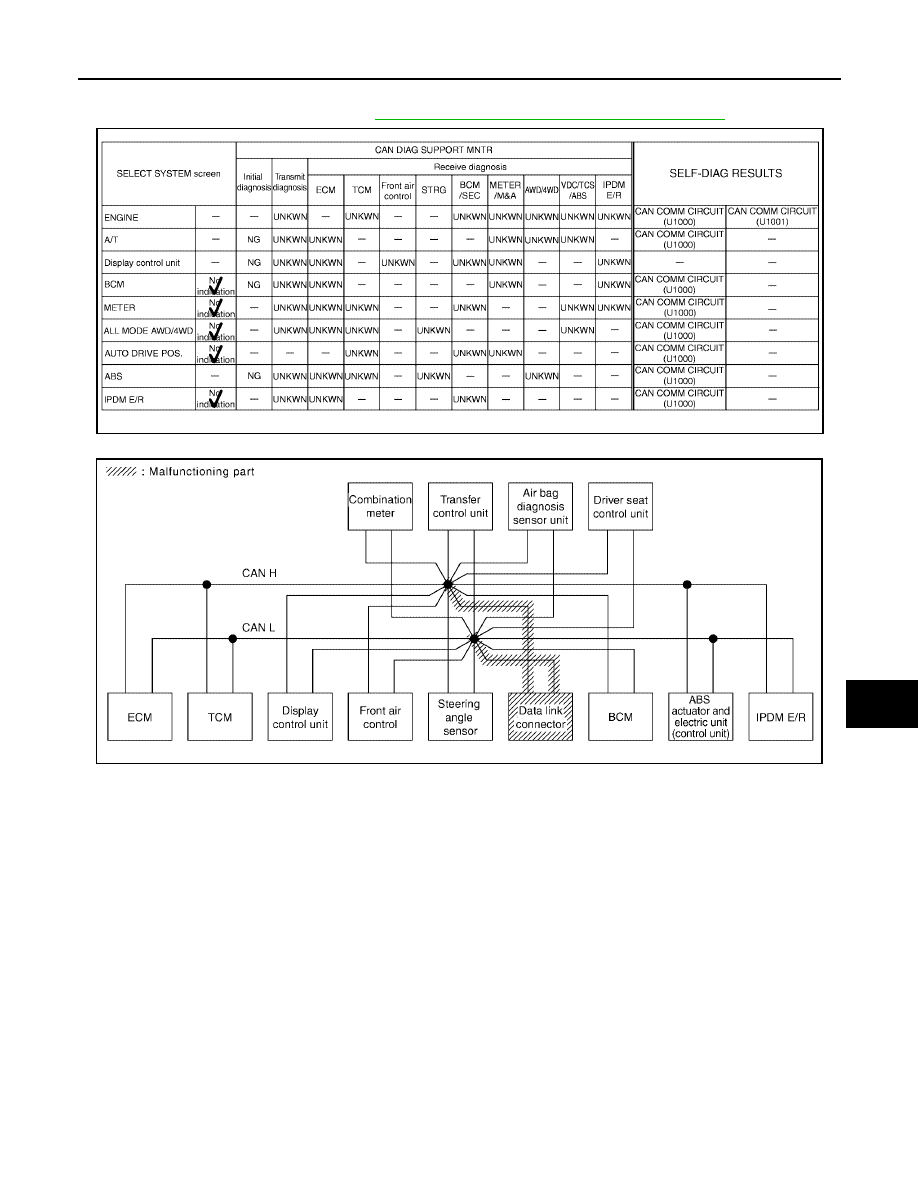

Case 8

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5729E

PKIC5493E

LAN-188

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

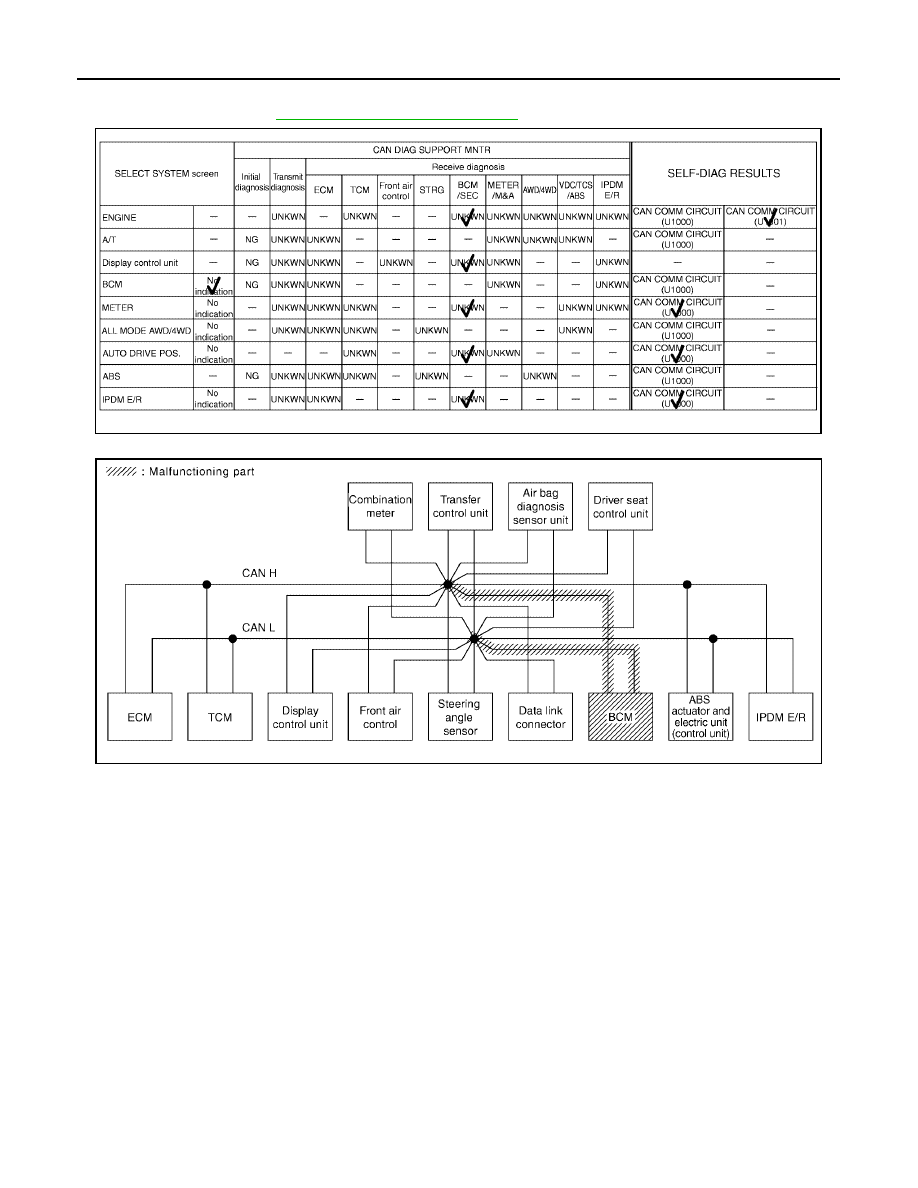

Case 9

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5730E

PKIC5494E

CAN SYSTEM (TYPE 10)

LAN-189

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

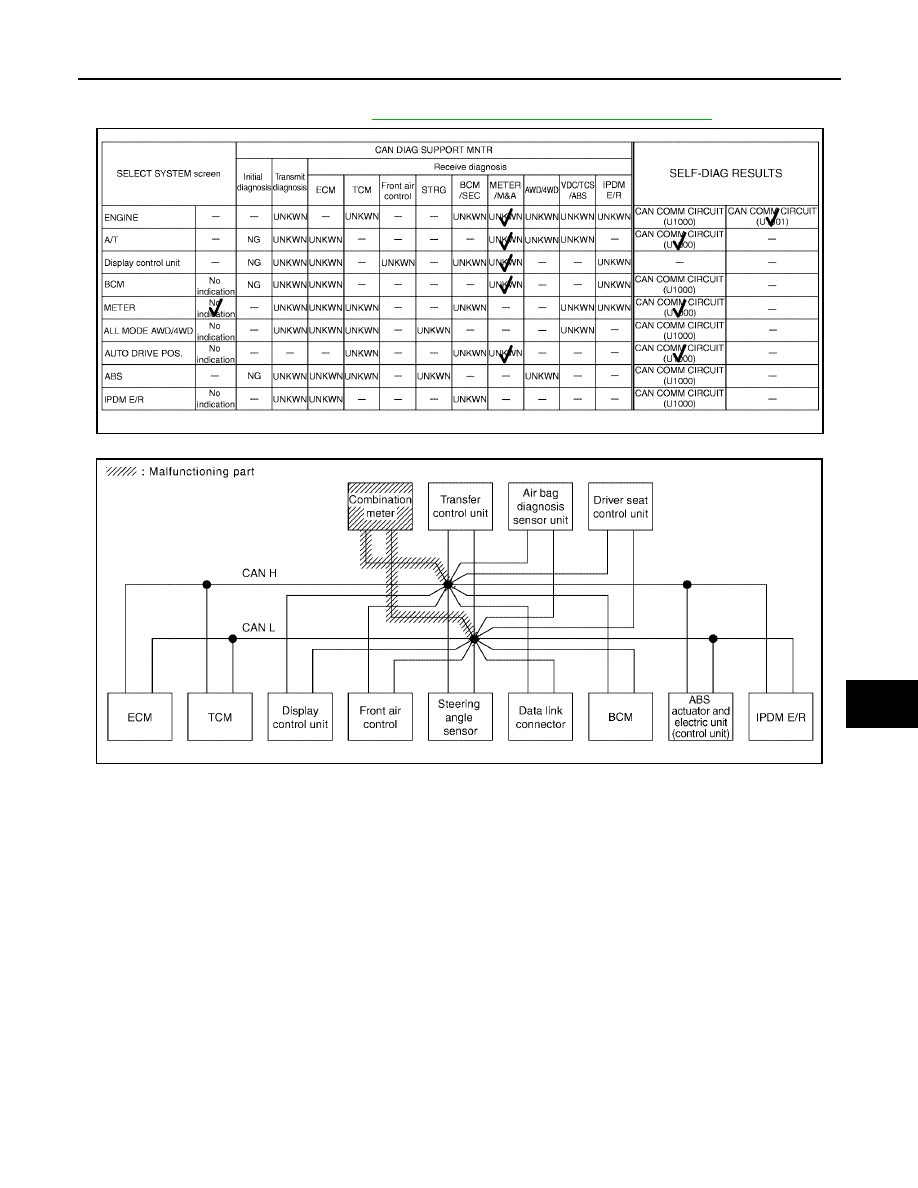

Case 10

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5731E

PKIC5495E

LAN-190

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

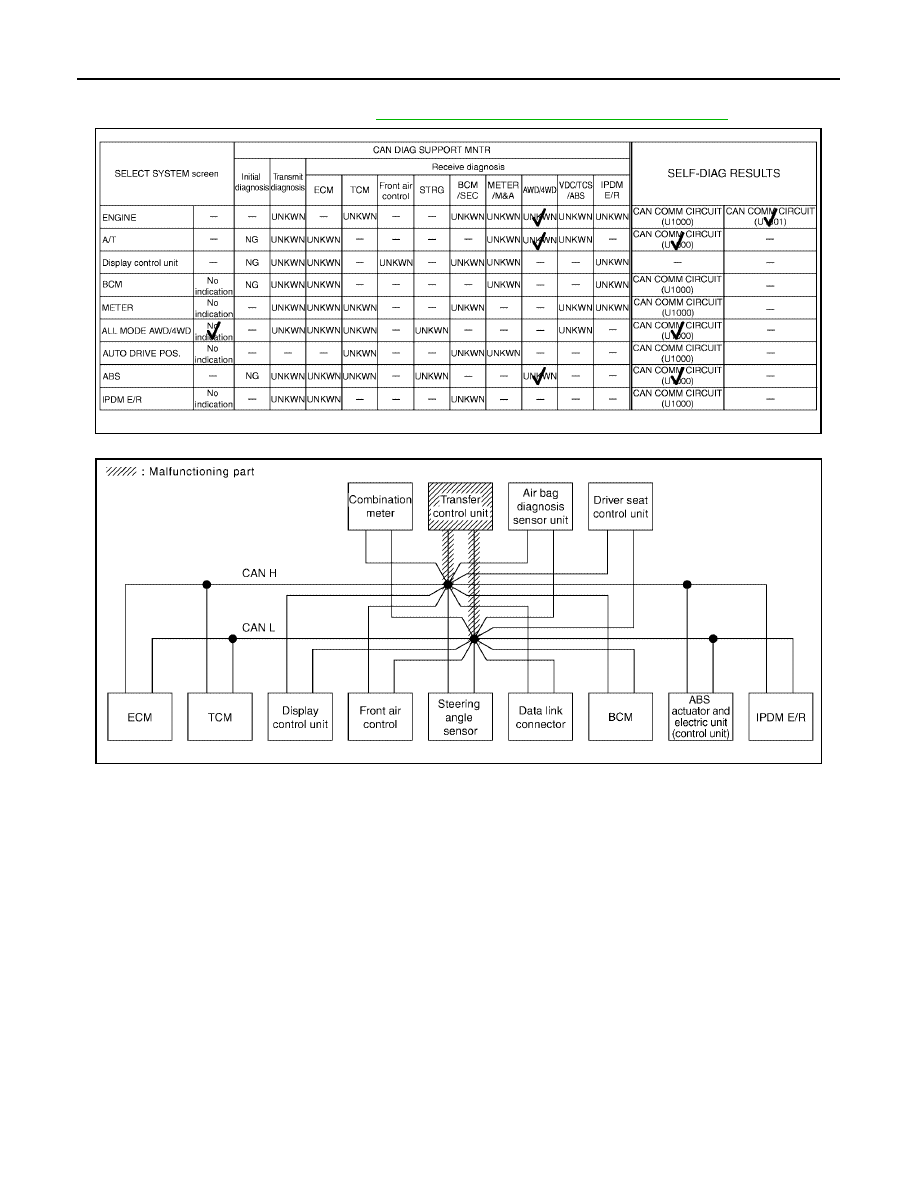

Case 11

Check transfer control unit circuit. Refer to

LAN-201, "Transfer Control Unit Circuit Inspection"

 .

PKIC5732E

PKIC5496E

CAN SYSTEM (TYPE 10)

LAN-191

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

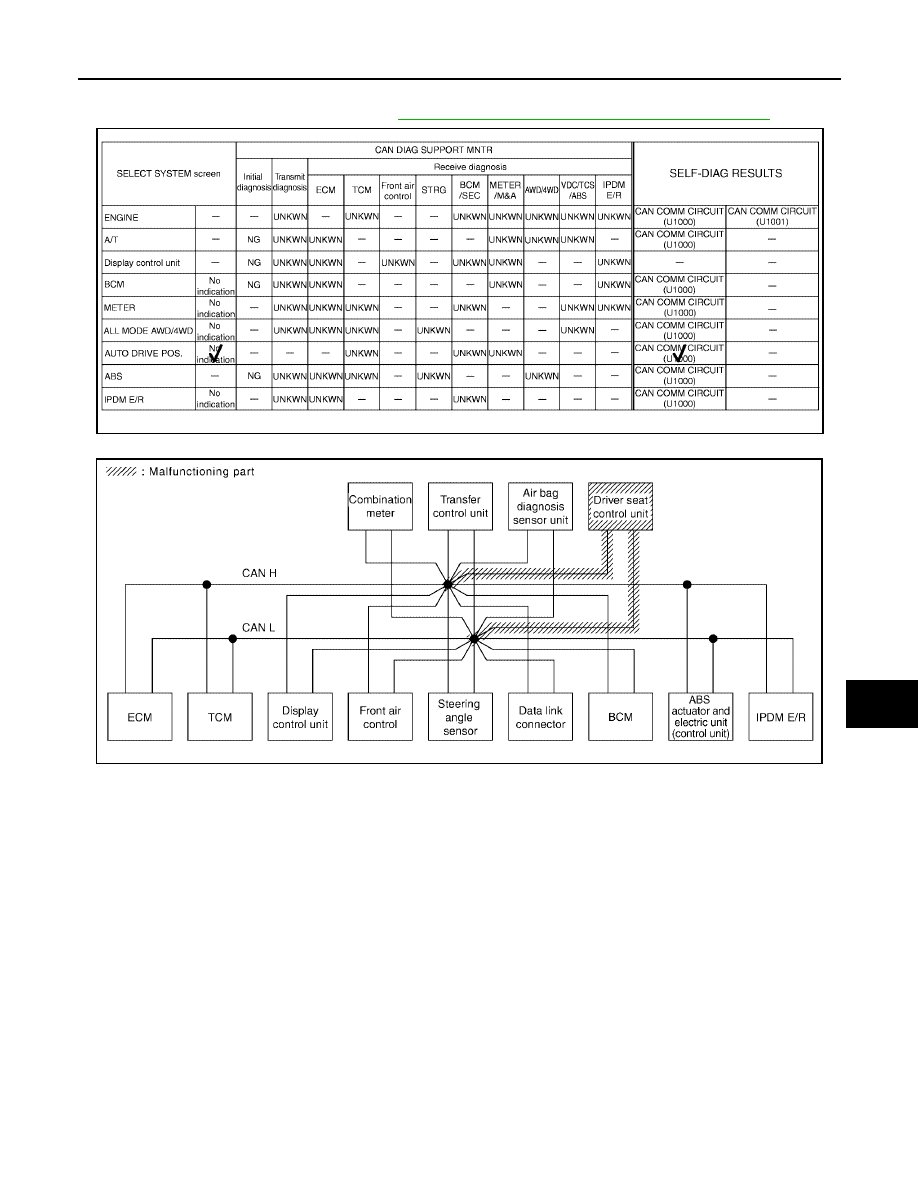

Case 12

Check driver seat control unit circuit. Refer to

LAN-202, "Driver Seat Control Unit Circuit Inspection"

 .

PKIC5733E

PKIC5497E

LAN-192

[CAN]

CAN SYSTEM (TYPE 10)

2006 Pathfinder

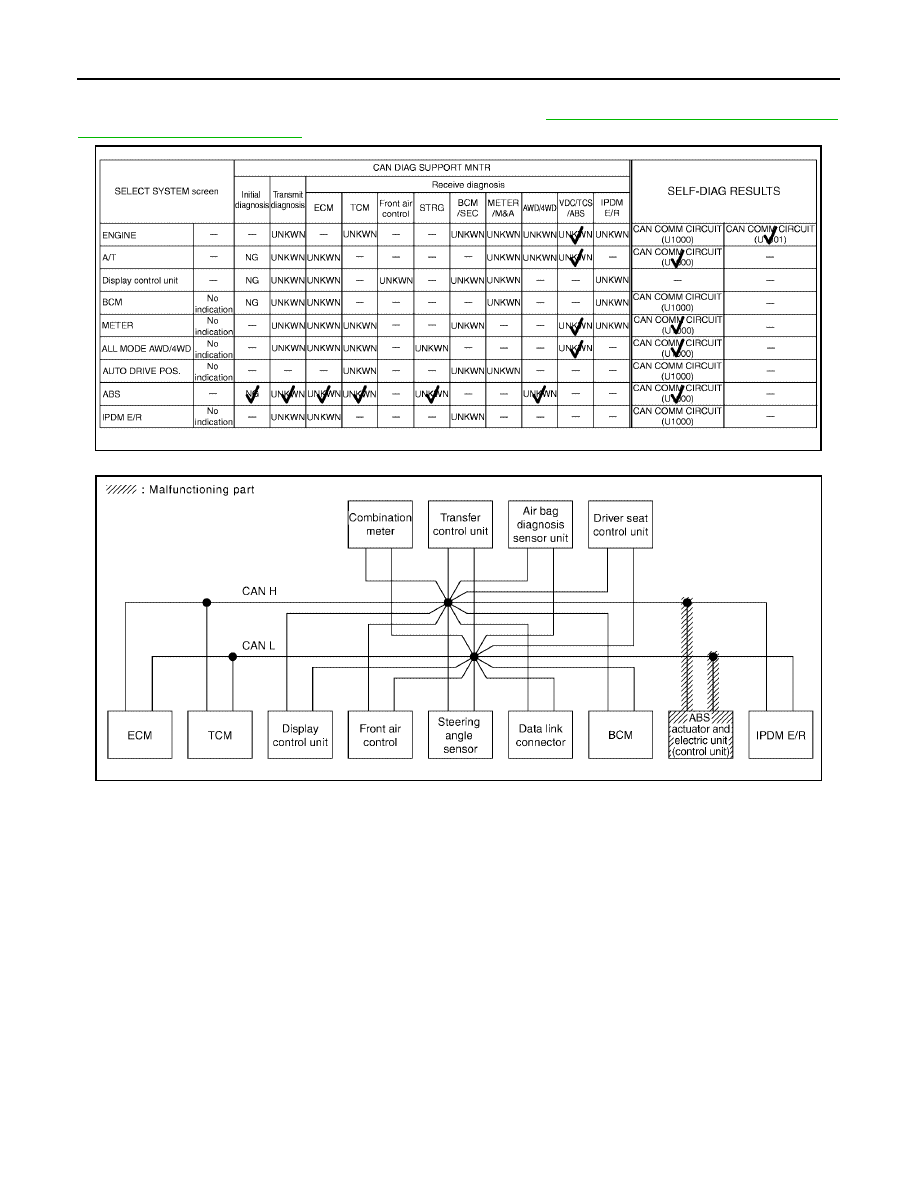

Case 13

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5734E

PKIC5498E
