Nissan Pathfinder (2006 year). Manual - part 280





LAN-1

LAN SYSTEM

K  ELECTRICAL

CONTENTS

C

D

E

F

G

H

I

J

L

M

SECTION

A

B

LAN

2006 Pathfinder

CAN

PRECAUTIONS .......................................................... 3

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions When Using CONSULT-II ..................... 3

CHECK POINTS FOR USING CONSULT-II  ......... 3

Precautions for Trouble Diagnosis  ........................... 3

CAN SYSTEM ....................................................... 3

Precautions for Harness Repair  ............................... 4

CAN SYSTEM ....................................................... 4

TROUBLE DIAGNOSES WORK FLOW  .................... 5

When Displaying CAN Communication System
Errors ....................................................................... 5

WHEN A MALFUNCTION IS DETECTED BY
CAN COMMUNICATION SYSTEM  ....................... 5
WHEN A MALFUNCTION IS DETECTED
EXCEPT CAN COMMUNICATION SYSTEM ........ 5

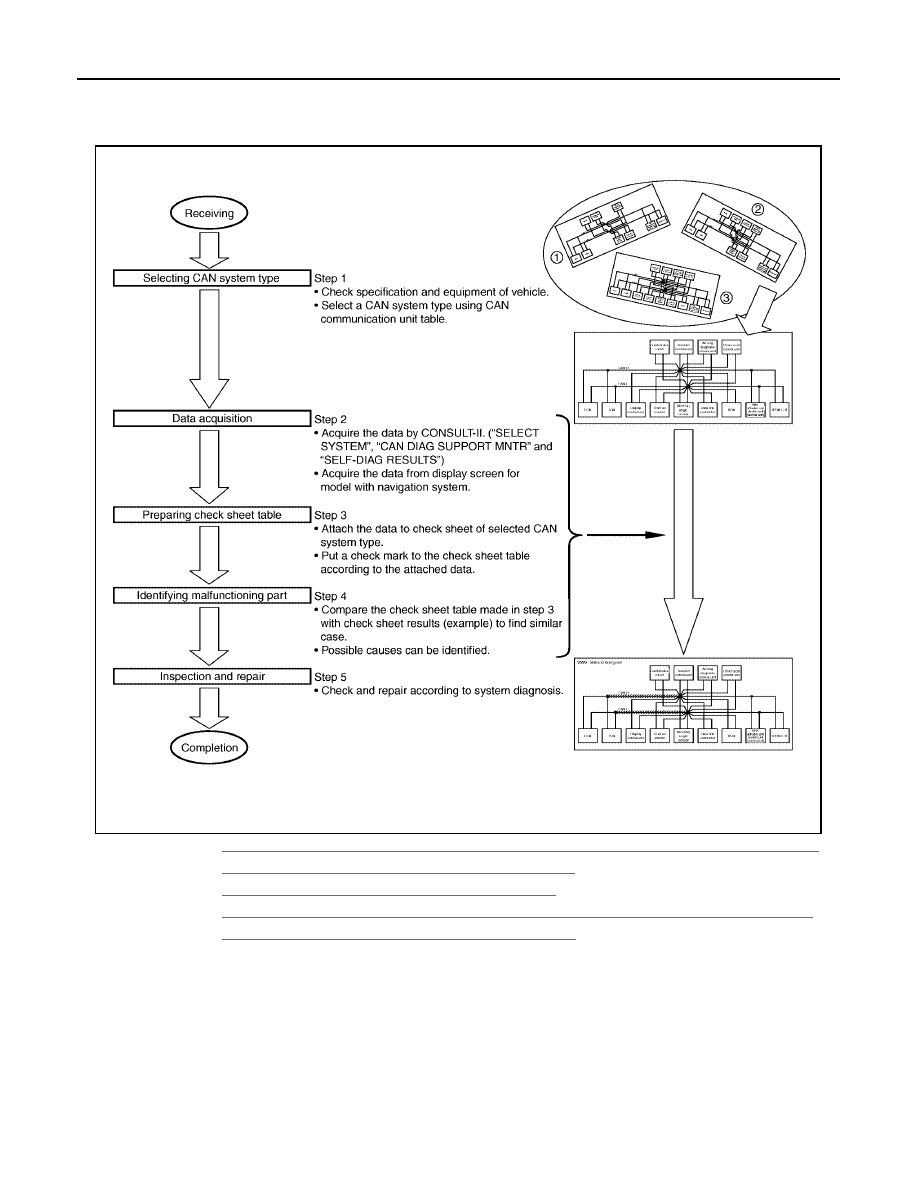

TROUBLE DIAGNOSIS FLOW CHART  ............... 6

Diagnosis Procedure  ................................................ 7

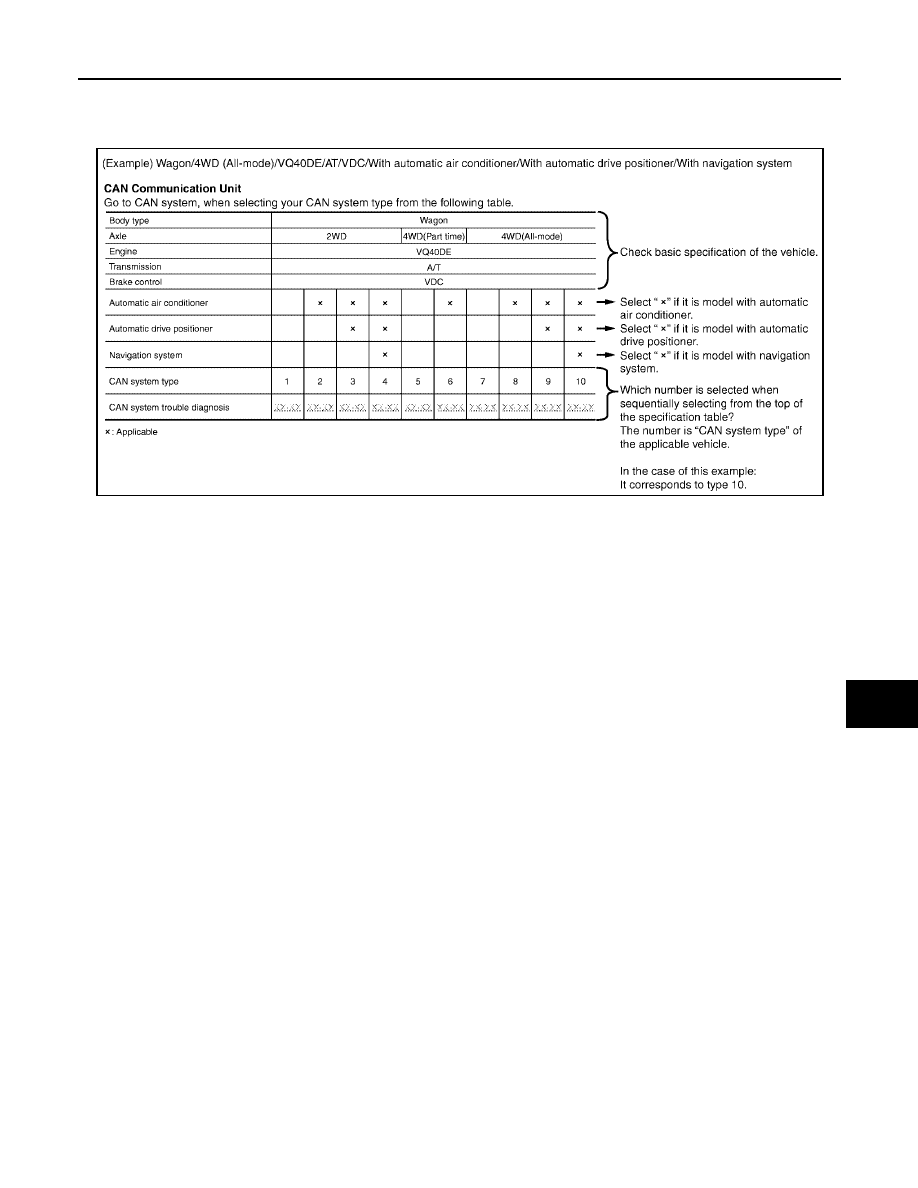

SELECTING CAN SYSTEM TYPE (HOW TO
USE SPECIFICATION TABLE)  ............................. 7

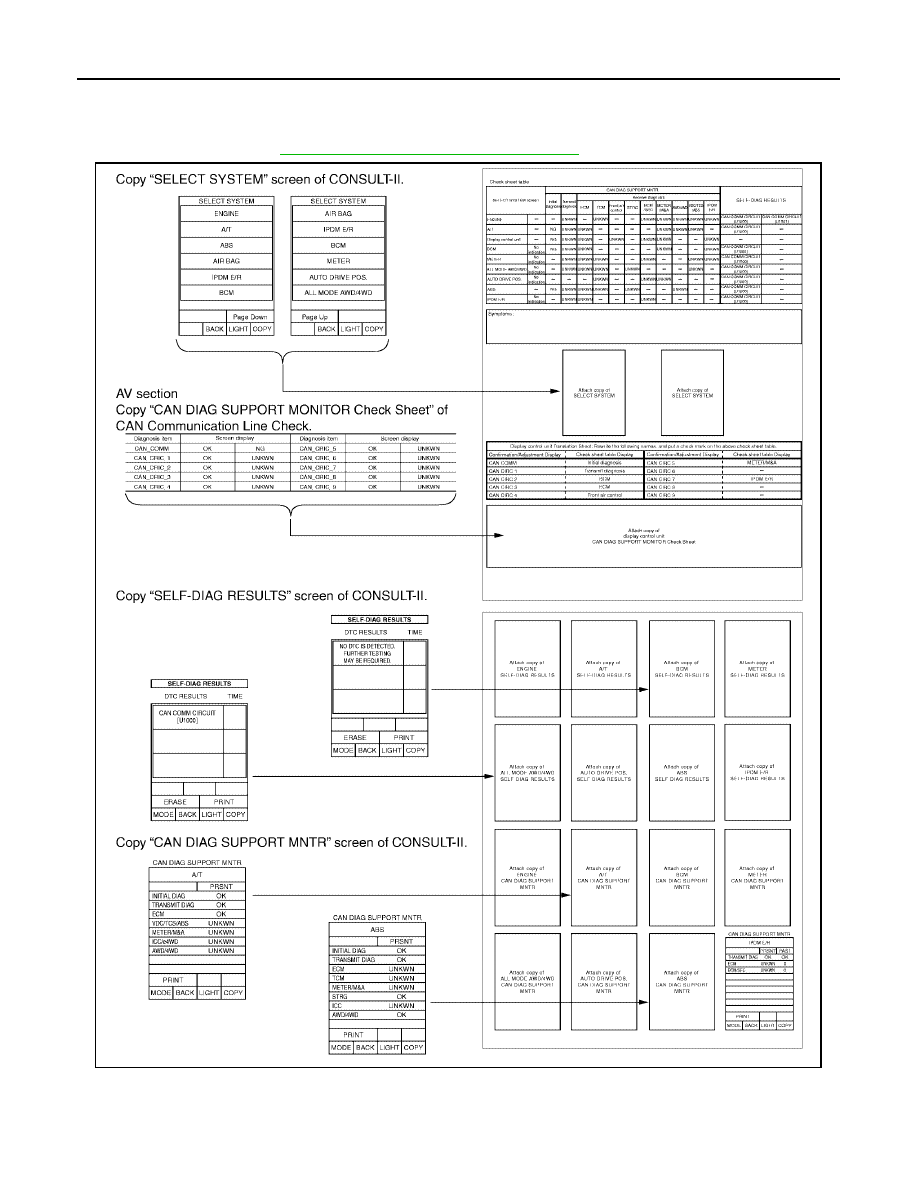

ACQUISITION OF DATA BY CONSULT-II  ............ 8
HOW TO USE CHECK SHEET TABLE  ................ 9

CAN Diagnostic Support Monitor  ........................... 16

DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR ECM  ............................... 16
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR TCM  ............................... 17
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR BCM  ............................... 17
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR METER  .......................... 18
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR TRANSFER CONTROL
UNIT .................................................................... 19
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR DRIVER SEAT CON-
TROL UNIT  ......................................................... 21
DESCRIPTION OF “CAN DIAG SUPPORT

MNTR” SCREEN FOR ABS ACTUATOR AND
ELECTRIC UNIT (CONTROL UNIT)  ................... 22
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR IPDM E/R  ....................... 23
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR DISPLAY CONTROL
UNIT .................................................................... 24

CAN COMMUNICATION ........................................... 25

System Description ................................................. 25
Component Parts and Harness Connector Location

... 25

Schematic ............................................................... 26
Wiring Diagram — CAN —  ..................................... 27
CAN Communication Unit ....................................... 30

TYPE 1/TYPE 2/TYPE 3/TYPE 4  ........................ 31
TYPE 5/TYPE 6 ................................................... 35
TYPE 7/TYPE 8/TYPE 9/TYPE 10  ...................... 37

CAN SYSTEM (TYPE 1)  ........................................... 41

Component Parts and Harness Connector Location

... 41

Schematic ............................................................... 41
Wiring Diagram — CAN —  ..................................... 41
Check Sheet  ........................................................... 42

CHECK SHEET RESULTS (EXAMPLE)  ............. 44

CAN SYSTEM (TYPE 2)  ........................................... 55

Component Parts and Harness Connector Location

... 55

Schematic ............................................................... 55
Wiring Diagram — CAN —  ..................................... 55
Check Sheet  ........................................................... 56

CHECK SHEET RESULTS (EXAMPLE)  ............. 58

CAN SYSTEM (TYPE 3)  ........................................... 69

Component Parts and Harness Connector Location

... 69

Schematic ............................................................... 69
Wiring Diagram — CAN —  ..................................... 69
Check Sheet  ........................................................... 70

CHECK SHEET RESULTS (EXAMPLE)  ............. 72

CAN SYSTEM (TYPE 4)  ........................................... 84

Component Parts and Harness Connector Location

... 84

Schematic ............................................................... 84
Wiring Diagram — CAN —  ..................................... 84
Check Sheet  ........................................................... 85

CHECK SHEET RESULTS (EXAMPLE)  ............. 87

LAN-2

2006 Pathfinder

CAN SYSTEM (TYPE 5)  ......................................... 101

Component Parts and Harness Connector Location .101
Schematic ............................................................. 101
Wiring Diagram — CAN —  ................................... 101
Check Sheet  ......................................................... 102

CHECK SHEET RESULTS (EXAMPLE)  ........... 104

CAN SYSTEM (TYPE 6)  ......................................... 116

Component Parts and Harness Connector Location .116
Schematic ............................................................. 116
Wiring Diagram — CAN —  ................................... 116
Check Sheet  ......................................................... 117

CHECK SHEET RESULTS (EXAMPLE)  ........... 119

CAN SYSTEM (TYPE 7)  ......................................... 131

Component Parts and Harness Connector Location .131
Schematic ............................................................. 131
Wiring Diagram — CAN —  ................................... 131
Check Sheet  ......................................................... 132

CHECK SHEET RESULTS (EXAMPLE)  ........... 134

CAN SYSTEM (TYPE 8)  ......................................... 146

Component Parts and Harness Connector Location .146
Schematic ............................................................. 146
Wiring Diagram — CAN —  ................................... 146
Check Sheet  ......................................................... 147

CHECK SHEET RESULTS (EXAMPLE)  ........... 149

CAN SYSTEM (TYPE 9)  ......................................... 161

Component Parts and Harness Connector Location .161
Schematic ............................................................. 161

Wiring Diagram — CAN —  ...................................161
Check Sheet  .........................................................162

CHECK SHEET RESULTS (EXAMPLE) ............164

CAN SYSTEM (TYPE 10) ........................................177

Component Parts and Harness Connector Location .177
Schematic .............................................................177
Wiring Diagram — CAN —  ...................................177
Check Sheet  .........................................................178

CHECK SHEET RESULTS (EXAMPLE) ............180

TROUBLE DIAGNOSIS FOR SYSTEM  ..................195

Inspection Between TCM and Data Link Connector
Circuit ....................................................................195
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit ....196
ECM Circuit Inspection  .........................................197
TCM Circuit Inspection ..........................................197
Display Control Unit Circuit Inspection ..................198
Front Air Control Circuit Inspection  .......................198
Steering Angle Sensor Circuit Inspection ..............199
Data Link Connector Circuit Inspection .................199
BCM Circuit Inspection  .........................................200
Combination Meter Circuit Inspection  ...................200
Transfer Control Unit Circuit Inspection  ................201
Driver Seat Control Unit Circuit Inspection  ...........202
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ..............................................................202
IPDM E/R Circuit Inspection  .................................203
CAN Communication Circuit Inspection  ................203
IPDM E/R Ignition Relay Circuit Inspection ...........204

PRECAUTIONS

LAN-3

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

UKS0017I

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions When Using CONSULT-II

UKS0017J

When connecting CONSULT-II to data link connector, connect them through CONSULT-II CONVERTER.

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

CHECK POINTS FOR USING CONSULT-II

1.

Has CONSULT-II been used without connecting CONSULT-II CONVERTER on this vehicle?

If YES, GO TO 2.

If NO, GO TO 5.

2.

Is there any indication other than indications relating to CAN communication system in the self-diagnosis
results?

If YES, GO TO 3.

If NO, GO TO 4.

3.

Based on self-diagnosis results unrelated to CAN communication, carry out the inspection.

4.

Malfunctions may be detected in self-diagnosis depending on control units carrying out CAN communica-
tion. Therefore, erase the self-diagnosis results.

5.

Diagnose CAN communication system. Refer to

LAN-5, "TROUBLE DIAGNOSES WORK FLOW"

 .

Precautions for Trouble Diagnosis

UKS0017K

CAN SYSTEM

Do not apply voltage of 7.0 V or higher to the measurement terminals.

Use the tester with its open terminal voltage being 7.0 V or less.

Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before
checking the circuit.

LAN-4

[CAN]

PRECAUTIONS

2006 Pathfinder

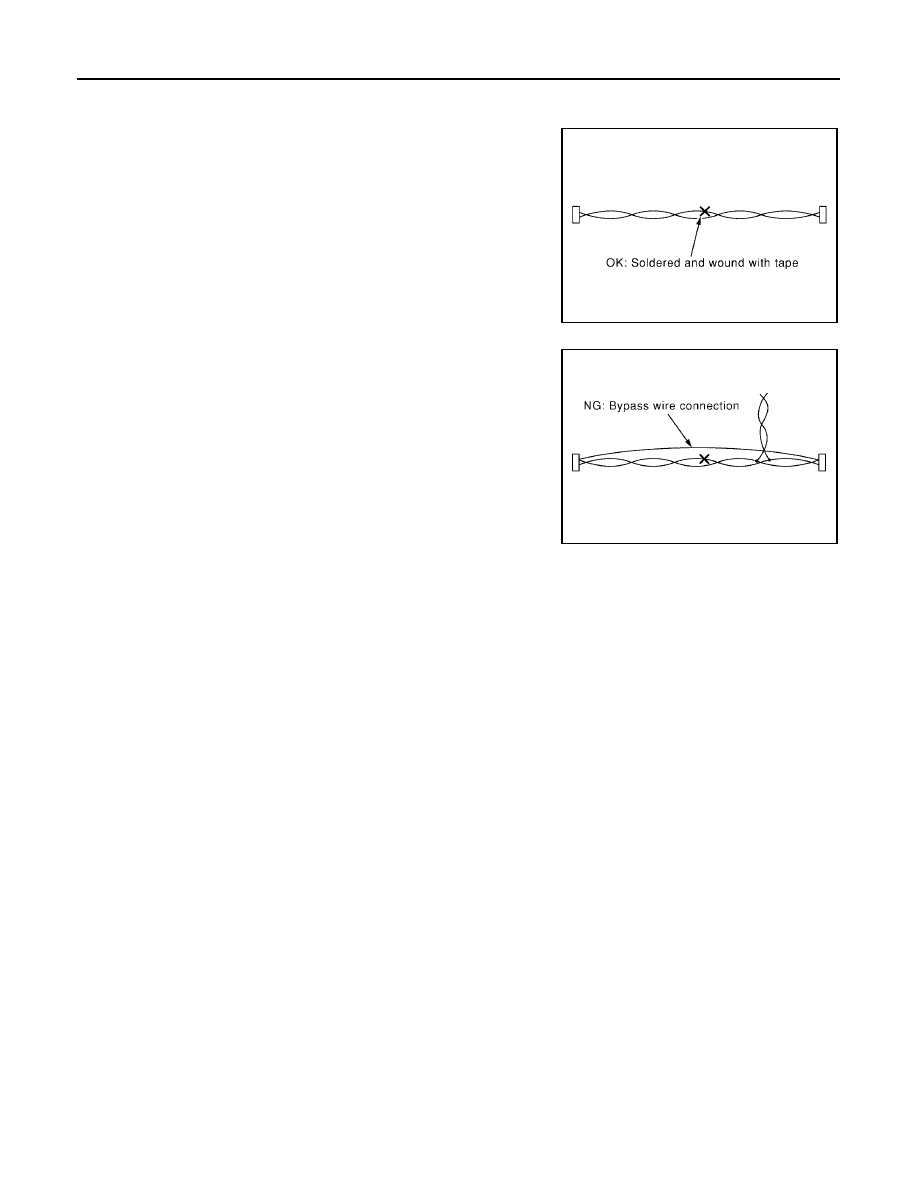

Precautions for Harness Repair

UKS0017L

CAN SYSTEM

Solder the repaired parts, and wrap with tape. [Frays of twisted
line must be within 110 mm (4.33 in).]

Do not perform bypass wire connections for the repair parts.
(The spliced wire will become separated and the characteristics
of twisted line will be lost.)

PKIA0306E

PKIA0307E

TROUBLE DIAGNOSES WORK FLOW

LAN-5

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

TROUBLE DIAGNOSES WORK FLOW

PFP:00004

When Displaying CAN Communication System Errors

UKS003GH

WHEN A MALFUNCTION IS DETECTED BY CAN COMMUNICATION SYSTEM

CAN communication line is open. (CAN H, CAN L, or both)

CAN communication line is shorted. (Ground, between CAN lines, or other harnesses)

The areas related to CAN communication of unit is malfunctioning.

WHEN A MALFUNCTION IS DETECTED EXCEPT CAN COMMUNICATION SYSTEM

Removal and installation of parts: When the units that perform CAN communication or the sensors related
to CAN communication are removed and installed, malfunction may be detected (or DTC other than CAN
communication may be detected).

Fuse blown out (removed): CAN communication of the unit may be stopped at such time.

Low voltage: If the voltage decreases because of battery discharge when IGN is ON, malfunction may be
detected by self-diagnosis according to the units.

LAN-6

[CAN]

TROUBLE DIAGNOSES WORK FLOW

2006 Pathfinder

TROUBLE DIAGNOSIS FLOW CHART

Depending on the control unit which performs CAN communication, “U1010” may be indicated as the result of
self-diagnosis. Replace the control unit if “U1010” is indicated.

Step 1: Refer to

LAN-7, "SELECTING CAN SYSTEM TYPE (HOW TO USE SPECIFICATION TABLE)"

 .

Step 2: Refer to

LAN-8, "ACQUISITION OF DATA BY CONSULT-II"

 .

Step 3: Refer to

LAN-9, "HOW TO USE CHECK SHEET TABLE"

 .

Step 4: Refer to

LAN-10, "Example of Filling in Check Sheet When Initial Conditions Are Reproduced"

 .

Step 5: Refer to

LAN-195, "TROUBLE DIAGNOSIS FOR SYSTEM"

 .

PKIC5977E

TROUBLE DIAGNOSES WORK FLOW

LAN-7

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Diagnosis Procedure

UKS003GI

SELECTING CAN SYSTEM TYPE (HOW TO USE SPECIFICATION TABLE)

Determine CAN system type from the equipment of the vehicle to select applicable check sheet.

PKIC5978E

LAN-8

[CAN]

TROUBLE DIAGNOSES WORK FLOW

2006 Pathfinder

ACQUISITION OF DATA BY CONSULT-II

Attach the data acquired by CONSULT-II on the check sheet determined according to CAN system type.(For
display control unit, transfer the data from the display screen of the vehicle to “CAN DIAG SUPPORT MONI-
TOR Check Sheet”. Refer to

AV-132, "CAN Communication Line Check"

 .)

PKIC5979E















Content      ..     278      279      280      281     ..
