Nissan Pathfinder (2006 year). Manual - part 269





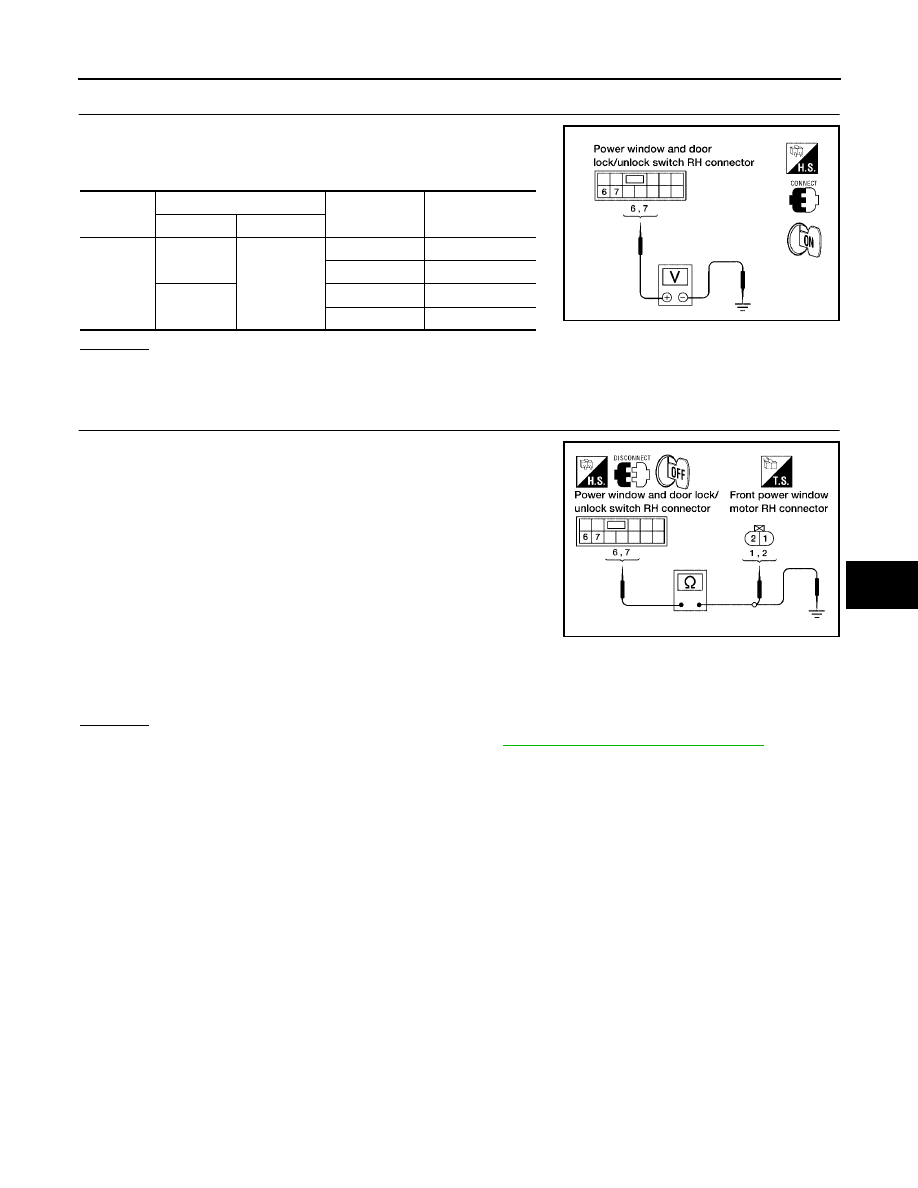

POWER WINDOW SYSTEM

GW-33

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

4.

CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between power window and door lock/unlock
switch RH connector D105 terminals 6, 7 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 6.

5.

CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front power window motor RH and power window
and door lock/unlock switch RH.

3.

Check continuity between power window and door lock/unlock
switch RH connector D105 terminals 6, 7 and front power win-
dow motor RH connector D104 terminals 1, 2.

4.

Check continuity between power window and door lock/unlock
switch RH connector D105 terminals 6, 7 and ground.

OK or NG

OK

>> Replace front power window motor RH. Refer to

GW-58, "Front Door Glass Regulator"

 .

NG

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

D105

7

Ground

UP

Battery voltage

DOWN

0

6

UP

0

DOWN

Battery voltage

LIIA1977E

7 - 2

: Continuity should exist.

6 - 1

: Continuity should exist.

6 - Ground

: Continuity should not exist.

7 - Ground

: Continuity should not exist.

LIIA2057E

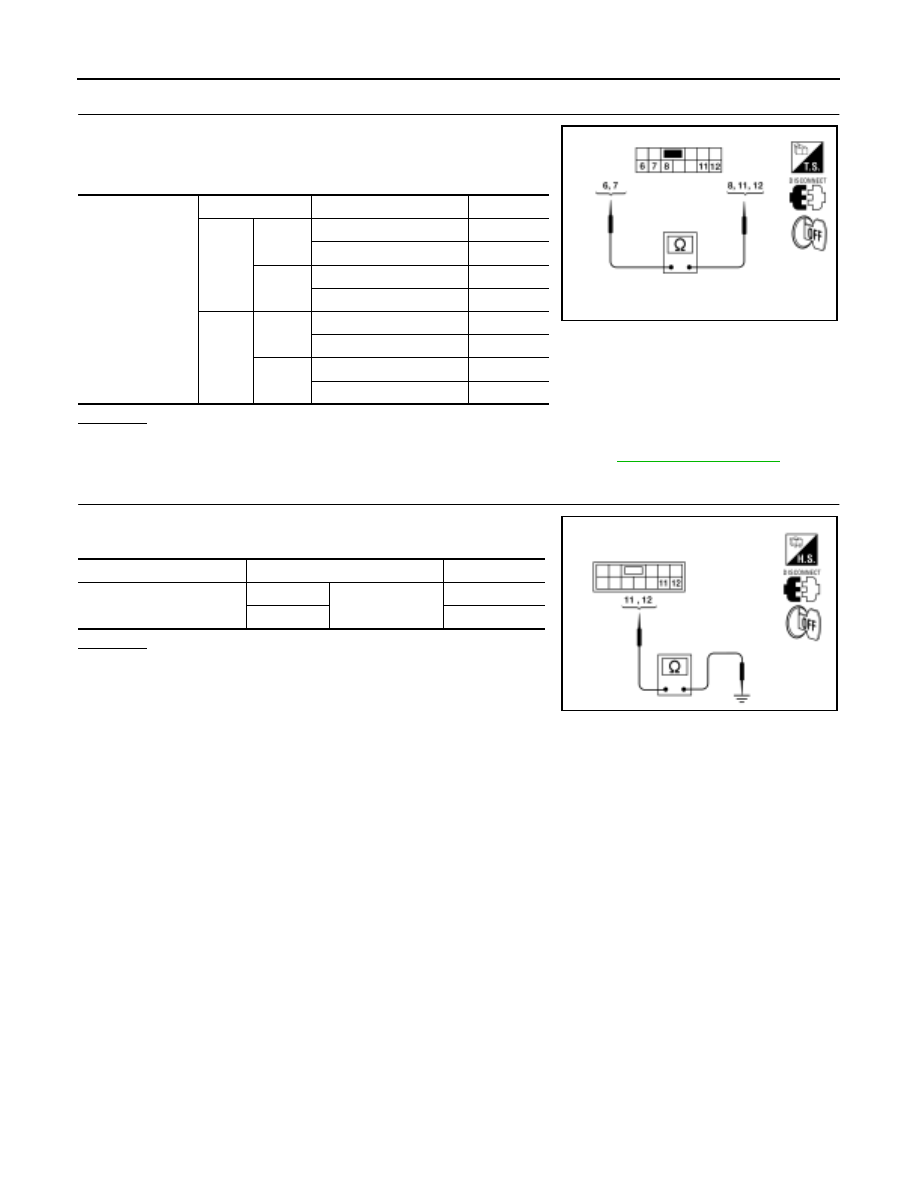

GW-34

POWER WINDOW SYSTEM

2006 Pathfinder

6.

CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

1.

Turn ignition switch OFF.

2.

Check continuity between power window and door lock/unlock
switch RH terminals.

OK or NG

OK

>> GO TO 7.

NG

>> Replace power window and door lock/unlock switch RH. Refer to

EI-25, "FRONT DOOR"

 .

7.

CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH GROUND SUPPLY

Check continuity between power window and door lock/unlock
switch RH and ground.

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> GO TO 8.

Power window and

door lock/unlock

switch RH

Terminals

Condition

Continuity

6

8

DOWN

Yes

NEUTRAL or UP

No

11

NEUTRAL or UP

Yes

DOWN

No

7

8

UP

Yes

NEUTRAL or DOWN

No

12

NEUTRAL or DOWN

Yes

UP

No

LIIA2167E

Connector

Terminals

Continuity

Power window and door

lock/unlock switch: D105

11

Ground

Yes

12

Yes

LIIA2168E

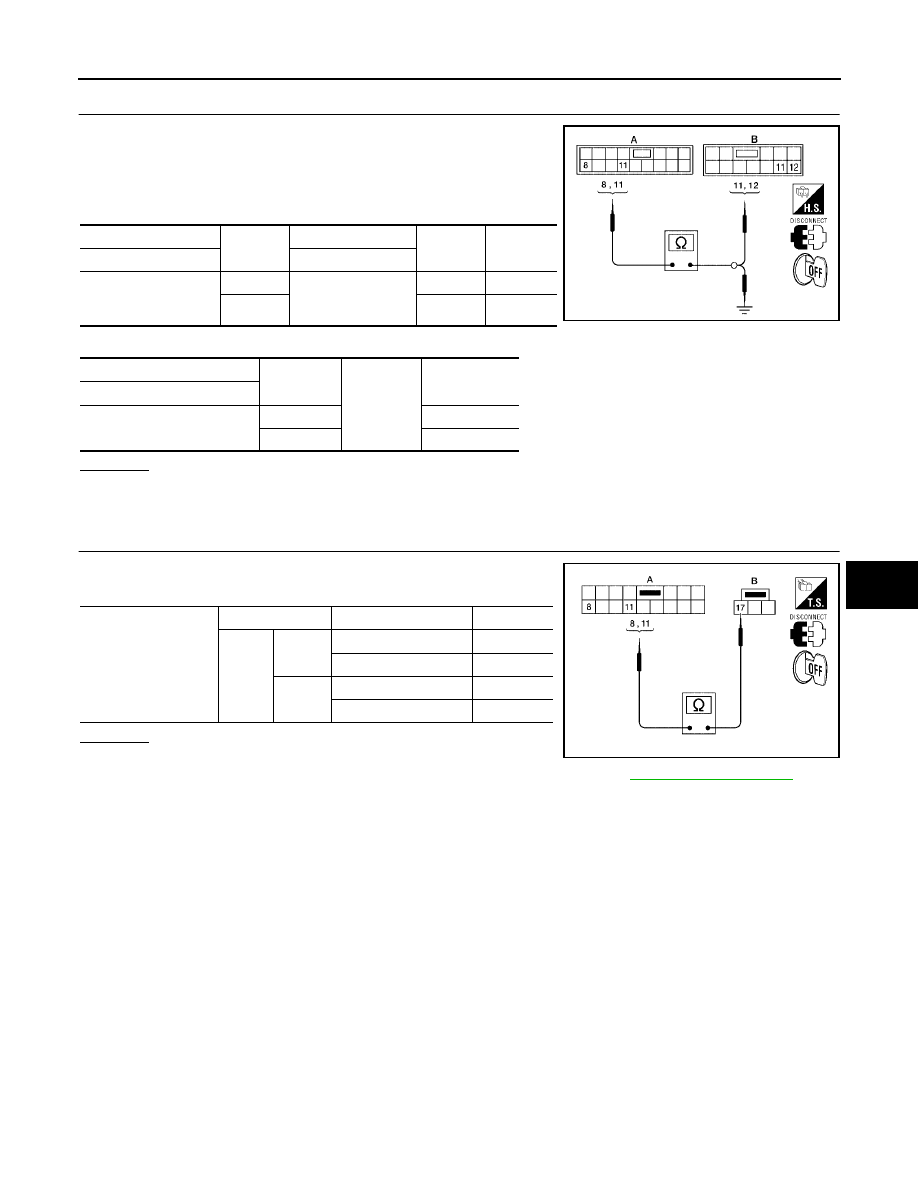

POWER WINDOW SYSTEM

GW-35

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

8.

CHECK GROUND SUPPLY CIRCUIT

1.

Disconnect main power window and door lock/unlock switch and
power window and door lock/unlock switch RH.

2.

Check continuity between main power window and door lock/
unlock switch connector and power window and door lock/
unlock switch RH connector.

3.

Check continuity between main power window and door lock/unlock switch connector and ground.

OK or NG

OK

>> GO TO 9.

NG

>> Repair or replace harness.

9.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check continuity between main power window and door lock/unlock
switch terminals.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace main power window and door lock/unlock switch. Refer to

EI-25, "FRONT DOOR"

 .

Connector

Terminal

Connector

Terminal

Continuity

A

B

Main power window

and door lock/unlock

switch: D7

8

Power window and

door lock/unlock

switch RH: D105

12

Yes

11

11

Yes

Connector

Terminal

Ground

Continuity

A

Main power window and door

lock/unlock switch: D7

8

No

11

No

LIIA2217E

Main power window

and door lock/unlock

switch

Terminals

Condition

Continuity

17

8

Lock switch UNLOCK

Yes

Lock switch LOCK

No

11

Lock switch UNLOCK

Yes

Lock switch LOCK

No

LIIA2218E

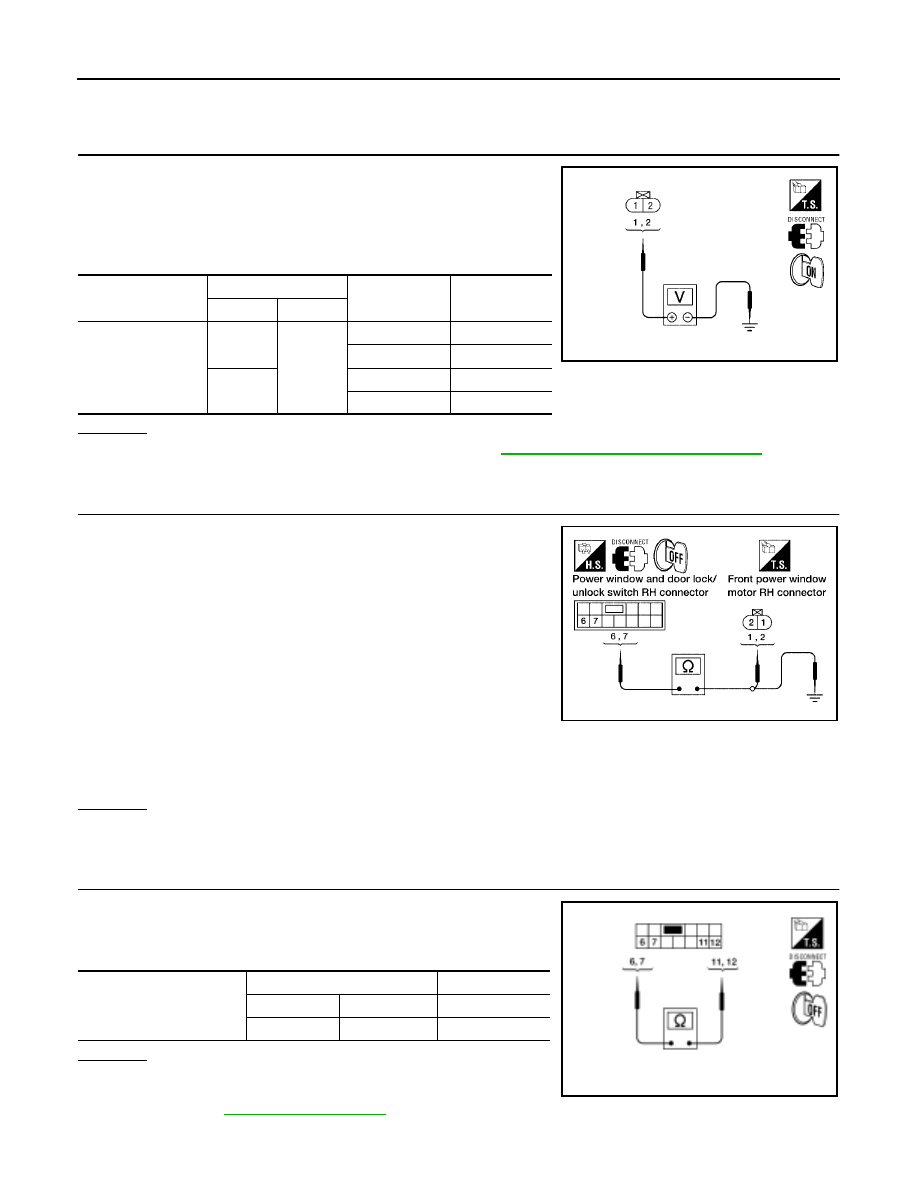

GW-36

POWER WINDOW SYSTEM

2006 Pathfinder

Front Power Window RH Circuit Check (Main Power Window and Door Lock/
Unlock Switch Operation)

EIS007RQ

1.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect front power window motor RH.

3.

Turn ignition switch ON.

4.

Check voltage between front power window motor RH connector
and ground.

OK or NG

OK

>> Replace front power window motor RH. Refer to

GW-58, "Front Door Glass Regulator"

 .

NG

>> GO TO 2.

2.

CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front power window motor RH and power window
and door lock/unlock switch RH.

3.

Check continuity between power window and door lock/unlock
switch RH connector D105 terminals 6, 7 and front power win-
dow motor RH connector D104 terminals 1, 2.

4.

Check continuity between power window and door lock/unlock
switch RH connector D105 terminals 6, 7 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

1.

Turn ignition switch OFF.

2.

Check continuity between power window and door lock/unlock
switch RH terminals.

OK or NG

OK

>> GO TO 4.

NG

>> Replace power window and door lock/unlock switch RH.

Refer to

EI-25, "FRONT DOOR"

 .

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Front power window

motor RH: D104

1

Ground

UP

0

DOWN

Battery voltage

2

UP

Battery voltage

DOWN

0

LIIA2431E

7 - 2

: Continuity should exist.

6 - 1

: Continuity should exist.

6 - Ground

: Continuity should not exist.

7 - Ground

: Continuity should not exist.

LIIA2057E

Power window and door

lock/unlock switch

Terminals

Continuity

6

11

Yes

7

12

Yes

LIIA2172E

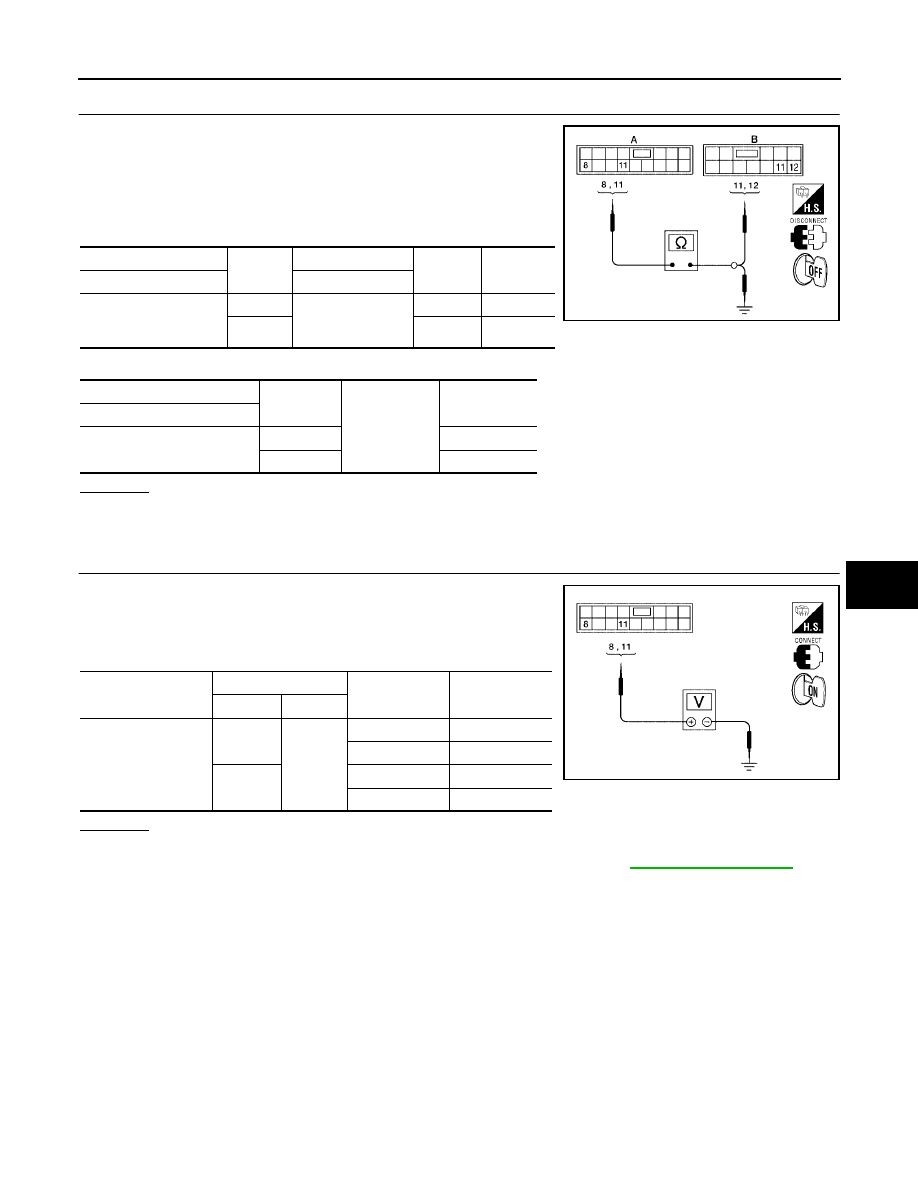

POWER WINDOW SYSTEM

GW-37

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

4.

CHECK GROUND SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect main power window and door lock/unlock switch and
power window and door lock/unlock switch RH.

3.

Check continuity between main power window and door lock/
unlock switch connector and power window and door lock/
unlock switch RH connector.

4.

Check continuity between main power window and door lock/unlock switch connector and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness.

5.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH SIGNAL

1.

Connect main power window and door lock/unlock switch.

2.

Turn ignition switch ON.

3.

Check voltage between main power window and door lock/
unlock switch connector and ground.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace main power window and door lock/unlock switch. Refer to

EI-25, "FRONT DOOR"

 .

Connector

Terminal

Connector

Terminal

Continuity

A

B

Main power window

and door lock/unlock

switch: D7

8

Power window and

door lock/unlock

switch RH: D105

12

Yes

11

11

Yes

Connector

Terminal

Ground

Continuity

A

Main power window and door

lock/unlock switch: D7

8

No

11

No

LIIA2217E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Main power window

and door lock/unlock

switch: D7

8

Ground

UP

Battery voltage

DOWN

0

11

UP

0

DOWN

Battery voltage

LIIA2221E

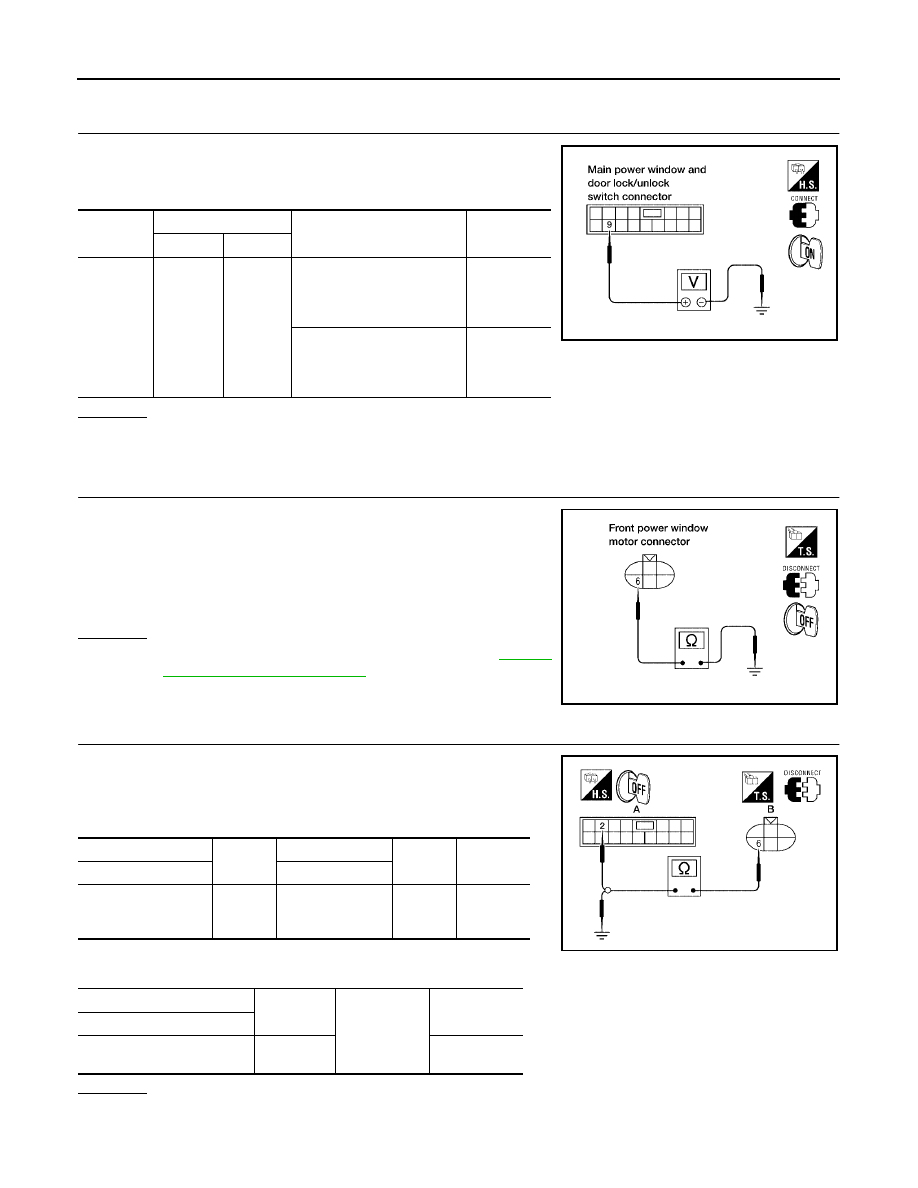

GW-38

POWER WINDOW SYSTEM

2006 Pathfinder

Limit Switch Circuit Check Front LH

EIS007RR

1.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH LIMIT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between main power window and door lock/
unlock switch connector D7 terminal 9 and ground.

OK or NG

OK

>> Limit switch circuit is OK.

NG

>> GO TO 2.

2.

CHECK LIMIT SWITCH GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front power window motor LH.

3.

Check continuity between front power window motor LH connec-
tor D9 terminal 6 and ground.

OK or NG

OK

>> Replace front power window motor LH. Refer to

GW-58,

"Front Door Glass Regulator"

 .

NG

>> GO TO 3.

3.

CHECK HARNESS CONTINUITY

1.

Disconnect main power window and door lock/unlock switch.

2.

Check continuity between main power window and door lock/
unlock switch connector and front power window motor LH con-
nector.

3.

Check continuity between front power window motor LH connec-
tor and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

D7

9

Ground

Front door window LH is
between fully-open and just
before fully-closed position
(ON)

0

Front door window LH is
between just before fully-
closed position and fully-
closed position (OFF)

5

LIIA0339E

6 - Ground

: Continuity should exist.

LIIA0923E

Connector

Terminal

Connector

Terminal

Continuity

A

B

Main power window

and door lock/unlock

switch: D7

2

Front power win-

dow motor LH: D9

6

Yes

Connector

Terminal

Ground

Continuity

B

Front power window motor

LH: D9

6

No

LIIA2222E

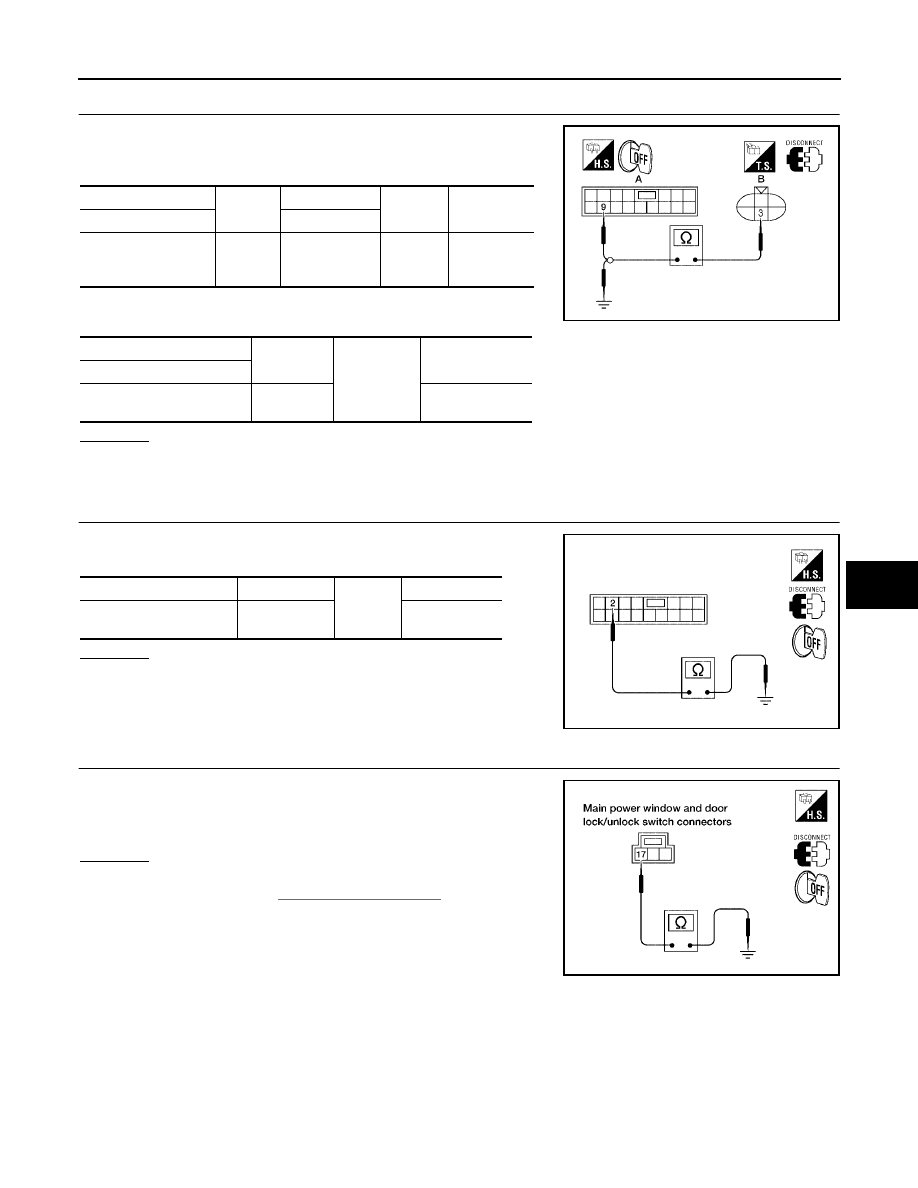

POWER WINDOW SYSTEM

GW-39

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

4.

CHECK HARNESS CONTINUITY

1.

Check continuity between main power window and door lock/
unlock switch connector and front power window motor LH con-
nector.

2.

Check continuity between front power window motor LH connec-
tor and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness.

5.

CHECK LIMIT SWITCH GROUND

Check continuity between main power window and door lock/unlock
switch connector and ground.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH GROUND CIRCUIT

Check continuity between main power window and door lock/unlock
switch connector D8 terminal 17 and ground.

OK or NG

OK

>> Replace main power window and door lock/unlock

switch. Refer to

EI-25, "FRONT DOOR"

 .

NG

>> Repair or replace harness.

Connector

Terminal

Connector

Terminal

Continuity

A

B

Main power window

and door lock/unlock

switch: D7

9

Front power

window motor

LH: D9

3

Yes

Connector

Terminal

Ground

Continuity

B

Front power window motor

LH: D9

3

No

LIIA2223E

Connector

Terminal

Ground

Continuity

Main power window door

lock/unlock switch: D7

2

Yes

LIIA2224E

17 - Ground

: Continuity should exist.

LIIA1253E

GW-40

POWER WINDOW SYSTEM

2006 Pathfinder

7.

CHECK FRONT POWER WINDOW MOTOR LH LIMIT SIGNAL

1.

Connect main power window and door lock/unlock switch and
front power window motor LH.

2.

Turn ignition switch ON.

3.

Check voltage between main power window and door lock/
unlock switch connector.

OK or NG

OK

>> Check the condition of the harness and connector.

NG

>> Replace front power window motor LH. Refer to

GW-58, "Front Door Glass Regulator"

 .

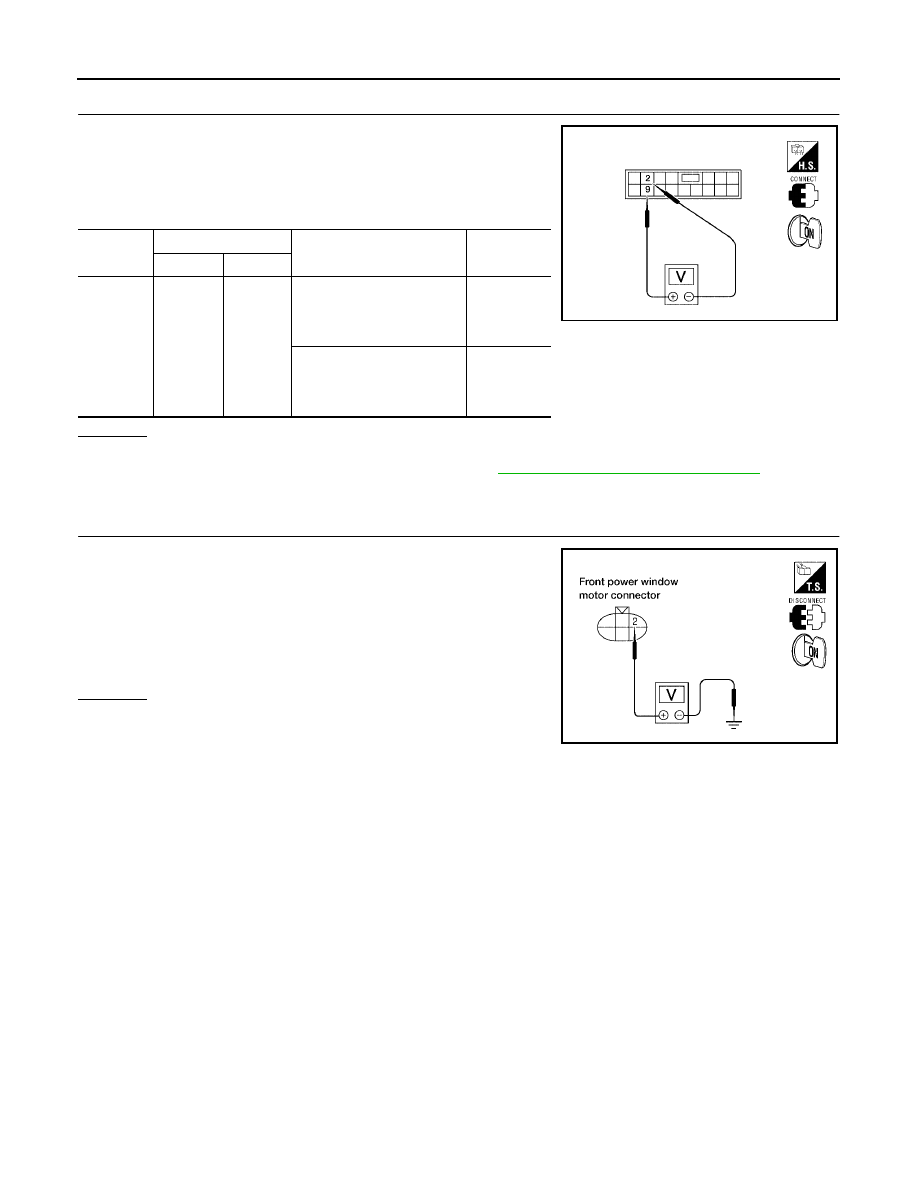

Encoder Circuit Check Front LH

EIS007RS

1.

CHECK FRONT POWER WINDOW MOTOR LH POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect front power window motor LH.

3.

Turn ignition switch ON.

4.

Check voltage between front power window motor LH connector
D9 terminal 2 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Main

power win-

dow and

door lock/

unlock

switch: D7

9

2

Front power window LH is
between fully-open and just
before fully-closed position
(ON)

0

Front power window LH is
between just before fully-
closed position and fully-
closed position (OFF)

5

LIIA2225E

2 - Ground

: Approx. 10V

LIIA2032E















Content      ..     267      268      269      270     ..
